11-Bit, 105Msps ADC
Part No.: LTC2222-11
Page: 24 Pages
Size: 539 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-15 16:50:22
DataSheet: Download

LTC2222-11 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2222CUK-11#PBF Tube 52 LTC2222UK-11 1 48 0°C ~ 70°C 48-Lead QFN (7mm x 7mm x 0.75mm)
LTC2222CUK-11#TRPBF Reel 2000 LTC2222UK-11 1 48 0°C ~ 70°C 48-Lead QFN (7mm x 7mm x 0.75mm)
LTC2222CUK-11#TRMPBF Reel 500 LTC2222UK-11 1 48 0°C ~ 70°C 48-Lead QFN (7mm x 7mm x 0.75mm)
LTC2222IUK-11#PBF Tube 52 LTC2222UK-11 1 48 -40°C ~ 85°C 48-Lead QFN (7mm x 7mm x 0.75mm)
LTC2222IUK-11#TRPBF Reel 2000 LTC2222UK-11 1 48 -40°C ~ 85°C 48-Lead QFN (7mm x 7mm x 0.75mm)
LTC2222IUK-11#TRMPBF Reel 500 LTC2222UK-11 1 48 -40°C ~ 85°C 48-Lead QFN (7mm x 7mm x 0.75mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2222-11 Datasheet(PDF)

LTC2222-11 Datasheet(Picture)

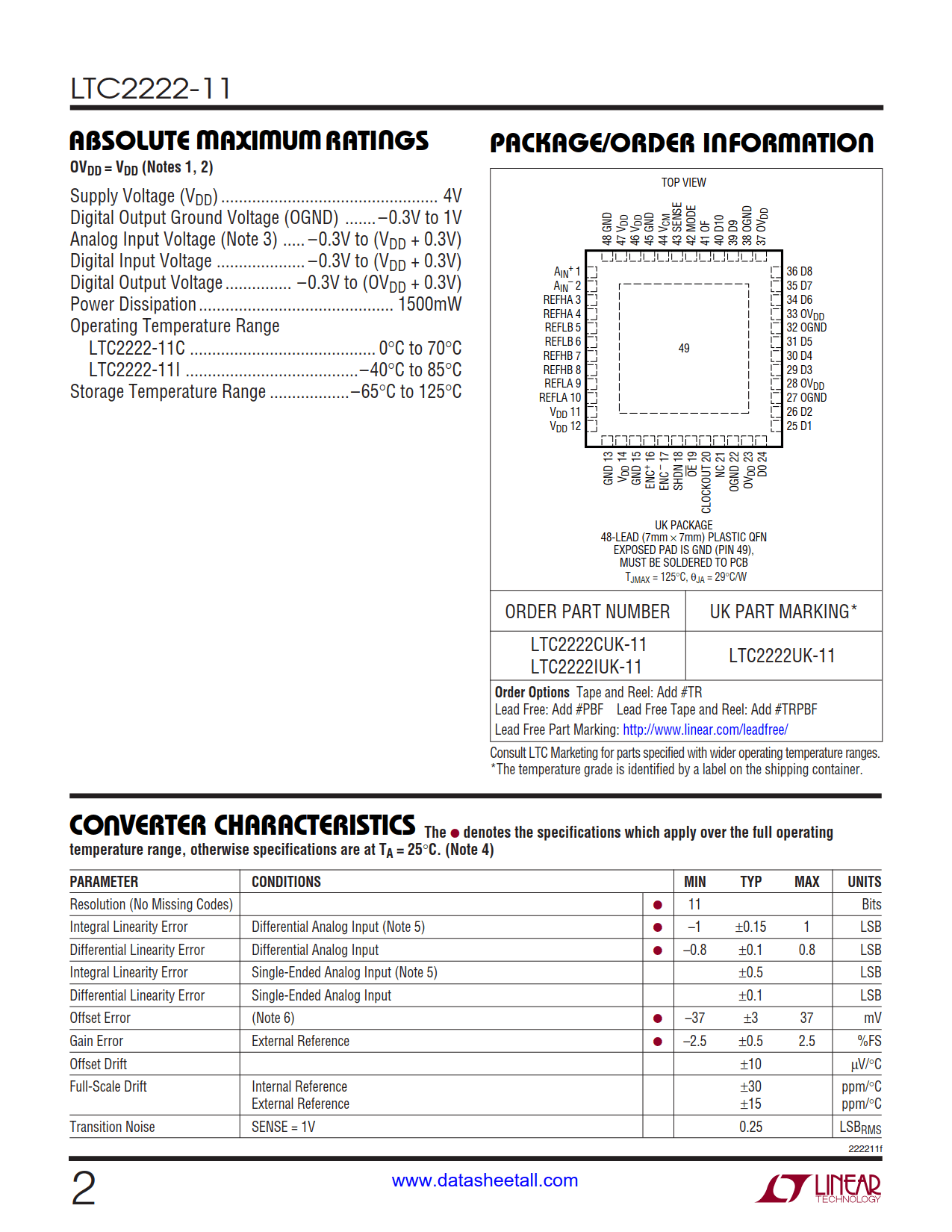

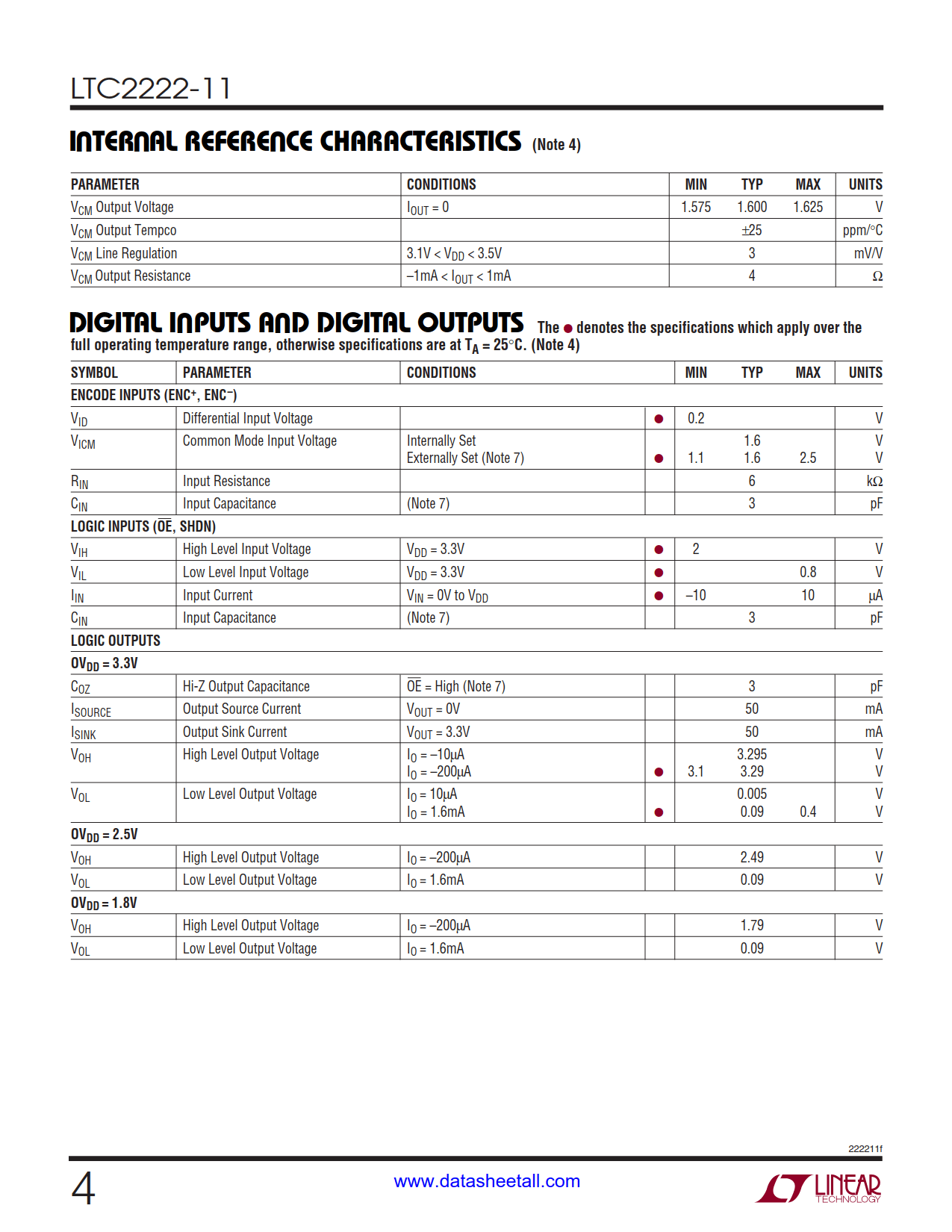

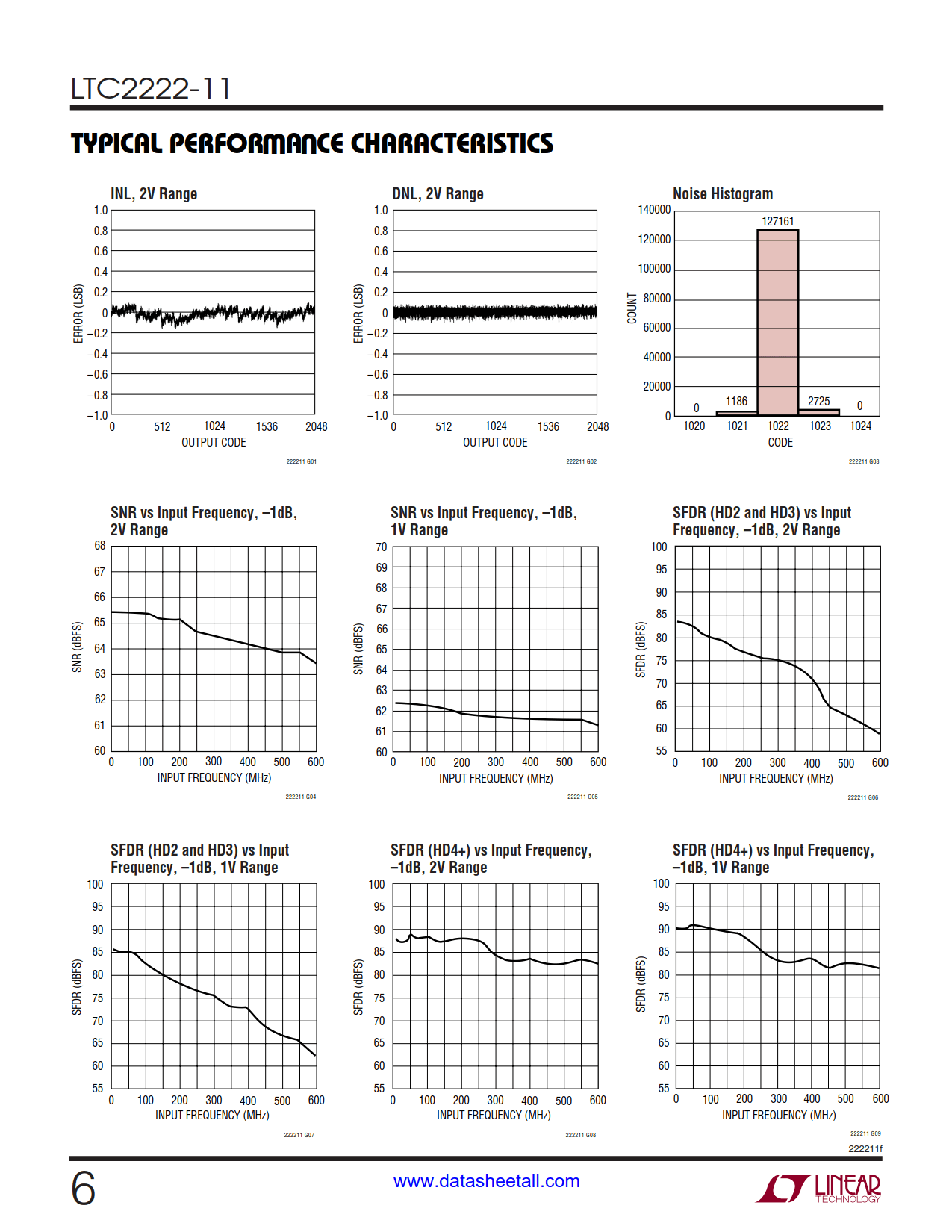

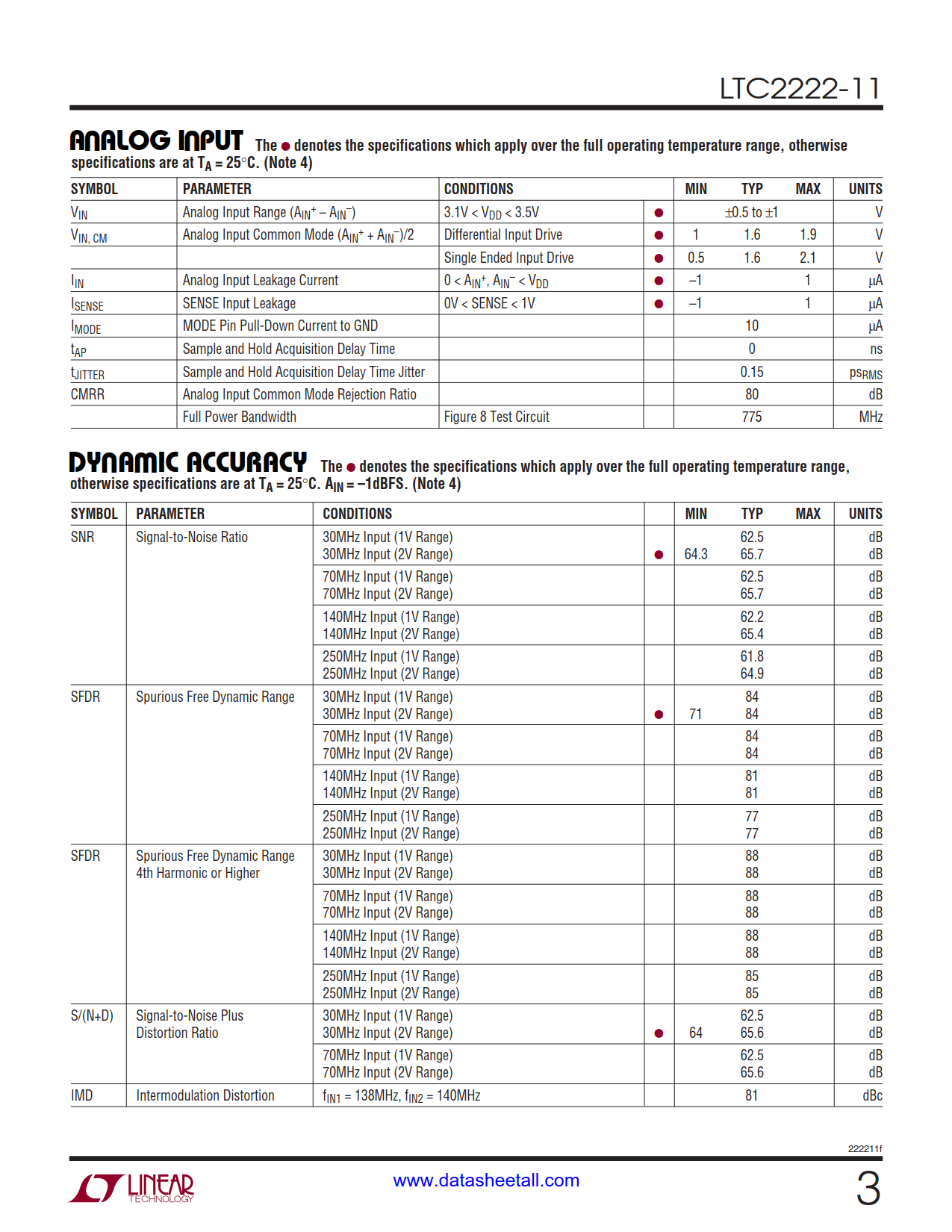

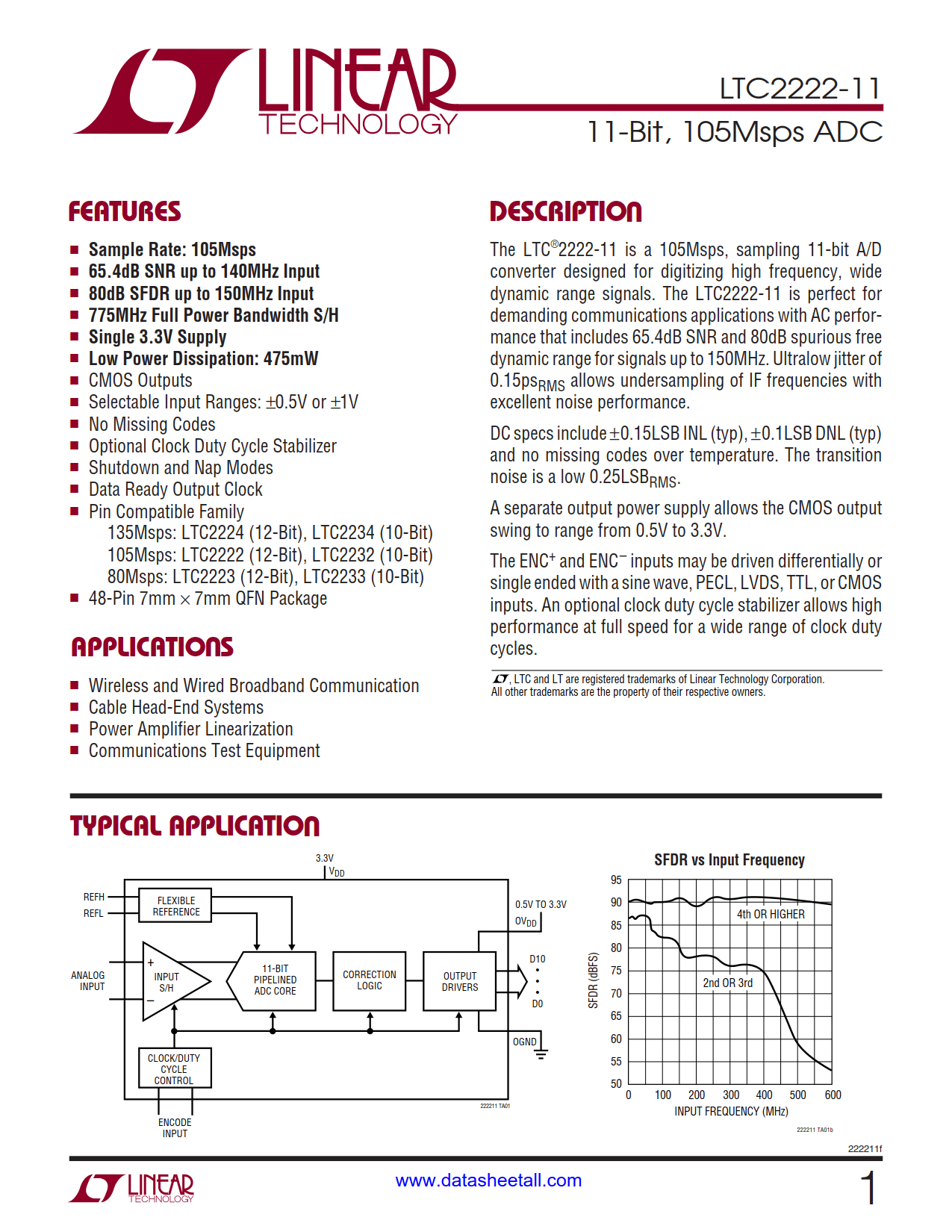

LTC2222-11 Features

  • Sample Rate: 105Msps
  • 65.4dB SNR up to 140MHz Input
  • 80dB SFDR up to 150MHz Input
  • 775MHz Full Power Bandwidth S/H
  • Single 3.3V Supply
  • Low Power Dissipation: 475mW
  • CMOS Outputs
  • Selectable Input Ranges: ±0.5V or ±1V
  • No Missing Codes
  • Optional Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Data Ready Output Clock
  • Pin Compatible Family
  • 48-Pin 7mm × 7mm QFN Package

LTC2222-11 Applications

  • Wireless and Wired Broadband Communication
  • Cable Head-End Systems
  • Power Amplifier Linearization
  • Communications Test Equipment

LTC2222-11 Description

The LTC2222-11 is a 105Msps, sampling 11-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2222-11 is perfect for demanding communications applications with AC performance that includes 65.4dB SNR and 80dB spurious free dynamic range for signals up to 150MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.15LSB INL (typ), ±0.1LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.

A separate output power supply allows the CMOS output swing to range from 0.5V to 3.3V.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

LTC2222-11 Datasheet Related Parts
