LTC2205-14 Datasheet

LTC2205-14 Datasheet

14-Bit, 65Msps ADC
Part No.: LTC2205-14
Page: 28 Pages
Size: 1173 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-11-14 15:17:10
DataSheet: Download

LTC2205-14 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2205CUK-14#PBF Tube 52 LTC2205UK-14 1 48 0°C ~ 70°C 48-Lead (7mm × 7mm) Plastic QFN
LTC2205CUK-14#TRPBF Reel 2000 LTC2205UK-14 1 48 0°C ~ 70°C 48-Lead (7mm × 7mm) Plastic QFN
LTC2205CUK-14#TRMPBF Reel 500 LTC2205UK-14 1 48 0°C ~ 70°C 48-Lead (7mm × 7mm) Plastic QFN
LTC2205IUK-14#PBF Tube 52 LTC2205UK-14 1 48 -40°C ~ 85°C 48-Lead (7mm × 7mm) Plastic QFN
LTC2205IUK-14#TRPBF Reel 2000 LTC2205UK-14 1 48 -40°C ~ 85°C 48-Lead (7mm × 7mm) Plastic QFN
LTC2205IUK-14#TRMPBF Reel 500 LTC2205UK-14 1 48 -40°C ~ 85°C 48-Lead (7mm × 7mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2205-14 Datasheet(PDF)

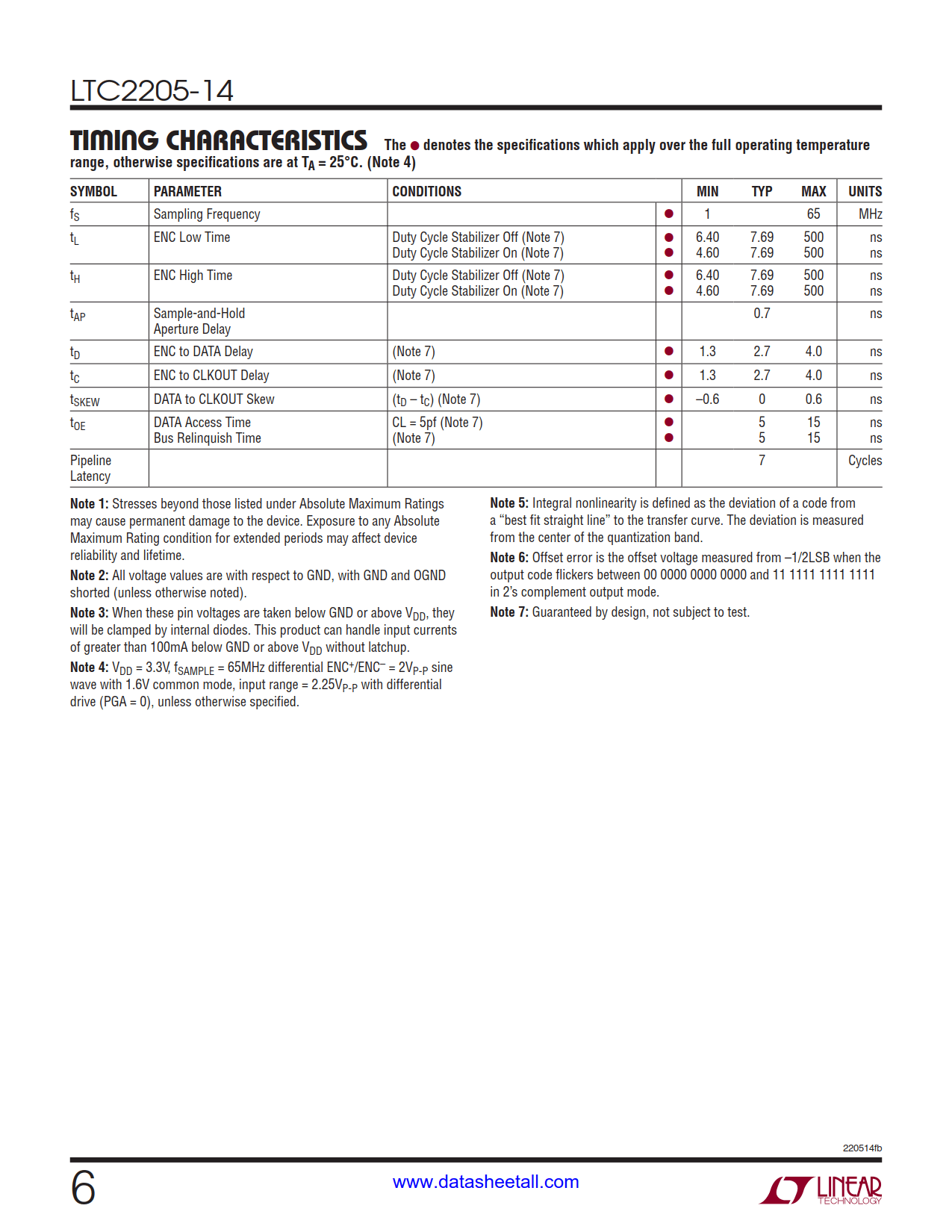

LTC2205-14 Datasheet(Picture)

LTC2205-14 Features

  • Sample Rate: 65Msps
  • 78.3dB SNR and 98dB SFDR (2.25VP-P Range)
  • SFDR >90dB at 140MHz (1.5VP-P Input Range)
  • PGA Front End (2.25VP-P or 1.5VP-P Input Range)
  • 700MHz Full Power Bandwidth S/H
  • Optional Internal Dither
  • Optional Data Output Randomizer
  • Single 3.3V Supply
  • Power Dissipation: 600mW
  • Optional Clock Duty Cycle Stabilizer
  • Out-of-Range Indicator
  • Pin Compatible Family
  • 48-Pin (7mm × 7mm) QFN Package

LTC2205-14 Applications

  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems
  • ATE

LTC2205-14 Description

The LTC2205-14 is a sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals up to input frequencies of 700MHz. The input range of the ADC can be optimized with the PGA front end.

The LTC2205-14 is perfect for demanding communications applications, with AC performance that includes 78.3dB SNR and 98dB spurious free dynamic range (SFDR). Ultralow jitter of 90fsRMS allows undersampling of high input frequencies with excellent noise performance. Maximum DC specs include ±1.5LSB INL, ±1LSB DNL (no missing codes).

A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.

The ENC+ and ENC inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycles.
