| Part No.： | LTC2057HV |
| Page： | 32 Pages |
| Size： | 1623 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-26 10:28:35 |
| DataSheet： | Download |

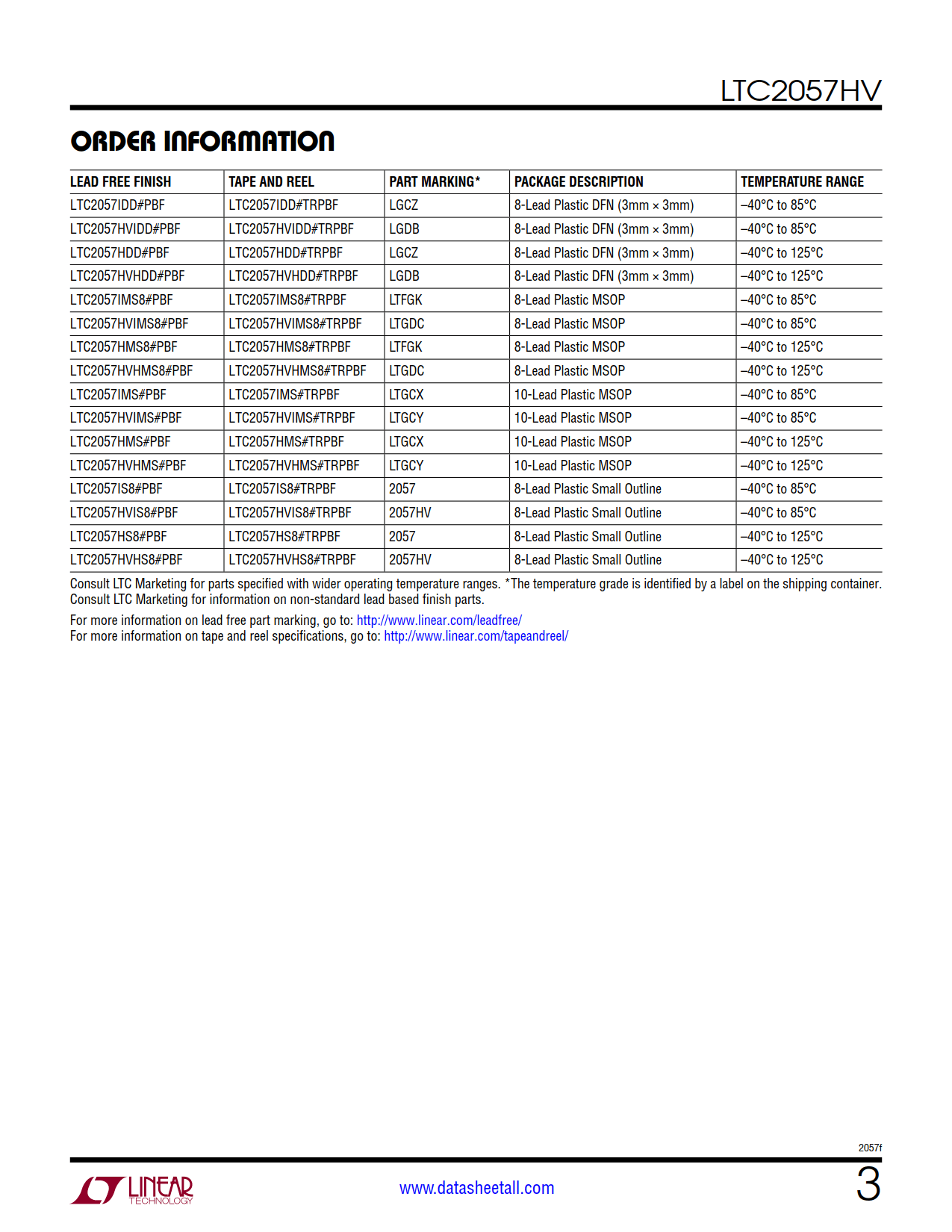

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2057HVIDD#PBF | Tube | 121 | LGDB | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVIDD#TRPBF | Reel | 2500 | LGDB | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVIDD#TRMPBF | Reel | 500 | LGDB | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVHDD#PBF | Tube | 121 | LGDB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVHDD#TRPBF | Reel | 2500 | LGDB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVHDD#TRMPBF | Reel | 500 | LGDB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic DFN (3mm × 3mm) | |
| LTC2057HVIMS8#PBF | Tube | 50 | LTGDC | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2057HVIMS8#TRPBF | Reel | 2500 | LTGDC | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2057HVIMS8#TRMPBF | Reel | 500 | LTGDC | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2057HVHMS8#PBF | Tube | 50 | LTGDC | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC2057HVHMS8#TRPBF | Reel | 2500 | LTGDC | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC2057HVHMS8#TRMPBF | Reel | 500 | LTGDC | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC2057HVIMS#PBF | Tube | 50 | LTGCY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC2057HVIMS#TRPBF | Reel | 2500 | LTGCY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC2057HVIMS#TRMPBF | Reel | 500 | LTGCY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC2057HVHMS#PBF | Tube | 50 | LTGCY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC2057HVHMS#TRPBF | Reel | 2500 | LTGCY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC2057HVHMS#TRMPBF | Reel | 500 | LTGCY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC2057HVIS8#PBF | Tube | 100 | 2057HV | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic Small Outline | |
| LTC2057HVIS8#TRPBF | Reel | 2500 | 2057HV | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic Small Outline | |
| LTC2057HVIS8#TRMPBF | Reel | 500 | 2057HV | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic Small Outline | |
| LTC2057HVHS8#PBF | Tube | 100 | 2057HV | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic Small Outline | |
| LTC2057HVHS8#TRPBF | Reel | 2500 | 2057HV | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic Small Outline | |
| LTC2057HVHS8#TRMPBF | Reel | 500 | 2057HV | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic Small Outline |

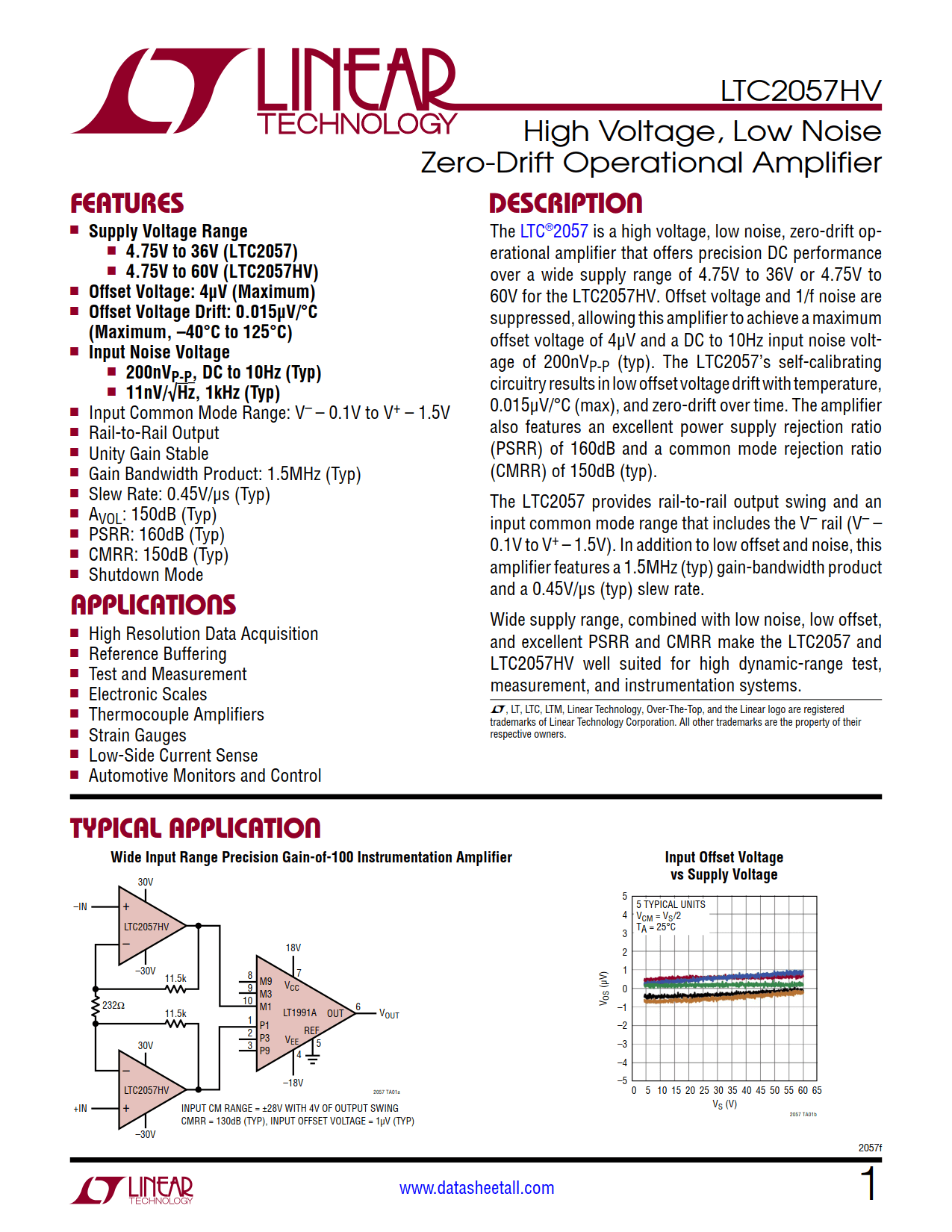

The LTC2057HV is a high voltage, low noise, zero-drift operational amplifier that offers precision DC performance over a wide supply range of 4.75V to 60V. Offset voltage and 1/f noise are suppressed, allowing this amplifier to achieve a maximum offset voltage of 4μV and a DC to 10Hz input noise voltage of 200nVP-P (typ). The LTC2057’s self-calibrating circuitry results in low offset voltage drift with temperature, 0.015μV/°C (max), and zero-drift over time. The amplifier also features an excellent power supply rejection ratio (PSRR) of 160dB and a common mode rejection ratio (CMRR) of 150dB (typ).
The LTC2057HV provides rail-to-rail output swing and an input common mode range that includes the V– rail (V– – 0.1V to V+ – 1.5V). In addition to low offset and noise, this amplifier features a 1.5MHz (typ) gain-bandwidth product and a 0.45V/μs (typ) slew rate.
Wide supply range, combined with low noise, low offset, and excellent PSRR and CMRR make the LTC2057HV well suited for high dynamic-range test, measurement, and instrumentation systems.
