| Part No.： | LTC2053 |
| Page： | 18 Pages |
| Size： | 401 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-20 10:19:23 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2053CDD#PBF | Tube | 121 | LAEQ | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053CDD#TRPBF | Reel | 2500 | LAEQ | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053CDD#TRMPBF | Reel | 500 | LAEQ | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053IDD#PBF | Tube | 121 | LAEQ | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053IDD#TRPBF | Reel | 2500 | LAEQ | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053IDD#TRMPBF | Reel | 500 | LAEQ | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053HDD#PBF | Tube | 121 | LAEQ | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053HDD#TRPBF | Reel | 2500 | LAEQ | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053HDD#TRMPBF | Reel | 50 | LAEQ | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC2053CMS8#PBF | Tube | 50 | LTVT | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC2053CMS8#TRPBF | Reel | 2500 | LTVT | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC2053CMS8#TRMPBF | Reel | 500 | LTVT | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC2053IMS8#PBF | Tube | 50 | LTJY | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2053IMS8#TRPBF | Reel | 2500 | LTJY | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2053IMS8#TRMPBF | Reel | 500 | LTJY | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC2053HMS8#PBF | Tube | 50 | LTAFB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC2053HMS8#TRPBF | Reel | 2500 | LTAFB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC2053HMS8#TRMPBF | Reel | 500 | LTAFB | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP |

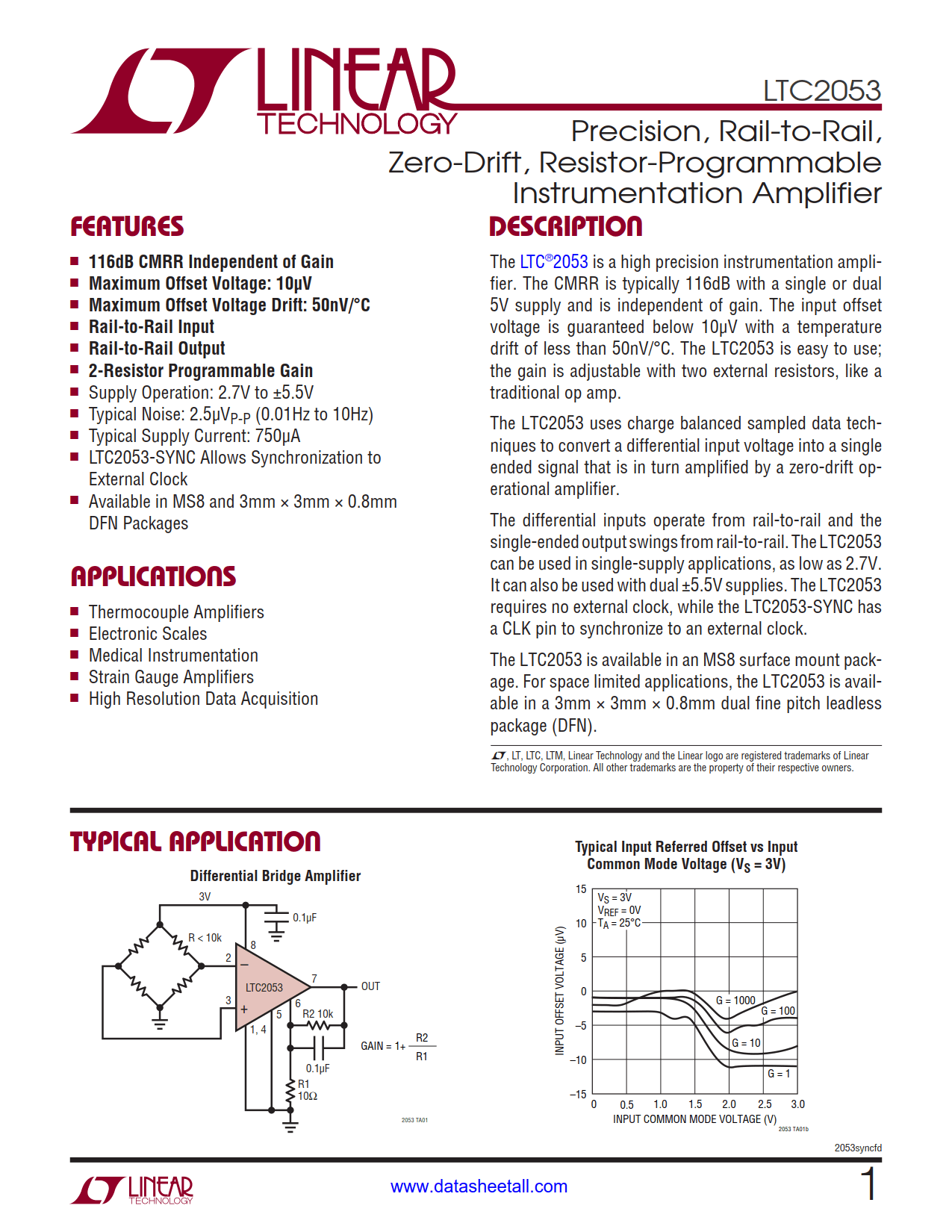

The LTC2053 is a high precision instrumentation amplifier. The CMRR is typically 116dB with a single or dual 5V supply and is independent of gain. The input offset voltage is guaranteed below 10μV with a temperature drift of less than 50nV/°C. The LTC2053 is easy to use; the gain is adjustable with two external resistors, like a traditional op amp.
The LTC2053 uses charge balanced sampled data techniques to convert a differential input voltage into a single ended signal that is in turn amplified by a zero-drift operational amplifier.
The differential inputs operate from rail-to-rail and the single-ended output swings from rail-to-rail. The LTC2053 can be used in single-supply applications, as low as 2.7V. It can also be used with dual ±5.5V supplies. The LTC2053 requires no external clock.
The LTC2053 is available in an MS8 surface mount package. For space limited applications, the LTC2053 is available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN).
