LTC2050HV Datasheet

LTC2050HV Datasheet

High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range
Part No.: LTC2050HV
Page: 16 Pages
Size: 1005 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-11-08 15:09:30
DataSheet: Download

LTC2050HV Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2050HVCS5#PBF Tube   LTAEH 1 5 0°C ~ 70°C 5-Lead Plastic TSOT-23
LTC2050HVCS5#TRPBF Reel 2500 LTAEH 1 5 0°C ~ 70°C 5-Lead Plastic TSOT-23
LTC2050HVCS5#TRMPBF Reel 500 LTAEH 1 5 0°C ~ 70°C 5-Lead Plastic TSOT-23
LTC2050HVIS5#PBF Tube   LTAEH 1 5 -40°C ~ 85°C 5-Lead Plastic TSOT-23
LTC2050HVIS5#TRPBF Reel 2500 LTAEH 1 5 -40°C ~ 85°C 5-Lead Plastic TSOT-23
LTC2050HVIS5#TRMPBF Reel 500 LTAEH 1 5 -40°C ~ 85°C 5-Lead Plastic TSOT-23
LTC2050HVHS5#PBF Tube   LTAEH 1 5 -40°C ~ 125°C 5-Lead Plastic TSOT-23
LTC2050HVHS5#TRPBF Reel 2500 LTAEH 1 5 -40°C ~ 125°C 5-Lead Plastic TSOT-23
LTC2050HVHS5#TRMPBF Reel 500 LTAEH 1 5 -40°C ~ 125°C 5-Lead Plastic TSOT-23
LTC2050HVMPS6#PBF Tube   LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
LTC2050HVMPS6#TRPBF Reel 2500 LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
LTC2050HVMPS6#TRMPBF Reel 500 LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
LTC2050HVCS6#PBF Tube   LTAEK 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC2050HVCS6#TRPBF Reel 2500 LTAEK 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC2050HVCS6#TRMPBF Reel 500 LTAEK 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC2050HVIS6#PBF Tube   LTAEK 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC2050HVIS6#TRPBF Reel 2500 LTAEK 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC2050HVIS6#TRMPBF Reel 500 LTAEK 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC2050HVHS6#PBF Tube   LTAEK 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC2050HVHS6#TRPBF Reel 2500 LTAEK 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC2050HVHS6#TRMPBF Reel 500 LTAEK 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC2050HVCS8#PBF Tube 100 2050HV 1 8 0°C ~ 70°C 8-Lead Plastic SO
LTC2050HVCS8#TRPBF Reel 2500 2050HV 1 8 0°C ~ 70°C 8-Lead Plastic SO
LTC2050HVCS8#TRMPBF Reel 500 2050HV 1 8 0°C ~ 70°C 8-Lead Plastic SO
LTC2050HVIS8#PBF Tube 100 050HVI 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC2050HVIS8#TRPBF Reel 2500 050HVI 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC2050HVIS8#TRMPBF Reel 500 050HVI 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC2050HVMPS6#WPBF Tube   LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
LTC2050HVMPS6#WTRPBF Reel 2500 LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
LTC2050HVMPS6#WTRMPBF Reel 500 LTHGP 1 6 -55°C ~ 150°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2050HV Datasheet(PDF)

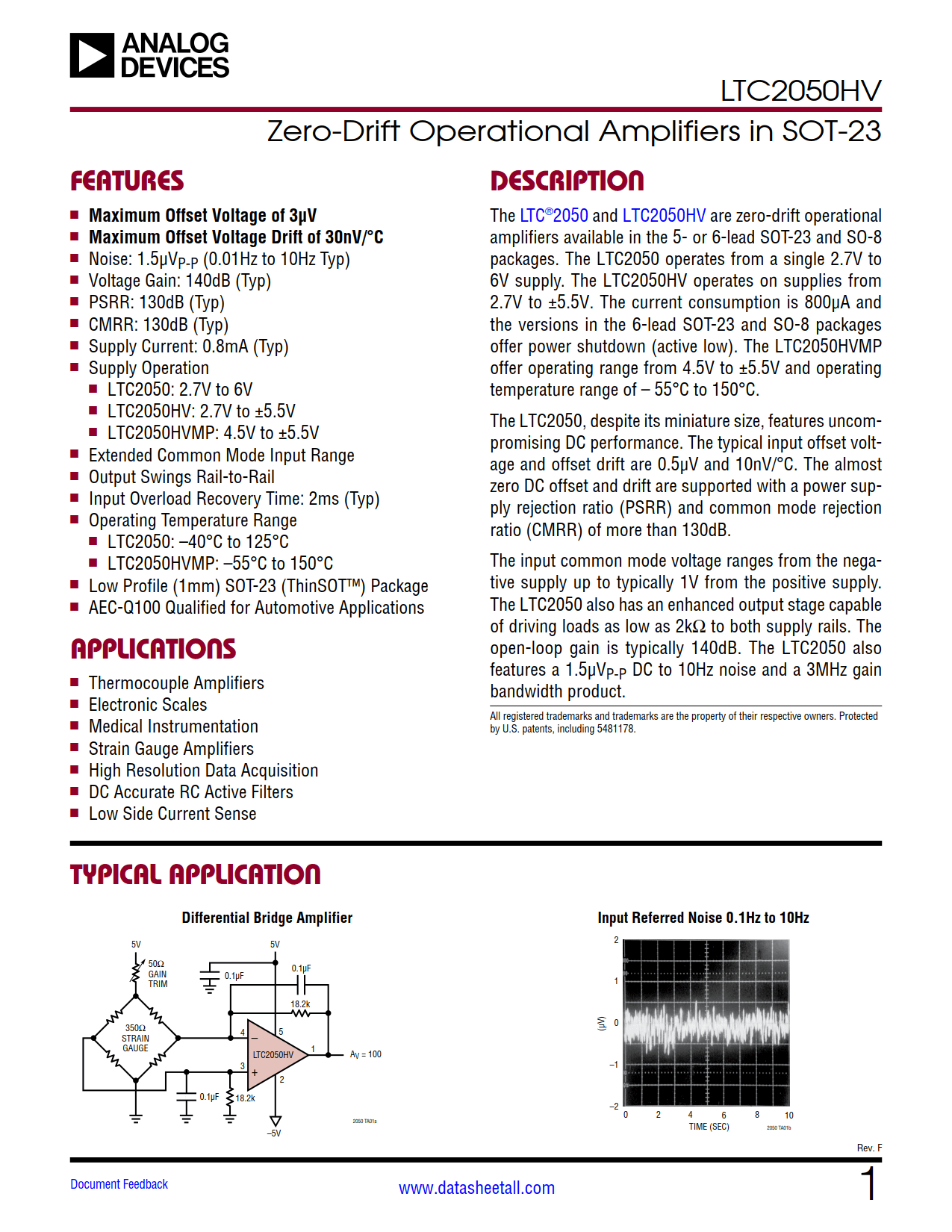

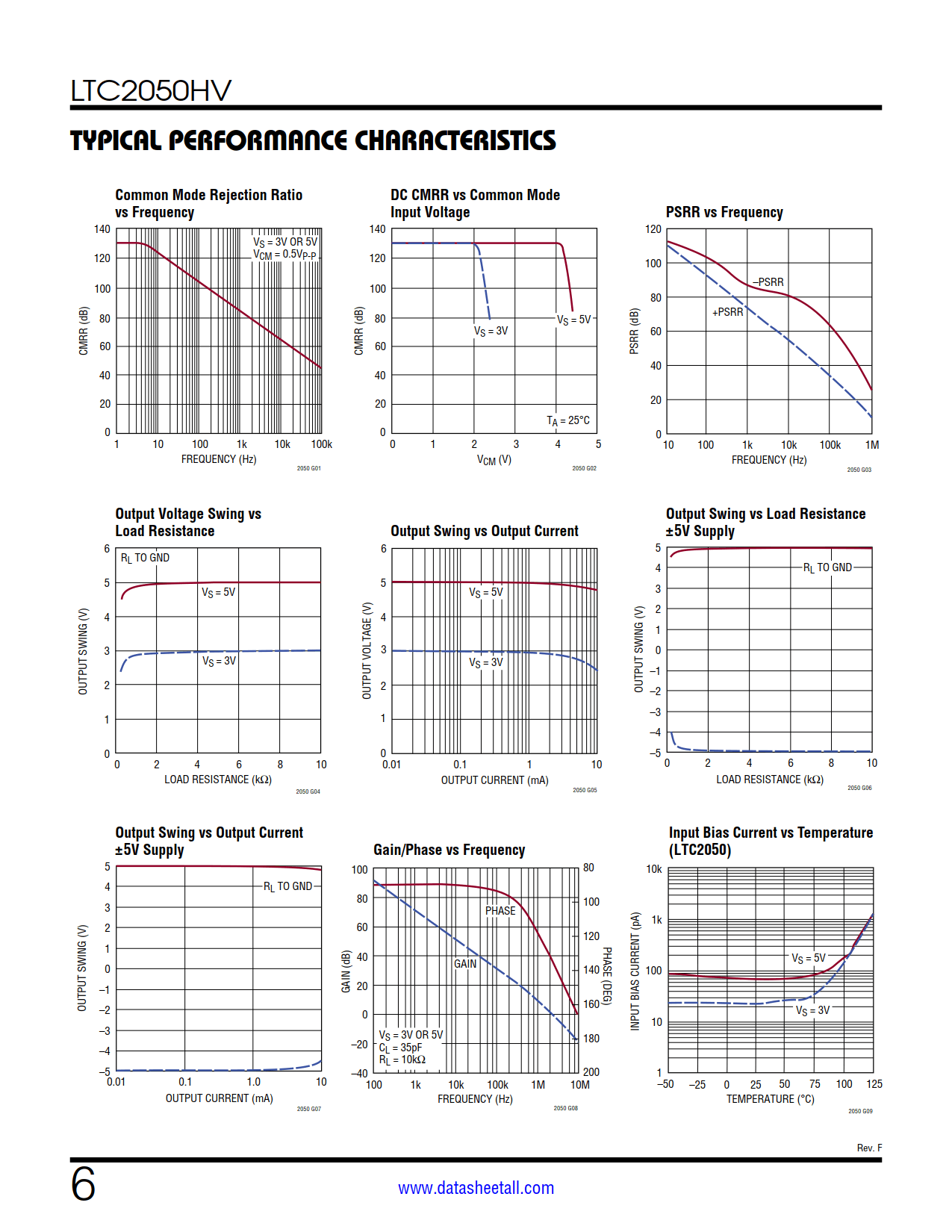

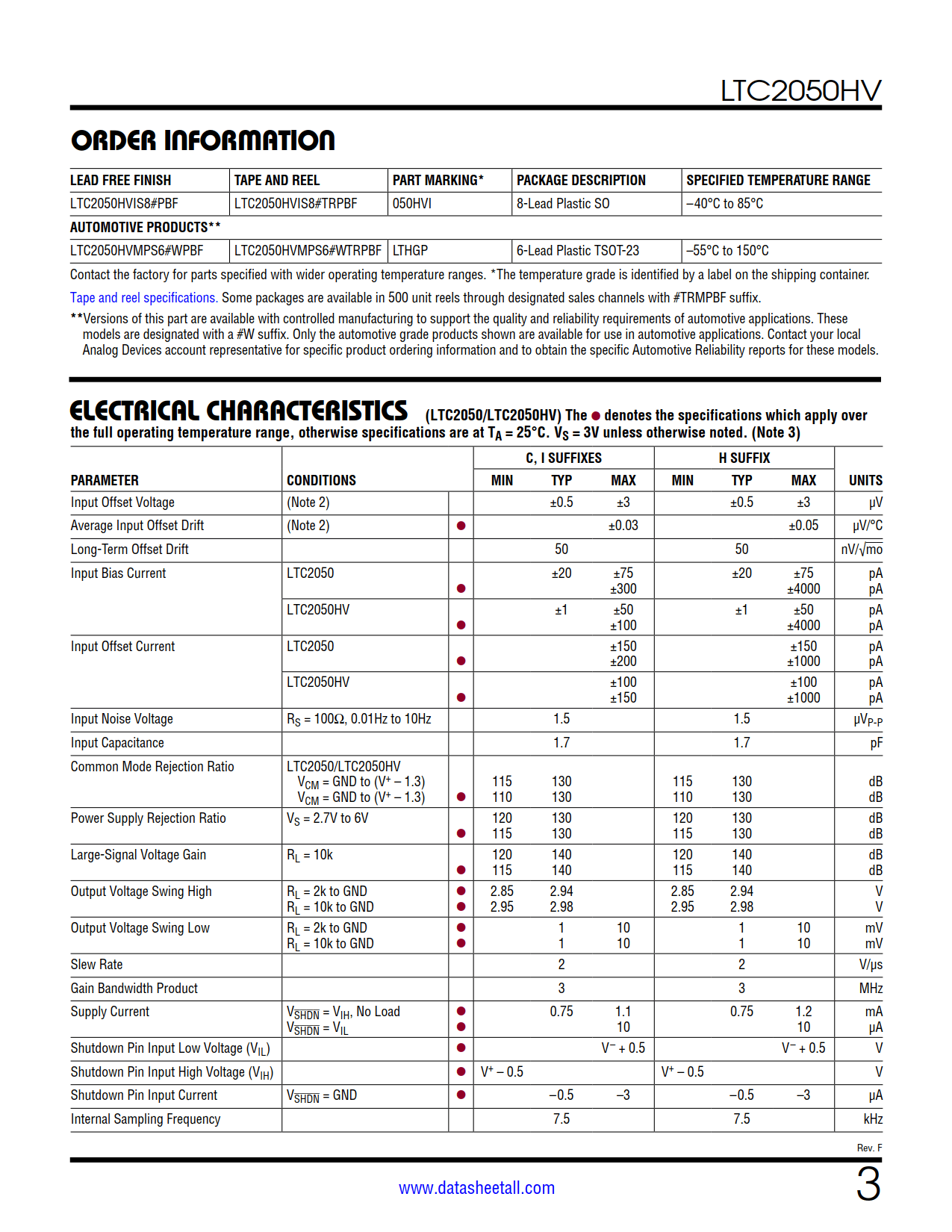

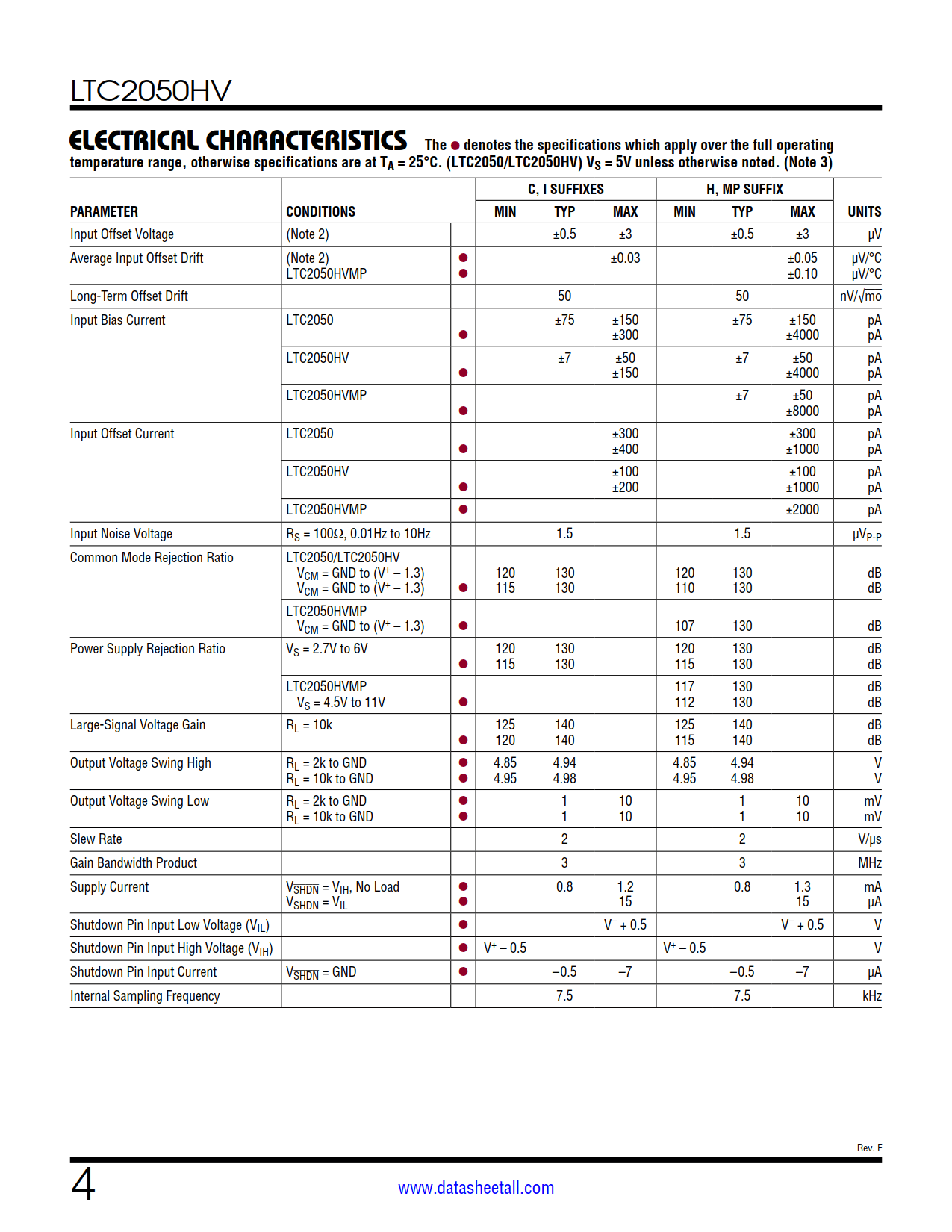

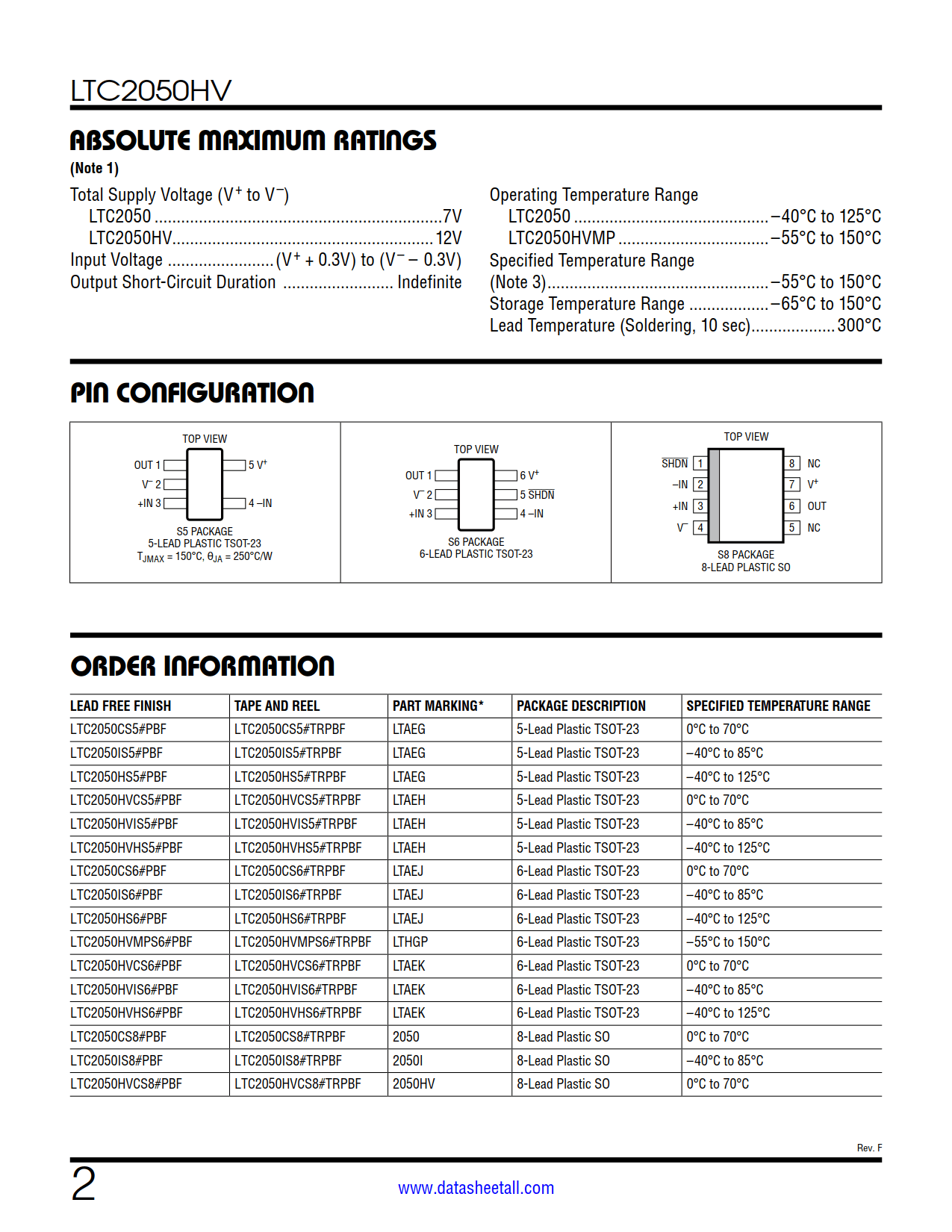

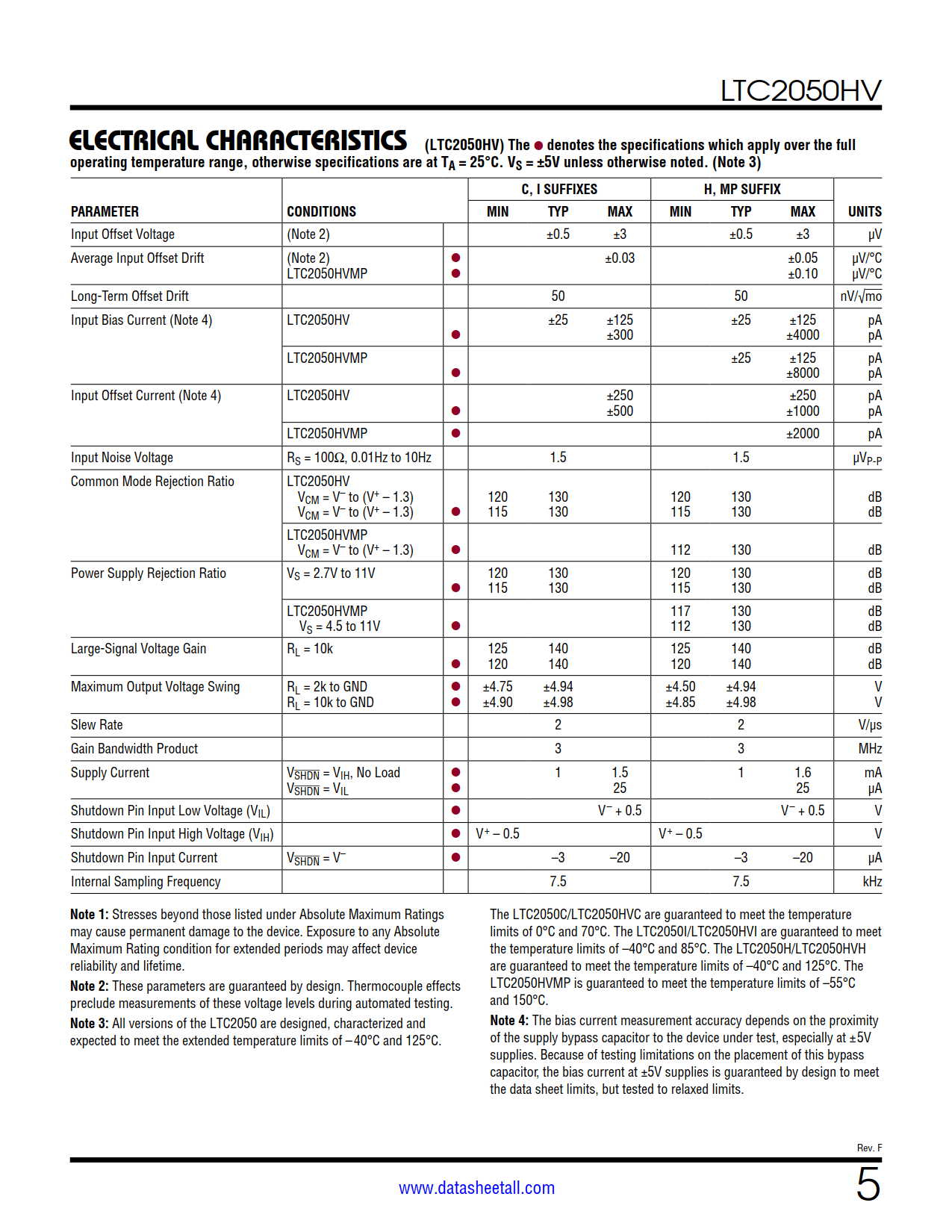

LTC2050HV Datasheet(Picture)

LTC2050HV Features

  • Maximum Offset Voltage of 3µV
  • Maximum Offset Voltage Drift of 30nV/°C
  • Noise: 1.5µVP-P (0.01Hz to 10Hz Typ)
  • Voltage Gain: 140dB (Typ)
  • PSRR: 130dB (Typ)
  • CMRR: 130dB (Typ)
  • Supply Current: 0.8mA (Typ)
  • Supply Operation
    • LTC2050HV: 2.7V to ±5.5V
    • LTC2050HVMP: 4.5V to ±5.5V
  • Extended Common Mode Input Range
  • Output Swings Rail-to-Rail
  • Input Overload Recovery Time: 2ms (Typ)
  • Operating Temperature Range
    • LTC2050HVMP: –55°C to 150°C
  • Low Profile (1mm) SOT-23 (ThinSOT) Package
  • AEC-Q100 Qualified for Automotive Applications

LTC2050HV Applications

  • Thermocouple Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Strain Gauge Amplifiers
  • High Resolution Data Acquisition
  • DC Accurate RC Active Filters
  • Low Side Current Sense

LTC2050HV Description

The LTC2050HV are zero-drift operational amplifiers available in the 5- or 6-lead SOT-23 and SO-8 packages. The LTC2050HV operates on supplies from 2.7V to ±5.5V. The current consumption is 800µA and the versions in the 6-lead SOT-23 and SO-8 packages offer power shutdown (active low). The LTC2050HVMP offer operating range from 4.5V to ±5.5V and operating temperature range of – 55°C to 150°C.

The LTC2050HV, despite its miniature size, features uncompromising DC performance. The typical input offset voltage and offset drift are 0.5µV and 10nV/°C. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of more than 130dB.

The input common mode voltage ranges from the negative supply up to typically 1V from the positive supply. The LTC2050HV also has an enhanced output stage capable of driving loads as low as 2kΩ to both supply rails. The open-loop gain is typically 140dB. The LTC2050HV also features a 1.5µVP-P DC to 10Hz noise and a 3MHz gain bandwidth product.
