LTC1864L Datasheet

LTC1864L Datasheet

µPower, 3V, 16-Bit, 150ksps 1-Channel ADCs in MSOP
Part No.: LTC1864L
Page: 16 Pages
Size: 343 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-04-11 15:51:36
DataSheet: Download

LTC1864L Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1864LCMS8#PBF Tube 50 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LCMS8#TRPBF Reel 2500 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LCMS8#TRMPBF Reel 500 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LIMS8#PBF Tube 50 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LIMS8#TRPBF Reel 2500 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LIMS8#TRMPBF Reel 500 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LACMS8#PBF Tube 50 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LACMS8#TRPBF Reel 2500 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LACMS8#TRMPBF Reel 500 LTC7 1 8 0°C ~70°C 8-Lead MSOP
LTC1864LAIMS8#PBF Tube 50 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LAIMS8#TRPBF Reel 2500 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LAIMS8#TRMPBF Reel 500 LTC7 1 8 -40°C ~85°C 8-Lead MSOP
LTC1864LCS8#PBF Tube 100 1864L 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LCS8#TRPBF Reel 2500 1864L 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LCS8#TRMPBF Reel 500 1864L 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LIS8#PBF Tube 100 1864LI 1 8 -40°C ~85°C 8-Lead SOIC
LTC1864LIS8#TRPBF Reel 2500 1864LI 1 8 -40°C ~85°C 8-Lead SOIC
LTC1864LIS8#TRMPBF Reel 500 1864LI 1 8 -40°C ~85°C 8-Lead SOIC
LTC1864LACS8#PBF Tube 100 1864LA 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LACS8#TRPBF Reel 2500 1864LA 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LACS8#TRMPBF Reel 500 1864LA 1 8 0°C ~70°C 8-Lead SOIC
LTC1864LAIS8#PBF Tube 100 864LAI 1 8 -40°C ~85°C 8-Lead SOIC
LTC1864LAIS8#TRPBF Reel 2500 864LAI 1 8 -40°C ~85°C 8-Lead SOIC
LTC1864LAIS8#TRMPBF Reel 500 864LAI 1 8 -40°C ~85°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1864L Datasheet(PDF)

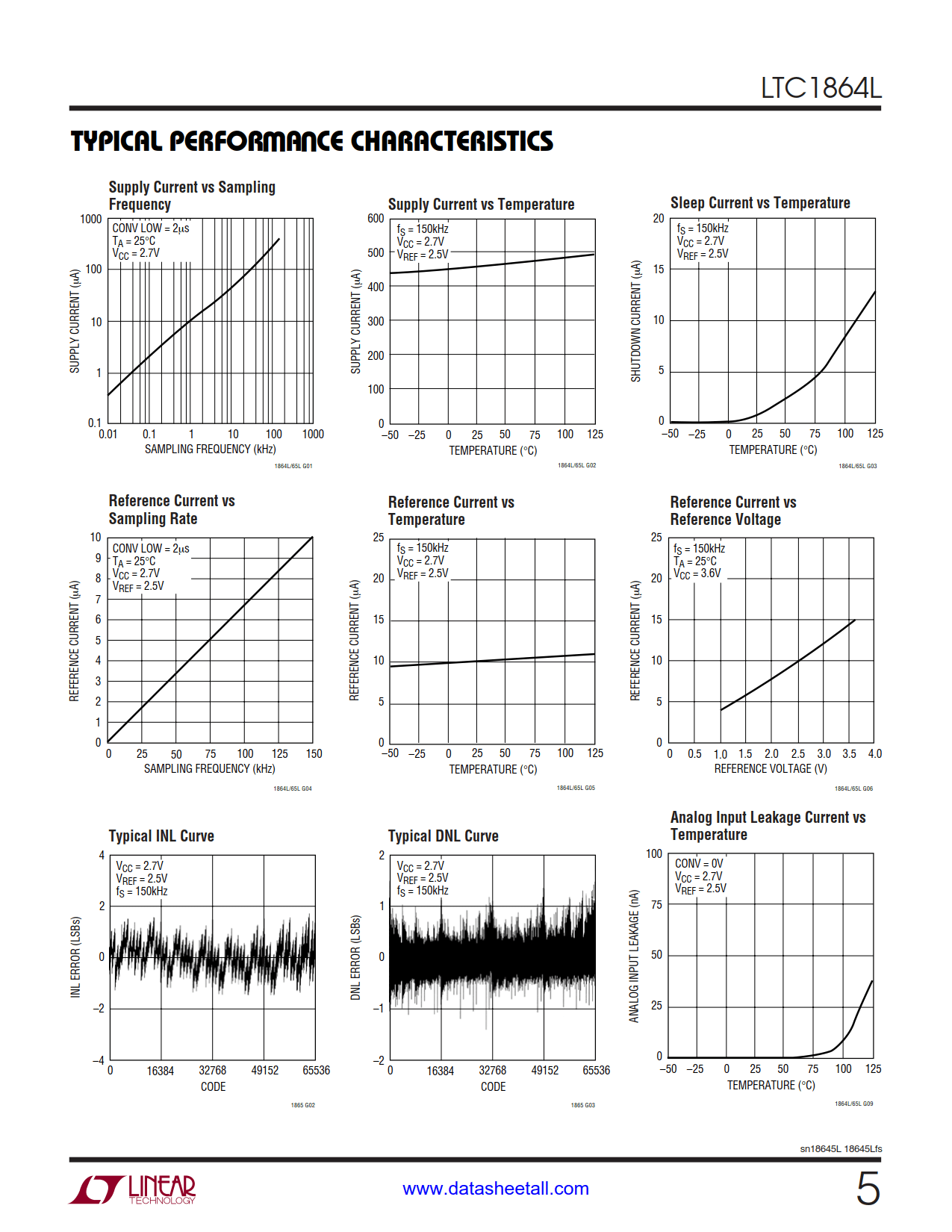

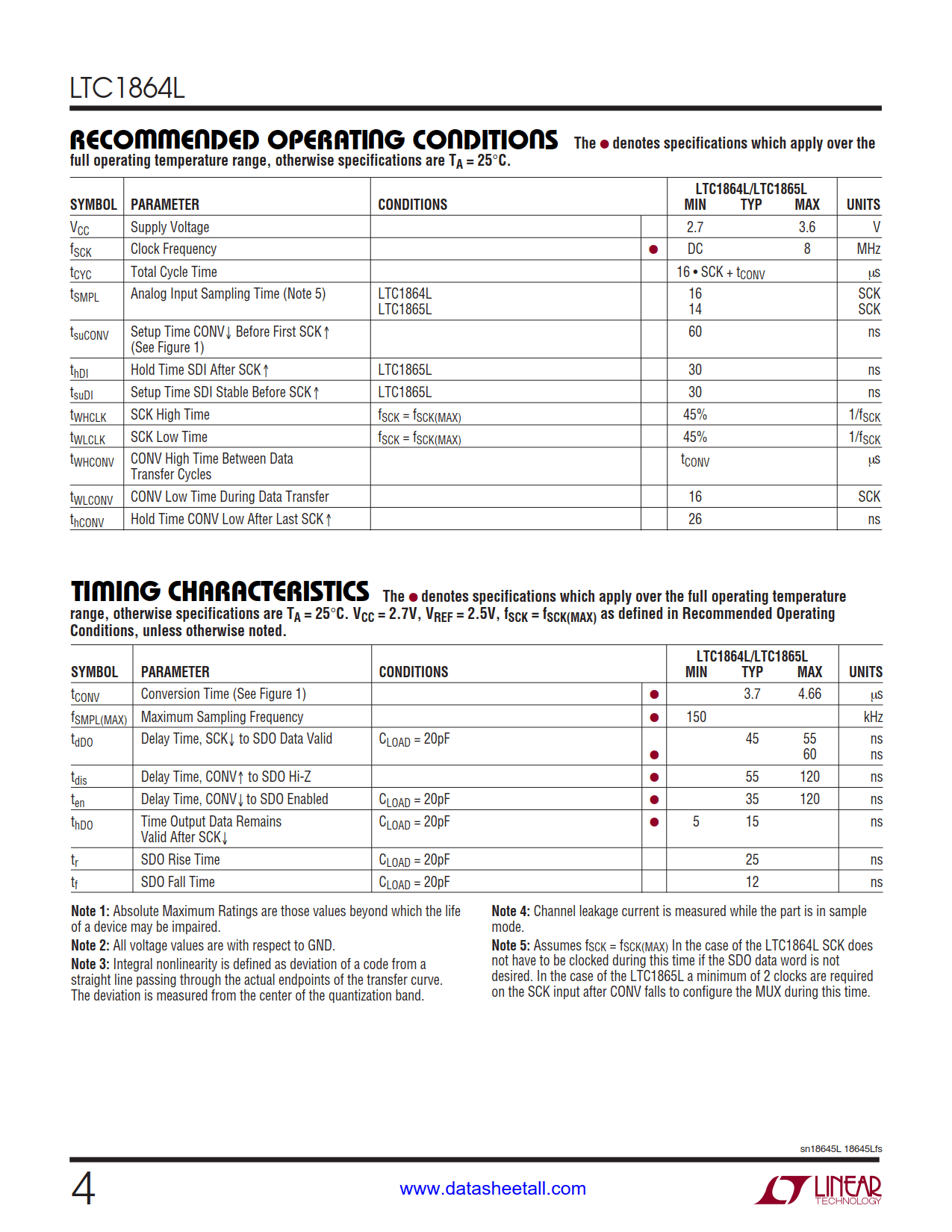

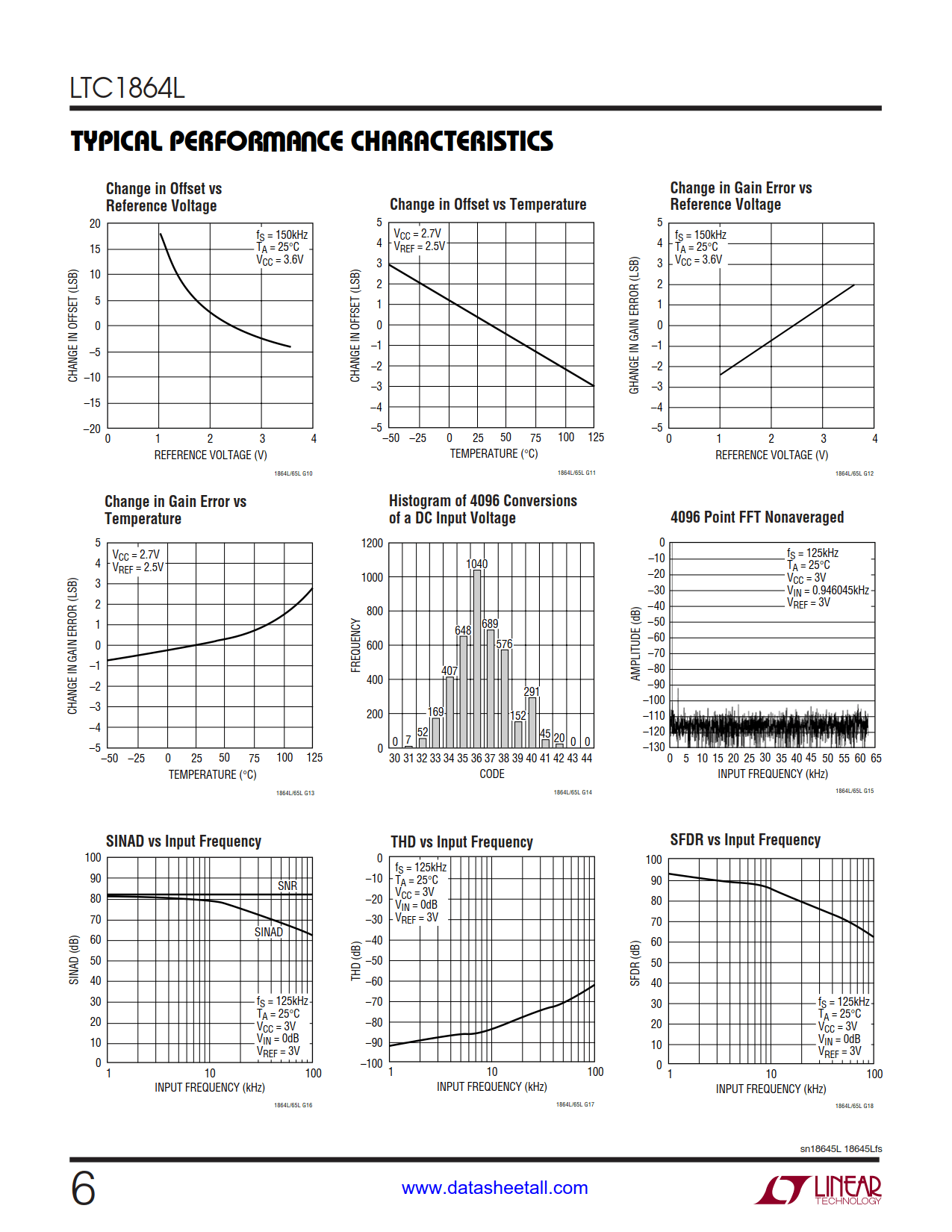

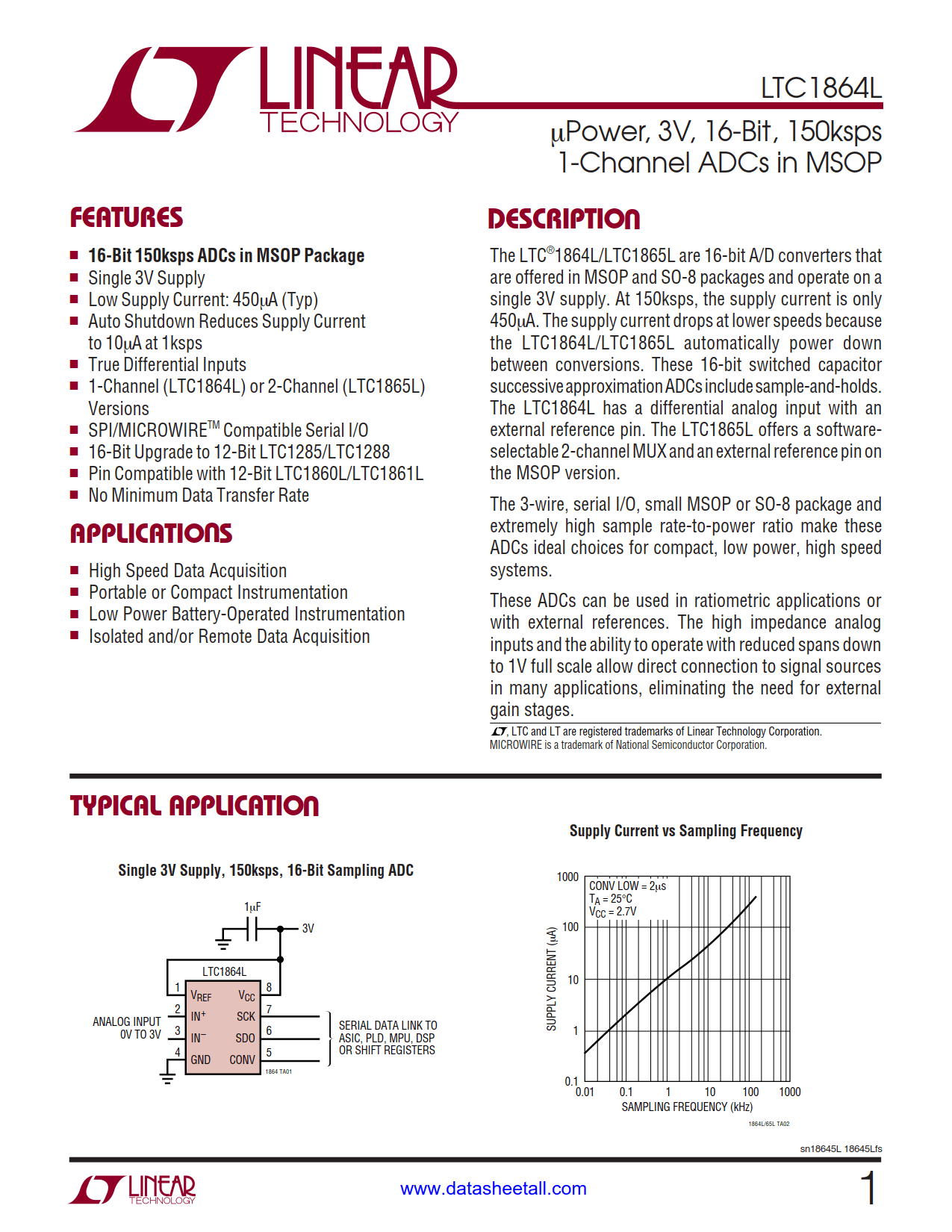

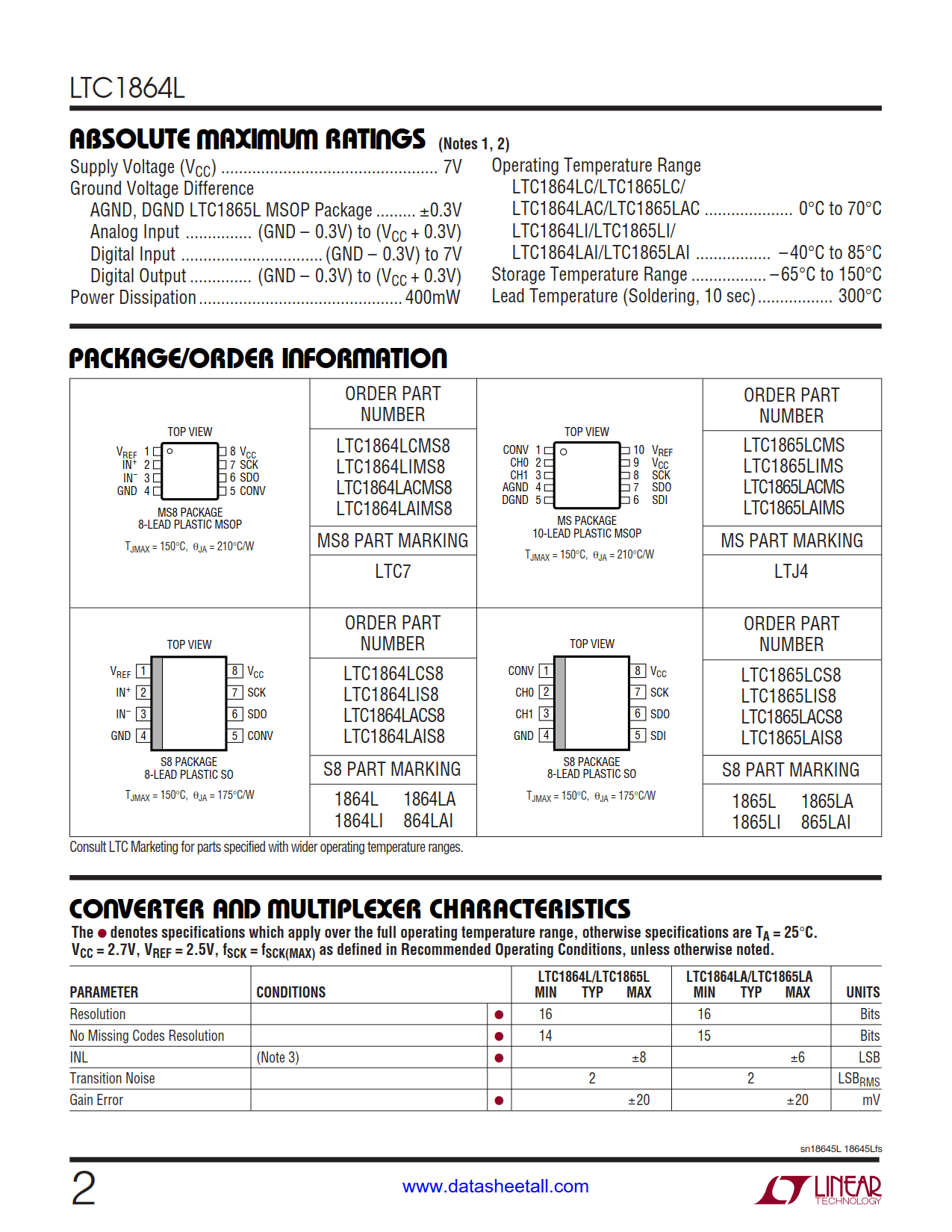

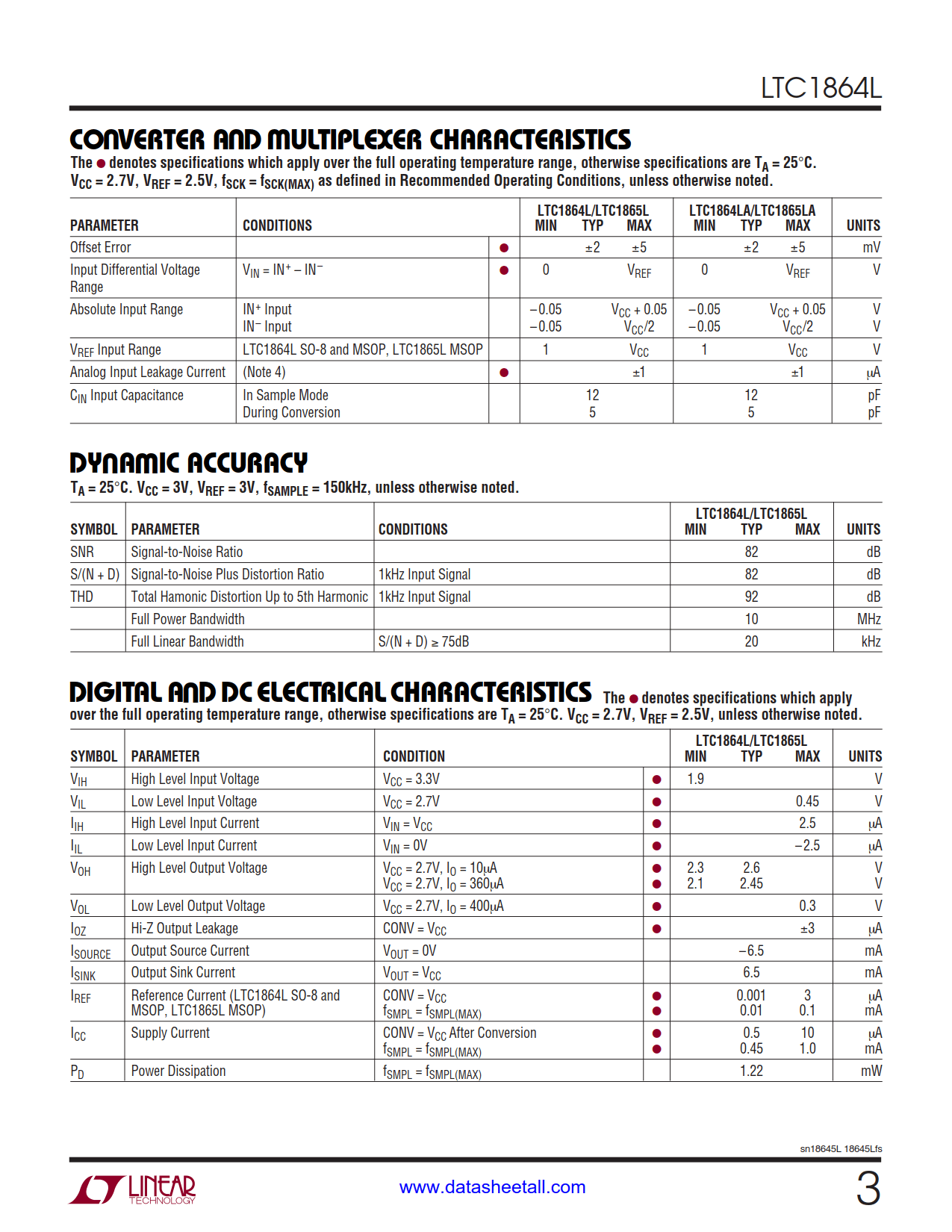

LTC1864L Datasheet(Picture)

LTC1864L Features

  • 16-Bit 150ksps ADCs in MSOP Package
  • Single 3V Supply
  • Low Supply Current: 450µA (Typ)
  • Auto Shutdown Reduces Supply Current to 10µA at 1ksps
  • True Differential Inputs
  • 1-Channel (LTC1864L) Versions
  • SPI/MICROWIRE Compatible Serial I/O
  • 16-Bit Upgrade to 12-Bit LTC1285/LTC1288
  • Pin Compatible with 12-Bit LTC1860L/LTC1861L
  • No Minimum Data Transfer Rate

LTC1864L Applications

  • High Speed Data Acquisition
  • Portable or Compact Instrumentation
  • Low Power Battery-Operated Instrumentation
  • Isolated and/or Remote Data Acquisition

LTC1864L Description

The LTC1864L are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 3V supply. At 150ksps, the supply current is only 450µA. The supply current drops at lower speeds because the LTC1864L automatically power down between conversions. These 16-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1864L has a differential analog input with an external reference pin.

The 3-wire, serial I/O, small MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.

These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages.
