| Part No.： | LTC1861 |
| Page： | 18 Pages |
| Size： | 321 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 3 |
| Update Time： | 2024-06-03 11:14:19 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1861CMS#PBF | Tube | 50 | LTWT | 1 | 10 | 0°C ~70°C | 10-Lead Plastic MSOP | |
| LTC1861CMS#TRPBF | Reel | 2500 | LTWT | 1 | 10 | 0°C ~70°C | 10-Lead Plastic MSOP | |
| LTC1861CMS#TRMPBF | Reel | 500 | LTWT | 1 | 10 | 0°C ~70°C | 10-Lead Plastic MSOP | |
| LTC1861IMS#PBF | Tube | 50 | LTWU | 1 | 10 | -40°C ~85°C | 10-Lead Plastic MSOP | |
| LTC1861IMS#TRPBF | Reel | 2500 | LTWU | 1 | 10 | -40°C ~85°C | 10-Lead Plastic MSOP | |
| LTC1861IMS#TRMPBF | Reel | 500 | LTWU | 1 | 10 | -40°C ~85°C | 10-Lead Plastic MSOP | |
| LTC1861HMS#PBF | Tube | 50 | LTWU | 1 | 10 | -40°C ~125°C | 10-Lead Plastic MSOP | |
| LTC1861HMS#TRPBF | Reel | 2500 | LTWU | 1 | 10 | -40°C ~125°C | 10-Lead Plastic MSOP | |
| LTC1861HMS#TRMPBF | Reel | 500 | LTWU | 1 | 10 | -40°C ~125°C | 10-Lead Plastic MSOP | |
| LTC1861CS8#PBF | Tube | 100 | 1861 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LTC1861CS8#TRPBF | Reel | 2500 | 1861 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LTC1861CS8#TRMPBF | Reel | 500 | 1861 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LTC1861IS8#PBF | Tube | 100 | 1861I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LTC1861IS8#TRPBF | Reel | 2500 | 1861I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LTC1861IS8#TRMPBF | Reel | 500 | 1861I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LTC1861DICE | Wafflepack | 100 | 1 | 0 | CHIPS OR DIE | |||
| LTC1861HMS#2KUPBF | Reel | 2500 | 1 | 10 | -40°C ~125°C | 10-Lead Plastic MSOP |

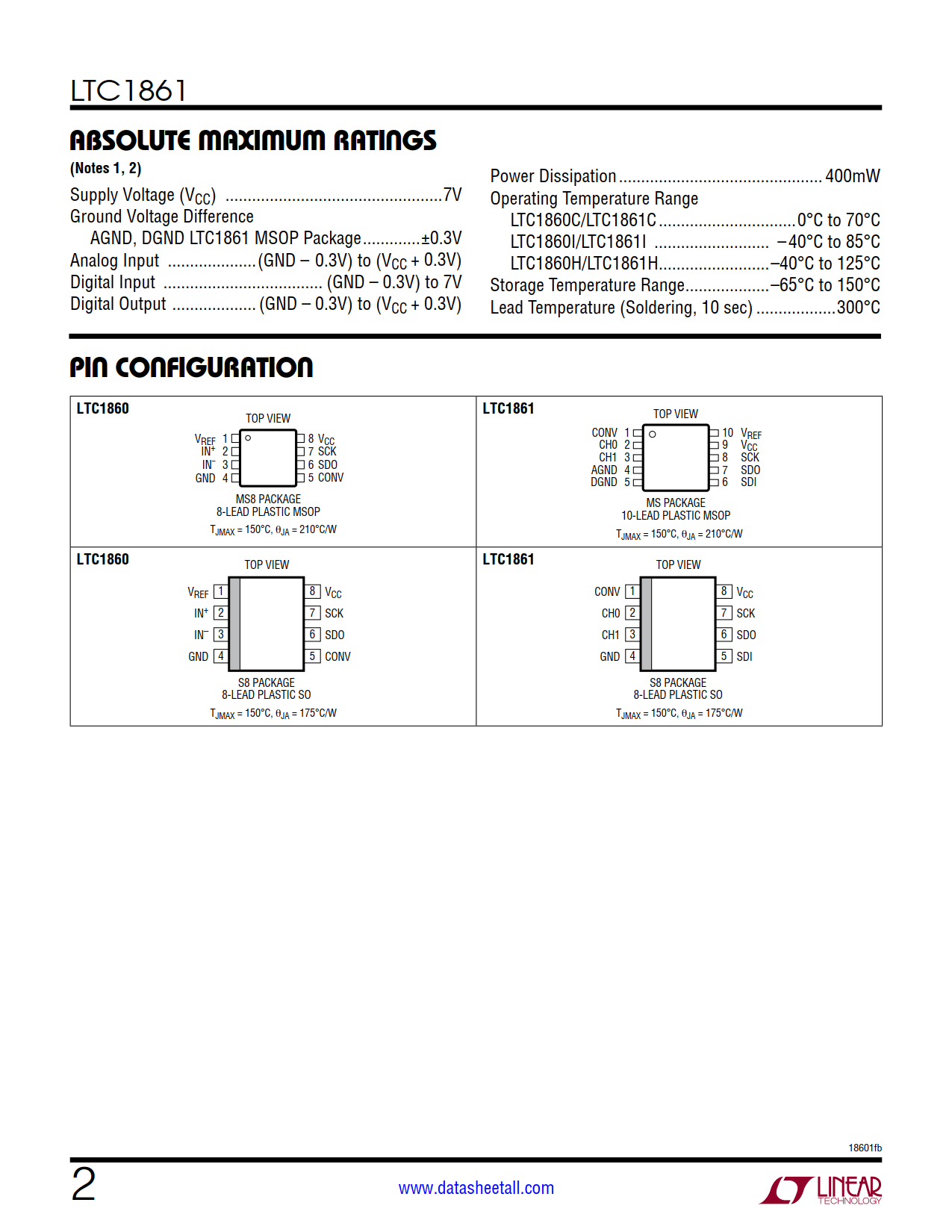

The LTC1861 are 12-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 5V supply. At 250ksps, the supply current is only 850µA. The supply current drops at lower speeds because the LTC1861 automatically power down to a typical supply current of 1nA between conversions. These 12-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1861 offers a software-selectable 2-channel MUX and an adjustable reference pin on the MSOP version.
The 3-wire, serial I/O, MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.
These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale, allow direct connection to signal sources in many applications, eliminating the need for external gain stages.
