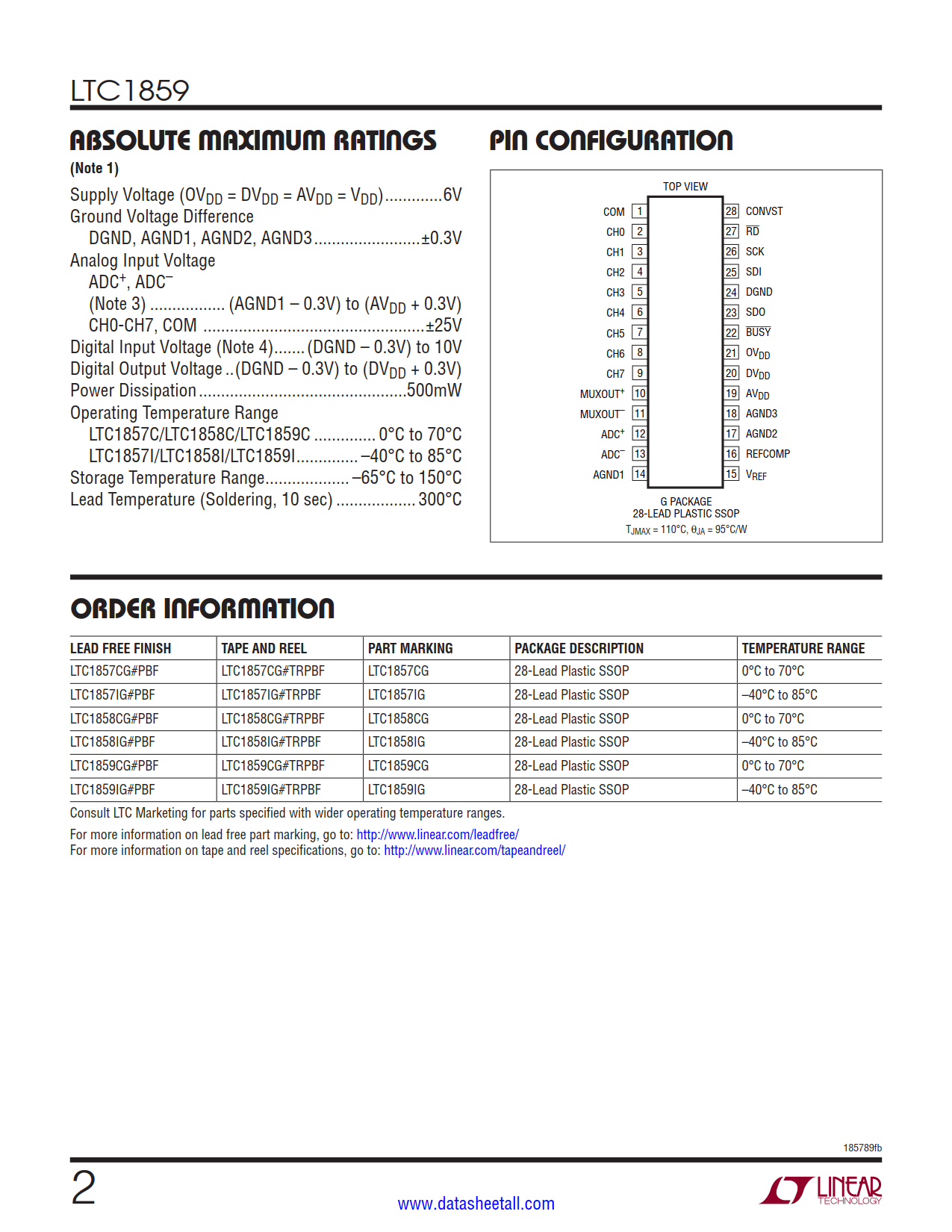

| Part No.： | LTC1859 |
| Page： | 22 Pages |
| Size： | 402 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-09-18 14:25:48 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1859CG#PBF | Tube | 47 | LTC1859CG | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic SSOP | |
| LTC1859CG#TRPBF | Reel | 2000 | LTC1859CG | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic SSOP | |
| LTC1859CG#TRMPBF | Reel | 500 | LTC1859CG | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic SSOP | |
| LTC1859IG#PBF | Tube | 47 | LTC1859IG | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic SSOP | |
| LTC1859IG#TRPBF | Reel | 2000 | LTC1859IG | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic SSOP | |
| LTC1859IG#TRMPBF | Reel | 500 | LTC1859IG | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic SSOP |

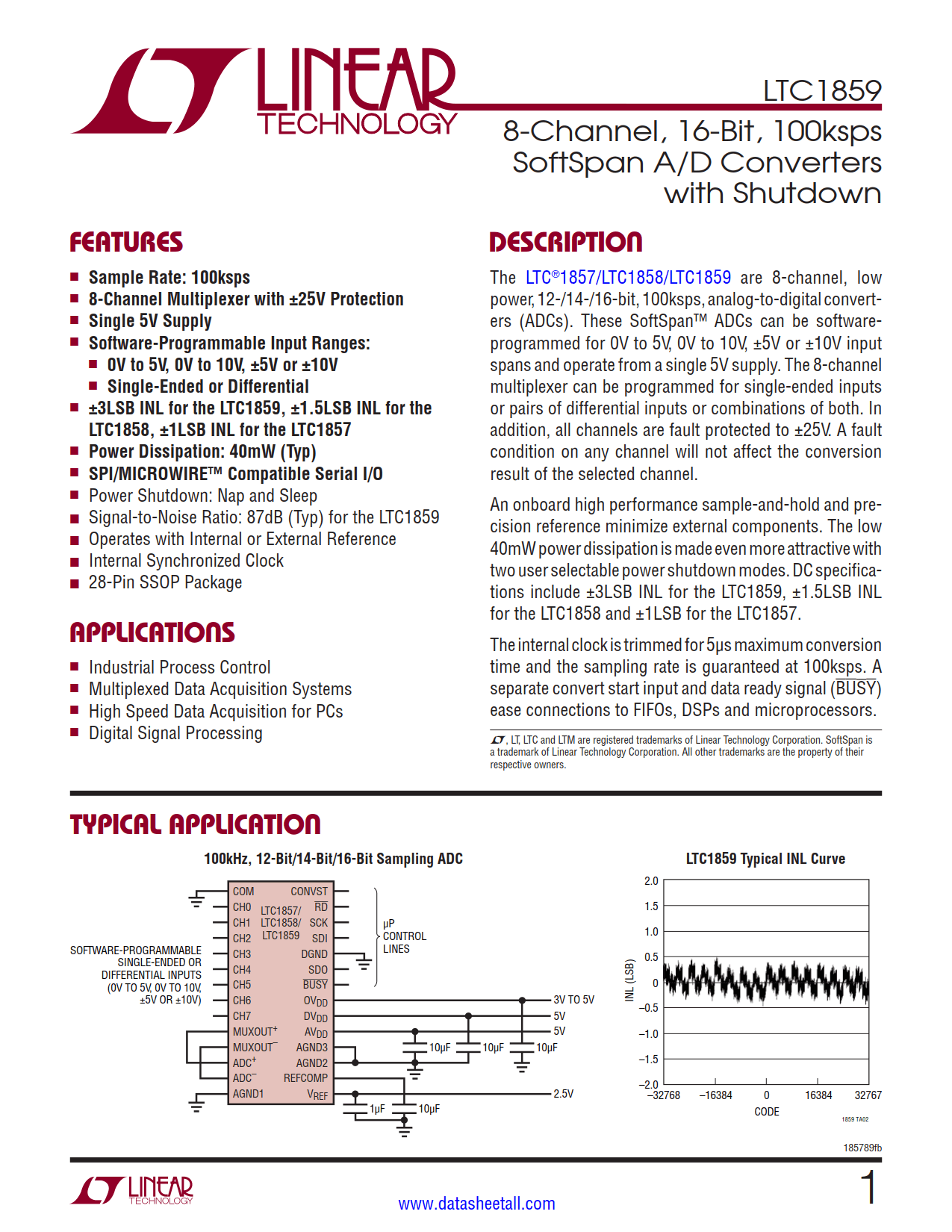

The LTC1859 is 8-channel, low power, 16-bit, 100ksps, analog-to-digital converters (ADCs). These SoftSpan™ ADCs can be software programmed for 0V to 5V, 0V to 10V, ±5V or ±10V input spans and operate from a single 5V supply. The 8-channel multiplexer can be programmed for single-ended inputs or pairs of differential inputs or combinations of both. In addition, all channels are fault protected to ±25V. A fault condition on any channel will not affect the conversion result of the selected channel.

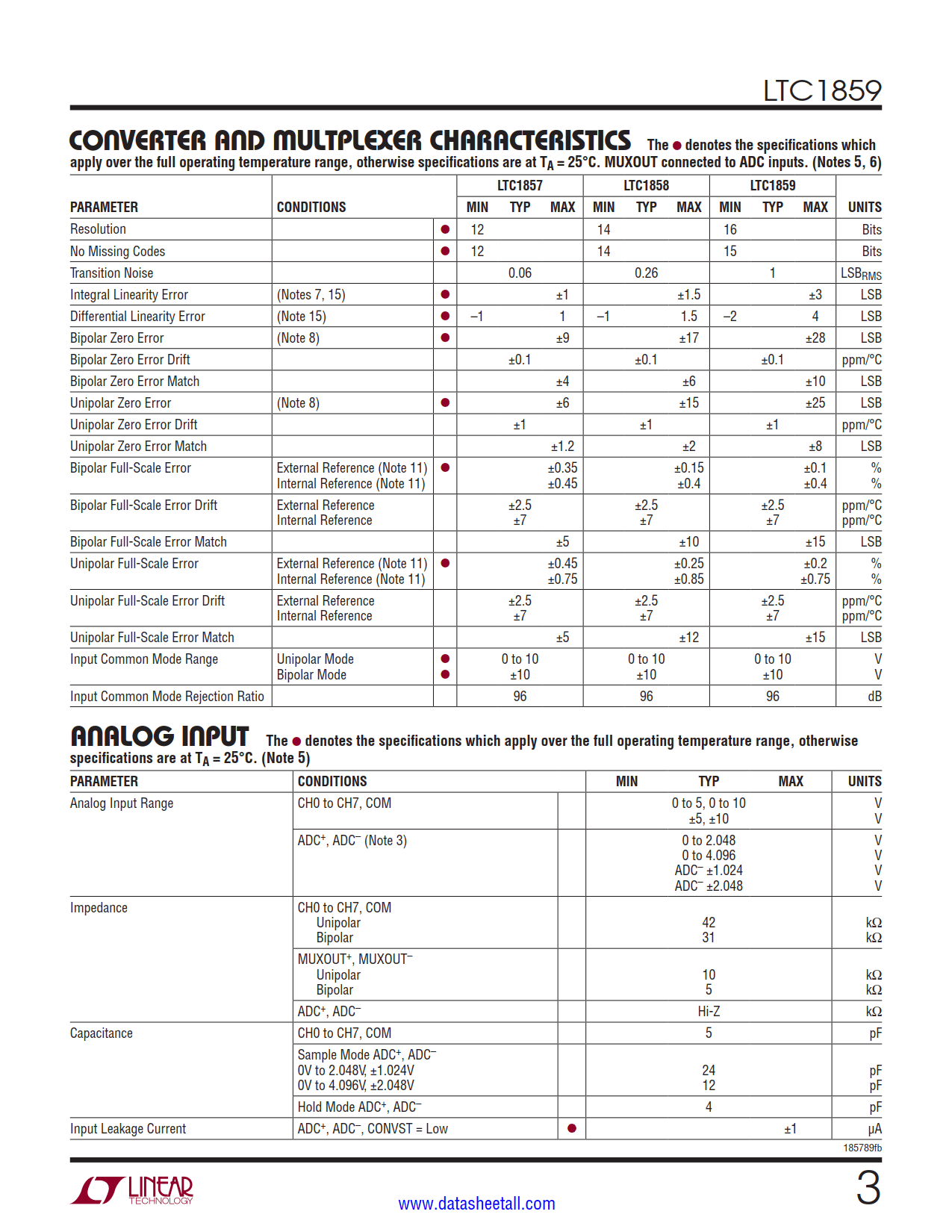

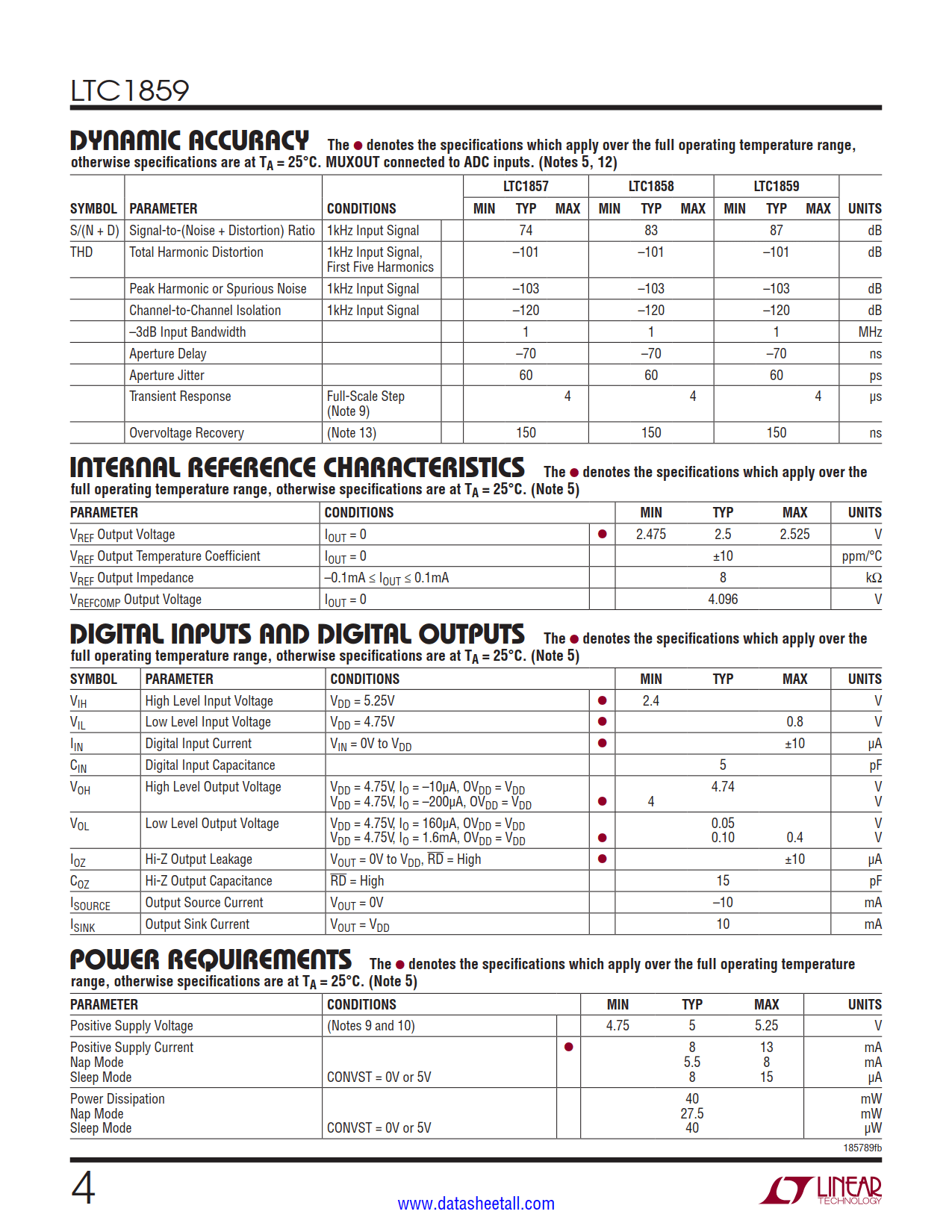

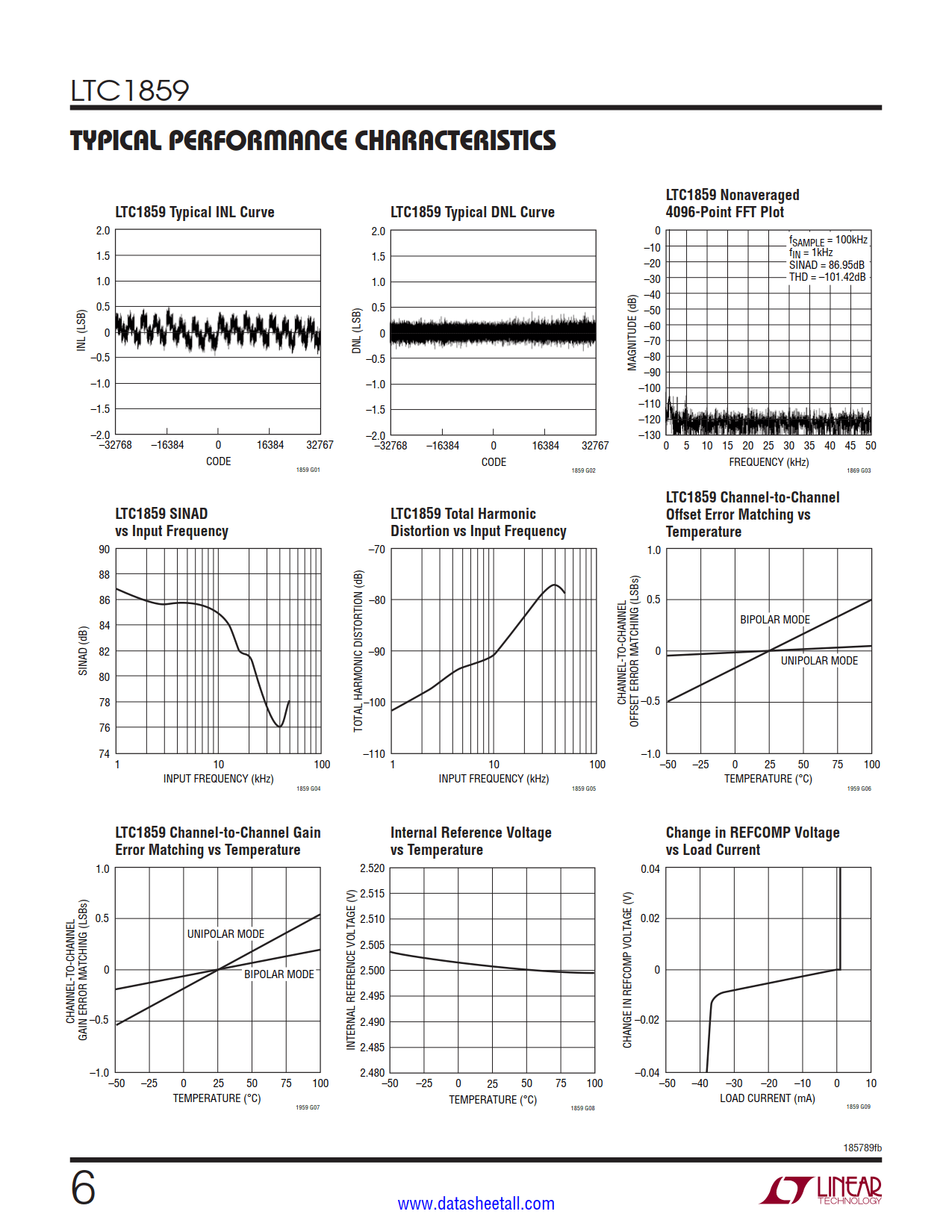

An onboard high performance sample-and-hold and precision reference minimize external components. The low 40mW power dissipation is made even more attractive with two user selectable power shutdown modes. DC specifications include ±3LSB INL for the LTC1859.

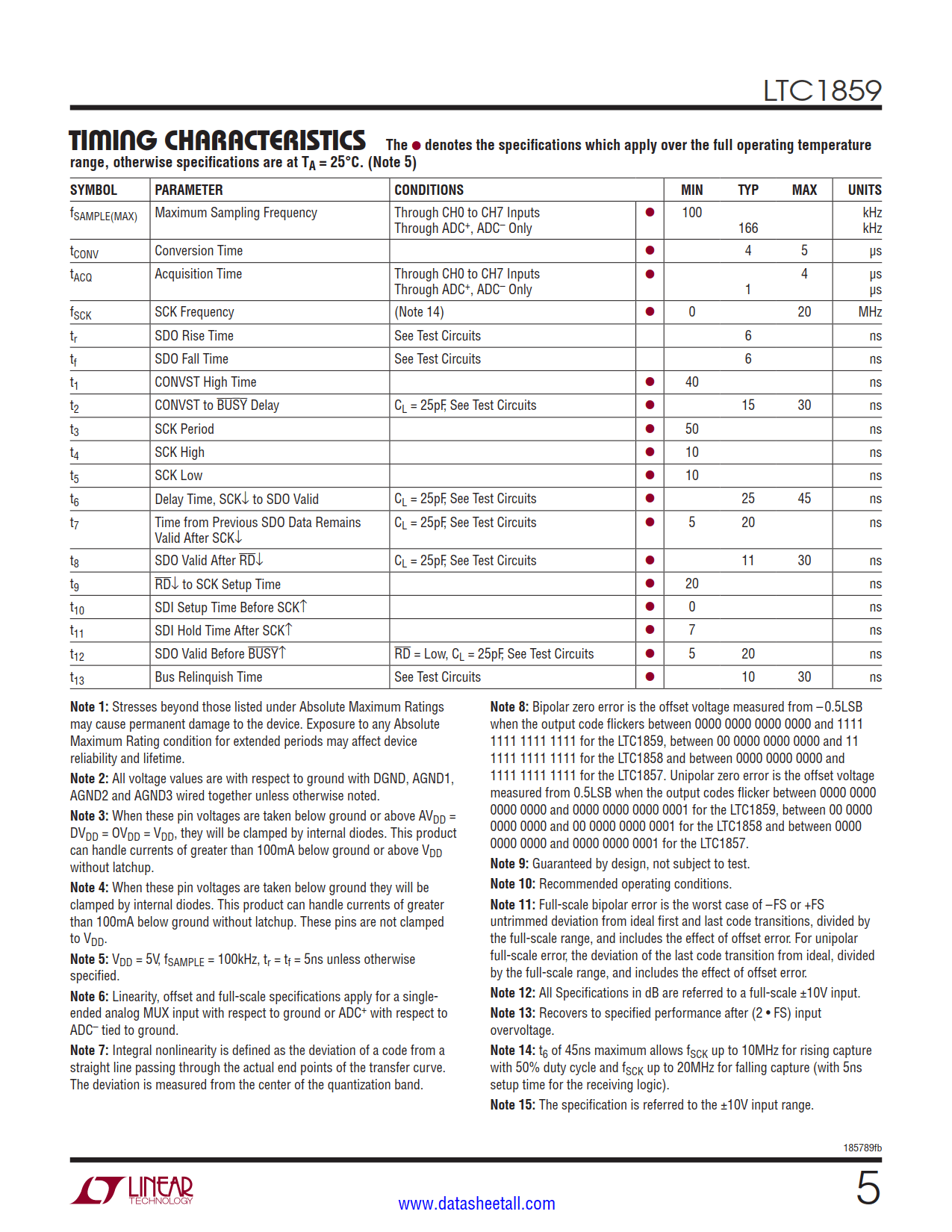

The internal clock is trimmed for 5µs maximum conversion time and the sampling rate is guaranteed at 100ksps. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.
