| Part No.： | LTC1728 |
| Page： | 18 Pages |
| Size： | 314 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-09 14:24:14 |
| DataSheet： | Download |

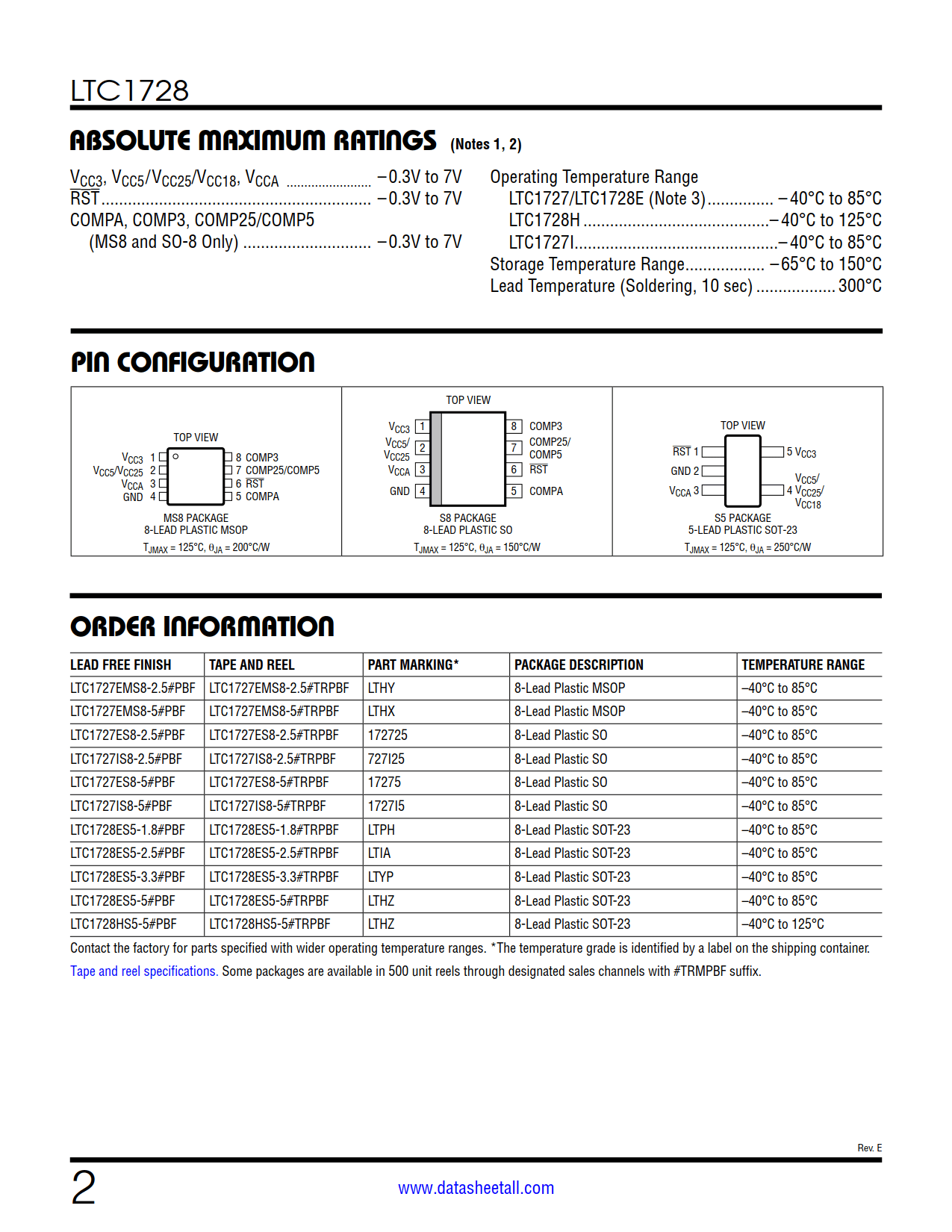

| Part No. | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1728ES5-1.8#PBF | Tube | LTPH | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | ||
| LTC1728ES5-1.8#TRPBF | Reel | 2500 | LTPH | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-1.8#TRMPBF | Reel | 500 | LTPH | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-2.5#PBF | Tube | LTIA | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | ||
| LTC1728ES5-2.5#TRPBF | Reel | 2500 | LTIA | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-2.5#TRMPBF | Reel | 500 | LTIA | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-3.3#PBF | Tube | LTYP | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | ||
| LTC1728ES5-3.3#TRPBF | Reel | 2500 | LTYP | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-3.3#TRMPBF | Reel | 500 | LTYP | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-5#PBF | Tube | LTHZ | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | ||
| LTC1728ES5-5#TRPBF | Reel | 2500 | LTHZ | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728ES5-5#TRMPBF | Reel | 500 | LTHZ | 1 | 5 | -40°C ~ 85°C | 5-Lead TSOT-23 | |
| LTC1728HS5-5#PBF | Tube | LTHZ | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 | ||
| LTC1728HS5-5#TRPBF | Reel | 2500 | LTHZ | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 | |
| LTC1728HS5-5#TRMPBF | Reel | 500 | LTHZ | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 |

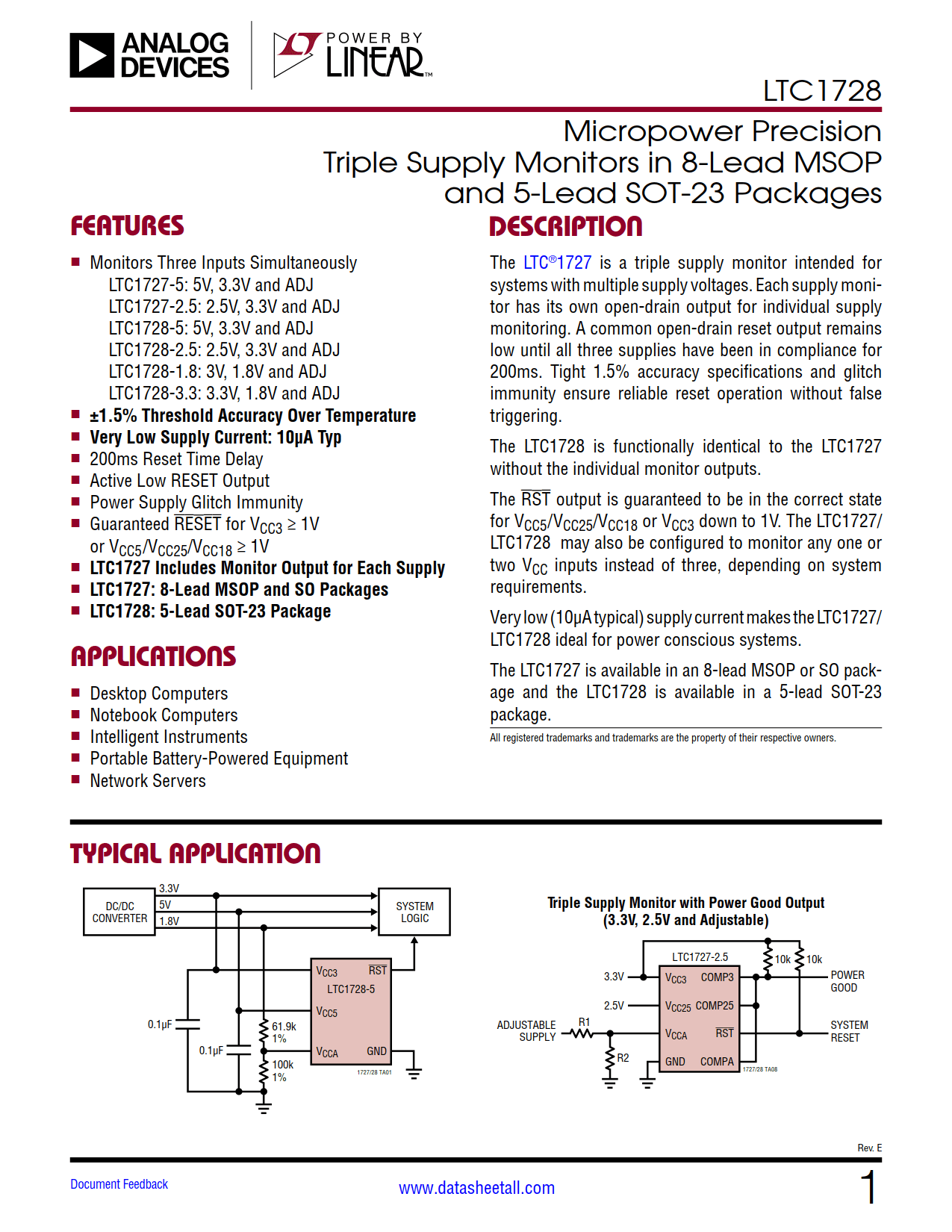

The LTC1727 is a triple supply monitor intended for systems with multiple supply voltages. Each supply monitor has its own open-drain output for individual supply monitoring. A common open-drain reset output remains low until all three supplies have been in compliance for 200ms. Tight 1.5% accuracy specifications and glitch immunity ensure reliable reset operation without false triggering.
The LTC1728 is functionally identical to the LTC1727 without the individual monitor outputs.
The RST output is guaranteed to be in the correct state for VCC5/VCC25/VCC18 or VCC3 down to 1V. The LTC1728 may also be configured to monitor any one or two VCC inputs instead of three, depending on system requirements.
Very low (10µA typical) supply current makes the LTC1728 ideal for power conscious systems.
The LTC1728 is available in a 5-lead SOT-23 package.
