LTC1727 Datasheet

LTC1727 Datasheet

Micropower Precision Triple Supply Monitors in 8-Lead MSOP Packages
Part No.: LTC1727
Page: 18 Pages
Size: 314 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-09 14:21:57
DataSheet: Download

LTC1727 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1727EMS8-2.5#PBF Tube 50 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727EMS8-2.5#TRPBF Reel 2500 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727EMS8-2.5#TRMPBF Reel 500 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727EMS8-5#PBF Tube 50 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727EMS8-5#TRPBF Reel 2500 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727EMS8-5#TRMPBF Reel 500 LTHY 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC1727ES8-2.5#PBF Tube 100 172725 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727ES8-2.5#TRPBF Reel 2500 172725 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727ES8-2.5#TRMPBF Reel 500 172725 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-2.5#PBF Tube 100 727I25 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-2.5#TRPBF Reel 2500 727I25 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-2.5#TRMPBF Reel 500 727I25 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727ES8-5#PBF Tube 100 17275 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727ES8-5#TRPBF Reel 2500 17275 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727ES8-5#TRMPBF Reel 500 17275 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-5#PBF Tube 100 1727I5 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-5#TRPBF Reel 2500 1727I5 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LTC1727IS8-5#TRMPBF Reel 500 1727I5 1 8 -40°C ~ 85°C 8-Lead Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1727 Datasheet(PDF)

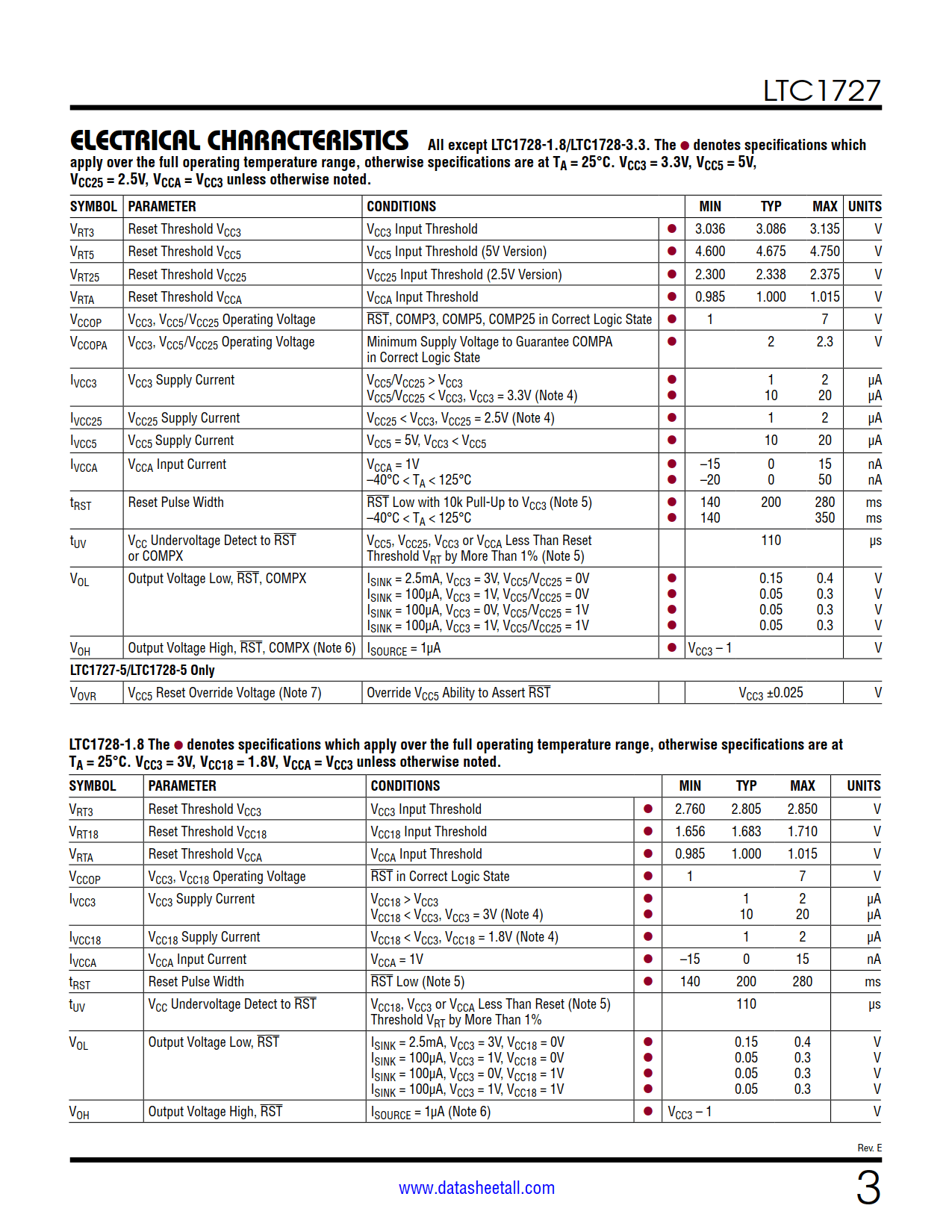

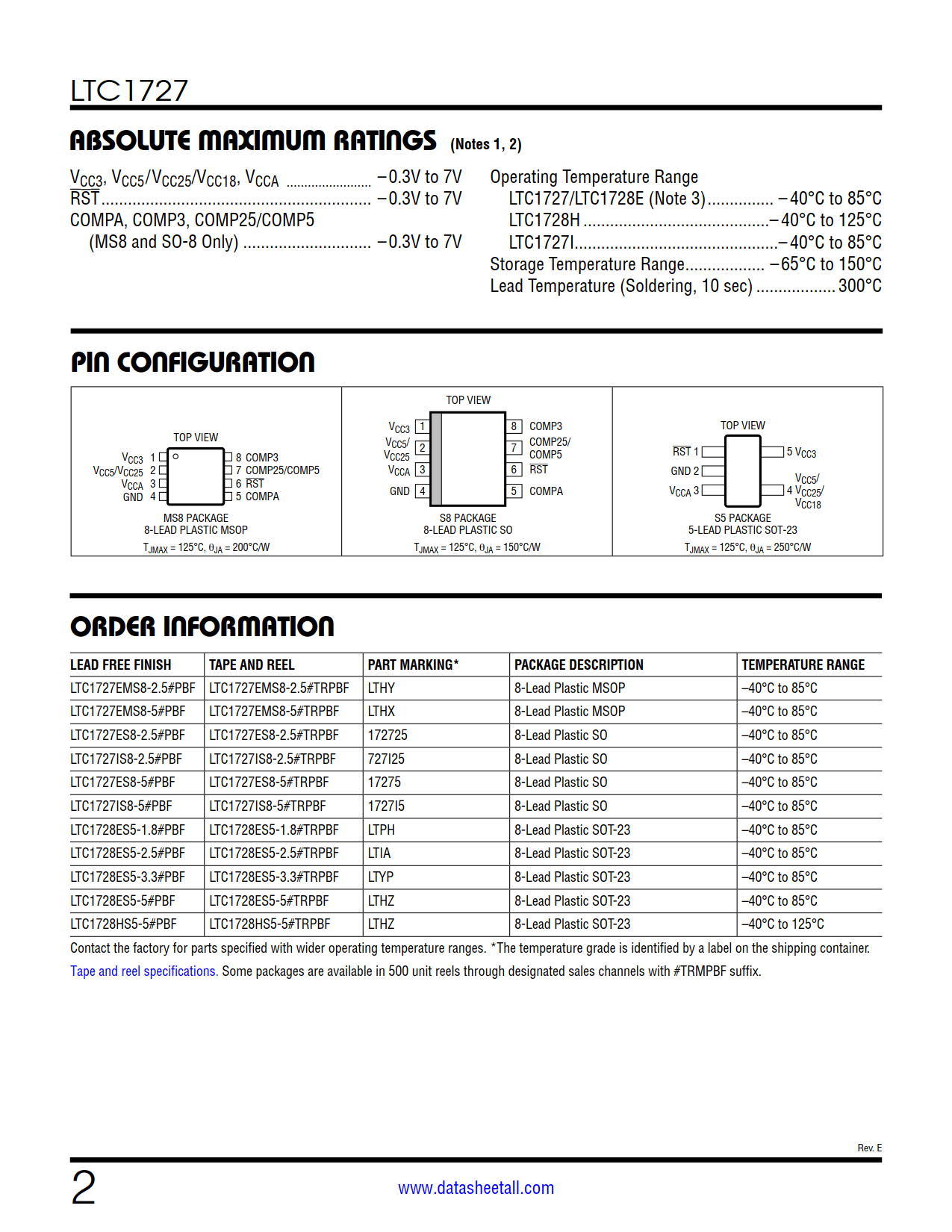

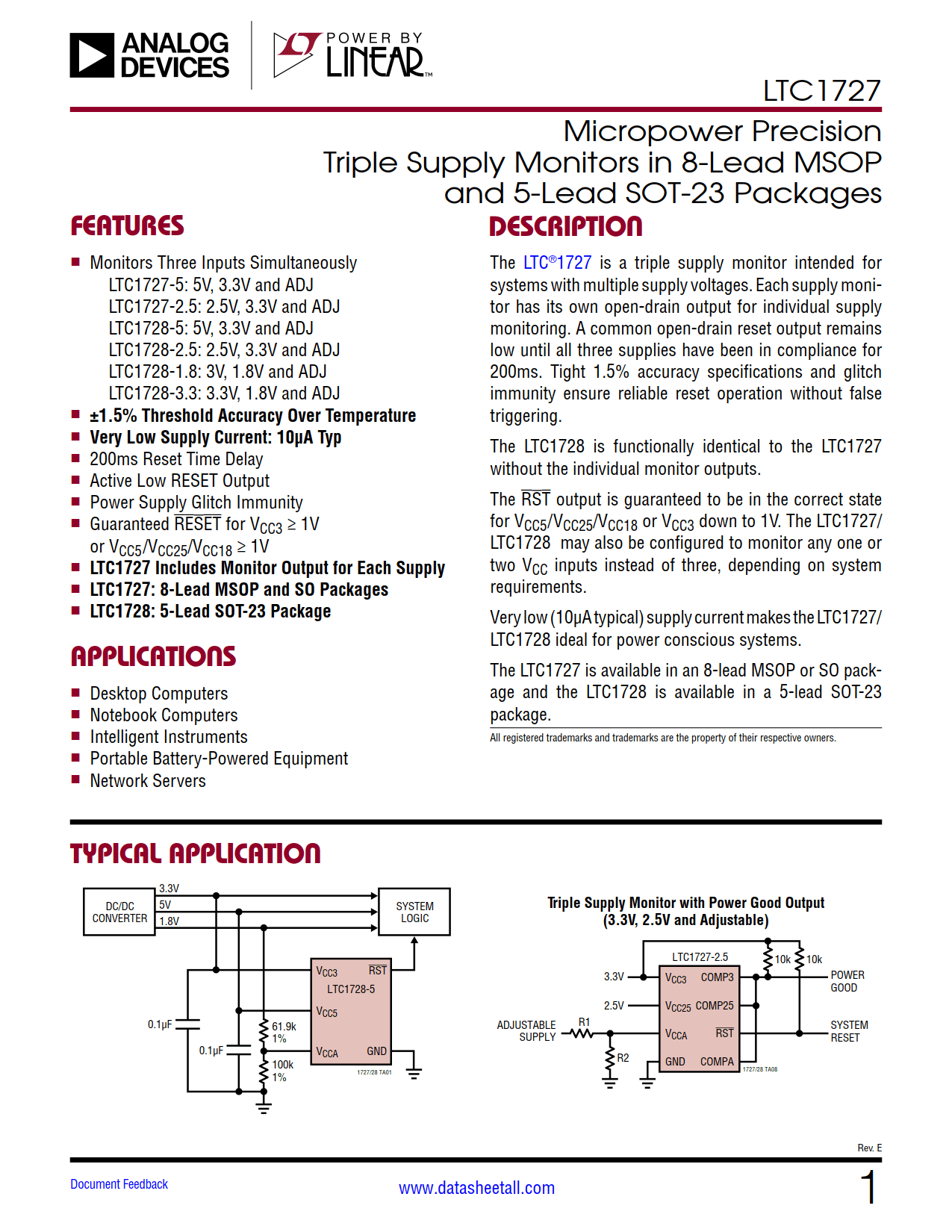

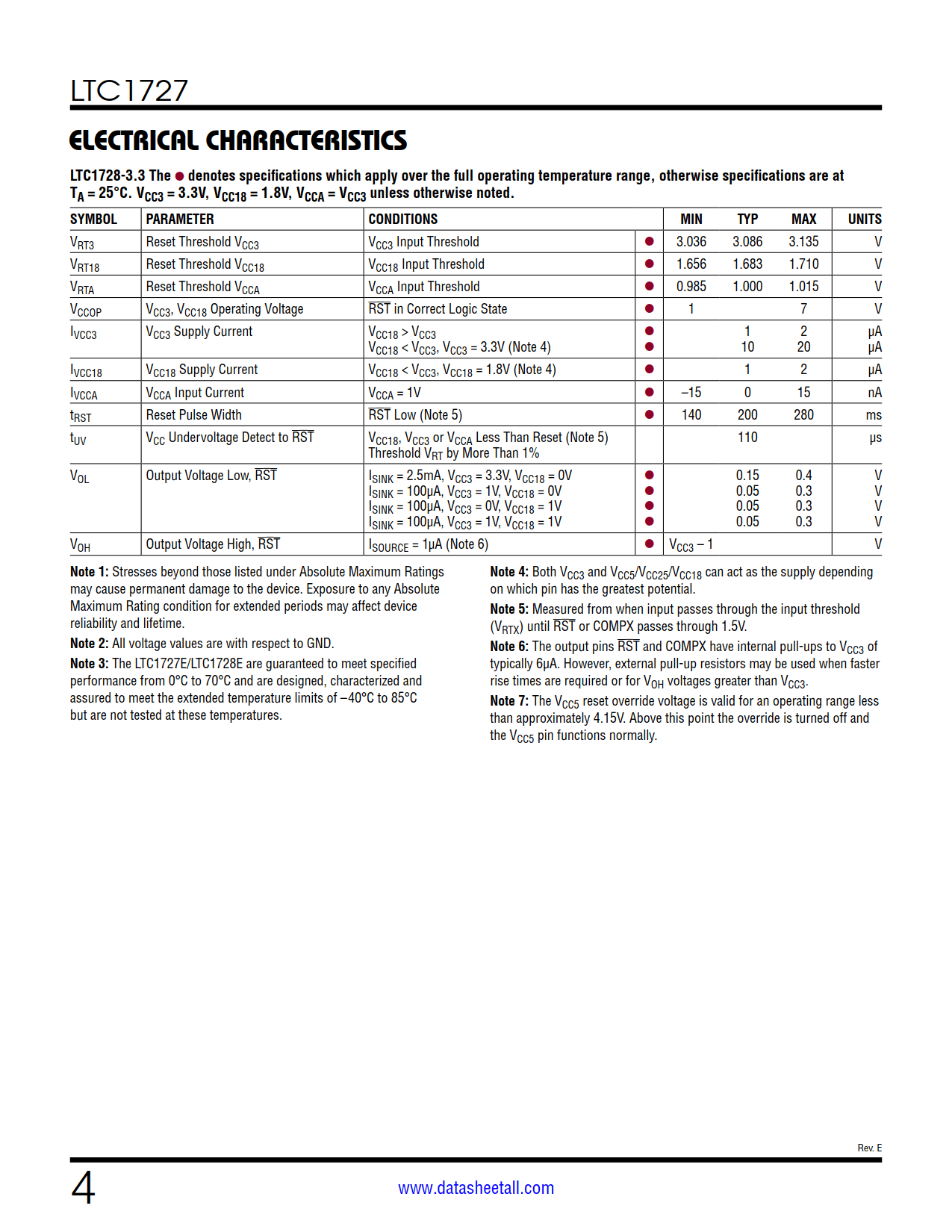

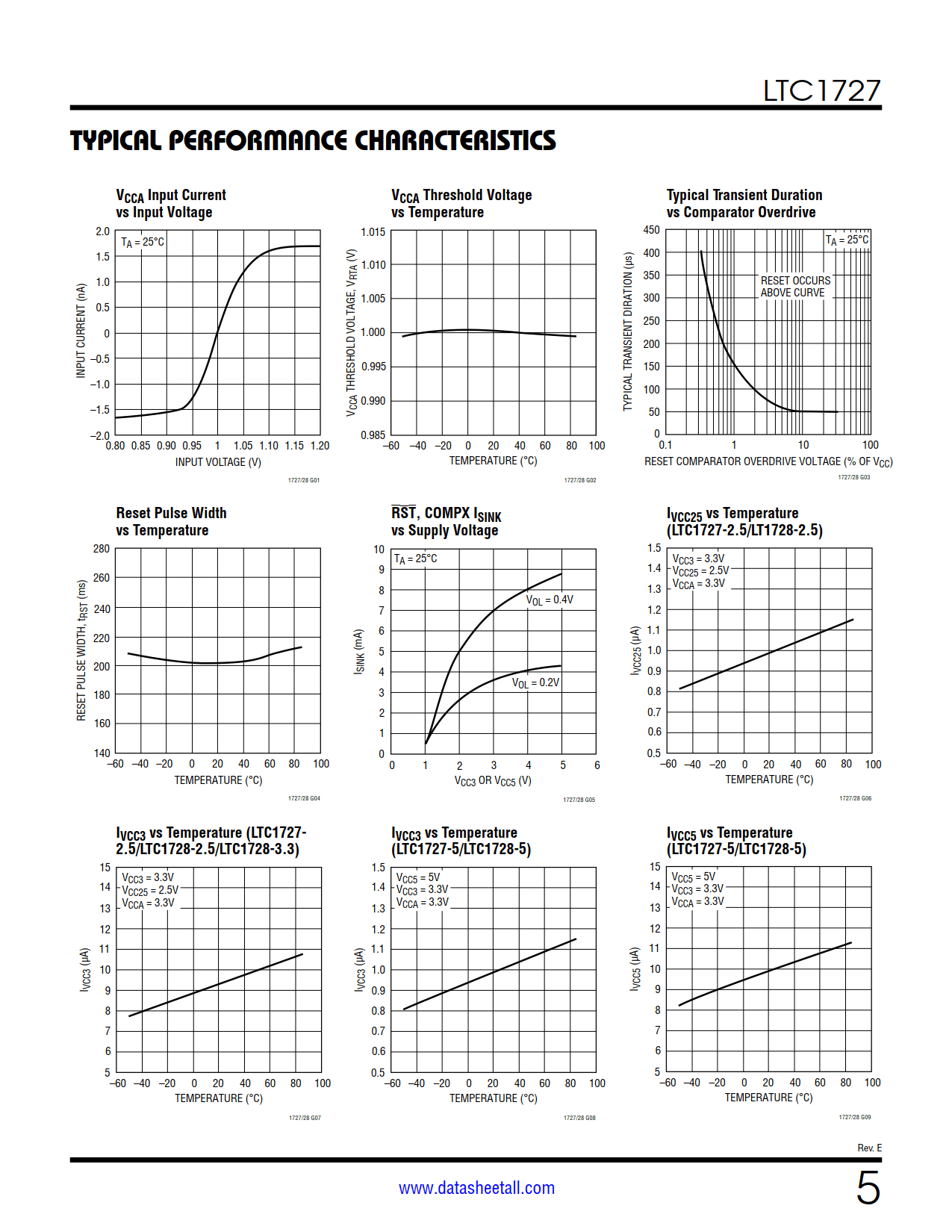

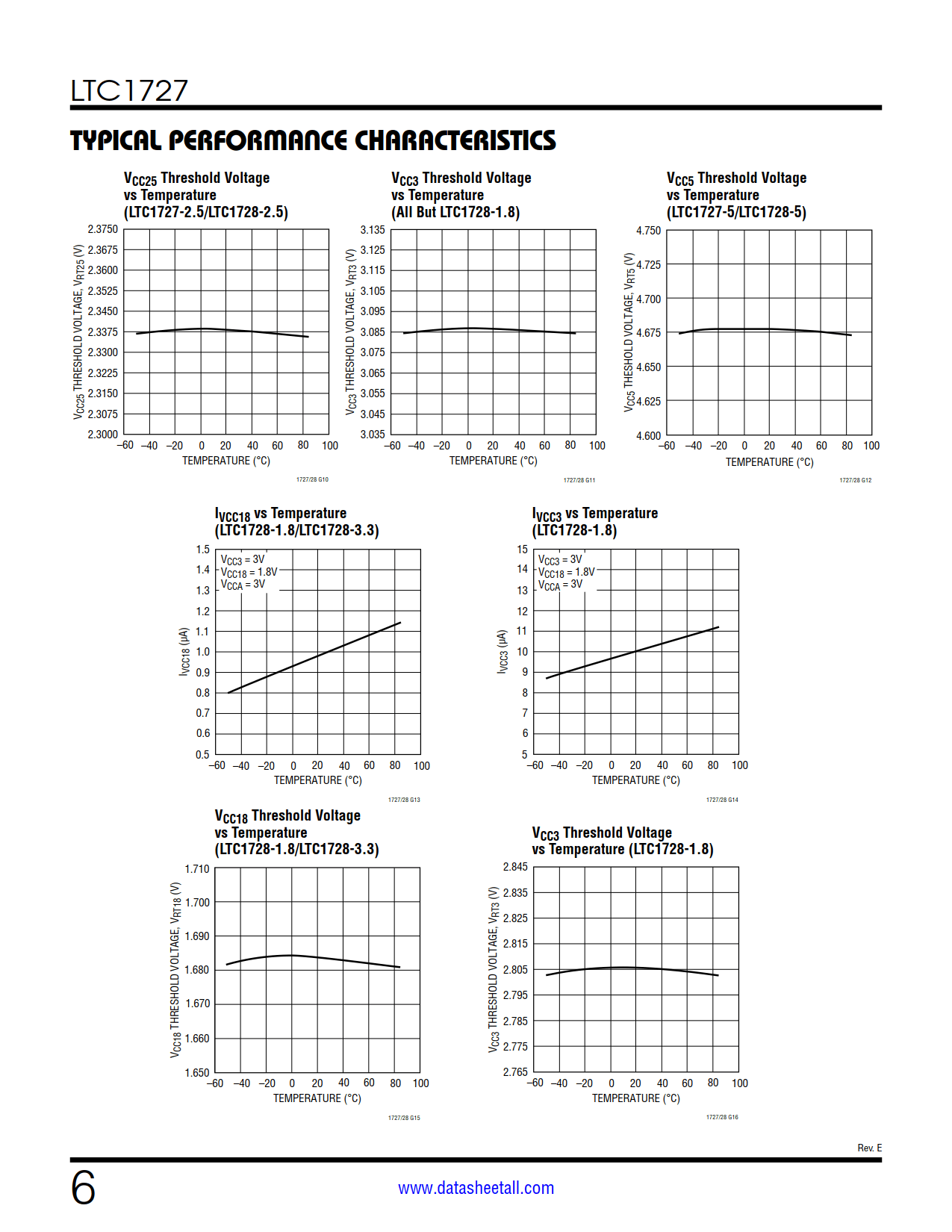

LTC1727 Datasheet(Picture)

LTC1727 Features

  • Monitors Three Inputs Simultaneously
    • LTC1727-5: 5V, 3.3V and ADJ
    • LTC1727-2.5: 2.5V, 3.3V and ADJ
  • ±1.5% Threshold Accuracy Over Temperature
  • Very Low Supply Current: 10µA Typ
  • 200ms Reset Time Delay
  • Active Low RESET Output
  • Power Supply Glitch Immunity
  • Guaranteed RESET for VCC3 ≥ 1V or VCC5/VCC25/VCC18 ≥ 1V
  • LTC1727 Includes Monitor Output for Each Supply
  • LTC1727: 8-Lead MSOP and SO Packages

LTC1727 Applications

  • Desktop Computers
  • Notebook Computers
  • Intelligent Instruments
  • Portable Battery-Powered Equipment
  • Network Servers

LTC1727 Description

The LTC1727 is a triple supply monitor intended for systems with multiple supply voltages. Each supply monitor has its own open-drain output for individual supply monitoring. A common open-drain reset output remains low until all three supplies have been in compliance for 200ms. Tight 1.5% accuracy specifications and glitch immunity ensure reliable reset operation without false triggering.

The RST output is guaranteed to be in the correct state for VCC5/VCC25/VCC18 or VCC3 down to 1V. The LTC1727 may also be configured to monitor any one or two VCC inputs instead of three, depending on system requirements.

Very low (10µA typical) supply current makes the LTC1727 ideal for power conscious systems.

The LTC1727 is available in an 8-lead MSOP or SO package.
