LTC1710 Datasheet

LTC1710 Datasheet

SMBus Dual High Side Switch
Part No.: LTC1710
Page: 8 Pages
Size: 187 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-23 11:16:58
DataSheet: Download

LTC1710 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1710CMS8#PBF Tube 50 LTDZ 1 8 0°C ~ 70°C 8-Lead MSOP
LTC1710CMS8#TRPBF Reel 2500 LTDZ 1 8 0°C ~ 70°C 8-Lead MSOP
LTC1710CMS8#TRMPBF Reel 500 LTDZ 1 8 0°C ~ 70°C 8-Lead MSOP
LTC1710CS8#PBF Tube 100 1710 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1710CS8#TRPBF Reel 2500 1710 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1710CS8#TRMPBF Reel 500 1710 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1710IS8#PBF Tube 100 1710I 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC1710IS8#TRPBF Reel 2500 1710I 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC1710IS8#TRMPBF Reel 500 1710I 1 8 -40°C ~ 125°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1710 Datasheet(PDF)

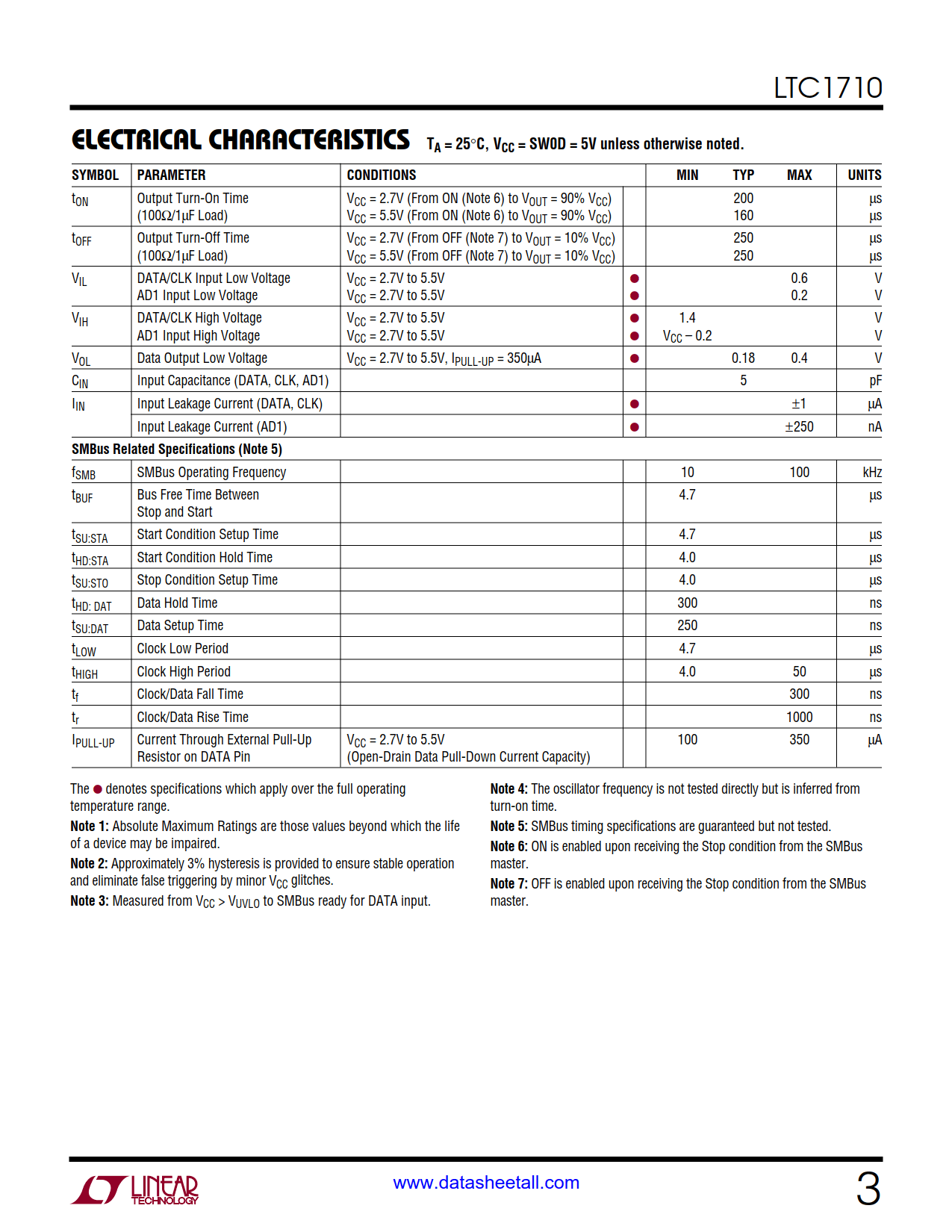

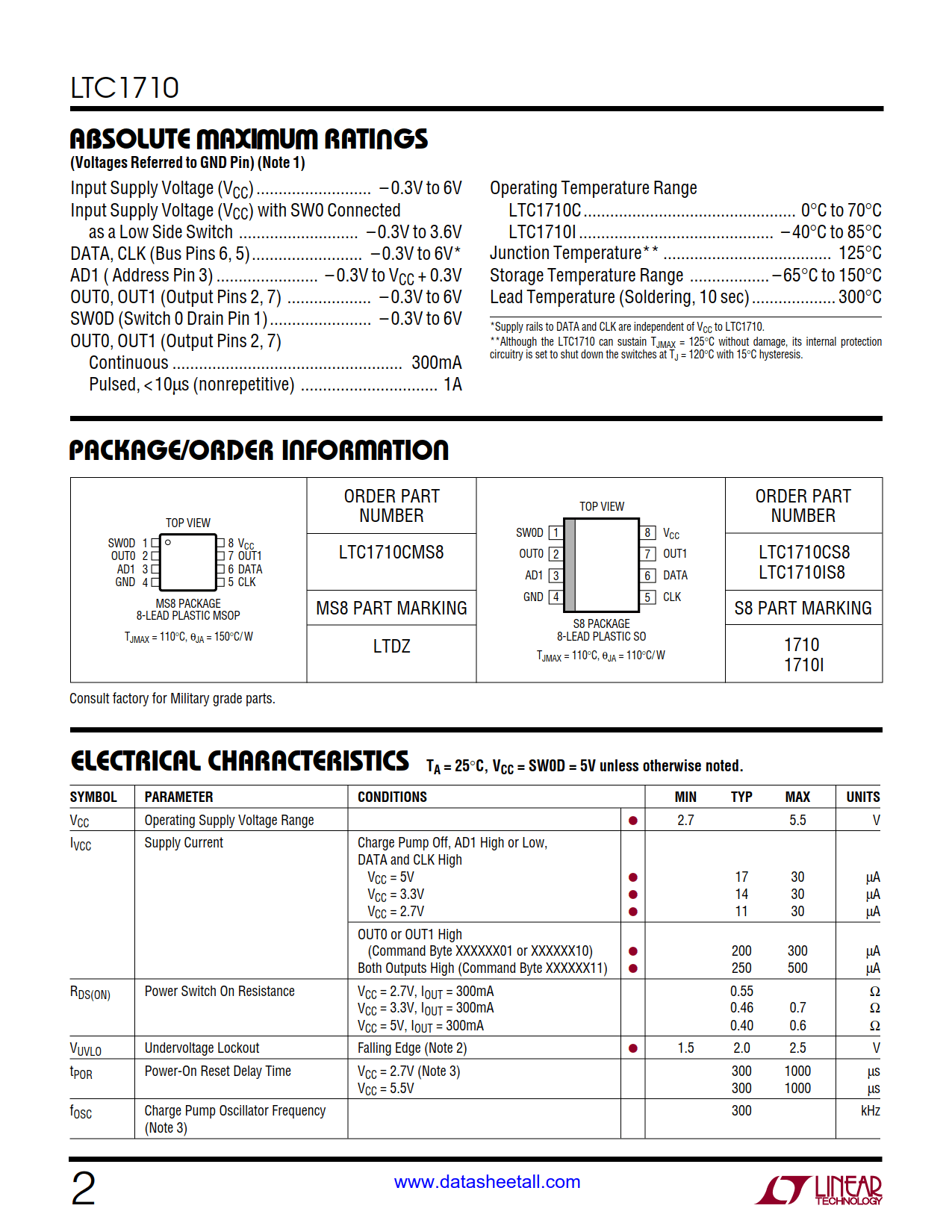

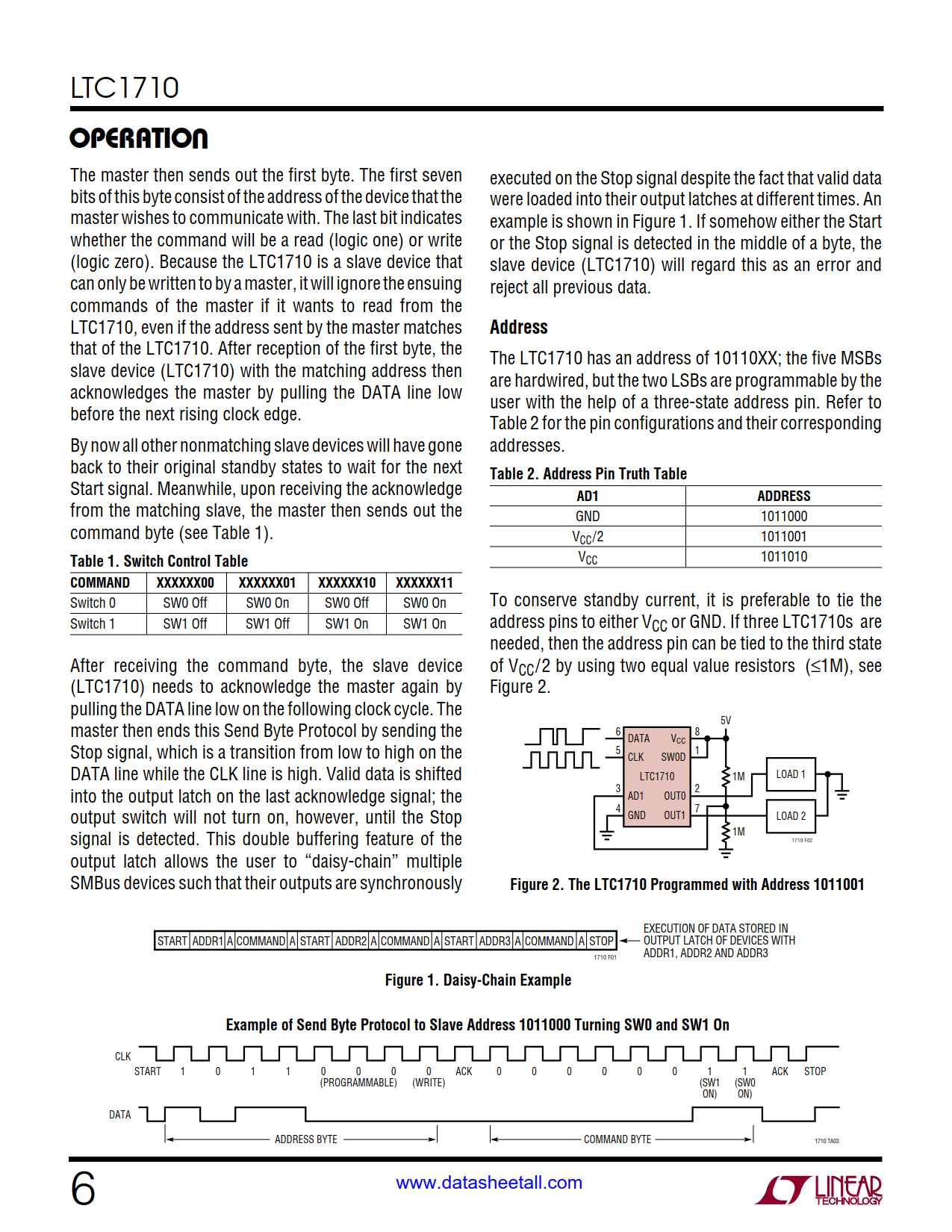

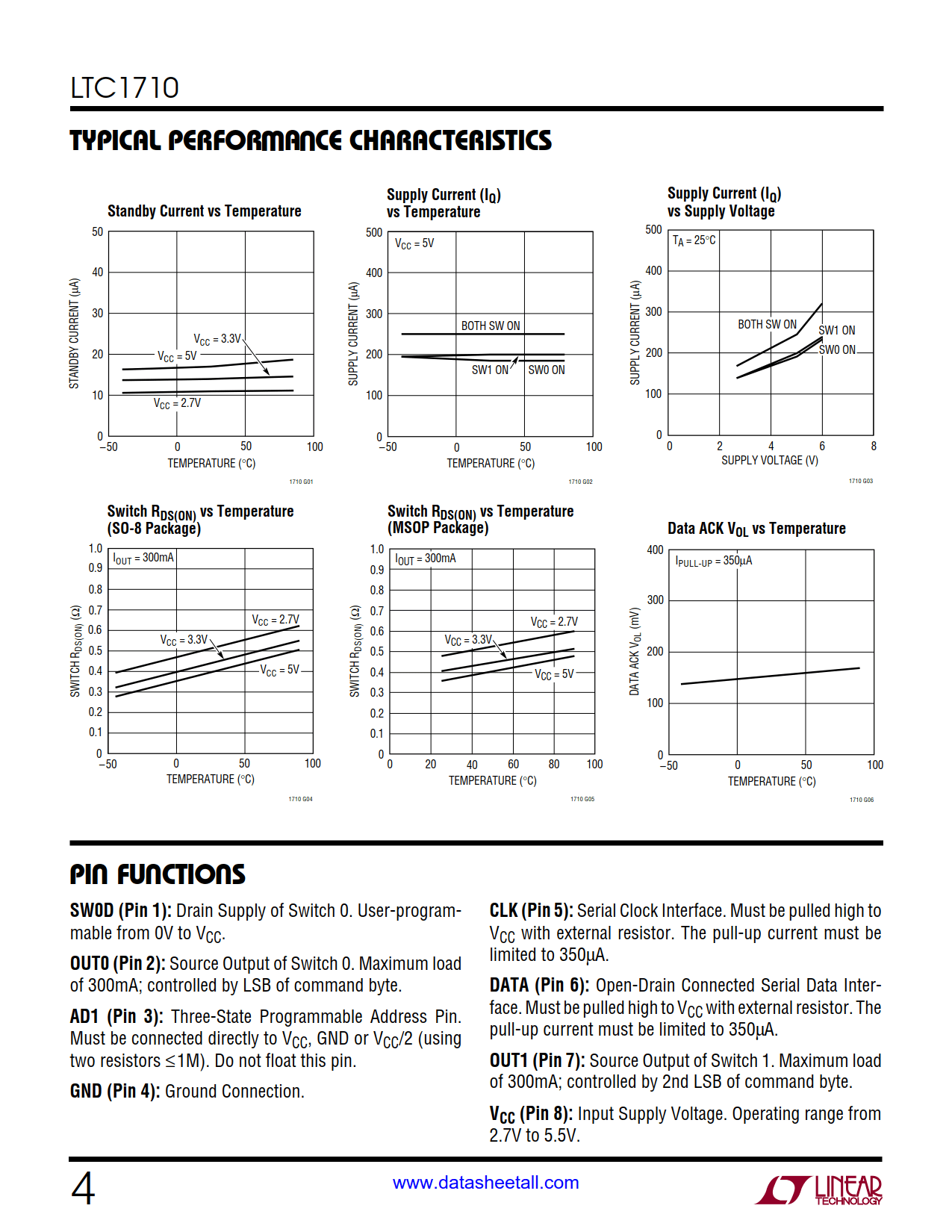

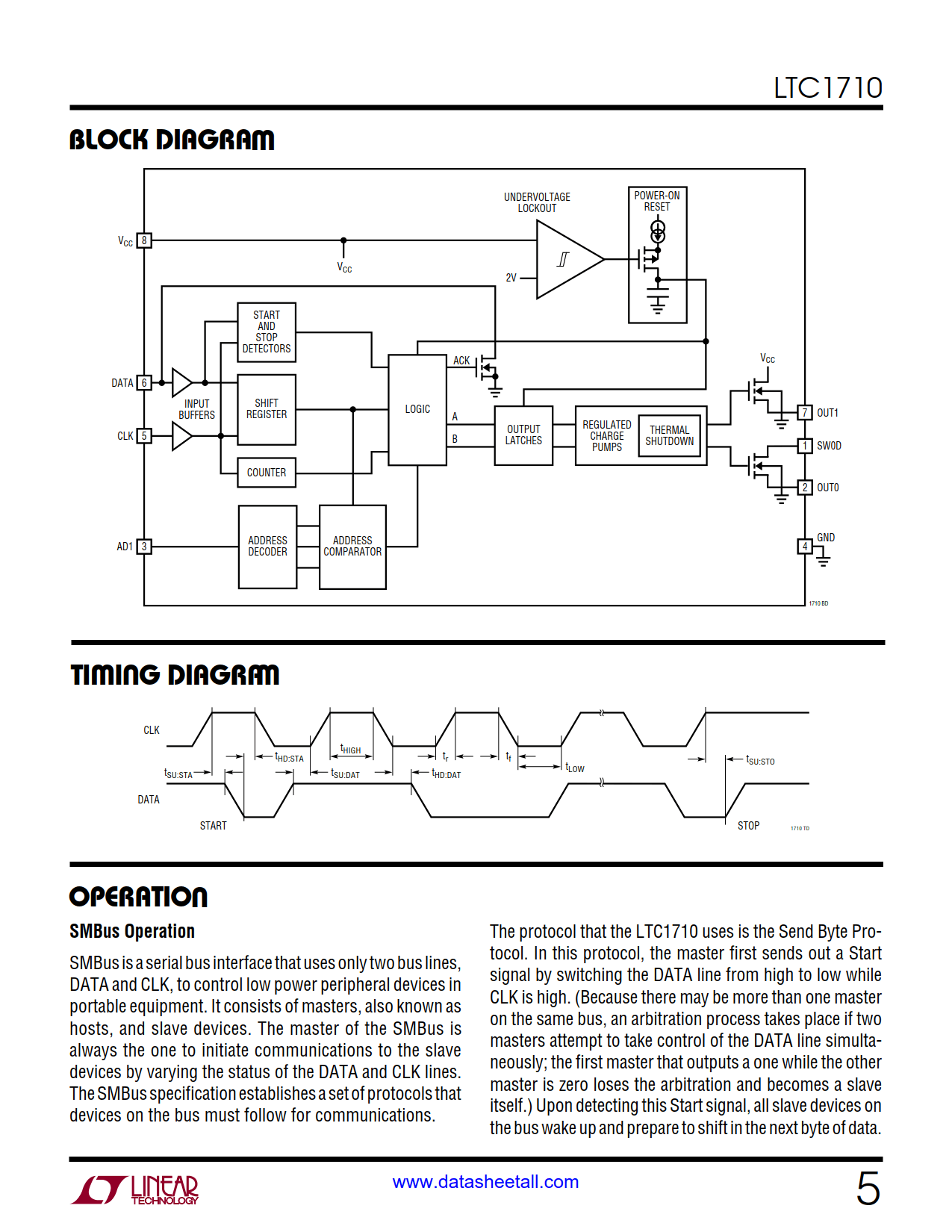

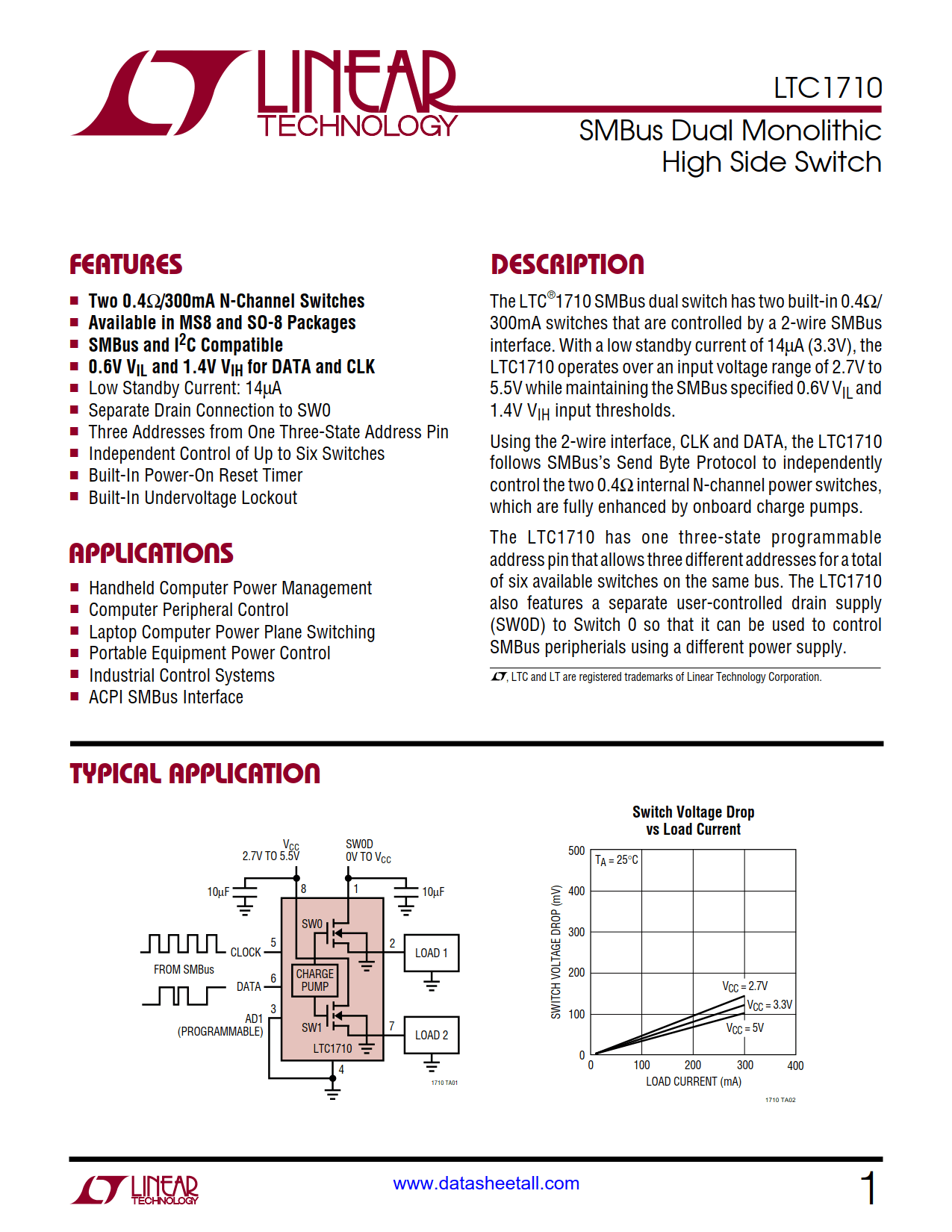

LTC1710 Datasheet(Picture)

LTC1710 Features

  • Two 0.4Ω/300mA N-Channel Switches
  • Available in MS8 and SO-8 Packages
  • SMBus and I2C Compatible
  • 0.6V VIL and 1.4V VIH for DATA and CLK
  • Low Standby Current: 14µA
  • Separate Drain Connection to SW0
  • Three Addresses from One Three-State Address Pin
  • Independent Control of Up to Six Switches
  • Built-In Power-On Reset Timer
  • Built-In Undervoltage Lockout

LTC1710 Applications

  • Handheld Computer Power Management
  • Computer Peripheral Control
  • Laptop Computer Power Plane Switching
  • Portable Equipment Power Control
  • Industrial Control Systems
  • ACPI SMBus Interface

LTC1710 Description

The LTC1710 SMBus dual switch has two built-in 0.4Ω/300mA switches that are controlled by a 2-wire SMBus interface. With a low standby current of 14µA (3.3V), the LTC1710 operates over an input voltage range of 2.7V to 5.5V while maintaining the SMBus specified 0.6V VIL and 1.4V VIH input thresholds.

Using the 2-wire interface, CLK and DATA, the LTC1710 follows SMBus’s Send Byte Protocol to independently control the two 0.4Ω internal N-channel power switches, which are fully enhanced by on-board charge pumps.

The LTC1710 has one three-state programmable address pin that allows three different addresses for a total of six available switches on the same bus. The LTC1710 also features a separate user-controlled drain supply (SW0D) to Switch 0 so that it can be used to control SMBus peripherals using a different power supply.
