LTC1693-5 Datasheet

LTC1693-5 Datasheet

High Speed Single P-Channel MOSFET Driver
Part No.: LTC1693-5
Page: 8 Pages
Size: 135 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-23 11:13:39
DataSheet: Download

LTC1693-5 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1693-5CMS8#PBF Tube 50 LTSG 1 8 0°C ~ 70°C 8-Lead MSOP
LTC1693-5CMS8#TRPBF Reel 2500 LTSG 1 8 0°C ~ 70°C 8-Lead MSOP
LTC1693-5CMS8#TRMPBF Reel 500 LTSG 1 8 0°C ~ 70°C 8-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1693-5 Datasheet(PDF)

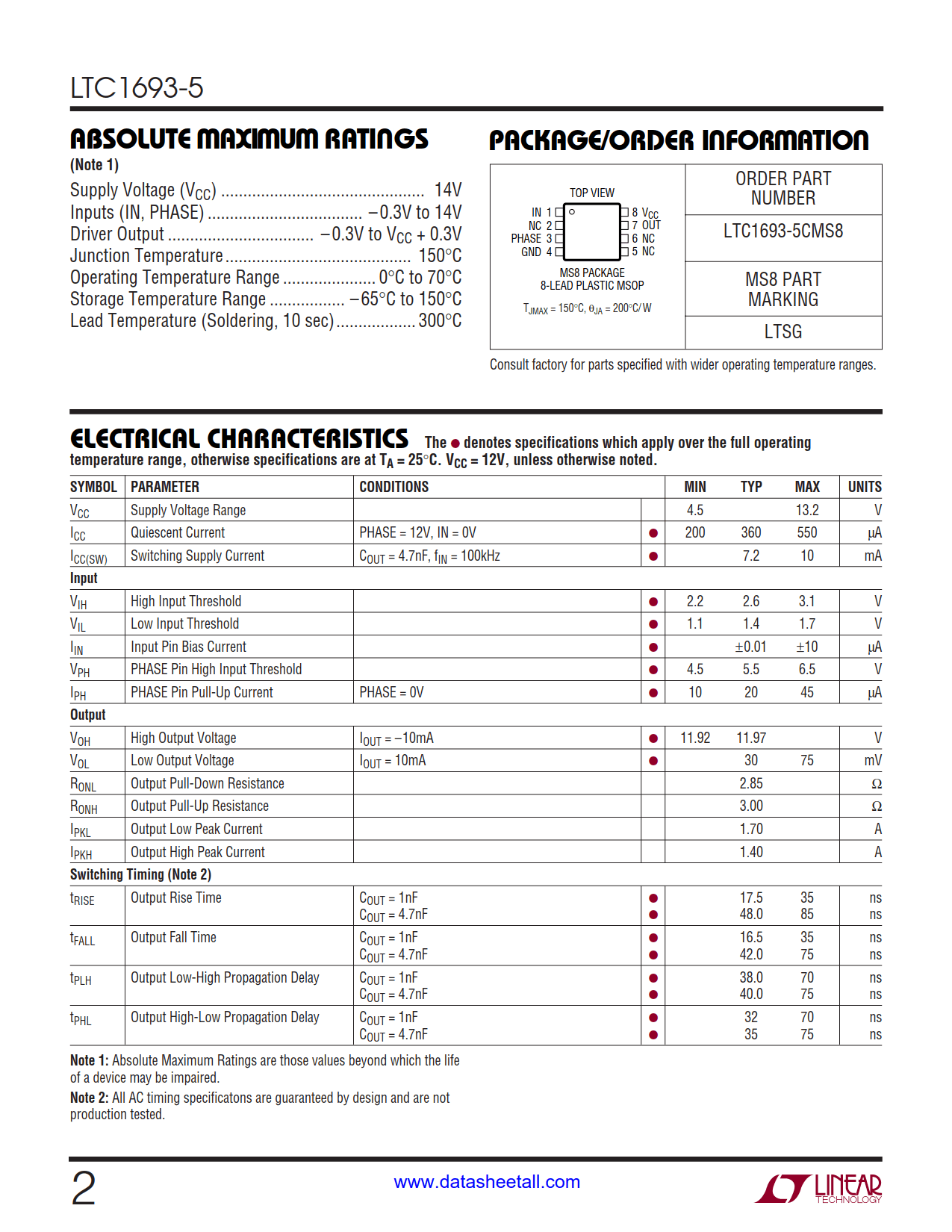

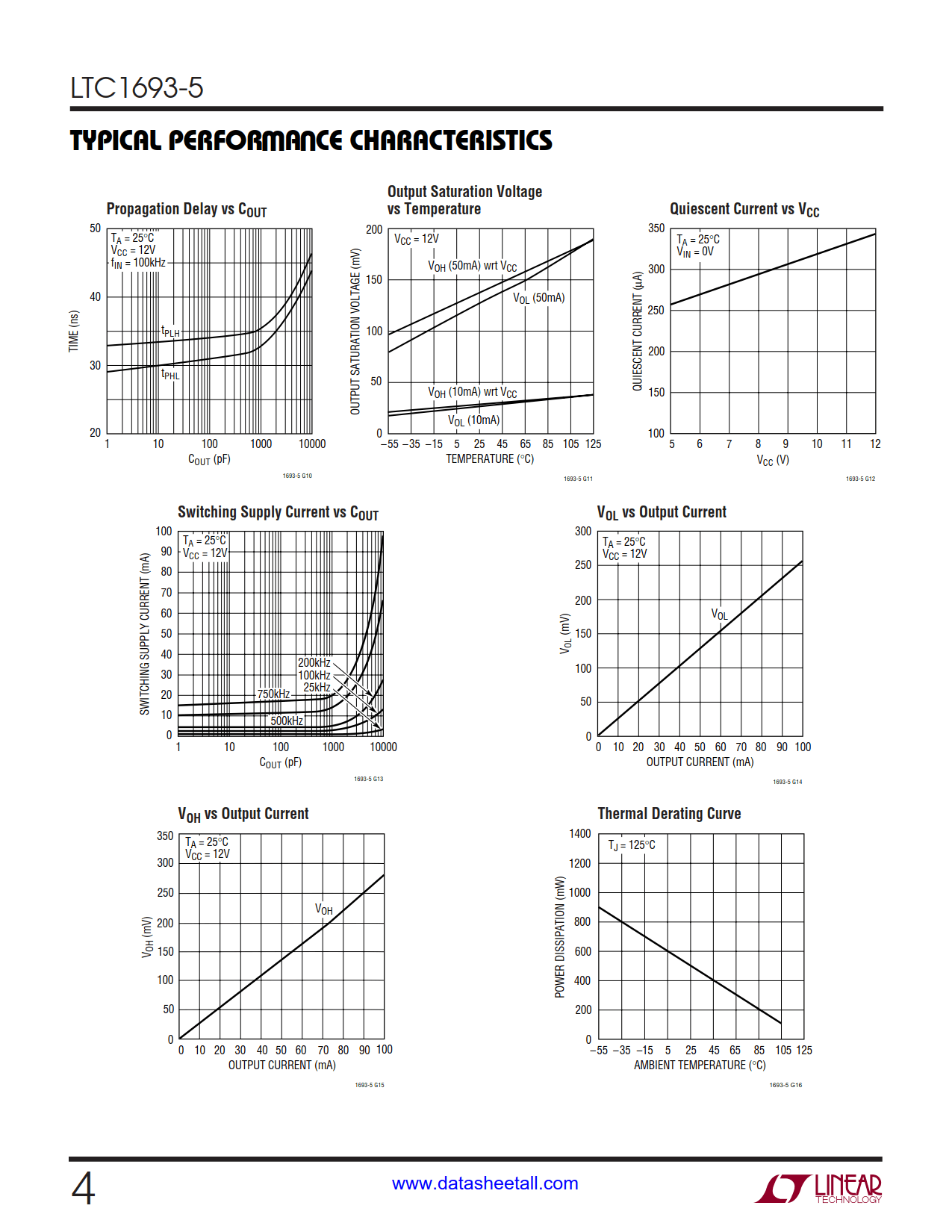

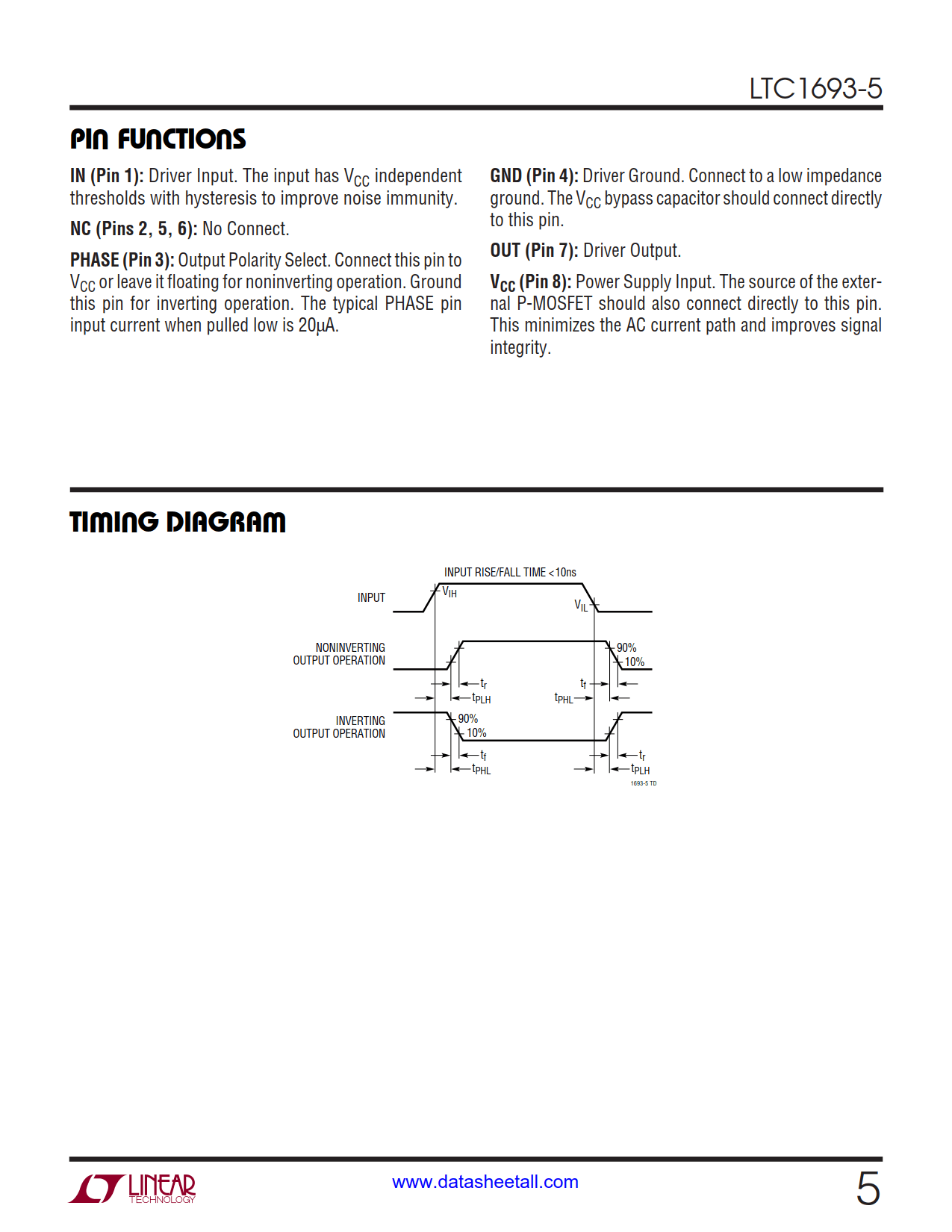

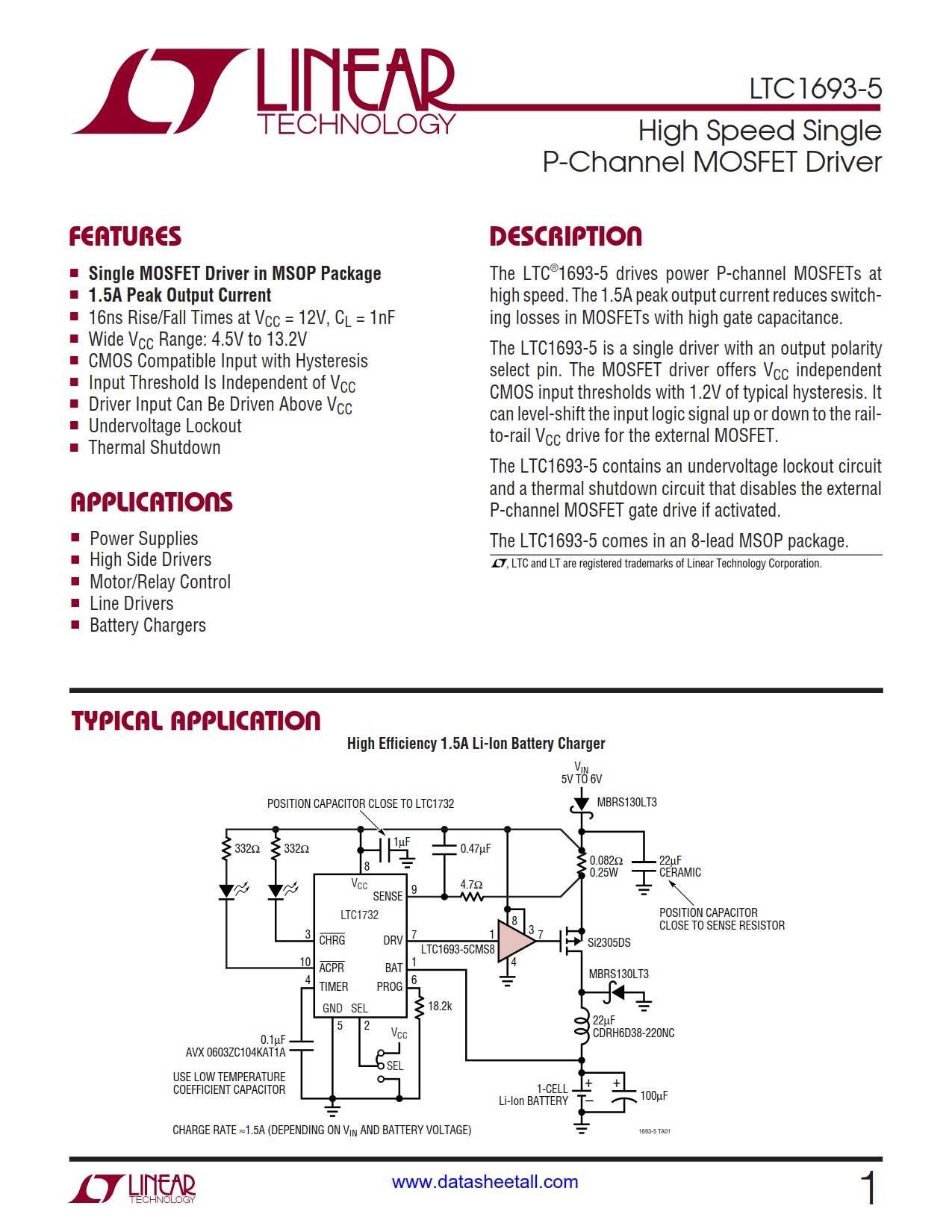

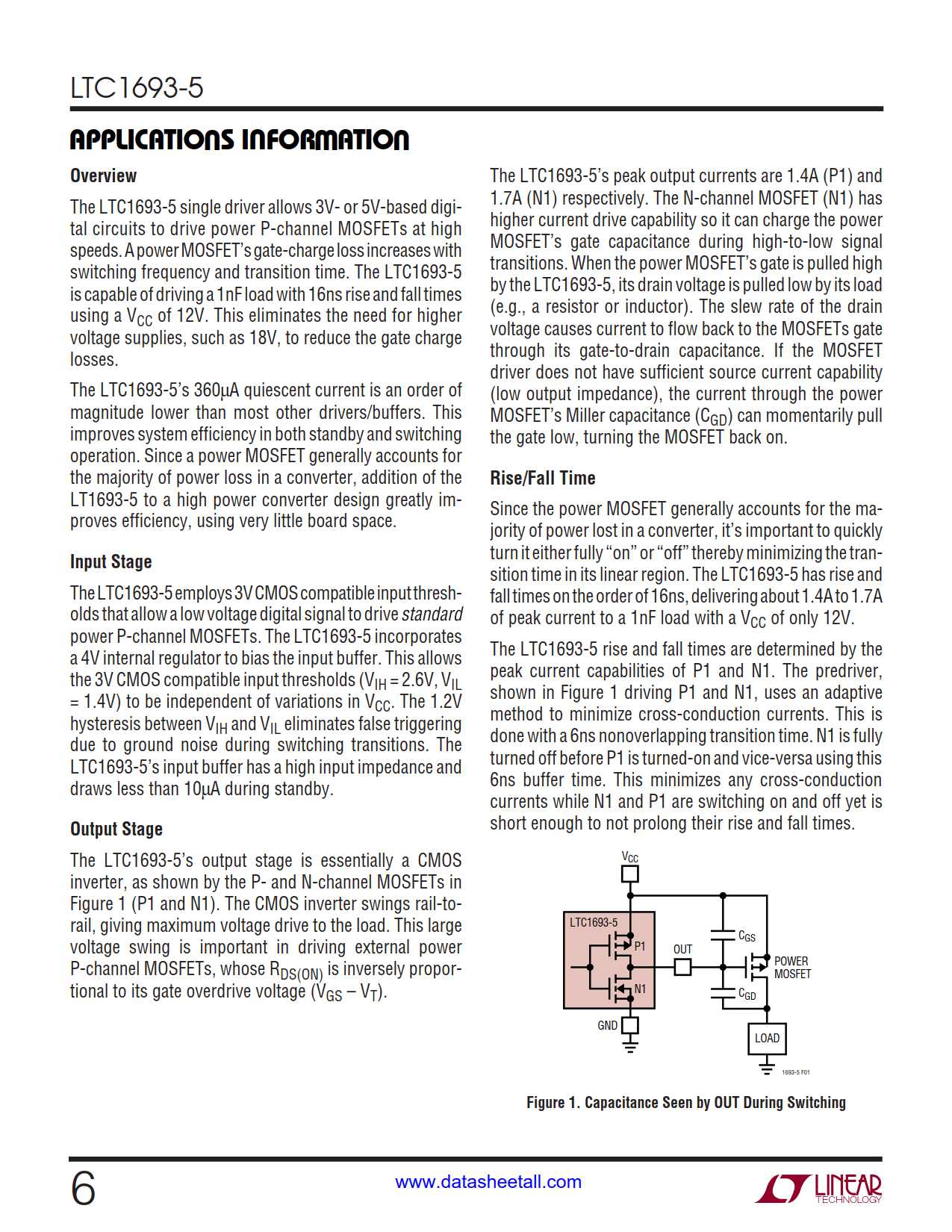

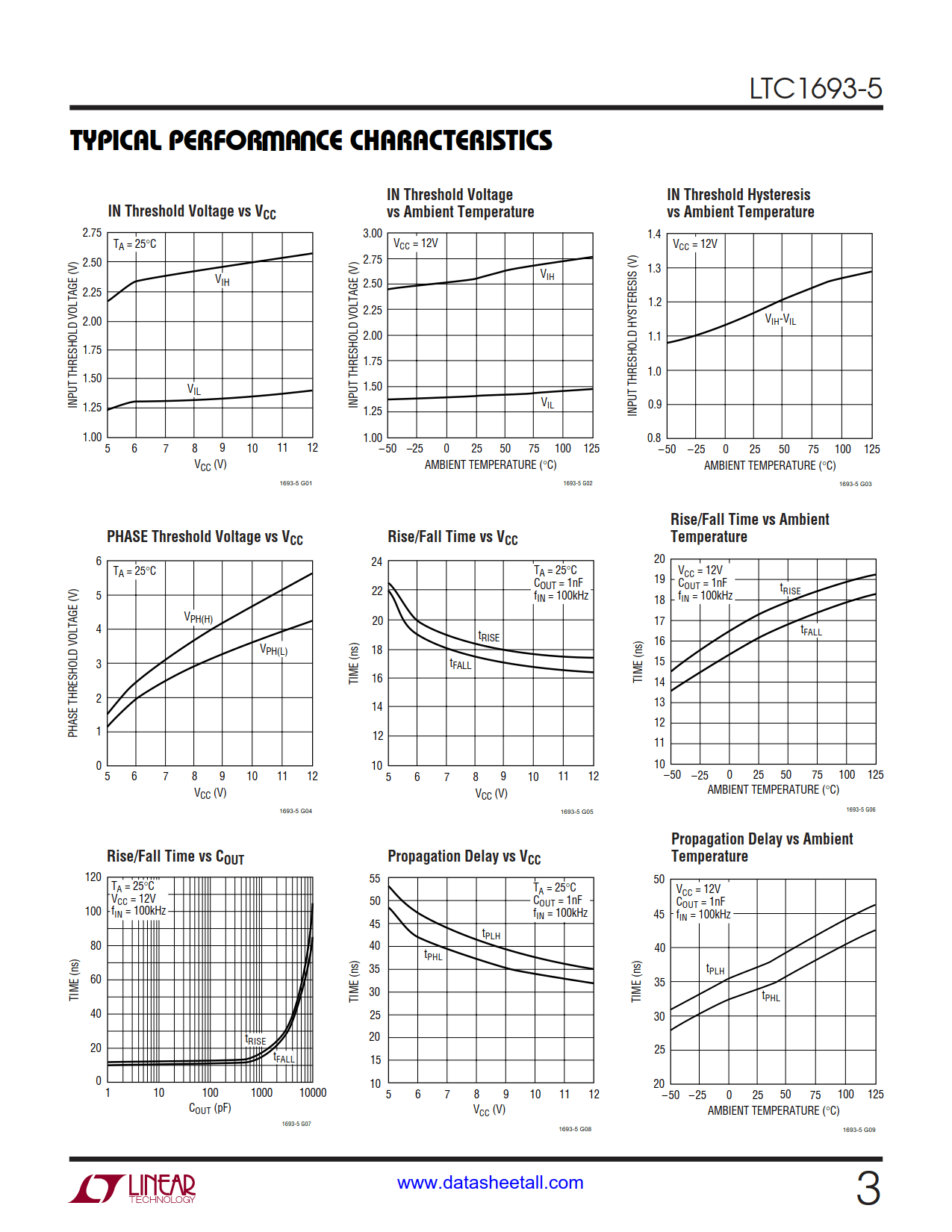

LTC1693-5 Datasheet(Picture)

LTC1693-5 Features

  • Single MOSFET Driver in MSOP Package
  • 1.5A Peak Output Current
  • 16ns Rise/Fall Times at VCC = 12V, CL = 1nF
  • CMOS Compatible Input with Hysteresis
  • Input Threshold Is Independent of VCC
  • Driver Input Can Be Driven Above VCC
  • Undervoltage Lockout
  • Thermal Shutdown

LTC1693-5 Applications

  • Power Supplies
  • High Side Drivers
  • Motor/Relay Control
  • Line Drivers
  • Battery Chargers

LTC1693-5 Description

The LTC1693-5 drives power P-channel MOSFETs at high speed. The 1.5A peak output current reduces switching losses in MOSFETs with high gate capacitance.

The LTC1693-5 is a single driver with an output polarity select pin. The MOSFET driver offers VCC independent CMOS input thresholds with 1.2V of typical hysteresis. It can level-shift the input logic signal up or down to the rail-to-rail VCC drive for the external MOSFET.

The LTC1693-5 contains an undervoltage lockout circuit and a thermal shutdown circuit that disables the external P-channel MOSFET gate drive if activated.

The LTC1693-5 comes in an 8-lead MSOP package.
