LTC1660 Datasheet

LTC1660 Datasheet

Micropower Octal 10-Bit DACs
Part No.: LTC1660
Page: 18 Pages
Size: 211 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-08 14:46:34
DataSheet: Download

LTC1660 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1660CGN#PBF Tube 100 1660 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660CGN#TRPBF Reel 2500 1660 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660CGN#TRMPBF Reel 500 1660 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660IGN#PBF Tube 100 1660I 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
LTC1660IGN#TRPBF Reel 2500 1660I 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
LTC1660IGN#TRMPBF Reel 500 1660I 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
LTC1660CN#PBF Tube 25 LTC1660CN 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660CN#TRPBF Reel   LTC1660CN 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660CN#TRMPBF Reel   LTC1660CN 1 16 0°C ~ 70°C 16-Lead Plastic SSOP
LTC1660IN#PBF Tube 25 LTC1660IN 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
LTC1660IN#TRPBF Reel   LTC1660IN 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
LTC1660IN#TRMPBF Reel   LTC1660IN 1 16 -40°C ~ 85°C 16-Lead Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1660 Datasheet(PDF)

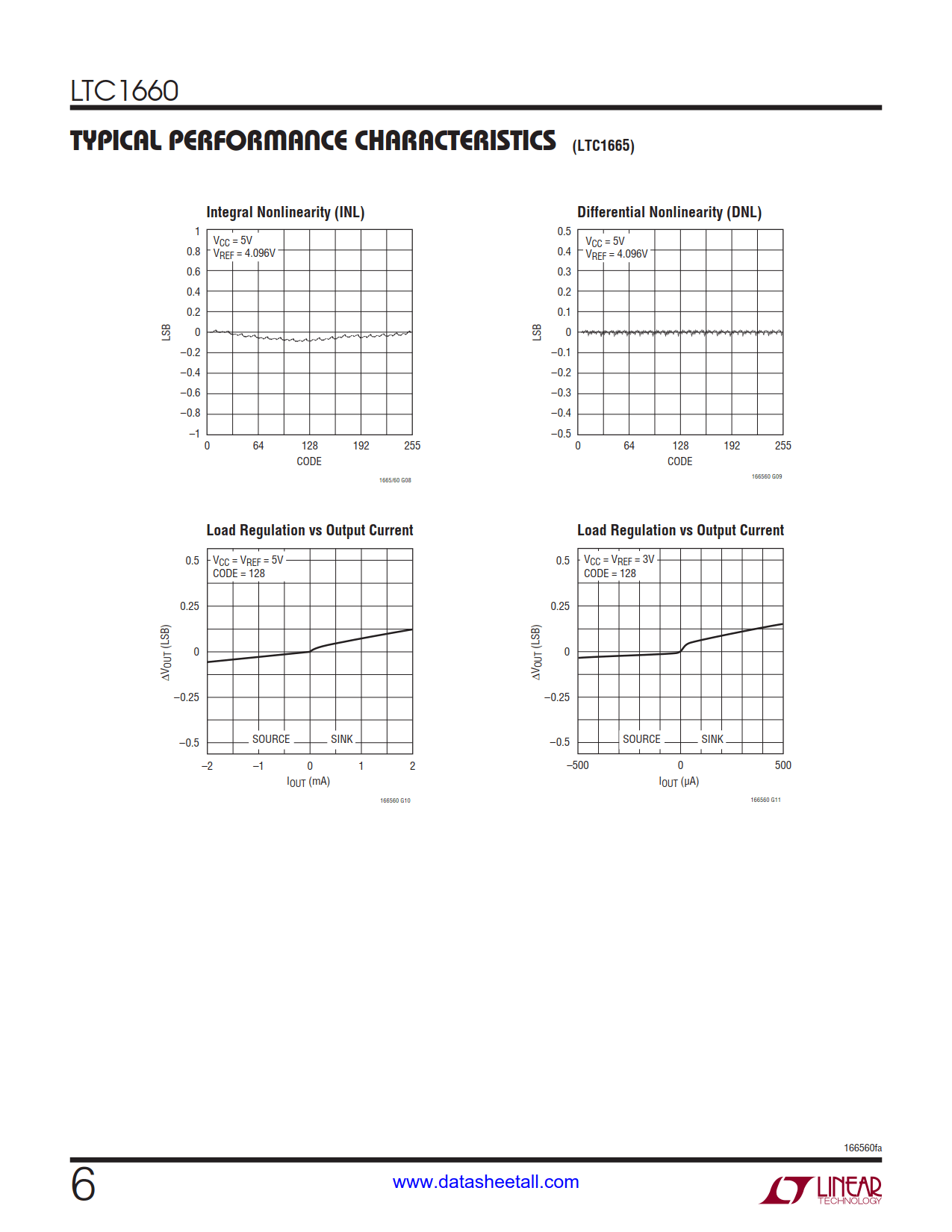

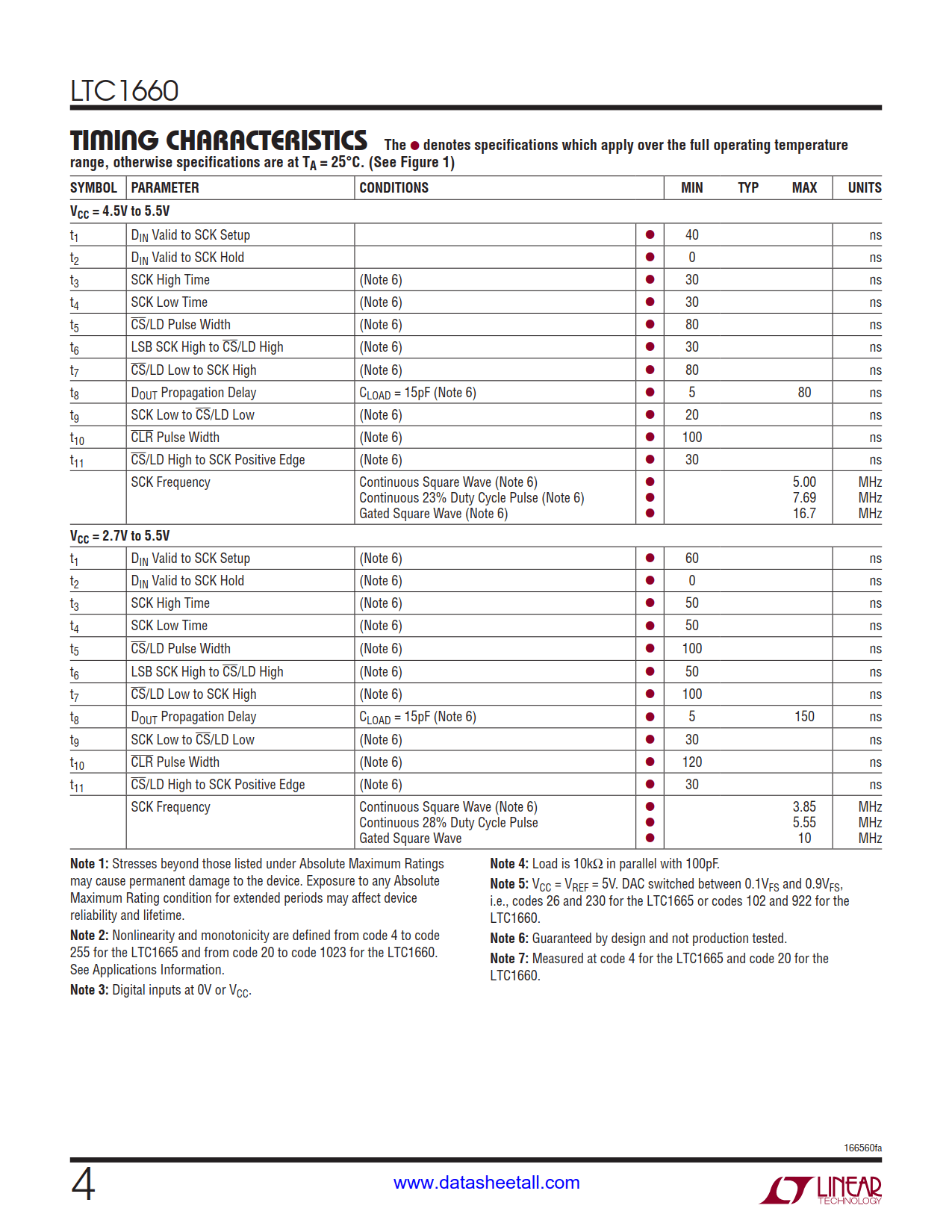

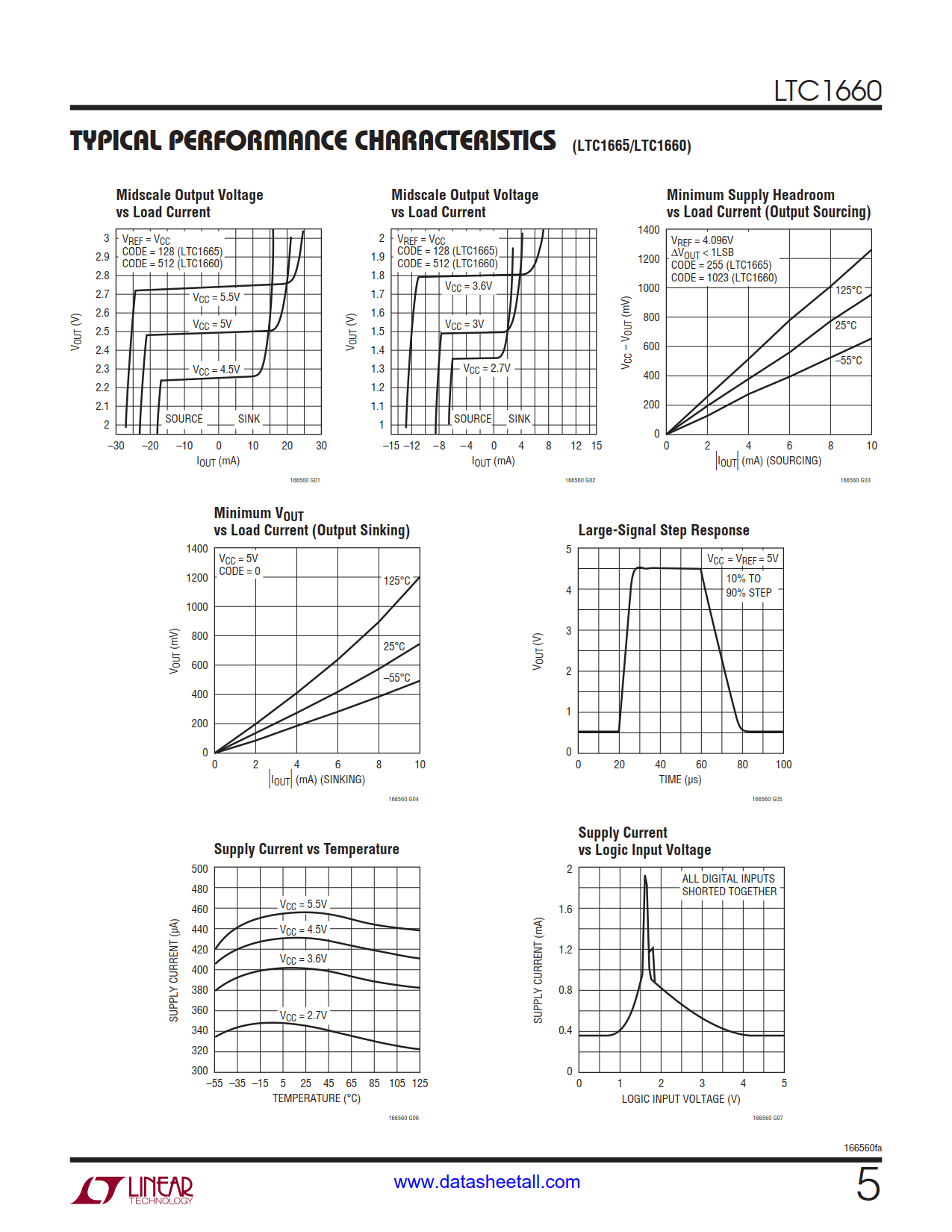

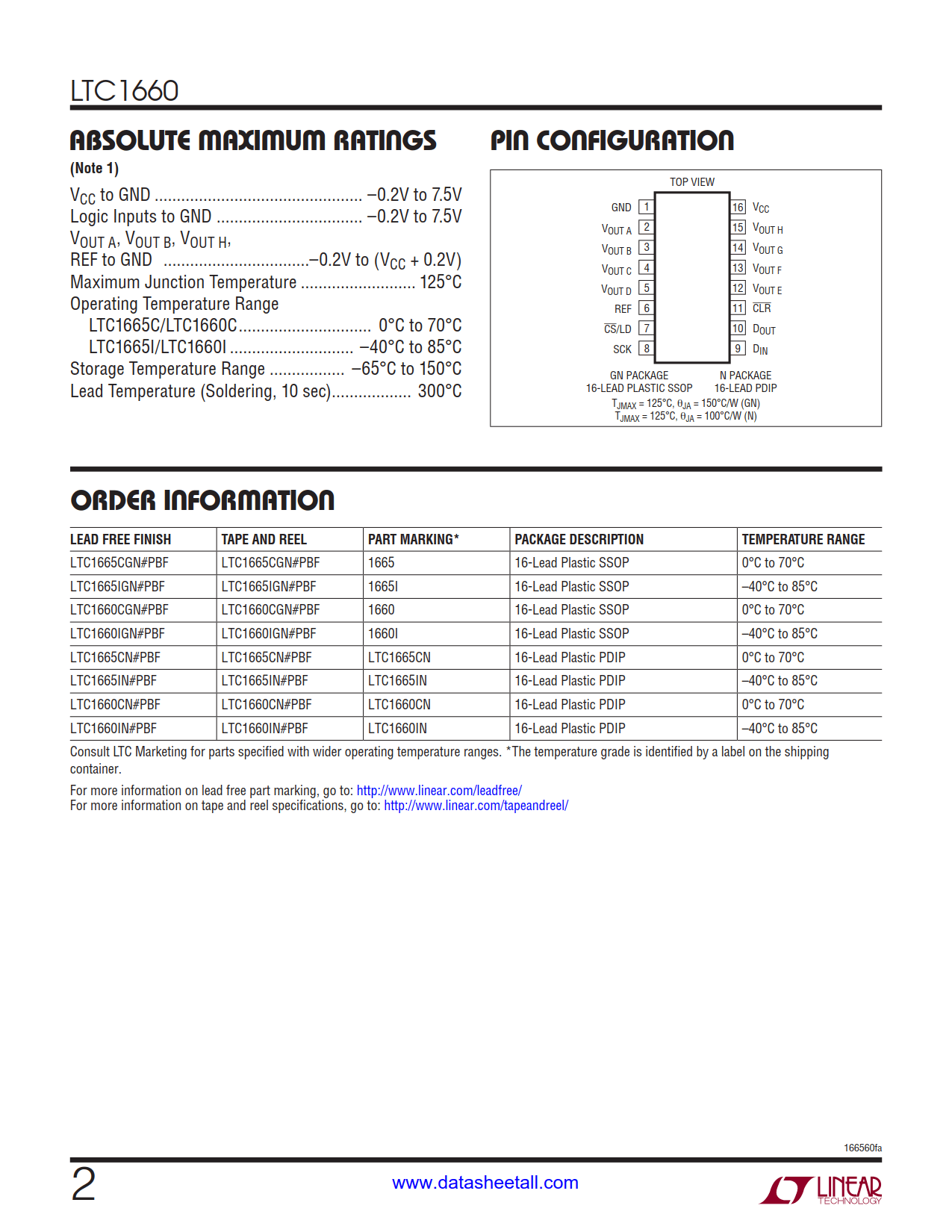

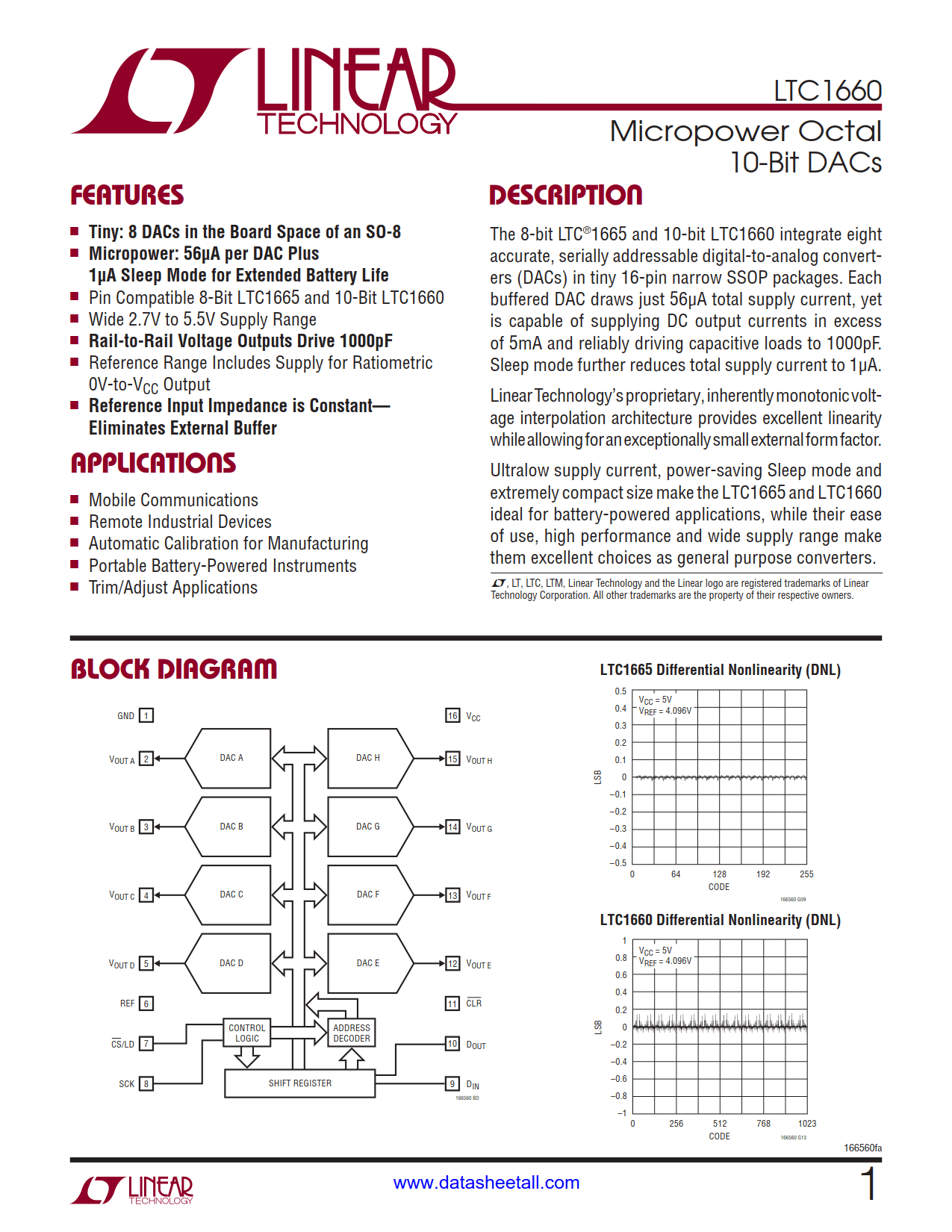

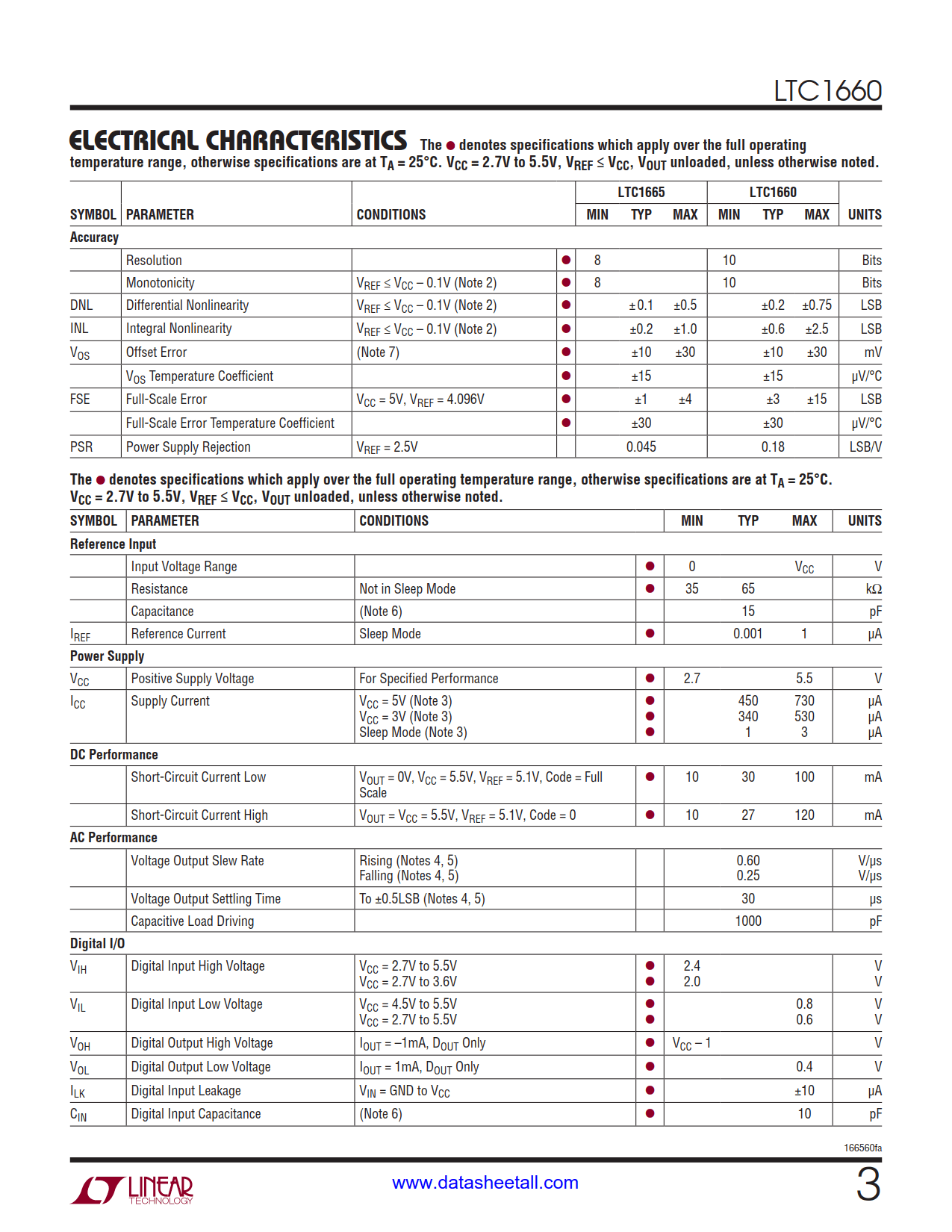

LTC1660 Datasheet(Picture)

LTC1660 Features

  • Tiny: 8 DACs in the Board Space of an SO-8
  • Micropower: 56µA per DAC Plus 1µA Sleep Mode for Extended Battery Life
  • Pin Compatible 10-Bit LTC1660
  • Wide 2.7V to 5.5V Supply Range
  • Rail-to-Rail Voltage Outputs Drive 1000pF
  • Reference Range Includes Supply for Ratiometric 0V-to-VCC Output
  • Reference Input Impedance is Constant—Eliminates External Buffer

LTC1660 Applications

  • Mobile Communications
  • Remote Industrial Devices
  • Automatic Calibration for Manufacturing
  • Portable Battery-Powered Instruments
  • Trim/Adjust Applications

LTC1660 Description

The 10-bit LTC1660 integrate eight accurate, serially addressable digital-to-analog converters (DACs) in tiny 16-pin narrow SSOP packages. Each buffered DAC draws just 56µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1µA.

Proprietary, inherently monotonic voltage interpolation architecture provides excellent linearity while allowing for an exceptionally small external form factor.

Ultralow supply current, power-saving Sleep mode and extremely compact size make the LTC1660 ideal for battery-powered applications, while their ease of use, high performance and wide supply range make them excellent choices as general purpose converters.
