| Part No.： | LTC1642A |
| Page： | 16 Pages |
| Size： | 193 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-18 13:58:07 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1642ACGN#PBF | Tube | 100 | 1642A | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
| LTC1642ACGN#TRPBF | Reel | 2500 | 1642A | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
| LTC1642ACGN#TRMPBF | Reel | 500 | 1642A | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
| LTC1642AIGN#PBF | Tube | 100 | 1642AI | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP | |
| LTC1642AIGN#TRPBF | Reel | 2500 | 1642AI | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP | |
| LTC1642AIGN#TRMPBF | Reel | 500 | 1642AI | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP |

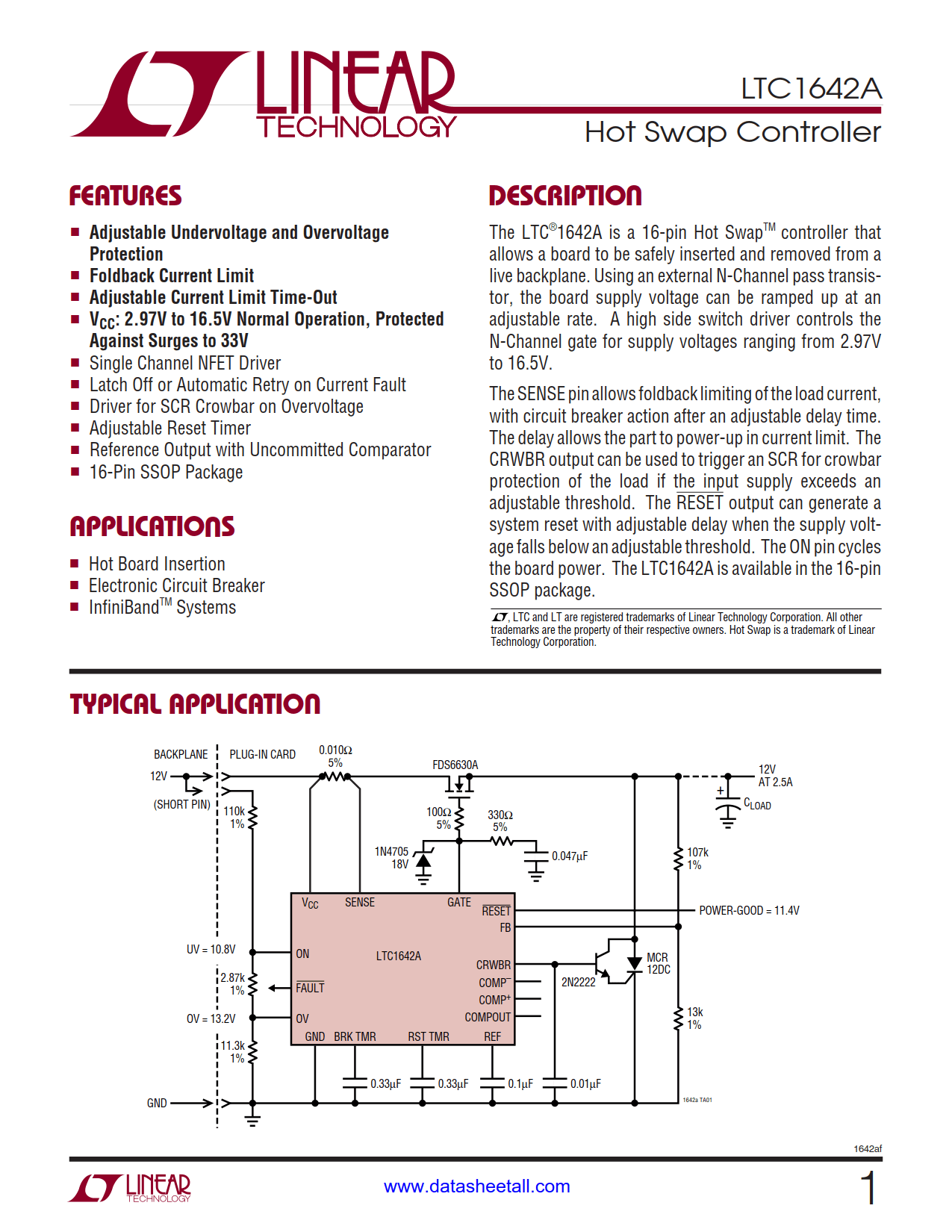

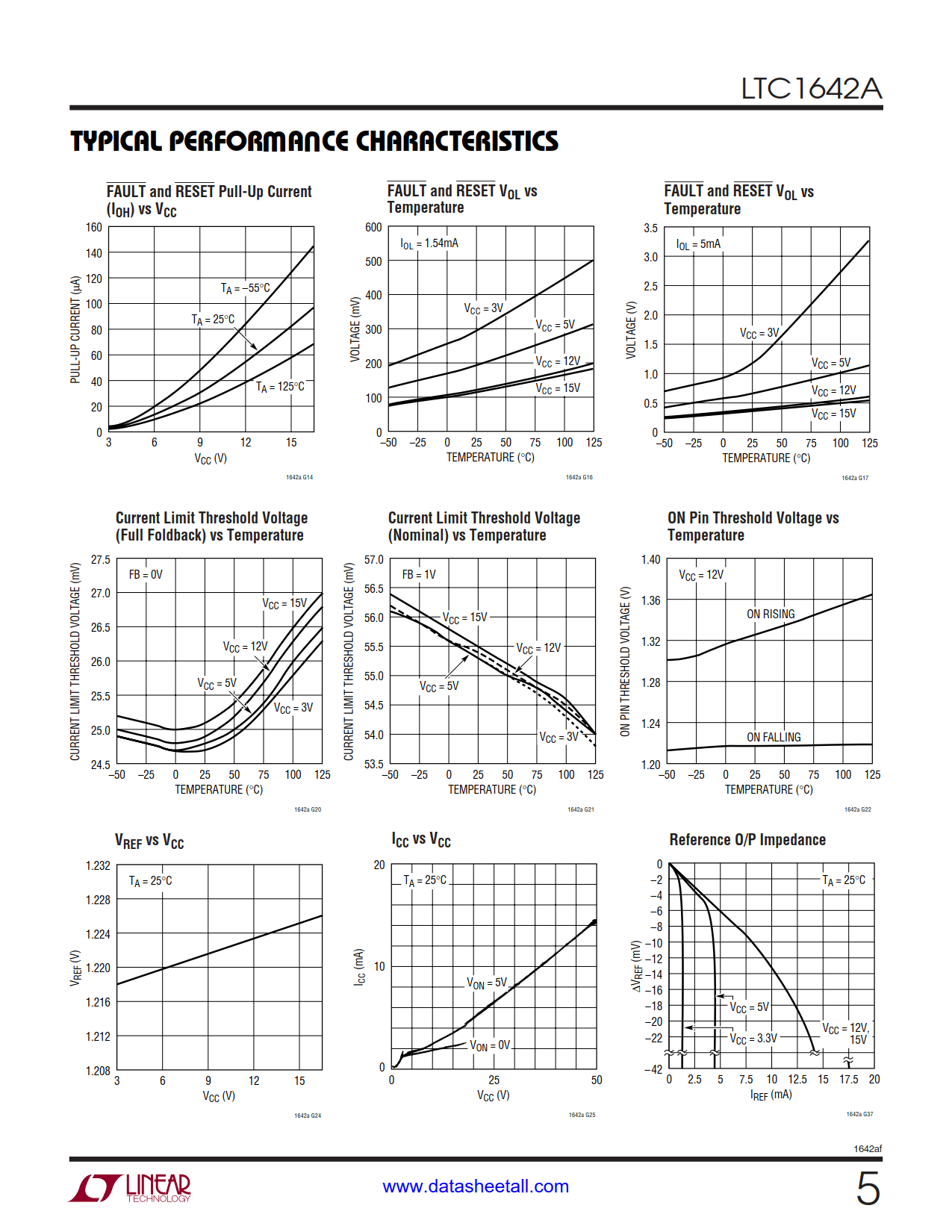

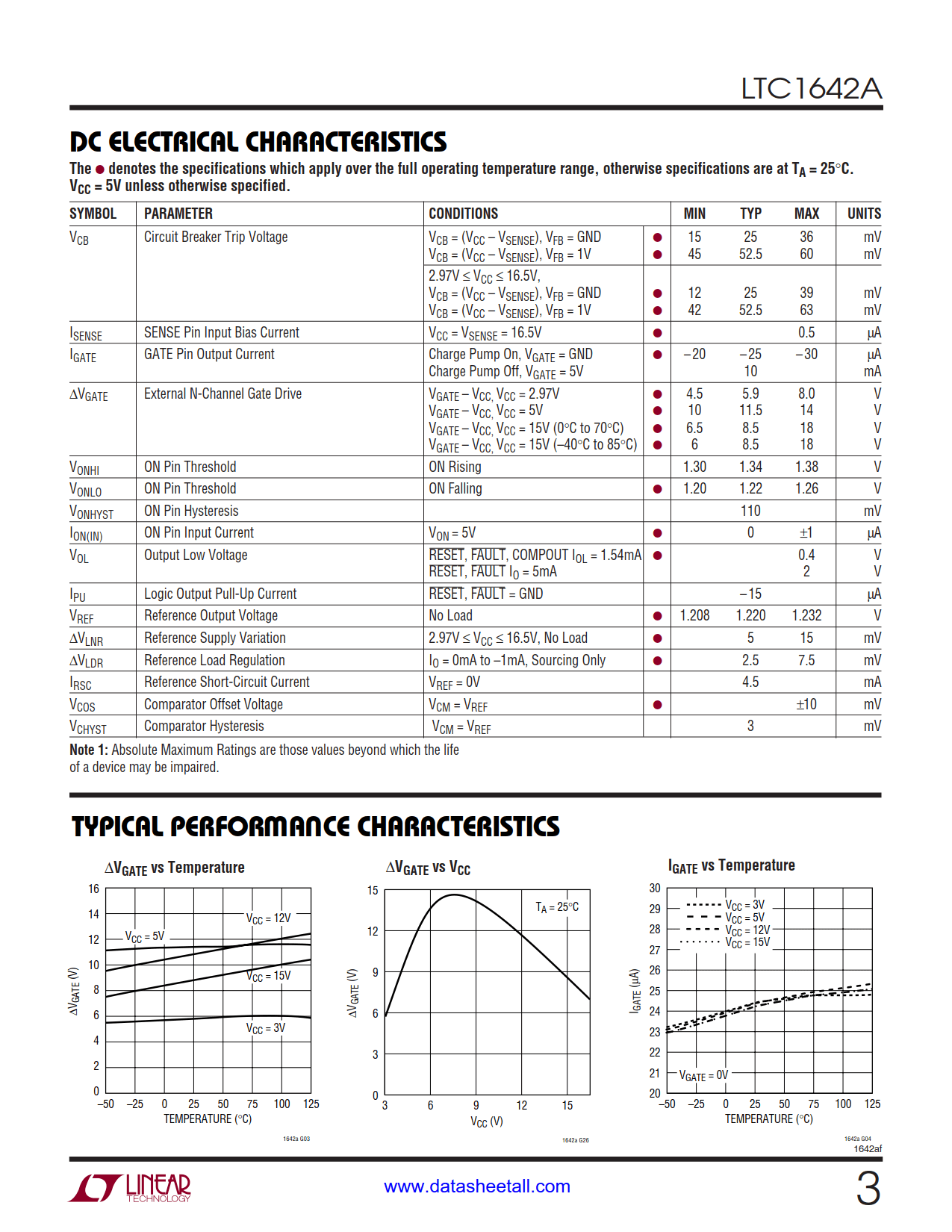

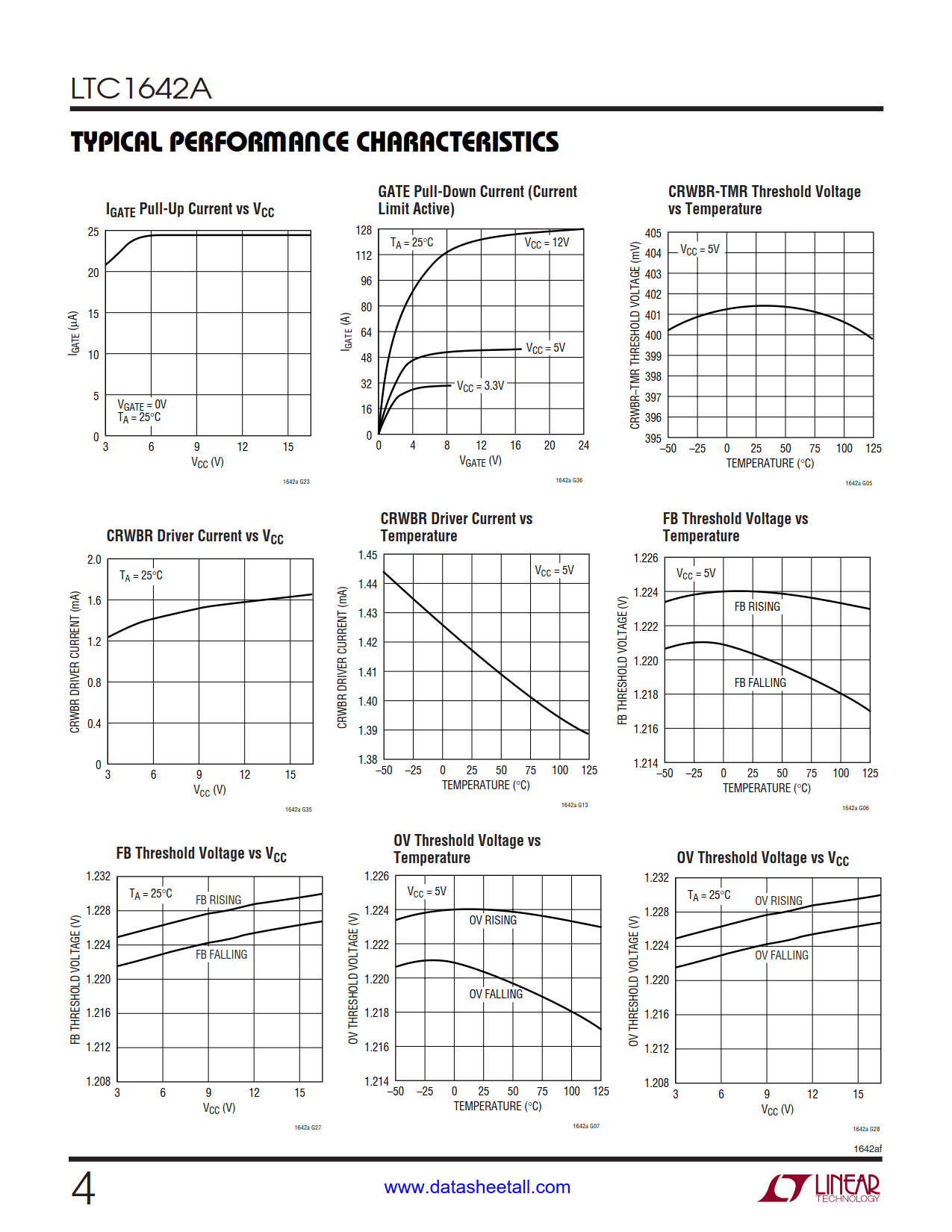

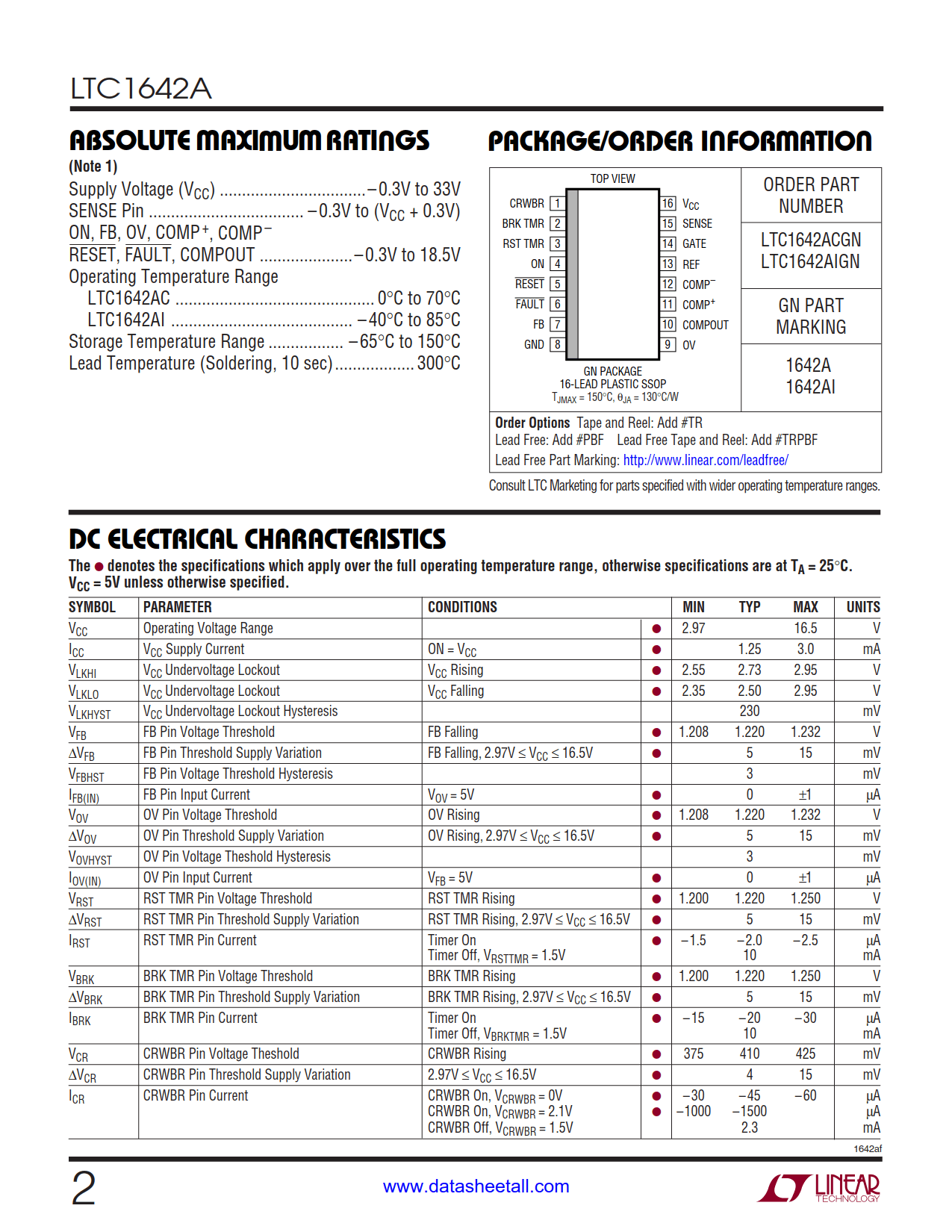

The LTC1642A is a 16-pin Hot Swap™ controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-Channel pass transistor, the board supply voltage can be ramped up at an adjustable rate. A high side switch driver controls the N-Channel gate for supply voltages ranging from 2.97V to 16.5V.

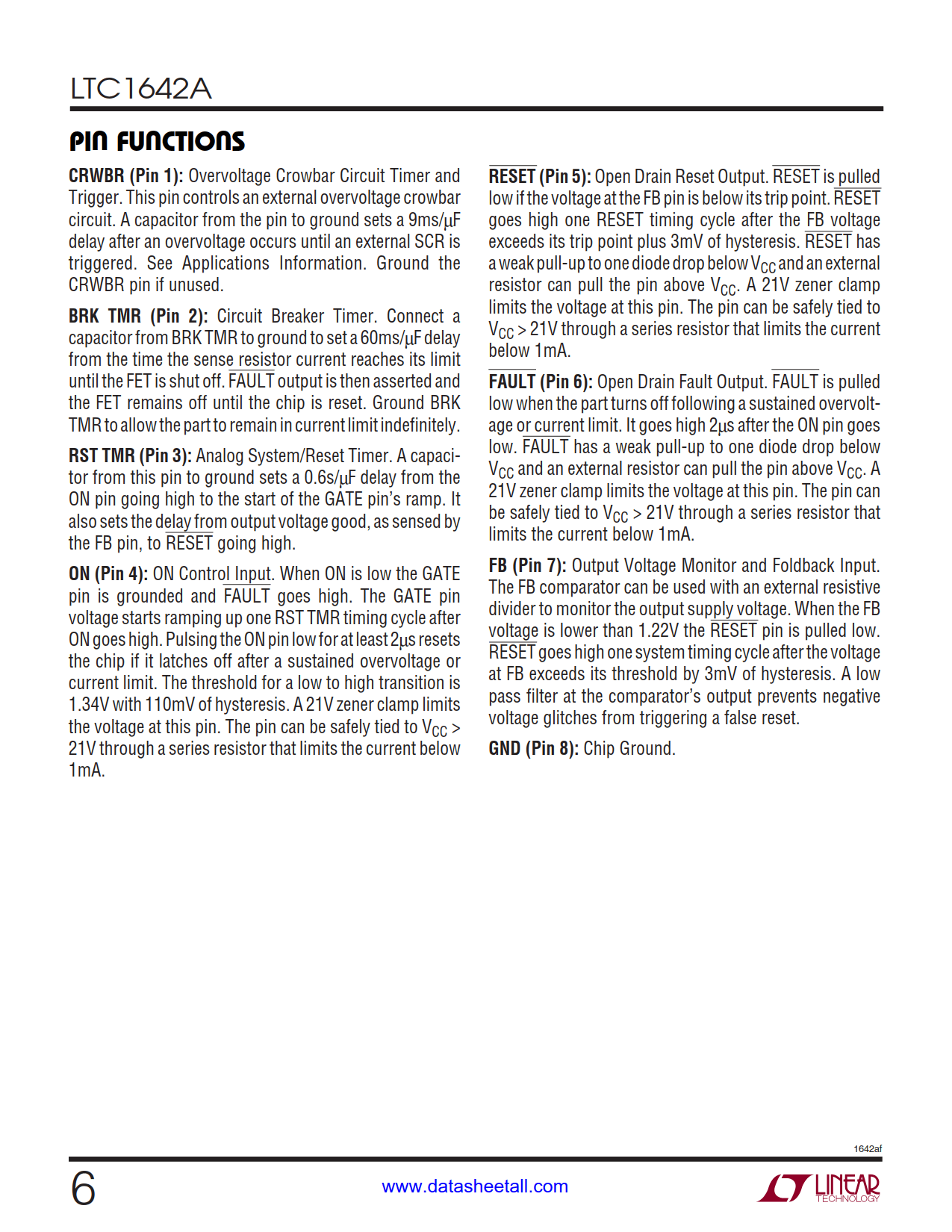

The SENSE pin allows foldback limiting of the load current, with circuit breaker action after an adjustable delay time. The delay allows the part to power-up in current limit. The CRWBR output can be used to trigger an SCR for crowbar protection of the load if the input supply exceeds an adjustable threshold. The RESET output can generate a system reset with adjustable delay when the supply voltage falls below an adjustable threshold. The ON pin cycles the board power.
The LTC1642A is available in the 16-pin SSOP package.
