LTC1609 Datasheet

LTC1609 Datasheet

16-Bit, 200ksps, Serial Sampling ADC with Multiple Input Ranges
Part No.: LTC1609
Page: 24 Pages
Size: 399 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-29 10:14:30
DataSheet: Download

LTC1609 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1609CG#PBF Tube 47   1 28 0°C ~ 70°C 28-Lead SSOP
LTC1609CG#TRPBF Reel 2000   1 28 0°C ~ 70°C 28-Lead SSOP
LTC1609CG#TRMPBF Reel 500   1 28 0°C ~ 70°C 28-Lead SSOP
LTC1609IG#PBF Tube 47   1 28 -40°C ~ 85°C 28-Lead SSOP
LTC1609IG#TRPBF Reel 2500   1 28 -40°C ~ 85°C 28-Lead SSOP
LTC1609IG#TRMPBF Reel 500   1 28 -40°C ~ 85°C 28-Lead SSOP
LTC1609CSW#PBF Tube 38   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609CSW#TRPBF Reel 1000   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609CSW#TRMPBF Reel 500   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609ISW#PBF Tube 38   1 20 -40°C ~ 85°C 20-Lead SOIC
LTC1609ISW#TRPBF Reel 1000   1 20 -40°C ~ 85°C 20-Lead SOIC
LTC1609ISW#TRMPBF Reel 500   1 20 -40°C ~ 85°C 20-Lead SOIC
LTC1609ACSW#PBF Tube 38   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609ACSW#TRPBF Reel 1000   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609ACSW#TRMPBF Reel 500   1 20 0°C ~ 70°C 20-Lead SOIC
LTC1609AISW#PBF Tube 38   1 20 -40°C ~ 85°C 20-Lead SOIC
LTC1609AISW#TRPBF Reel 1000   1 20 -40°C ~ 85°C 20-Lead SOIC
LTC1609AISW#TRMPBF Reel 500   1 20 -40°C ~ 85°C 20-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1609 Datasheet(PDF)

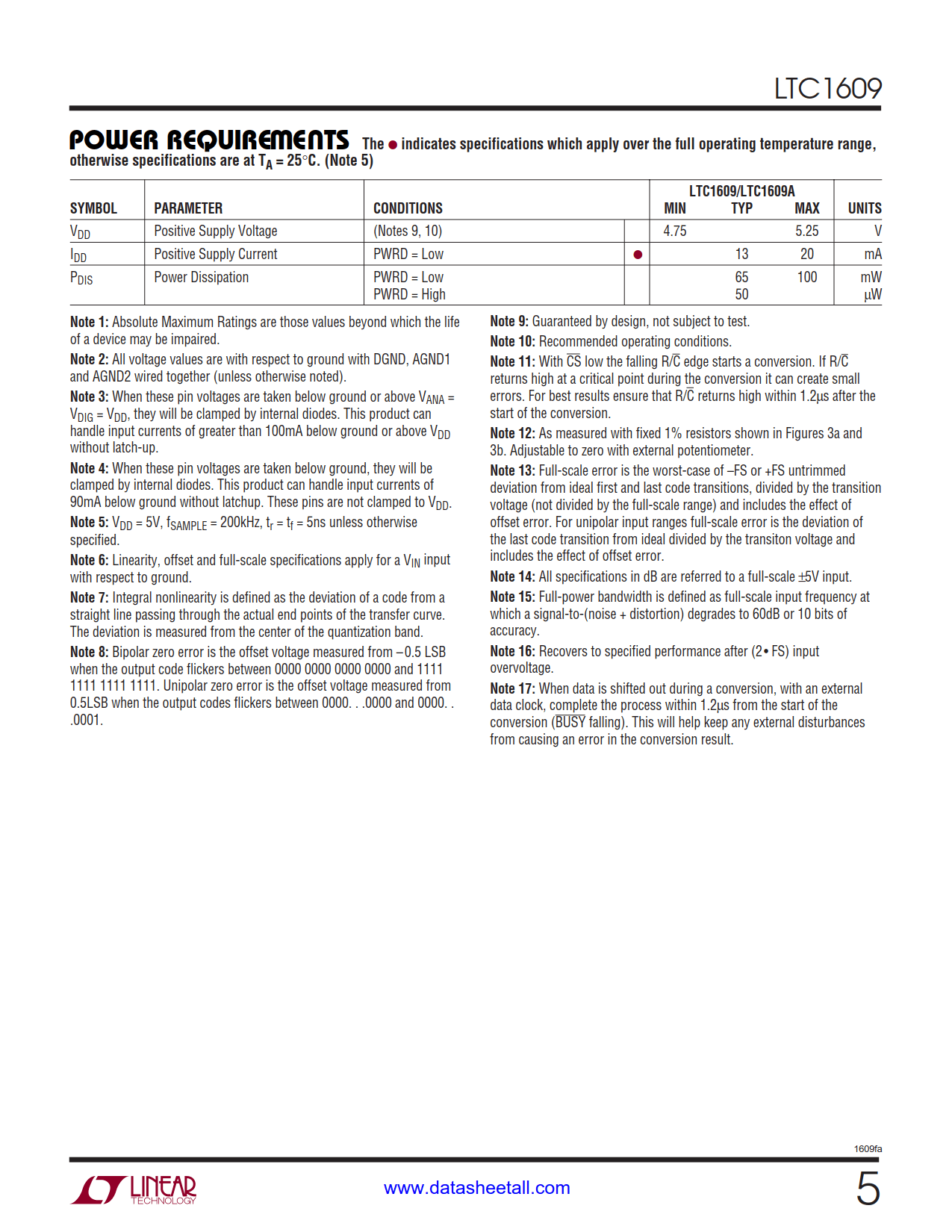

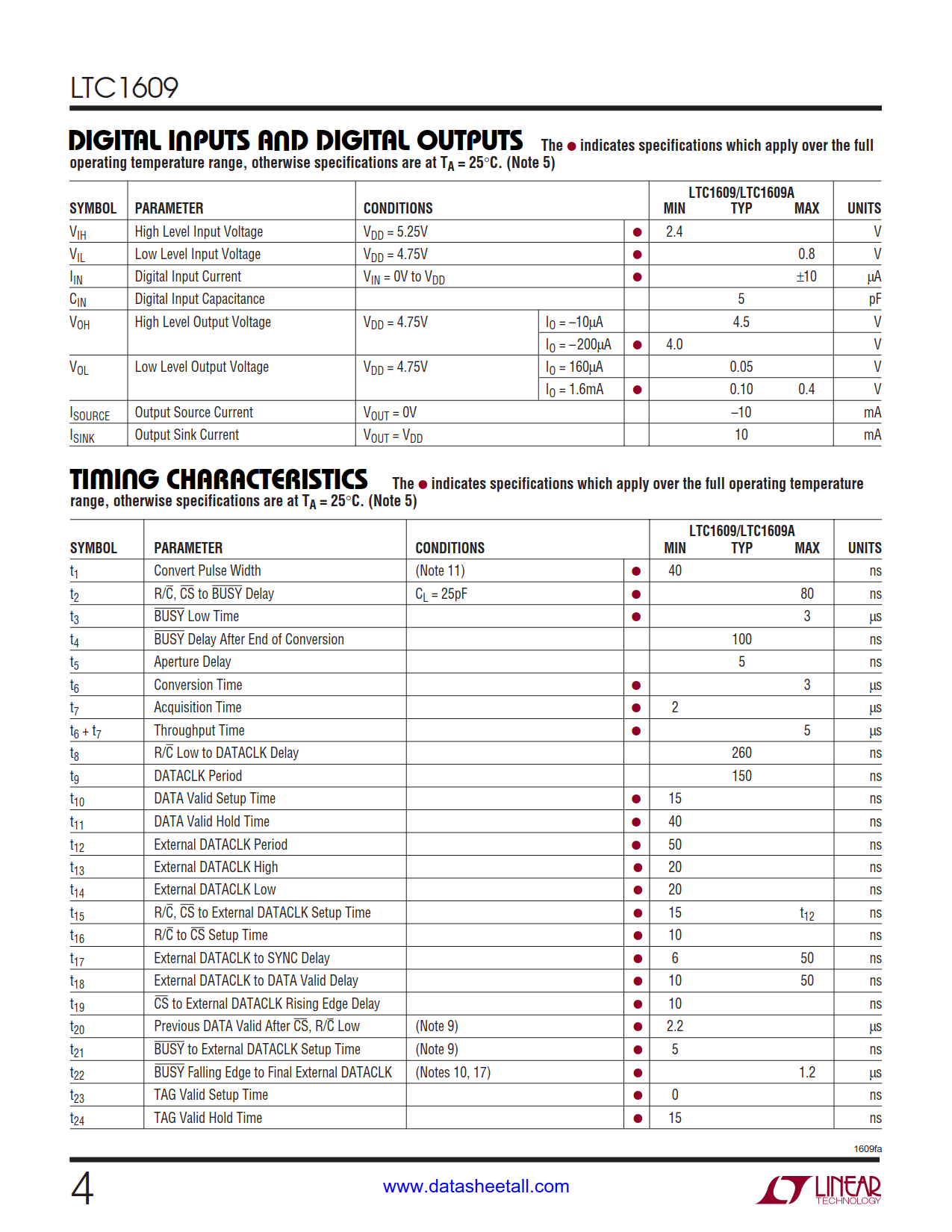

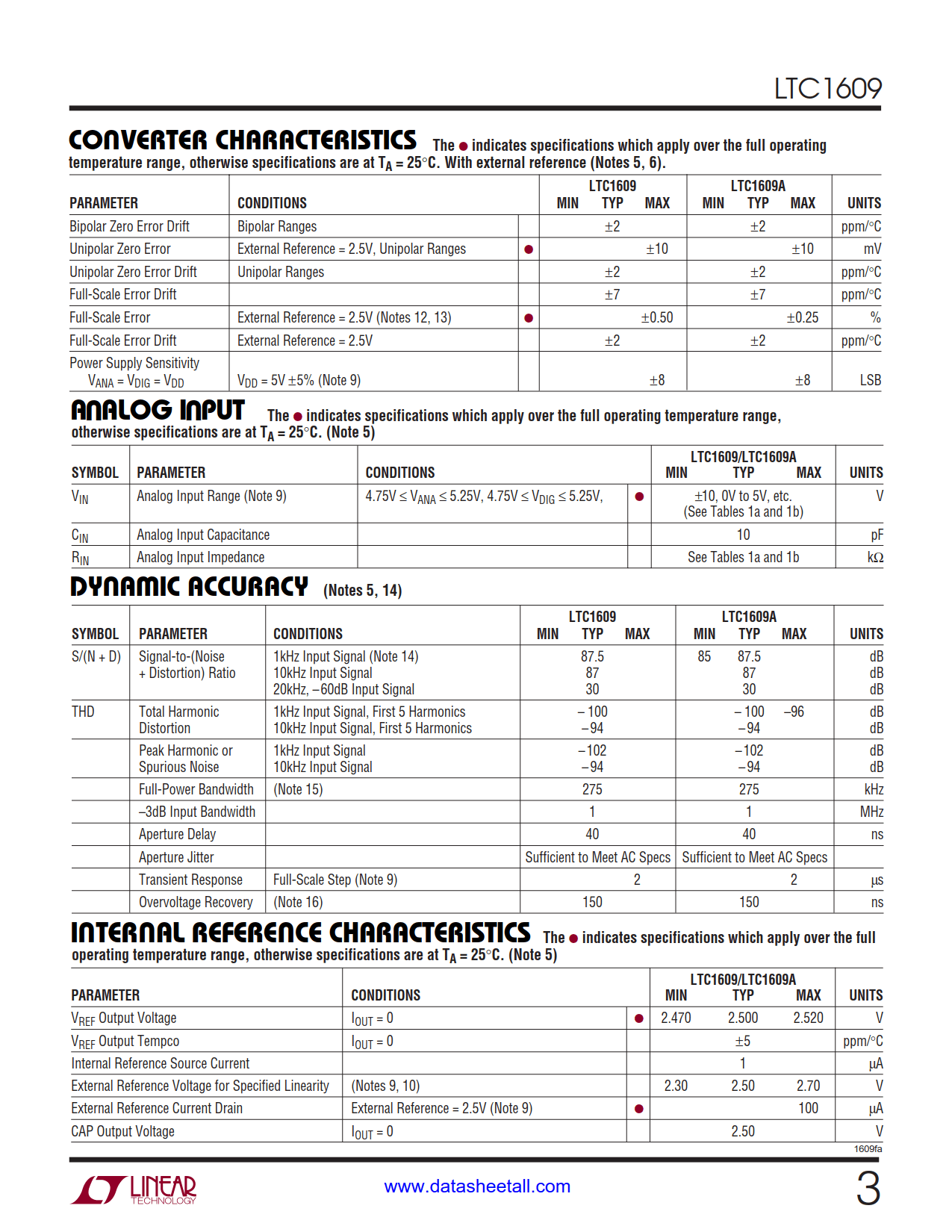

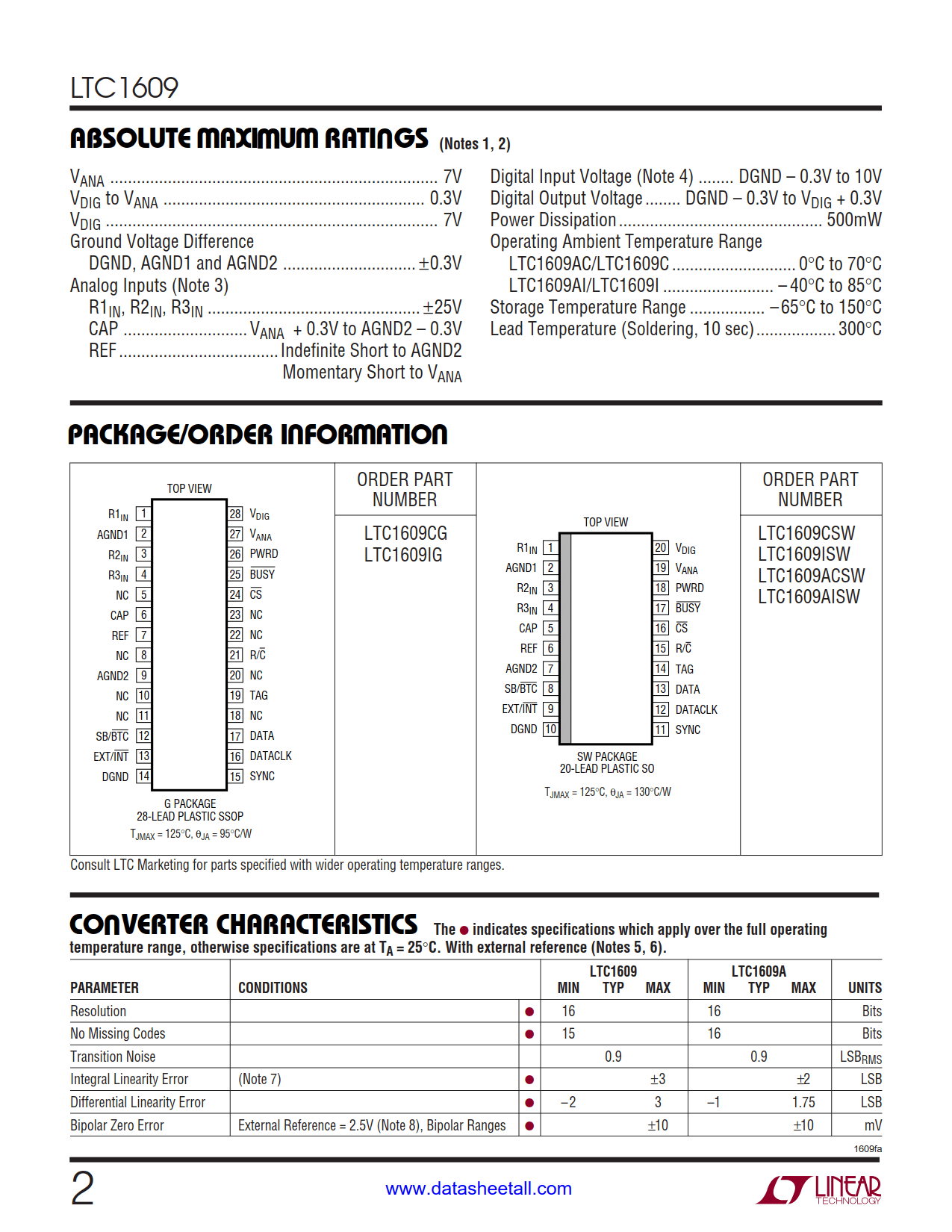

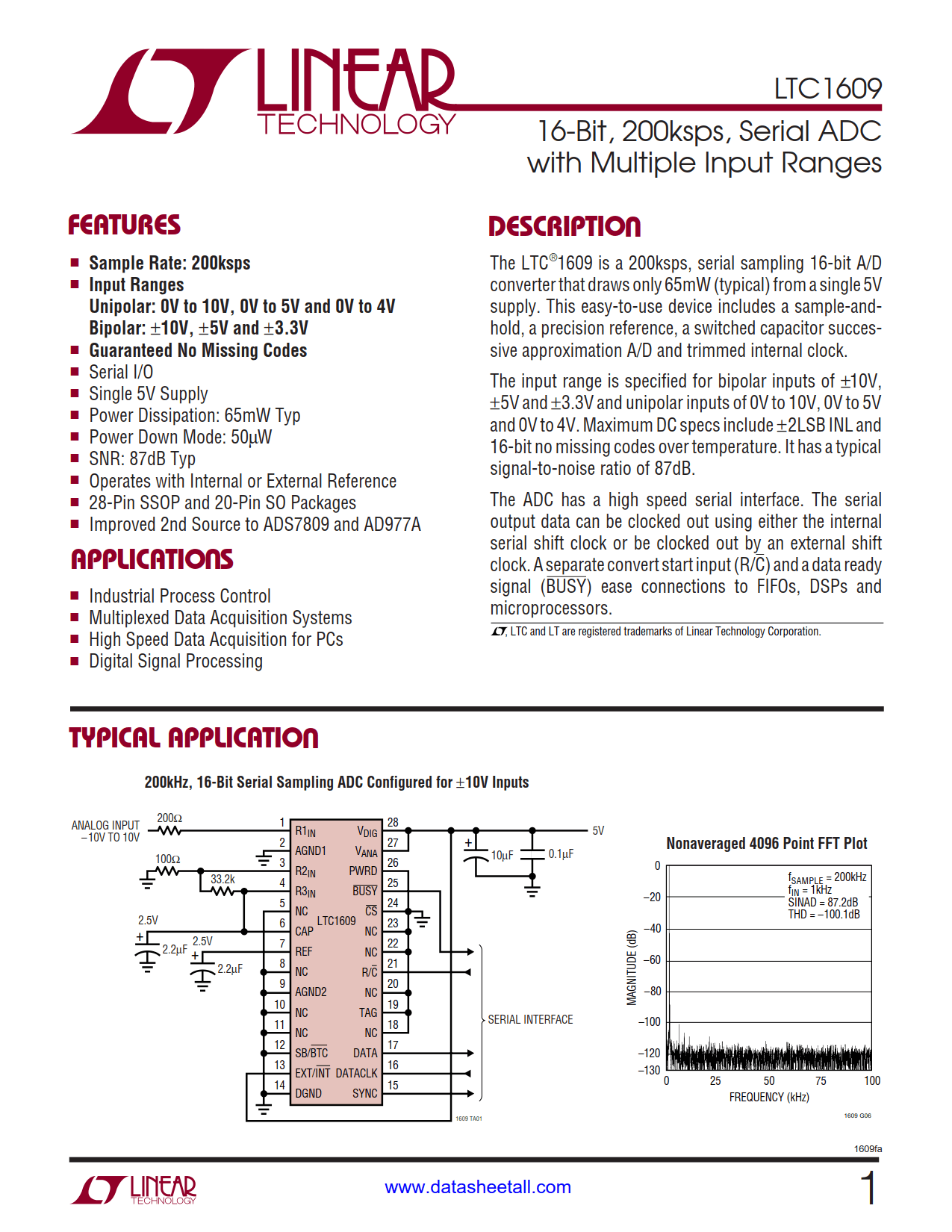

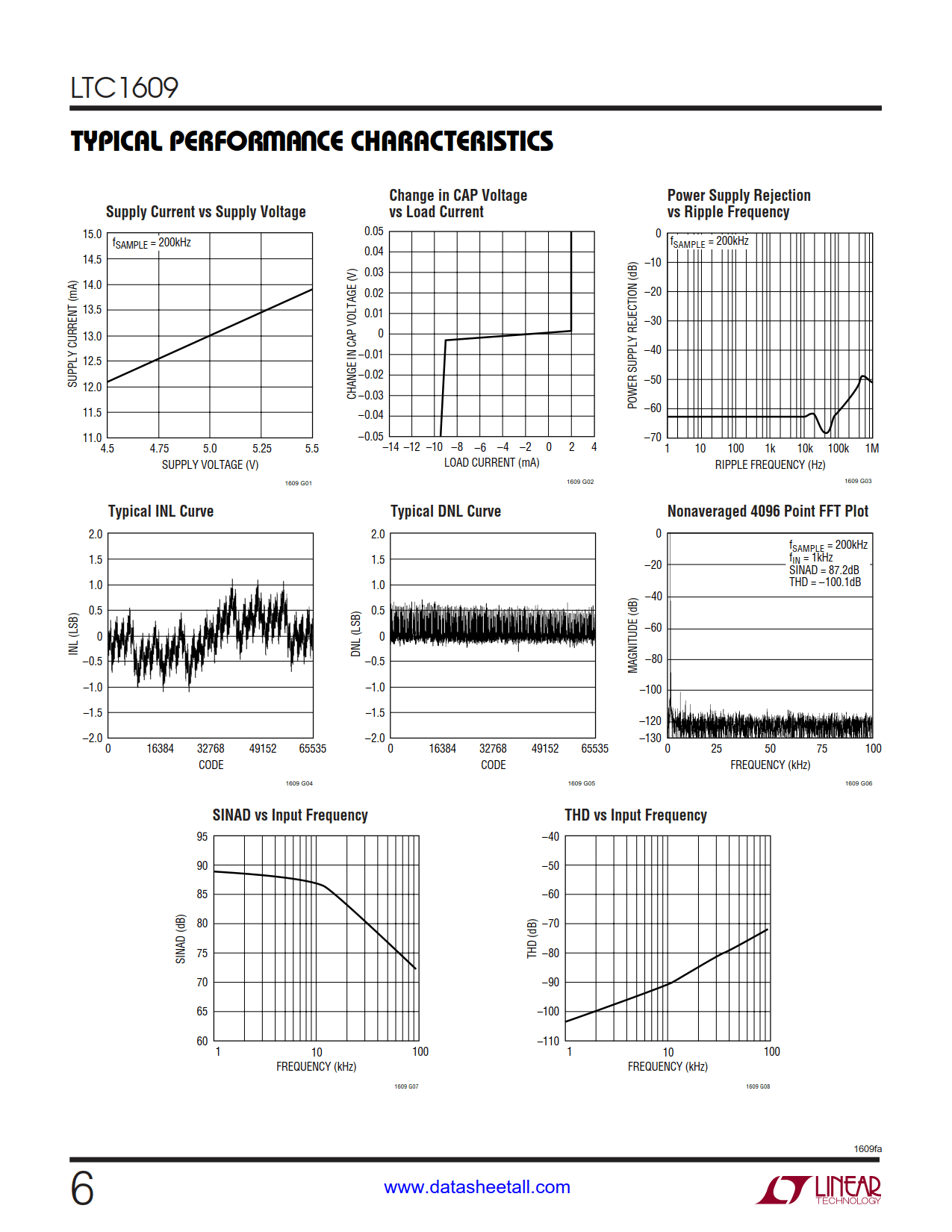

LTC1609 Datasheet(Picture)

LTC1609 Features

  • Sample Rate: 200ksps
  • Input Ranges
    • Unipolar: 0V to 10V, 0V to 5V and 0V to 4V
    • Bipolar: ±10V, ±5V and ±3.3V
  • Guaranteed No Missing Codes
  • Serial I/O
  • Single 5V Supply
  • Power Dissipation: 65mW Typ
  • Power Down Mode: 50µW
  • SNR: 87dB Typ
  • Operates with Internal or External Reference
  • 28-Pin SSOP and 20-Pin SSO Packages
  • Improved 2nd Source to ADS7809 and AD977A

LTC1609 Applications

  • Industrial Process Control
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition for PCs
  • Digital Signal Processing

LTC1609 Description

The LTC1609 is a 200ksps, serial sampling 16-bit A/D converter that draws only 65mW (typical) from a single 5V supply. This easy-to-use device includes a sample-and- hold, a precision reference, a switched capacitor successive approximation A/D and trimmed internal clock.

The input range is specified for bipolar inputs of ±10V, ±5V and ±3.3V and unipolar inputs of 0V to 10V, 0V to 5V and 0V to 4V. Maximum DC specs include ±2LSB INL and 16-bit no missing codes overtemperature. It has a typical signal-to-noise ratio of 87dB.

The ADC has a high speed serial interface. The serial output data can be clocked out using either the internal serial shift clock or be clocked out by an external shift clock. A separate convert start input(R/C) and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.
