| Part No.： | LTC1596 |
| Page： | 16 Pages |
| Size： | 353 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-12-19 15:18:18 |
| DataSheet： | Download |

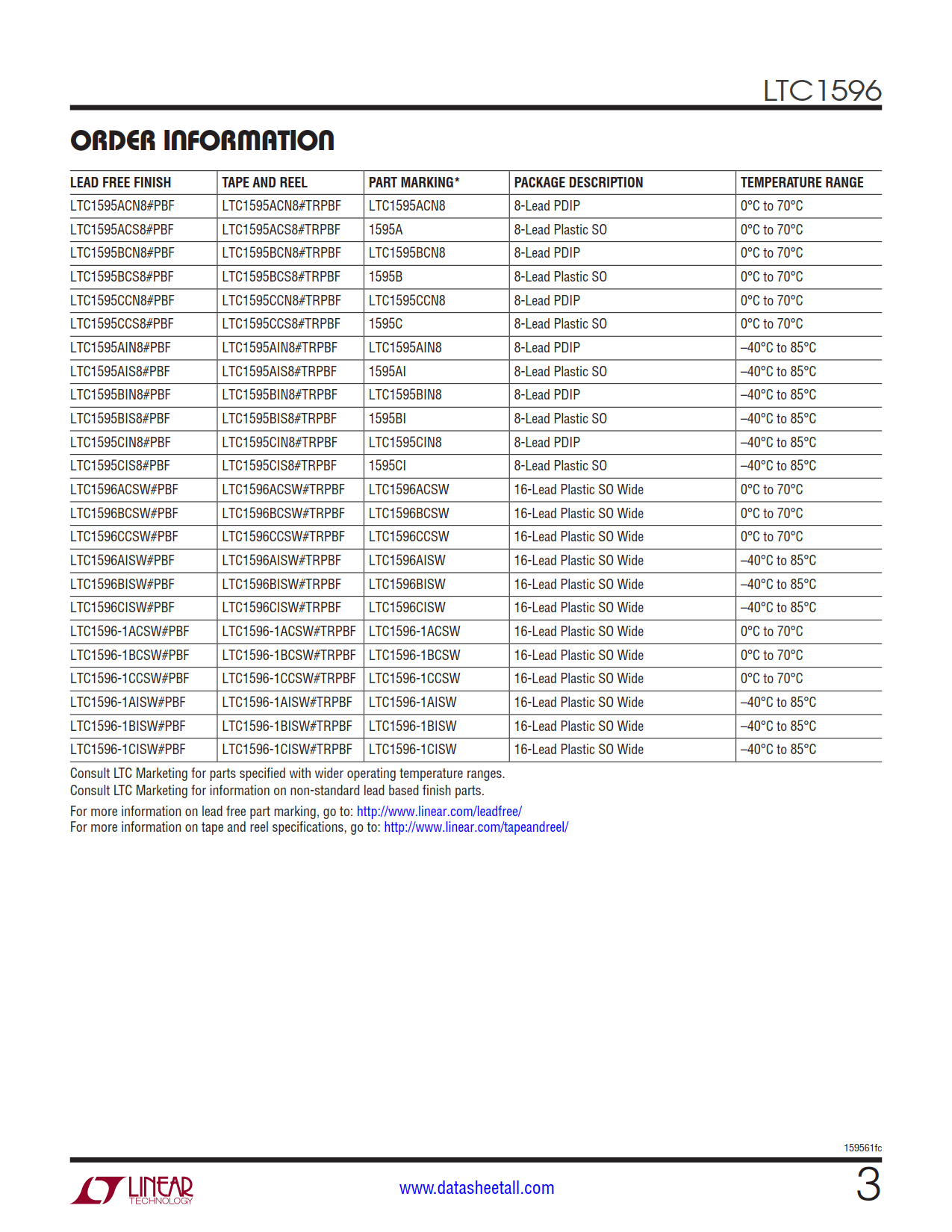

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1596ACSW#PBF | Tube | 47 | LTC1596ACSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596ACSW#TRPBF | Reel | 1000 | LTC1596ACSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596ACSW#TRMPBF | Reel | 500 | LTC1596ACSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596BCSW#PBF | Tube | 47 | LTC1596BCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596BCSW#TRPBF | Reel | 1000 | LTC1596BCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596BCSW#TRMPBF | Reel | 500 | LTC1596BCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596CCSW#PBF | Tube | 47 | LTC1596CCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596CCSW#TRPBF | Reel | 1000 | LTC1596CCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596CCSW#TRMPBF | Reel | 500 | LTC1596CCSW | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO Wide | |
| LTC1596AISW#PBF | Tube | 47 | LTC1596AISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596AISW#TRPBF | Reel | 1000 | LTC1596AISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596AISW#TRMPBF | Reel | 500 | LTC1596AISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596BISW#PBF | Tube | 47 | LTC1596BISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596BISW#TRPBF | Reel | 1000 | LTC1596BISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596BISW#TRMPBF | Reel | 500 | LTC1596BISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596CISW#PBF | Tube | 47 | LTC1596CISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596CISW#TRPBF | Reel | 1000 | LTC1596CISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide | |
| LTC1596CISW#TRMPBF | Reel | 500 | LTC1596CISW | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO Wide |

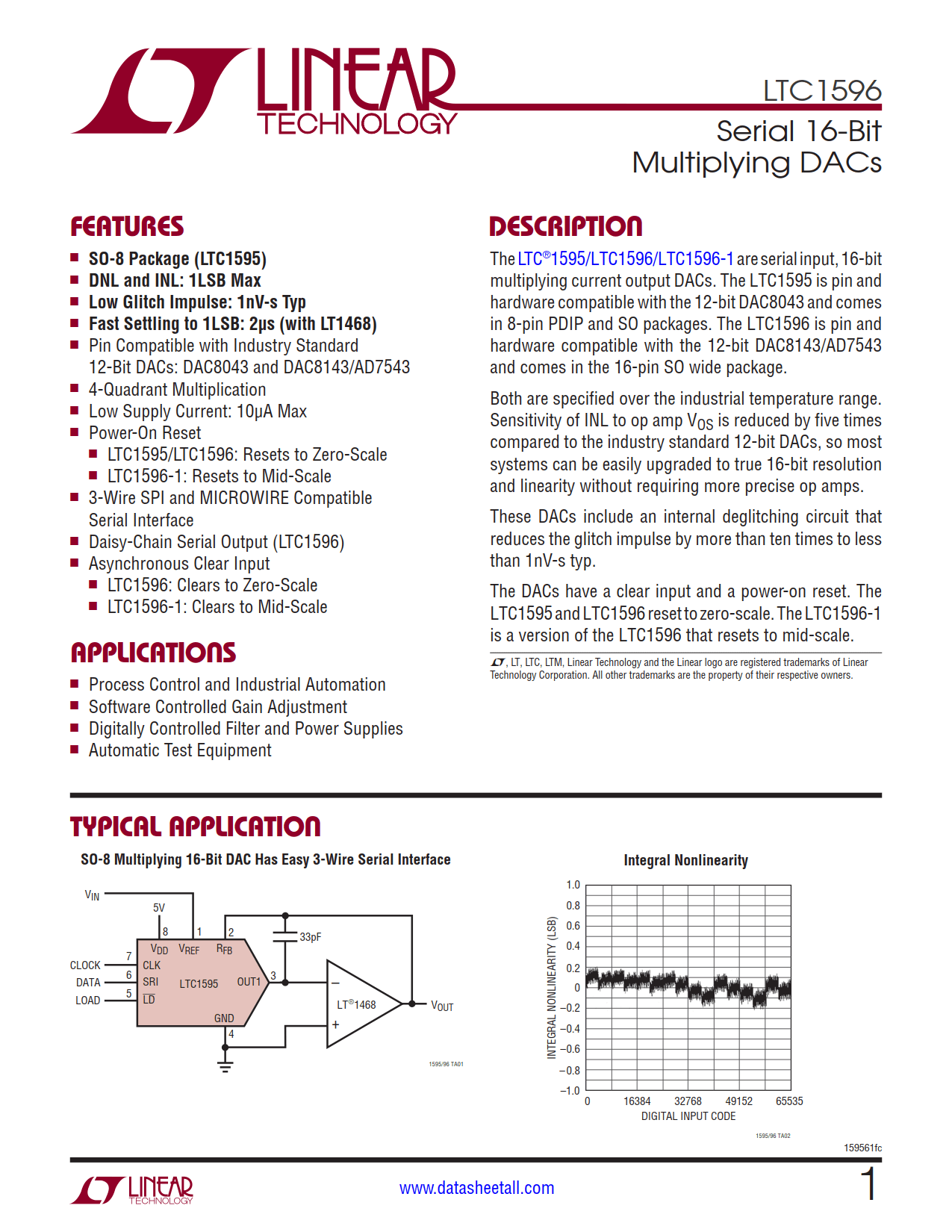

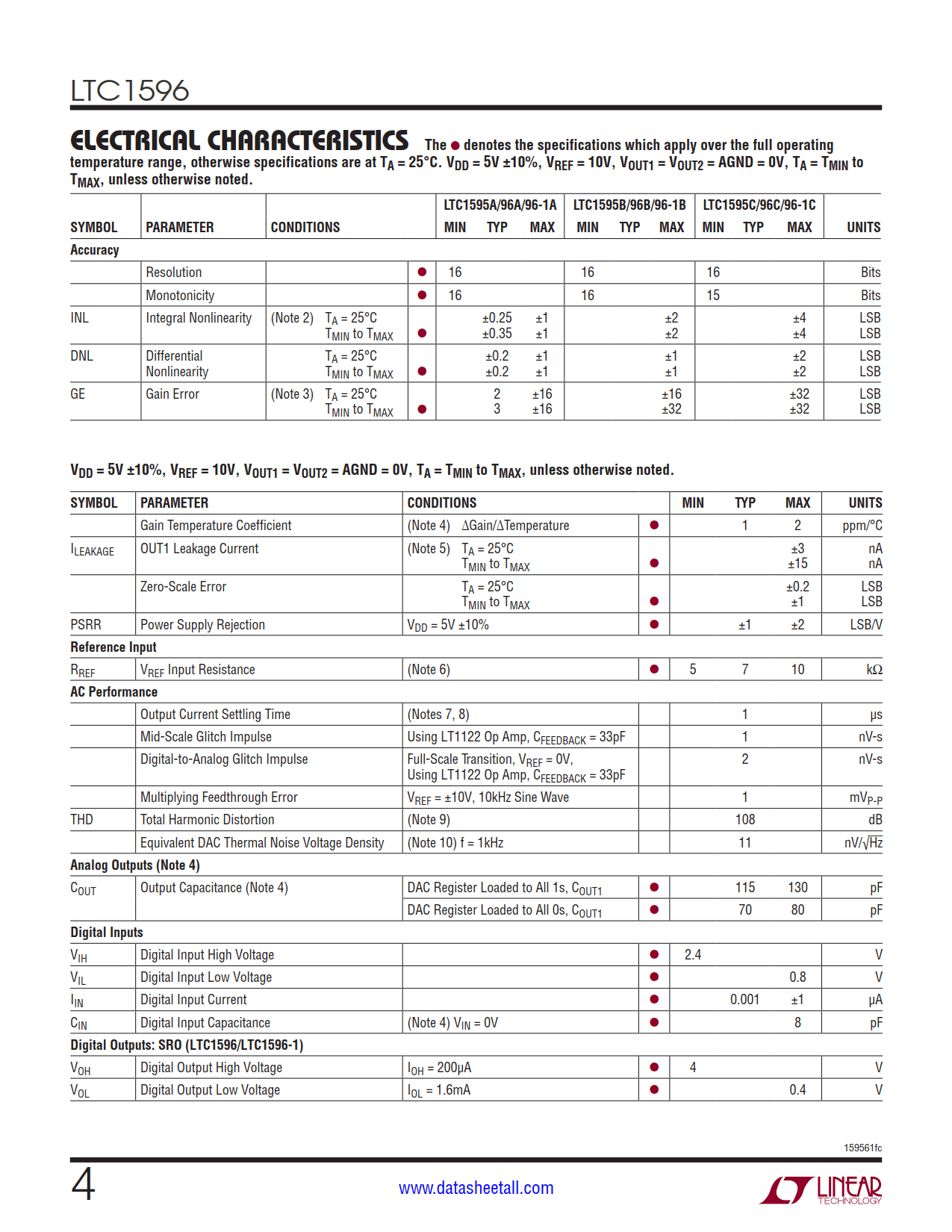

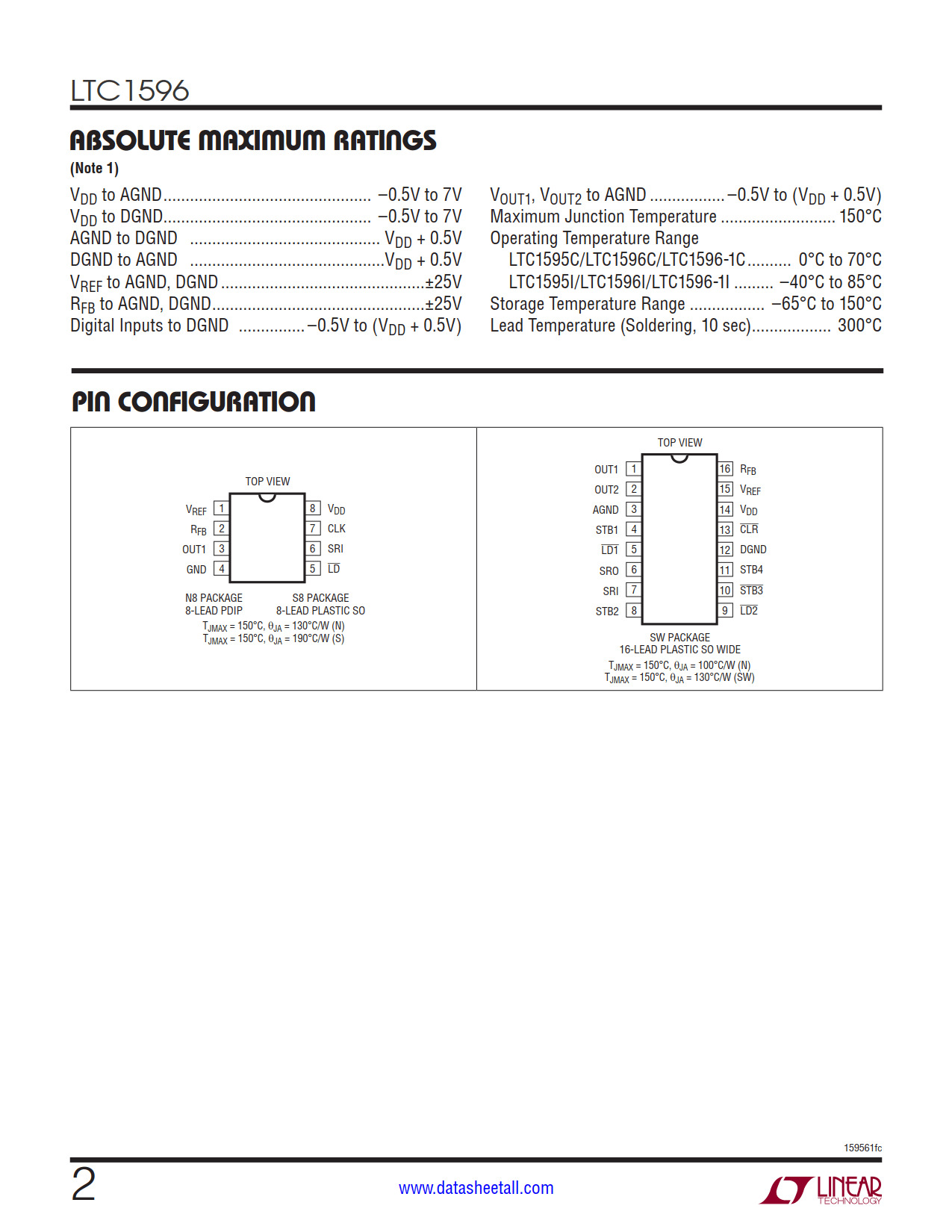

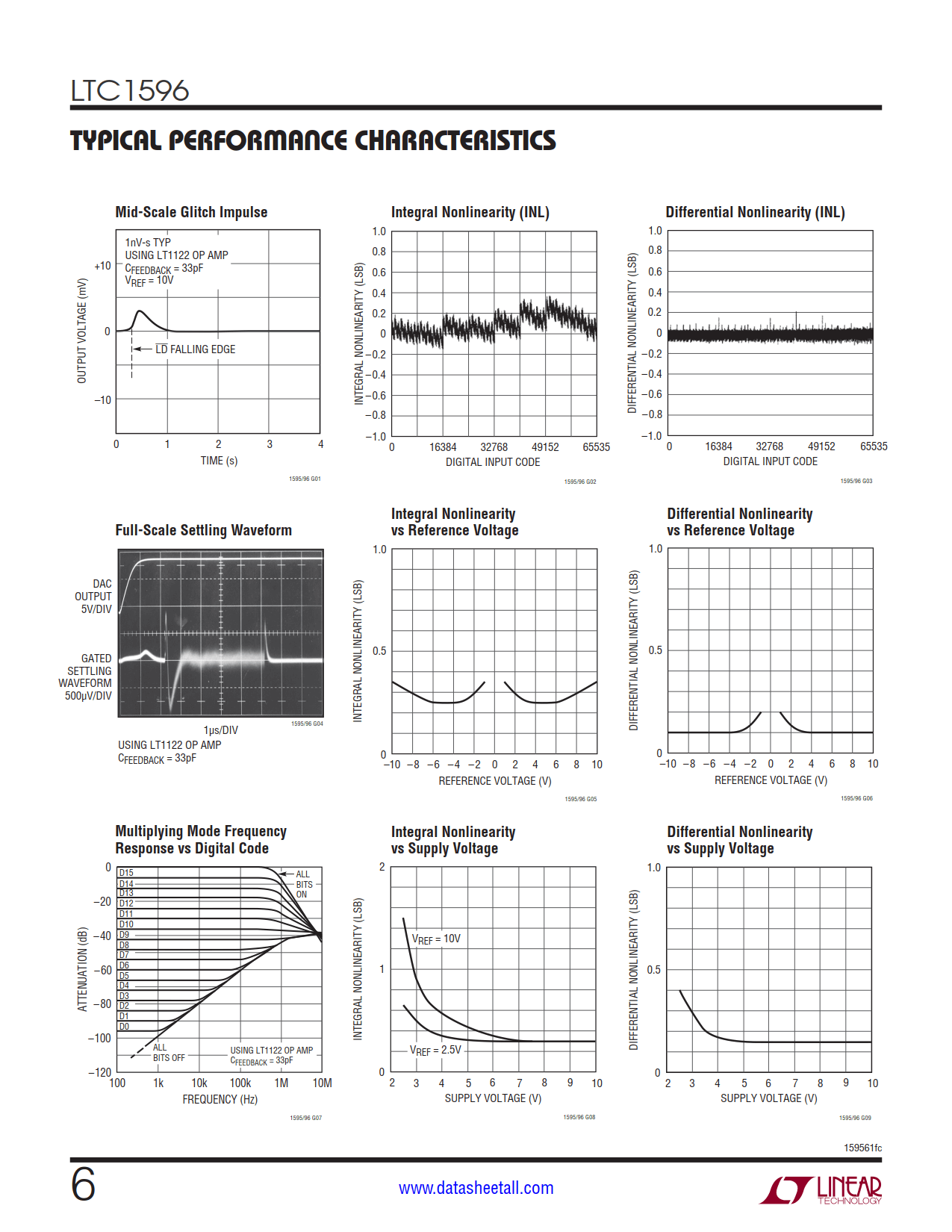

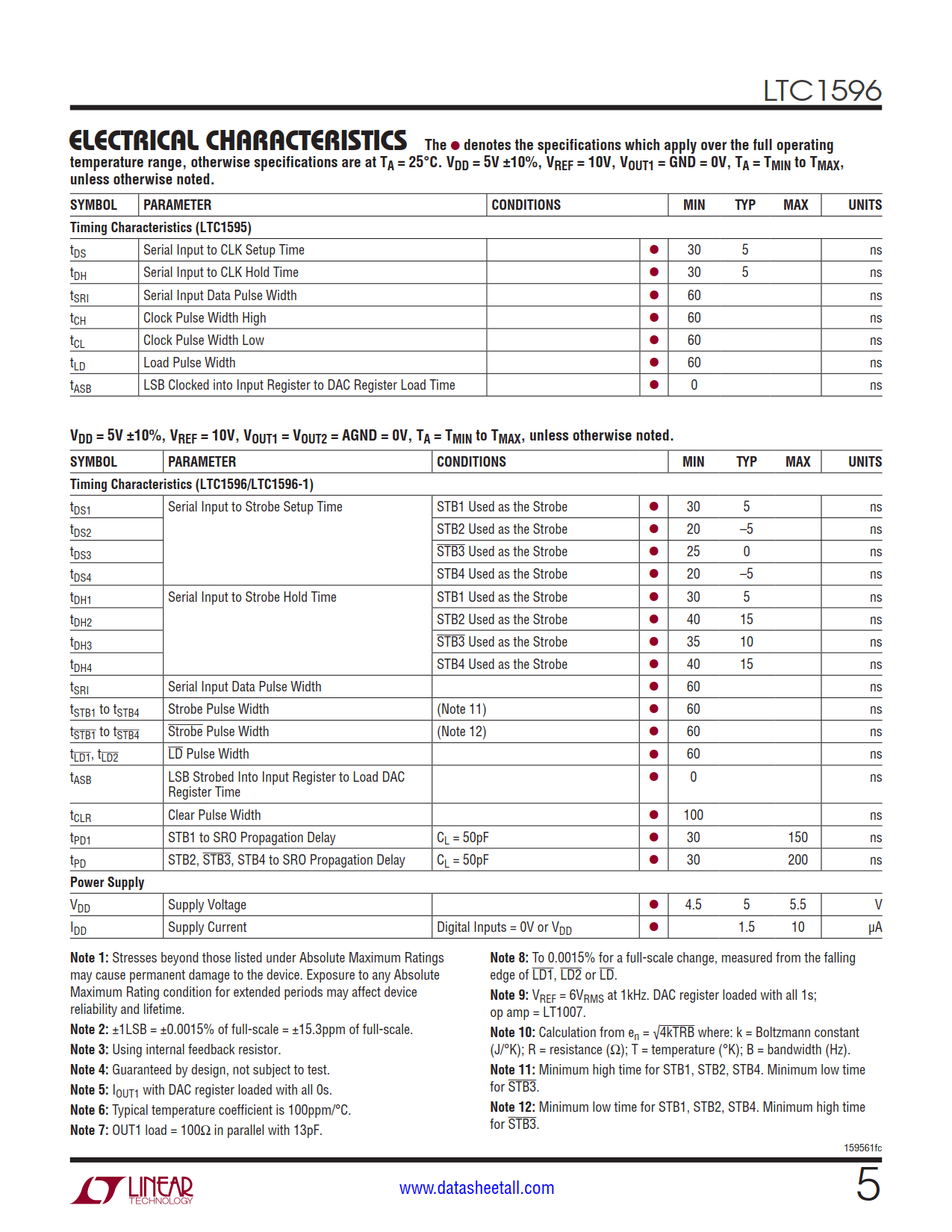

The LTC1596 are serial input, 16‑bit multiplying current output DACs. The LTC1596 is pin and hardware compatible with the 12-bit DAC8143/AD7543 and comes in the 16-pin SO wide package.
Both are specified over the industrial temperature range. Sensitivity of INL to op amp VOS is reduced by five times compared to the industry standard 12-bit DACs, so most systems can be easily upgraded to true 16-bit resolution and linearity without requiring more precise op amps.
These DACs include an internal deglitching circuit that reduces the glitch impulse by more than ten times to less than 1nV-s typ.
The DACs have a clear input and a power-on reset. The LTC1596 reset to zero-scale.
