| Part No.： | LTC1595 |
| Page： | 16 Pages |
| Size： | 353 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-12-20 11:07:00 |
| DataSheet： | Download |

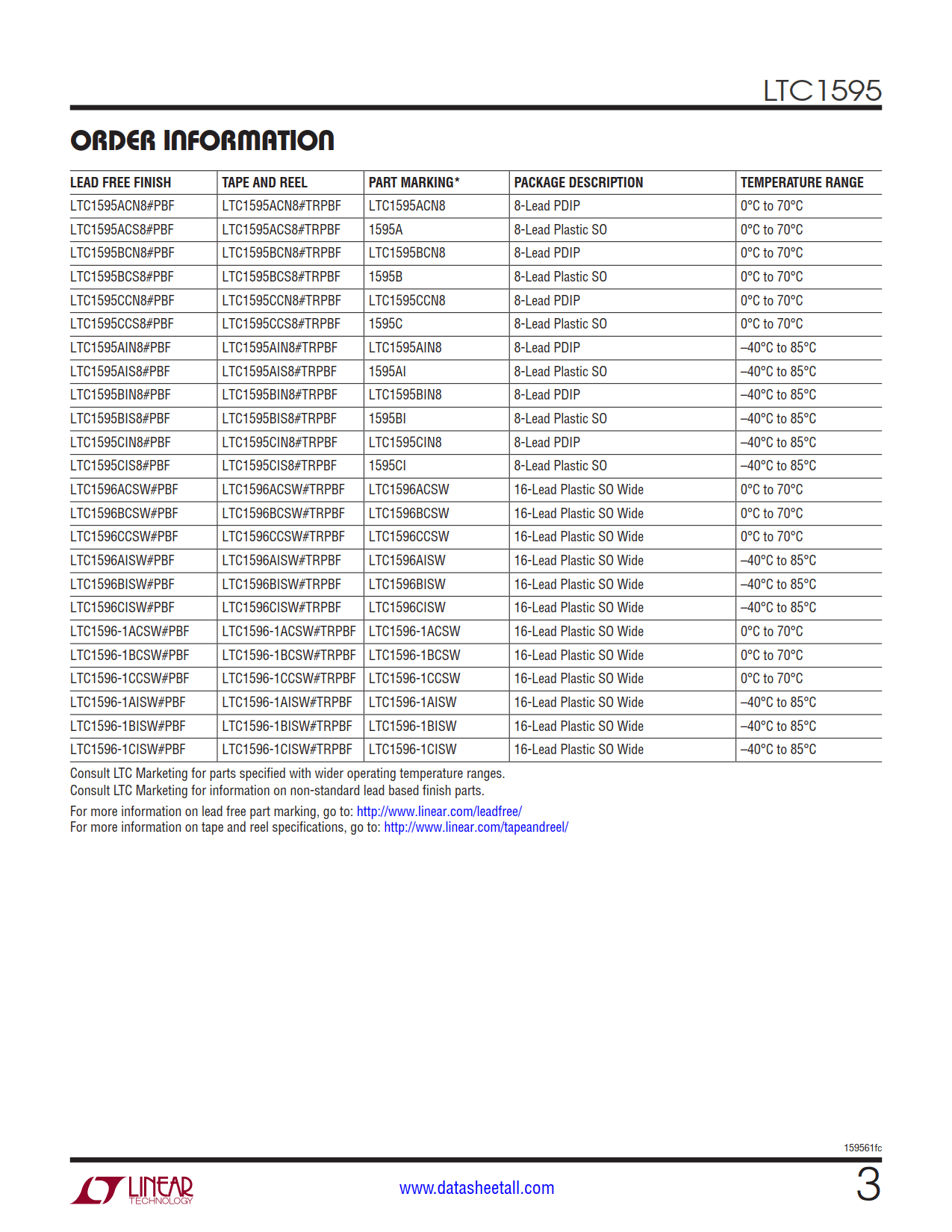

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1595ACN8#PBF | Tube | 50 | LTC1595ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LTC1595ACN8#TRPBF | Reel | LTC1595ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595ACN8#TRMPBF | Reel | LTC1595ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595ACS8#PBF | Tube | 100 | 1595A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595ACS8#TRPBF | Reel | 2500 | 1595A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595ACS8#TRMPBF | Reel | 500 | 1595A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595BCN8#PBF | Tube | 50 | LTC1595BCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LTC1595BCN8#TRPBF | Reel | LTC1595BCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595BCN8#TRMPBF | Reel | LTC1595BCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595BCS8#PBF | Tube | 100 | 1595B | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595BCS8#TRPBF | Reel | 2500 | 1595B | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595BCS8#TRMPBF | Reel | 500 | 1595B | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595CCN8#PBF | Tube | 50 | LTC1595CCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LTC1595CCN8#TRPBF | Reel | LTC1595CCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595CCN8#TRMPBF | Reel | LTC1595CCN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LTC1595CCS8#PBF | Tube | 100 | 1595C | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595CCS8#TRPBF | Reel | 2500 | 1595C | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595CCS8#TRMPBF | Reel | 500 | 1595C | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LTC1595AIN8#PBF | Tube | 50 | LTC1595AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LTC1595AIN8#TRPBF | LTC1595AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595AIN8#TRMPBF | LTC1595AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595AIS8#PBF | Tube | 100 | 1595AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595AIS8#TRPBF | Reel | 2500 | 1595AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595AIS8#TRMPBF | Reel | 500 | 1595AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595BIN8#PBF | Tube | 50 | LTC1595BIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LTC1595BIN8#TRPBF | LTC1595BIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595BIN8#TRMPBF | LTC1595BIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595BIS8#PBF | Tube | 100 | 1595BI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595BIS8#TRPBF | Reel | 2500 | 1595BI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595BIS8#TRMPBF | Reel | 500 | 1595BI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595CIN8#PBF | Tube | 50 | LTC1595CIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LTC1595CIN8#TRPBF | LTC1595CIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595CIN8#TRMPBF | LTC1595CIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |||
| LTC1595CIS8#PBF | Tube | 100 | 1595CI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595CIS8#TRPBF | Reel | 2500 | 1595CI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LTC1595CIS8#TRMPBF | Reel | 500 | 1595CI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO |

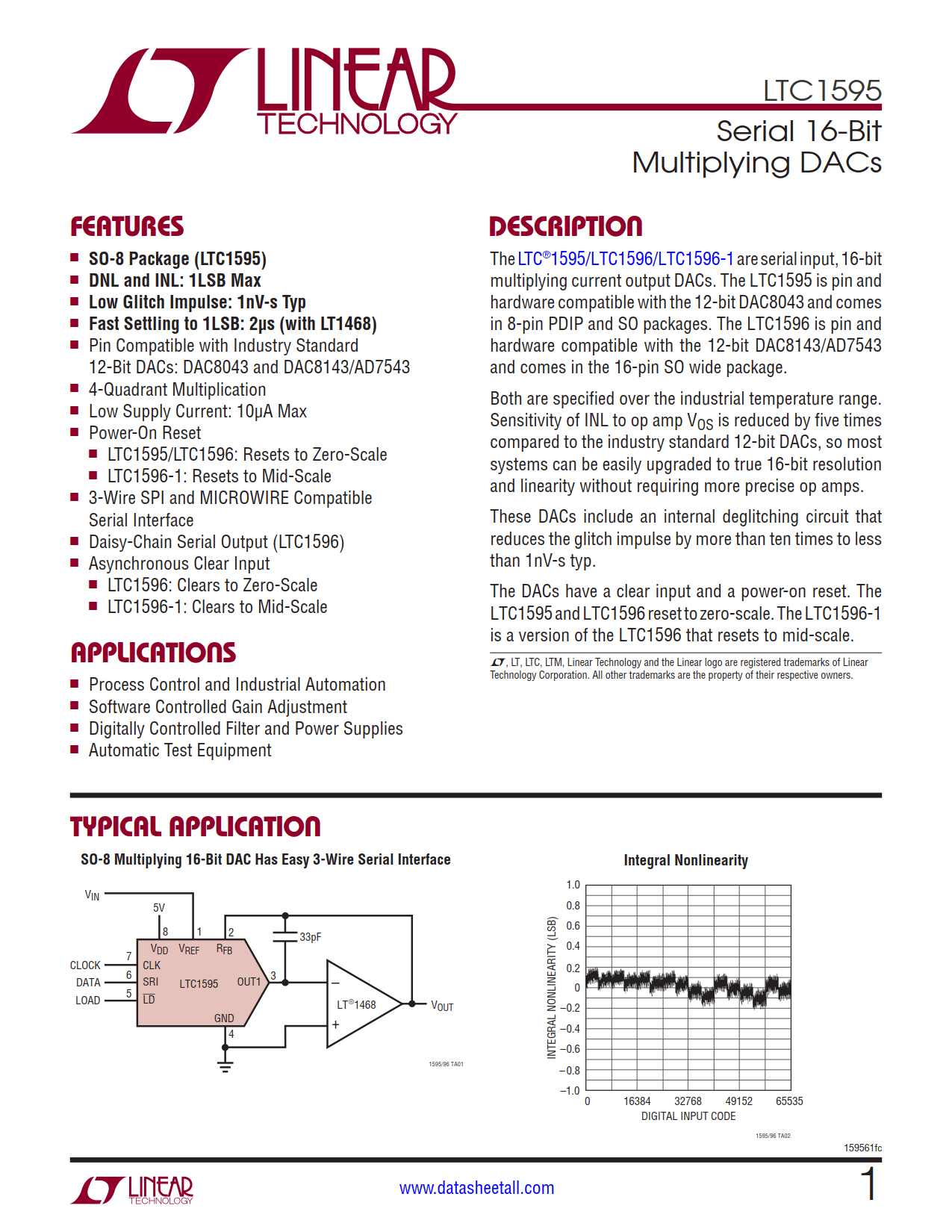

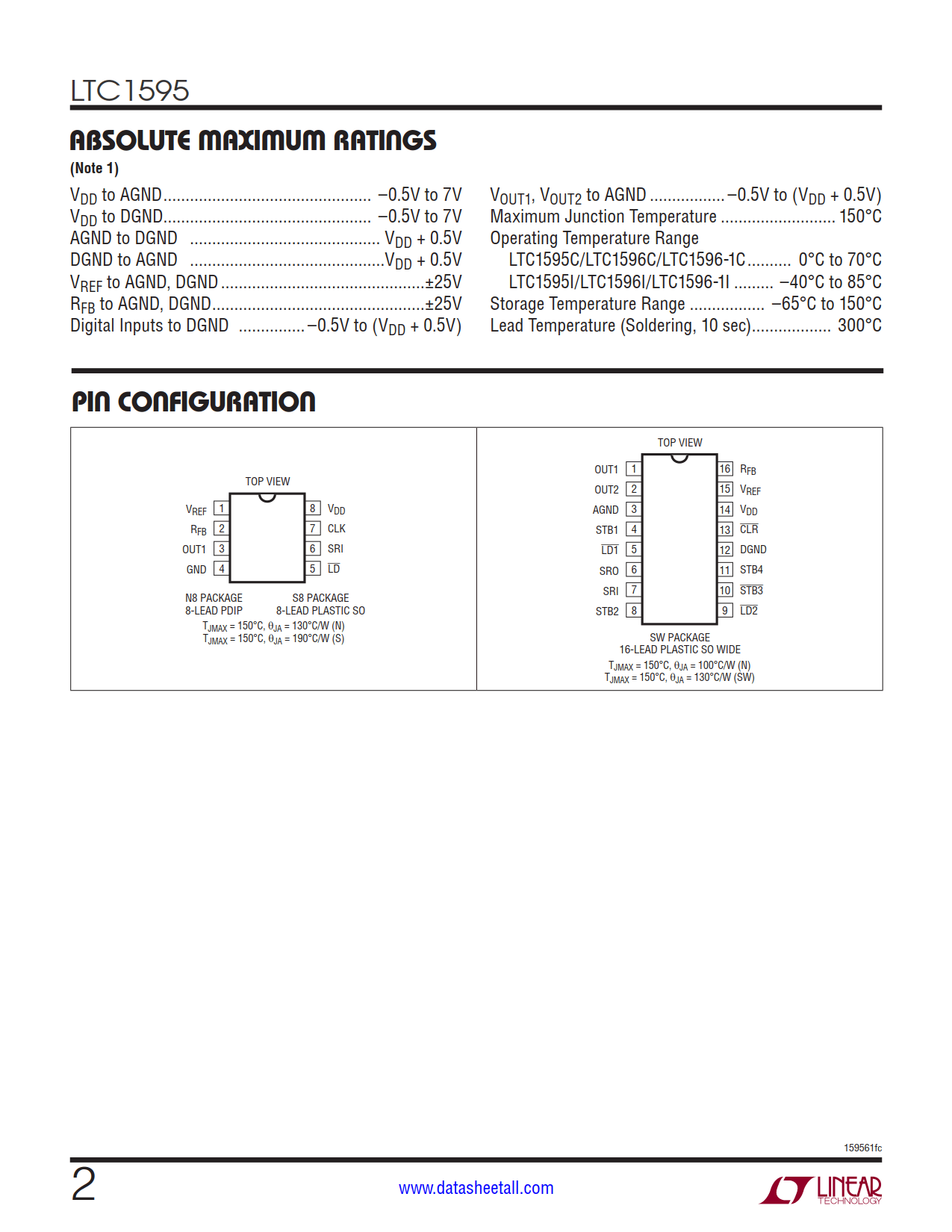

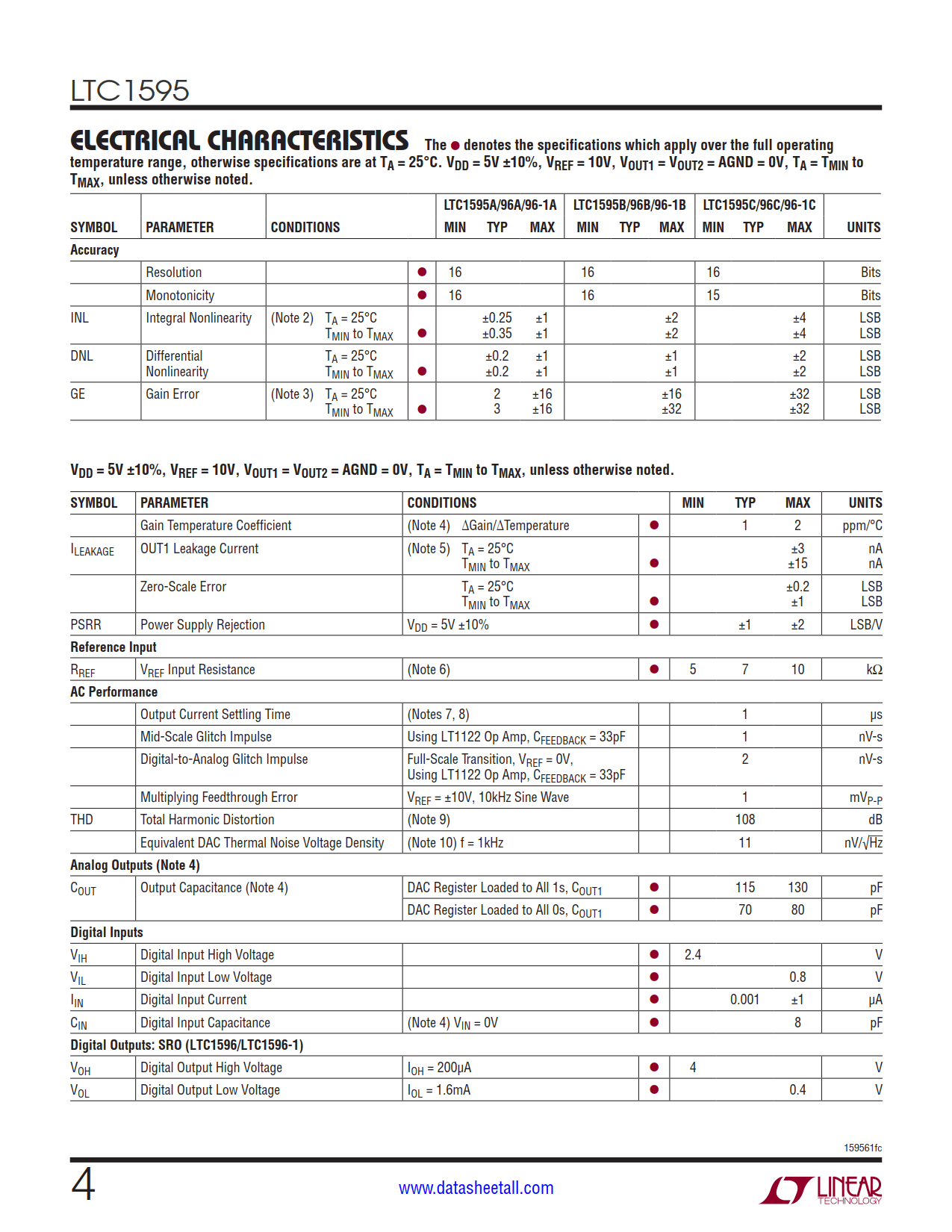

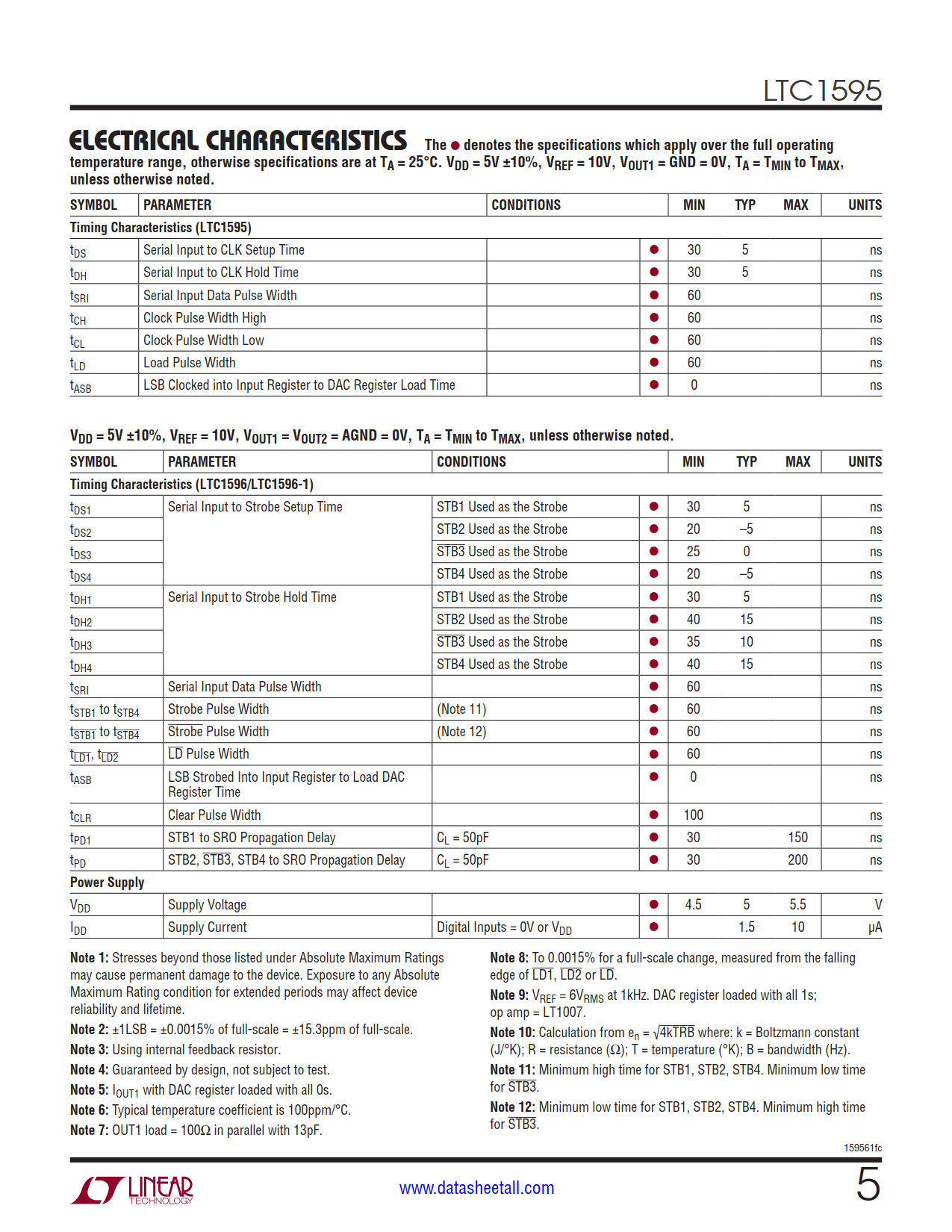

The LTC1595 are serial input, 16‑bit multiplying current output DACs. The LTC1595 is pin and hardware compatible with the 12-bit DAC8043 and comes in 8-pin PDIP and SO packages.
Both are specified over the industrial temperature range. Sensitivity of INL to op amp VOS is reduced by five times compared to the industry standard 12-bit DACs, so most systems can be easily upgraded to true 16-bit resolution and linearity without requiring more precise op amps.

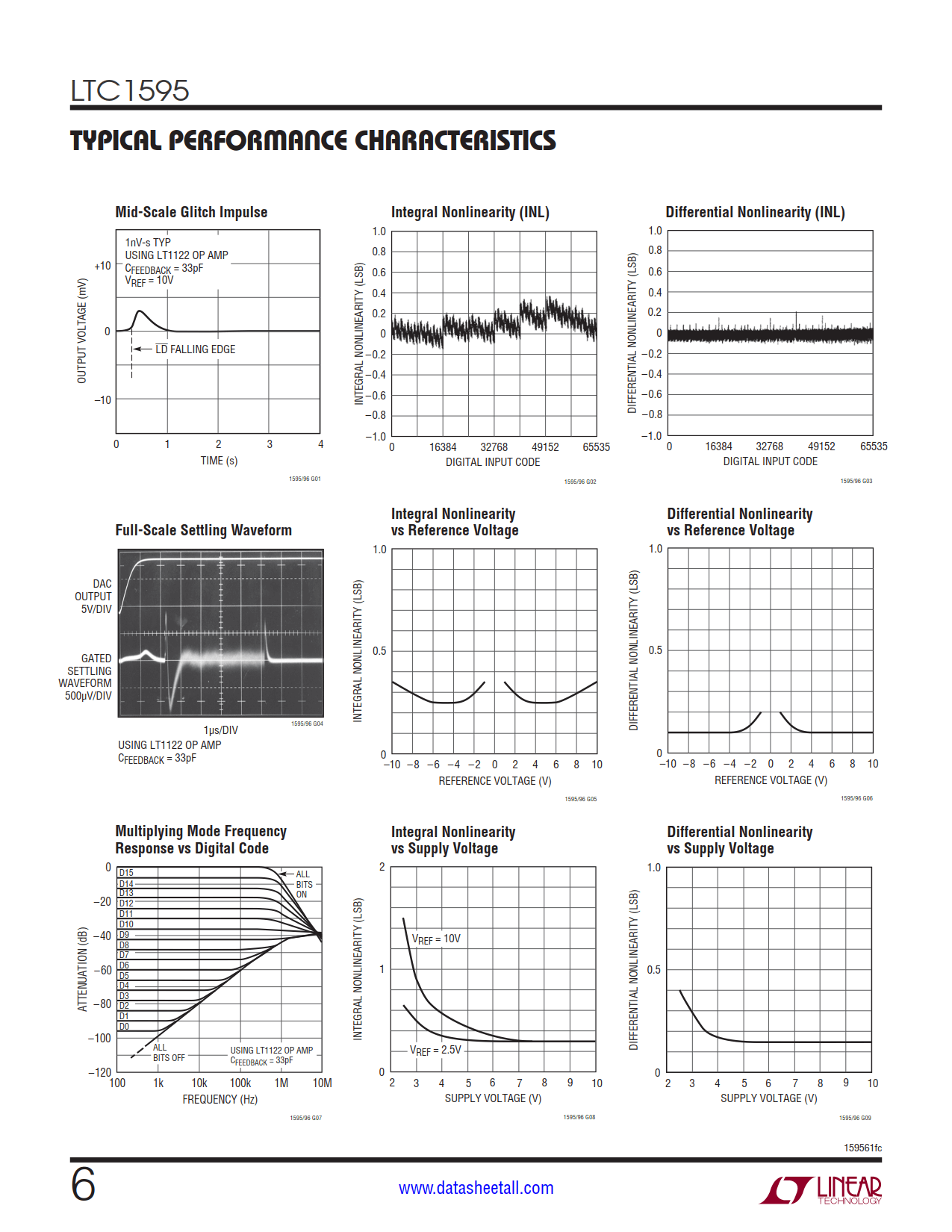

These DACs include an internal deglitching circuit that reduces the glitch impulse by more than ten times to less than 1nV-s typ.
The DACs have a clear input and a power-on reset. The LTC1595 reset to zero-scale.
