LTC1535 Datasheet

LTC1535 Datasheet

Isolated RS485 Transceiver
Part No.: LTC1535
Page: 18 Pages
Size: 540 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-24 13:46:33
DataSheet: Download

LTC1535 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1535CSW#PBF Tube 27 LTC1535CSW 1 28 0°C ~ 70°C 28-Lead Plastic SO
LTC1535CSW#TRPBF Reel 1000 LTC1535CSW 1 28 0°C ~ 70°C 28-Lead Plastic SO
LTC1535CSW#TRMPBF Reel 500 LTC1535CSW 1 28 0°C ~ 70°C 28-Lead Plastic SO
LTC1535ISW#PBF Tube 27 1535 1 28 -40°C ~ 85°C 28-Lead Plastic SO
LTC1535ISW#TRPBF Reel 1000 1535 1 28 -40°C ~ 85°C 28-Lead Plastic SO
LTC1535ISW#TRMPBF Reel 500 1535 1 28 -40°C ~ 85°C 28-Lead Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1535 Datasheet(PDF)

LTC1535 Datasheet(Picture)

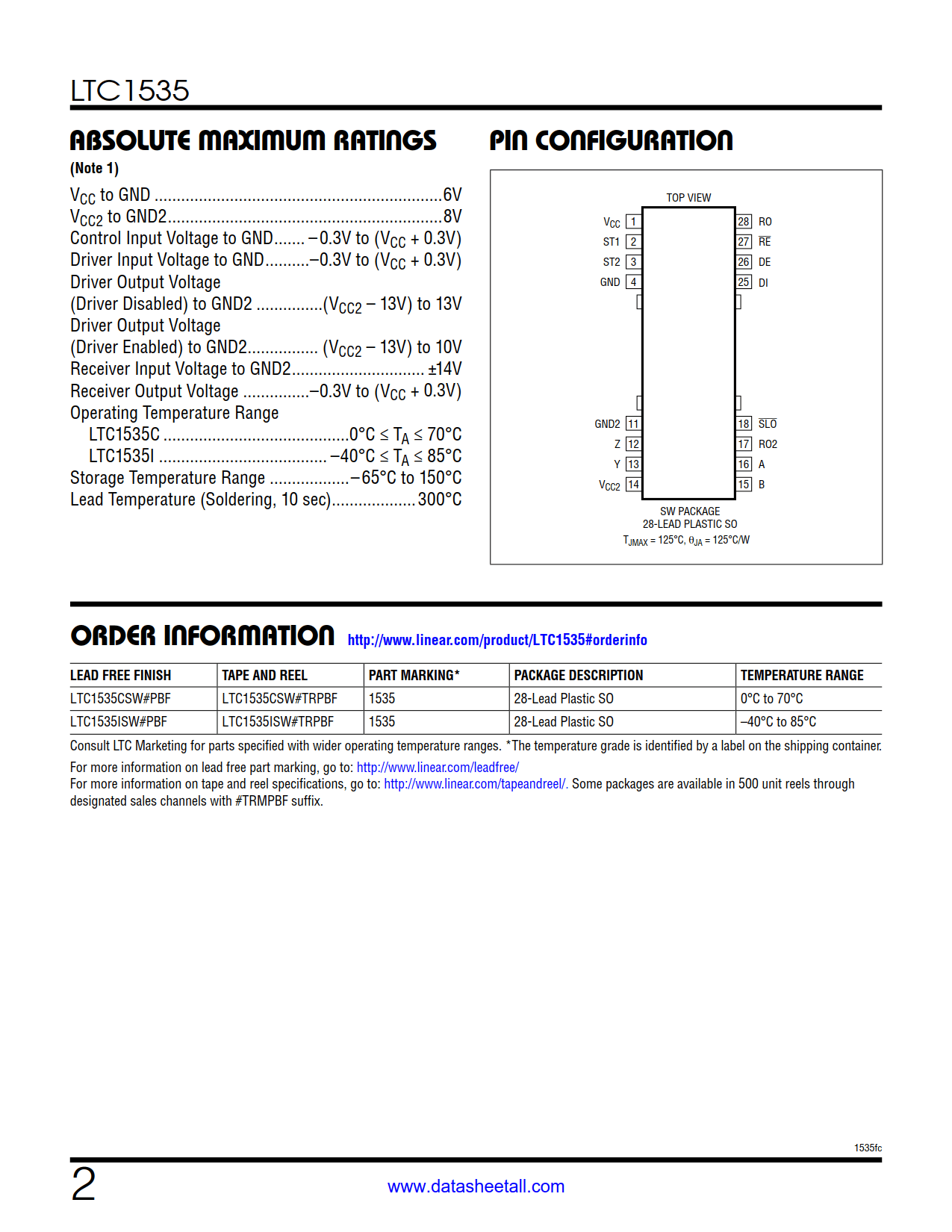

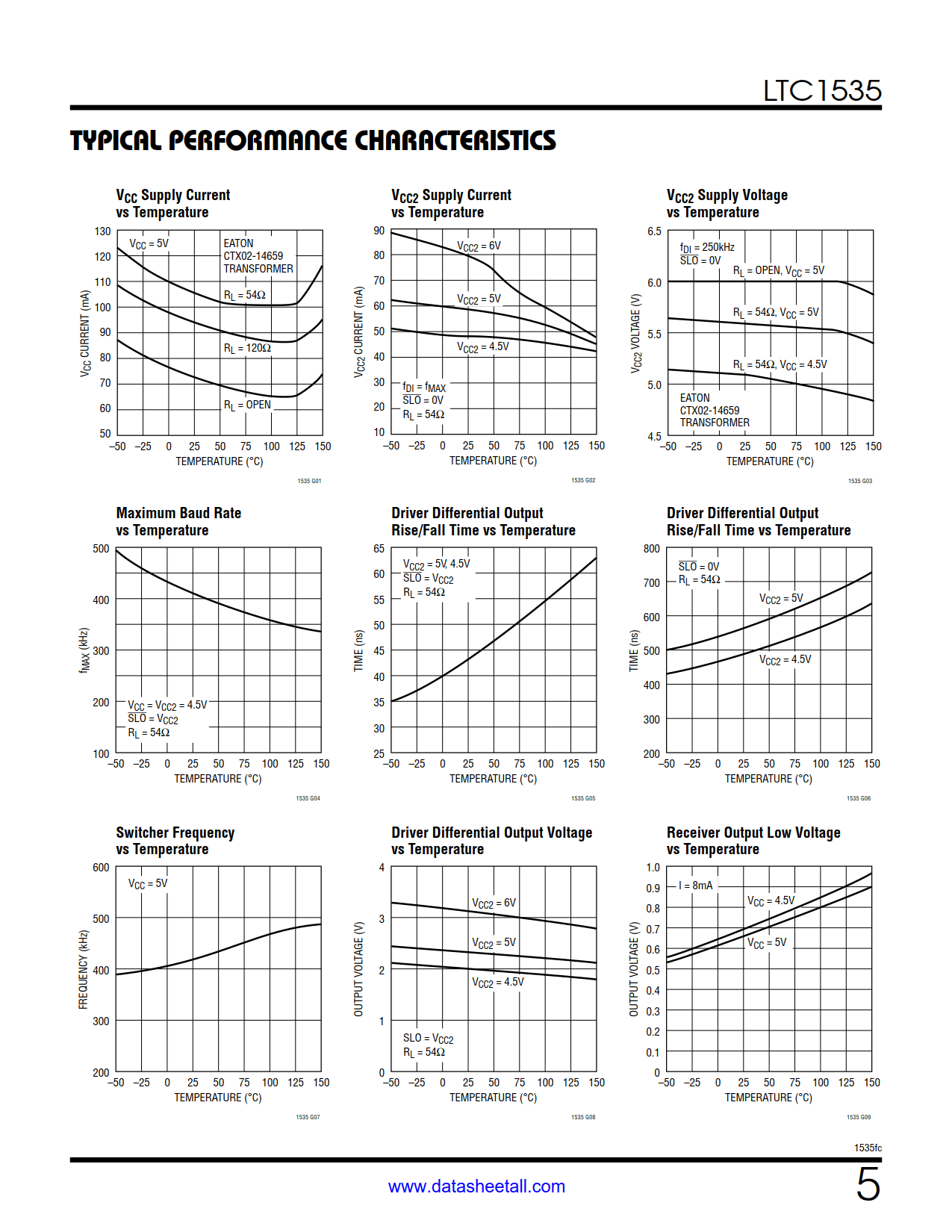

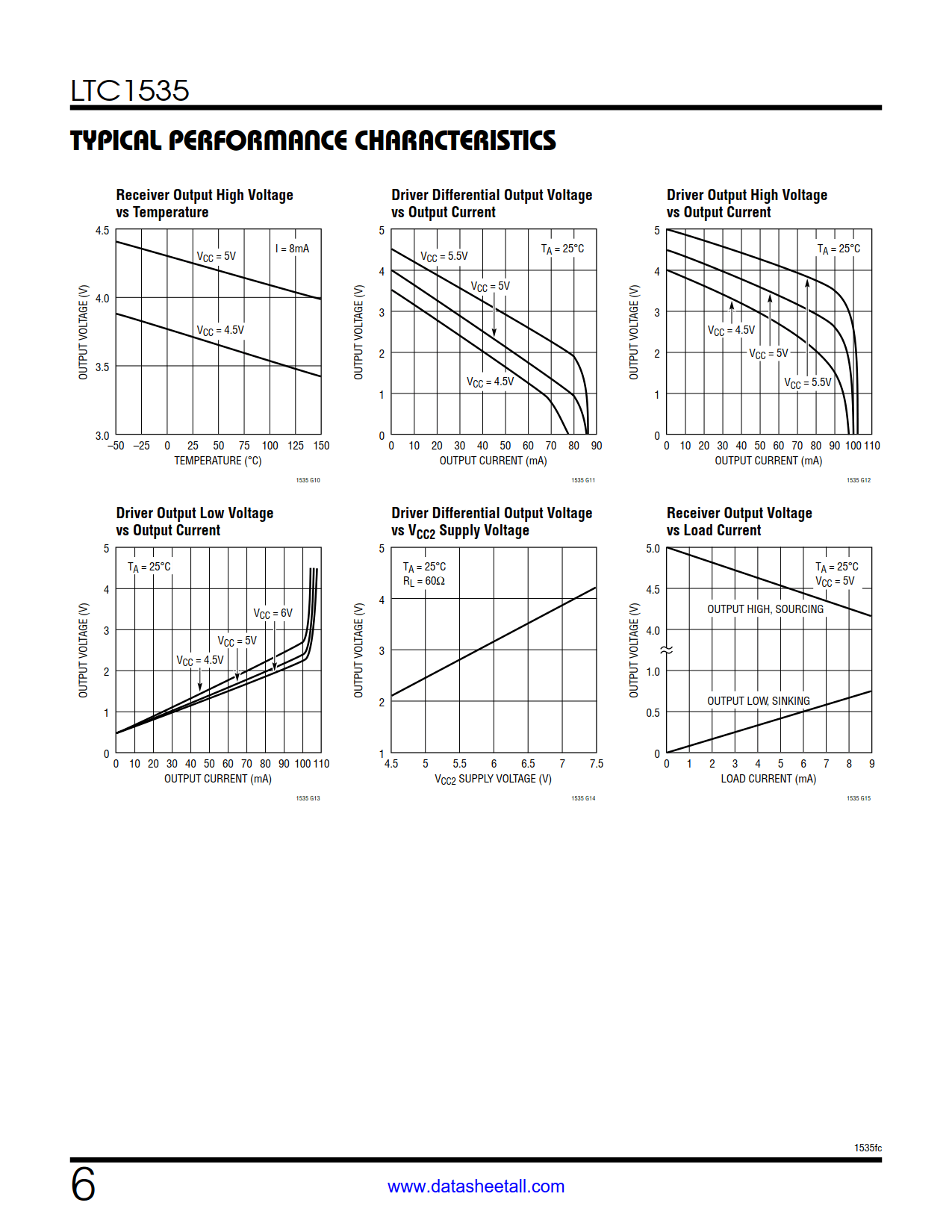

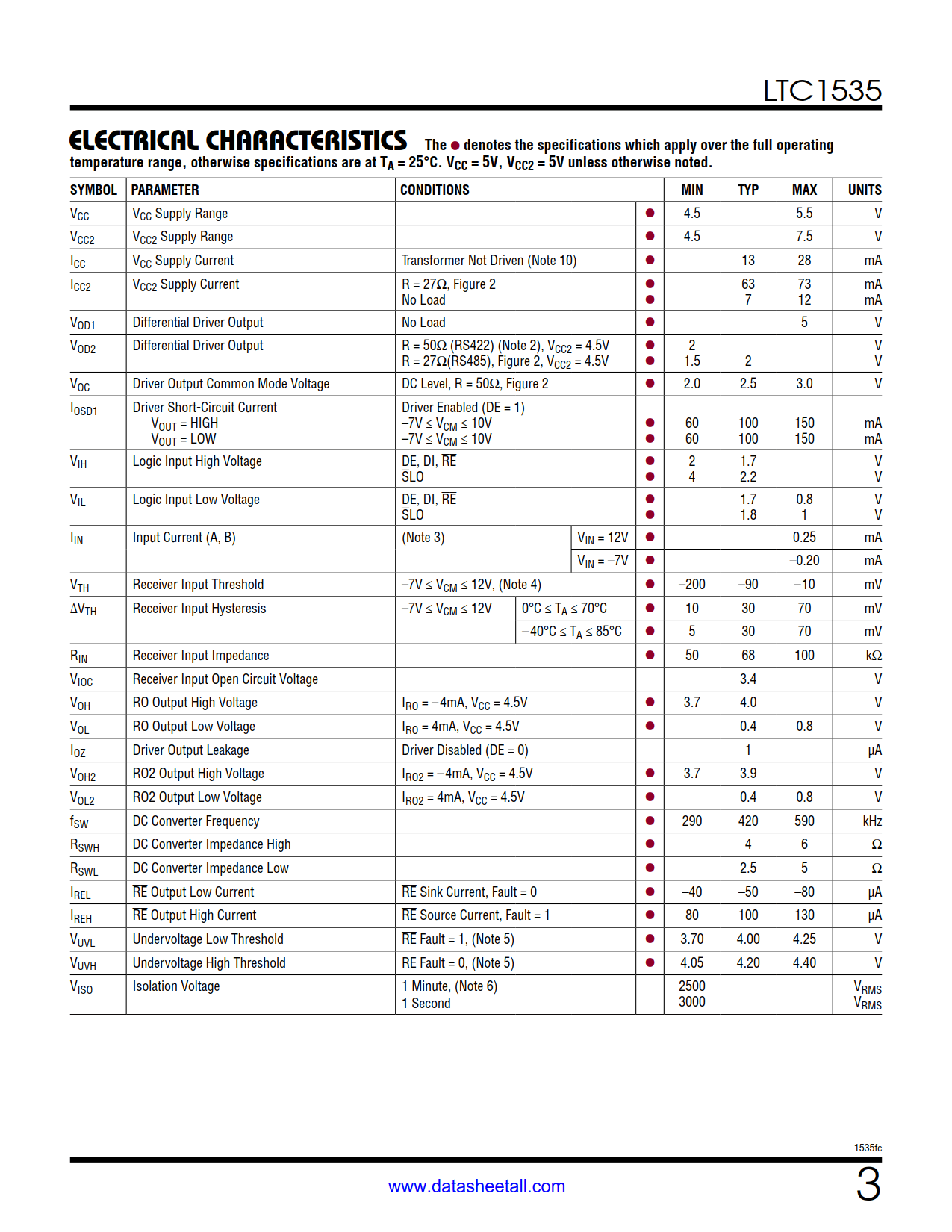

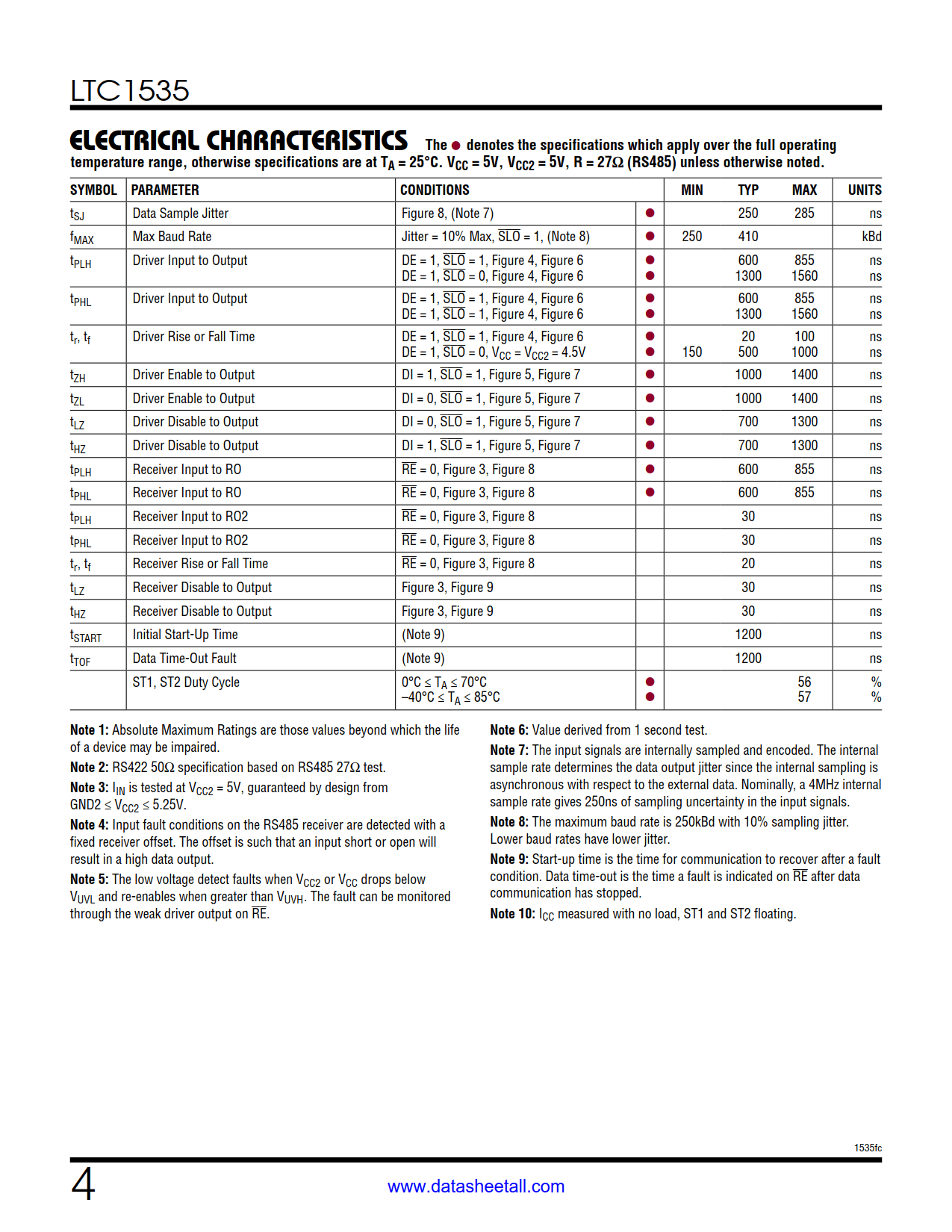

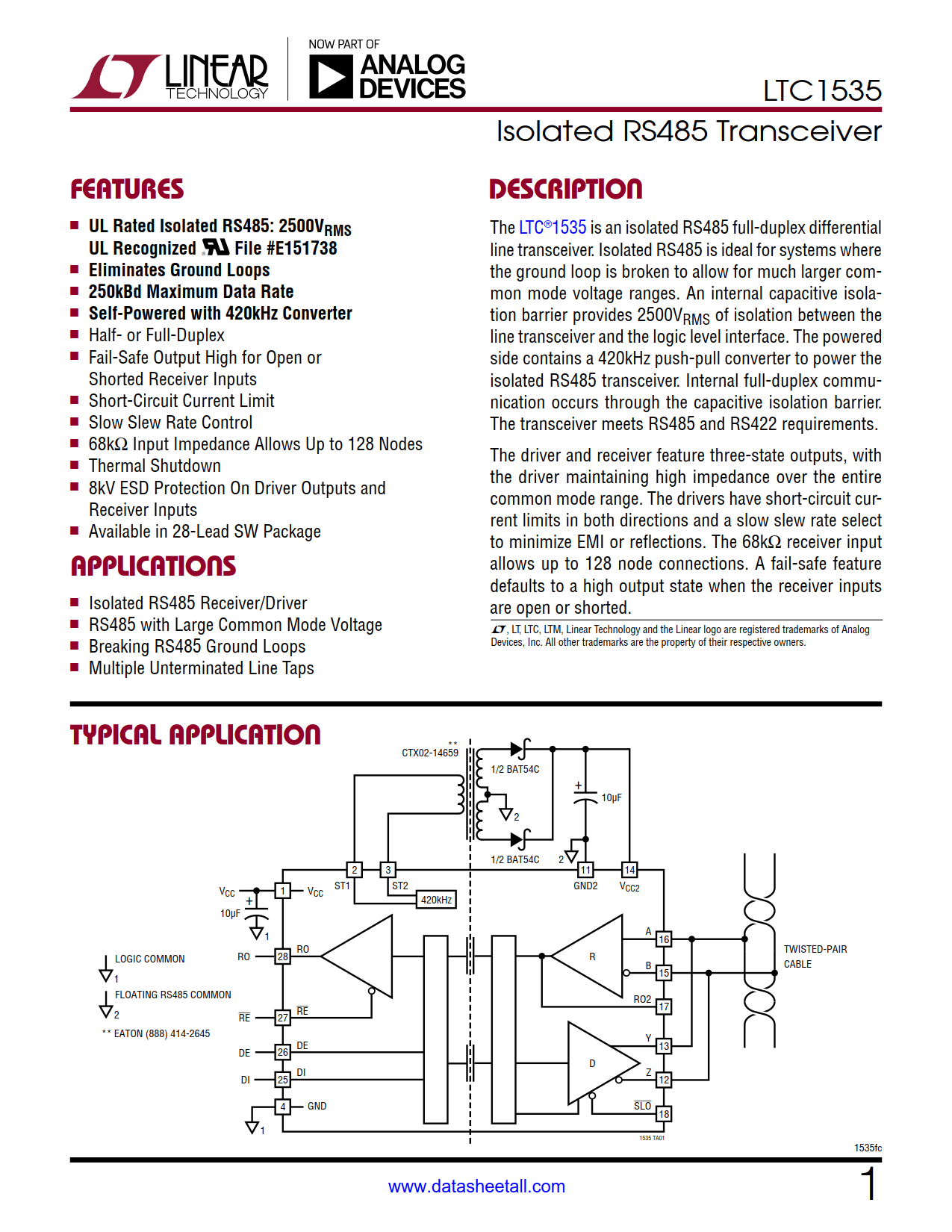

LTC1535 Features

  • UL Rated Isolated RS485: 2500VRMS
    •  UL Recognized File #E151738
  • Eliminates Ground Loops
  • 250kBd Maximum Data Rate
  • Self-Powered with 420kHz Converter
  • Half- or Full-Duplex
  • Fail-Safe Output High for Open or Shorted Receiver Inputs
  • Short-Circuit Current Limit
  • Slow Slew Rate Control
  • 68kΩ Input Impedance Allows Up to 128 Nodes
  • Thermal Shutdown
  • 8kV ESD Protection On Driver Outputs and Receiver Inputs
  • Available in 28-Lead SW Package

LTC1535 Applications

  • Isolated RS485 Receiver/Driver
  • RS485 with Large Common Mode Voltage
  • Breaking RS485 Ground Loops
  • Multiple Unterminated Line Taps

LTC1535 Description

The LTC1535 is an isolated RS485 full-duplex differential line transceiver. Isolated RS485 is ideal for systems where the ground loop is broken to allow for much larger common mode voltage ranges. An internal capacitive isolation barrier provides 2500VRMS of isolation between the line transceiver and the logic level interface. The powered side contains a 420kHz push-pull converter to power the isolated RS485 transceiver. Internal full-duplex communication occurs through the capacitive isolation barrier. The transceiver meets RS485 and RS422 requirements.

The driver and receiver feature three-state outputs, with the driver maintaining high impedance over the entire common mode range. The drivers have short-circuit current limits in both directions and a slow slew rate select to minimize EMI or reflections. The 68kΩ receiver input allows up to 128 node connections. A fail-safe feature defaults to a high output state when the receiver inputs are open or shorted.
