| Part No.： | LTC1441 |
| Page： | 16 Pages |
| Size： | 208 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-03-18 14:56:48 |
| DataSheet： | Download |

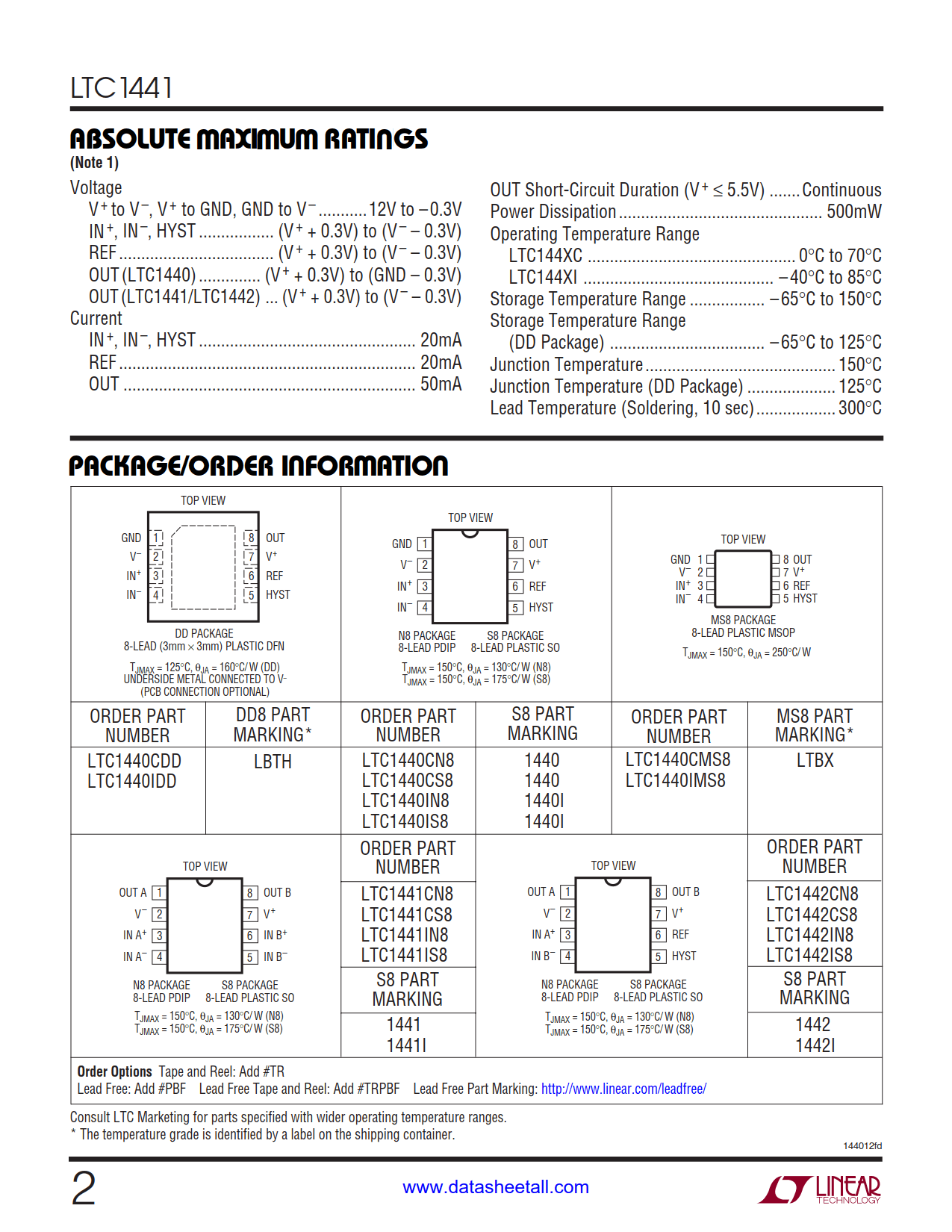

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1441CN8#PBF | Tube | 50 | 1441 | 1 | 8 | 0°C ~70°C | 8-Lead PDIP | |
| LTC1441CS8#PBF | Tube | 100 | 1441 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LTC1441CS8#TRPBF | Reel | 2500 | 1441 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LTC1441CS8#TRMPBF | Reel | 500 | 1441 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LTC1441IN8#PBF | Tube | 50 | 1441I | 1 | 8 | -40°C ~85°C | 8-Lead PDIP | |
| LTC1441IS8#PBF | Tube | 100 | 1441I | 1 | 8 | -40°C ~85°C | 8-Lead SOIC | |
| LTC1441IS8#TRPBF | Reel | 2500 | 1441I | 1 | 8 | -40°C ~85°C | 8-Lead SOIC | |
| LTC1441IS8#TRMPBF | Reel | 500 | 1441I | 1 | 8 | -40°C ~85°C | 8-Lead SOIC |

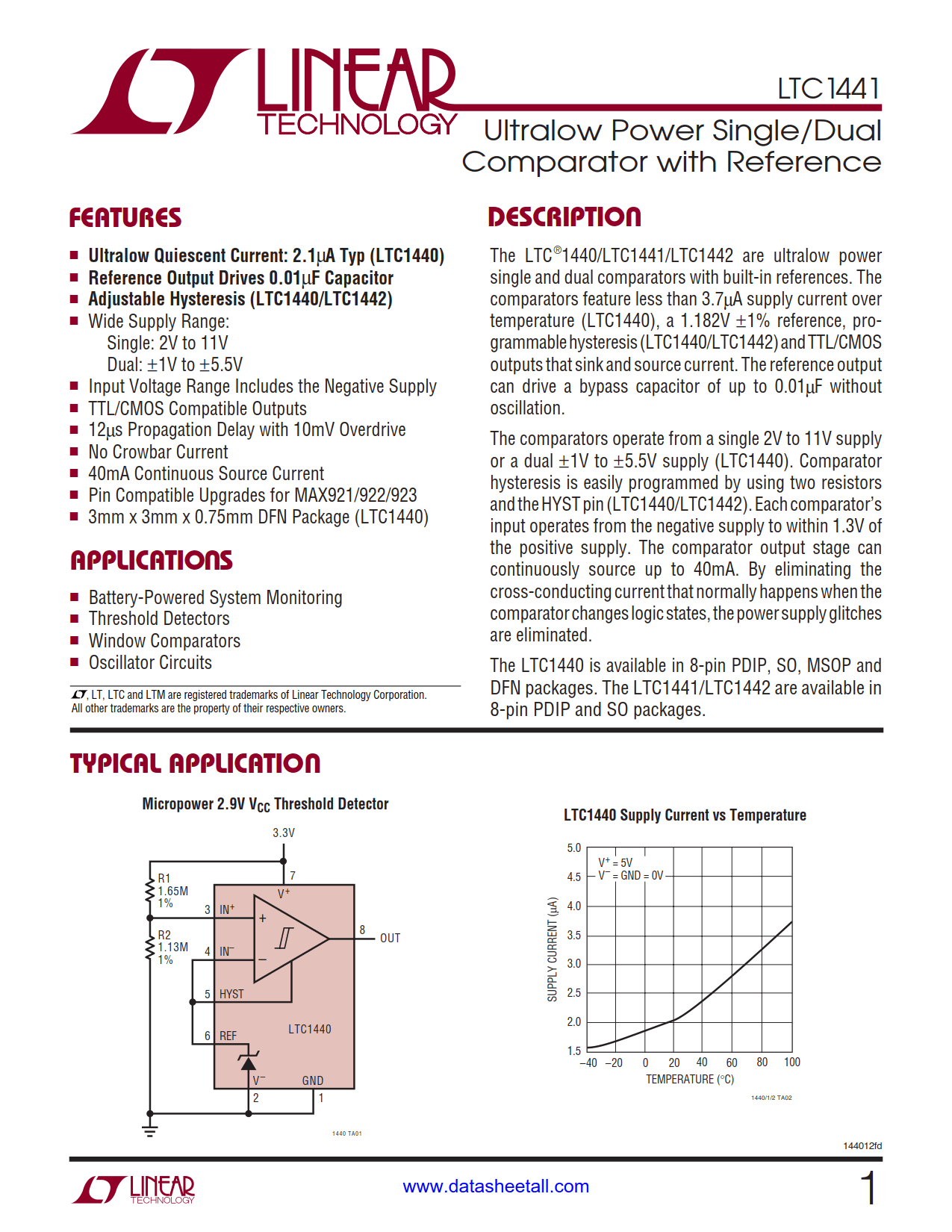

The LTC1441 is an ultralow power dual comparator, featuring less than 5.7µA supply current over temperature. The TTL/CMOS outputs both sink and source current.
The comparators operate from a single 2V to 11V supply or a dual ±1V to ±5.5V supply. Each comparator’s input operates from the negative supply to within 1.3V of the positive supply. The comparator output stage can continuously source up to 40mA. By eliminating the cross-conducting current that normally happens when the comparator changes logic states, the power supply glitches are eliminated.
The LTC1441 is available in an 8-pin PDIP and SO package.
