| Part No.： | LTC1421-2.5 |
| Page： | 24 Pages |
| Size： | 302 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-14 14:26:51 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1421CG-2.5#PBF | Tube | 59 | 1 | 24 | 0°C ~ 70°C | 24-Lead SSOP | ||
| LTC1421CG-2.5#TRPBF | Reel | 1800 | 1 | 24 | 0°C ~ 70°C | 24-Lead SSOP | ||
| LTC1421CG-2.5#TRMPBF | Reel | 500 | 1 | 24 | 0°C ~ 70°C | 24-Lead SSOP | ||
| LTC1421CSW-2.5#PBF | Tube | 32 | 1 | 24 | 0°C ~ 70°C | 24-Lead SOIC | ||
| LTC1421CSW-2.5#TRPBF | Reel | 1000 | 1 | 24 | 0°C ~ 70°C | 24-Lead SOIC | ||
| LTC1421CSW-2.5#TRMPBF | Reel | 500 | 1 | 24 | 0°C ~ 70°C | 24-Lead SOIC | ||
| LTC1421IG-2.5#PBF | Tube | 59 | 1 | 24 | -40°C ~ 85°C | 24-Lead SSOP | ||
| LTC1421IG-2.5#TRPBF | Reel | 1800 | 1 | 24 | -40°C ~ 85°C | 24-Lead SSOP | ||
| LTC1421IG-2.5#TRMPBF | Reel | 500 | 1 | 24 | -40°C ~ 85°C | 24-Lead SSOP | ||
| LTC1421ISW-2.5#PBF | Tube | 32 | 1 | 24 | -40°C ~ 85°C | 24-Lead SOIC | ||
| LTC1421ISW-2.5#TRPBF | Reel | 1000 | 1 | 24 | -40°C ~ 85°C | 24-Lead SOIC | ||
| LTC1421ISW-2.5#TRMPBF | Reel | 500 | 1 | 24 | -40°C ~ 85°C | 24-Lead SOIC |

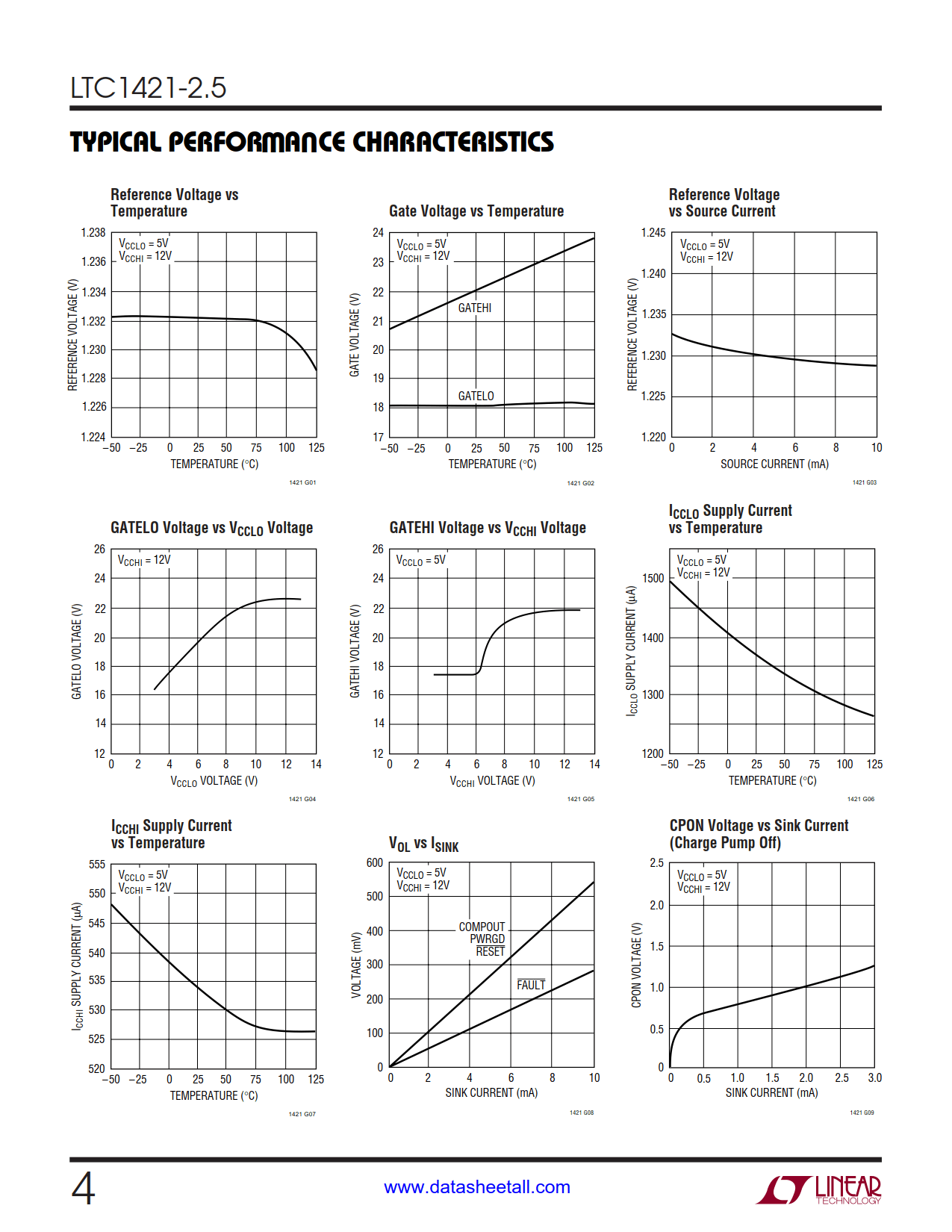

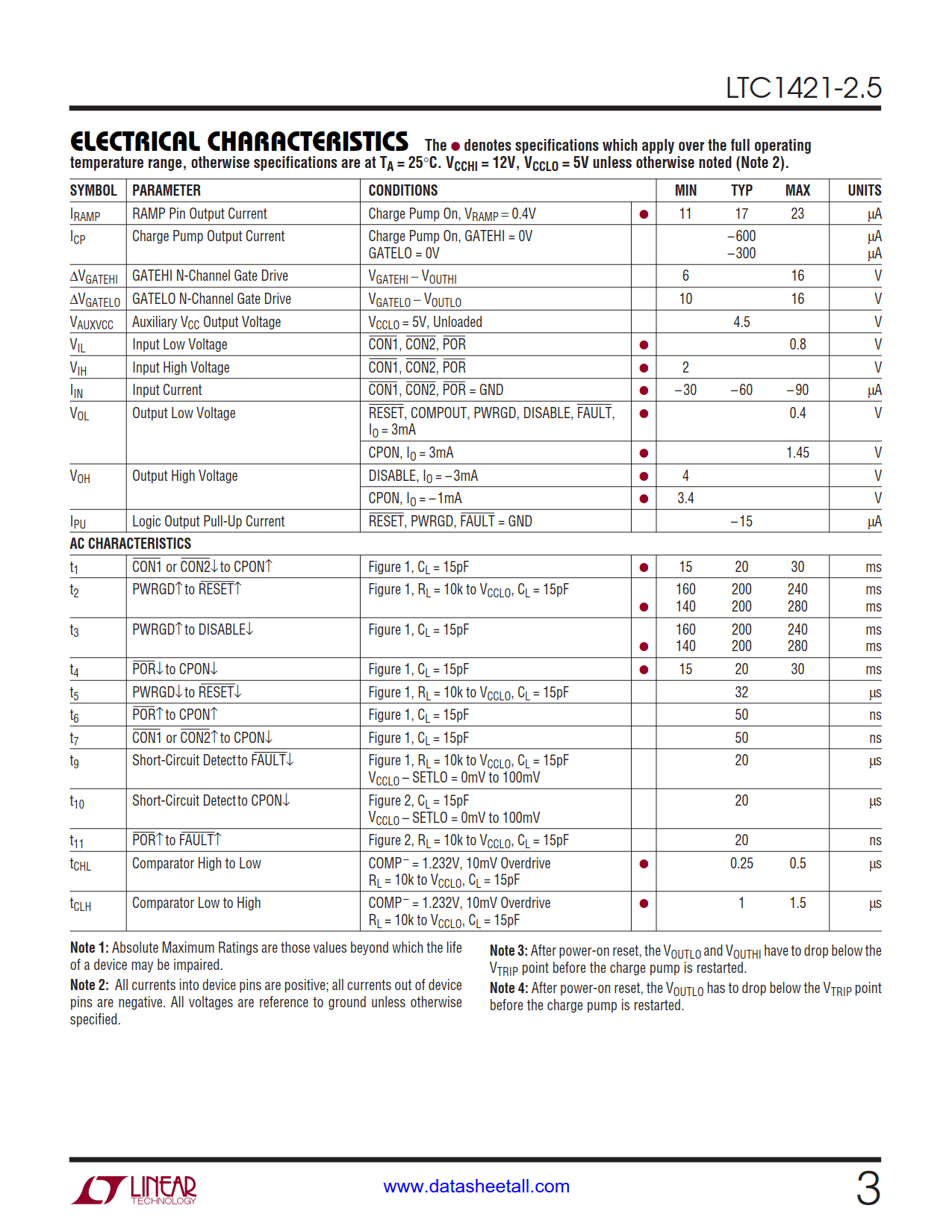

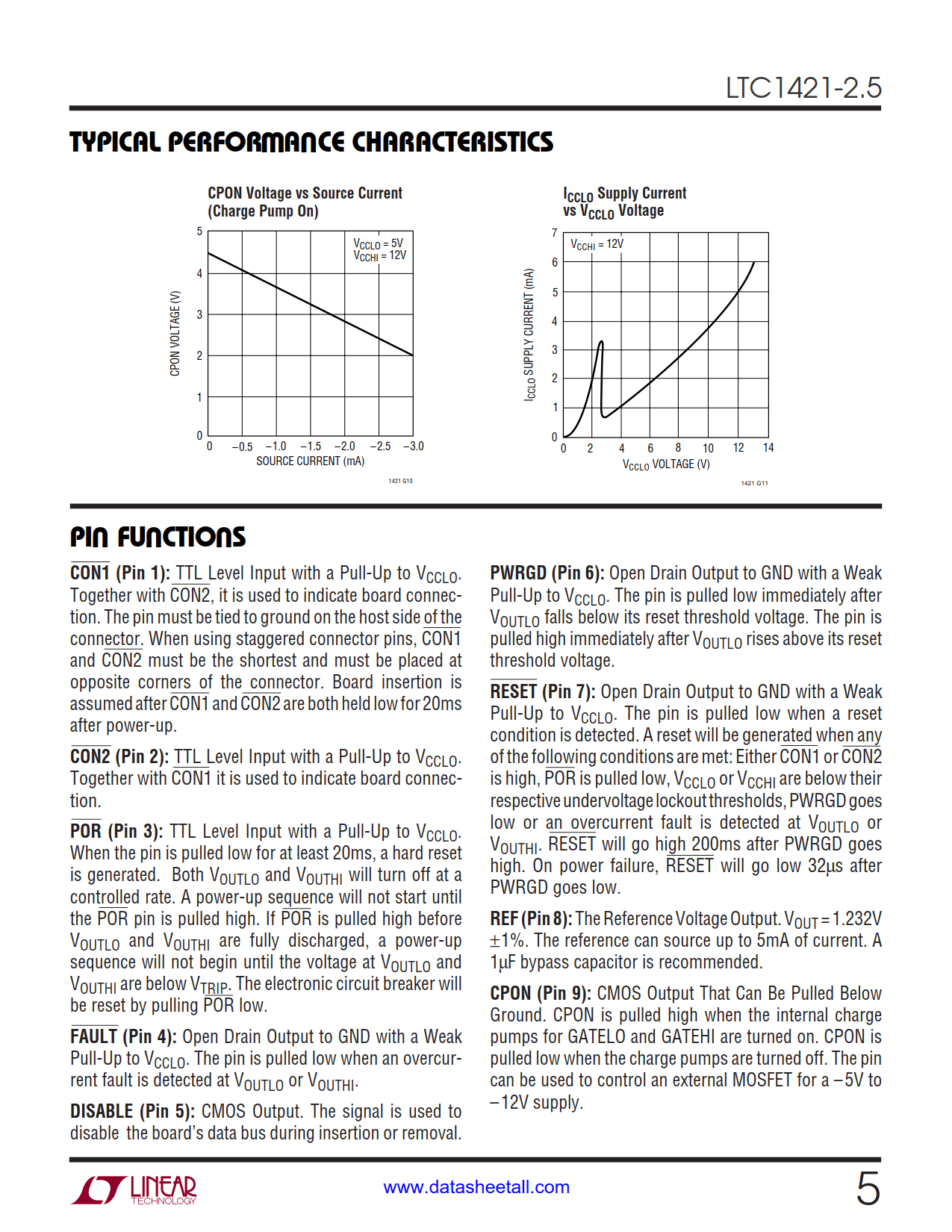

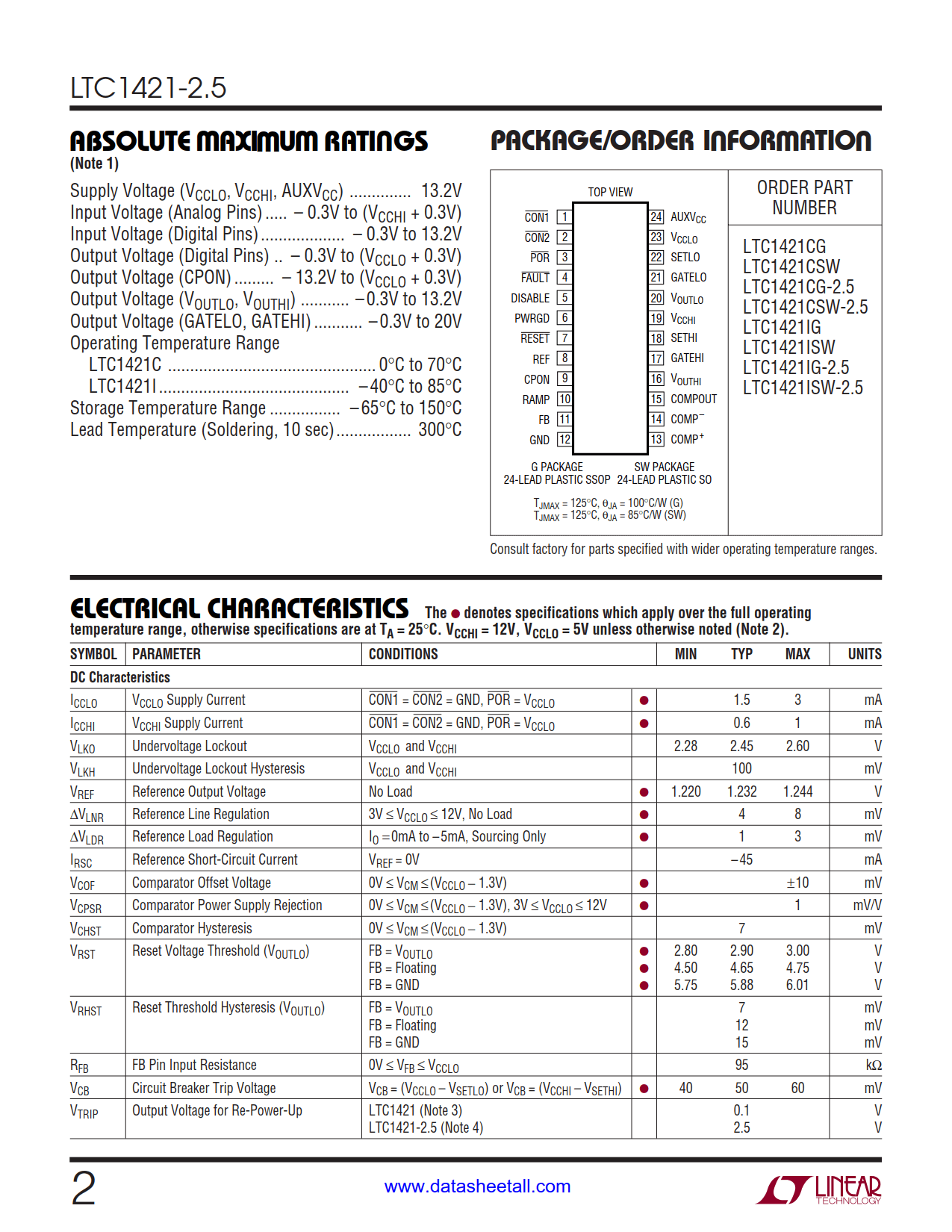

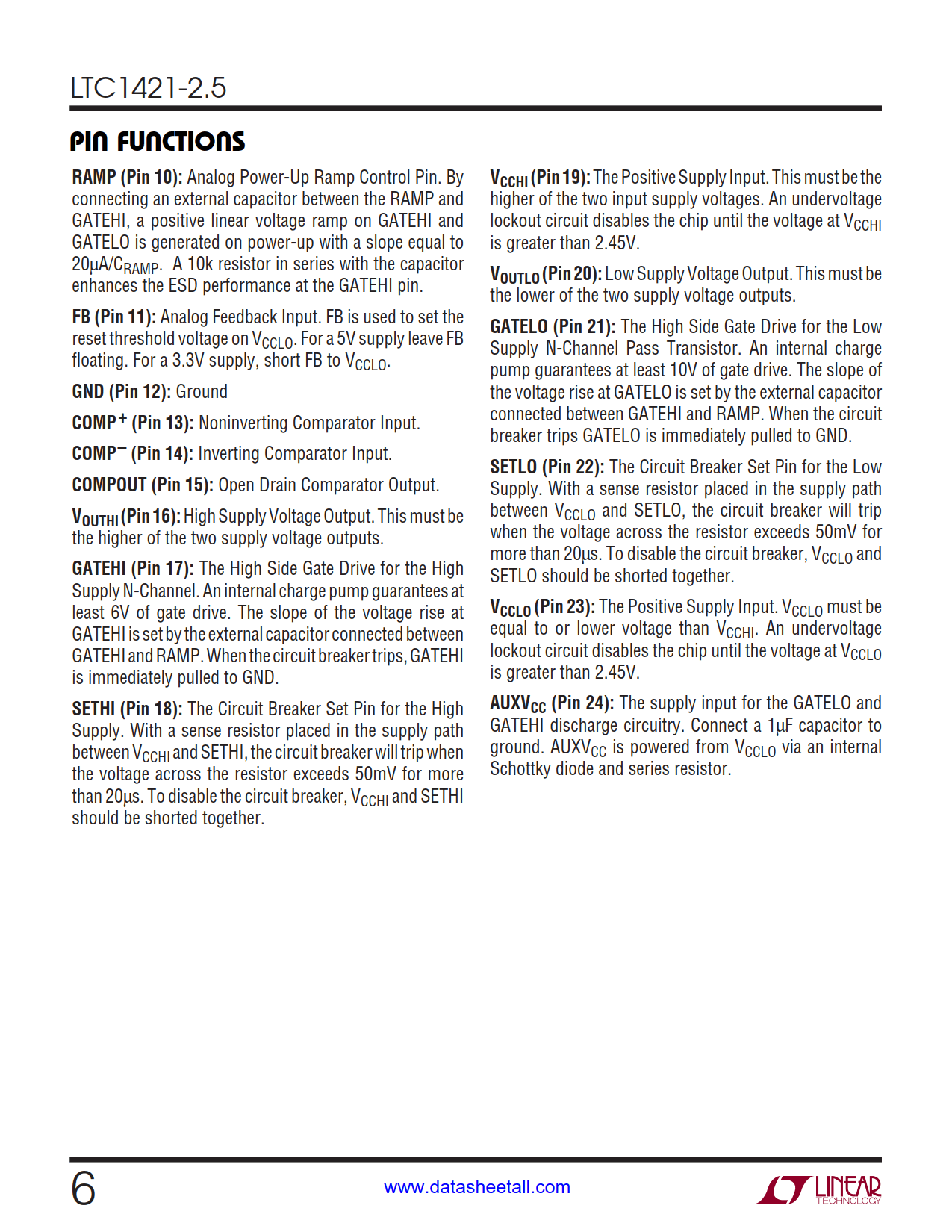

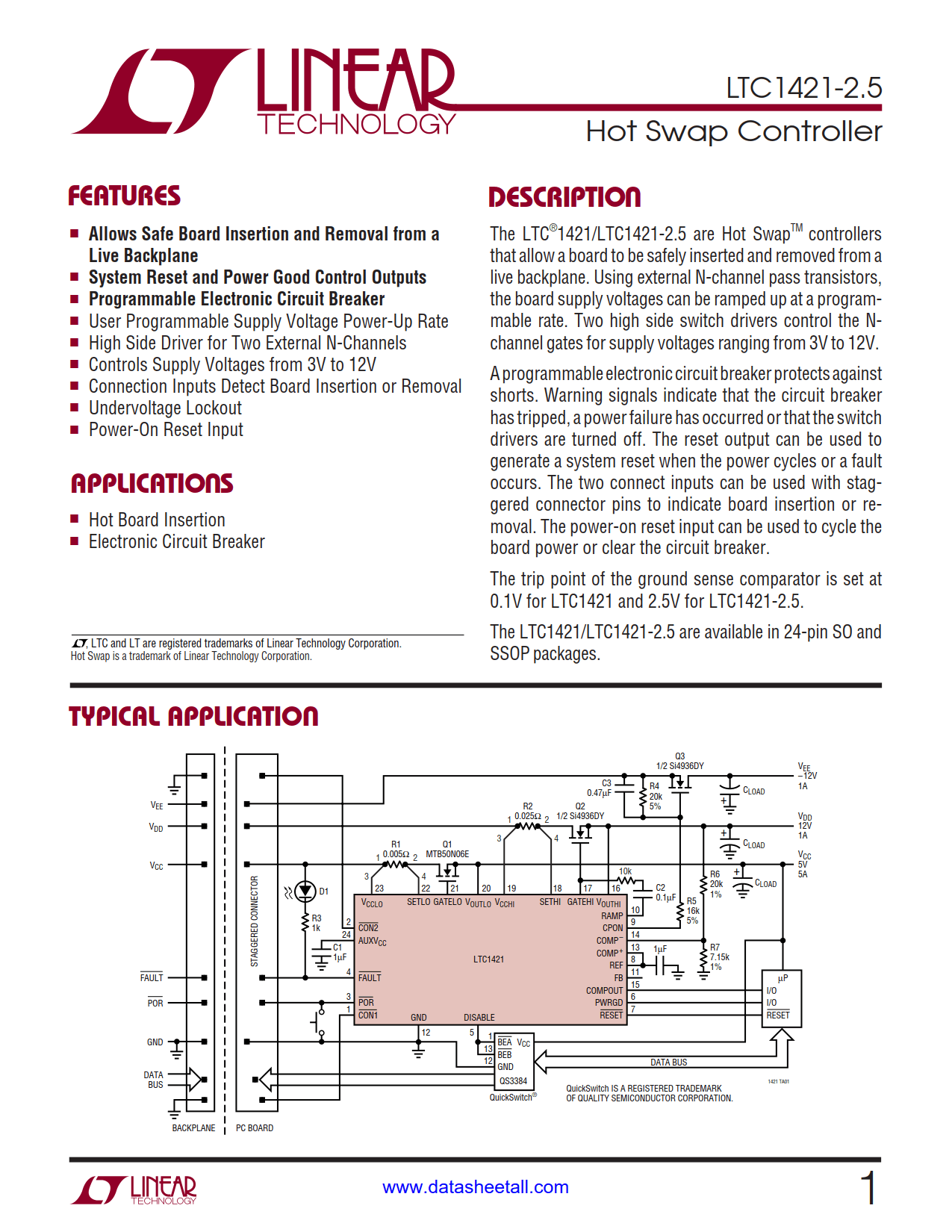

The LTC1421-2.5 are Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the board supply voltages can be ramped up at a programmable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 3V to 12V.
A programmable electronic circuit breaker protects against shorts. Warning signals indicate that the circuit breaker has tripped, a power failure has occurred or that the switch drivers are turned off. The reset output can be used to generate a system reset when the power cycles or a fault occurs. The two connect inputs can be used with staggered connector pins to indicate board insertion or removal. The power-on reset input can be used to cycle the board power or clear the circuit breaker.
The trip point of the ground sense comparator is set 2.5V for LTC1421-2.5.
The LTC1421-2.5 are available in 24-pin SO and SSOP packages.
