| Part No.： | LTC1296 |
| Page： | 28 Pages |
| Size： | 368 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-05 09:10:00 |
| DataSheet： | Download |

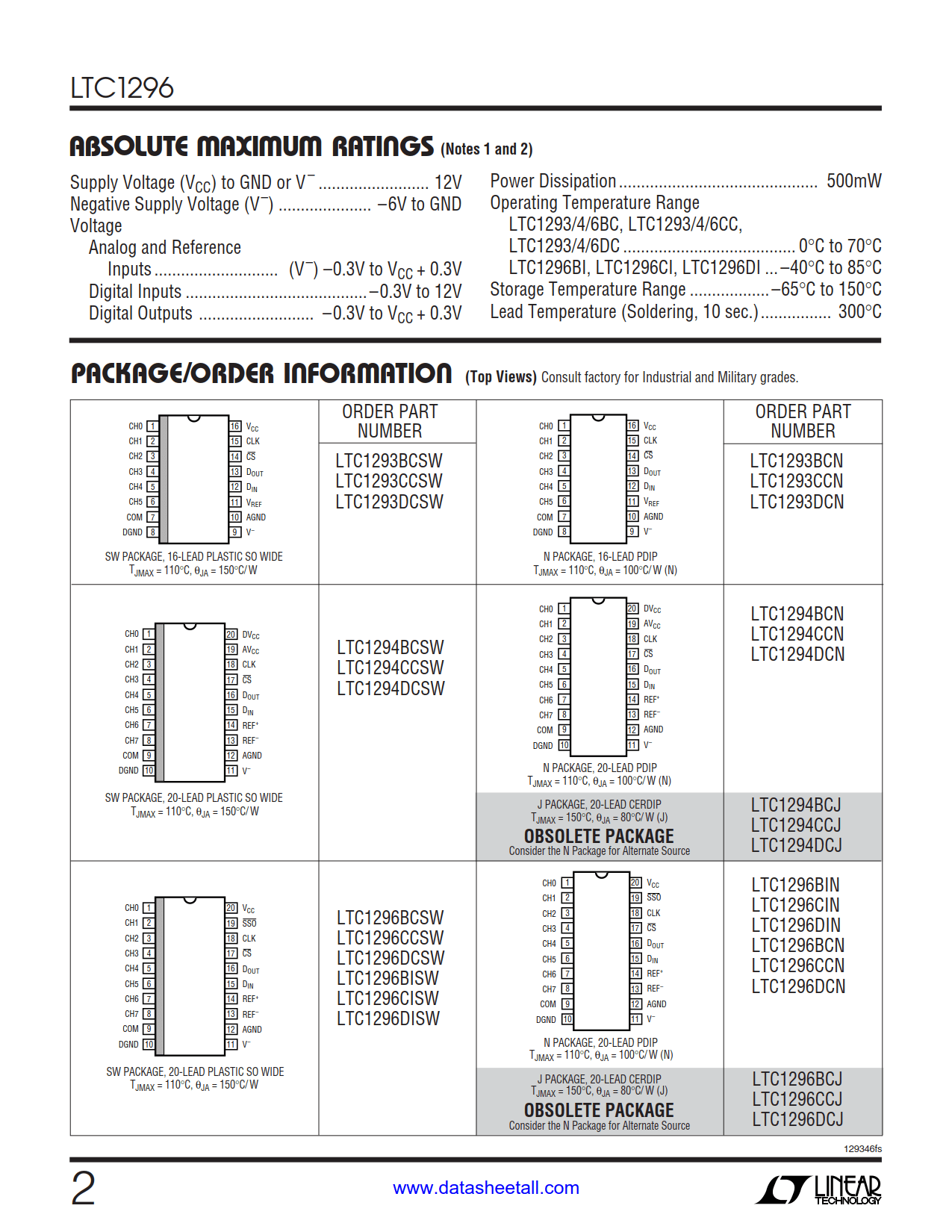

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1296BCSW#PBF | Tube | 38 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296BCSW#TRPBF | Reel | 1000 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296BCSW#TRMPBF | Reel | 500 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296CCSW#PBF | Tube | 38 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296CCSW#TRPBF | Reel | 1000 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296CCSW#TRMPBF | Reel | 500 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296DCSW#PBF | Tube | 38 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296DCSW#TRPBF | Reel | 1000 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296DCSW#TRMPBF | Reel | 500 | 1 | 20 | 0°C ~70°C | 20-Lead SOIC | ||
| LTC1296BISW#PBF | Tube | 38 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296BISW#TRPBF | Reel | 1000 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296BISW#TRMPBF | Reel | 500 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296CISW#PBF | Tube | 38 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296CISW#TRPBF | Reel | 1000 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296CISW#TRMPBF | Reel | 500 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296DISW#PBF | Tube | 38 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296DISW#TRPBF | Reel | 1000 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296DISW#TRMPBF | Reel | 500 | 1 | 20 | -40°C ~85°C | 20-Lead SOIC | ||
| LTC1296BIN#PBF | Tube | 18 | 1 | 20 | -40°C ~85°C | 20-Lead PDIP | ||
| LTC1296CIN#PBF | Tube | 18 | 1 | 20 | -40°C ~85°C | 20-Lead PDIP | ||
| LTC1296DIN#PBF | Tube | 18 | 1 | 20 | -40°C ~85°C | 20-Lead PDIP | ||
| LTC1296BCN#PBF | Tube | 18 | 1 | 20 | 0°C ~70°C | 20-Lead PDIP | ||
| LTC1296CCN#PBF | Tube | 18 | 1 | 20 | 0°C ~70°C | 20-Lead PDIP | ||
| LTC1296DCN#PBF | Tube | 18 | 1 | 20 | 0°C ~70°C | 20-Lead PDIP | ||
| LTC1296BCJ | ||||||||
| LTC1296CCJ | ||||||||
| LTC1296DCJ |

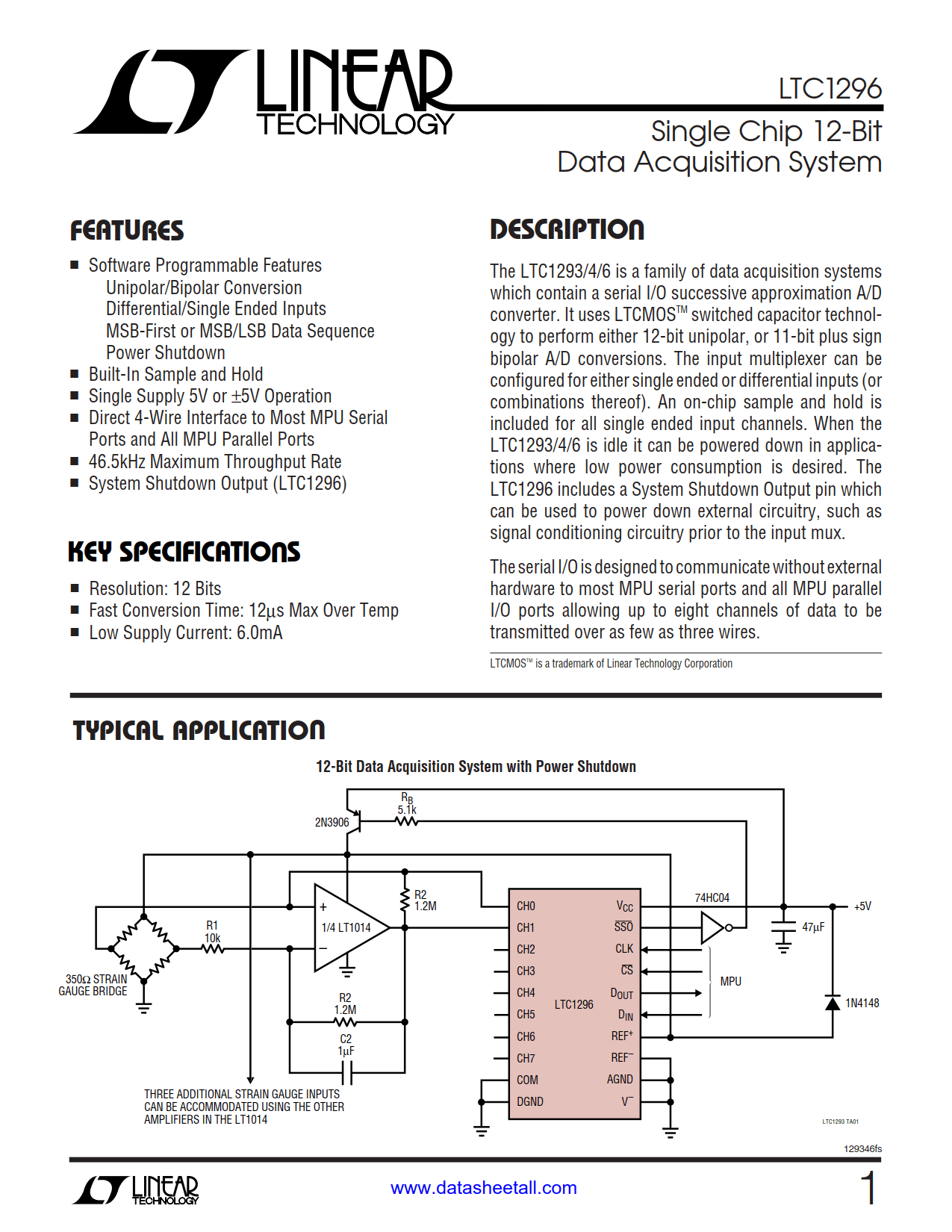

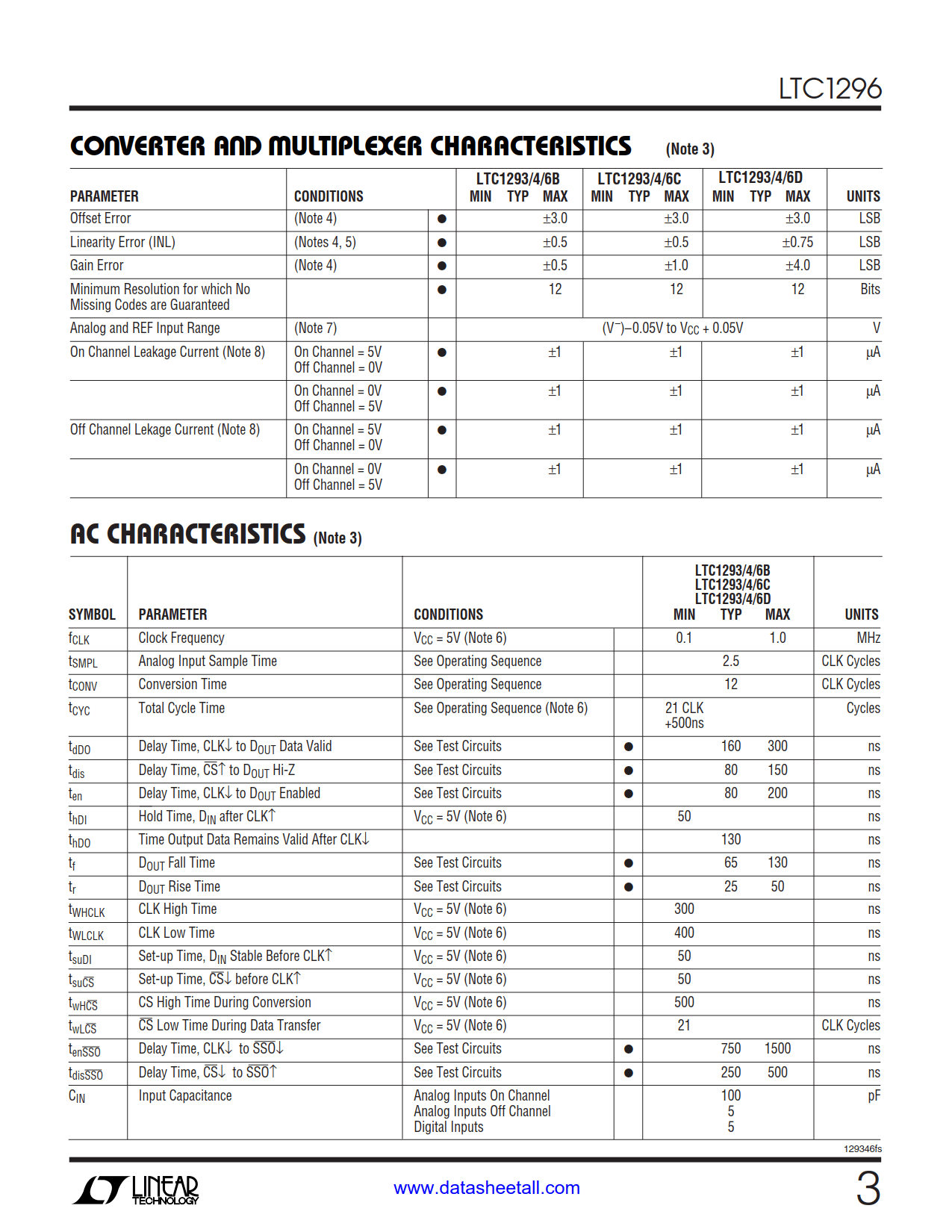

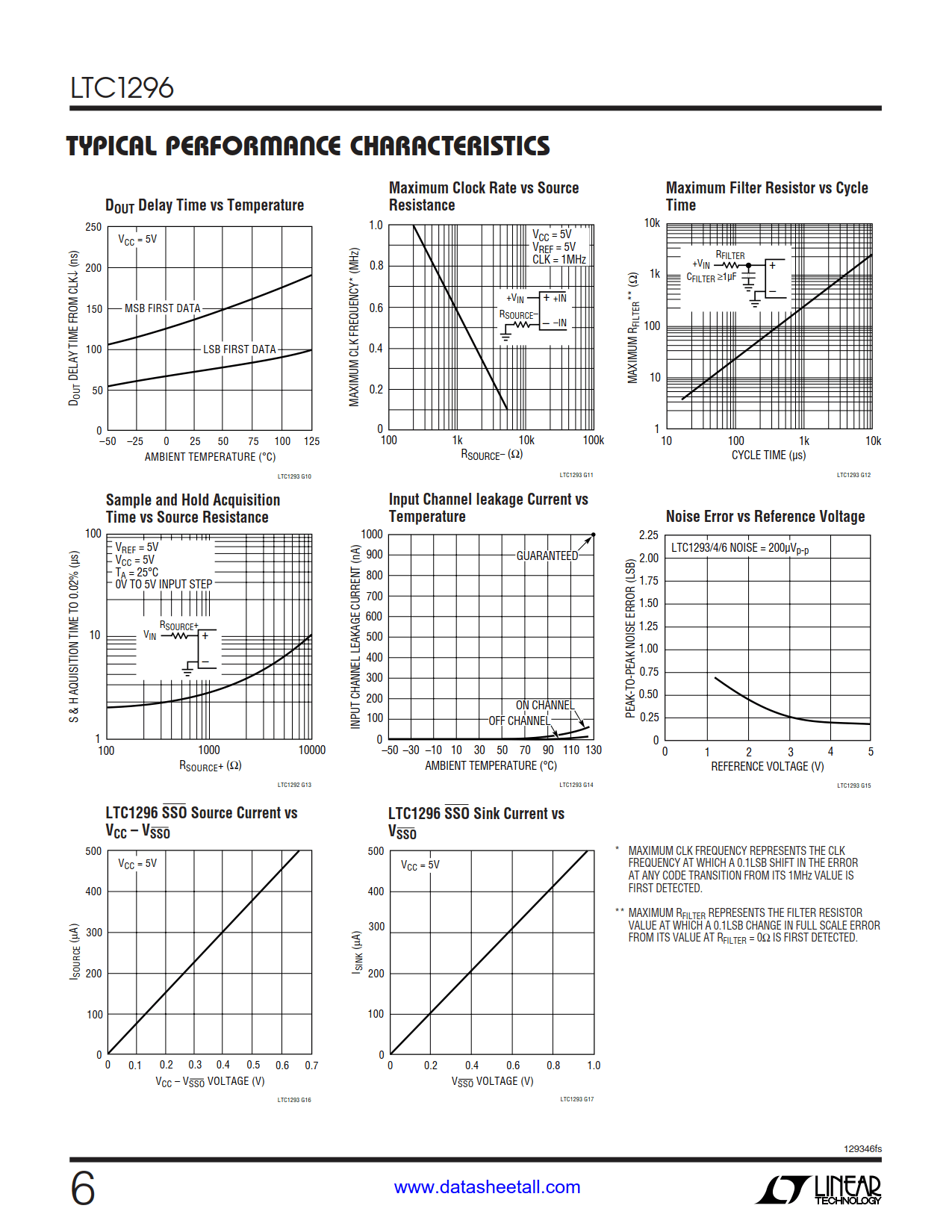

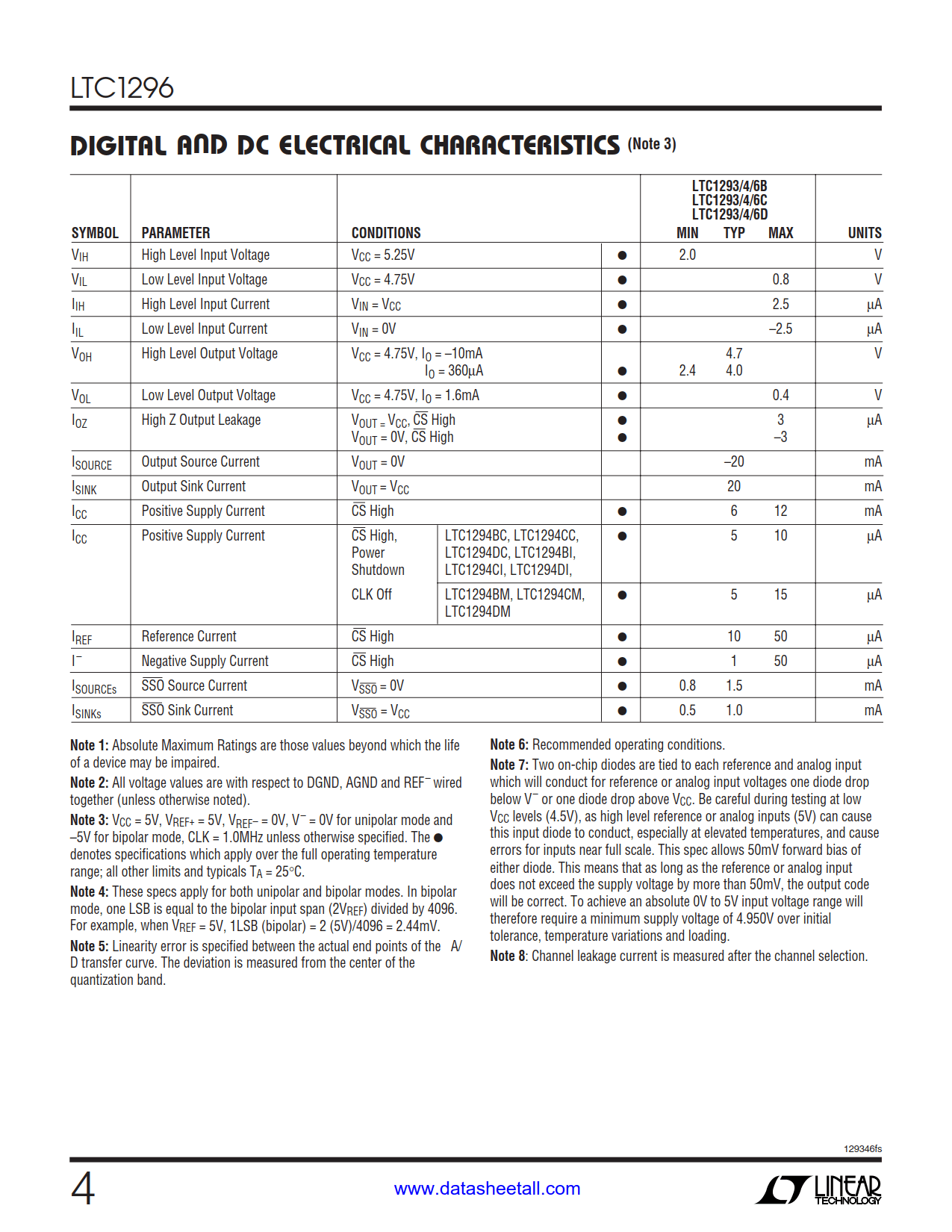

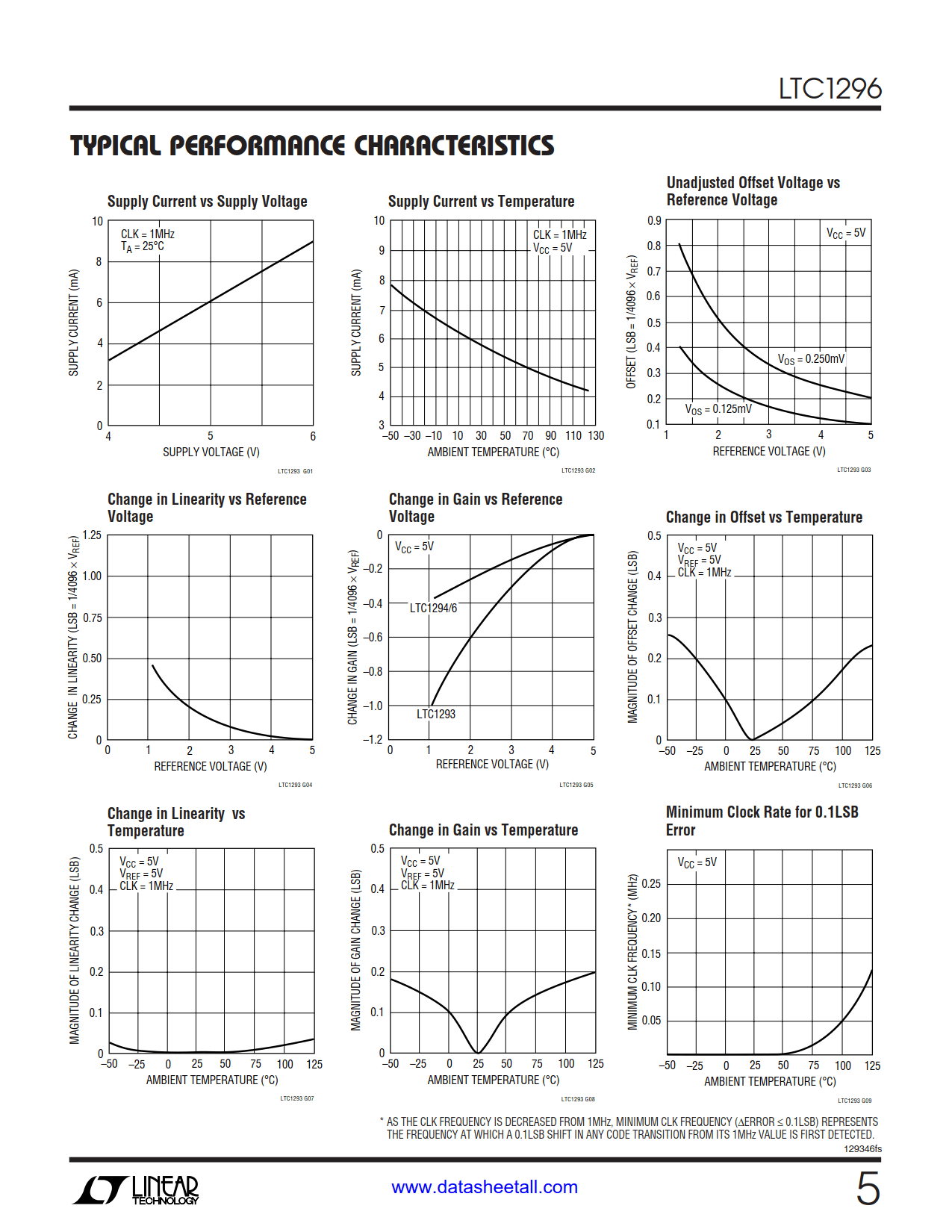

The LTC1296 is a family of data acquisition systems which contain a serial I/O successive approximation A/D converter. It uses LTCMOS™ switched capacitor technology to perform either 12-bit unipolar, or 11-bit plus sign bipolar A/D conversions. The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1296 is idle it can be powered down in applications where low power consumption is desired. The LTC1296 includes a System Shutdown Output pin which can be used to power down external circuitry, such as signal conditioning circuitry prior to the input mux.
The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.
