LTC1255 Datasheet

LTC1255 Datasheet

Dual 24V High-Side MOSFET Driver
Part No.: LTC1255
Page: 16 Pages
Size: 268 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-23 10:49:16
DataSheet: Download

LTC1255 Datasheet Applicable Part

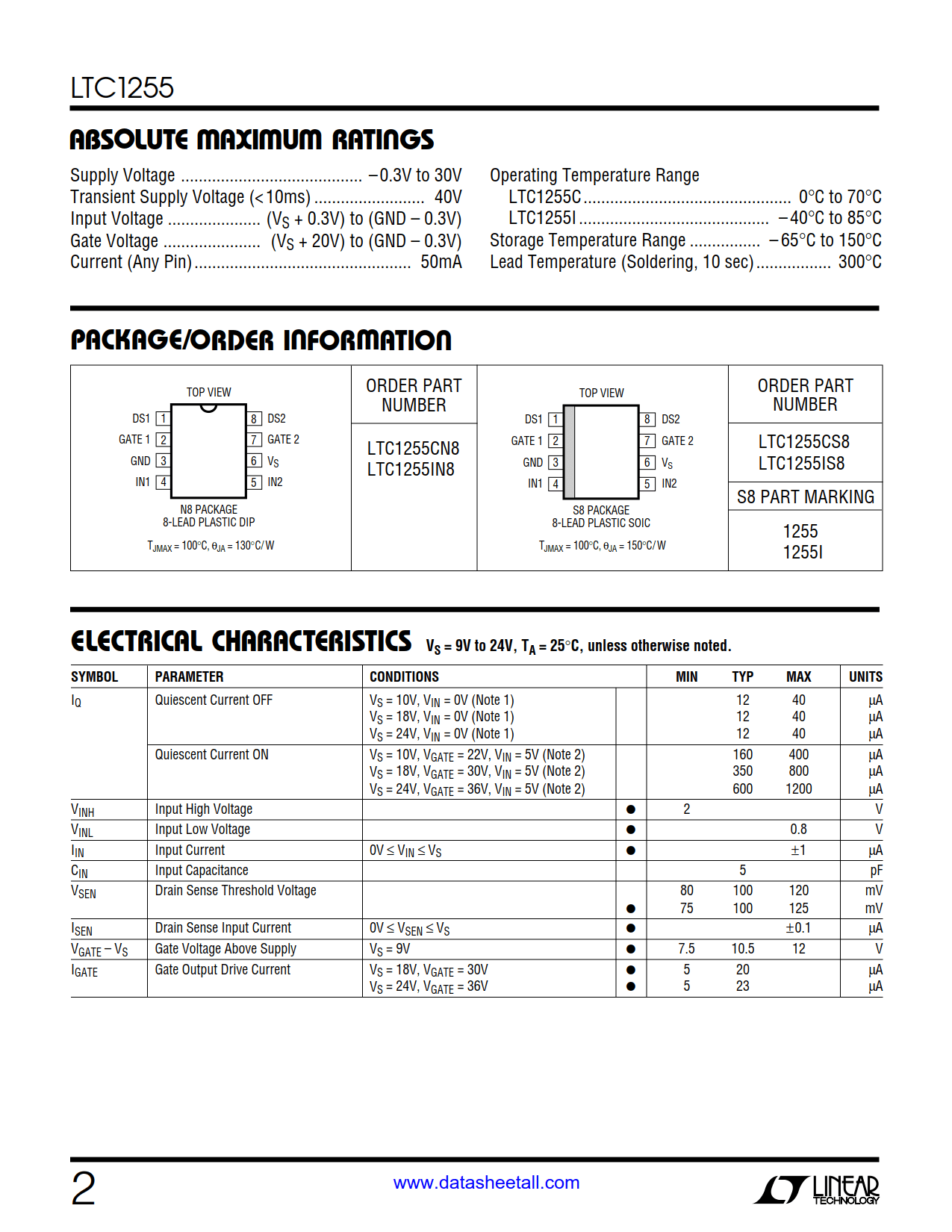

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1255CN8#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LTC1255CN8#TRPBF Reel     1 8 0°C ~ 70°C 8-Lead PDIP
LTC1255CN8#TRMPBF Reel     1 8 0°C ~ 70°C 8-Lead PDIP
LTC1255IN8#PBF Tube 50   1 8 -40°C ~ 125°C 8-Lead PDIP
LTC1255IN8#TRPBF Reel     1 8 -40°C ~ 125°C 8-Lead PDIP
LTC1255IN8#TRMPBF Reel     1 8 -40°C ~ 125°C 8-Lead PDIP
LTC1255CS8#PBF Tube 100 1255 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1255CS8#TRPBF Reel 2500 1255 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1255CS8#TRMPBF Reel 500 1255 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1255IS8#PBF Tube 100 1255I 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC1255IS8#TRPBF Reel 2500 1255I 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC1255IS8#TRMPBF Reel 500 1255I 1 8 -40°C ~ 125°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1255 Datasheet(PDF)

LTC1255 Datasheet(Picture)

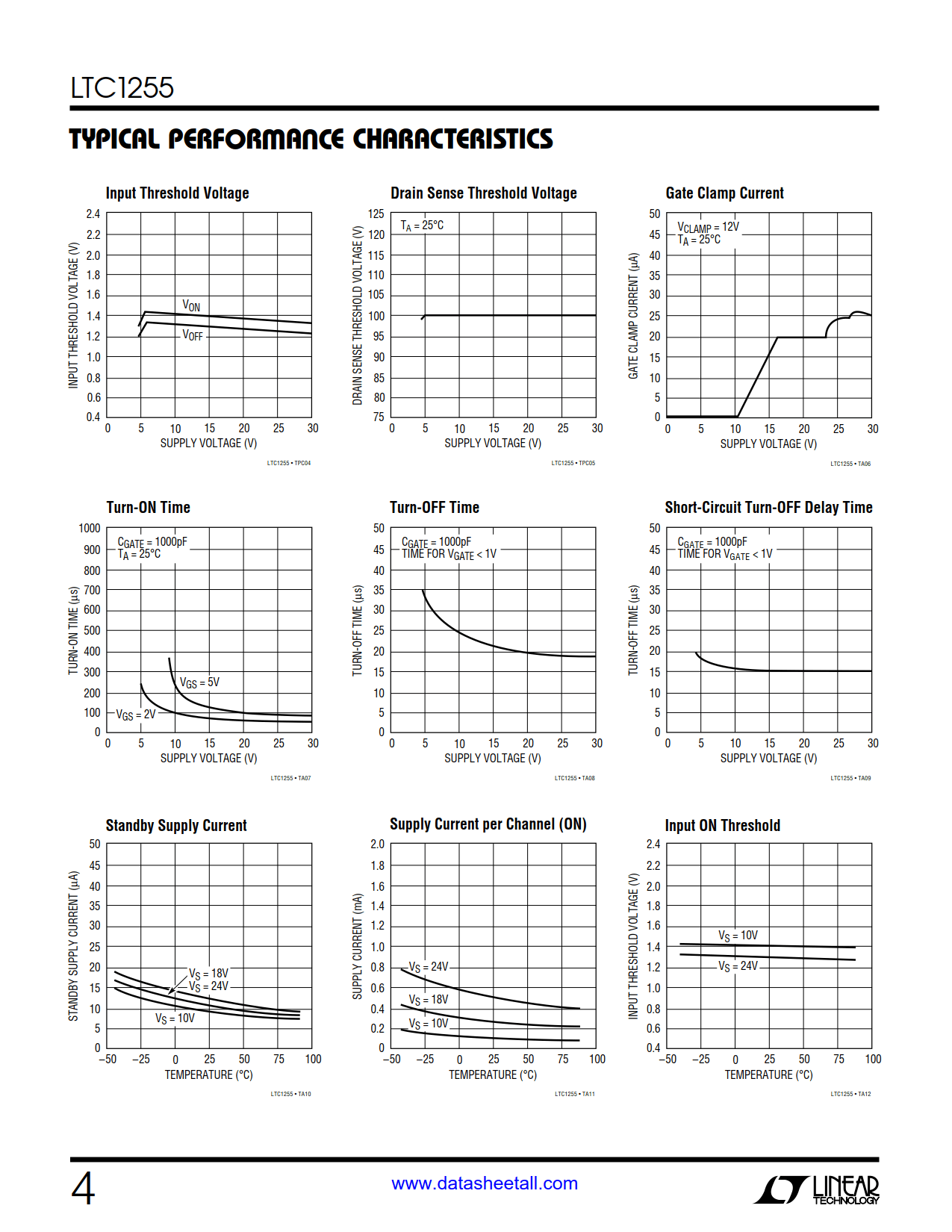

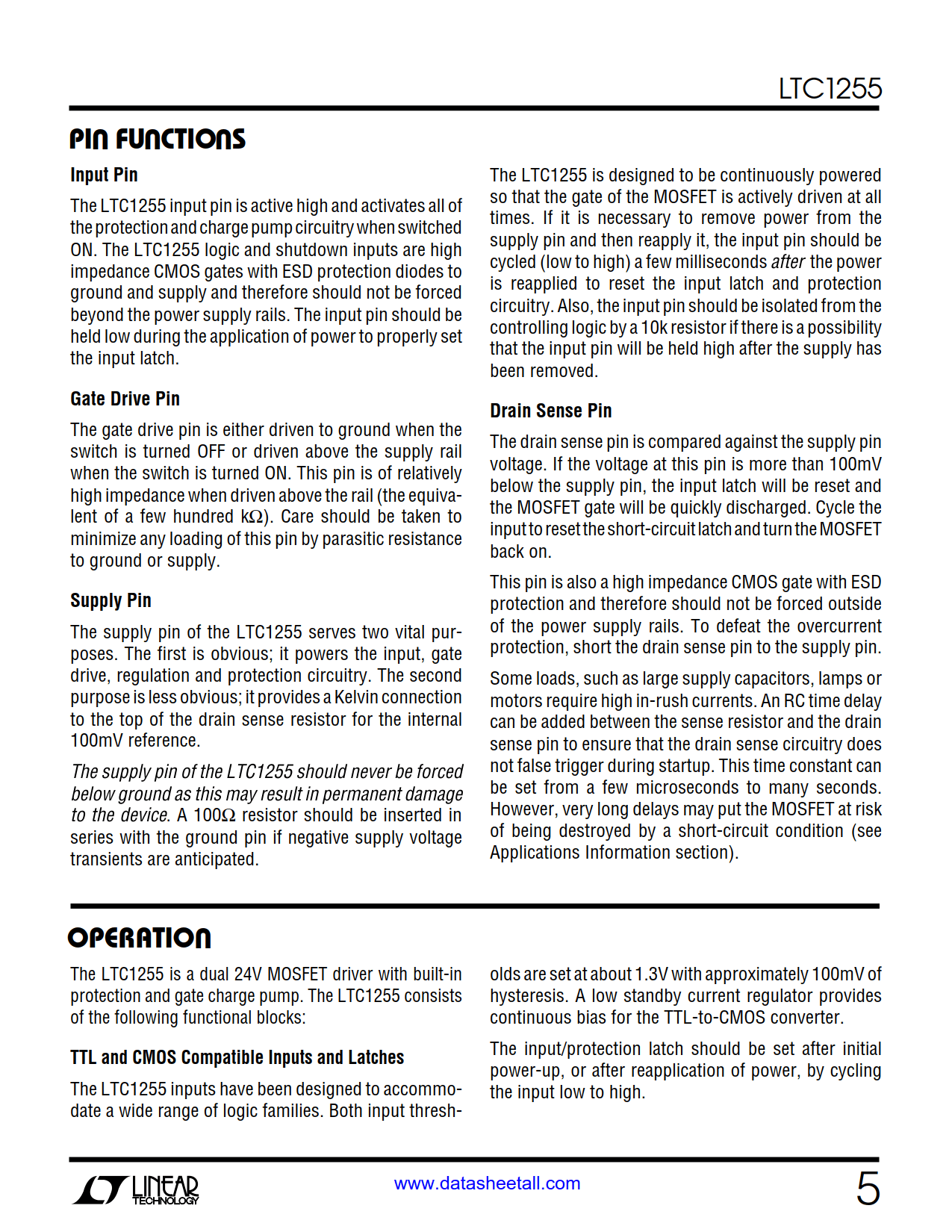

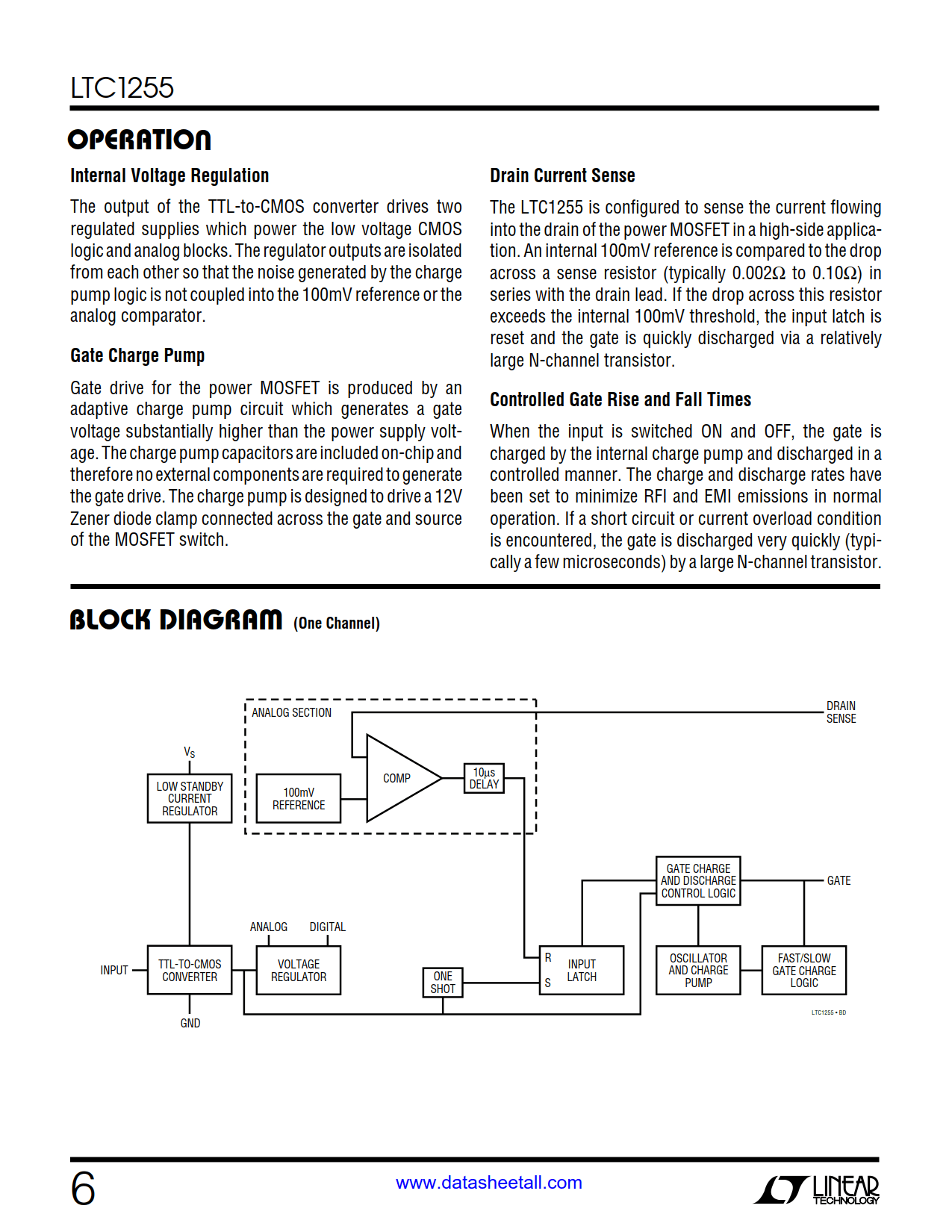

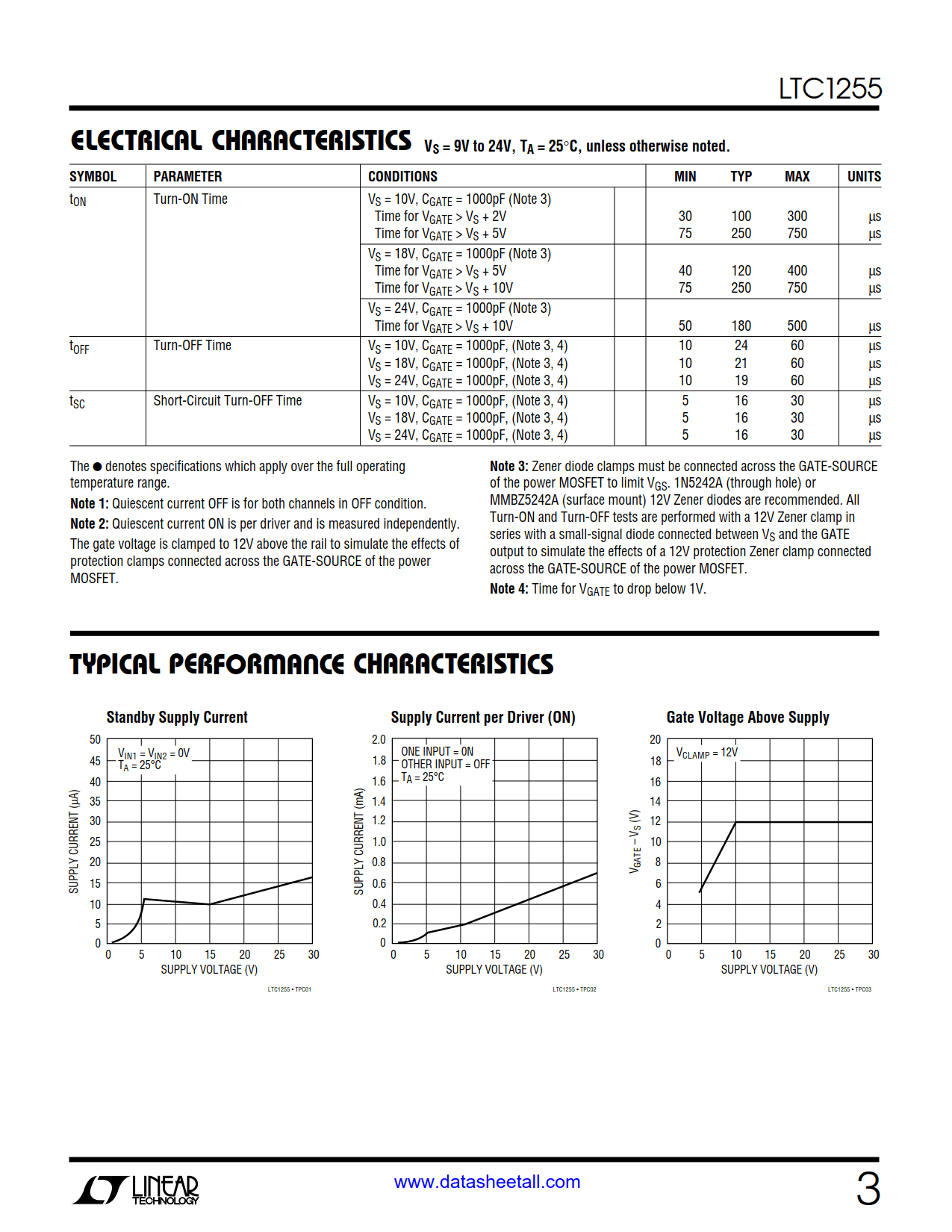

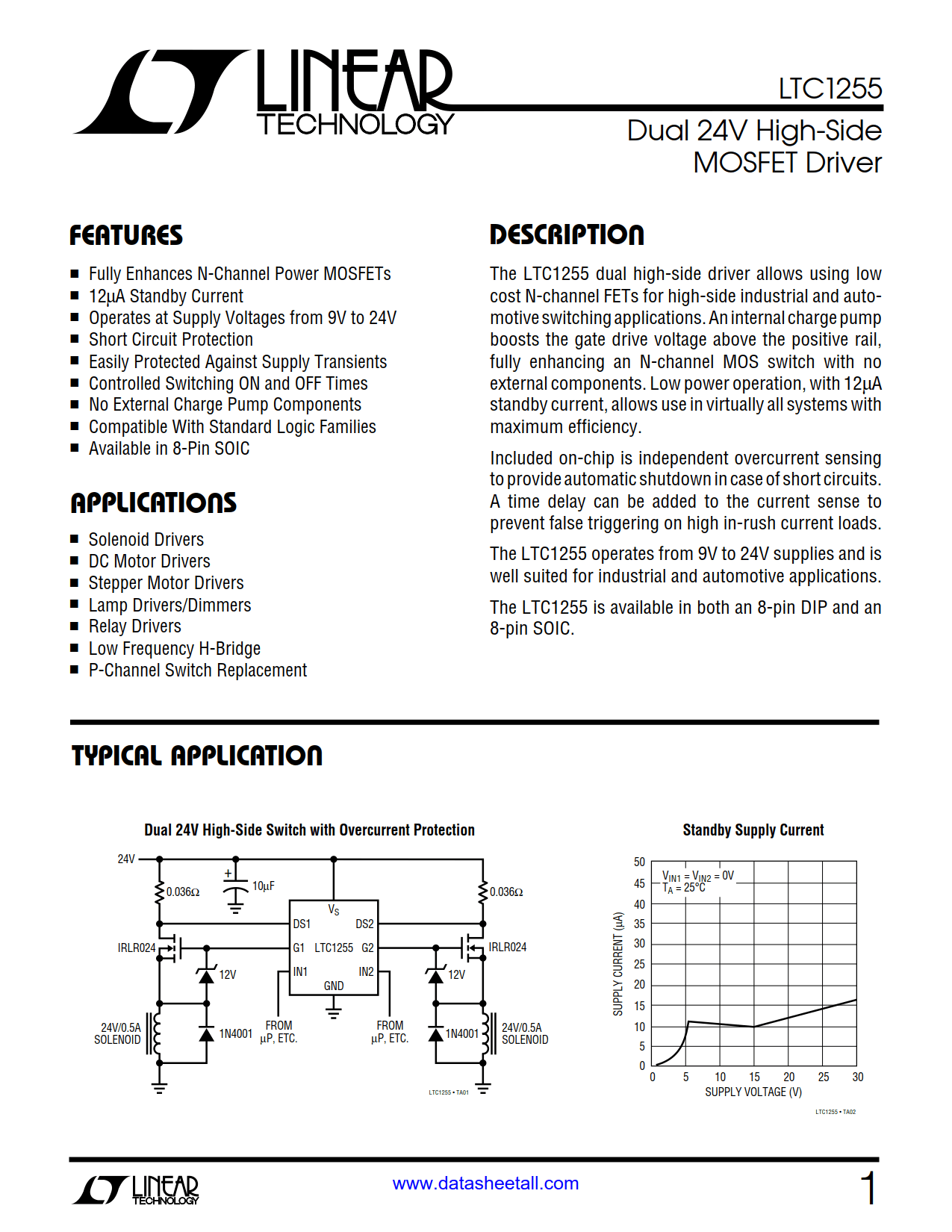

LTC1255 Features

  • Fully Enhances N-Channel Power MOSFETs
  • 12µA Standby Current
  • Operates at Supply Voltages from 9V to 24V
  • Short Circuit Protection
  • Easily Protected Against Supply Transients
  • Controlled Switching ON and OFF Times
  • No External Charge Pump Components
  • Compatible With Standard Logic Families
  • Available in 8-Pin SOIC

LTC1255 Applications

  • Solenoid Drivers
  • DC Motor Drivers
  • Stepper Motor Drivers
  • Lamp Drivers/Dimmers
  • Relay Drivers
  • Low Frequency H-Bridge
  • P-Channel Switch Replacement

LTC1255 Description

The LTC1255 dual high-side driver allows using low cost N-channel FETs for high-side industrial and automotive switching applications. An internal charge pump boosts the gate drive voltage above the positive rail, fully enhancing an N-channel MOS switch with no external components. Low power operation, with 12µA standby current, allows use in virtually all systems with maximum efficiency.

Included on-chip is independent overcurrent sensing to provide automatic shutdown in case of short circuits. A time delay can be added to the current sense to prevent false triggering on high in-rush current loads.

The LTC1255 operates from 9V to 24V supplies and is well suited for industrial and automotive applications.

The LTC1255 is available in both an 8-pin DIP and an 8-pin SOIC.

LTC1255 Datasheet Related Parts
