LTC1165 Datasheet

LTC1165 Datasheet

Triple 1.8V to 6V High-Side MOSFET Drivers
Part No.: LTC1165
Page: 8 Pages
Size: 193 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-23 10:43:49
DataSheet: Download

LTC1165 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1165CS8#PBF Tube 100 1165 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1165CS8#TRPBF Reel 2500 1165 1 8 0°C ~ 70°C 8-Lead SOIC
LTC1165CS8#TRMPBF Reel 500 1165 1 8 0°C ~ 70°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

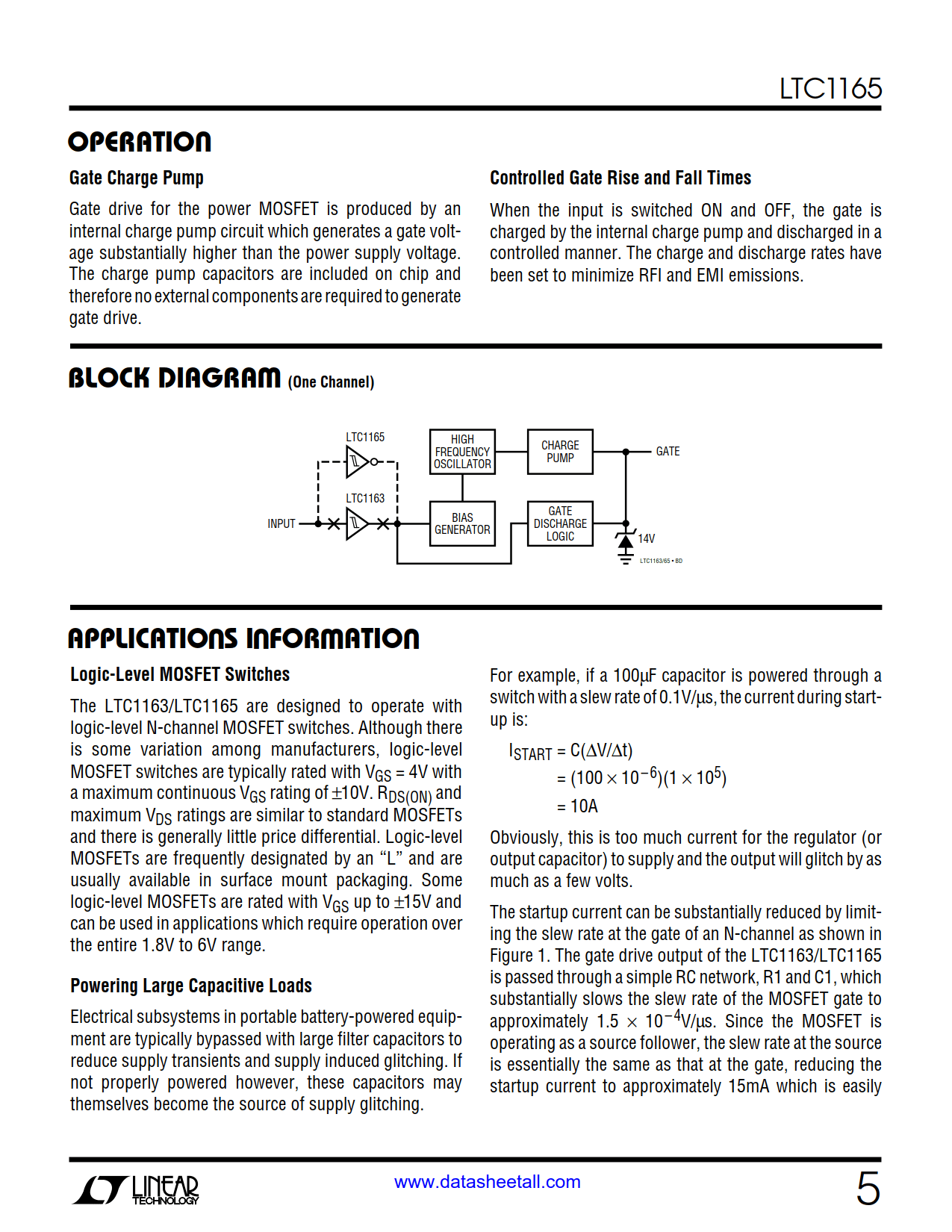

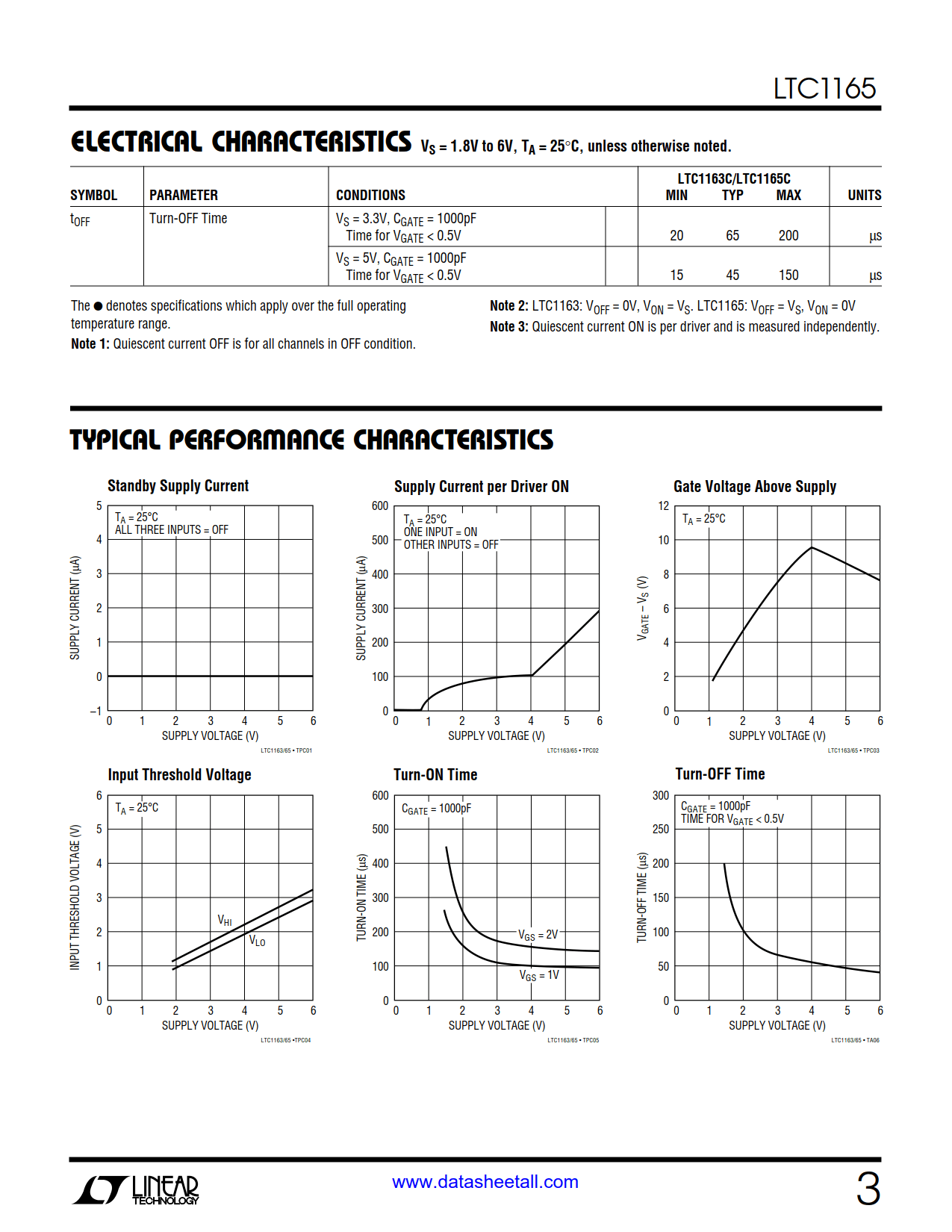

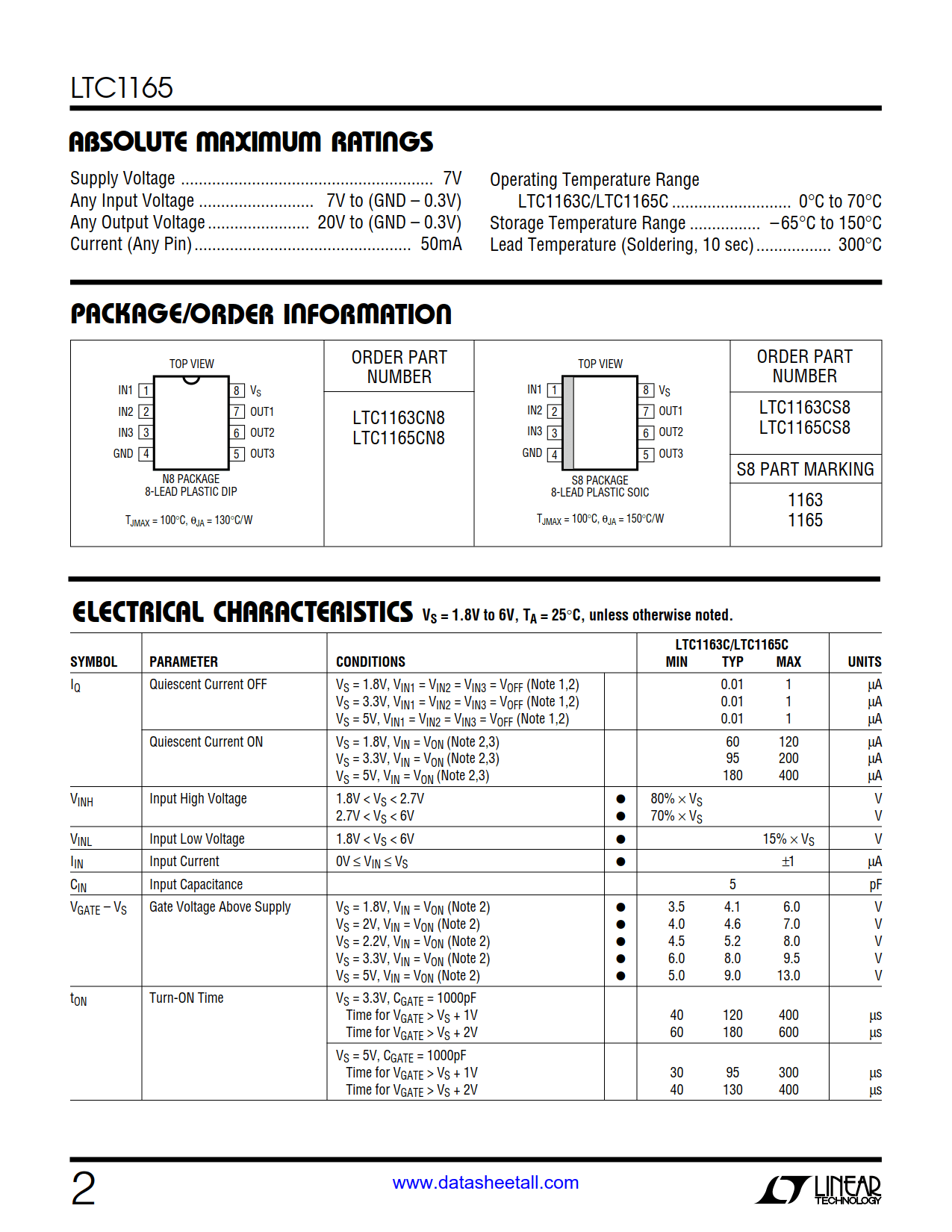

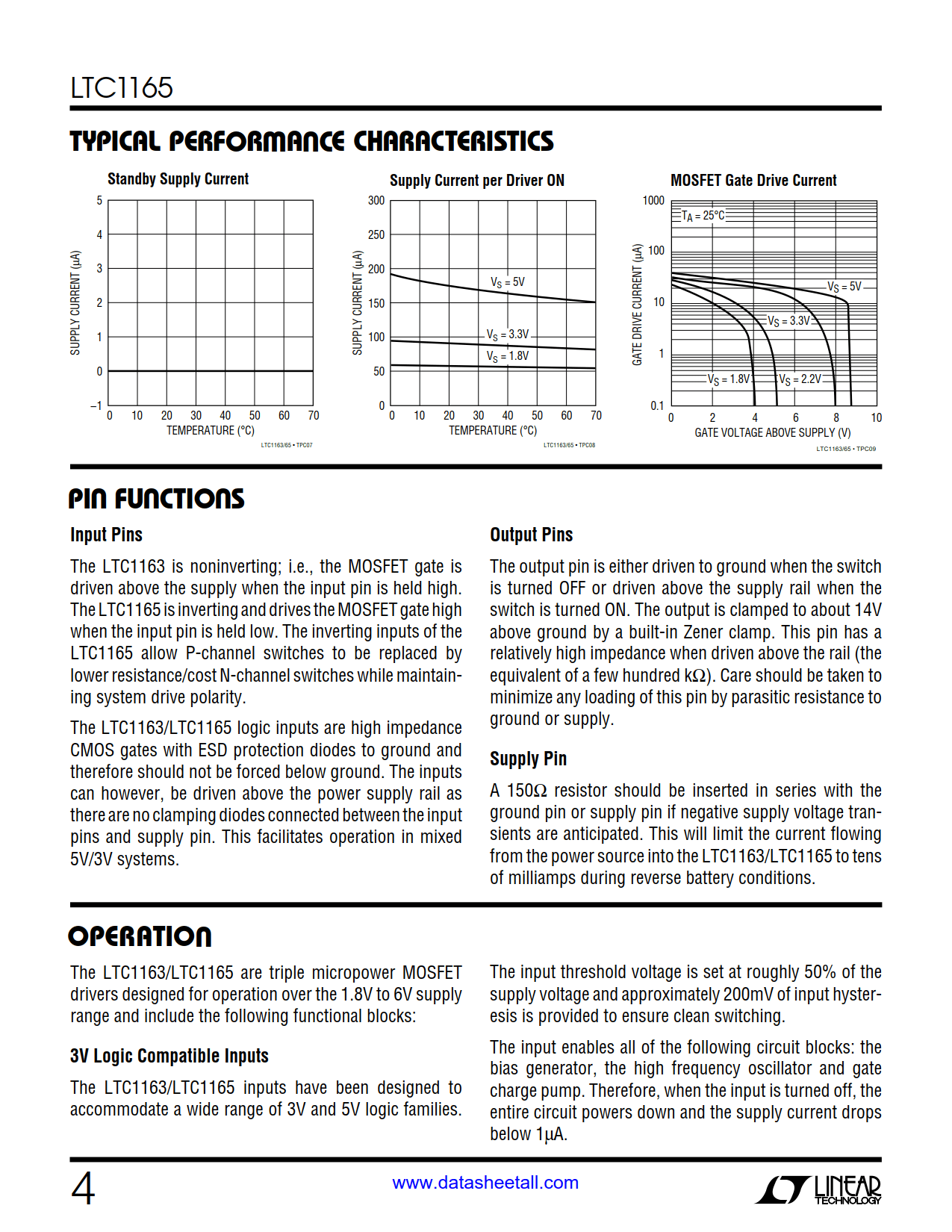

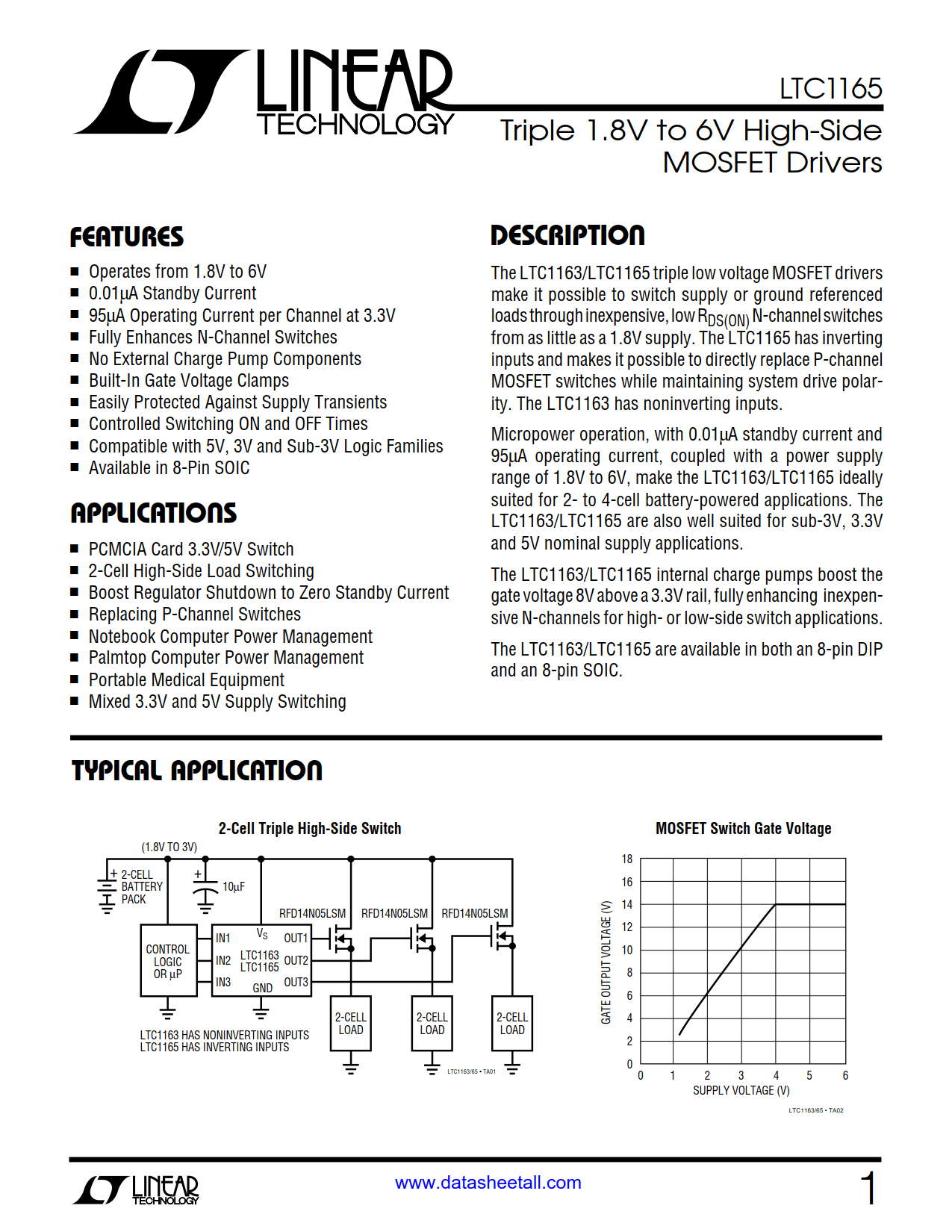

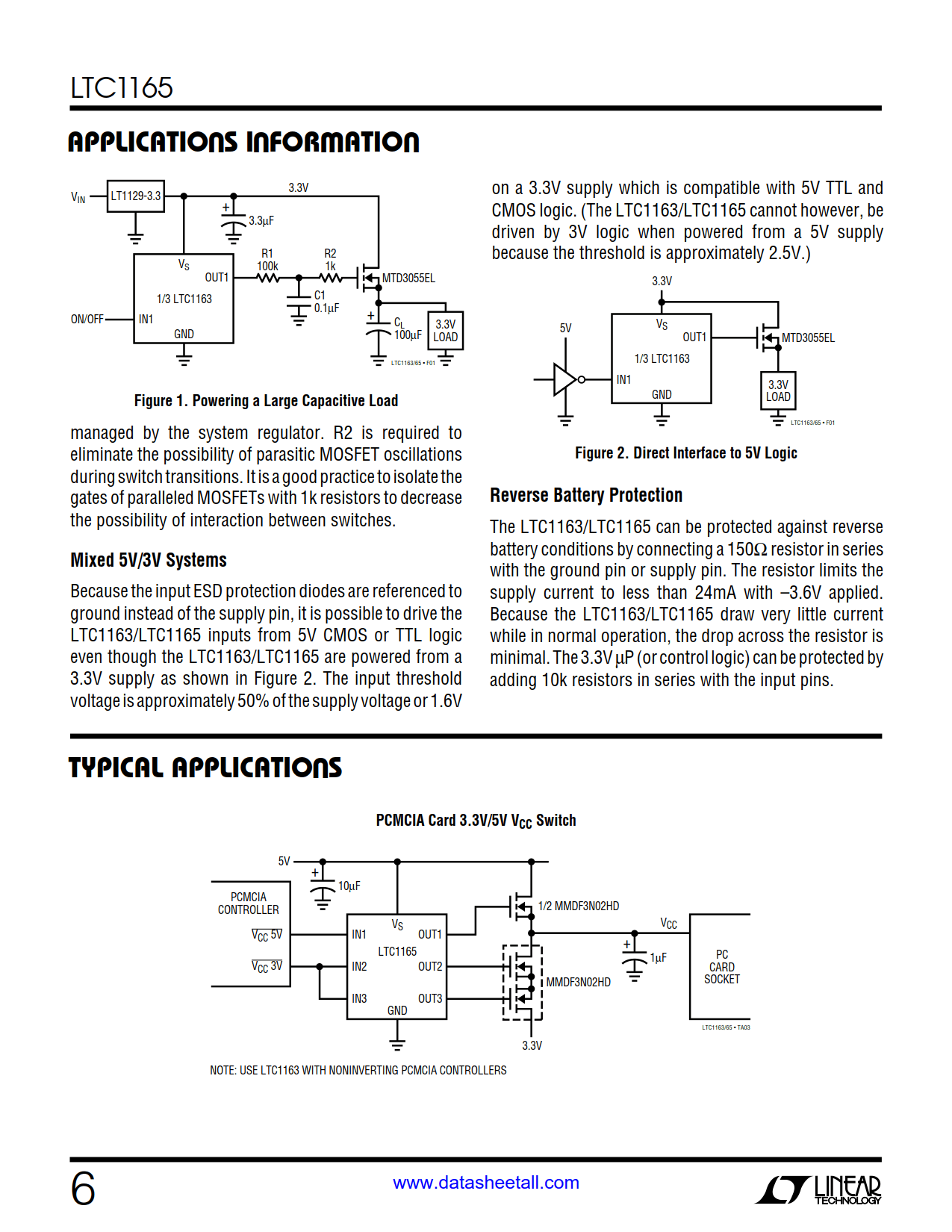

LTC1165 Datasheet(PDF)

LTC1165 Datasheet(Picture)

LTC1165 Features

  • Operates from 1.8V to 6V
  • 0.01µA Standby Current
  • 95µA Operating Current per Channel at 3.3V
  • Fully Enhances N-Channel Switches
  • No External Charge Pump Components
  • Built-In Gate Voltage Clamps
  • Easily Protected Against Supply Transients
  • Controlled Switching ON and OFF Times
  • Compatible with 5V, 3V and Sub-3V Logic Families
  • Available in 8-Pin SOIC

LTC1165 Applications

  • PCMCIA Card 3.3V/5V Switch
  • 2-Cell High-Side Load Switching
  • Boost Regulator Shutdown to Zero Standby Current
  • Replacing P-Channel Switches
  • Notebook Computer Power Management
  • Palmtop Computer Power Management
  • Portable Medical Equipment
  • Mixed 3.3V and 5V Supply Switching

LTC1165 Description

The LTC1165 triple low voltage MOSFET drivers make it possible to switch supply or ground referenced loads hrough inexpensive, low RDS(ON) N-channel switches from as little as a 1.8V supply. The LTC1165 has inverting inputs and makes it possible to directly replace P-channel MOSFET switches while maintaining system drive polarity.

Micropower operation, with 0.01µA standby current and 95µA operating current, coupled with a power supply range of 1.8V to 6V, make the LTC1165 ideally suited for 2- to 4-cell battery-powered applications. The LTC1165 are also well suited for sub-3V, 3.3V and 5V nominal supply applications.

The LTC1165 internal charge pumps boost the gate voltage 8V above a 3.3V rail, fully enhancing inexpensive N-channels for high- or low-side switch applications.

The LTC1165 are available in both an 8-pin DIP and an 8-pin SOIC.
