| Part No.： | LTC1148-3.3 |
| Page： | 20 Pages |
| Size： | 224 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-11 17:08:48 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC1148CN-3.3#PBF | Tube | 25 | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LTC1148HVCN-3.3#PBF | Tube | 25 | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LTC1148CS-3.3#PBF | Tube | 55 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148CS-3.3#TRPBF | Reel | 2500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148CS-3.3#TRMPBF | Reel | 500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148HVCS-3.3#PBF | Tube | 55 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148HVCS-3.3#TRPBF | Reel | 2500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148HVCS-3.3#TRMPBF | Reel | 500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148LCS-3.3#PBF | Tube | 55 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148LCS-3.3#TRPBF | Reel | 2500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | ||
| LTC1148LCS-3.3#TRMPBF | Reel | 500 | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC |

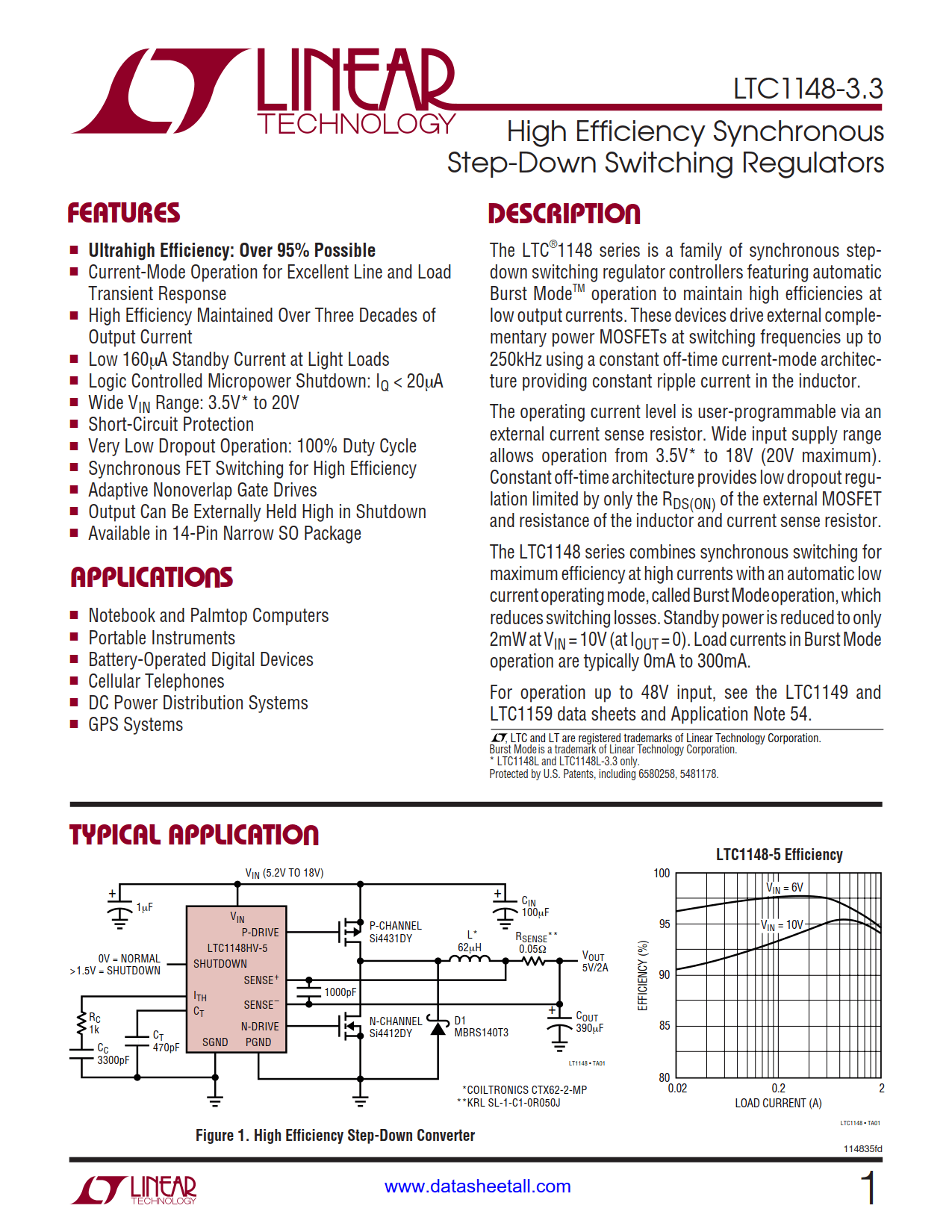

The LTC1148-3.3 is a family of synchronous stepdown switching regulator controllers featuring automatic Burst Mode™ operation to maintain high efficiencies at low output currents. These devices drive external complementary power MOSFETs at switching frequencies up to 250kHz using a constant off-time current-mode architecture providing constant ripple current in the inductor.
The operating current level is user-programmable via an external current sense resistor. Wide input supply range allows operation from 3.5V to 18V (20V maximum). Constant off-time architecture provides low dropout regulation limited by only the RDS(ON) of the external MOSFET and resistance of the inductor and current sense resistor.
The LTC1148-3.3 combines synchronous switching for maximum efficiency at high currents with an automatic low current operating mode, called Burst Mode operation, which reduces switching losses. Standby power is reduced to only 2mW at VIN = 10V (at IOUT = 0). Load currents in Burst Mode operation are typically 0mA to 300mA.
