LT8672 Datasheet

LT8672 Datasheet

Active Rectifier Controller with Reverse Protection
Part No.: LT8672
Page: 24 Pages
Size: 2159 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-05 15:04:43
DataSheet: Download

LT8672 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT8672EMS#PBF Tube 50 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672EMS#TRPBF Reel 2500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672EMS#TRMPBF Reel 500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#PBF Tube 50 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#TRPBF Reel 2500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#TRMPBF Reel 500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672JMS#PBF Tube 50 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672JMS#TRPBF Reel 2500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672JMS#TRMPBF Reel 500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#PBF Tube 50 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#TRPBF Reel 2500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#TRMPBF Reel 500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672EDDB#TRPBF Reel 2500 LGYS 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672EDDB#TRMPBF Reel 500 LGYS 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672IDDB#TRPBF Reel 2500 LGYS 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672IDDB#TRMPBF Reel 500 LGYS 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672JDDB#TRPBF Reel 2500 LGYS 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672JDDB#TRMPBF Reel 500 LGYS 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672HDDB#TRPBF Reel 2500 LGYS 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672HDDB#TRMPBF Reel 500 LGYS 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic DFN
LT8672EMS#WPBF Tube 50 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672EMS#WTRPBF Reel 2500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672EMS#WTRMPBF Reel 500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#WPBF Tube 50 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#WTRPBF Reel 2500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672IMS#WTRMPBF Reel 500 LTGYT 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT8672JMS#WPBF Tube 50 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672JMS#WTRPBF Reel 2500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672JMS#WTRMPBF Reel 500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#WPBF Tube 50 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#WTRPBF Reel 2500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672HMS#WTRMPBF Reel 500 LTGYT 1 10 -40°C ~ 150°C 10-Lead Plastic MSOP
LT8672EDDBM#WTRPBF Reel 2500 LHJR 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
LT8672EDDBM#WTRMPBF Reel 500 LHJR 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
LT8672IDDBM#WTRPBF Reel 2500 LHJR 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
LT8672IDDBM#WTRMPBF Reel 500 LHJR 1 10 -40°C ~ 125°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
LT8672JDDBM#WTRPBF Reel 2500 LHJR 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
LT8672JDDBM#WTRMPBF Reel 500 LHJR 1 10 -40°C ~ 150°C 10-Lead (3mm × 2mm) Plastic SideWettable DFN Package
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

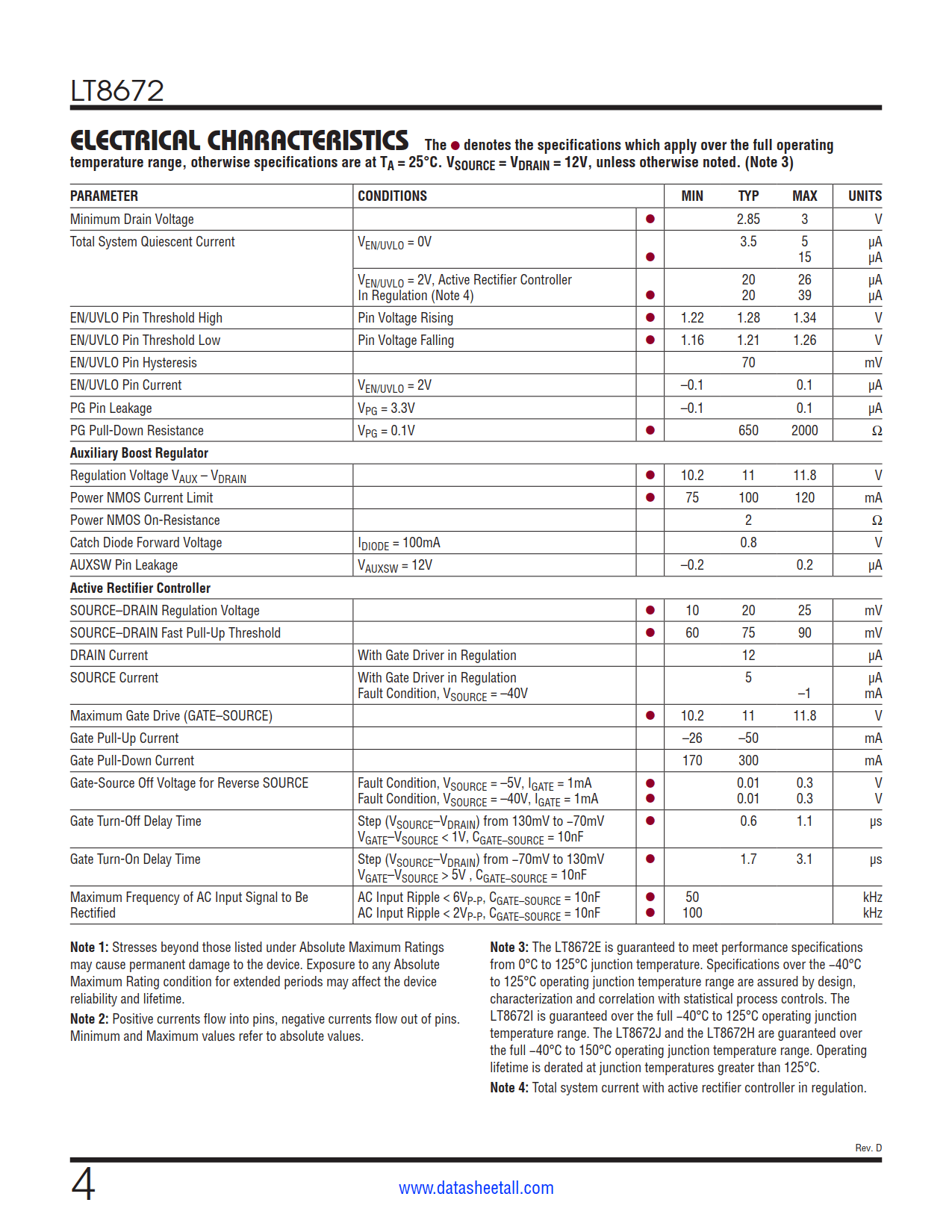

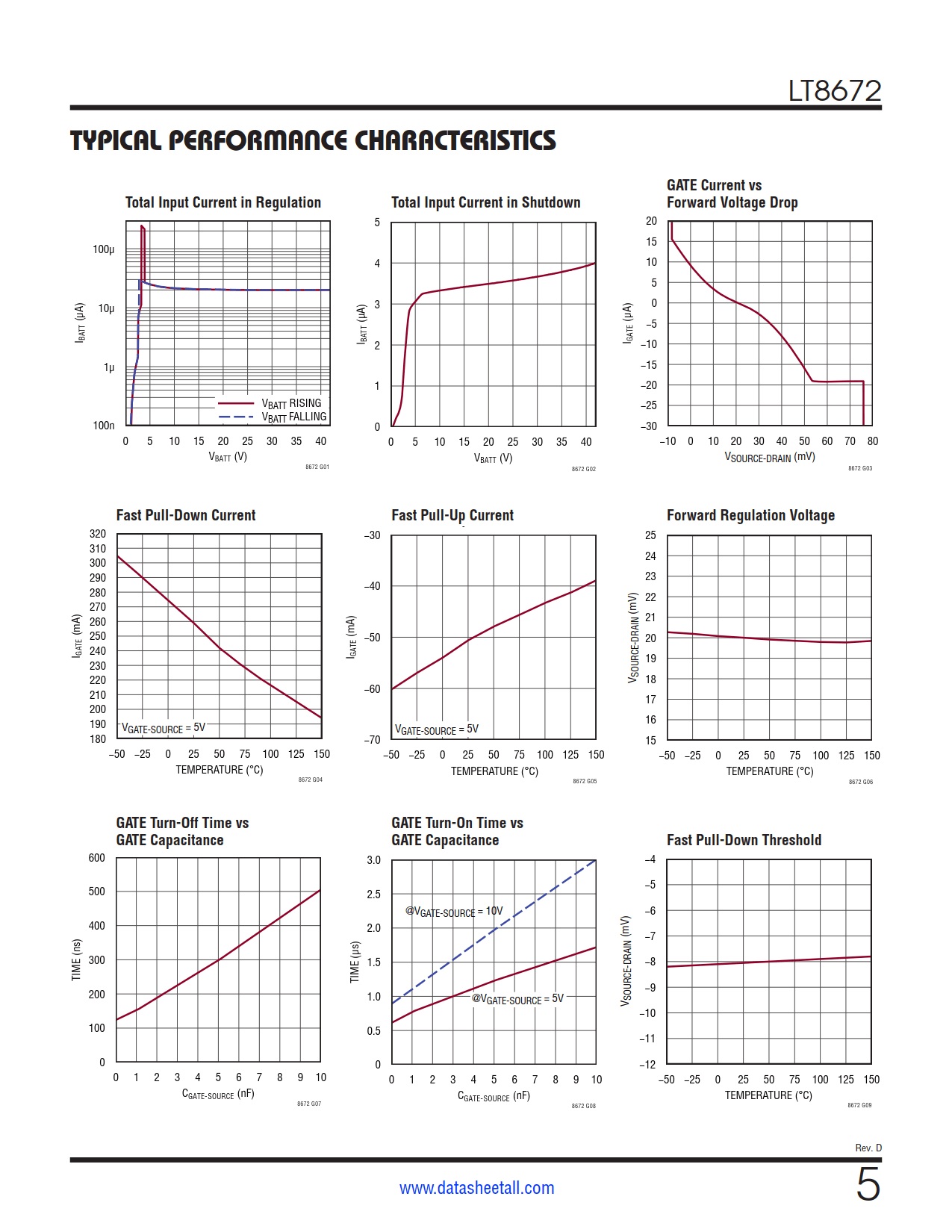

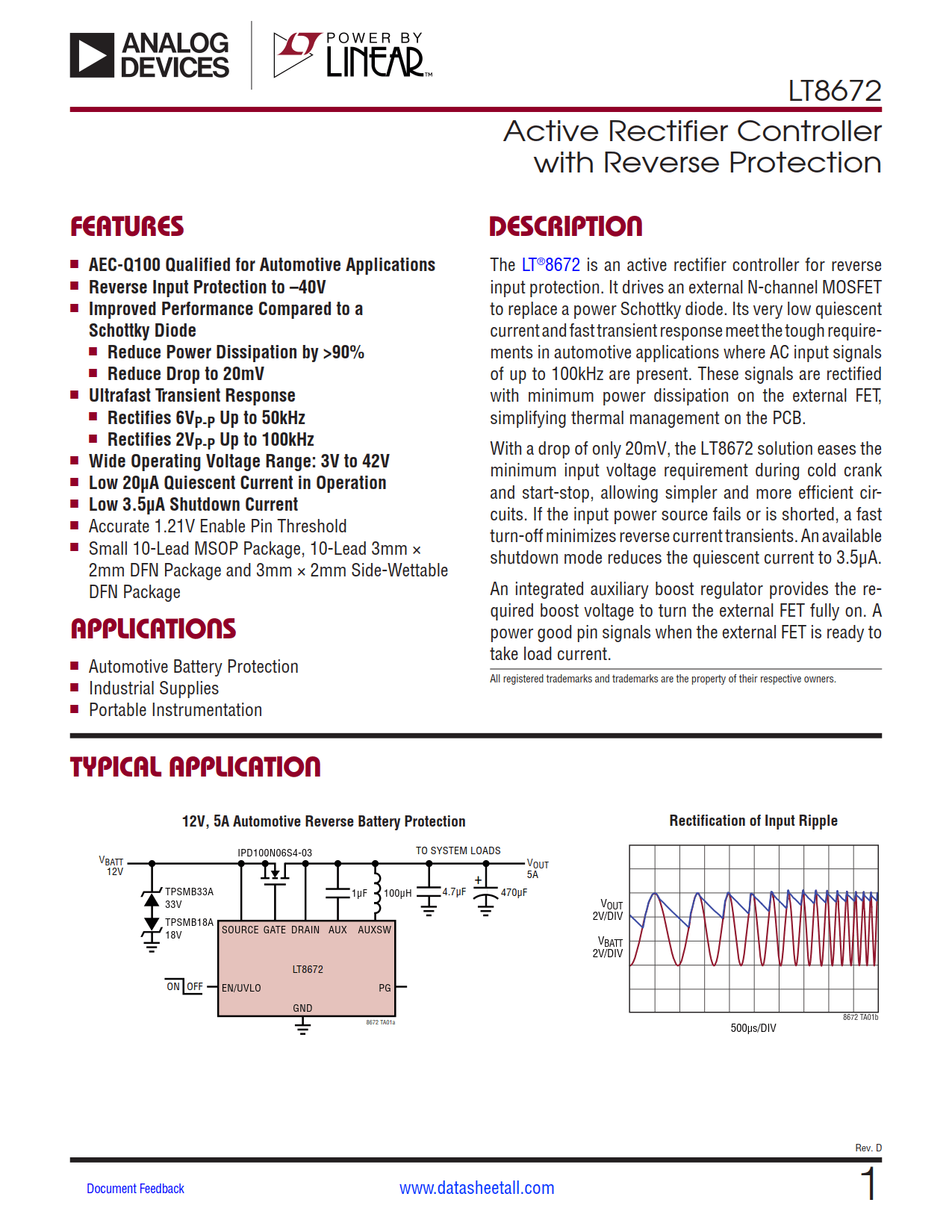

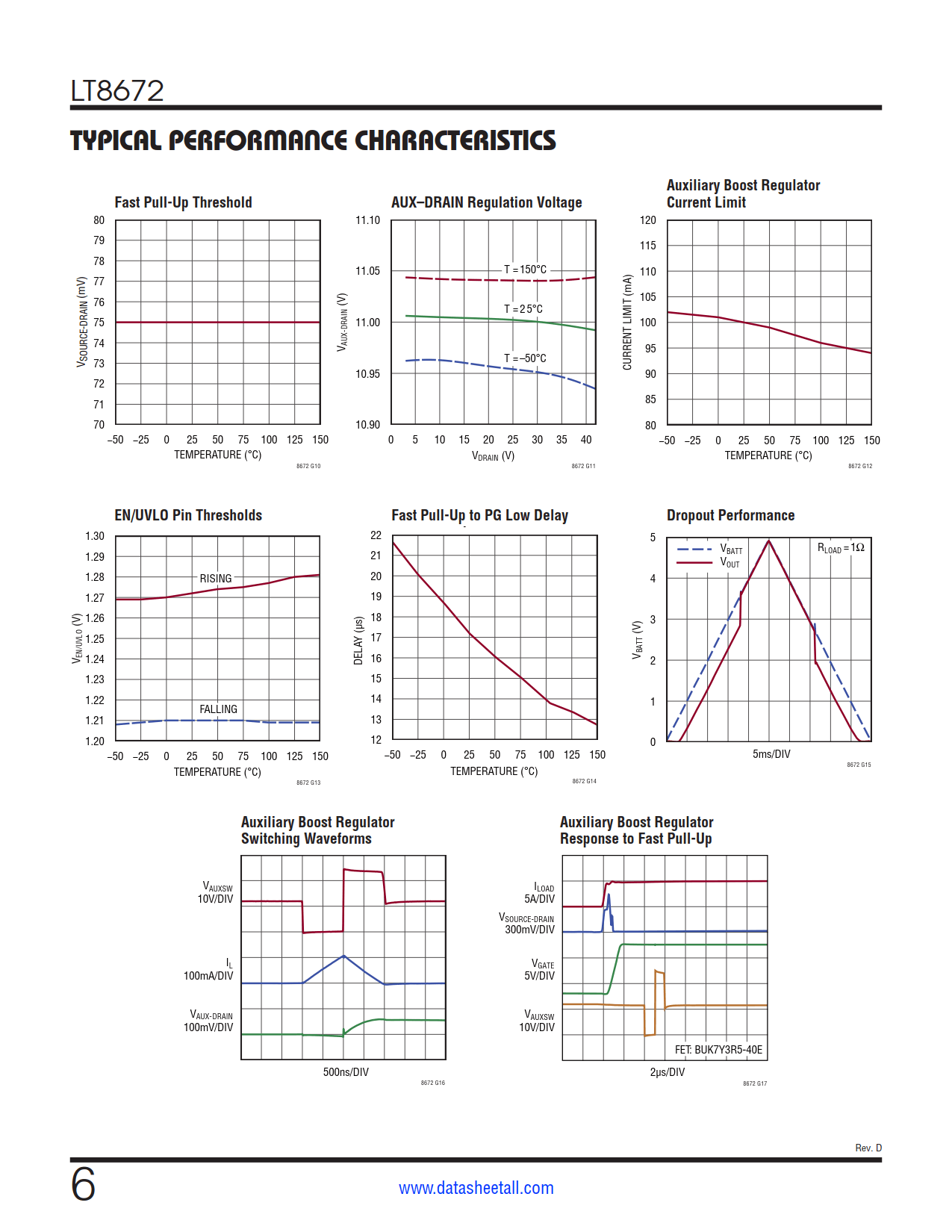

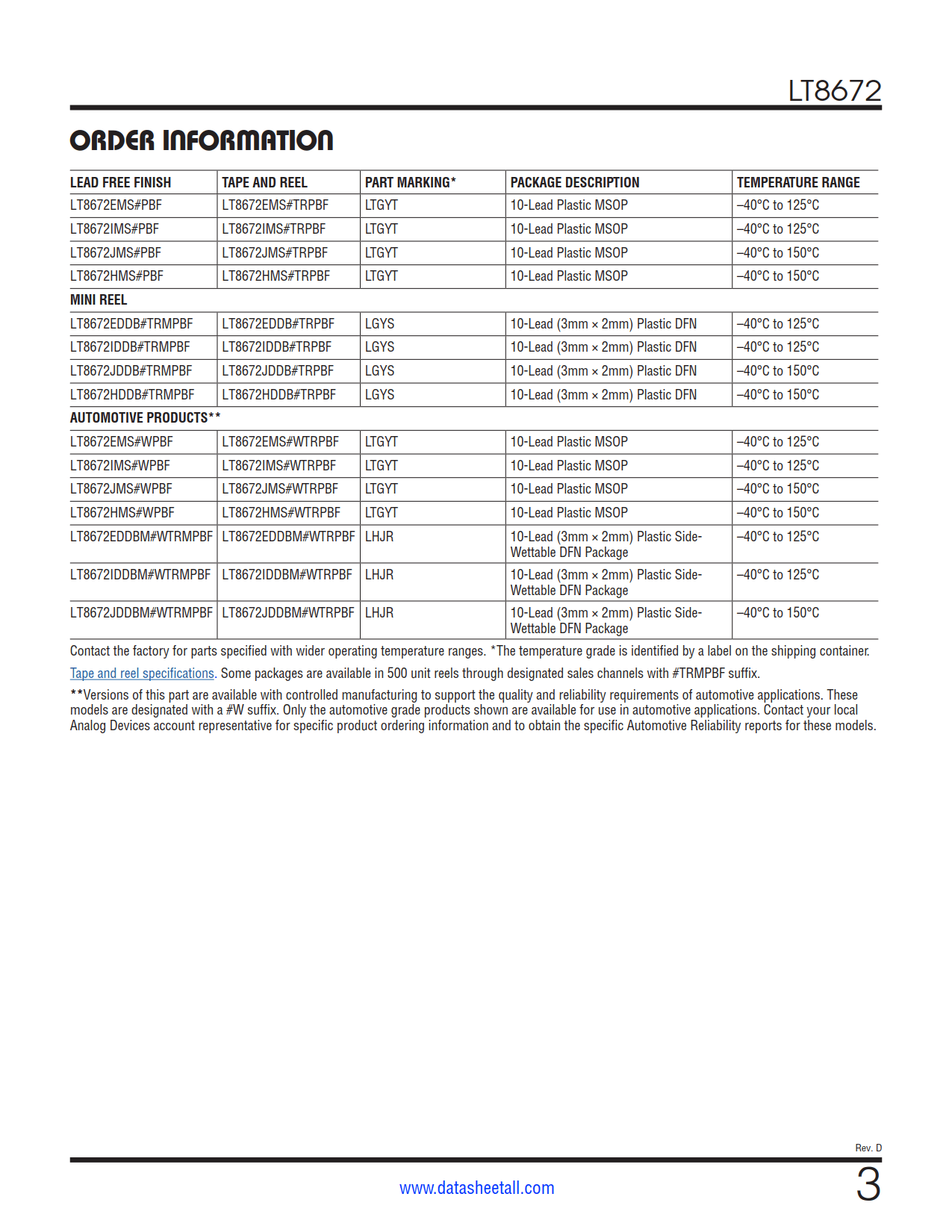

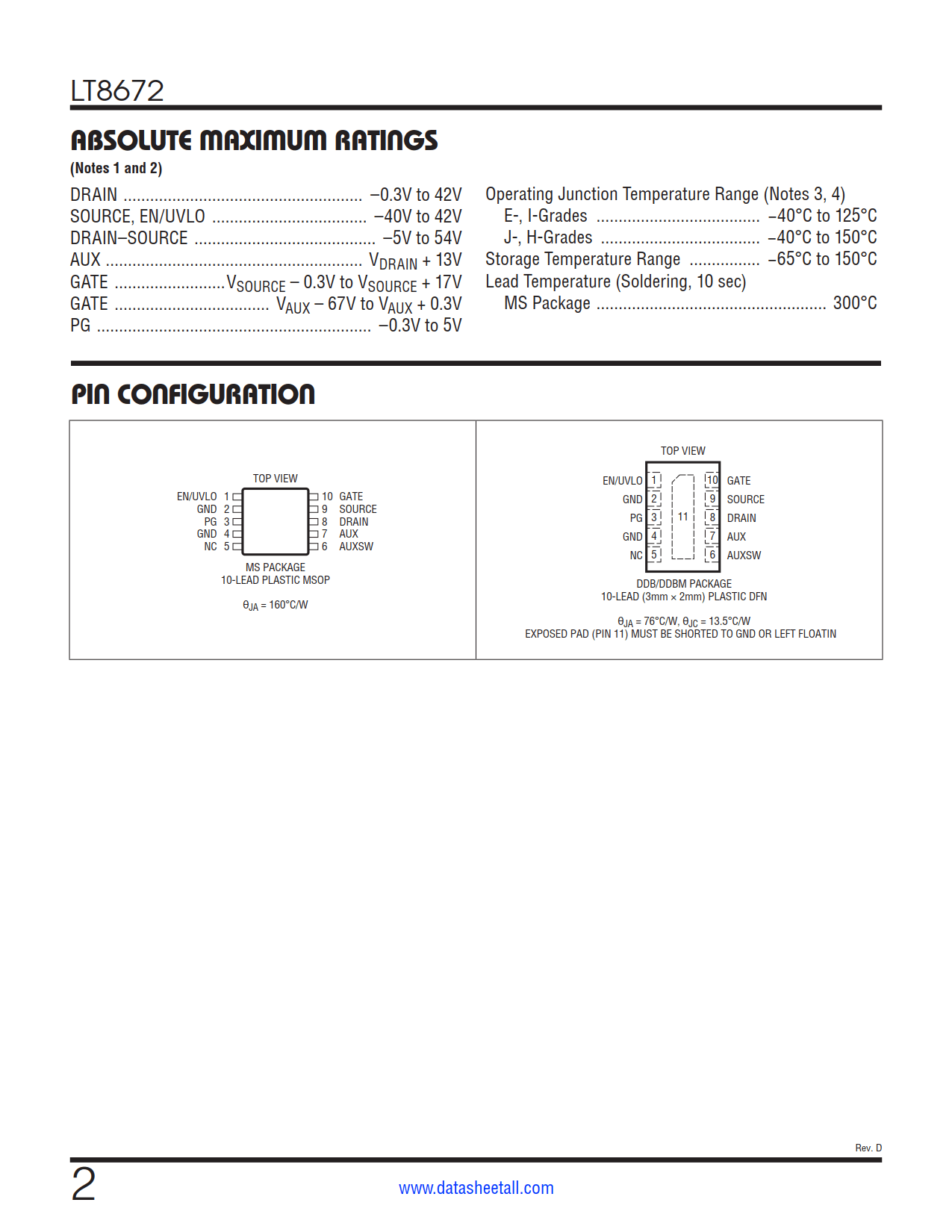

LT8672 Datasheet(PDF)

LT8672 Datasheet(Picture)

LT8672 Features

  • AEC-Q100 Qualified for Automotive Applications
  • Reverse Input Protection to –40V
  • Improved Performance Compared to a Schottky Diode
    • Reduce Power Dissipation by >90%
    • Reduce Drop to 20mV
  • Ultrafast Transient Response
    • Rectifies 6VP-P Up to 50kHz
    • Rectifies 2VP-P Up to 100kHz
  • Wide Operating Voltage Range: 3V to 42V
  • Low 20µA Quiescent Current in Operation
  • Low 3.5µA Shutdown Current
  • Accurate 1.21V Enable Pin Threshold
  • Small 10-Lead MSOP Package, 10-Lead 3mm × 2mm DFN Package and 3mm × 2mm Side-Wettable DFN Package

LT8672 Applications

  • Automotive Battery Protection
  • Industrial Supplies
  • Portable Instrumentation

LT8672 Description

The LT8672 is an active rectifier controller for reverse input protection. It drives an external N-channel MOSFET to replace a power Schottky diode. Its very low quiescent current and fast transient response meet the tough requirements in automotive applications where AC input signals of up to 100kHz are present. These signals are rectified with minimum power dissipation on the external FET, simplifying thermal management on the PCB.

With a drop of only 20mV, the LT8672 solution eases the minimum input voltage requirement during cold crank and start-stop, allowing simpler and more efficient circuits. If the input power source fails or is shorted, a fast turn-off minimizes reverse current transients. An available shutdown mode reduces the quiescent current to 3.5μA.

An integrated auxiliary boost regulator provides the required boost voltage to turn the external FET fully on. A power good pin signals when the external FET is ready to take load current.
