LT8645S-2 Datasheet

LT8645S-2 Datasheet

65V, 8A Synchronous Step-Down Silent Switcher with 2.5µA Quiescent Current
Part No.: LT8645S-2
Page: 30 Pages
Size: 2107 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-09 16:47:22
DataSheet: Download

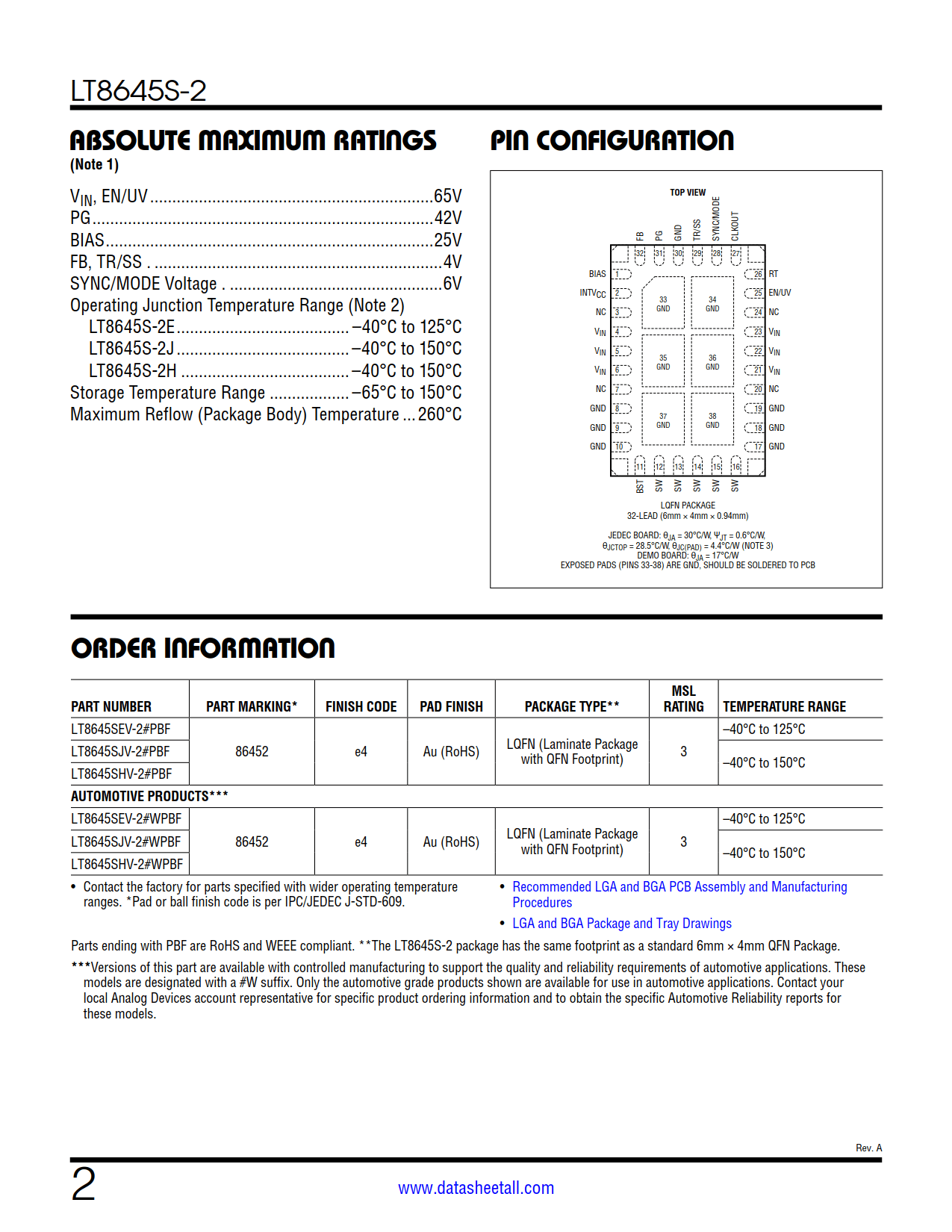

LT8645S-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT8645SEV-2#PBF Tray 490 86452 3 32 -40°C ~ 125°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
LT8645SJV-2#PBF Tray 490 86452 3 32 -40°C ~ 150°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
LT8645SHV-2#PBF Tray 490 86452 3 32 -40°C ~ 150°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
LT8645SEV-2#WPBF Tray 490 86452 3 32 -40°C ~ 125°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
LT8645SJV-2#WPBF Tray 490 86452 3 32 -40°C ~ 150°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
LT8645SHV-2#WPBF Tray 490 86452 3 32 -40°C ~ 150°C 32-Lead LQFN (6mm x 4mm x 0.94mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT8645S-2 Datasheet(PDF)

LT8645S-2 Datasheet(Picture)

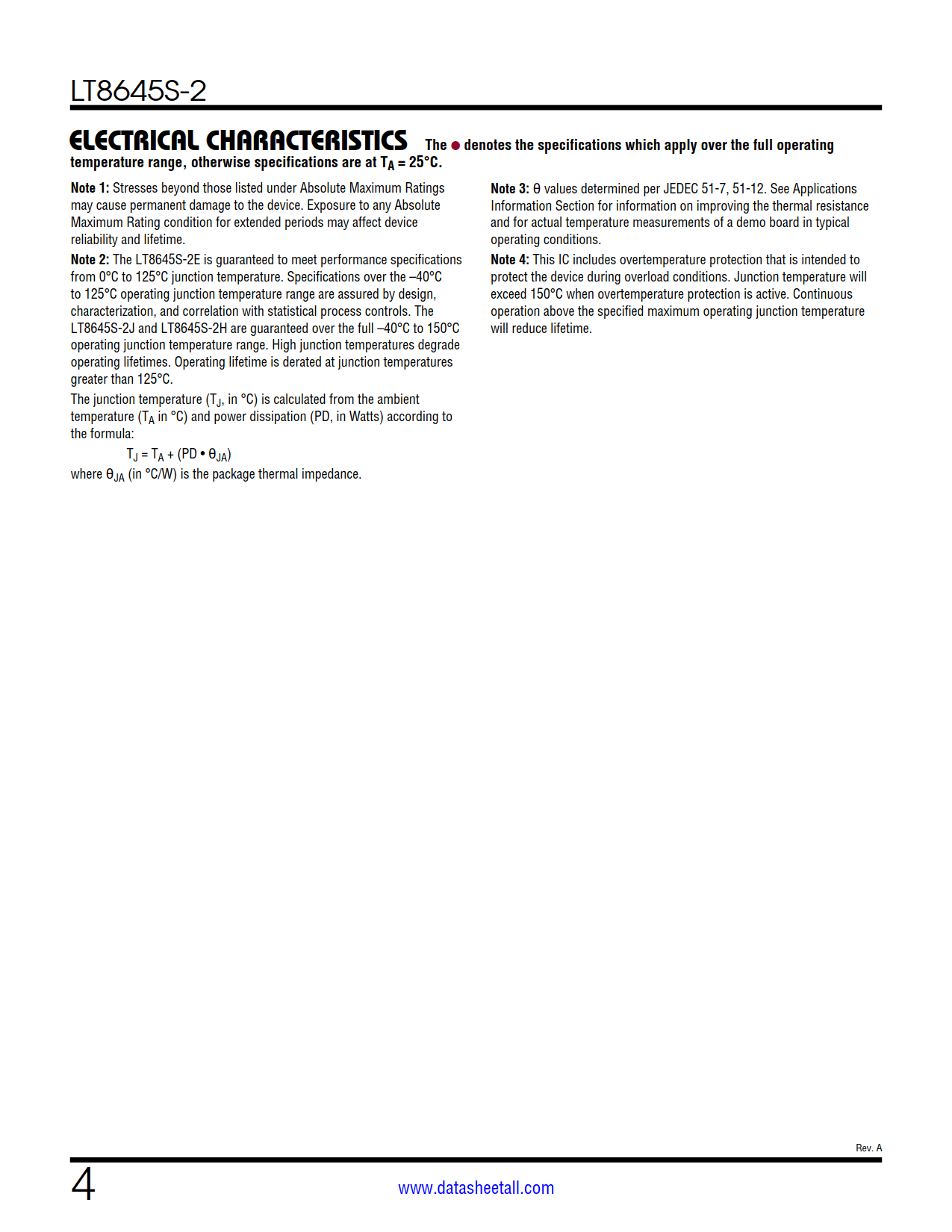

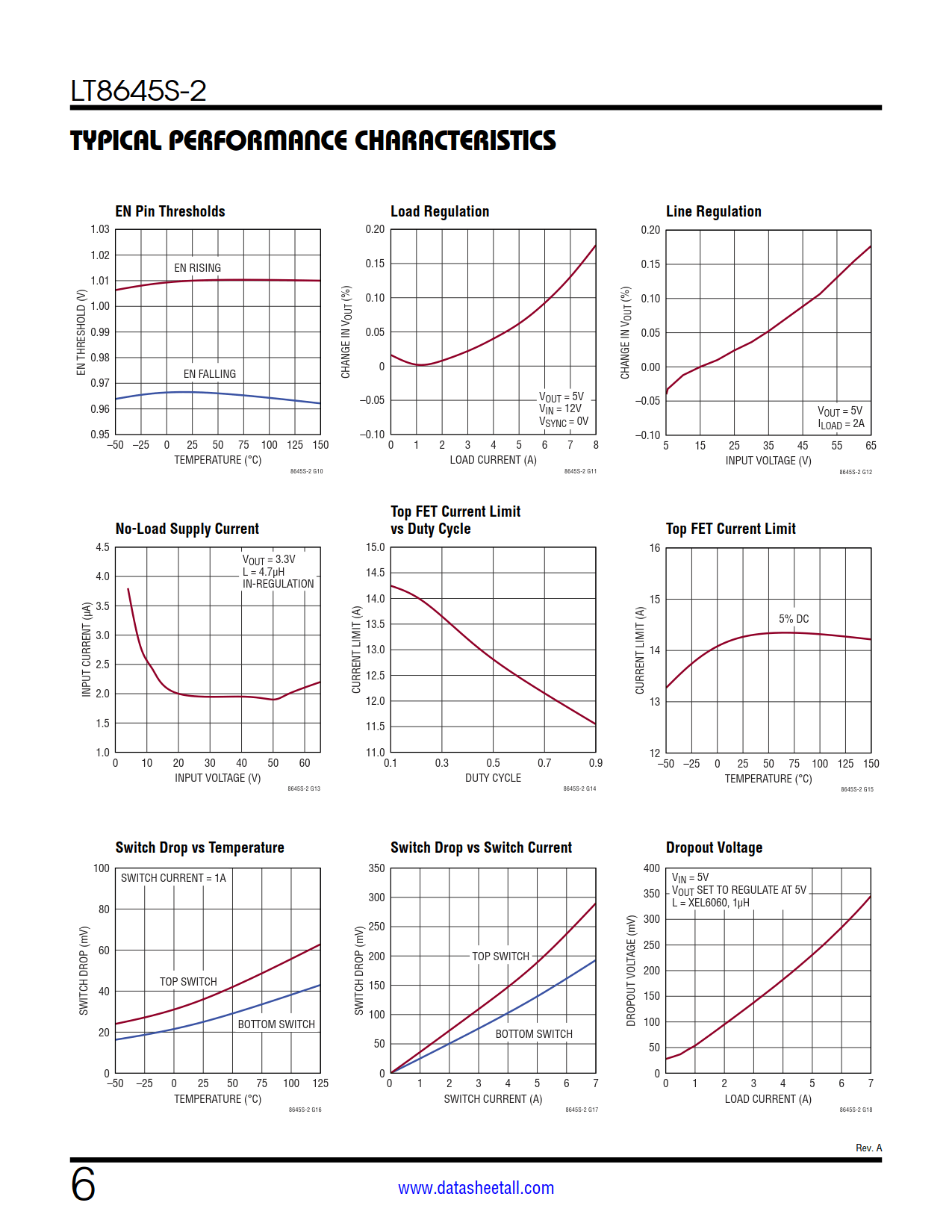

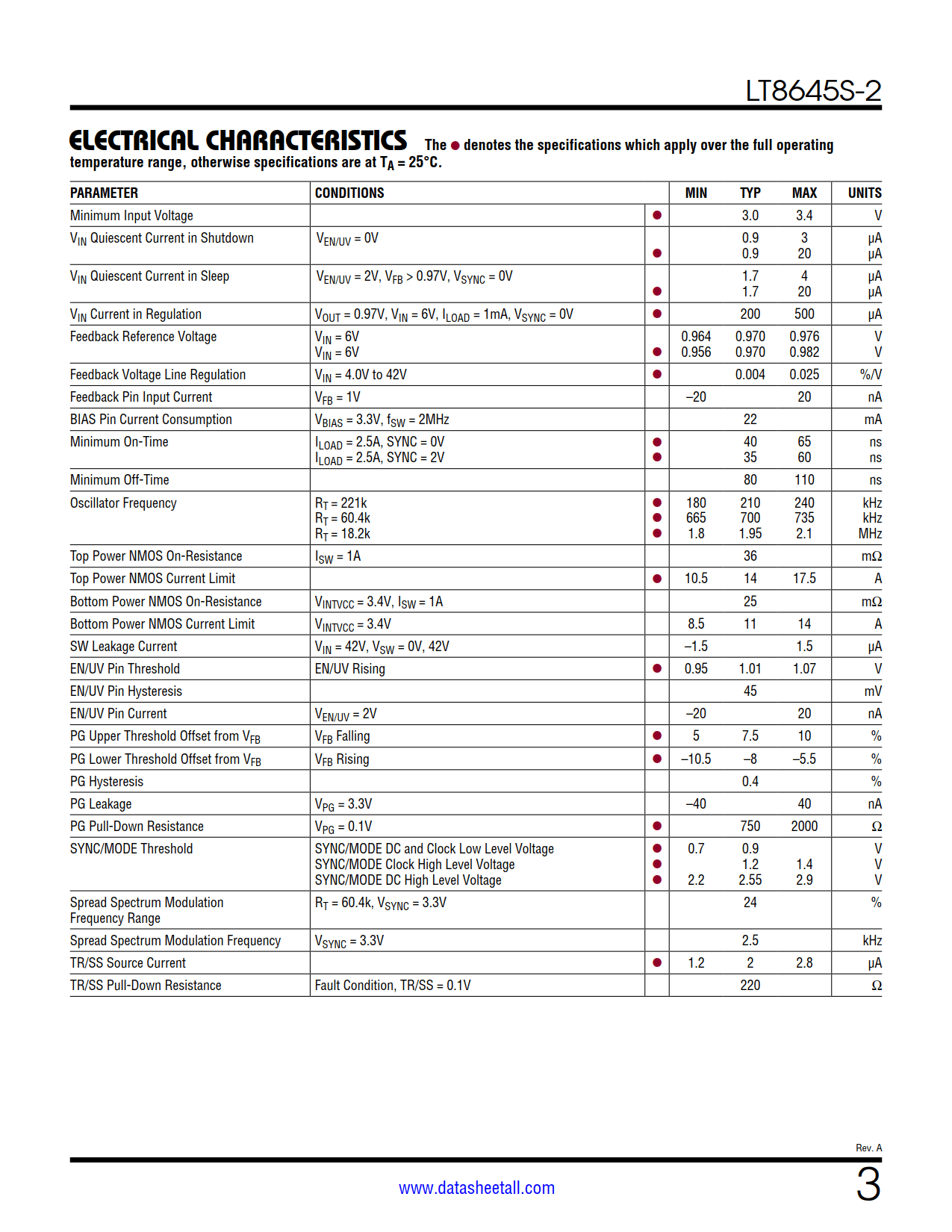

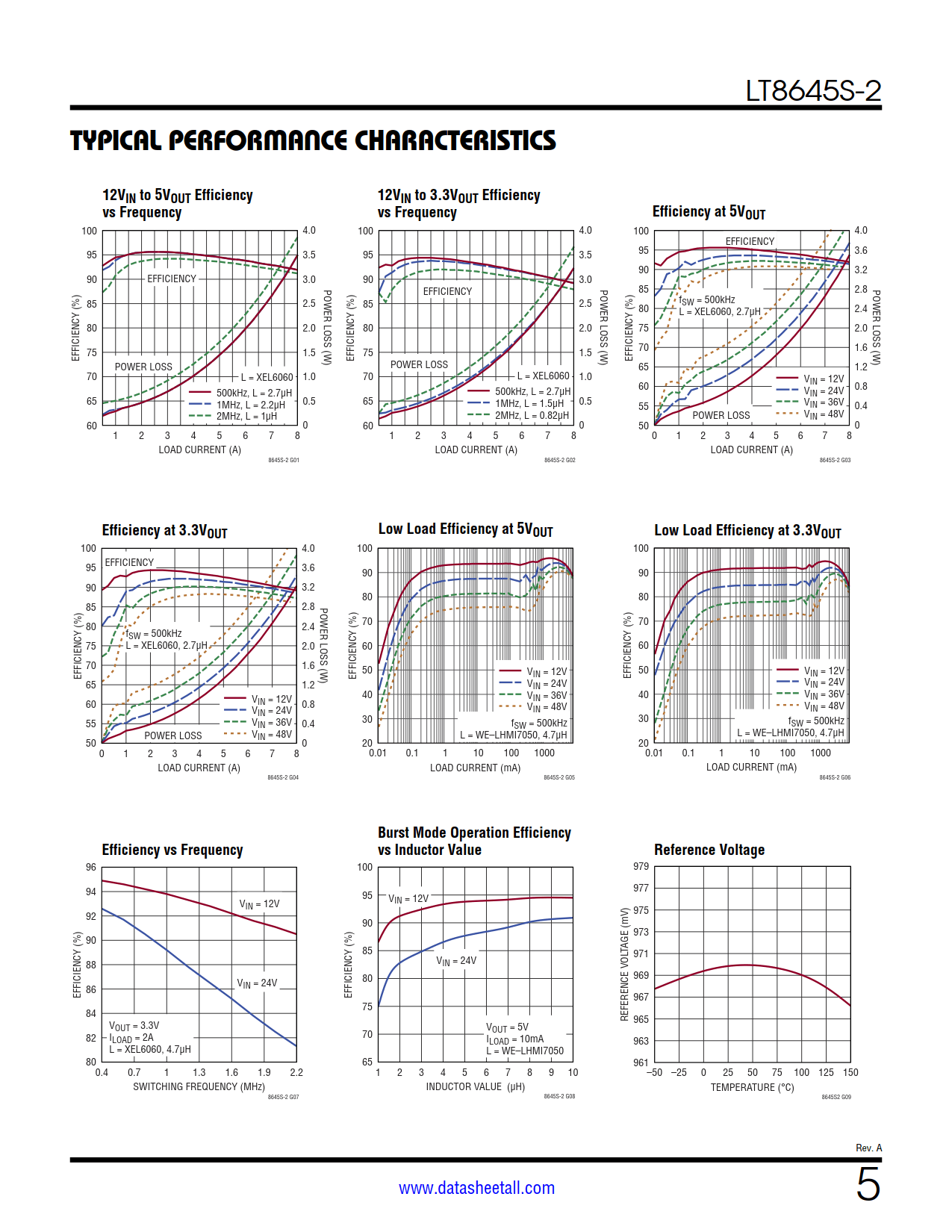

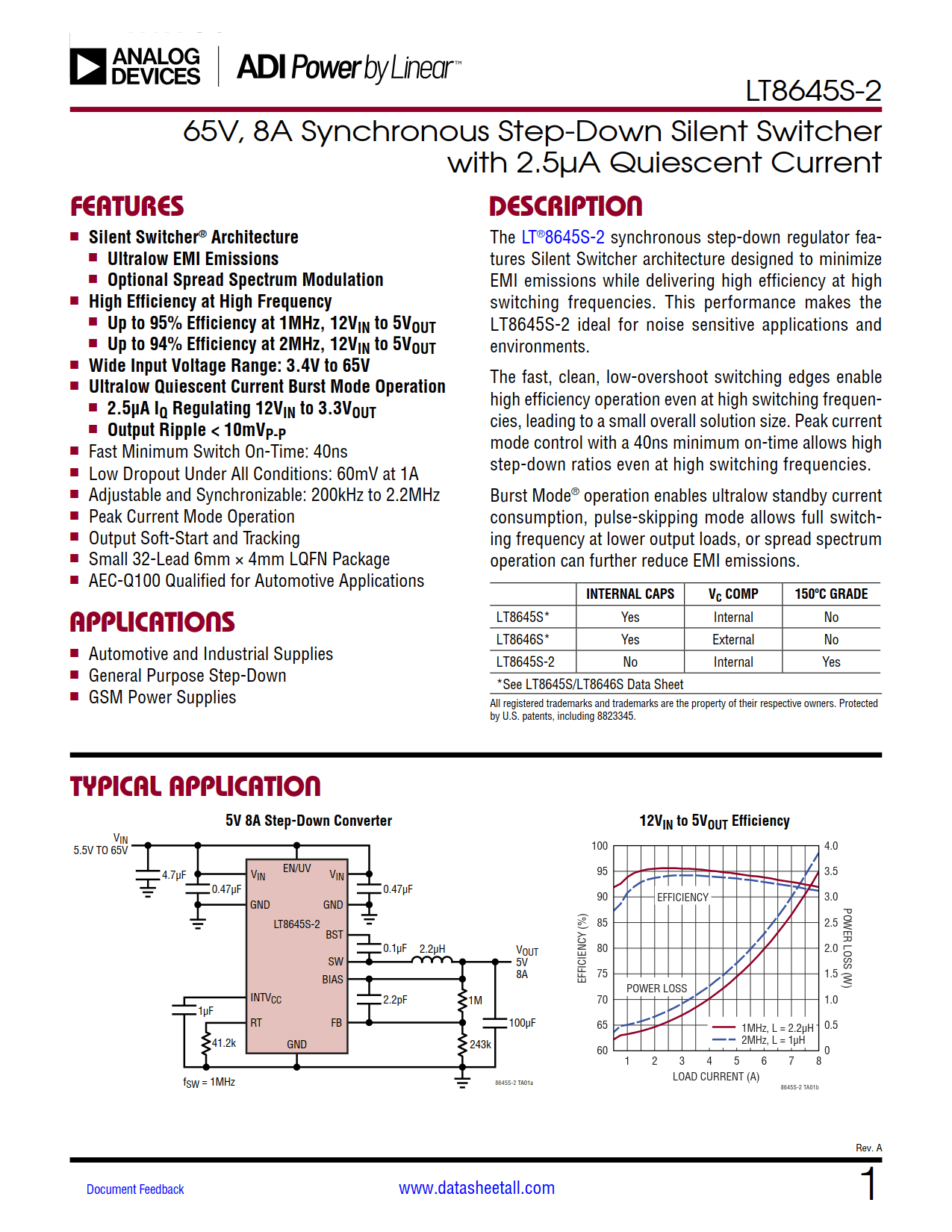

LT8645S-2 Features

  • Silent Switcher® Architecture
    • Ultralow EMI Emissions
    • Optional Spread Spectrum Modulation
    • Up to 95% Efficiency at 1MHz, 12VIN to 5VOUT
    • Up to 94% Efficiency at 2MHz, 12VIN to 5VOUT
  • Wide Input Voltage Range: 3.4V to 65V
  • Ultralow Quiescent Current Burst Mode Operation
    • 2.5μA IQ Regulating 12VIN to 3.3VOUT
    • Output Ripple < 10mVP-P
  • Fast Minimum Switch On-Time: 40ns
  • Low Dropout Under All Conditions: 60mV at 1A
  • Adjustable and Synchronizable: 200kHz to 2.2MHz
  • Peak Current Mode Operation
  • Output Soft-Start and Tracking
  • Small 32-Lead 6mm × 4mm LQFN Package
  • AEC-Q100 Qualification In Progress

LT8645S-2 Applications

  • Automotive and Industrial Supplies
  • General Purpose Step-Down
  • GSM Power Supplies

LT8645S-2 Description

The LT8645S-2 synchronous step-down regulator features Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at high switching frequencies. This performance makes the LT8645S-2 ideal for noise sensitive applications and environments.

The fast, clean, low-overshoot switching edges enable high efficiency operation even at high switching frequencies, leading to a small overall solution size. Peak current mode control with a 40ns minimum on-time allows high step-down ratios even at high switching frequencies.

Burst Mode® operation enables ultralow standby current consumption, pulse-skipping mode allows full switching frequency at lower output loads, or spread spectrum operation can further reduce EMI emissions.
