| Part No.： | LT8640A |
| Page： | 28 Pages |
| Size： | 1872 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-20 09:36:47 |
| DataSheet： | Download |

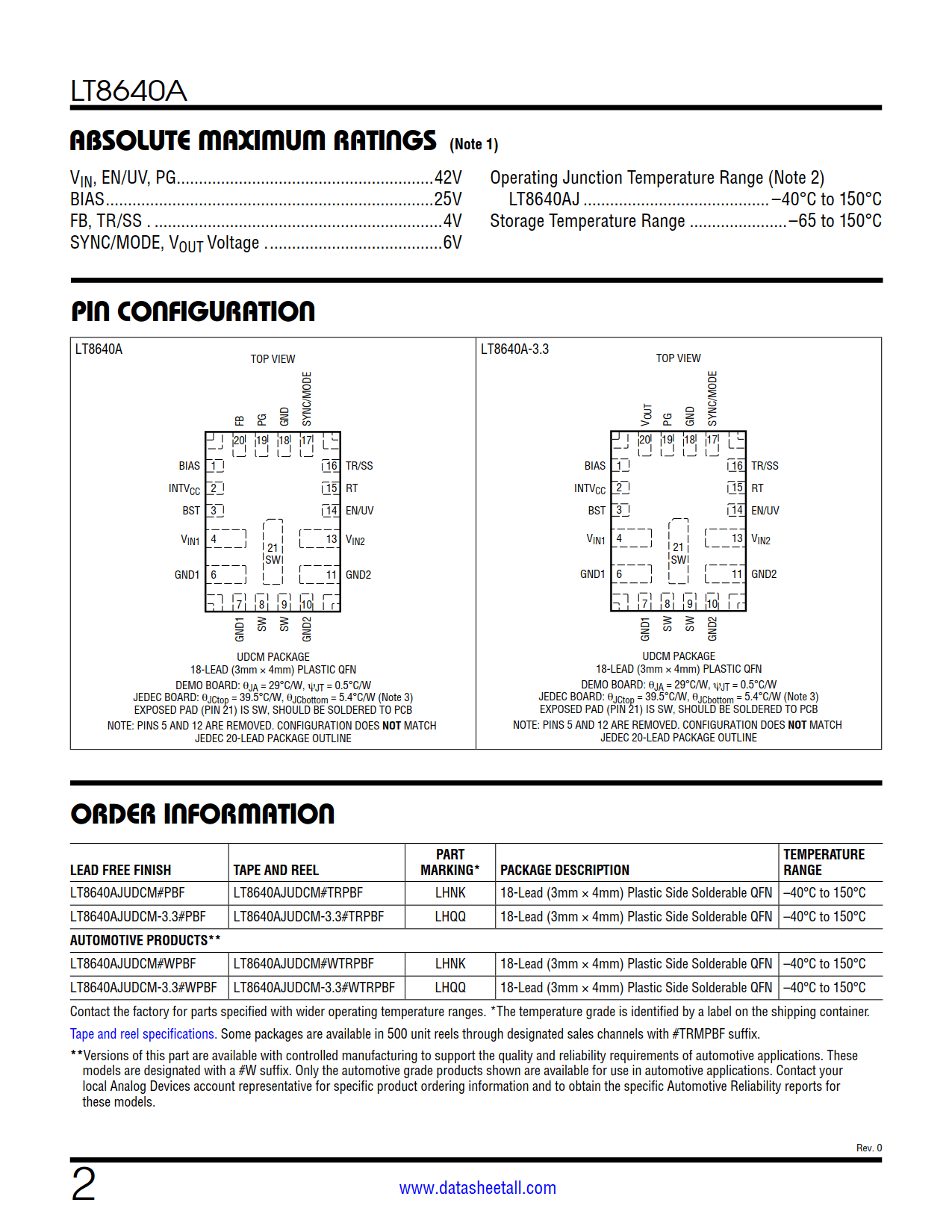

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT8640AJUDCM#PBF | Tube | 91 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM#TRPBF | Reel | 2500 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM#TRMPBF | Reel | 500 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#PBF | Tube | 91 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#TRPBF | Reel | 2500 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#TRMPBF | Reel | 500 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM#WPBF | Tube | 91 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM#WTRPBF | Reel | 2500 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM#WTRMPBF | Reel | 500 | LHNK | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#WPBF | Tube | 91 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#WTRPBF | Reel | 2500 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN | |
| LT8640AJUDCM-3.3#WTRMPBF | Reel | 500 | LHQQ | 1 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 4mm) Plastic Side Solderable QFN |

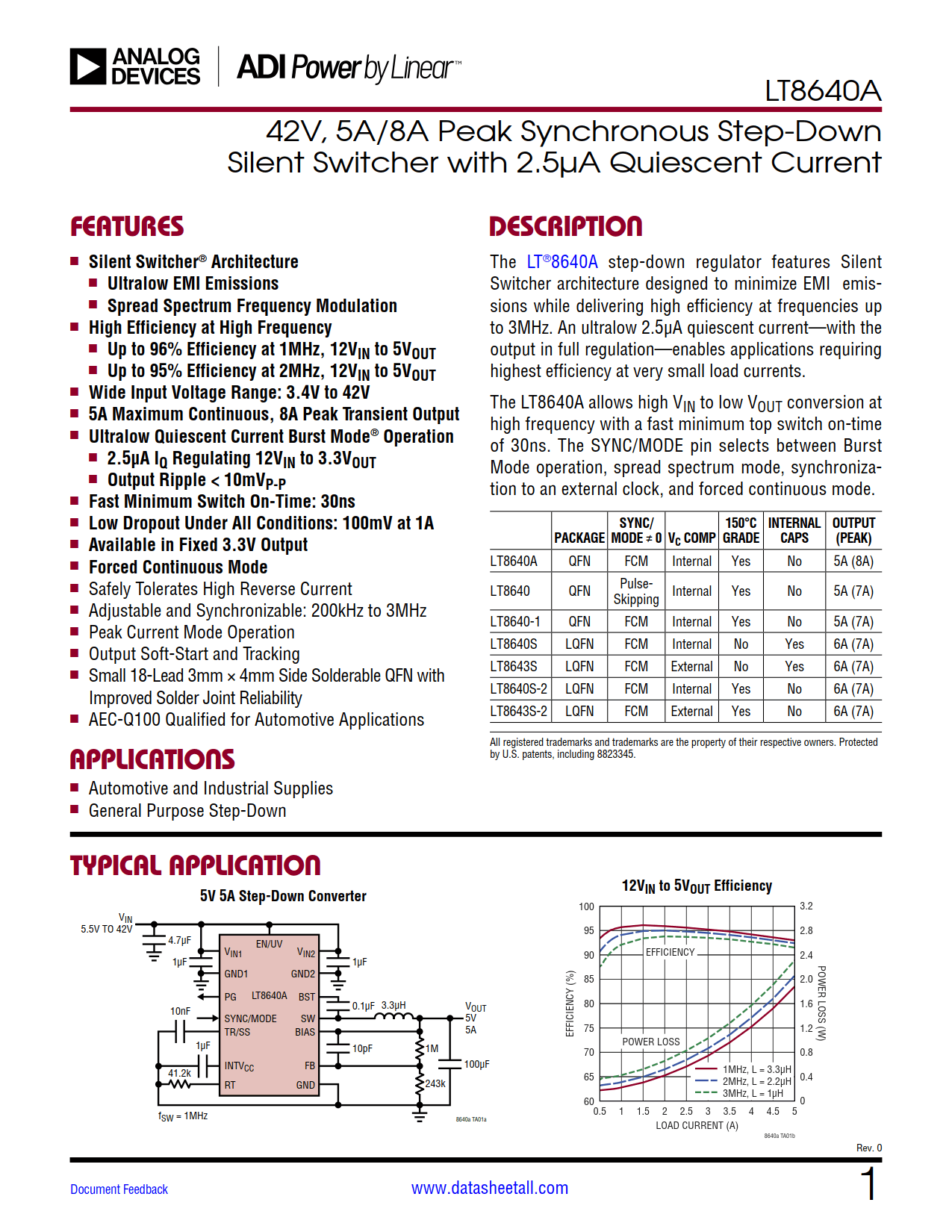

The LT8640A step-down regulator features Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at frequencies up to 3MHz. An ultralow 2.5μA quiescent current—with the output in full regulation—enables applications requiring highest efficiency at very small load currents.
The LT8640A allows high VIN to low VOUT conversion at high frequency with a fast minimum top switch on-time of 30ns. The SYNC/MODE pin selects between Burst Mode operation, spread spectrum mode, synchronization to an external clock, and forced continuous mode.
