LT8609A Datasheet(Analog Devices; Inc.)

LT8609A Datasheet Applicable Part

Part No.	Packing	SPQ	Marking	MSL	Pins	Temp Range	Package Description	Buy
LT8609AEMSE#PBF	Tube	50	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AEMSE#TRPBF	Reel	2500	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AEMSE#TRMPBF	Reel	500	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#PBF	Tube	50	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#TRPBF	Reel	2500	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#TRMPBF	Reel	500	LTGVR	1	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AJMSE#PBF	Tube	50	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AJMSE#TRPBF	Reel	2500	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AJMSE#TRMPBF	Reel	500	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#PBF	Tube	50	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#TRPBF	Reel	2500	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#TRMPBF	Reel	500	LTGVR	1	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AEMSE16#PBF	Tube	37	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AEMSE16#TRPBF	Reel	2500	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AEMSE16#TRMPBF	Reel	500	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#PBF	Tube	37	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#TRPBF	Reel	2500	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#TRMPBF	Reel	500	8609A	1	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AJMSE16#PBF	Tube	37	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AJMSE16#TRPBF	Reel	2500	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AJMSE16#TRMPBF	Reel	500	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#PBF	Tube	37	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#TRPBF	Reel	2500	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#TRMPBF	Reel	500	8609A	1	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AEDDM#PBF	Tube	121	LHJZ	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM#TRPBF	Reel	2500	LHJZ	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM#TRMPBF	Reel	500	LHJZ	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#PBF	Tube	121	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#TRPBF	Reel	2500	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#TRMPBF	Reel	500	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#PBF	Tube	121	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#TRPBF	Reel	2500	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#TRMPBF	Reel	500	LHJZ	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#PBF	Tube	121	LHKB	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#TRPBF	Reel	2500	LHKB	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#TRMPBF	Reel	500	LHKB	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#PBF	Tube	121	LHKB	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#TRPBF	Reel	2500	LHKB	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#TRMPBF	Reel	500	LHKB	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#PBF	Tube	121	LHKC	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#TRPBF	Reel	2500	LHKC	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#TRMPBF	Reel	500	LHKC	1	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#PBF	Tube	121	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#TRPBF	Reel	2500	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#TRMPBF	Reel	500	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#PBF	Tube	121	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#TRPBF	Reel	2500	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#TRMPBF	Reel	500	LHKC	1	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEMSE#WPBF	Tube	50	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AEMSE#WTRPBF	Reel	2500	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AEMSE#WTRMPBF	Reel	500	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#WPBF	Tube	50	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#WTRPBF	Reel	2500	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AIMSE#WTRMPBF	Reel	500	LTGVR	3	10	-40°C ~ 125°C	10-Lead Plastic MSOP
LT8609AJMSE#WPBF	Tube	50	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AJMSE#WTRPBF	Reel	2500	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AJMSE#WTRMPBF	Reel	500	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#WPBF	Tube	50	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#WTRPBF	Reel	2500	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AHMSE#WTRMPBF	Reel	500	LTGVR	3	10	-40°C ~ 150°C	10-Lead Plastic MSOP
LT8609AEMSE16#WPBF	Tube	37	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AEMSE16#WTRPBF	Reel	2500	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AEMSE16#WTRMPBF	Reel	500	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#WPBF	Tube	37	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#WTRPBF	Reel	2500	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AIMSE16#WTRMPBF	Reel	500	8609A	3	16	-40°C ~ 125°C	16-Lead Plastic MSOP
LT8609AJMSE16#WPBF	Tube	37	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AJMSE16#WTRPBF	Reel	2500	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AJMSE16#WTRMPBF	Reel	500	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#WPBF	Tube	37	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#WTRPBF	Reel	2500	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AHMSE16#WTRMPBF	Reel	500	8609A	3	16	-40°C ~ 150°C	16-Lead Plastic MSOP
LT8609AEDDM#WPBF	Tube	121	LHJZ	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM#WTRPBF	Reel	2500	LHJZ	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM#WTRMPBF	Reel	500	LHJZ	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#WPBF	Tube	121	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#WTRPBF	Reel	2500	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM#WTRMPBF	Reel	500	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#WPBF	Tube	121	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#WTRPBF	Reel	2500	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM#WTRMPBF	Reel	500	LHJZ	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#WPBF	Tube	121	LHKB	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#WTRPBF	Reel	2500	LHKB	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-3.3#WTRMPBF	Reel	500	LHKB	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#WPBF	Tube	121	LHKB	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#WTRPBF	Reel	2500	LHKB	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-3.3#WTRMPBF	Reel	500	LHKB	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#WPBF	Tube	121	LHKC	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#WTRPBF	Reel	2500	LHKC	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AEDDM-5#WTRMPBF	Reel	500	LHKC	3	10	-40°C ~ 125°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#WPBF	Tube	121	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#WTRPBF	Reel	2500	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AJDDM-5#WTRMPBF	Reel	500	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#WPBF	Tube	121	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#WTRPBF	Reel	2500	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN
LT8609AHDDM-5#WTRMPBF	Reel	500	LHKC	3	10	-40°C ~ 150°C	10-Lead (3mm × 3mm) Plastic Side Wettable DFN

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

LT8609A Datasheet(PDF)

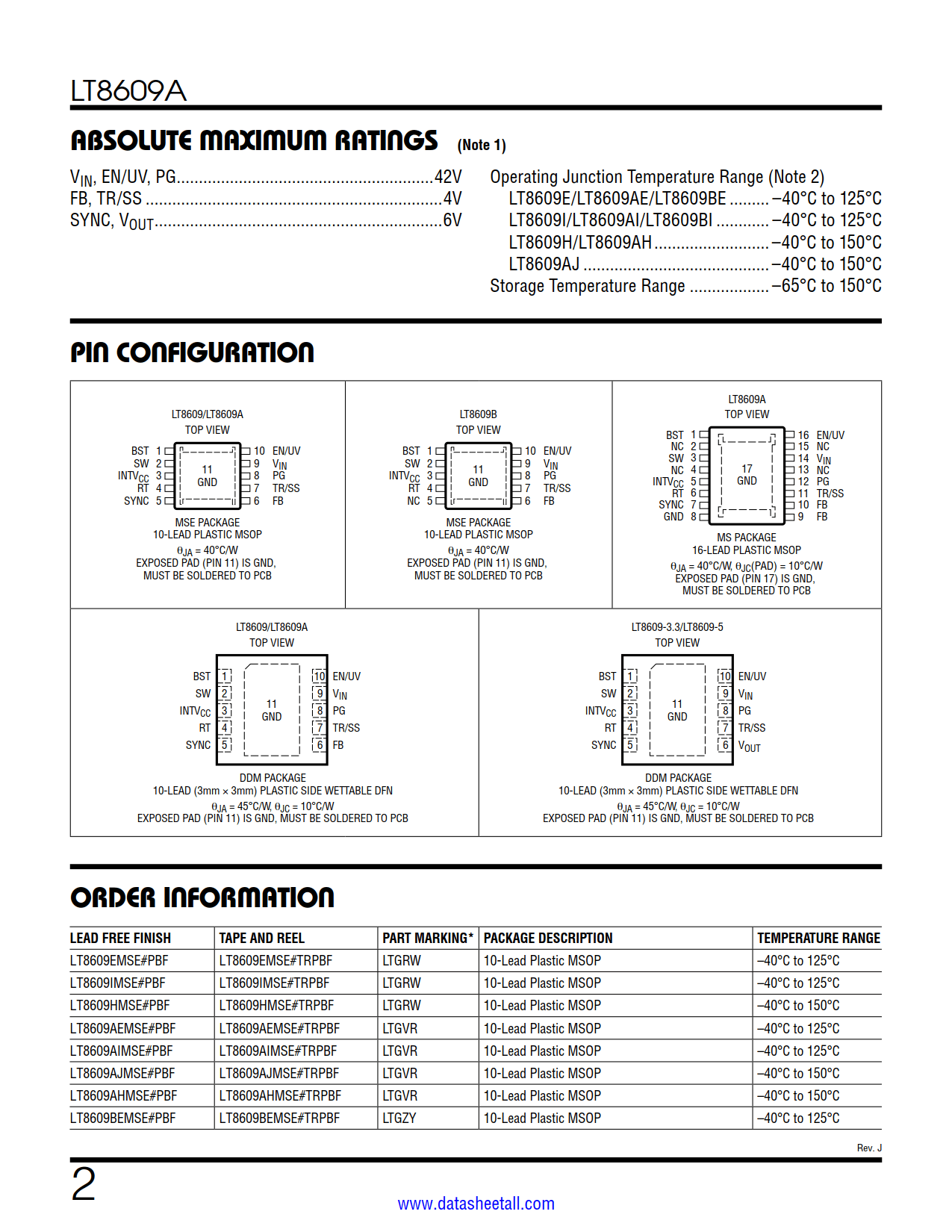

LT8609A Datasheet(Picture)

LT8609A Features

Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode^® Operation:
- <2.5µA I_Q Regulating 12V_IN to 3.3V_OUT
- Output Ripple <10mV_P-P
High Efficiency 2MHz Synchronous Operation:
- >93% Efficiency at 1A, 5V_OUT from 12V_IN
3A Maximum Continuous Output
Fast Minimum Switch-On Time: 45ns
LT8609A Available in Fixed 3.3V and 5V Output
Adjustable and Synchronizable: 200kHz to 2.2MHz
Spread Spectrum Frequency Modulation for Low EMI
Allows Use of Small Inductors
Low Dropout
Peak Current Mode Operation
Accurate 1V Enable Pin Threshold
Internal Compensation
Output Soft-Start and Tracking
Small 10-Lead MSOP Package, 16-Lead MSOP Package, or 10-Lead 3mm × 3mm DFN Package with Side Wettable Flanks
AEC-Q100 Qualified for Automotive Applications

LT8609A Applications

GSM Transceivers
General Purpose Step-Down
Low EMI Step-Down

LT8609A Description

The LT8609A is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of nonswitching quiescent current. The LT8609A can deliver 3A of continuous current. Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mV_P-P. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program V_IN UVLO or to shut down the part. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when V_OUT is within ±8.5% on the adjustable output parts or ±7.5% on the fixed output parts of the programmed output voltage as well as fault conditions. The LT8609A has slower switch edges for lower EMI emissions.
