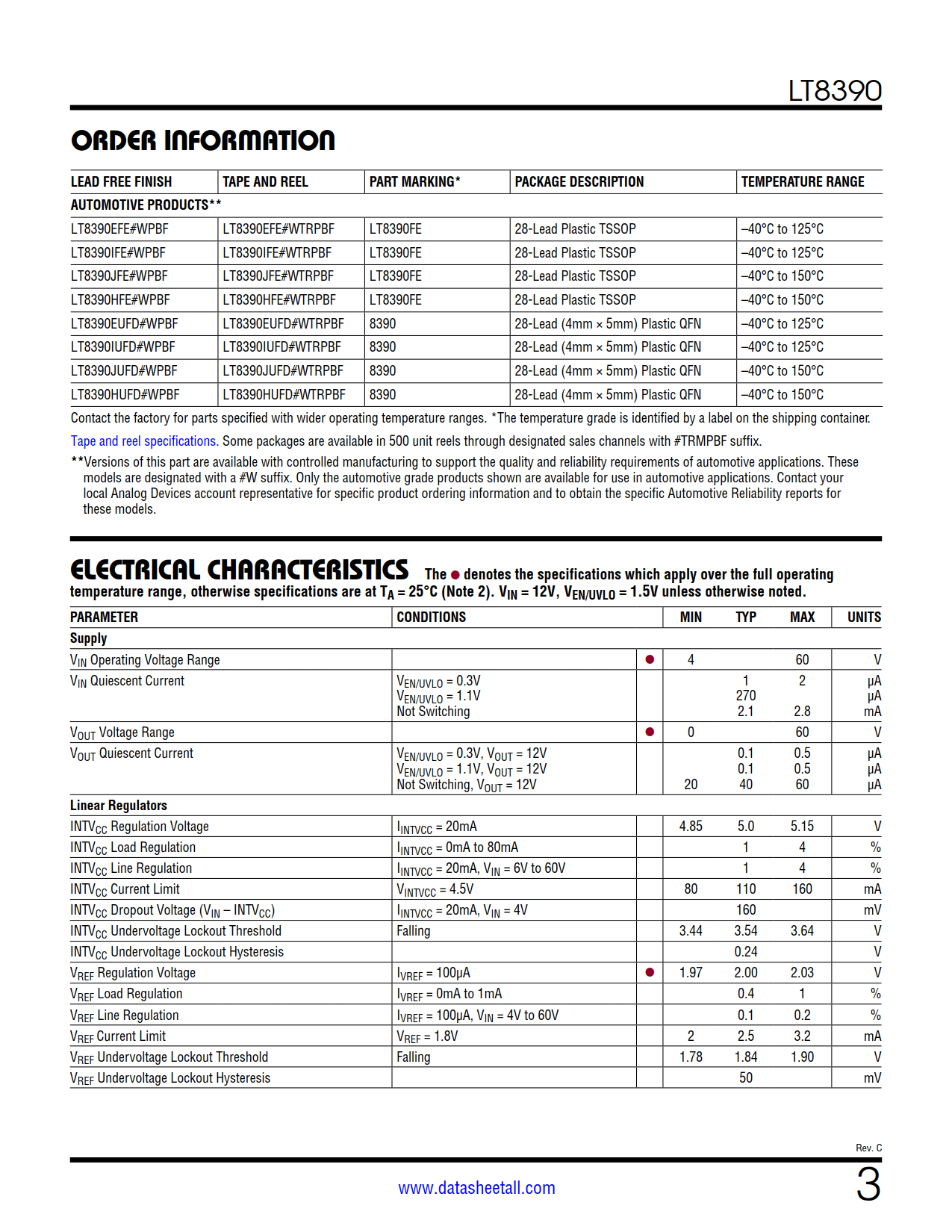

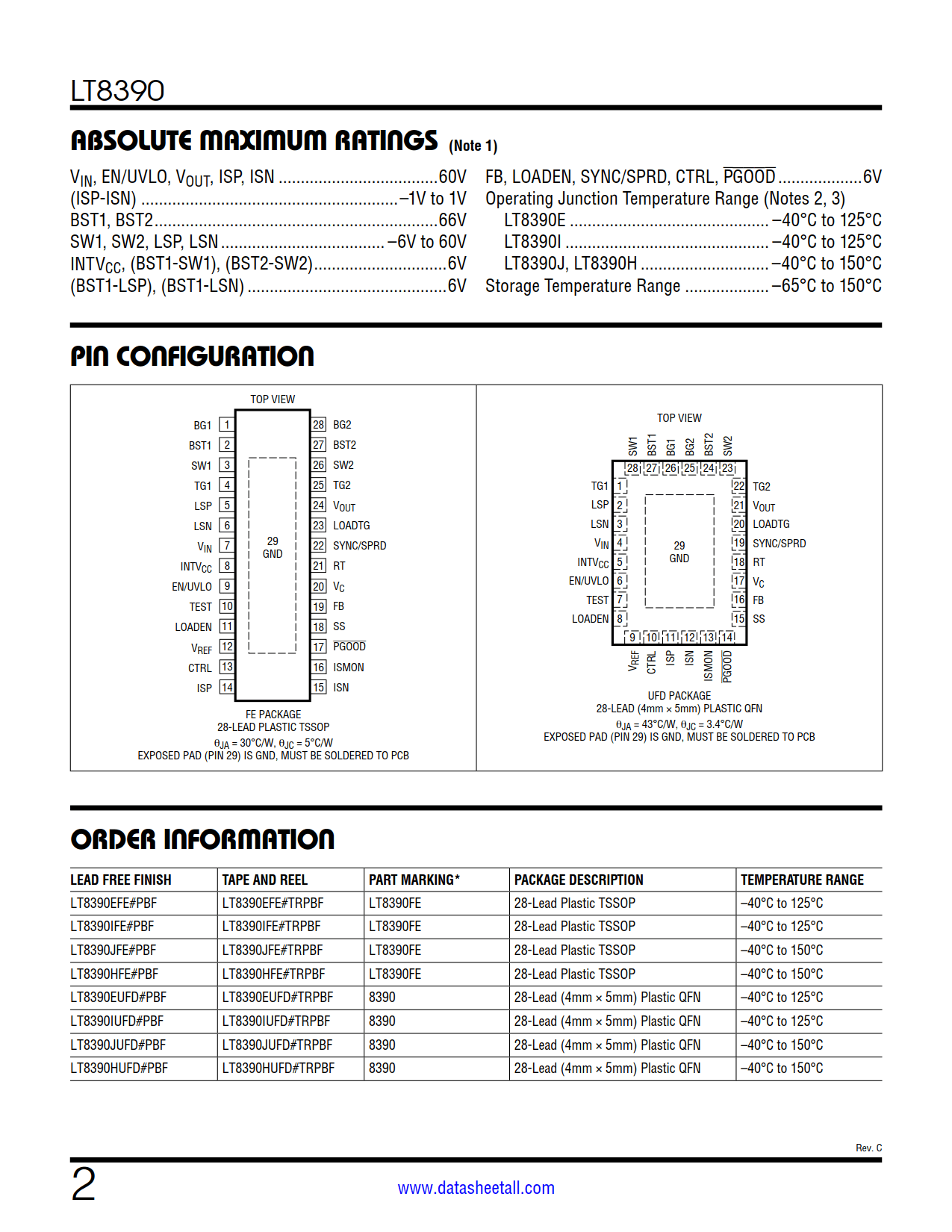

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT8390EFE#PBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390EFE#TRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390EFE#TRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#PBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#TRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#TRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#PBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#TRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#TRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#PBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#TRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#TRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390EUFD#PBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390EUFD#TRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390EUFD#TRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#PBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#TRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#TRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#PBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#TRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#TRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#PBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#TRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#TRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390EFE#WPBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390EFE#WTRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390EFE#WTRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#WPBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#WTRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390IFE#WTRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 125°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#WPBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#WTRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390JFE#WTRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#WPBF | Tube | 50 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#WTRPBF | Reel | 2000 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390HFE#WTRMPBF | Reel | 500 | LT8390FE | 1 | 28 | -40°C ~ 150°C | 28-Lead Plastic TSSOP | |
| LT8390EUFD#WPBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390EUFD#WTRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390EUFD#WTRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#WPBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#WTRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390IUFD#WTRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#WPBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#WTRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390JUFD#WTRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#WPBF | Tube | 73 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#WTRPBF | Reel | 2500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LT8390HUFD#WTRMPBF | Reel | 500 | 8390 | 1 | 28 | -40°C ~ 150°C | 28-Lead (4mm × 5mm) Plastic QFN |

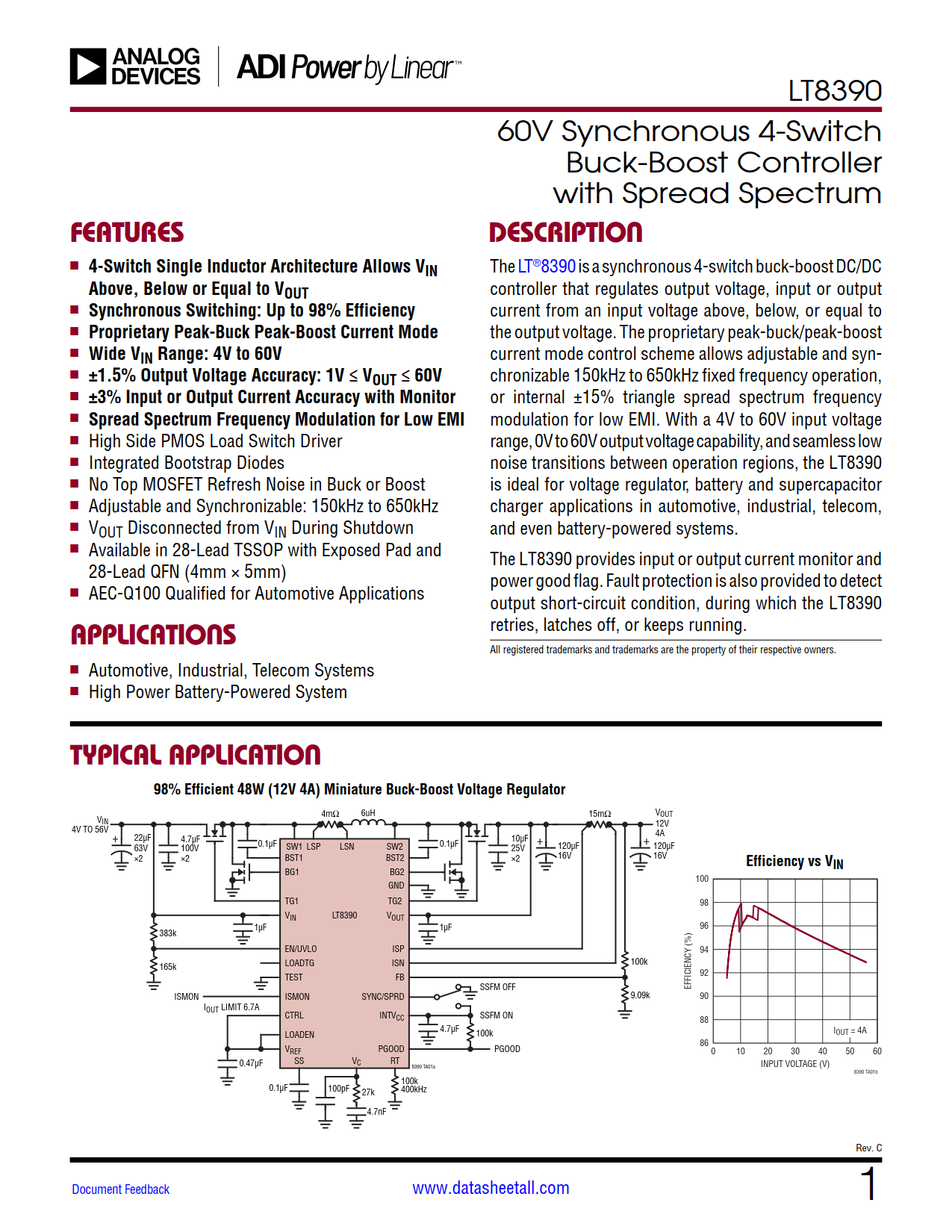

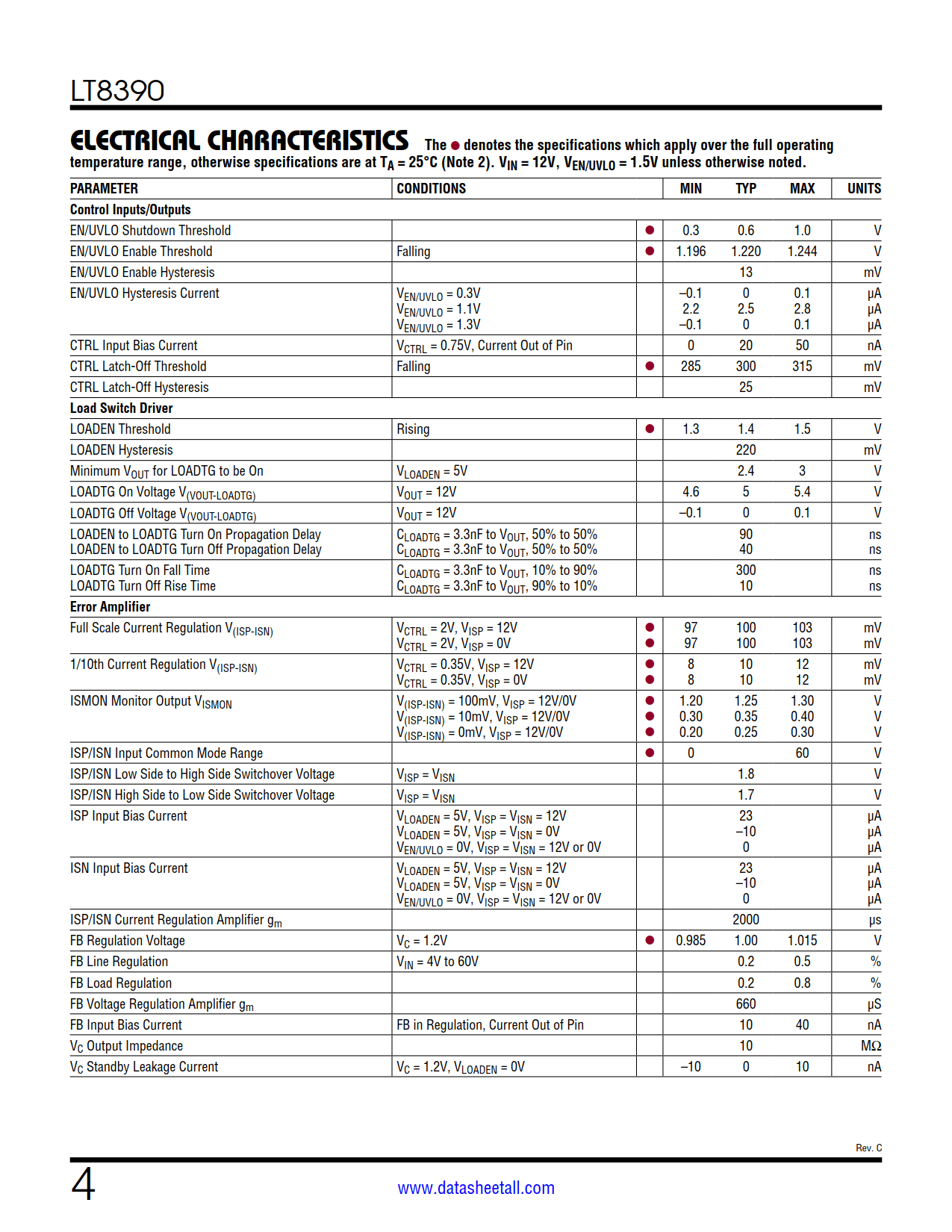

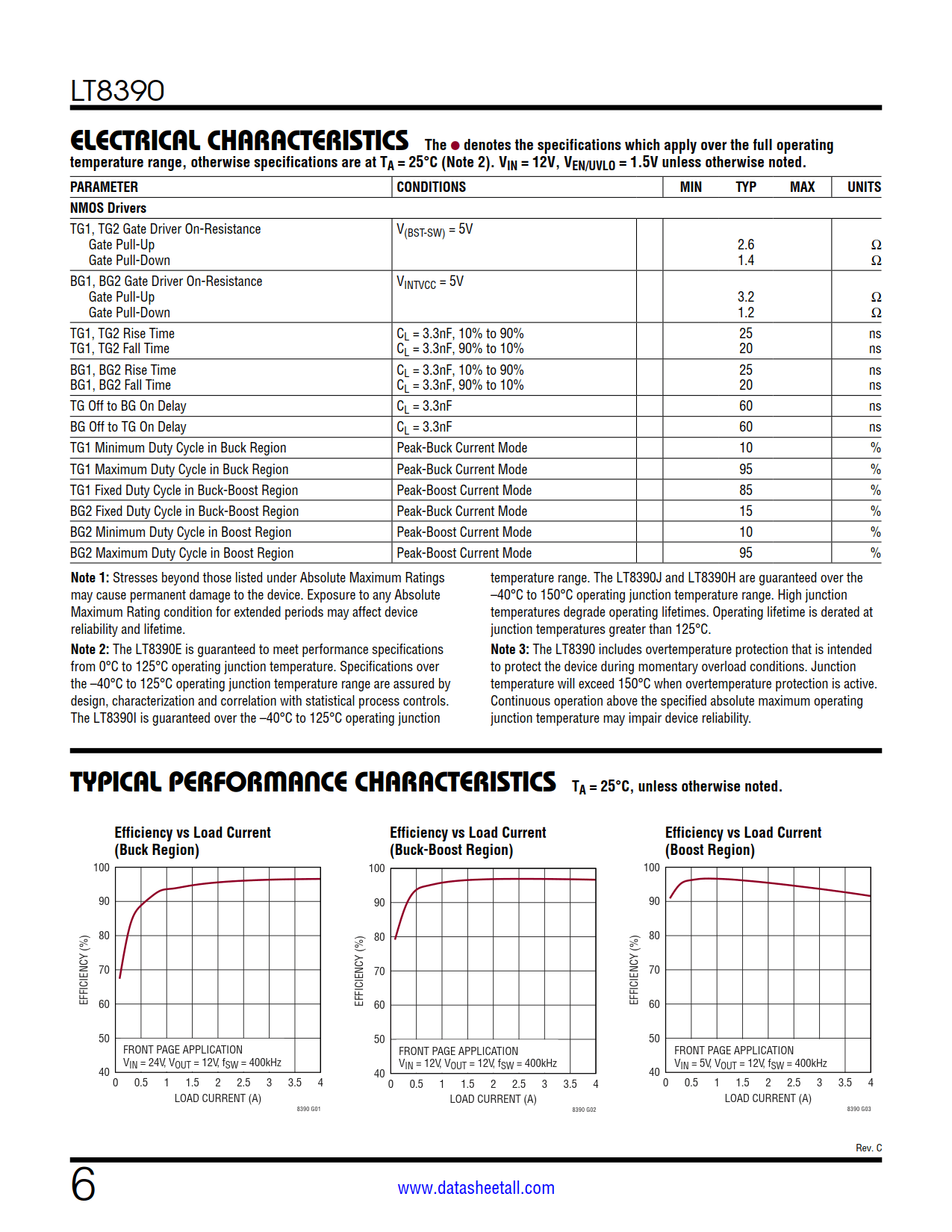

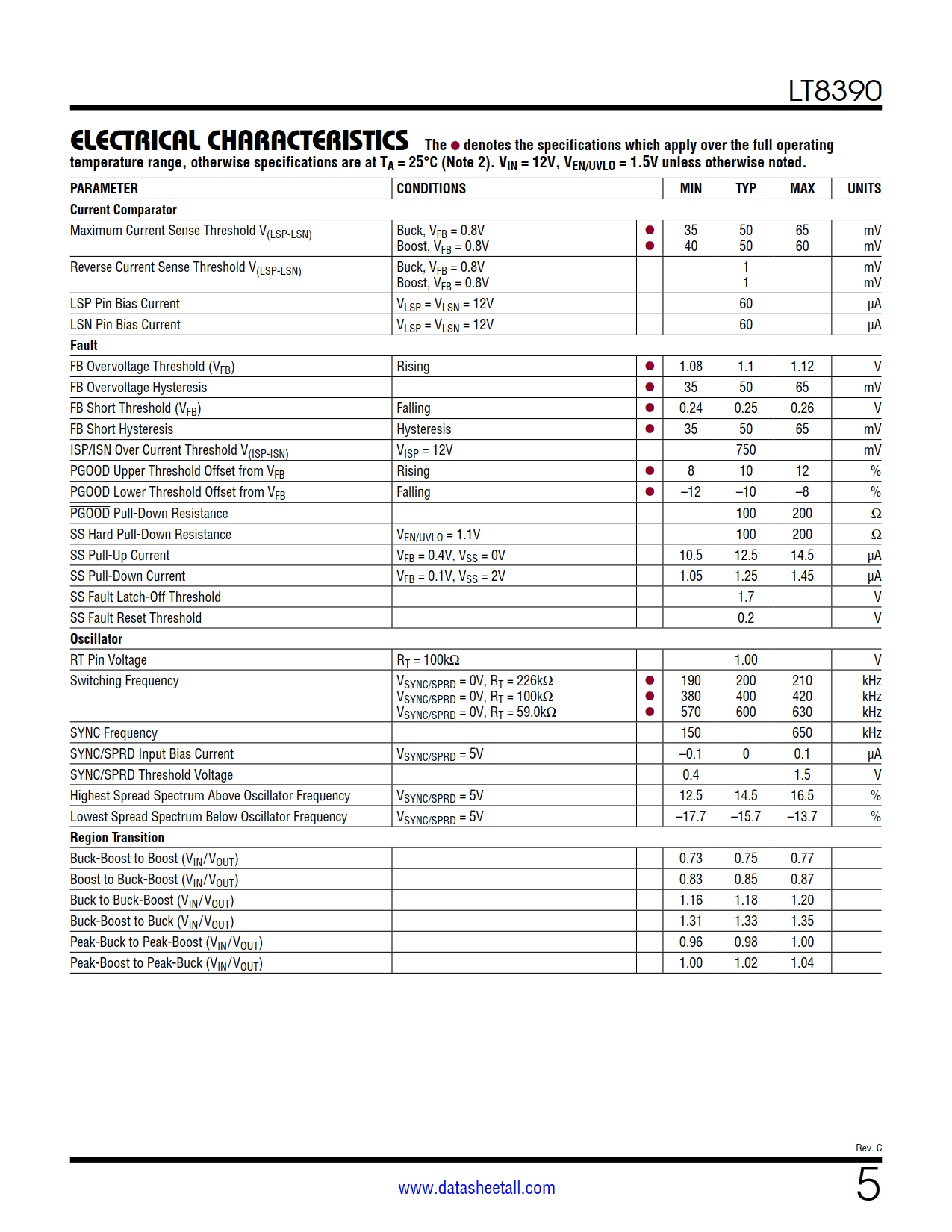

The LT8390 is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck/peak-boost current mode control scheme allows adjustable and synchronizable 150kHz to 650kHz fixed frequency operation, or internal ±15% triangle spread spectrum frequency modulation for low EMI. With a 4V to 60V input voltage range, 0V to 60V output voltage capability, and seamless low-noise transitions between operation regions, the LT8390 is ideal for voltage regulator, battery and supercapacitor charger applications in automotive, industrial, telecom, and even battery-powered systems.
The LT8390 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the LT8390 retries, latches off, or keeps running.
