| Part No.： | LT6700HV |
| Page： | 20 Pages |
| Size： | 311 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-10 11:48:35 |
| DataSheet： | Download |

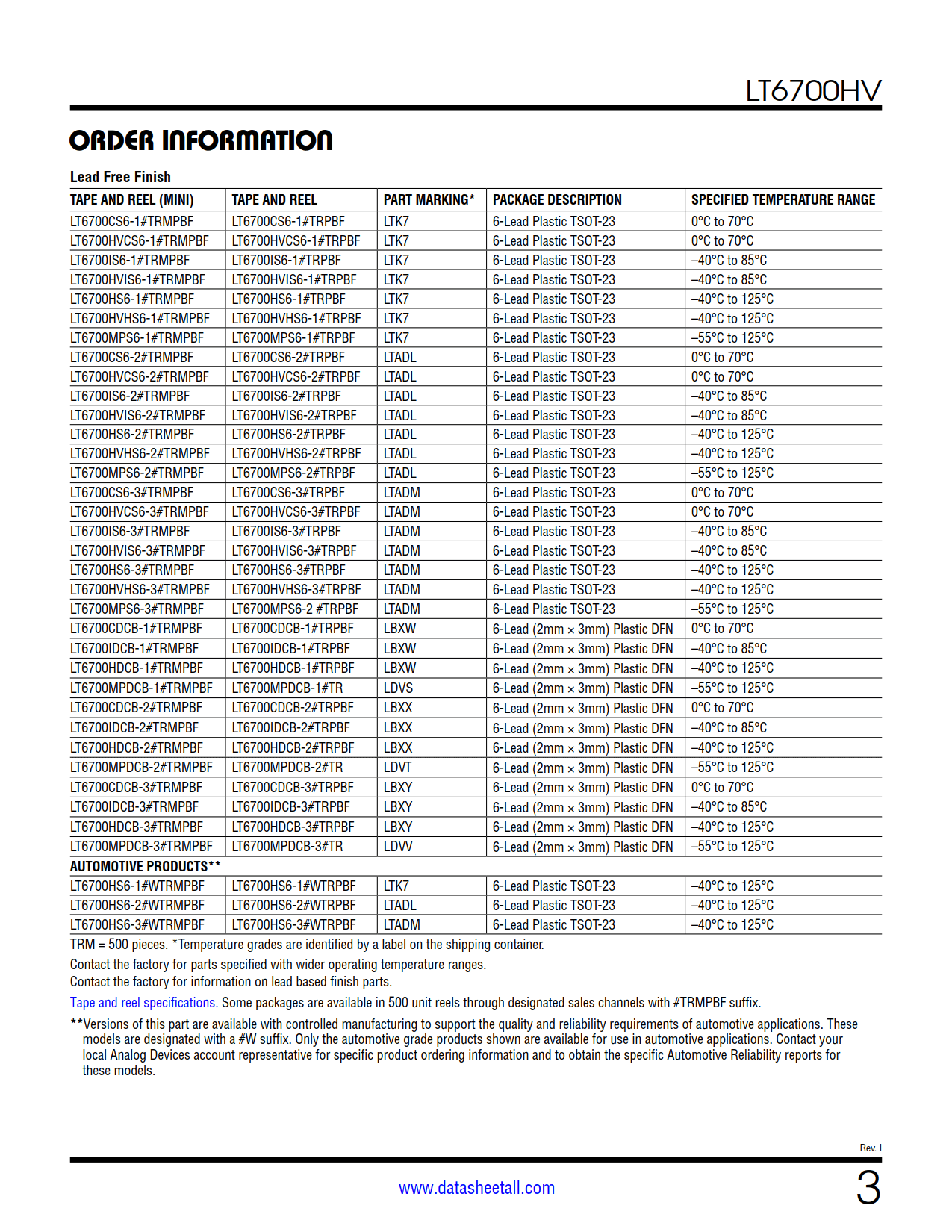

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6700HVCS6-1#PBF | Tube | LTK7 | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVCS6-1#TRPBF | Reel | 2500 | LTK7 | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVCS6-1#TRMPBF | Reel | 500 | LTK7 | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-1#PBF | Tube | LTK7 | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVIS6-1#TRPBF | Reel | 2500 | LTK7 | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-1#TRMPBF | Reel | 500 | LTK7 | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-1#PBF | Tube | LTK7 | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVHS6-1#TRPBF | Reel | 2500 | LTK7 | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-1#TRMPBF | Reel | 500 | LTK7 | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVCS6-2#PBF | Tube | LTADL | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVCS6-2#TRPBF | Reel | 2500 | LTADL | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVCS6-2#TRMPBF | Reel | 500 | LTADL | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-2#PBF | Tube | LTADL | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVIS6-2#TRPBF | Reel | 2500 | LTADL | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-2#TRMPBF | Reel | 500 | LTADL | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-2#PBF | Tube | LTADL | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVHS6-2#TRPBF | Reel | 2500 | LTADL | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-2#TRMPBF | Reel | 500 | LTADL | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVCS6-3#PBF | Tube | LTADM | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVCS6-3#TRPBF | Reel | 2500 | LTADM | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVCS6-3#TRMPBF | Reel | 500 | LTADM | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-3#PBF | Tube | LTADM | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVIS6-3#TRPBF | Reel | 2500 | LTADM | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVIS6-3#TRMPBF | Reel | 500 | LTADM | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-3#PBF | Tube | LTADM | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | ||
| LT6700HVHS6-3#TRPBF | Reel | 2500 | LTADM | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LT6700HVHS6-3#TRMPBF | Reel | 500 | LTADM | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 |

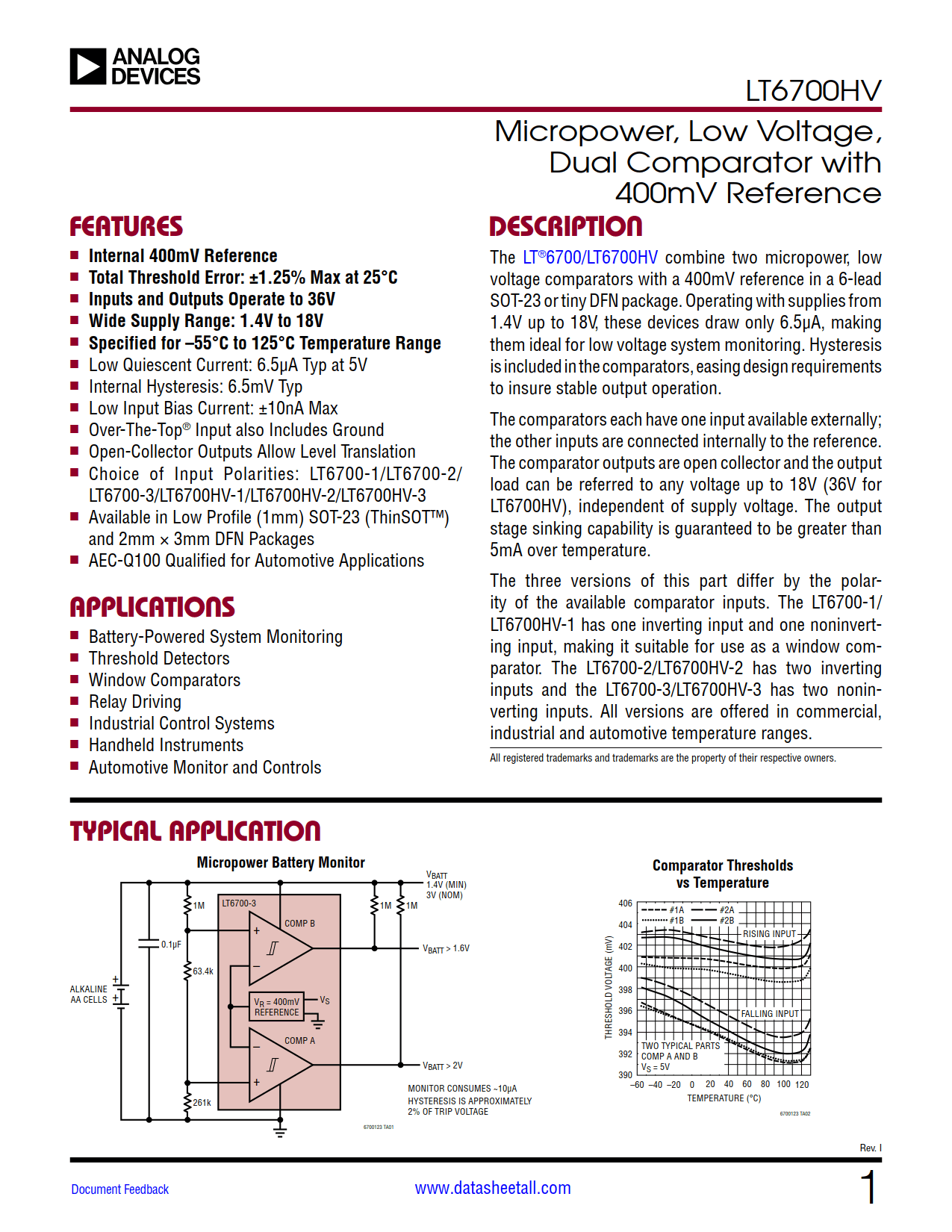

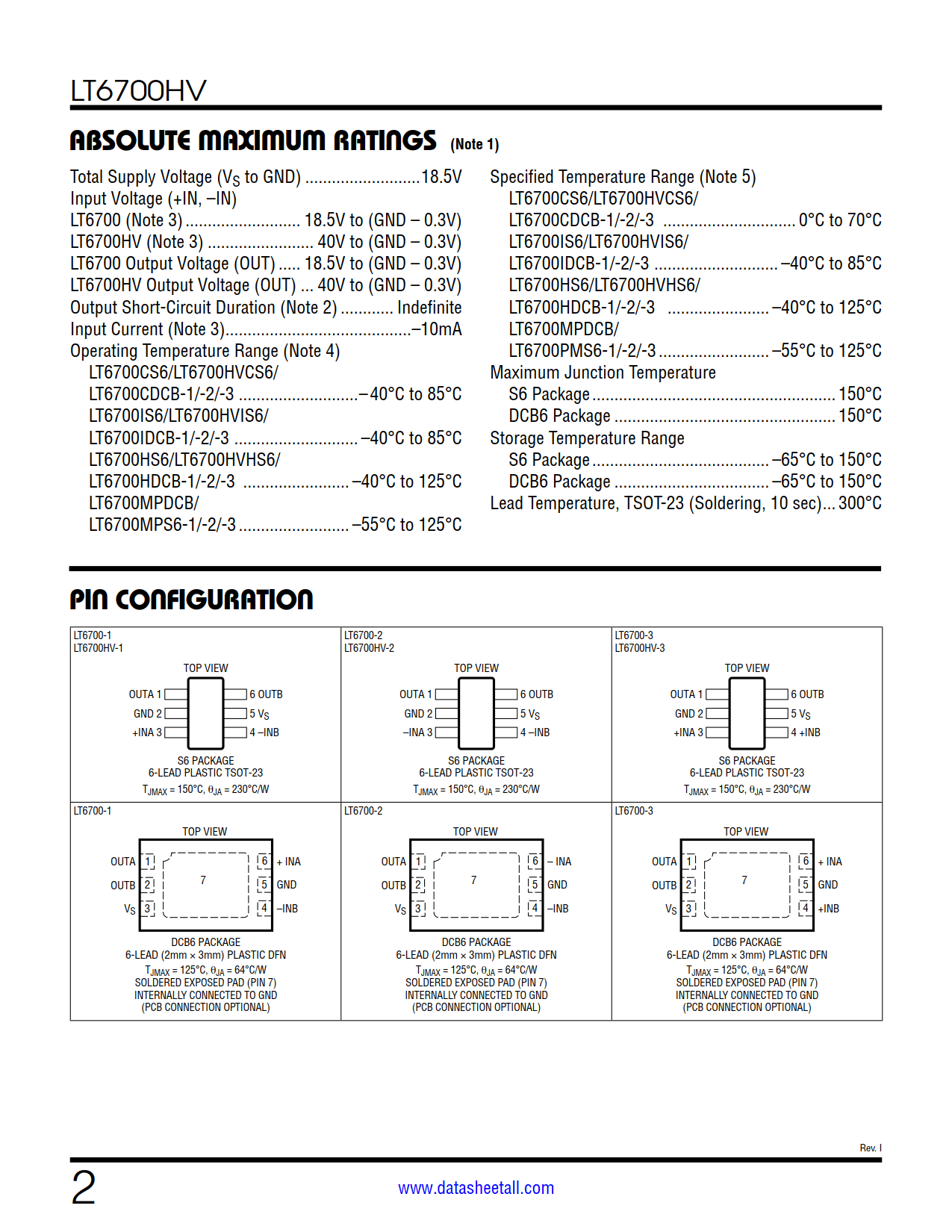

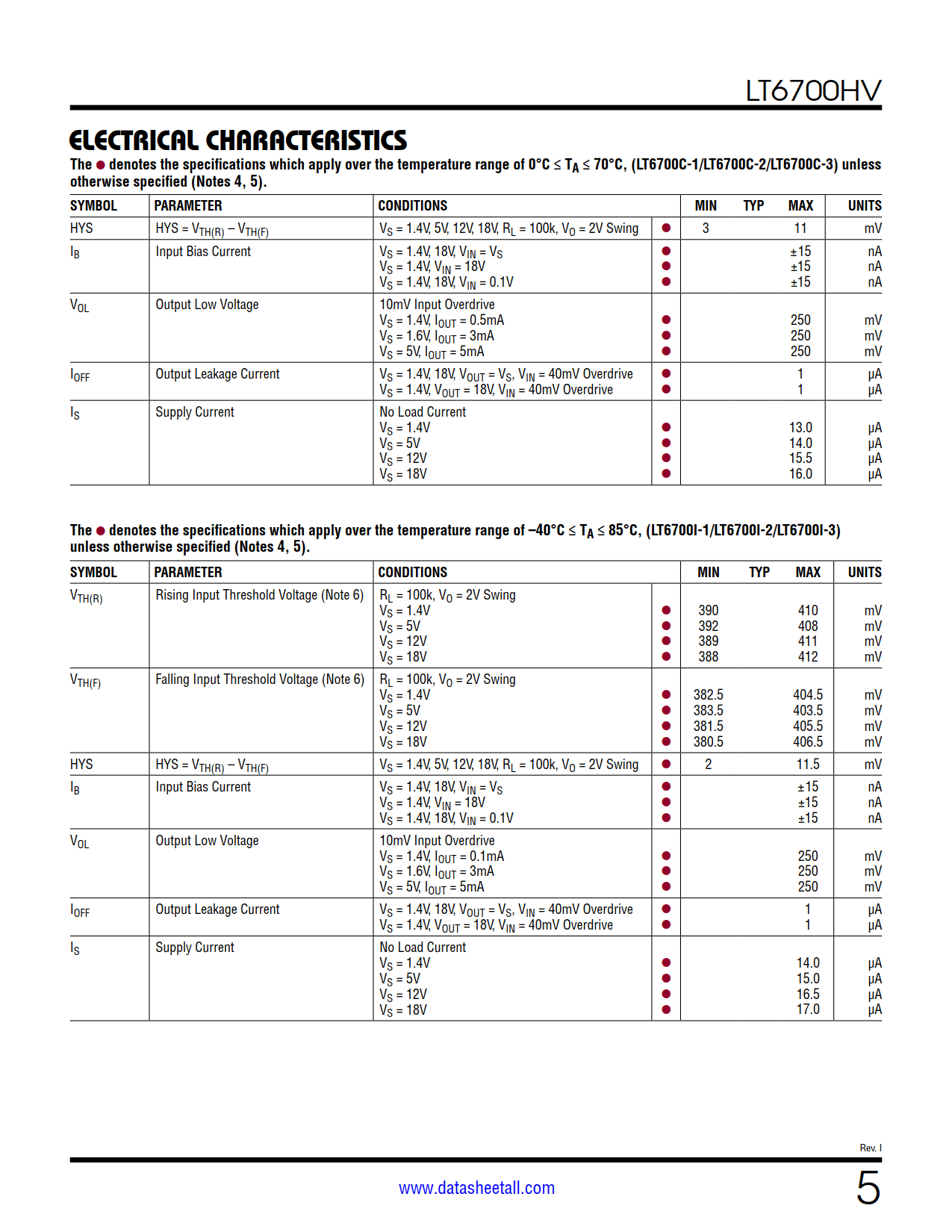

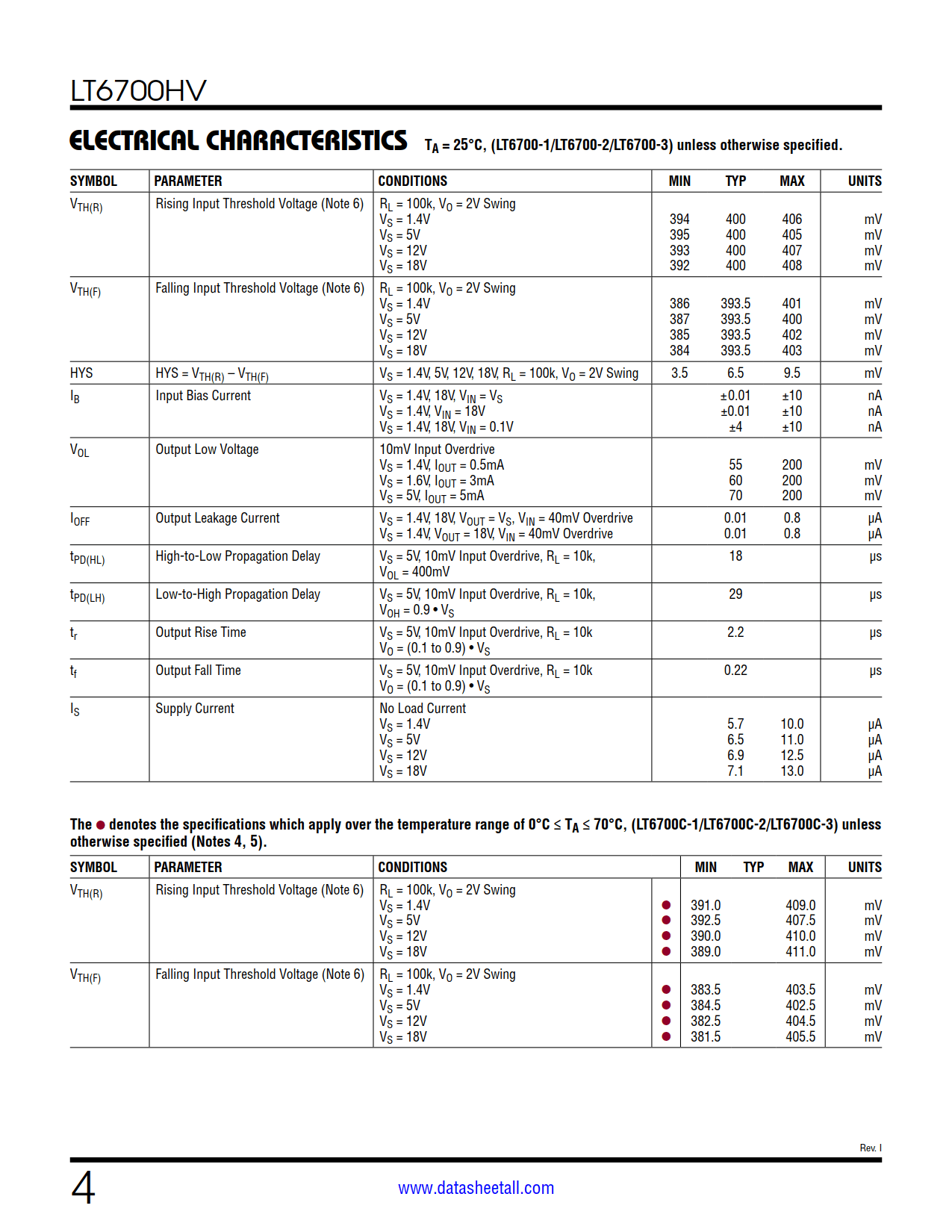

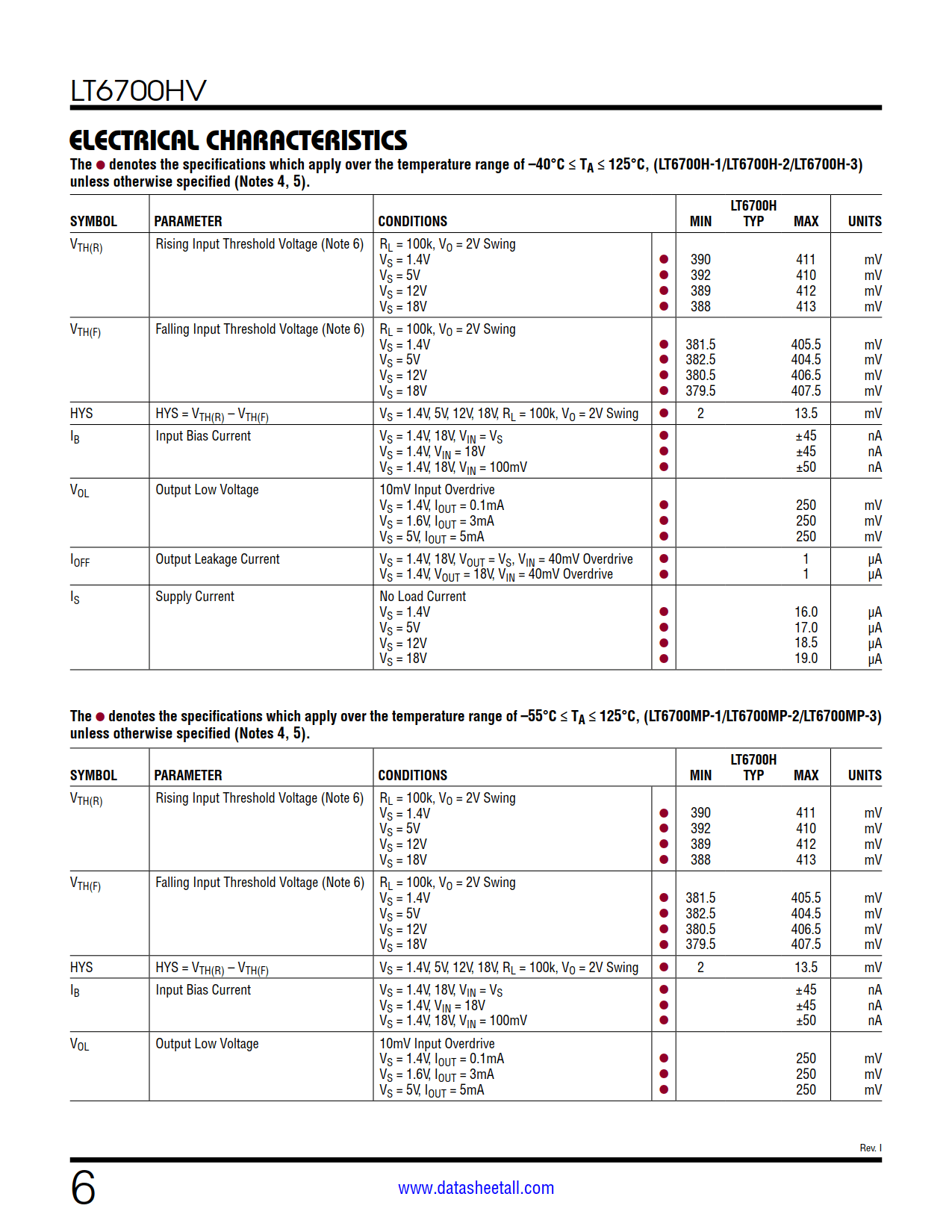

The LT6700HV combine two micropower, low voltage comparators with a 400mV reference in a 6-lead SOT-23 or tiny DFN package. Operating with supplies from 1.4V up to 18V, these devices draw only 6.5μA, making them ideal for low voltage system monitoring. Hysteresis is included in the comparators, easing design requirements to insure stable output operation.
The comparators each have one input available externally; the other inputs are connected internally to the reference. The comparator outputs are open collector and the output load can be referred to any voltage up to 36V, independent of supply voltage. The output stage sinking capability is guaranteed to be greater than 5mA over temperature.
The three versions of this part differ by the polarity of the available comparator inputs. The LT6700HV-1 has one inverting input and one noninverting input, making it suitable for use as a window comparator. The LT6700HV-2 has two inverting inputs and the LT6700HV-3 has two noninverting inputs. All versions are offered in commercial, industrial and automotive temperature ranges.
