LT6654BX Datasheet

LT6654BX Datasheet

175°C, Wide Supply 2.5V Precision Voltage Reference
Part No.: LT6654BX
Page: 14 Pages
Size: 1179 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-10 15:11:51
DataSheet: Download

LT6654BX Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6654BXMS8-2.5#PBF Tube 50 LTHCD 1 8 -40°C ~ 175°C 8-Lead Plastic MSOP
LT6654BXMS8-2.5#TRPBF Reel 2500 LTHCD 1 8 -40°C ~ 175°C 8-Lead Plastic MSOP
LT6654BXMS8-2.5#TRMPBF Reel 500 LTHCD 1 8 -40°C ~ 175°C 8-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

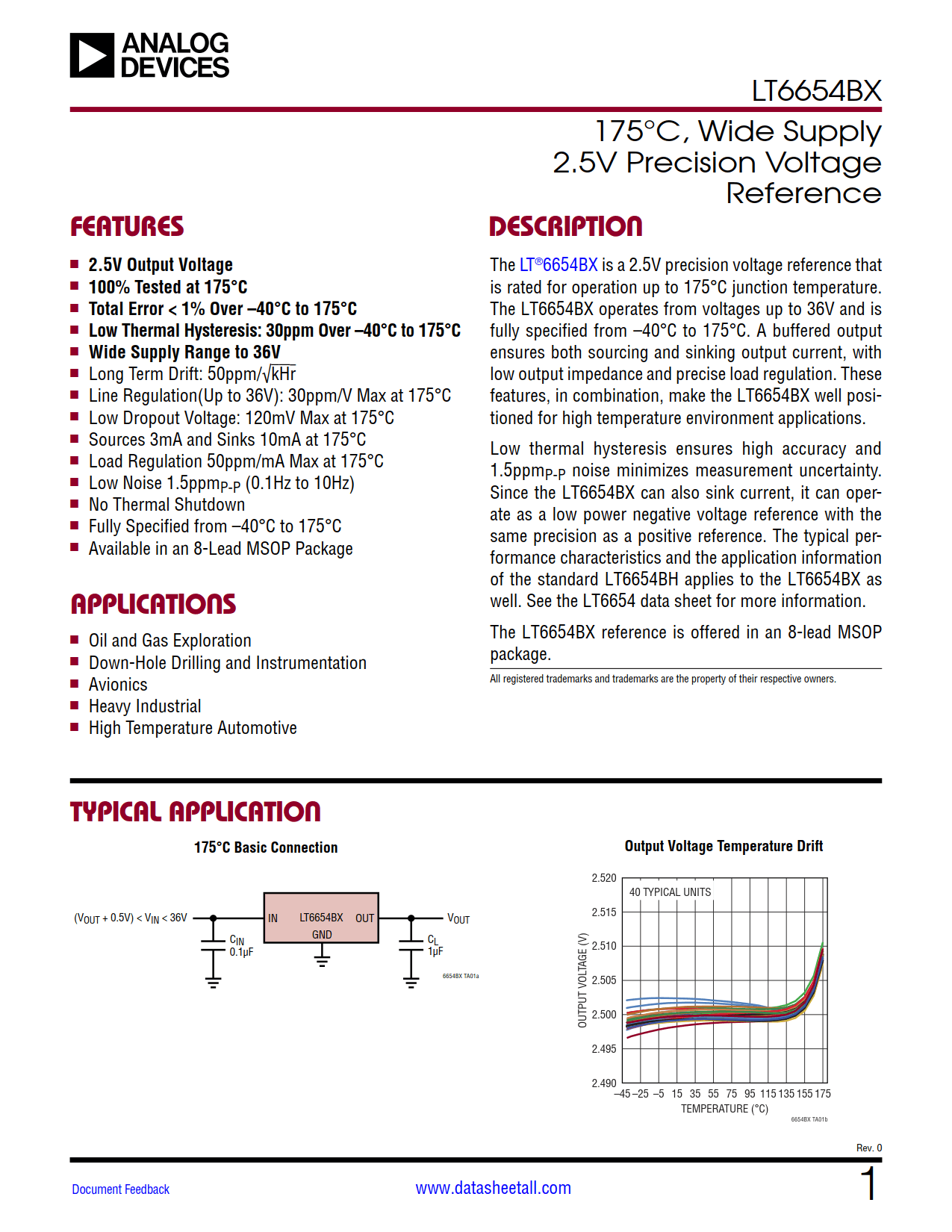

LT6654BX Datasheet(PDF)

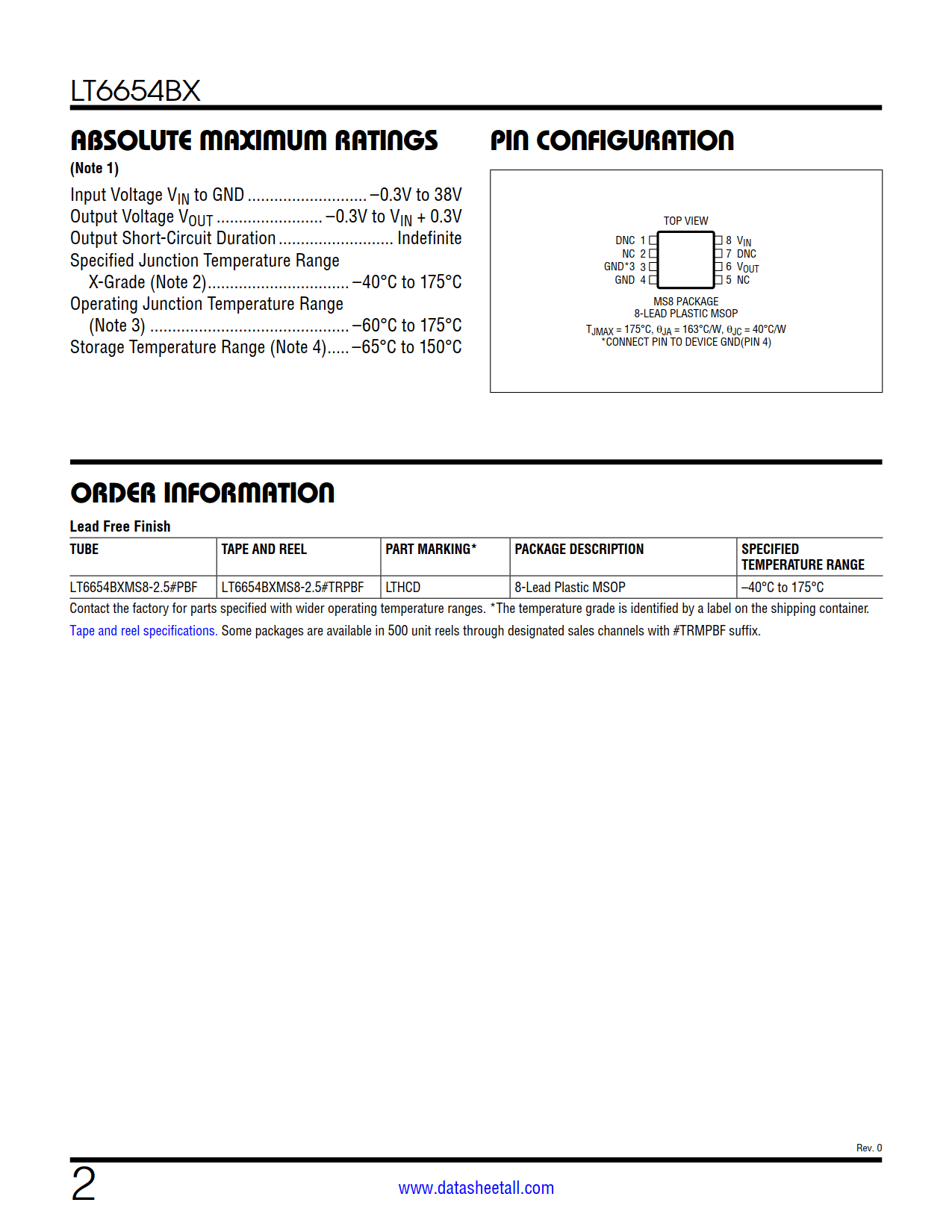

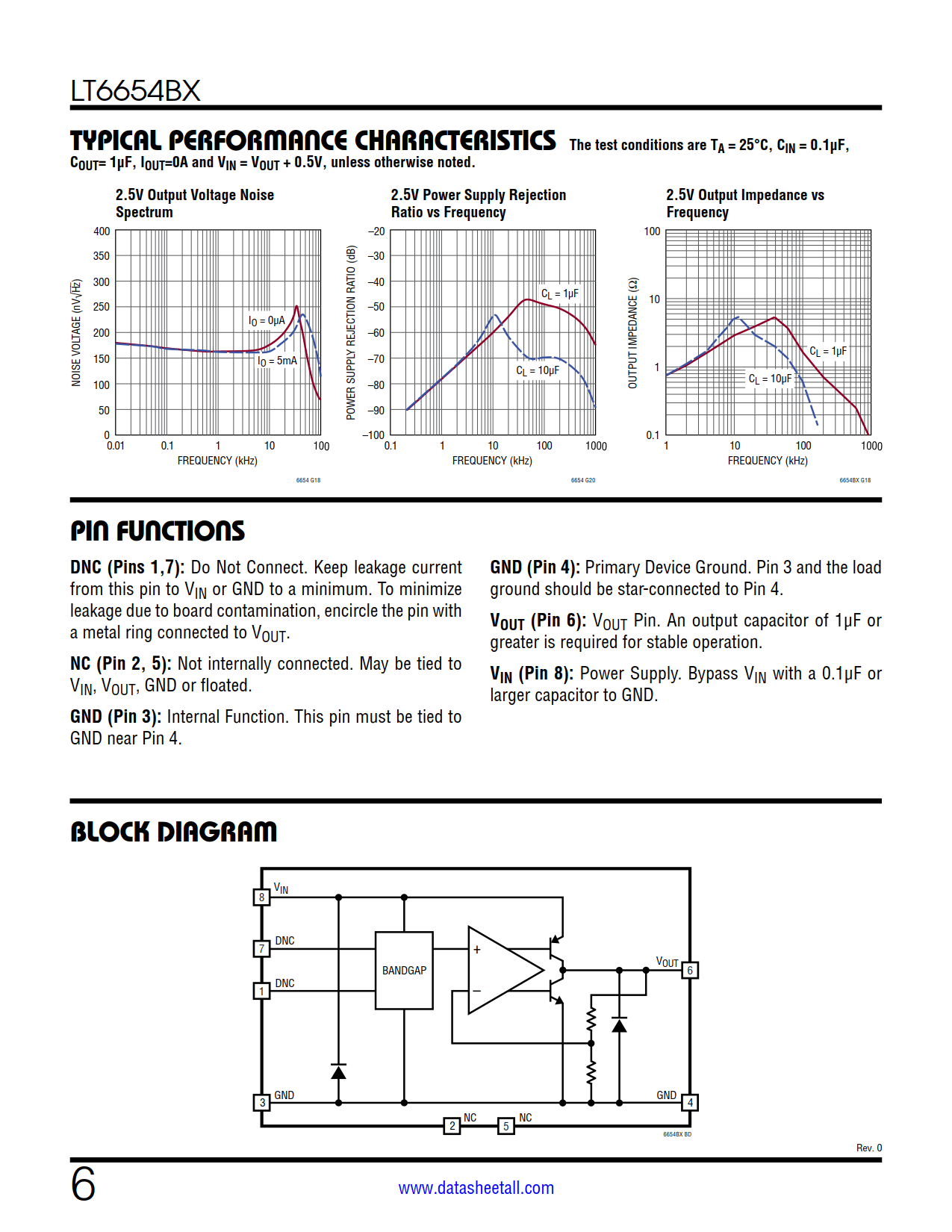

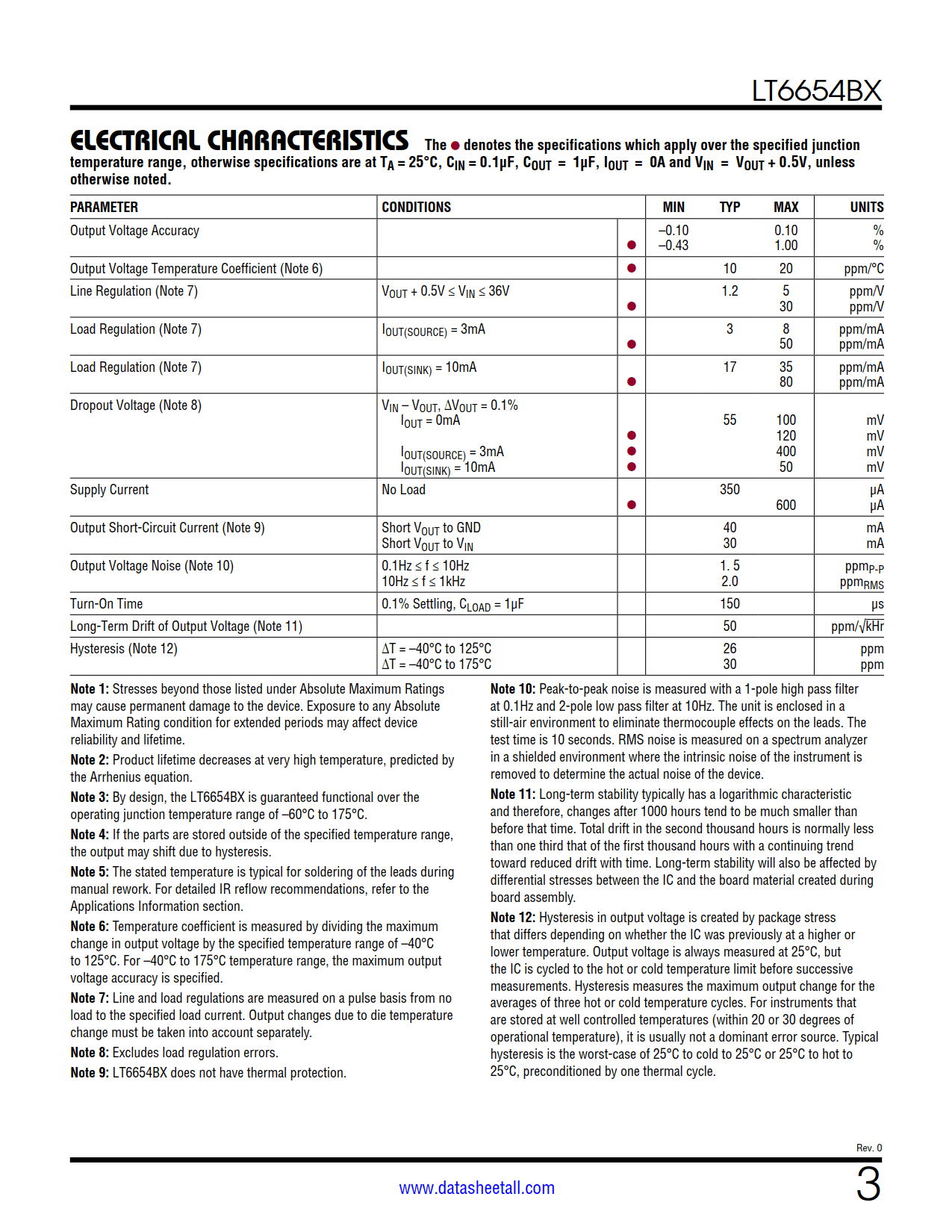

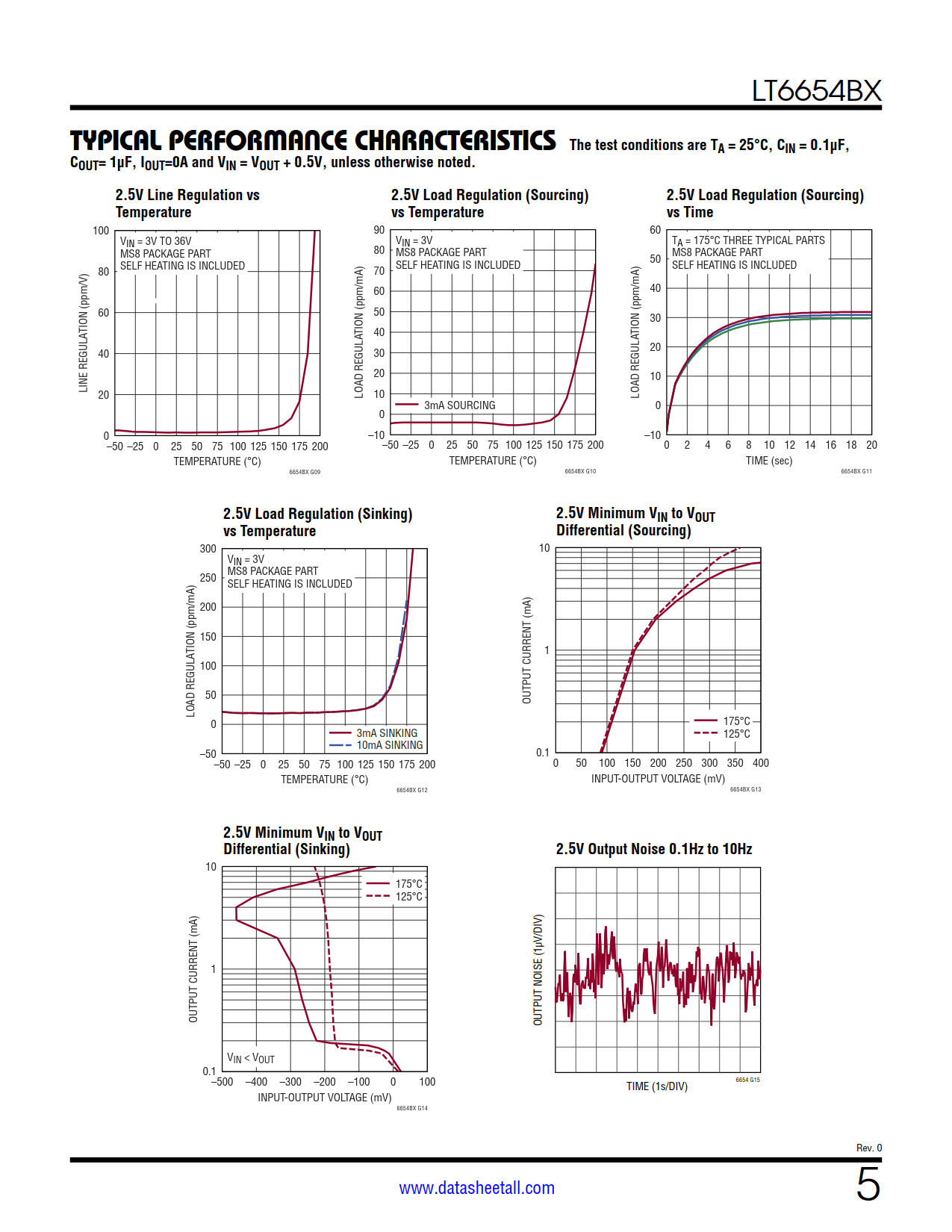

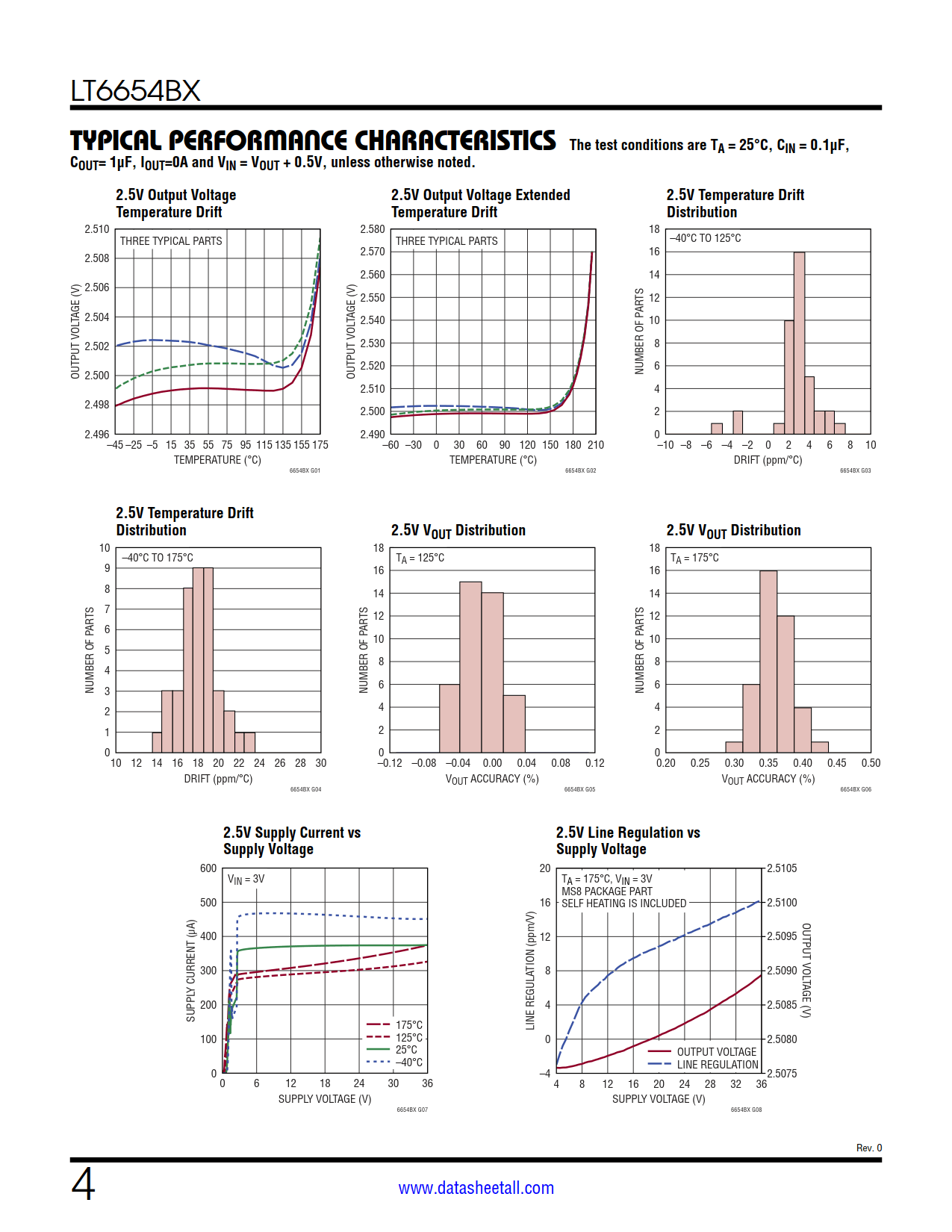

LT6654BX Datasheet(Picture)

LT6654BX Features

  • 2.5V Output Voltage
  • 100% Tested at 175°C
  • Total Error < 1% Over –40°C to 175°C
  • Low Thermal Hysteresis: 30ppm Over –40°C to 175°C
  • Wide Supply Range to 36V
  • Long Term Drift: 50ppm/√kHr
  • Line Regulation(Up to 36V): 30ppm/V Max at 175°C
  • Low Dropout Voltage: 120mV Max at 175°C
  • Sources 3mA and Sinks 10mA at 175°C
  • Load Regulation 50ppm/mA Max at 175°C
  • Low Noise 1.5ppmP-P (0.1Hz to 10Hz)
  • No Thermal Shutdown
  • Fully Specified from –40°C to 175°C
  • Available in an 8-Lead MSOP Package

LT6654BX Applications

  • Oil and Gas Exploration
  • Down-Hole Drilling and Instrumentation
  • Avionics
  • Heavy Industrial
  • High Temperature Automotive

LT6654BX Description

The LT6654BX is a 2.5V precision voltage reference that is rated for operation up to 175°C junction temperature. The LT6654BX operates from voltages up to 36V and is fully specified from –40°C to 175°C. A buffered output ensures both sourcing and sinking output current, with low output impedance and precise load regulation. These features, in combination, make the LT6654BX well positioned for high temperature environment applications.

Low thermal hysteresis ensures high accuracy and 1.5ppmP-P noise minimizes measurement uncertainty. Since the LT6654BX can also sink current, it can operate as a low power negative voltage reference with the same precision as a positive reference. The typical performance characteristics and the application information of the standard LT6654BH applies to the LT6654BX as well. See the LT6654 data sheet for more information.

The LT6654BX reference is offered in an 8-lead MSOP package.
