LT6231 Datasheet

LT6231 Datasheet

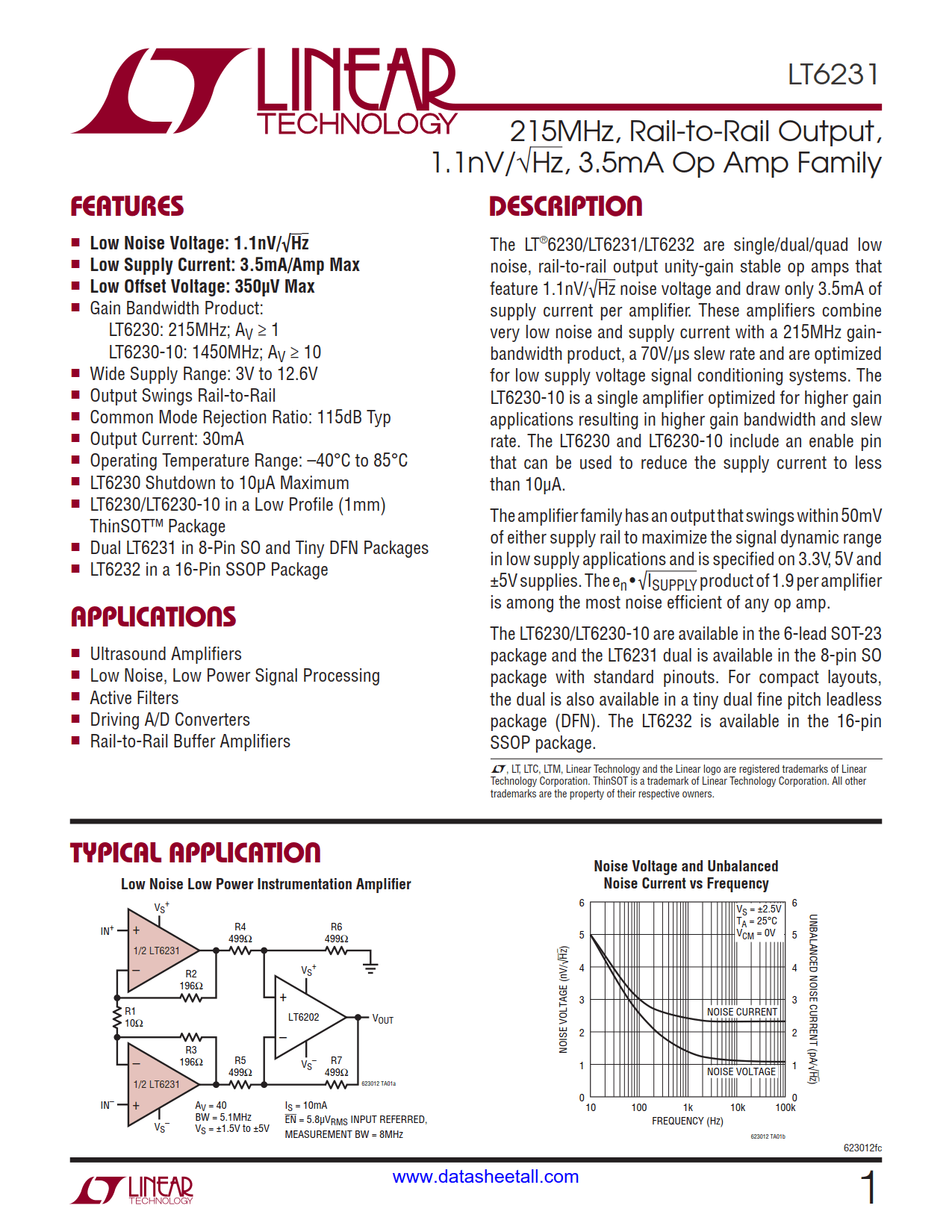

215MHz, Rail-to-Rail Output, 1.1nV/√Hz, 3.5mA Op Amp Family
Part No.: LT6231
Page: 24 Pages
Size: 776 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-25 16:17:41
DataSheet: Download

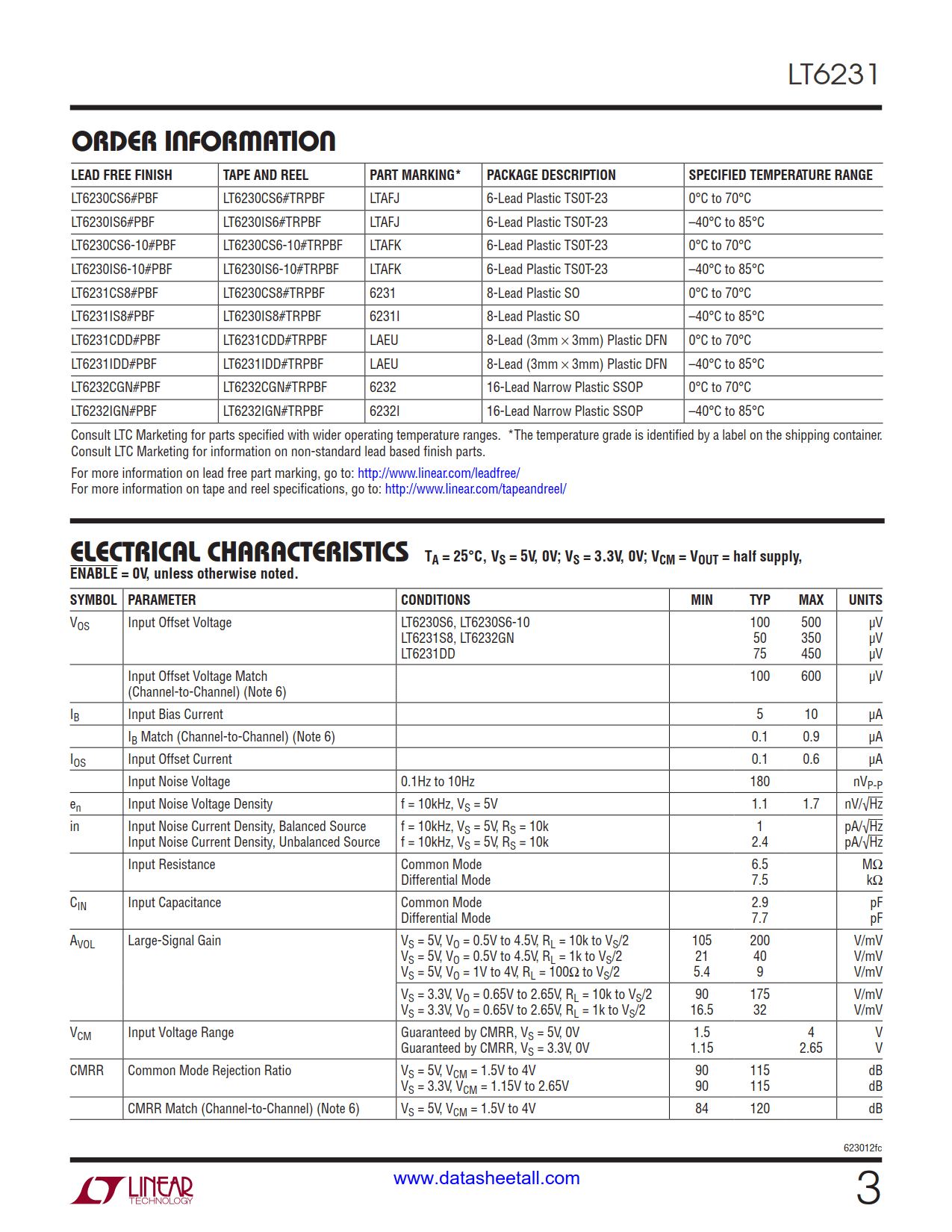

LT6231 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6231CS8#PBF Tube 100 6231 1 8 0°C ~ 70°C 8-Lead Plastic SO
LT6231CS8#TRPBF Reel 2500 6231 1 8 0°C ~ 70°C 8-Lead Plastic SO
LT6231CS8#TRMPBF Reel 500 6231 1 8 0°C ~ 70°C 8-Lead Plastic SO
LT6231IS8#PBF Tube 100 6231I 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT6231IS8#TRPBF Reel 2500 6231I 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT6231IS8#TRMPBF Reel 500 6231I 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT6231CDD#PBF Tube 121 LAEU 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LT6231CDD#TRPBF Reel 2500 LAEU 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LT6231CDD#TRMPBF Reel 500 LAEU 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LT6231IDD#PBF Tube 121 LAEU 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LT6231IDD#TRPBF Reel 2500 LAEU 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LT6231IDD#TRMPBF Reel 500 LAEU 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6231 Datasheet(PDF)

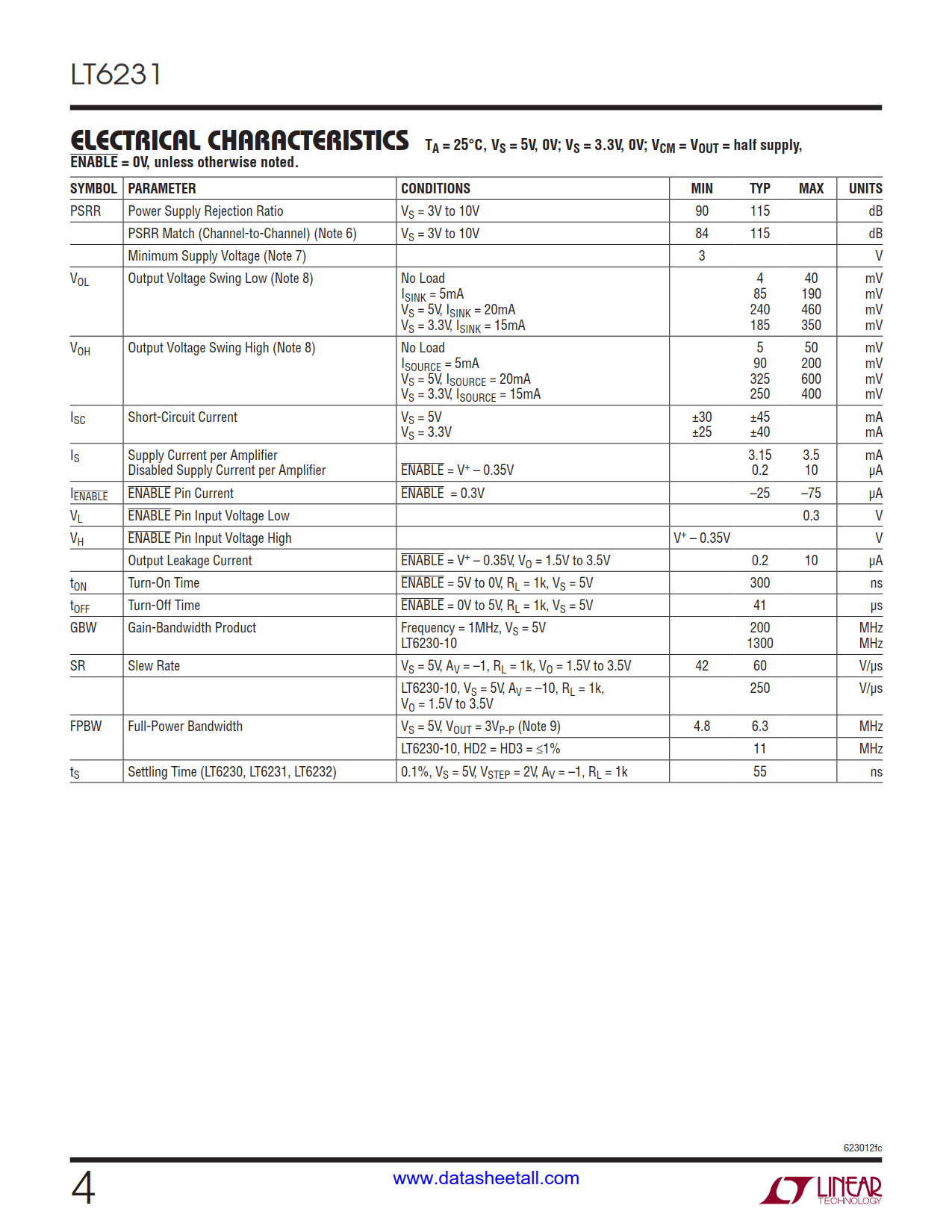

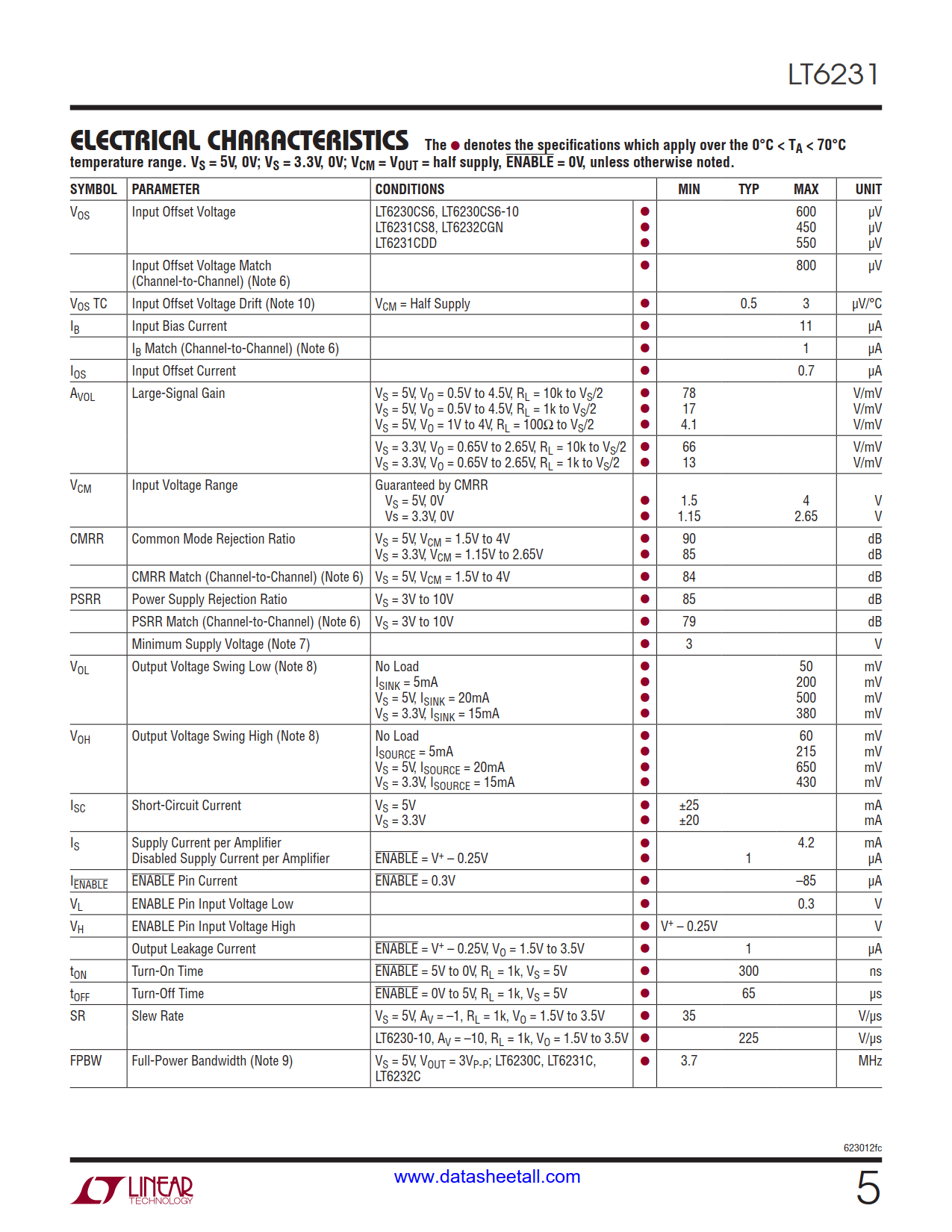

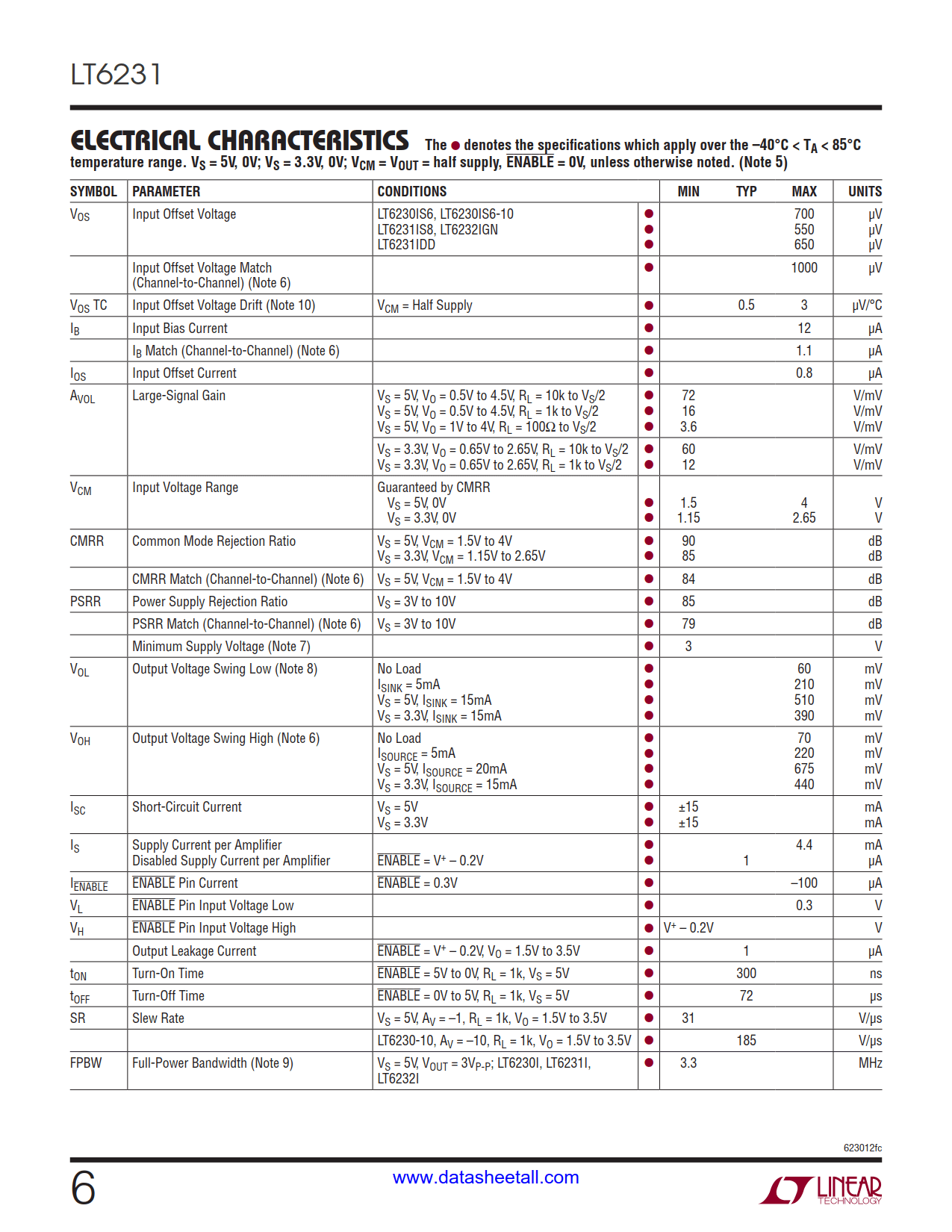

LT6231 Datasheet(Picture)

LT6231 Features

  • Low Noise Voltage: 1.1nV/√Hz
  • Low Supply Current: 3.5mA/Amp Max
  • Low Offset Voltage: 350μV Max
  • Wide Supply Range: 3V to 12.6V
  • Output Swings Rail-to-Rail
  • Common Mode Rejection Ratio: 115dB Typ
  • Output Current: 30mA
  • Operating Temperature Range: –40°C to 85°C

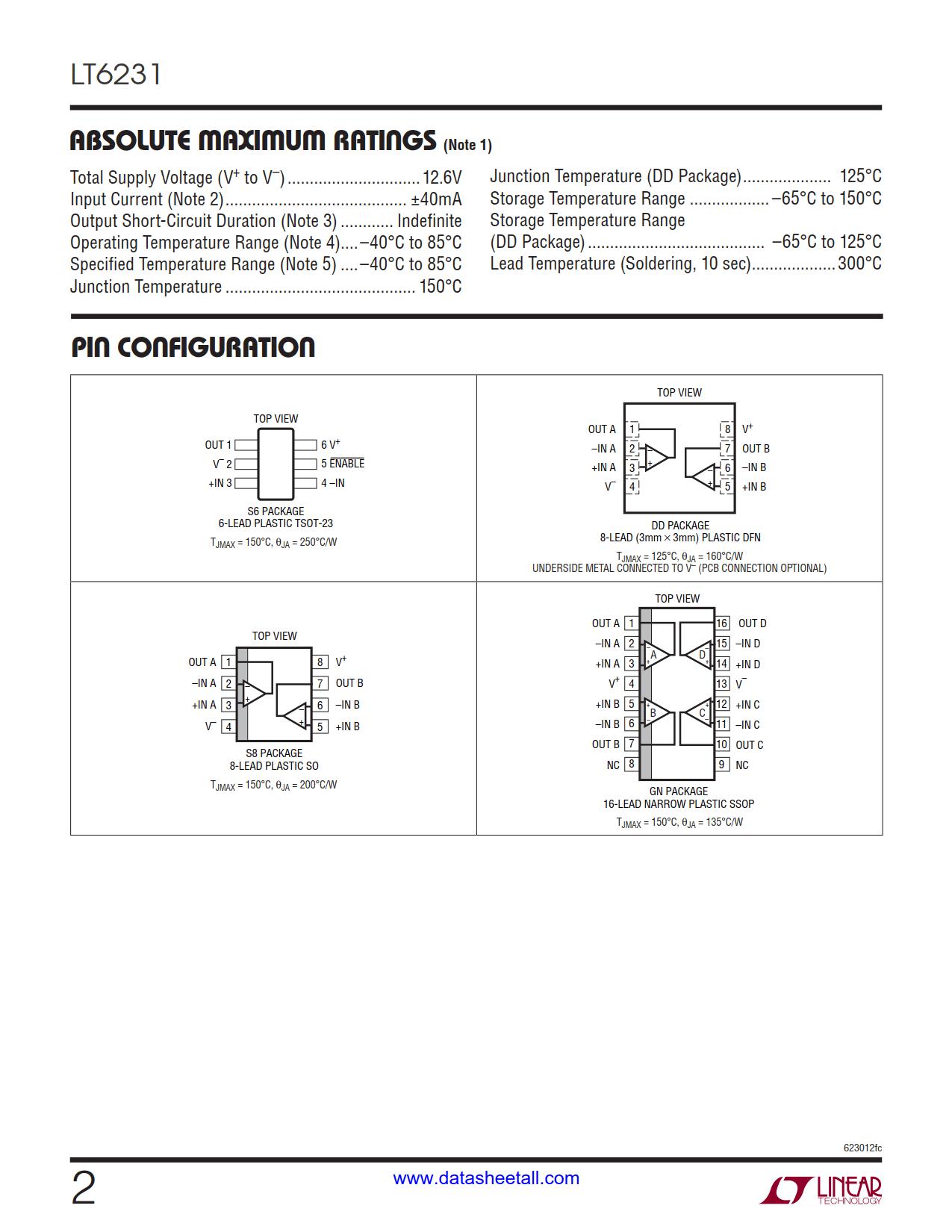

  • Dual LT6231 in 8-Pin SO and Tiny DFN Packages

LT6231 Applications

  • Ultrasound Amplifiers
  • Low Noise, Low Power Signal Processing
  • Active Filters
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers

LT6231 Description

The LT6231 are dual low noise, rail-to-rail output unity-gain stable op amps that feature 1.1nV/√Hz noise voltage and draw only 3.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 215MHz gain bandwidth product, a 70V/μs slew rate and are optimized for low supply voltage signal conditioning systems.

The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications and is specified on 3.3V, 5V and ±5V supplies. The en • √ISUPPLY product of 1.9 per amplifier is among the most noise efficient of any op amp.

The LT6231 dual is available in the 8-pin SO package with standard pinouts. For compact layouts, the dual is also available in a tiny dual fine pitch leadless package (DFN).
