LT6222 Datasheet

LT6222 Datasheet

Quad 60MHz, 20V/µs Low Power, Rail-to-Rail Input and Output Precision Op Amp
Part No.: LT6222
Page: 22 Pages
Size: 323 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-10 15:32:00
DataSheet: Download

LT6222 Datasheet Applicable Part

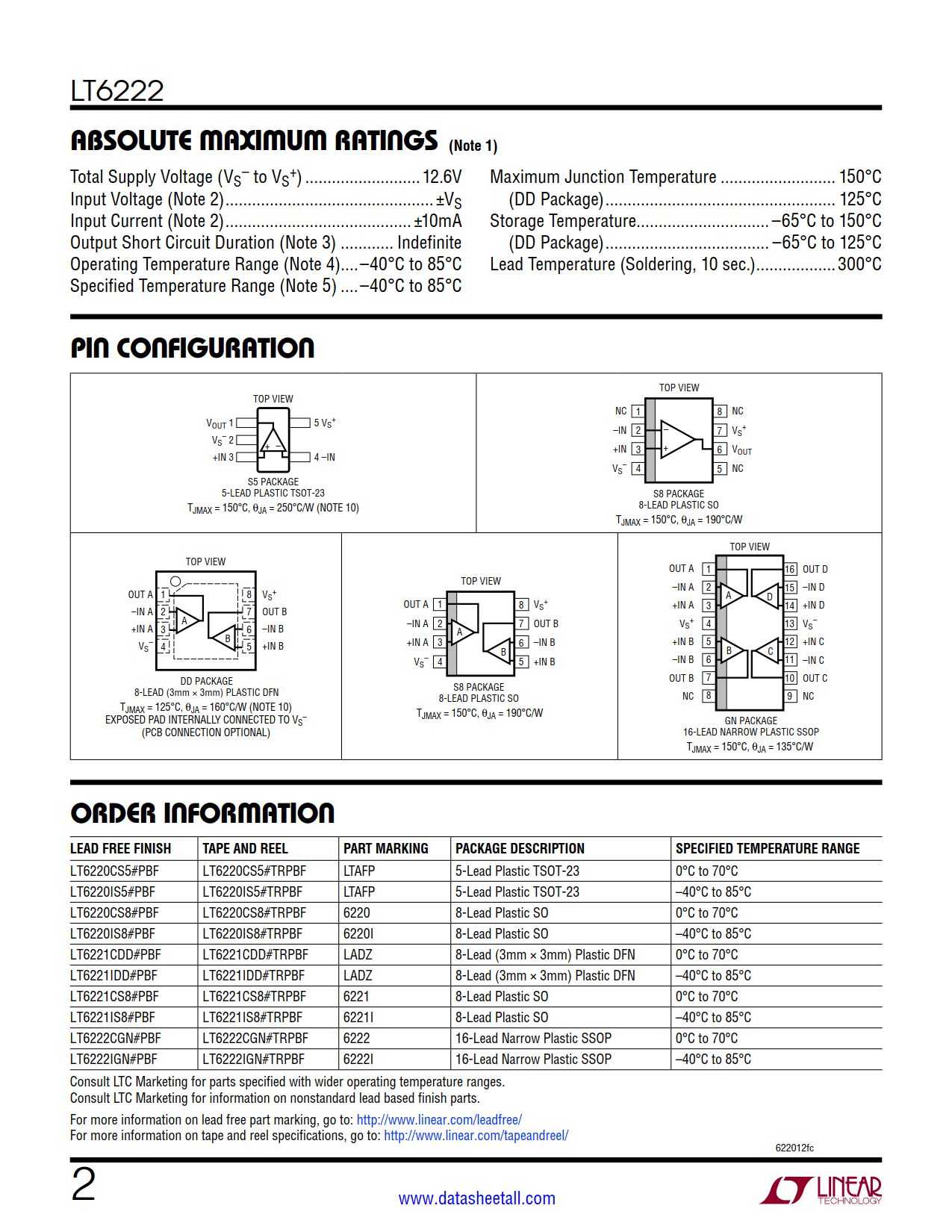

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6222CGN#PBF Tube 100 6222 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6222CGN#TRPBF Reel 2500 6222 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6222CGN#TRMPBF Reel 500 6222 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6222IGN#PBF Tube 100 6222I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
LT6222IGN#TRPBF Reel 2500 6222I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
LT6222IGN#TRMPBF Reel 500 6222I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6222 Datasheet(PDF)

LT6222 Datasheet(Picture)

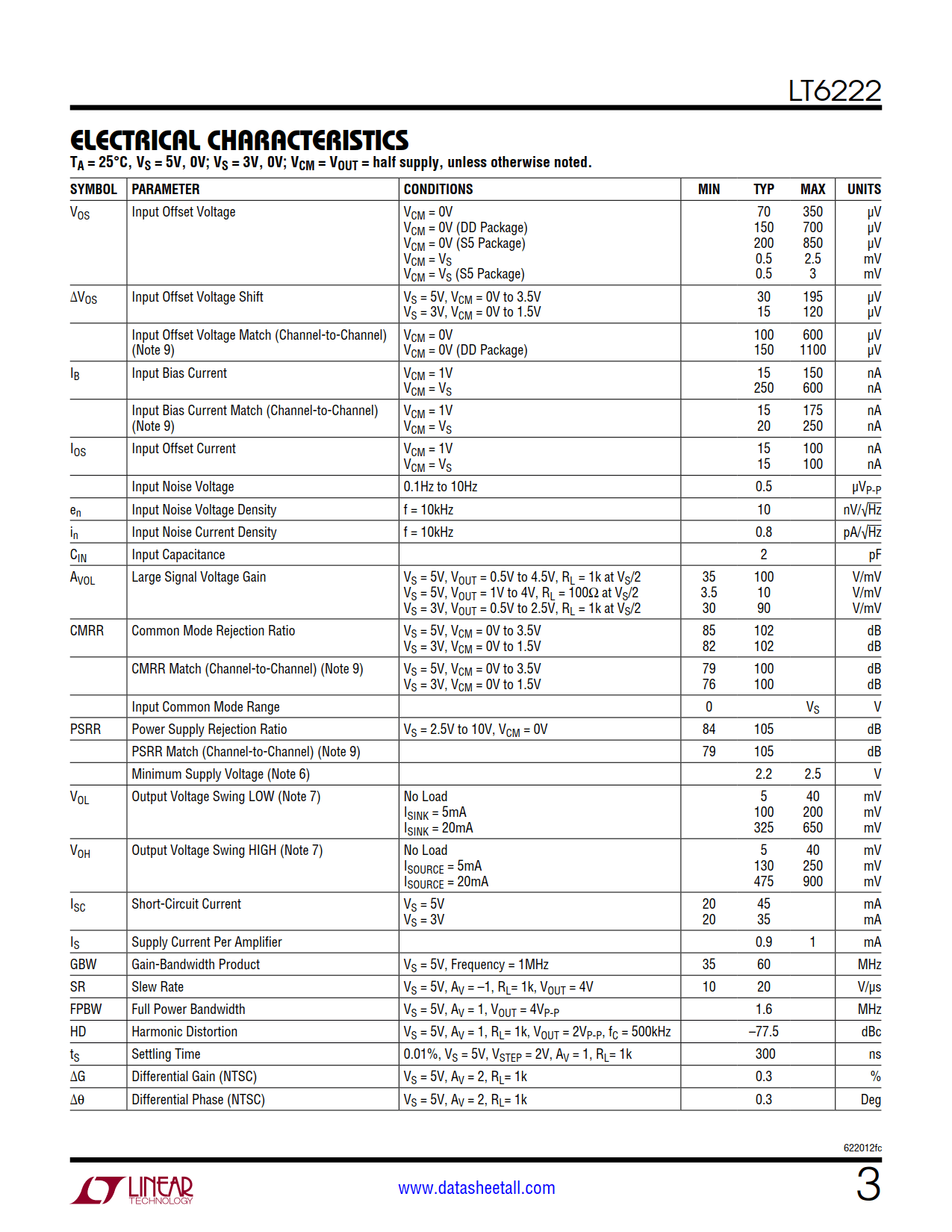

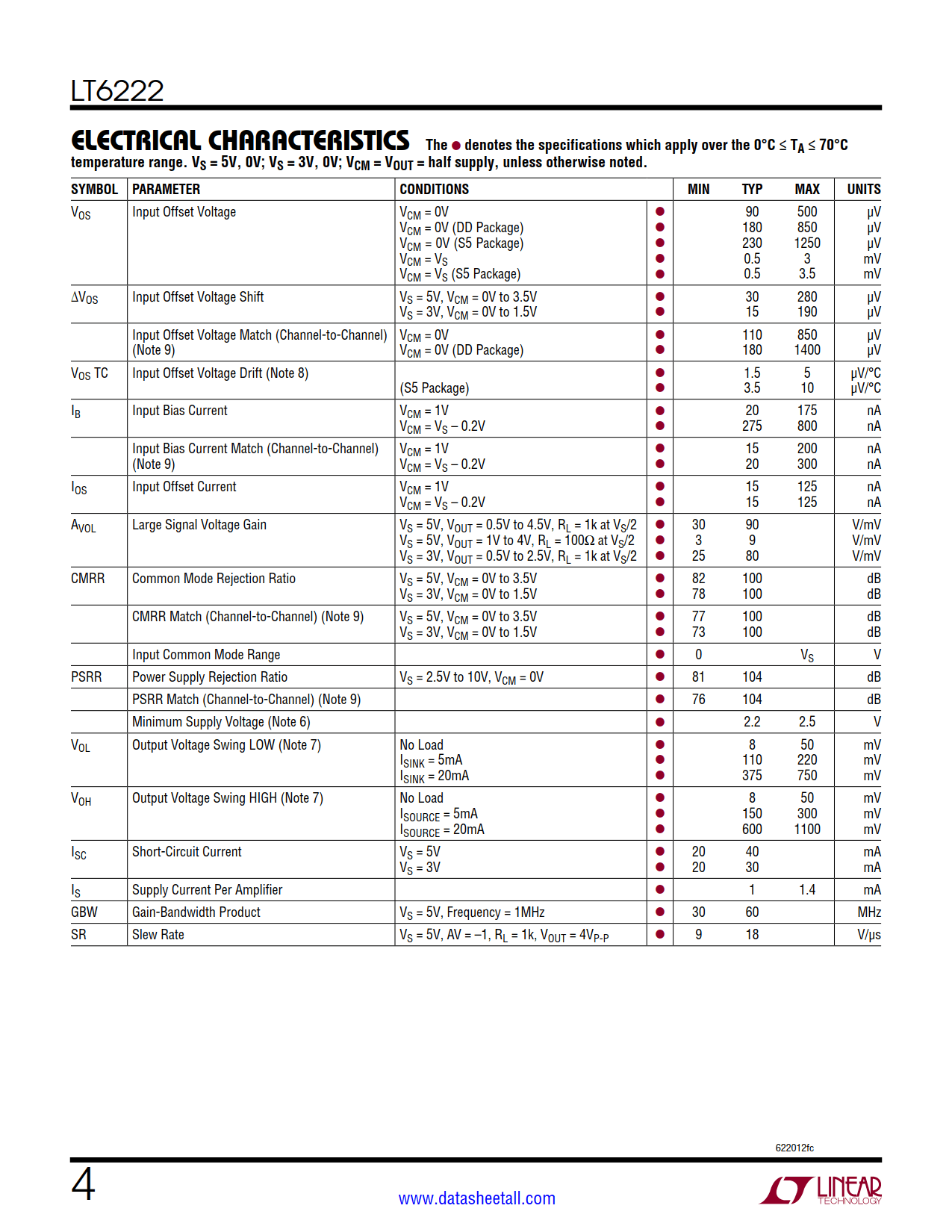

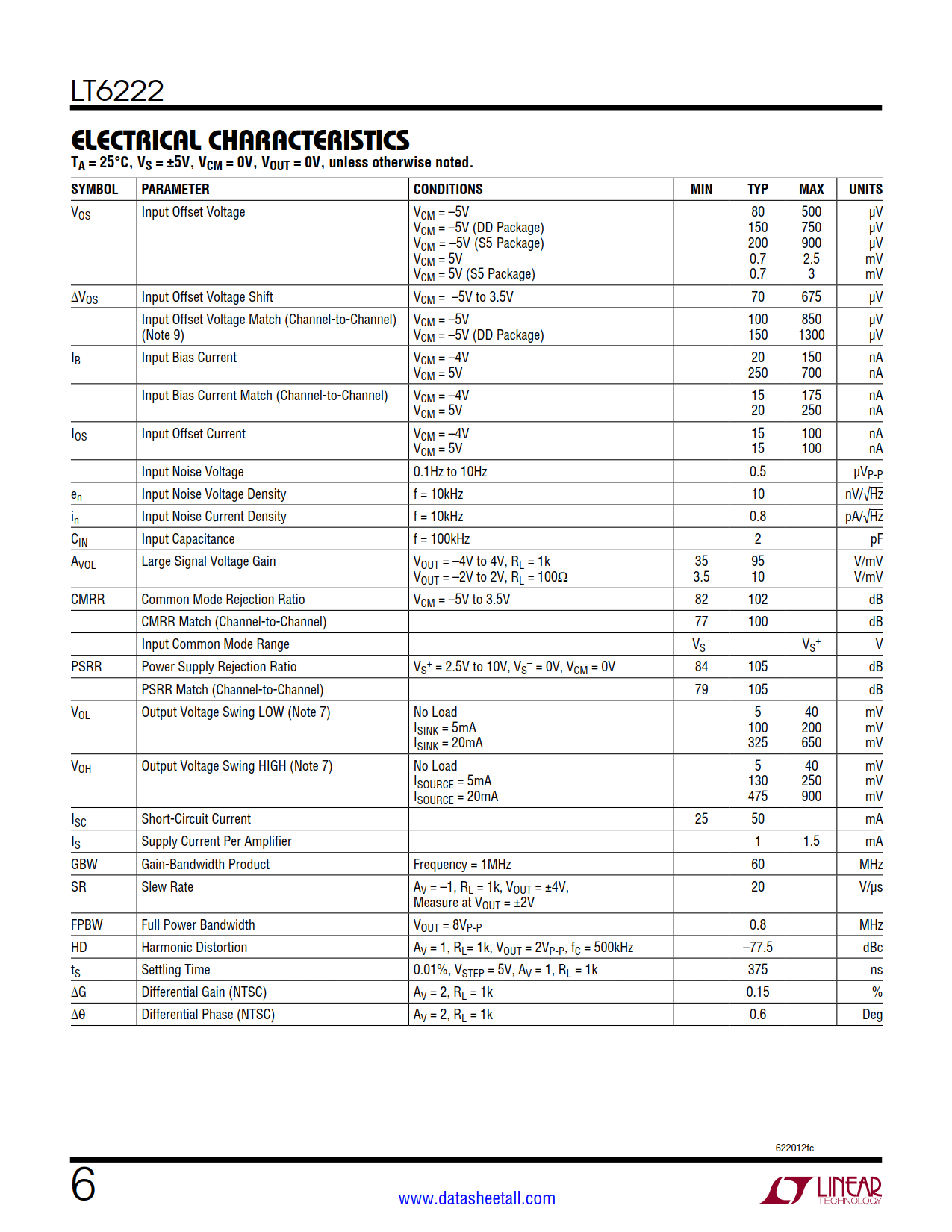

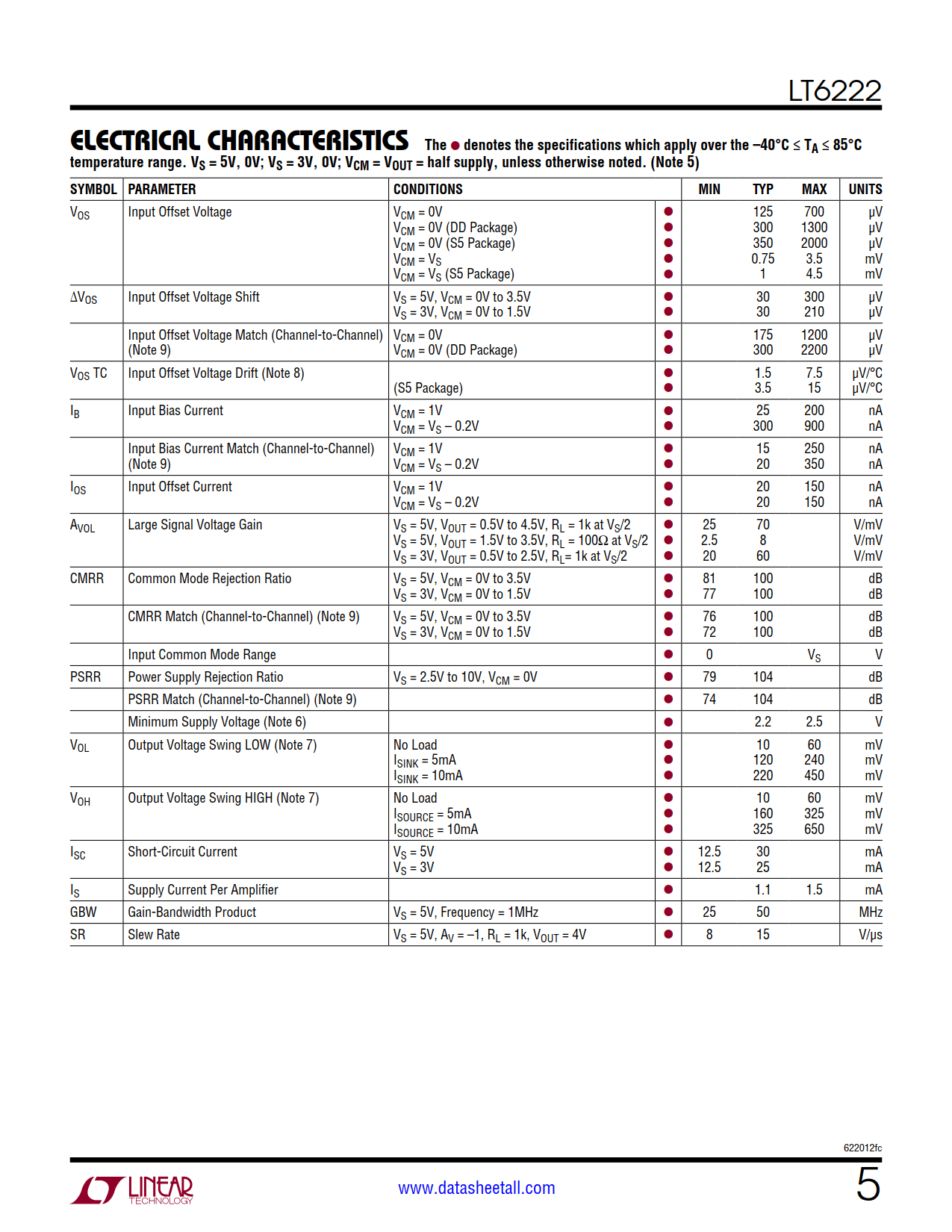

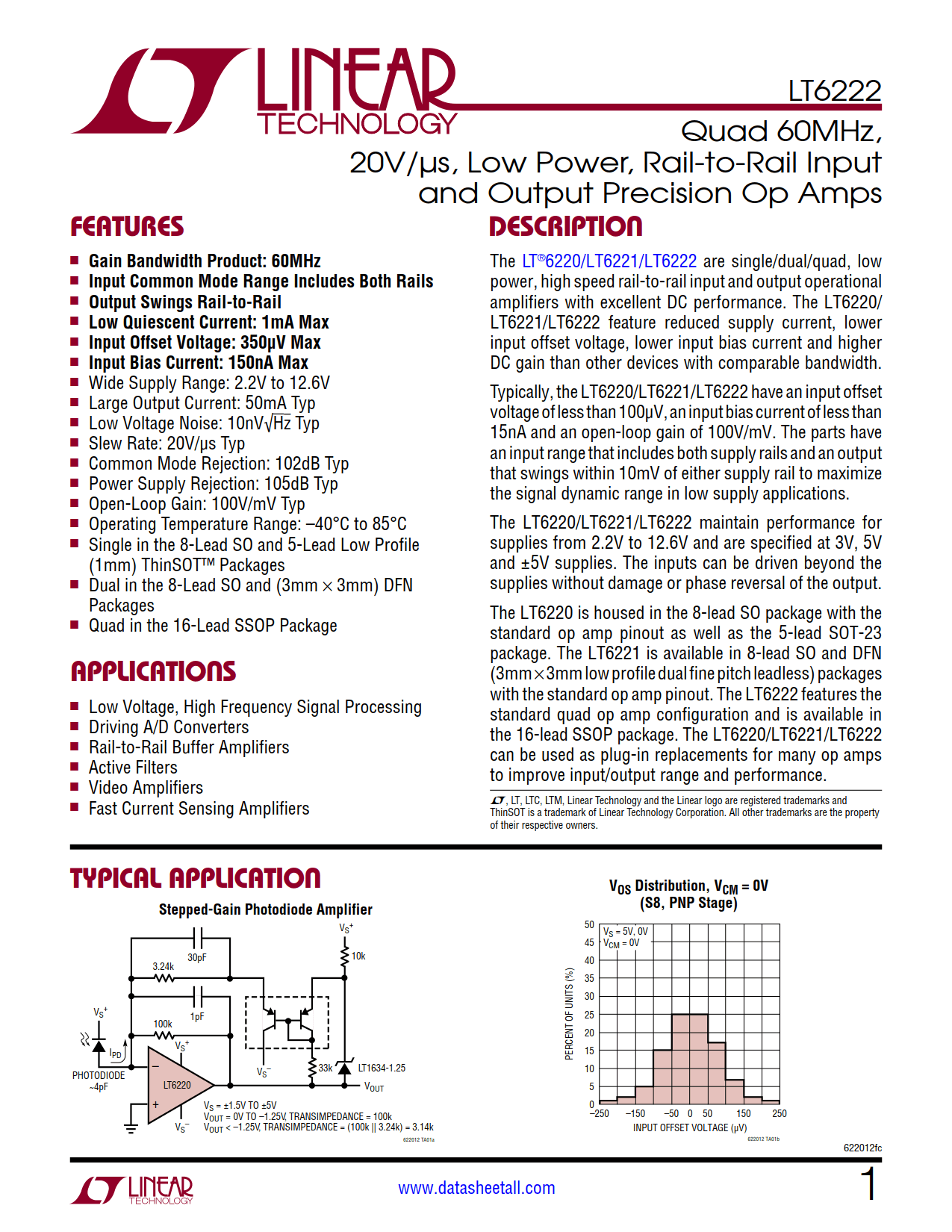

LT6222 Features

  • Gain Bandwidth Product: 60MHz
  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Quiescent Current: 1mA Max
  • Input Offset Voltage: 350μV Max
  • Input Bias Current: 150nA Max
  • Wide Supply Range: 2.2V to 12.6V
  • Large Output Current: 50mA Typ
  • Low Voltage Noise: 10nV√Hz Typ
  • Slew Rate: 20V/μs Typ
  • Common Mode Rejection: 102dB Typ
  • Power Supply Rejection: 105dB Typ
  • Open-Loop Gain: 100V/mV Typ
  • Operating Temperature Range: –40°C to 85°C
  • Quad in the 16-Lead SSOP Package

LT6222 Applications

  • Low Voltage, High Frequency Signal Processing
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers
  • Active Filters
  • Video Amplifiers
  • Fast Current Sensing Amplifiers

LT6222 Description

The LT6222 are quad, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT6222 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.

Typically, the LT6222 have an input offset voltage of less than 100μV, an input bias current of less than 15nA and an open-loop gain of 100V/mV. The parts have an input range that includes both supply rails and an output that swings within 10mV of either supply rail to maximize the signal dynamic range in low supply applications.

The LT6222 maintain performance for supplies from 2.2V to 12.6V and are specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

The LT6222 features the standard quad op amp configuration and is available in the 16-lead SSOP package. The LT6222 can be used as plug-in replacements for many op amps to improve input/output range and performance.
