| Part No.： | LT6203 |
| Page： | 28 Pages |
| Size： | 1540 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-20 10:37:51 |
| DataSheet： | Download |

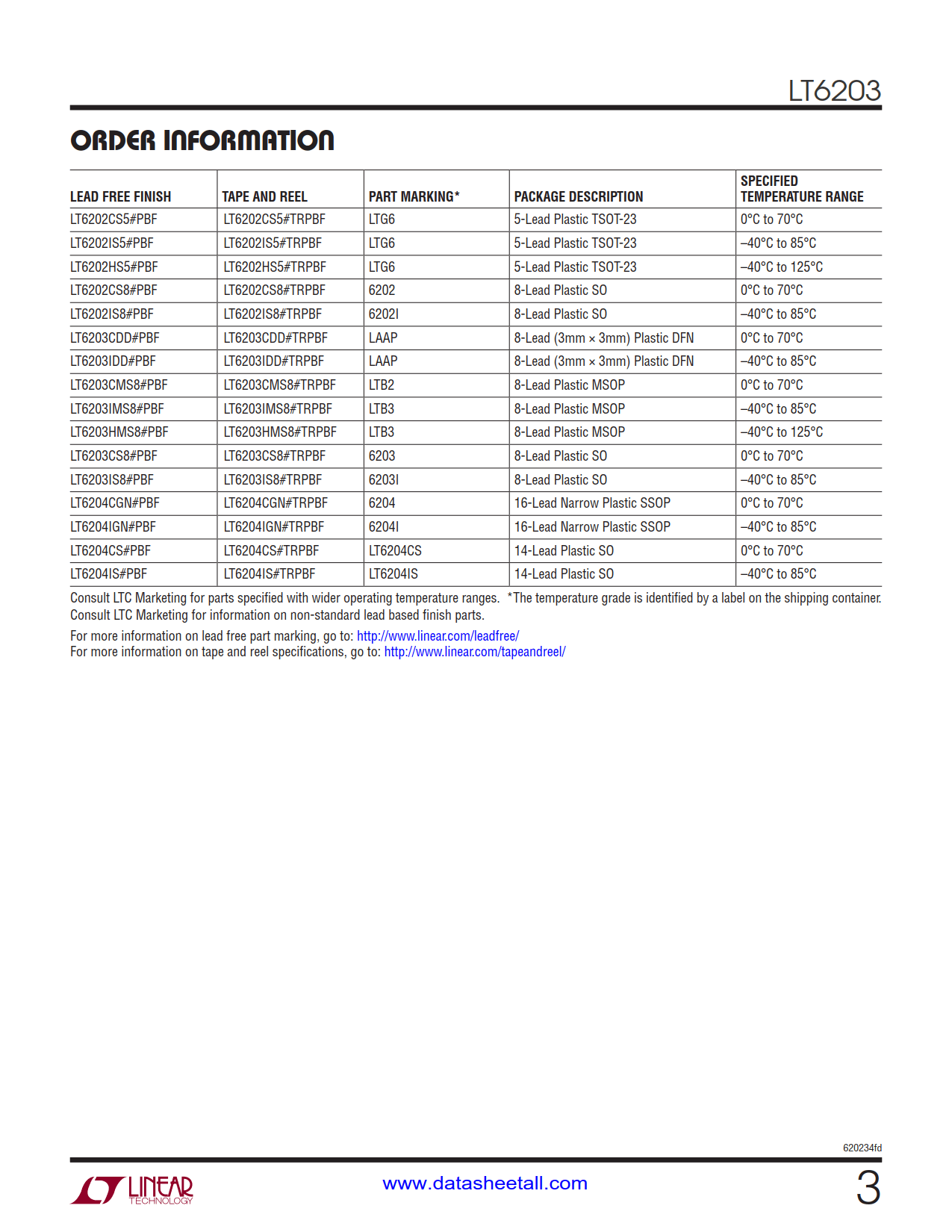

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6203CDD#PBF | Tube | 121 | LAAP | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203CDD#TRPBF | Reel | 2500 | LAAP | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203CDD#TRMPBF | Reel | 500 | LAAP | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203IDD#PBF | Tube | 121 | LAAP | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203IDD#TRPBF | Reel | 2500 | LAAP | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203IDD#TRMPBF | Reel | 500 | LAAP | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6203CMS8#PBF | Tube | 50 | LTB2 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LT6203CMS8#TRPBF | Reel | 2500 | LTB2 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LT6203CMS8#TRMPBF | Reel | 500 | LTB2 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LT6203IMS8#PBF | Tube | 50 | LTB3 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LT6203IMS8#TRPBF | Reel | 2500 | LTB3 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LT6203IMS8#TRMPBF | Reel | 500 | LTB3 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LT6203HMS8#PBF | Tube | 50 | LTB3 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LT6203HMS8#TRPBF | Reel | 2500 | LTB3 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LT6203HMS8#TRMPBF | Reel | 500 | LTB3 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LT6203CS8#PBF | Tube | 100 | 6203 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6203CS8#TRPBF | Reel | 2500 | 6203 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6203CS8#TRMPBF | Reel | 500 | 6203 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6203IS8#PBF | Tube | 100 | 6203I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT6203IS8#TRPBF | Reel | 2500 | 6203I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT6203IS8#TRMPBF | Reel | 500 | 6203I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO |

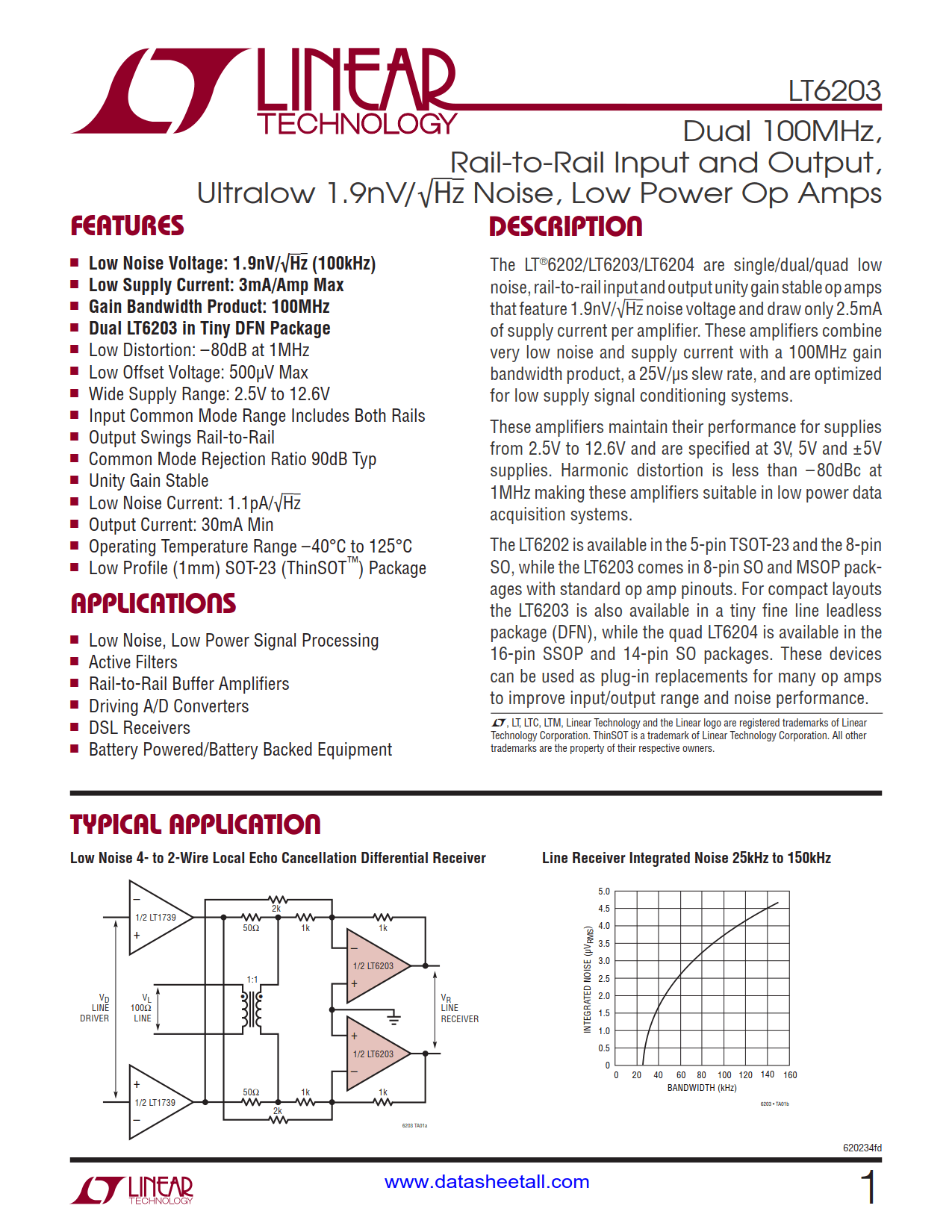

The LT6203 is dual low noise, rail-to-rail input and output unity gain stable op amps that feature 1.9nV/√Hz noise voltage and draw only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/μs slew rate, and are optimized for low supply signal conditioning systems.
The LT6203 amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than – 80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.

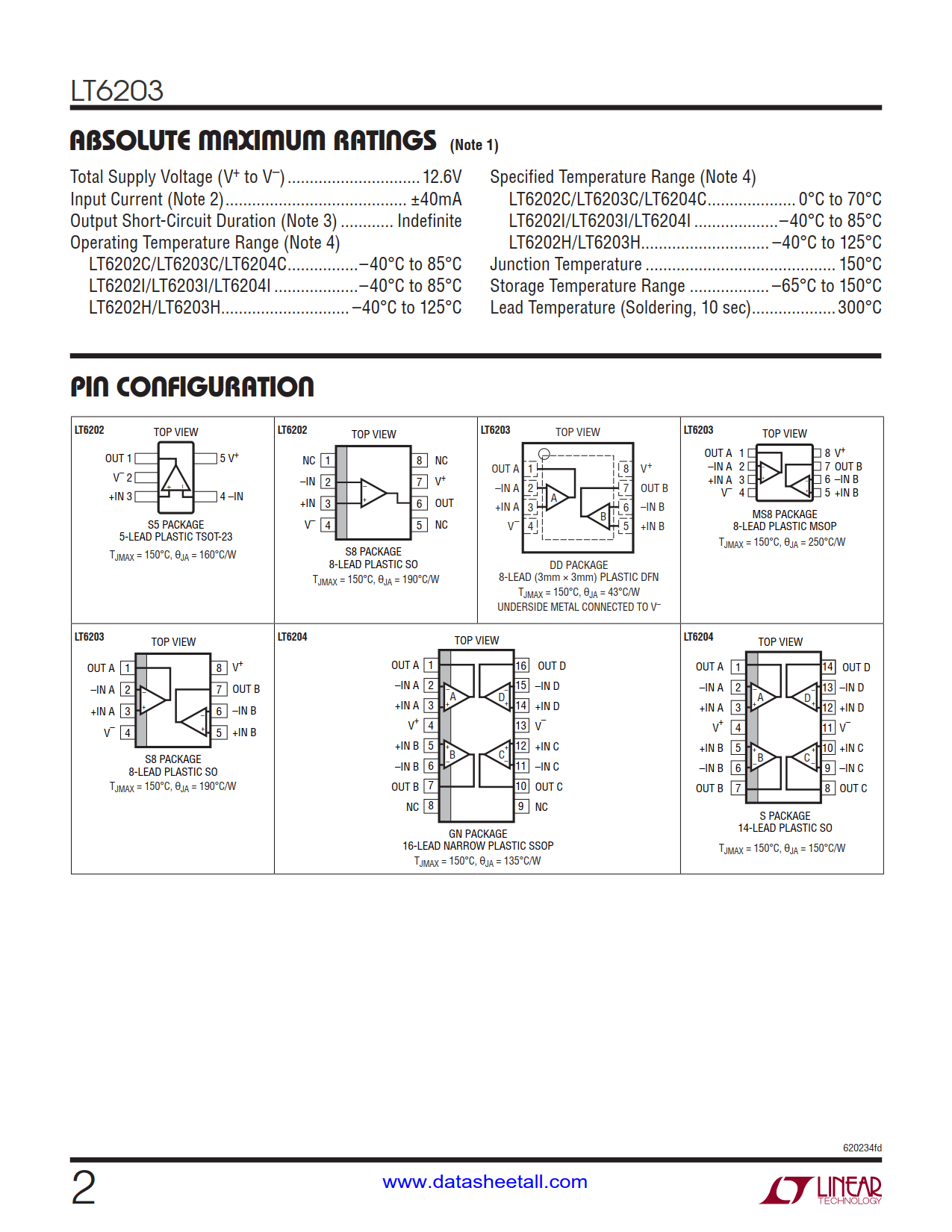

The LT6203 comes in 8-pin SO and MSOP packages with standard op amp pinouts. For compact layouts the LT6203 is also available in a tiny fine line leadless package (DFN). The LT6203 devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.
