| Part No.： | LT6202 |
| Page： | 28 Pages |
| Size： | 1539 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-20 10:34:43 |
| DataSheet： | Download |

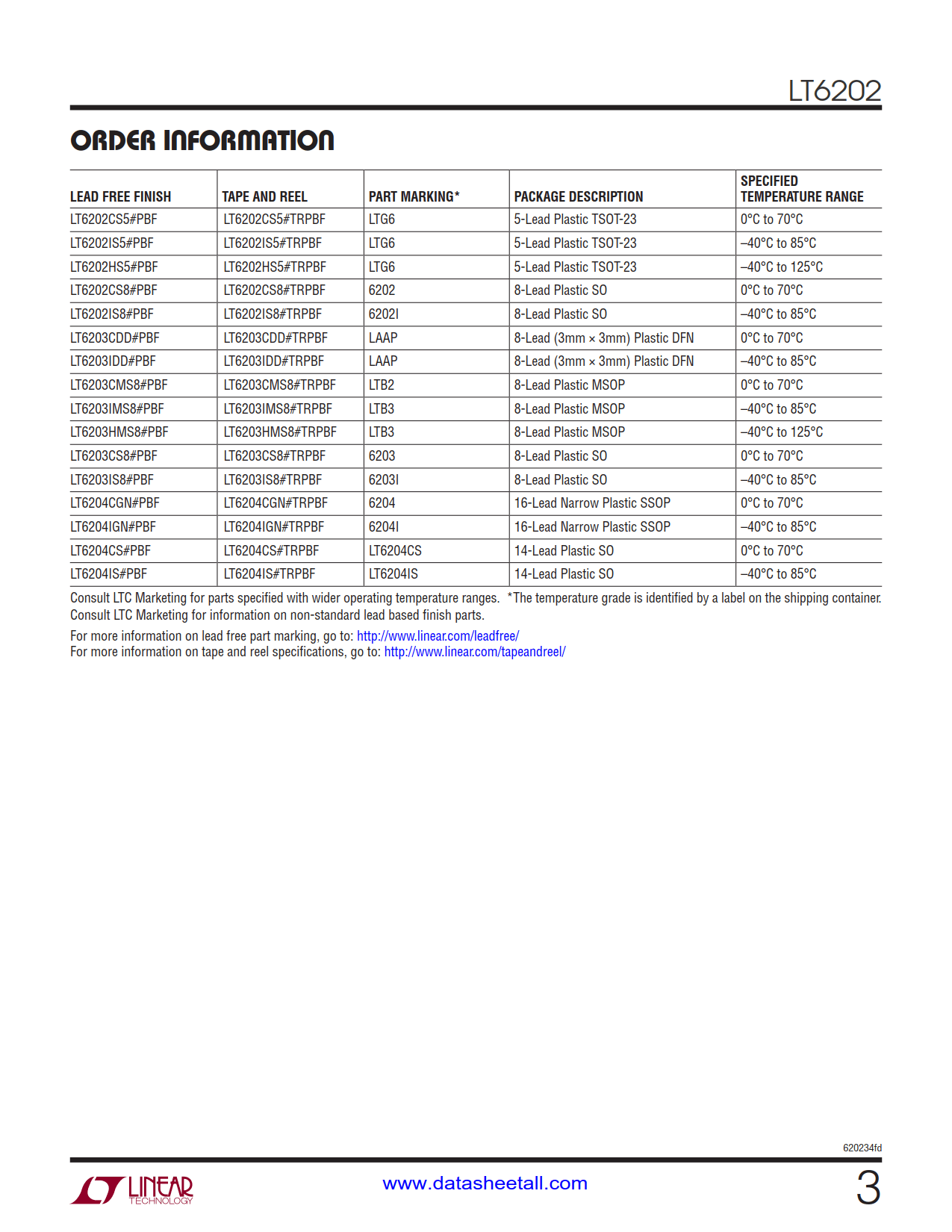

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6202CS8#PBF | Tube | LTG6 | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic TSOT-23 | ||
| LT6202CS5#TRPBF | Reel | 2500 | LTG6 | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic TSOT-23 | |
| LT6202CS5#TRMPBF | Reel | 500 | LTG6 | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic TSOT-23 | |
| LT6202IS5#PBF | Tube | LTG6 | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | ||
| LT6202IS5#TRPBF | Reel | 2500 | LTG6 | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | |
| LT6202IS5#TRMPBF | Reel | 500 | LTG6 | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | |
| LT6202HS5#PBF | Tube | LTG6 | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | ||
| LT6202HS5#TRPBF | Reel | 2500 | LTG6 | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | |
| LT6202HS5#TRMPBF | Reel | 500 | LTG6 | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | |
| LT6202CS8#PBF | Tube | 100 | 6202 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6202CS8#TRPBF | Reel | 2500 | 6202 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6202CS8#TRMPBF | Reel | 500 | 6202 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT6202IS8#PBF | Tube | 100 | 6202I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT6202IS8#TRPBF | Reel | 2500 | 6202I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT6202IS8#TRMPBF | Reel | 500 | 6202I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO |

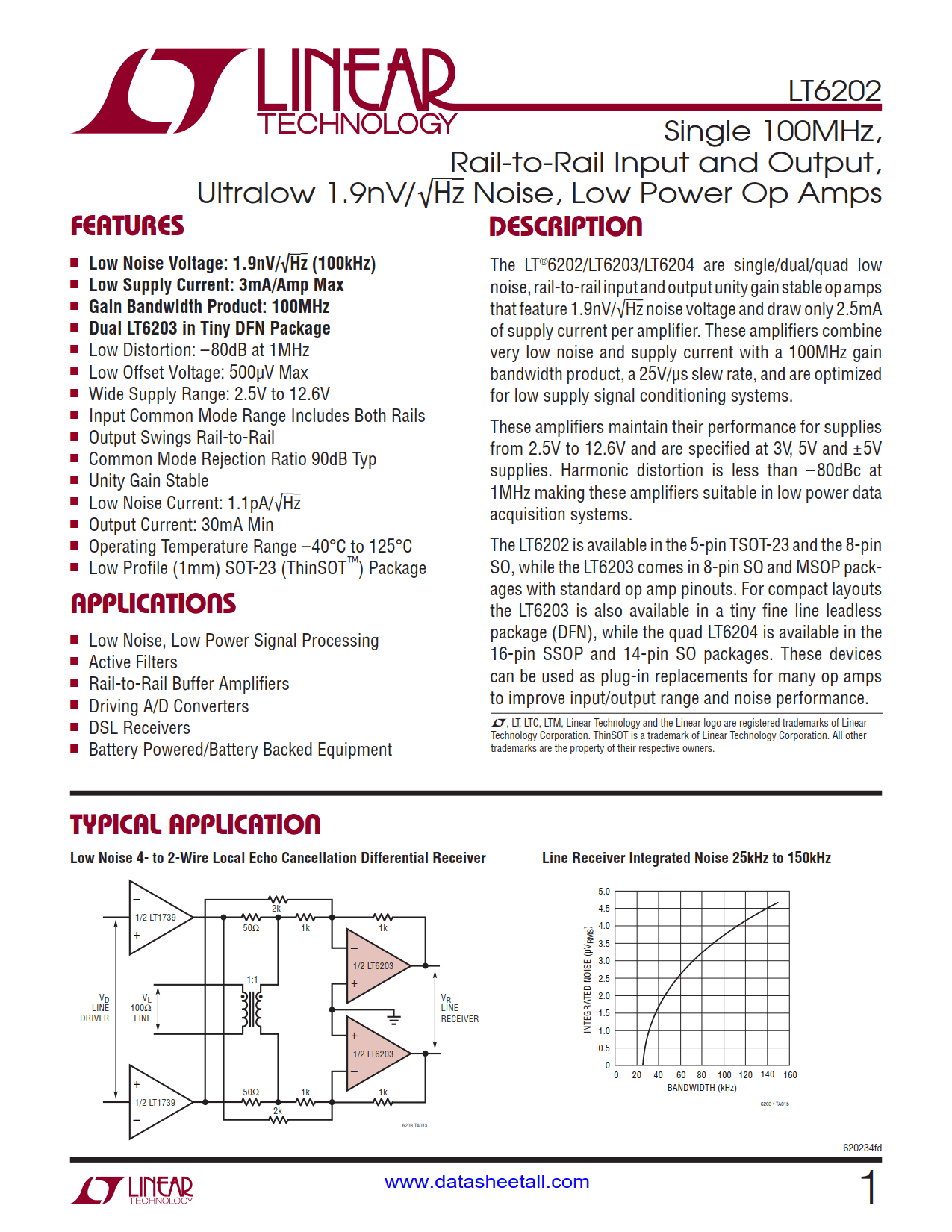

The LT6202 is single low noise, rail-to-rail input and output unity gain stable op amps that feature 1.9nV/√Hz noise voltage and draw only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/μs slew rate, and are optimized for low supply signal conditioning systems.
The LT6202 amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than – 80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.

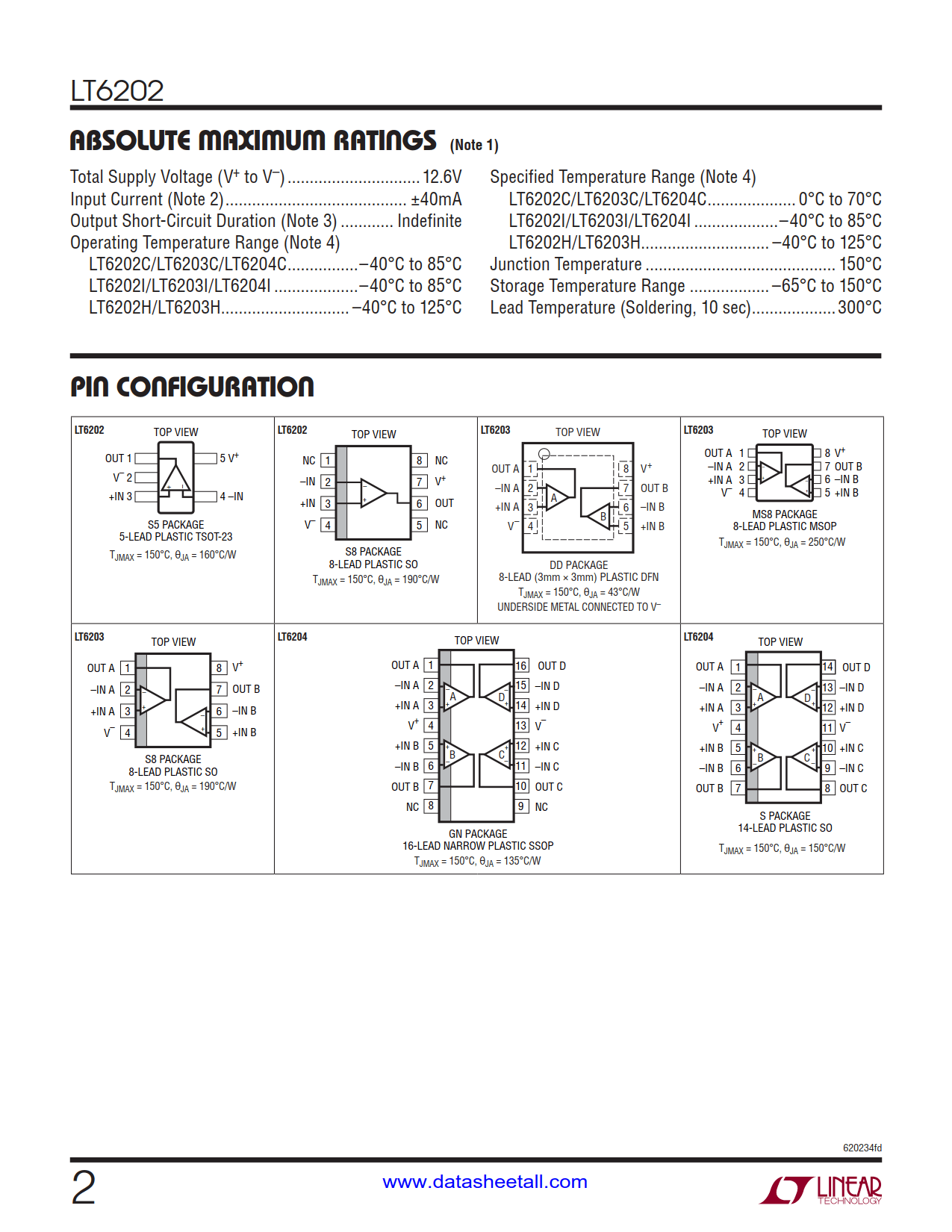

The LT6202 is available in the 5-pin TSOT-23 and the 8-pin SO packages. The LT6202 devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.
