LT6017 Datasheet

LT6017 Datasheet

Quad 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp
Part No.: LT6017
Page: 22 Pages
Size: 955 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-22 11:08:57
DataSheet: Download

LT6017 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6017IDJC#PBF Tube 61 6017 1 22 -40°C ~ 85°C 22-Lead Plastic DFN
LT6017IDJC#TRPBF Reel 2500 6017 1 22 -40°C ~ 85°C 22-Lead Plastic DFN
LT6017IDJC#TRMPBF Reel 500 6017 1 22 -40°C ~ 85°C 22-Lead Plastic DFN
LT6017HDJC#PBF Tube 61 6017 1 22 -40°C ~ 125°C 22-Lead Plastic DFN
LT6017HDJC#TRPBF Reel 2500 6017 1 22 -40°C ~ 125°C 22-Lead Plastic DFN
LT6017HDJC#TRMPBF Reel 500 6017 1 22 -40°C ~ 125°C 22-Lead Plastic DFN
LT6017MPDJC#PBF Tube 61 6017 1 22 -55°C ~ 150°C 22-Lead Plastic DFN
LT6017MPDJC#TRPBF Reel 2500 6017 1 22 -55°C ~ 150°C 22-Lead Plastic DFN
LT6017MPDJC#TRMPBF Reel 500 6017 1 22 -55°C ~ 150°C 22-Lead Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

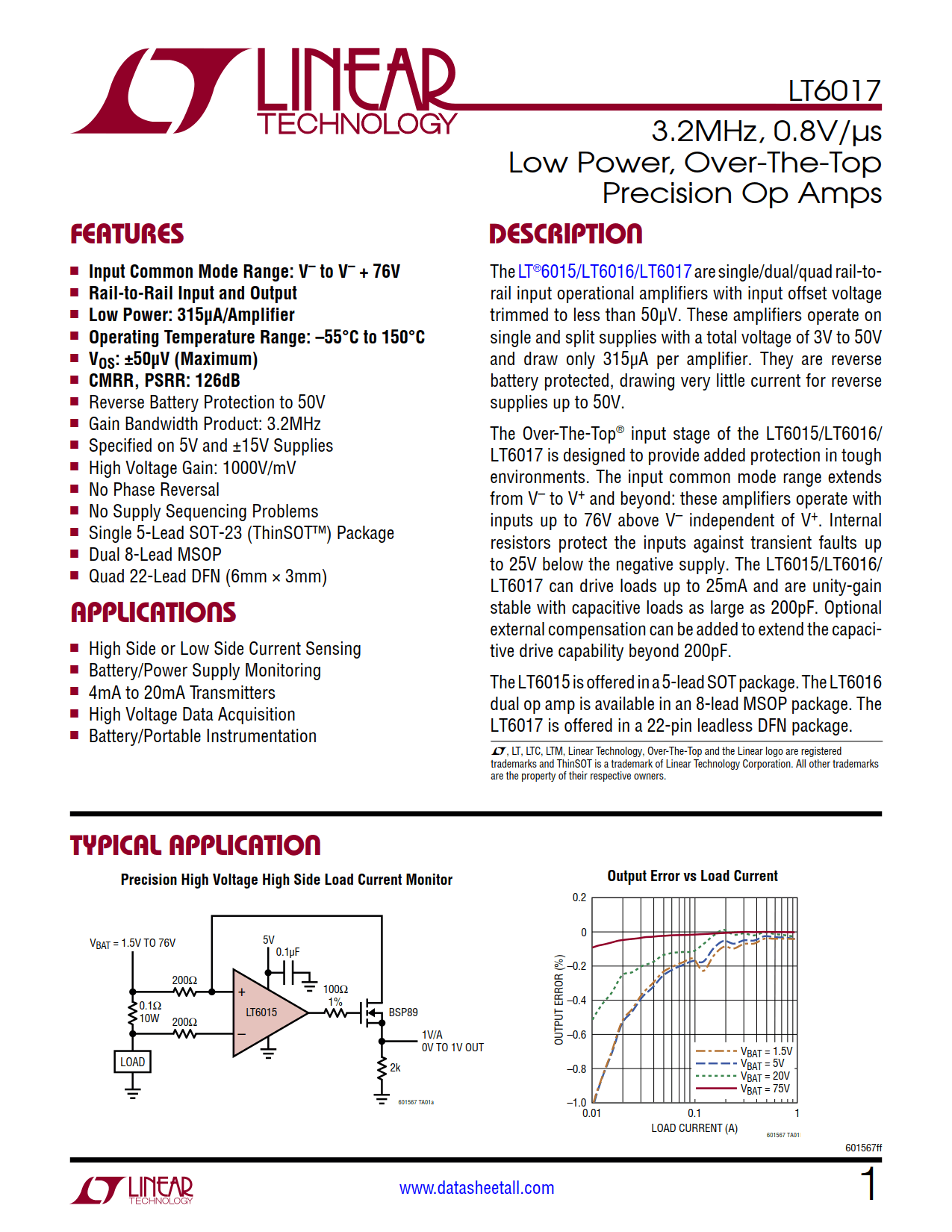

LT6017 Datasheet(PDF)

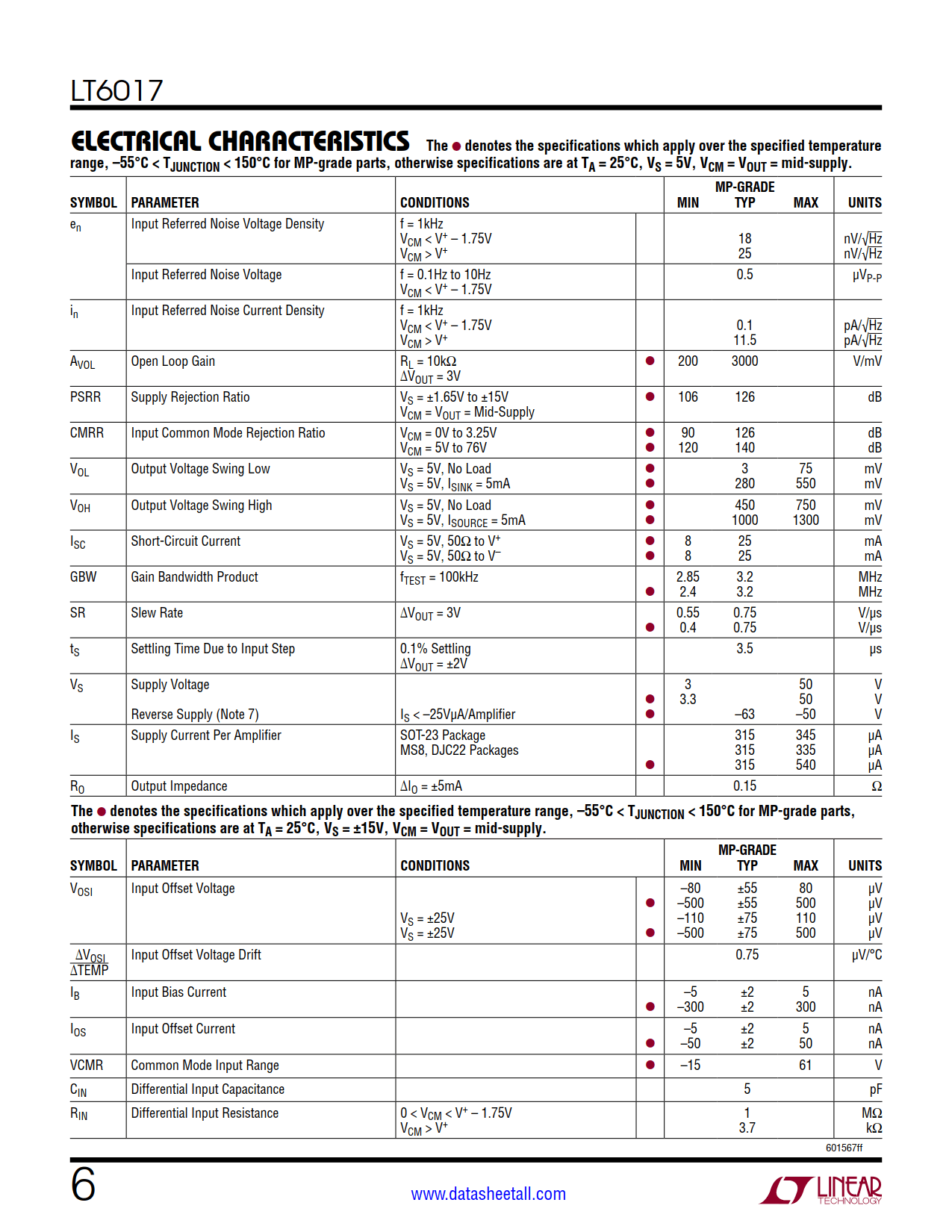

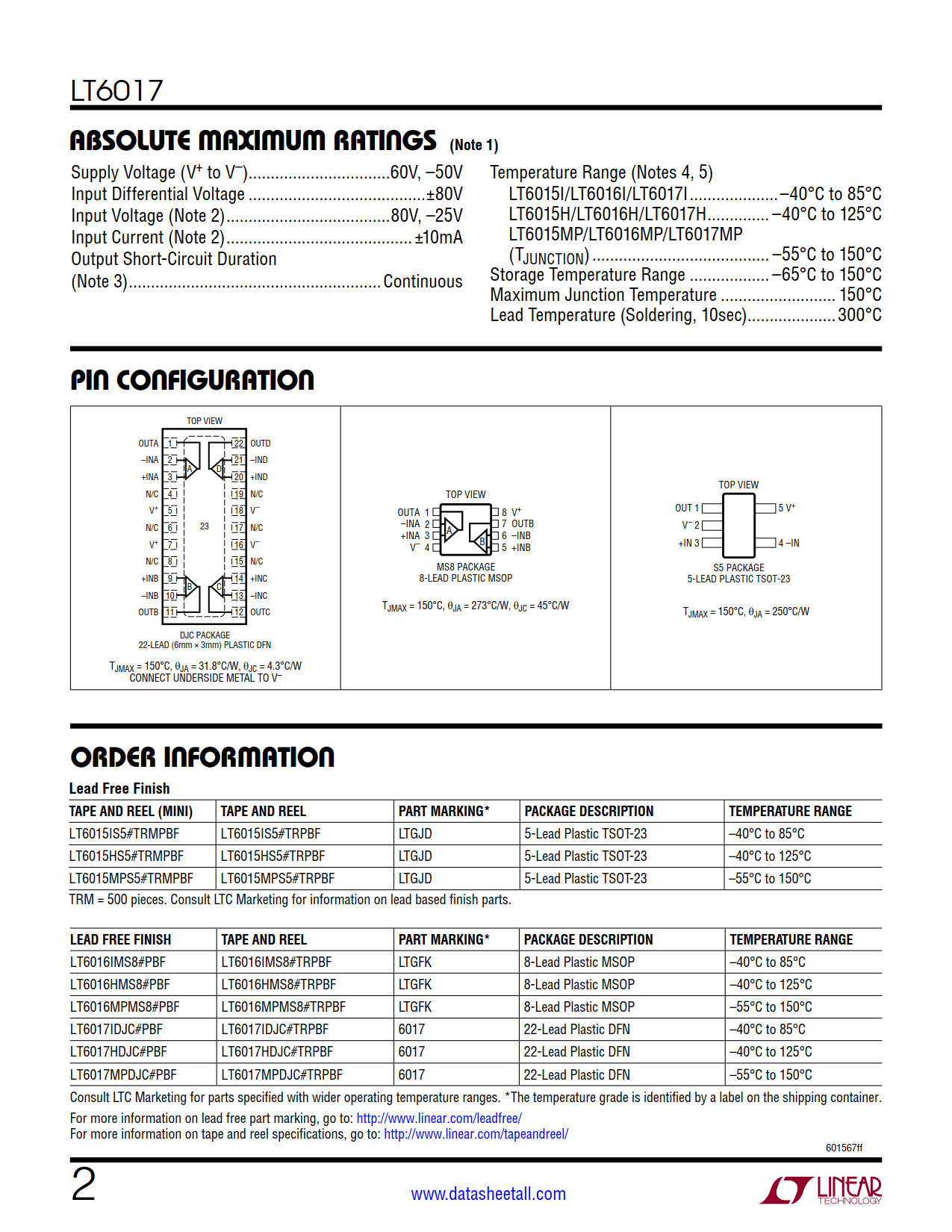

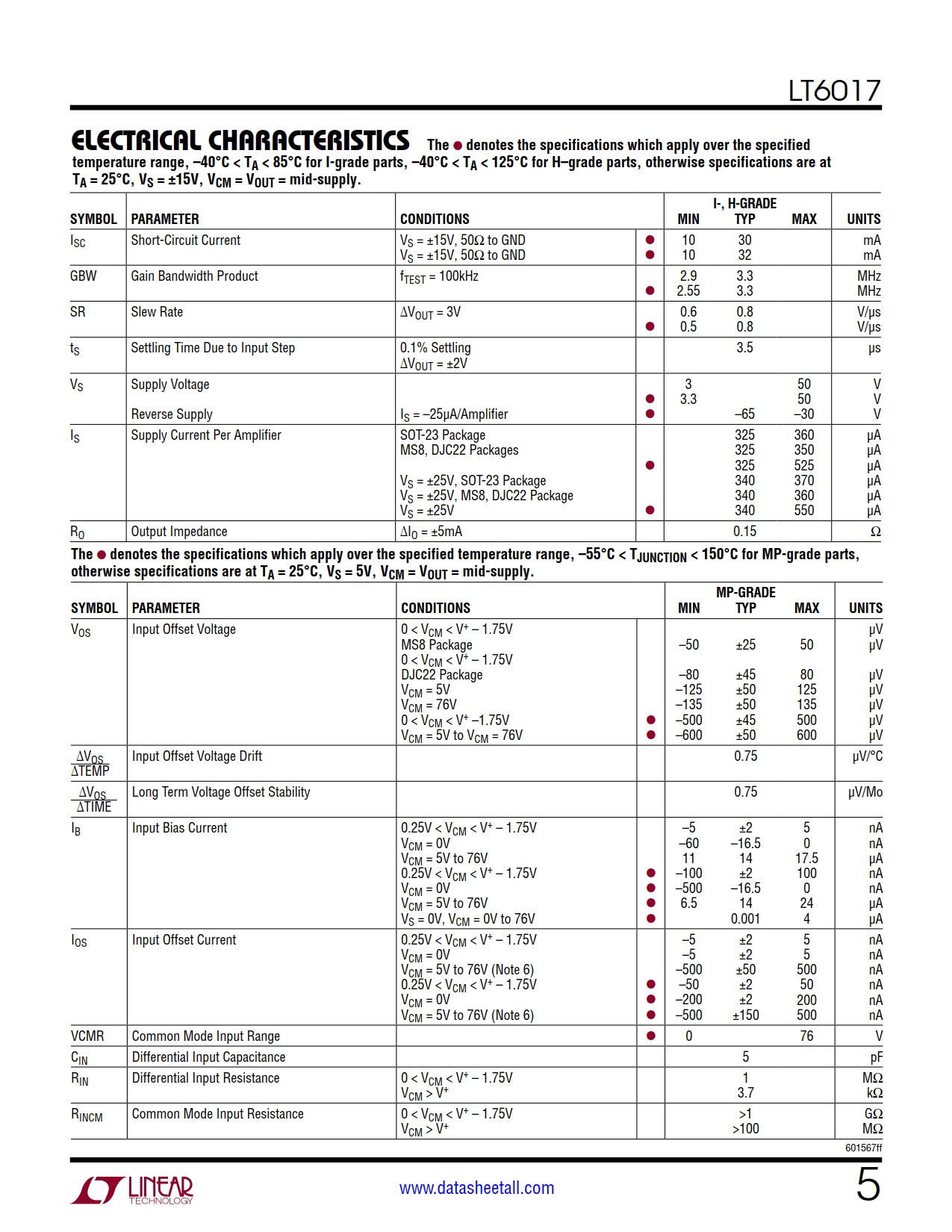

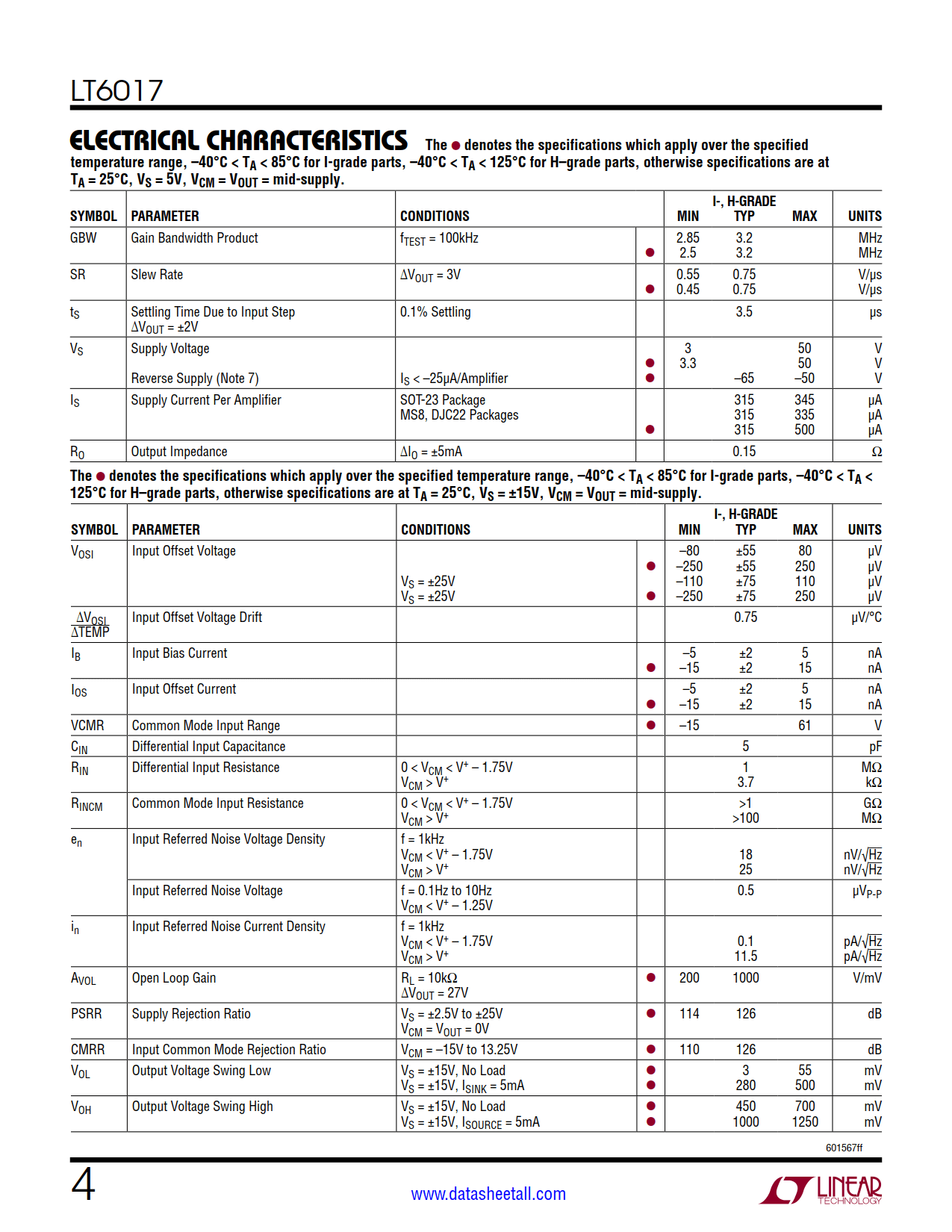

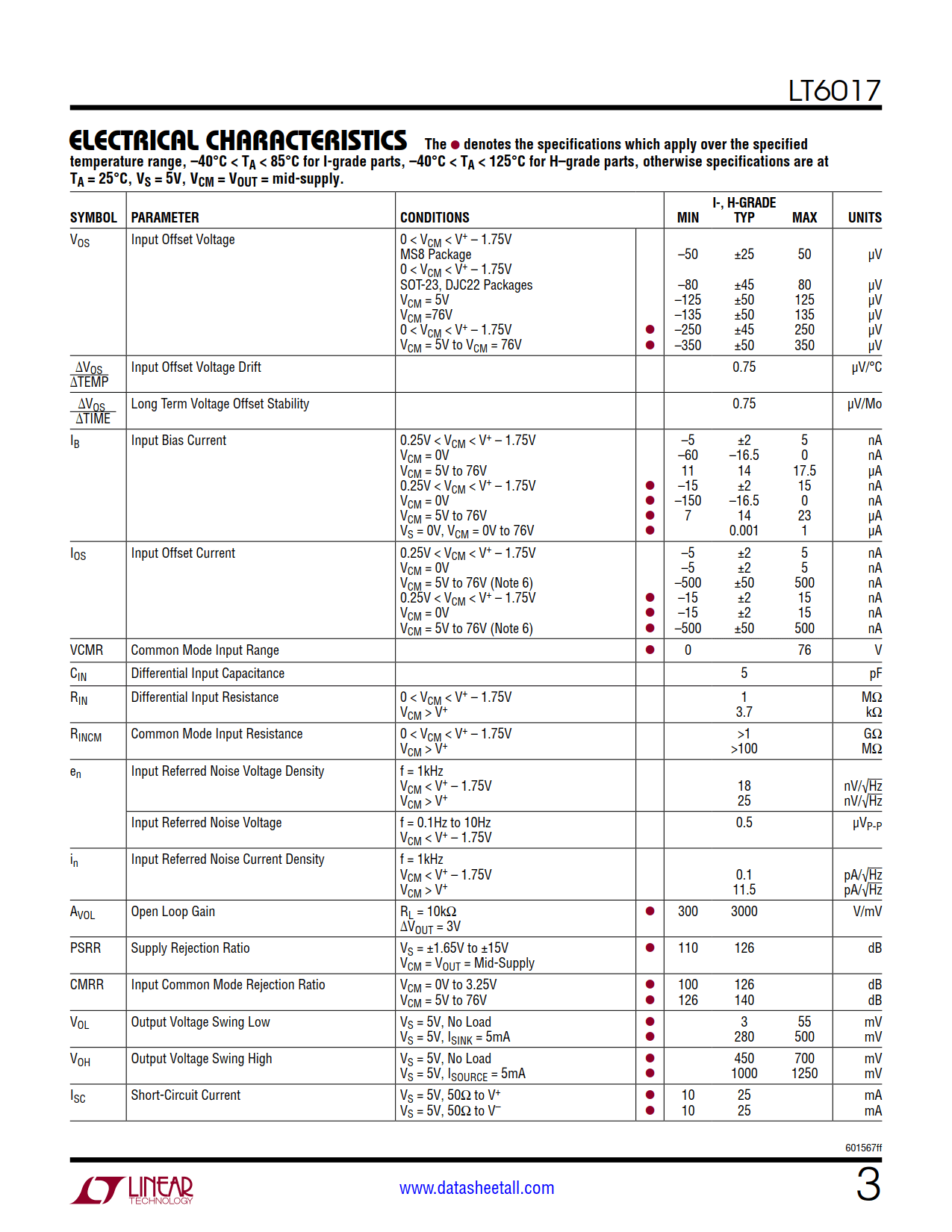

LT6017 Datasheet(Picture)

LT6017 Features

  • Input Common Mode Range: V to V + 76V
  • Rail-to-Rail Input and Output
  • Low Power: 315μA/Amplifier
  • Operating Temperature Range: –55°C to 150°C
  • VOS: ±50μV (Maximum)
  • CMRR, PSRR: 126dB
  • Reverse Battery Protection to 50V
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV
  • No Phase Reversal
  • No Supply Sequencing Problems
  • Quad 22-Lead DFN (6mm × 3mm)

LT6017 Applications

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation

LT6017 Description

The LT6017 are quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.

The Over-The-Top® input stage of the LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V to V+ and beyond: these amplifiers operate with inputs up to 76V above V independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.

The LT6017 is offered in a 22-pin leadless DFN package.
