LT6016 Datasheet

LT6016 Datasheet

Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp
Part No.: LT6016
Page: 22 Pages
Size: 955 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-22 11:02:49
DataSheet: Download

LT6016 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6016IMS8#PBF Tube 50 LTGFK 1 5 -40°C ~ 85°C 8-Lead Plastic MSOP
LT6016IMS8#TRPBF Reel 2500 LTGFK 1 5 -40°C ~ 85°C 8-Lead Plastic MSOP
LT6016IMS8#TRMPBF Reel 500 LTGFK 1 5 -40°C ~ 85°C 8-Lead Plastic MSOP
LT6016HMS8#PBF Tube 50 LTGFK 1 5 -40°C ~ 125°C 8-Lead Plastic MSOP
LT6016HMS8#TRPBF Reel 2500 LTGFK 1 5 -40°C ~ 125°C 8-Lead Plastic MSOP
LT6016HMS8#TRMPBF Reel 500 LTGFK 1 5 -40°C ~ 125°C 8-Lead Plastic MSOP
LT6016MPMS8#PBF Tube 50 LTGFK 1 5 -55°C ~ 150°C 8-Lead Plastic MSOP
LT6016MPMS8#TRPBF Reel 2500 LTGFK 1 5 -55°C ~ 150°C 8-Lead Plastic MSOP
LT6016MPMS8#TRMPBF Reel 500 LTGFK 1 5 -55°C ~ 150°C 8-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6016 Datasheet(PDF)

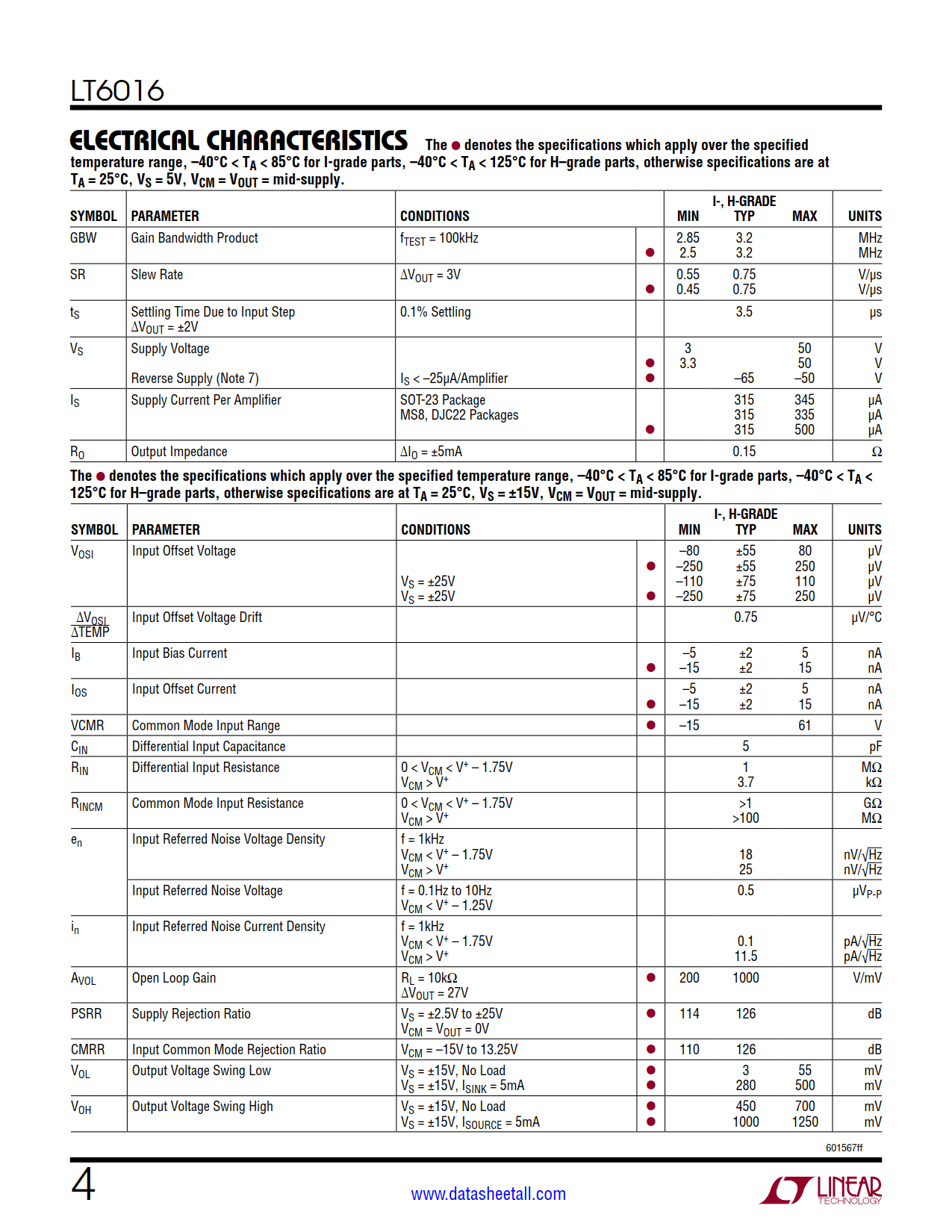

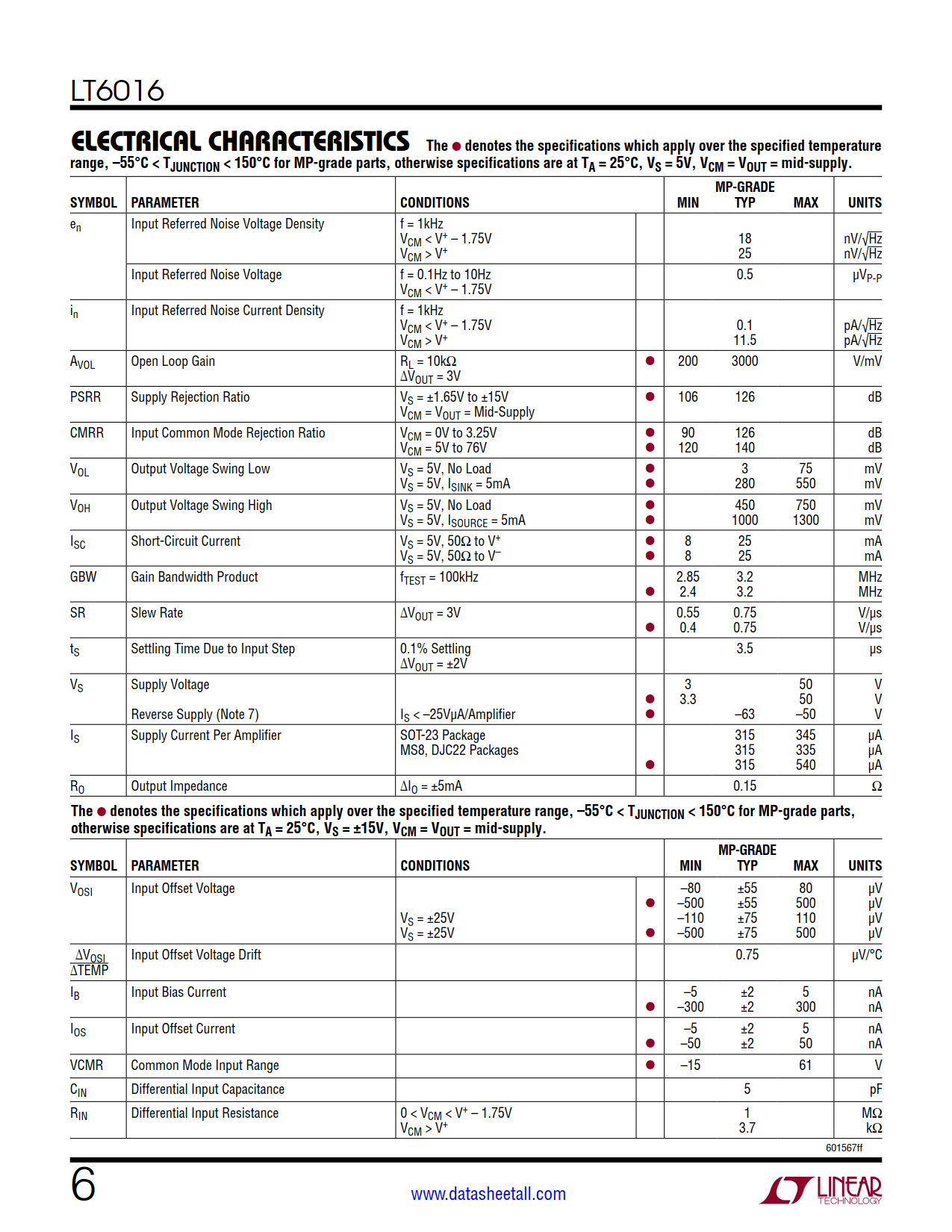

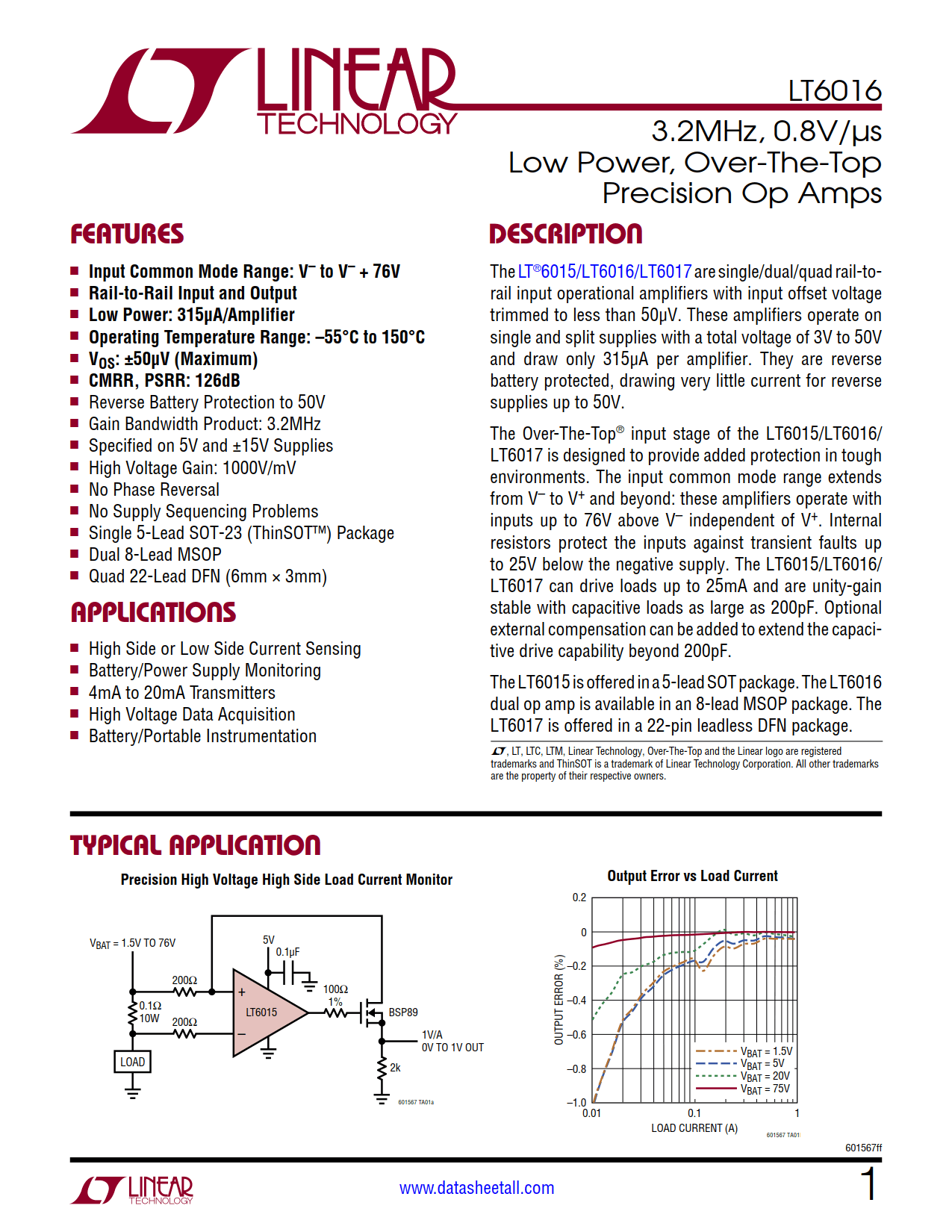

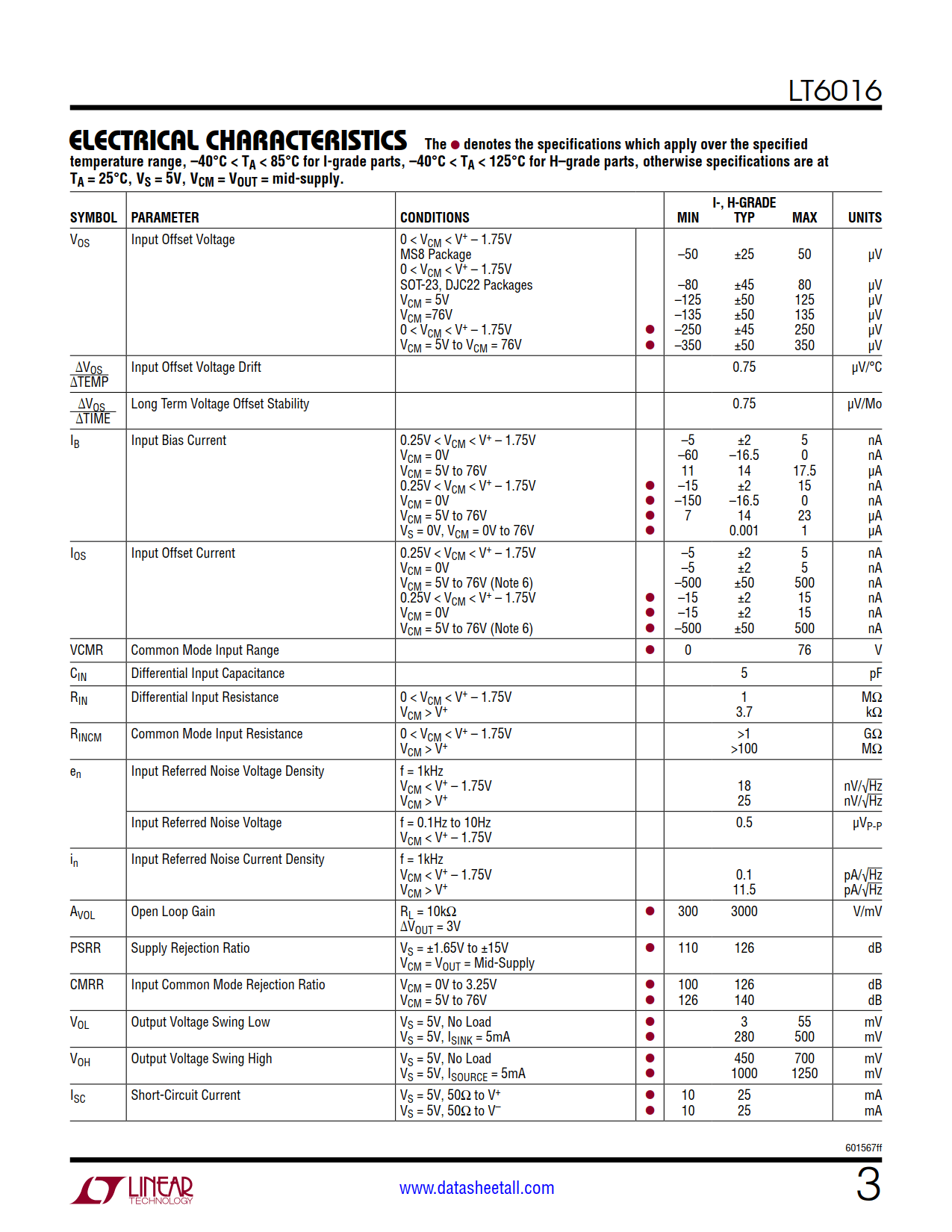

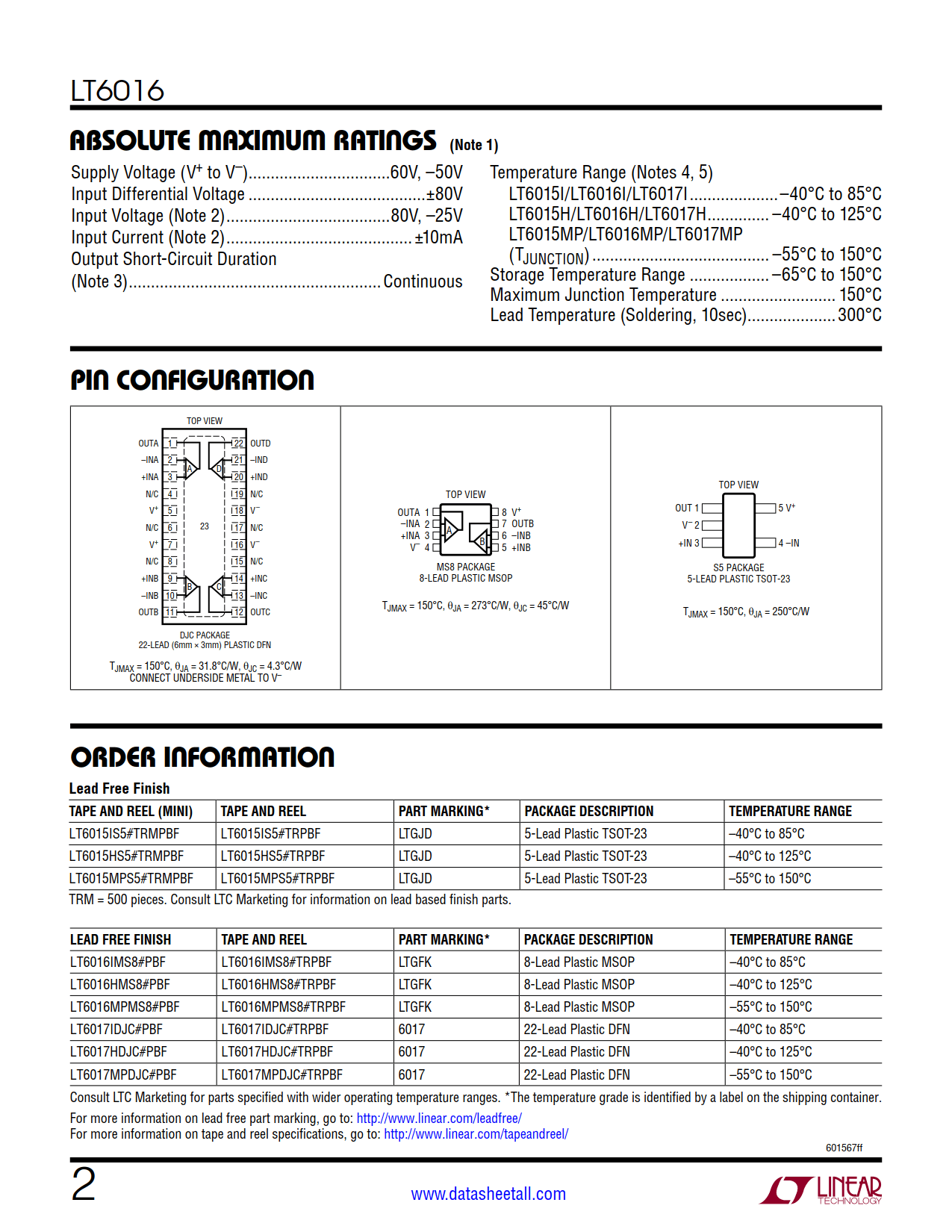

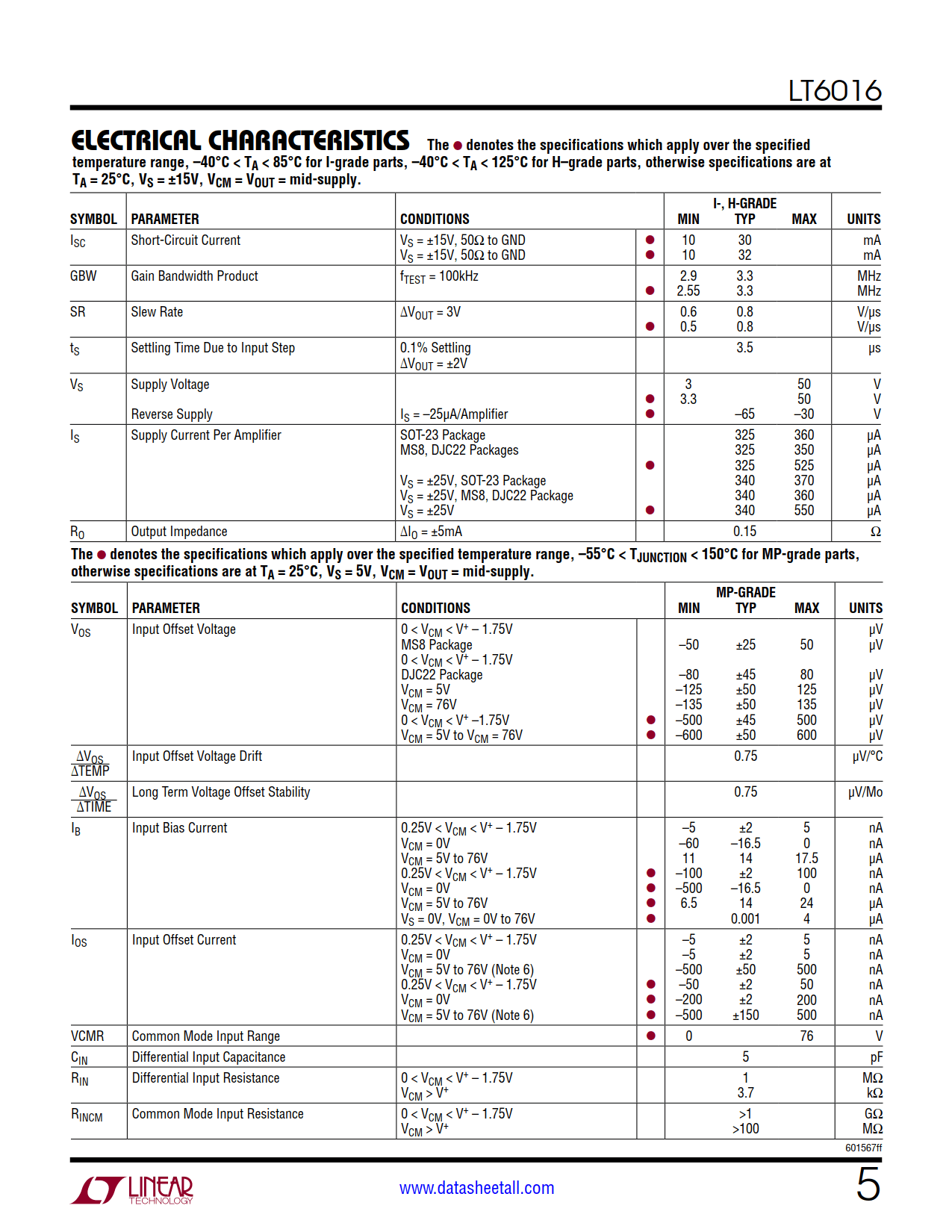

LT6016 Datasheet(Picture)

LT6016 Features

  • Input Common Mode Range: V to V + 76V
  • Rail-to-Rail Input and Output
  • Low Power: 315μA/Amplifier
  • Operating Temperature Range: –55°C to 150°C
  • VOS: ±50μV (Maximum)
  • CMRR, PSRR: 126dB
  • Reverse Battery Protection to 50V
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV
  • No Phase Reversal
  • No Supply Sequencing Problems
  • Dual 8-Lead MSOP

LT6016 Applications

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation

LT6016 Description

The LT6016 are dual rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.

The Over-The-Top® input stage of the LT6016 is designed to provide added protection in tough environments. The input common mode range extends from V to V+ and beyond: these amplifiers operate with inputs up to 76V above V independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6016 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.

The LT6016 dual op amp is available in an 8-lead MSOP package.
