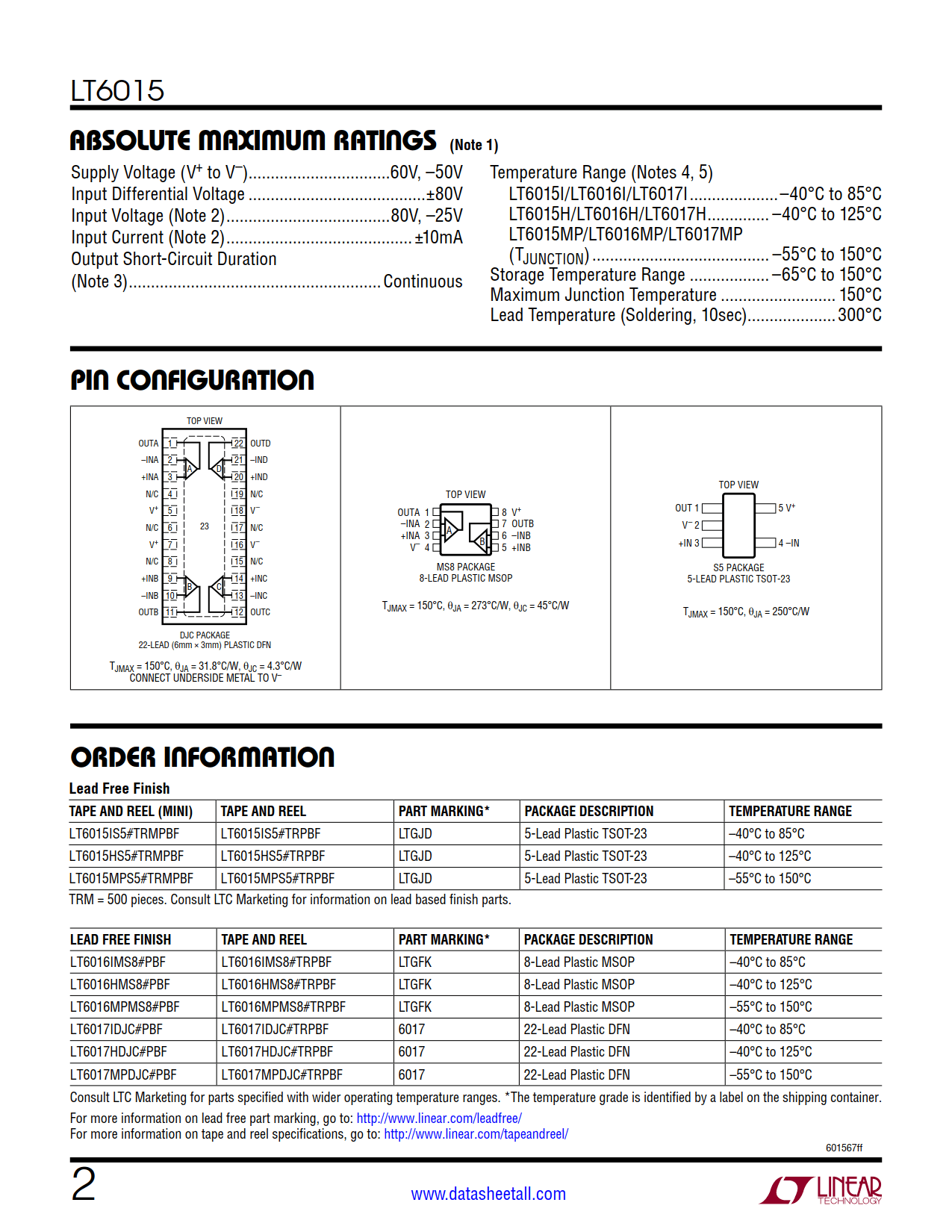

| Part No.： | LT6015 |
| Page： | 22 Pages |
| Size： | 955 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-22 10:54:23 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6015IS5#PBF | Tube | LTGJD | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | ||
| LT6015IS5#TRPBF | Reel | 2500 | LTGJD | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | |
| LT6015IS5#TRMPBF | Reel | 500 | LTGJD | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | |
| LT6015HS5#PBF | Tube | LTGJD | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | ||
| LT6015HS5#TRPBF | Reel | 2500 | LTGJD | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | |
| LT6015HS5#TRMPBF | Reel | 500 | LTGJD | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic TSOT-23 | |
| LT6015MPS5#PBF | Tube | LTGJD | 1 | 5 | -55°C ~ 150°C | 5-Lead Plastic TSOT-23 | ||
| LT6015MPS5#TRPBF | Reel | 2500 | LTGJD | 1 | 5 | -55°C ~ 150°C | 5-Lead Plastic TSOT-23 | |
| LT6015MPS5#TRMPBF | Reel | 500 | LTGJD | 1 | 5 | -55°C ~ 150°C | 5-Lead Plastic TSOT-23 |

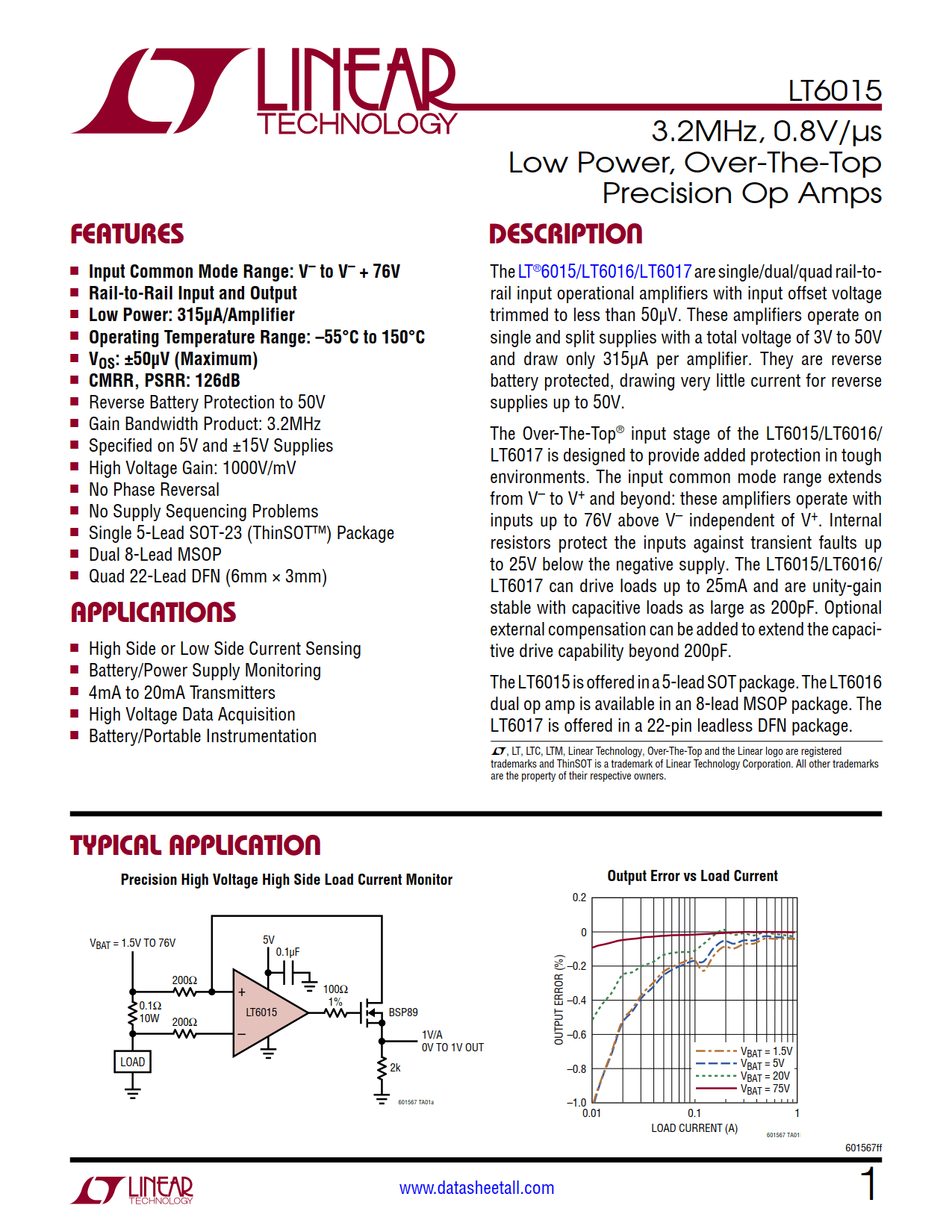

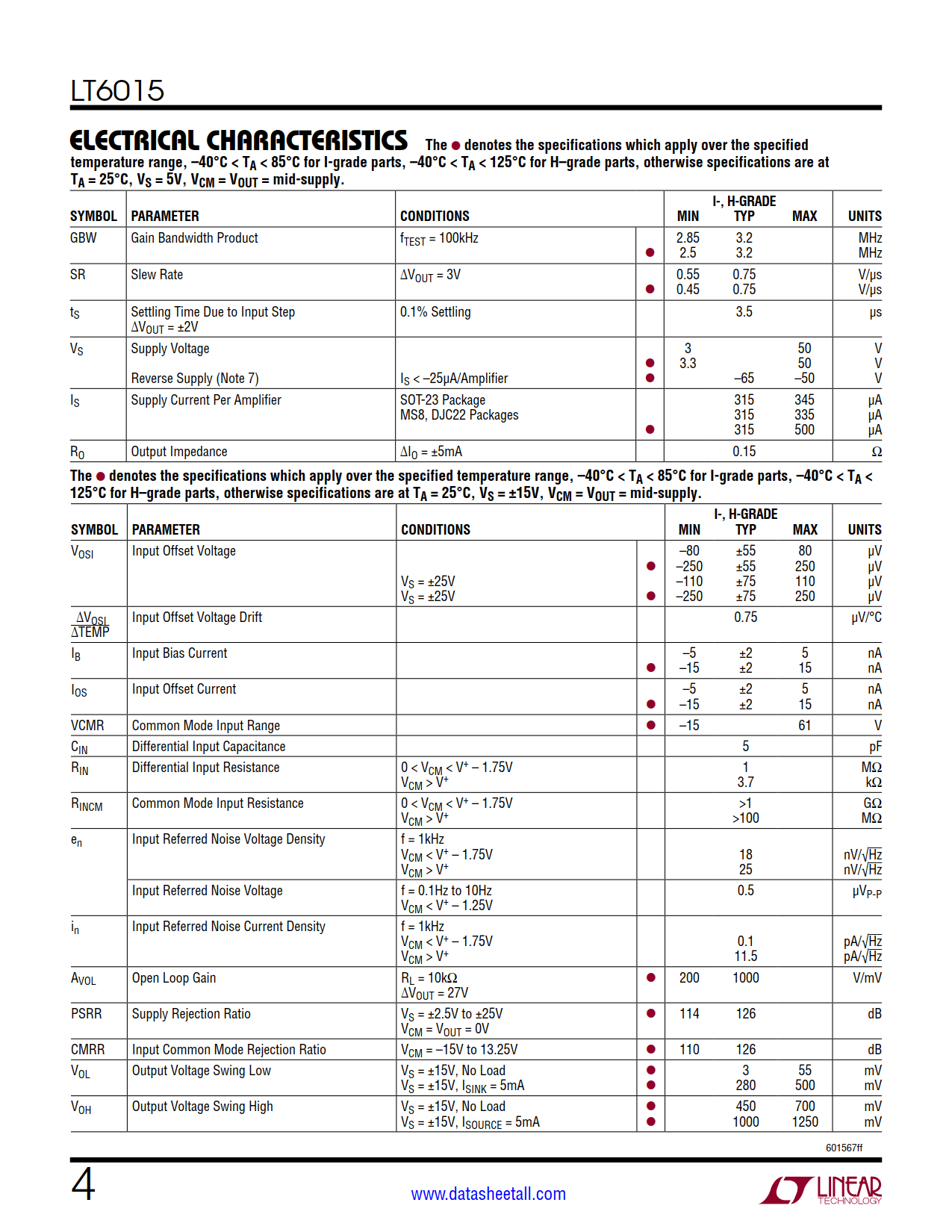

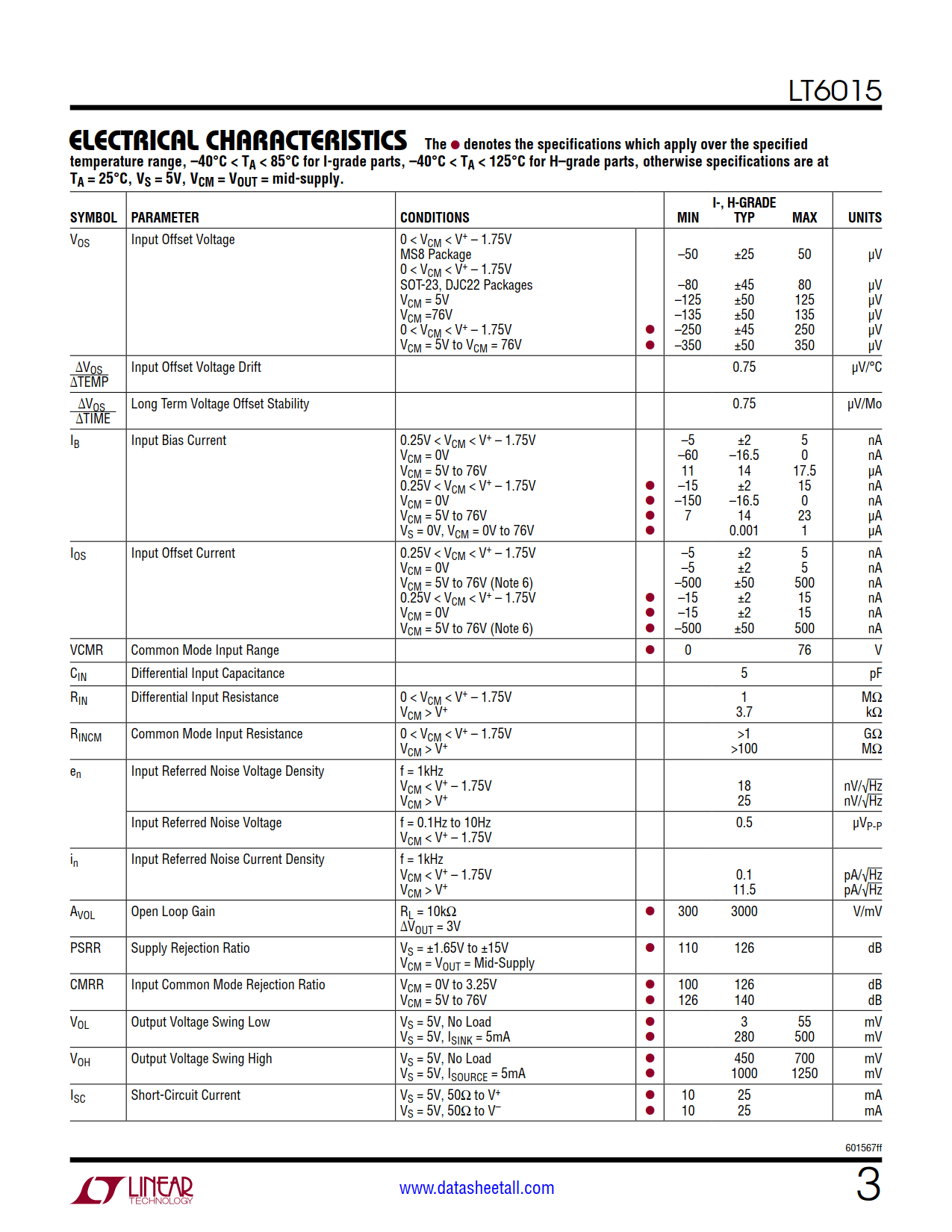

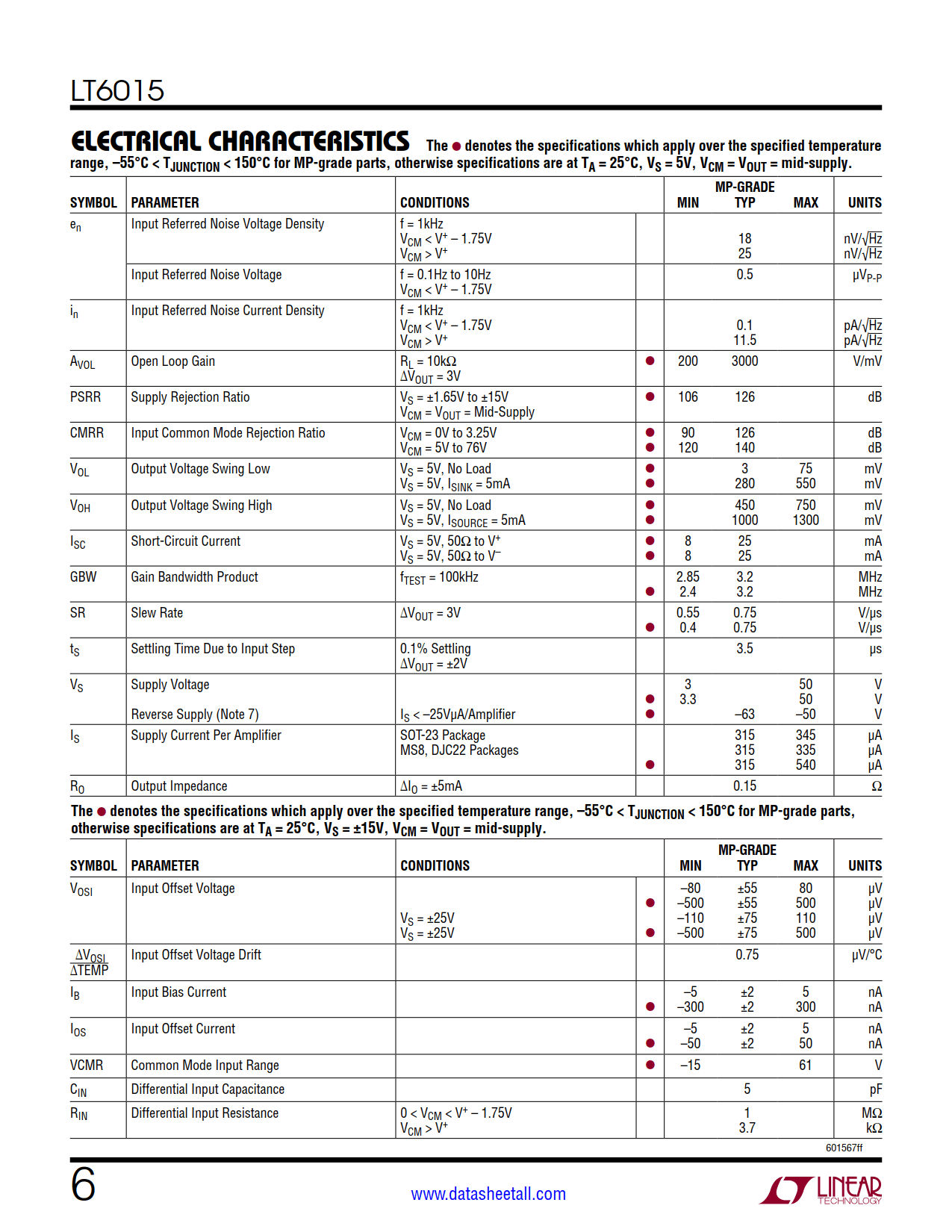

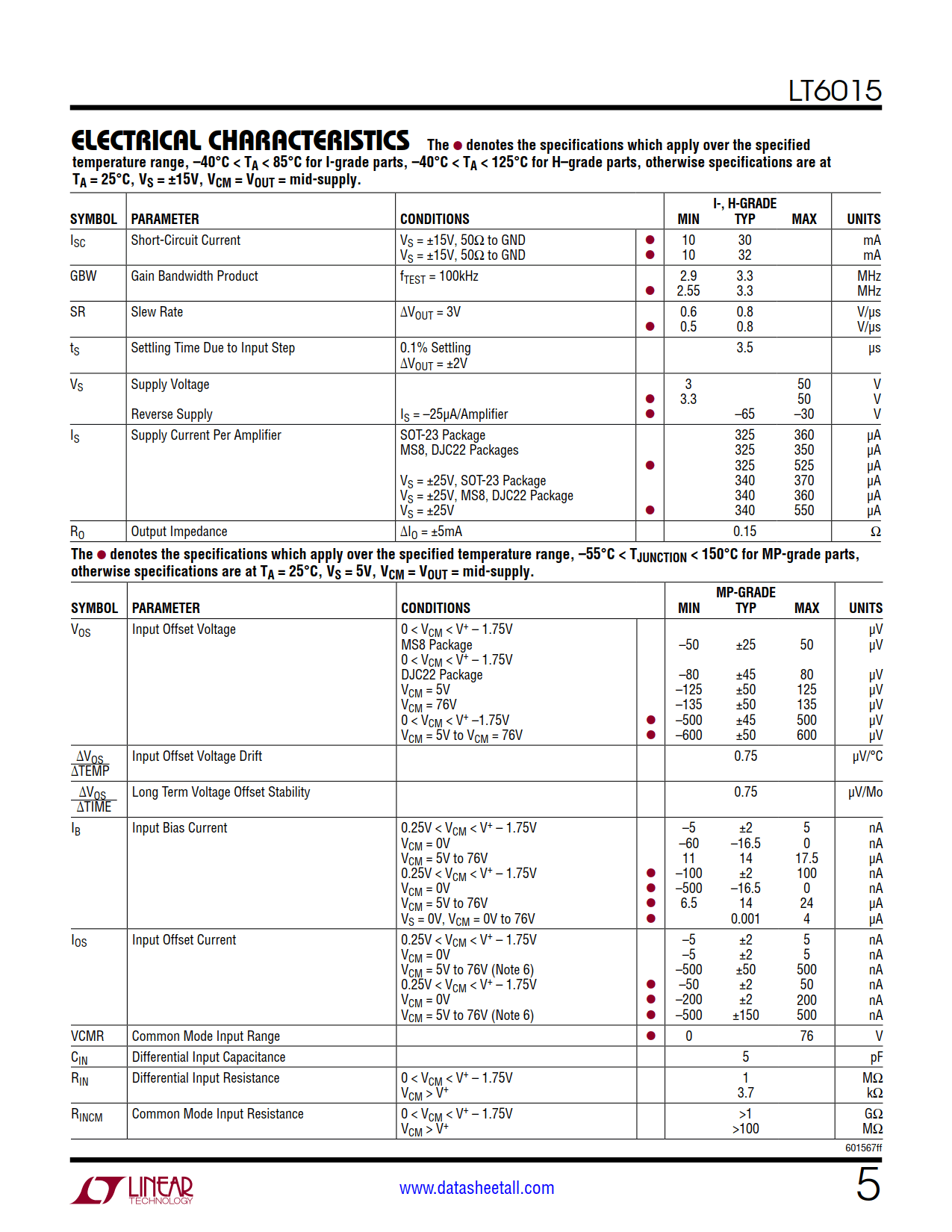

The LT6015 are single rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.
The Over-The-Top® input stage of the LT6015 is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: these amplifiers operate with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.
The LT6015 is offered in a 5-lead SOT package.
