LT6012 Datasheet

LT6012 Datasheet

Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp
Part No.: LT6012
Page: 20 Pages
Size: 370 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-15 15:20:00
DataSheet: Download

LT6012 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6012CS#PBF Tube 55 LT6012CS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012CS#TRPBF Reel 2500 LT6012CS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012CS#TRMPBF Reel 500 LT6012CS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012IS#PBF Tube 55 LT6012IS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012IS#TRPBF Reel 2500 LT6012IS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012IS#TRMPBF Reel 500 LT6012IS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012ACS#PBF Tube 55 LT6012ACS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012ACS#TRPBF Reel 2500 LT6012ACS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012ACS#TRMPBF Reel 500 LT6012ACS 1 14 0°C ~70°C 14-Lead Plastic SO
LT6012AIS#PBF Tube 55 LT6012AIS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012AIS#TRPBF Reel 2500 LT6012AIS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012AIS#TRMPBF Reel 500 LT6012AIS 1 14 -40°C ~85°C 14-Lead Plastic SO
LT6012CGN#PBF Tube 100 6012 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012CGN#TRPBF Reel 2500 6012 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012CGN#TRMPBF Reel 500 6012 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012IGN#PBF Tube 100 6012I 1 16 -40°C ~85°C 16-Lead Plastic SSOP
LT6012IGN#TRPBF Reel 2500 6012I 1 16 -40°C ~85°C 16-Lead Plastic SSOP
LT6012IGN#TRMPBF Reel 500 6012I 1 16 -40°C ~85°C 16-Lead Plastic SSOP
LT6012ACGN#PBF Tube 100 6012A 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012ACGN#TRPBF Reel 2500 6012A 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012ACGN#TRMPBF Reel 500 6012A 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT6012AIGN#PBF Tube 100 6012AI 1 16 -40°C ~85°C 16-Lead Plastic SSOP
LT6012AIGN#TRPBF Reel 2500 6012AI 1 16 -40°C ~85°C 16-Lead Plastic SSOP
LT6012AIGN#TRMPBF Reel 500 6012AI 1 16 -40°C ~85°C 16-Lead Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6012 Datasheet(PDF)

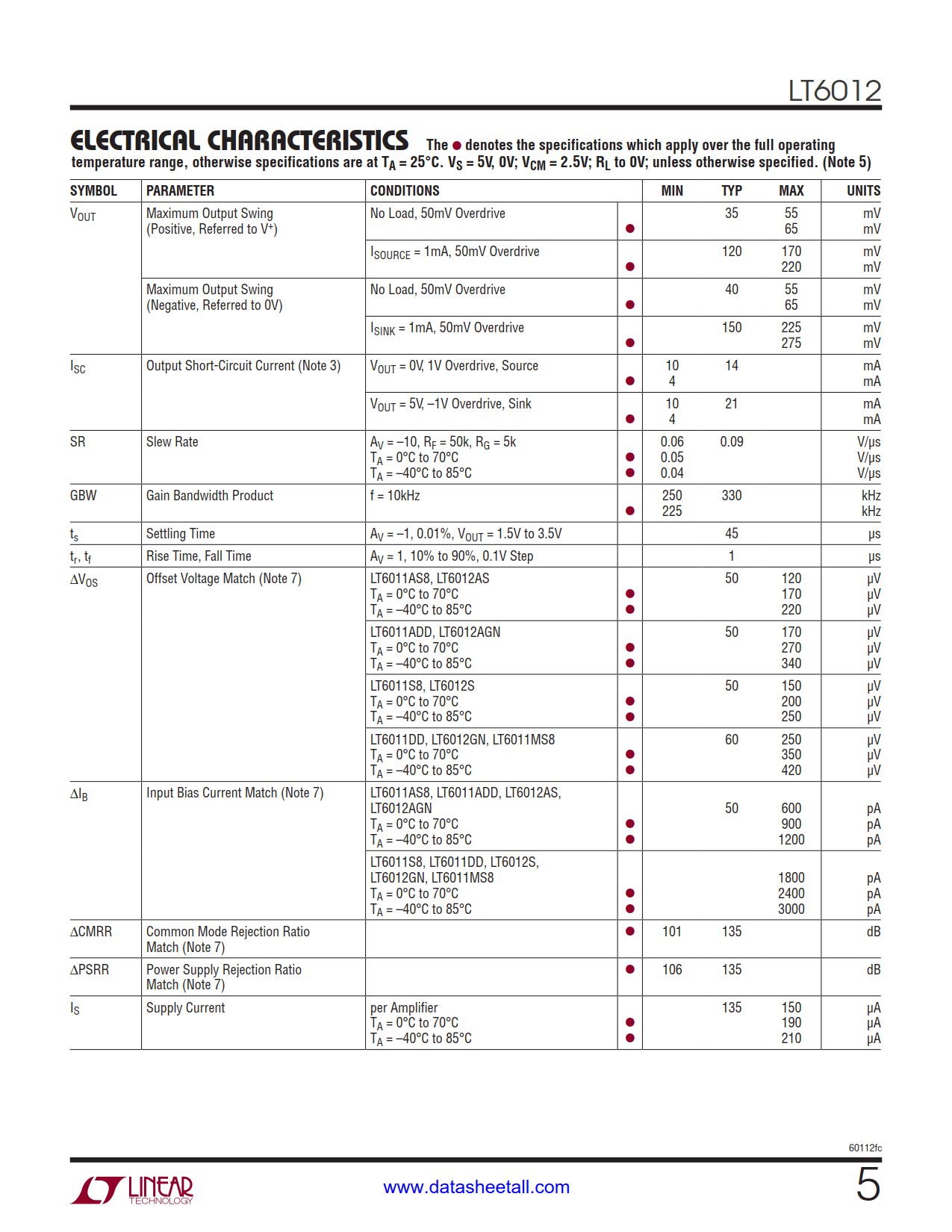

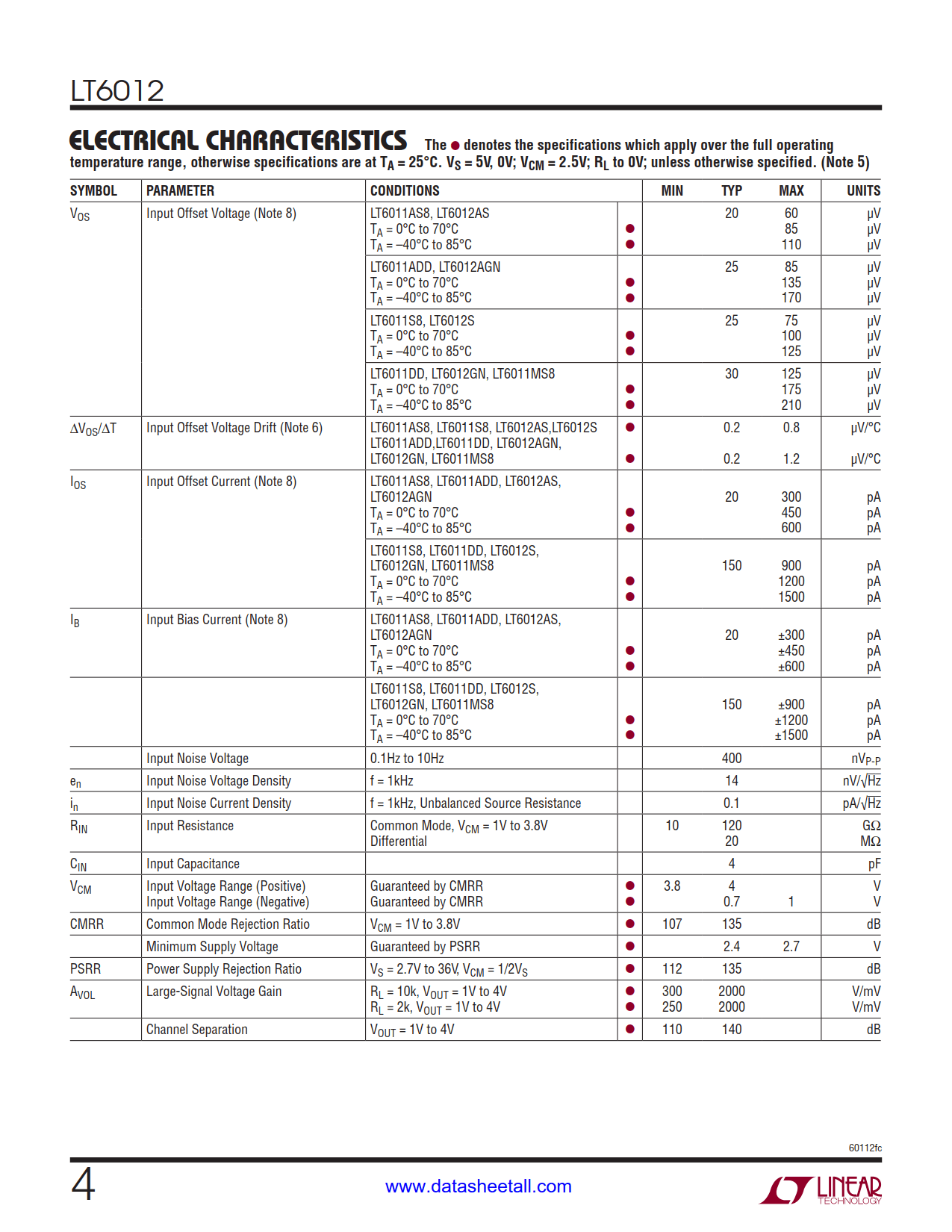

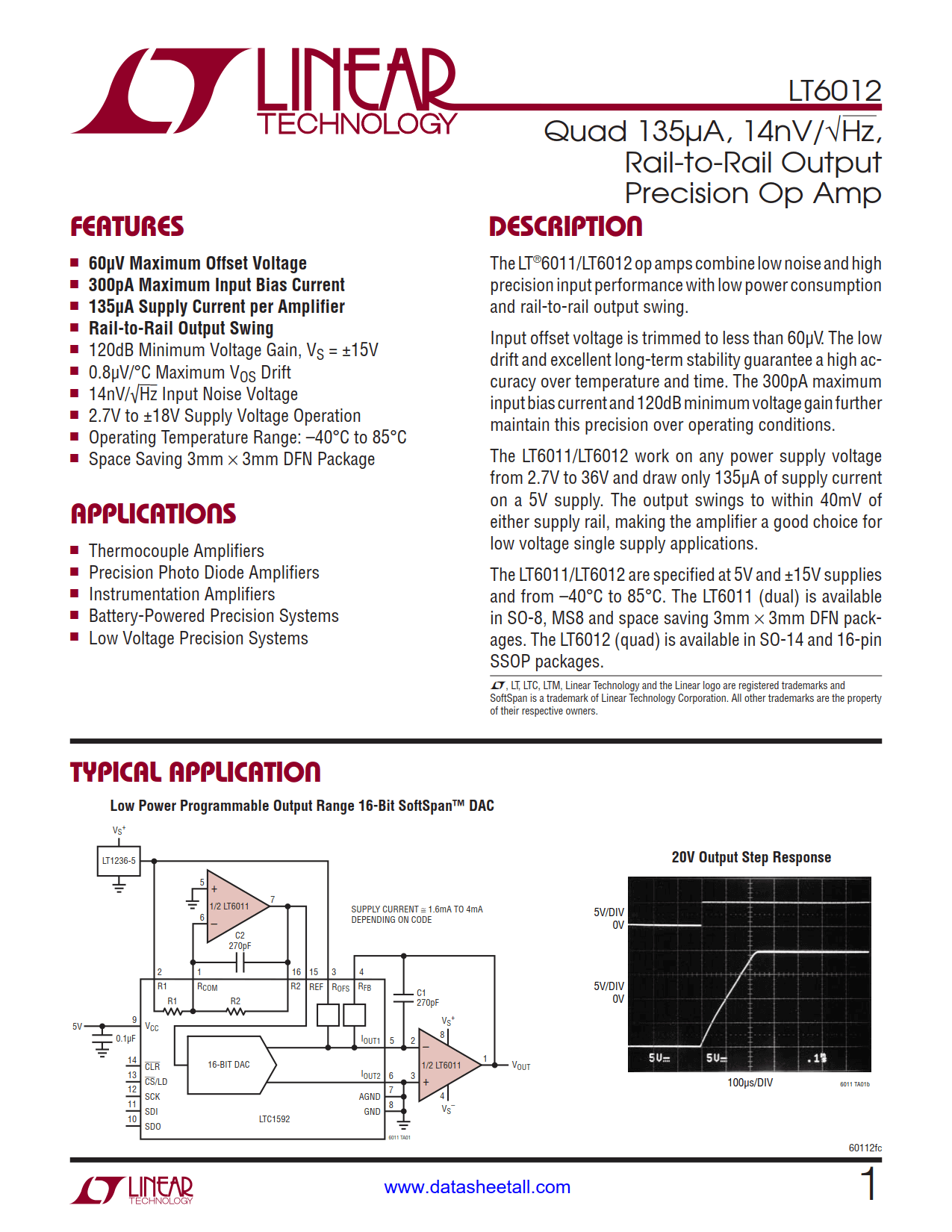

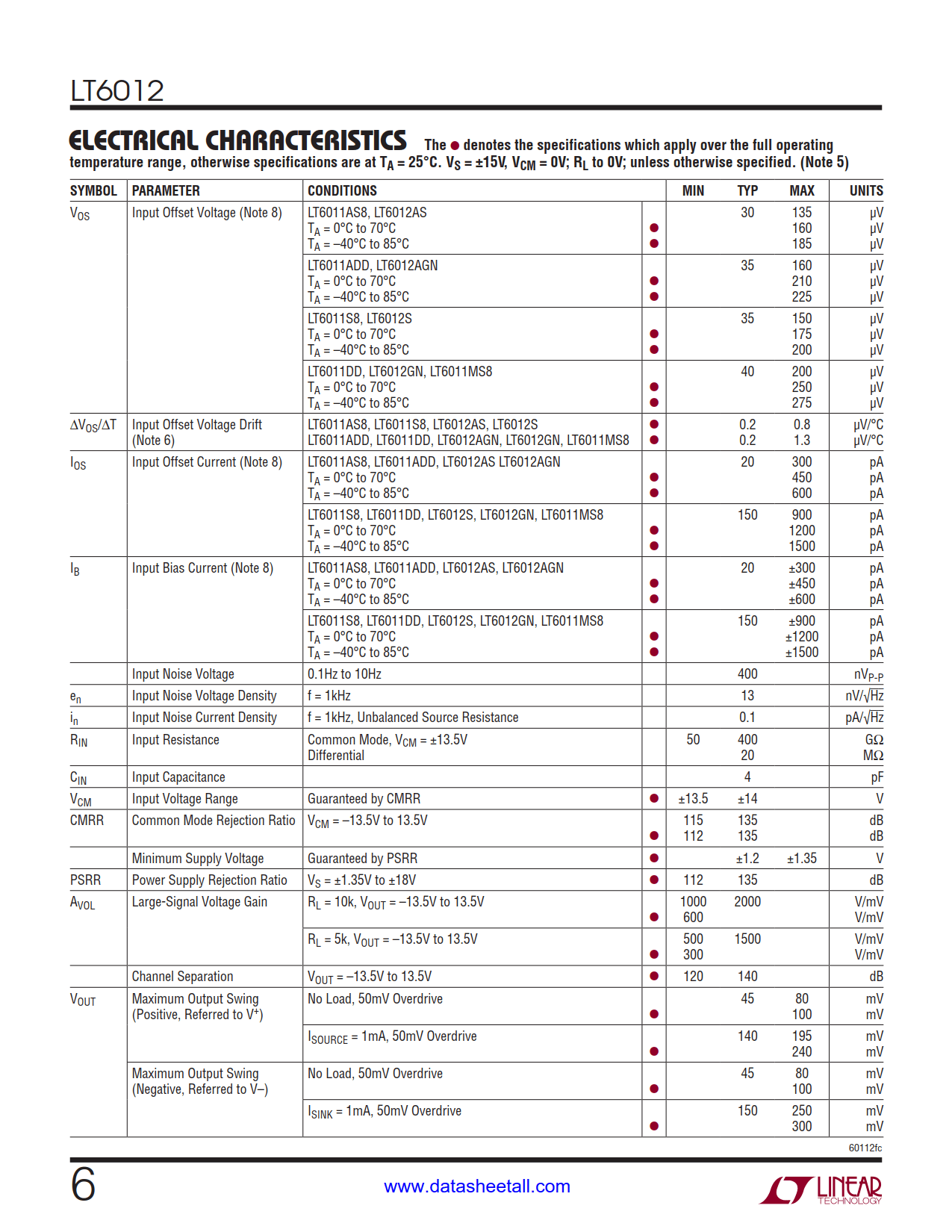

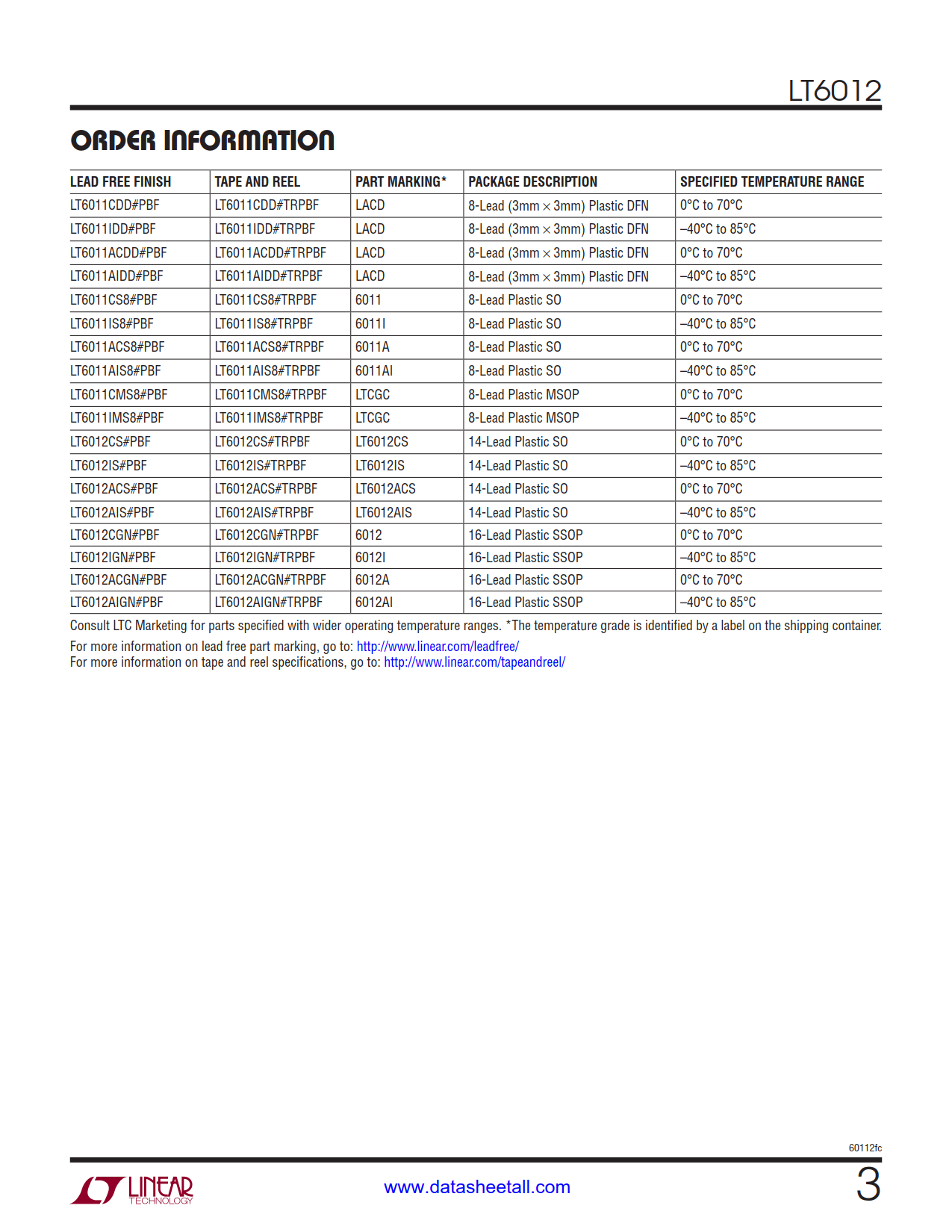

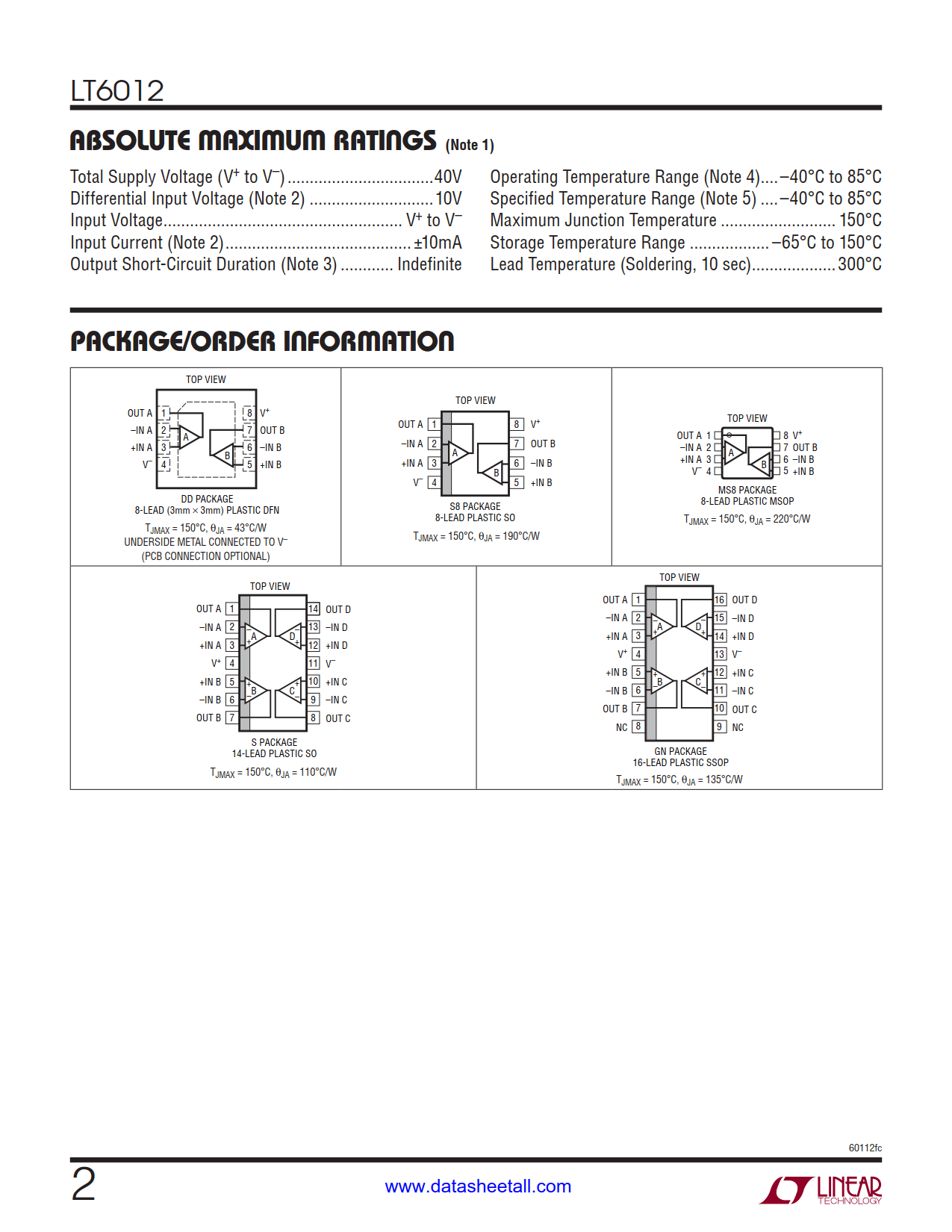

LT6012 Datasheet(Picture)

LT6012 Features

  • 60µV Maximum Offset Voltage
  • 300pA Maximum Input Bias Current
  • 135µA Supply Current per Amplifier
  • Rail-to-Rail Output Swing
  • 120dB Minimum Voltage Gain, VS = ±15V
  • 0.8µV/°C Maximum VOS Drift
  • 14nV/√Hz Input Noise Voltage
  • 2.7V to ±18V Supply Voltage Operation
  • Operating Temperature Range: –40°C to 85°C
  • Space Saving 3mm x 3mm DFN Package

LT6012 Applications

  • Thermocouple Amplifiers
  • Precision Photo Diode Amplifiers
  • Instrumentation Amplifiers
  • Battery-Powered Precision Systems
  • Low Voltage Precision Systems

LT6012 Description

The LT6012 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing.

Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.

The LT6012 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications.

The LT6012 are specified at 5V and ±15V supplies and from –40°C to 85°C. The LT6012 (quad) is available in SO-14 and 16-pin SSOP packages.
