| Part No.： | LT6011 |
| Page： | 20 Pages |
| Size： | 370 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-15 15:00:40 |
| DataSheet： | Download |

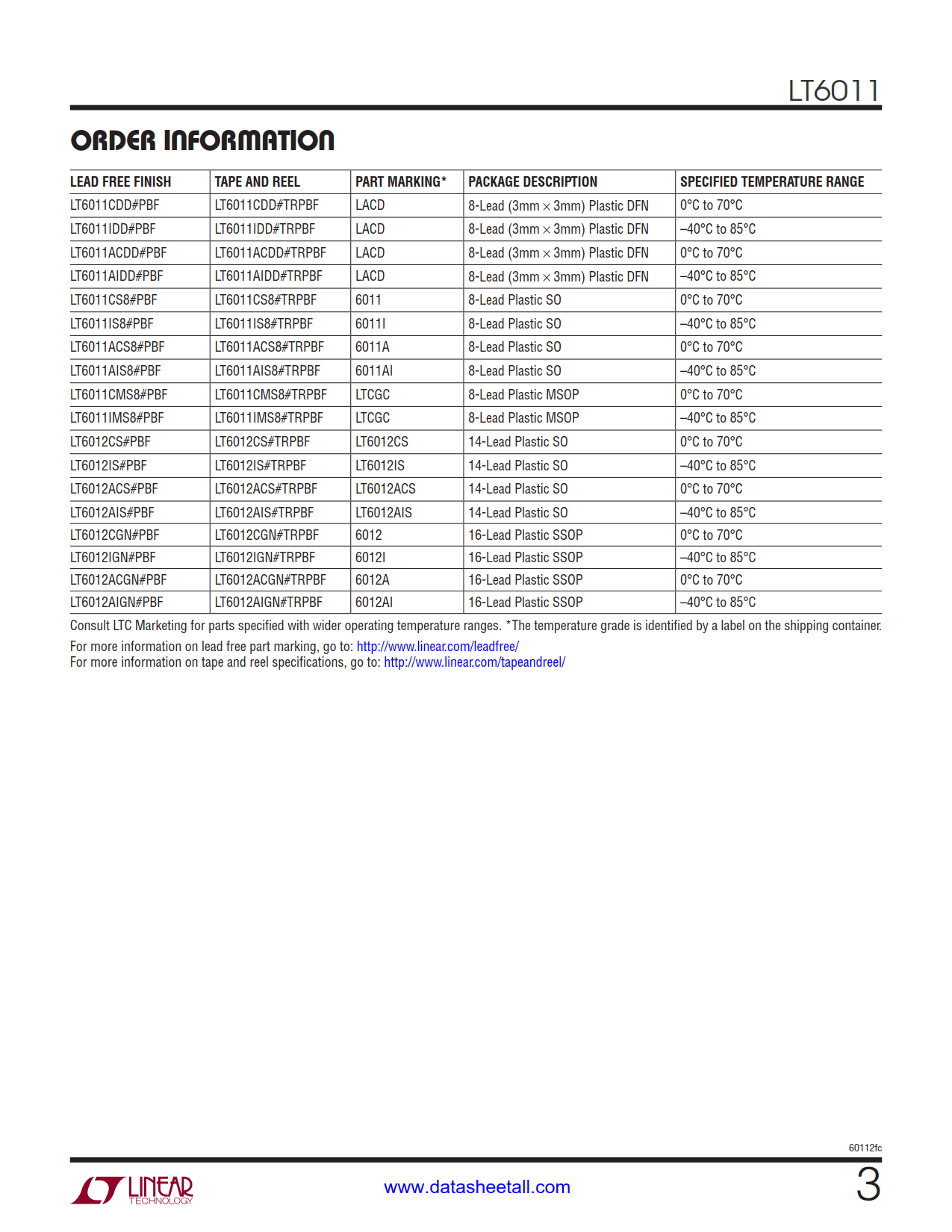

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6011CDD#PBF | Tube | 121 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011CDD#TRPBF | Reel | 2500 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011CDD#TRMPBF | Reel | 500 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011IDD#PBF | Tube | 121 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011IDD#TRPBF | Reel | 2500 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011IDD#TRMPBF | Reel | 500 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011ACDD#PBF | Tube | 121 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011ACDD#TRPBF | Reel | 2500 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011ACDD#TRMPBF | Reel | 500 | LACD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011AIDD#PBF | Tube | 121 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011AIDD#TRPBF | Reel | 2500 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011AIDD#TRMPBF | Reel | 500 | LACD | 1 | 8 | -40°C ~85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT6011CS8#PBF | Tube | 100 | 6011 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011CS8#TRPBF | Reel | 2500 | 6011 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011CS8#TRMPBF | Reel | 500 | 6011 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011IS8#PBF | Tube | 100 | 6011I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011IS8#TRPBF | Reel | 2500 | 6011I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011IS8#TRMPBF | Reel | 500 | 6011I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011ACS8#PBF | Tube | 100 | 6011A | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011ACS8#TRPBF | Reel | 2500 | 6011A | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011ACS8#TRMPBF | Reel | 500 | 6011A | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT6011AIS8#PBF | Tube | 100 | 6011AI | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011AIS8#TRPBF | Reel | 2500 | 6011AI | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011AIS8#TRMPBF | Reel | 500 | 6011AI | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT6011CMS8#PBF | Tube | 50 | LTCGC | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT6011CMS8#TRPBF | Reel | 2500 | LTCGC | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT6011CMS8#TRMPBF | Reel | 500 | LTCGC | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT6011IMS8#PBF | Tube | 50 | LTCGC | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | |
| LT6011IMS8#TRPBF | Reel | 2500 | LTCGC | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | |
| LT6011IMS8#TRMPBF | Reel | 500 | LTCGC | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP |

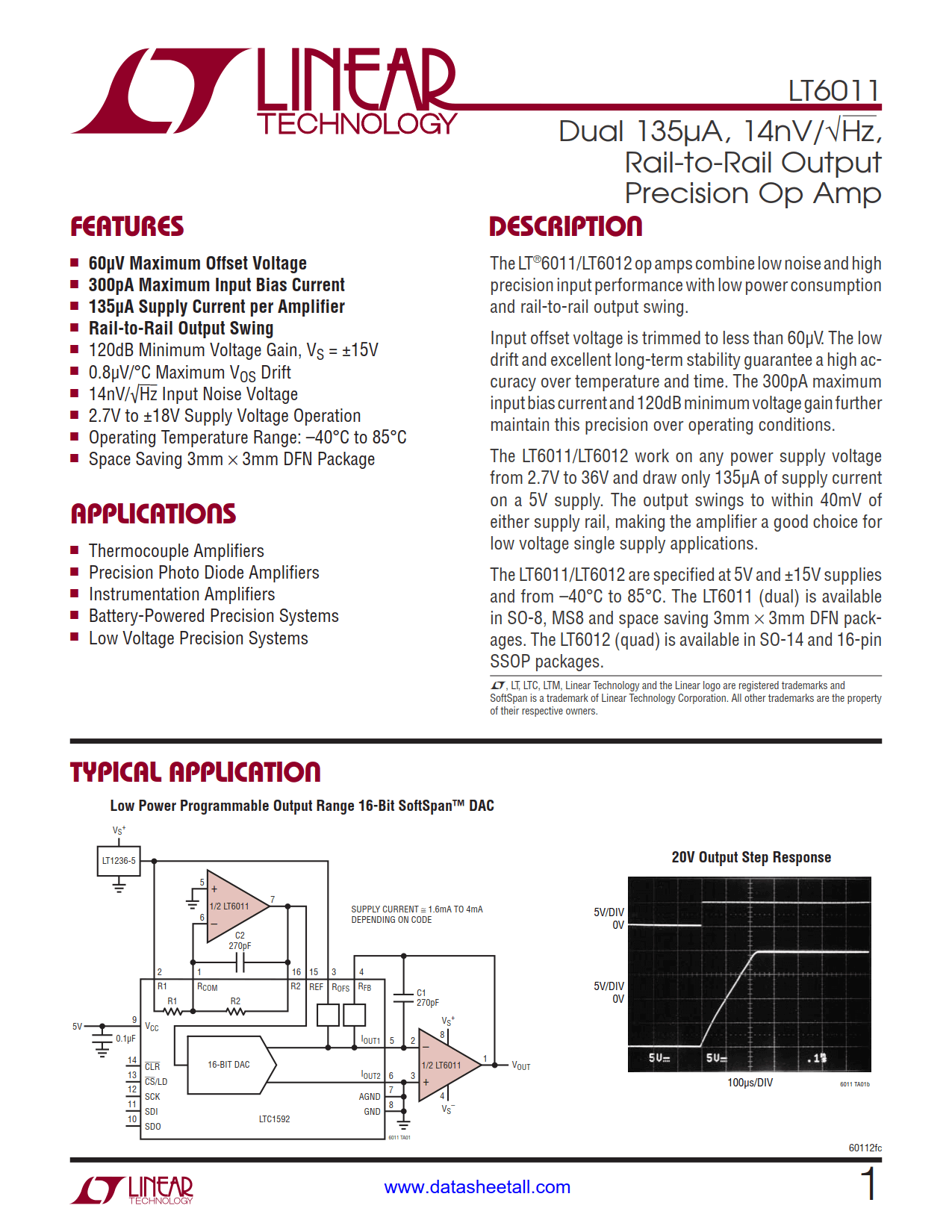

The LT6011 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing.
Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.
The LT6011 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications.
The LT6011 are specified at 5V and ±15V supplies and from –40°C to 85°C. The LT6011 (dual) is available in SO-8 and space saving 3mm x 3mm DFN packages.
