| Part No.： | LT6005 |
| Page： | 20 Pages |
| Size： | 1126 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-22 11:39:04 |
| DataSheet： | Download |

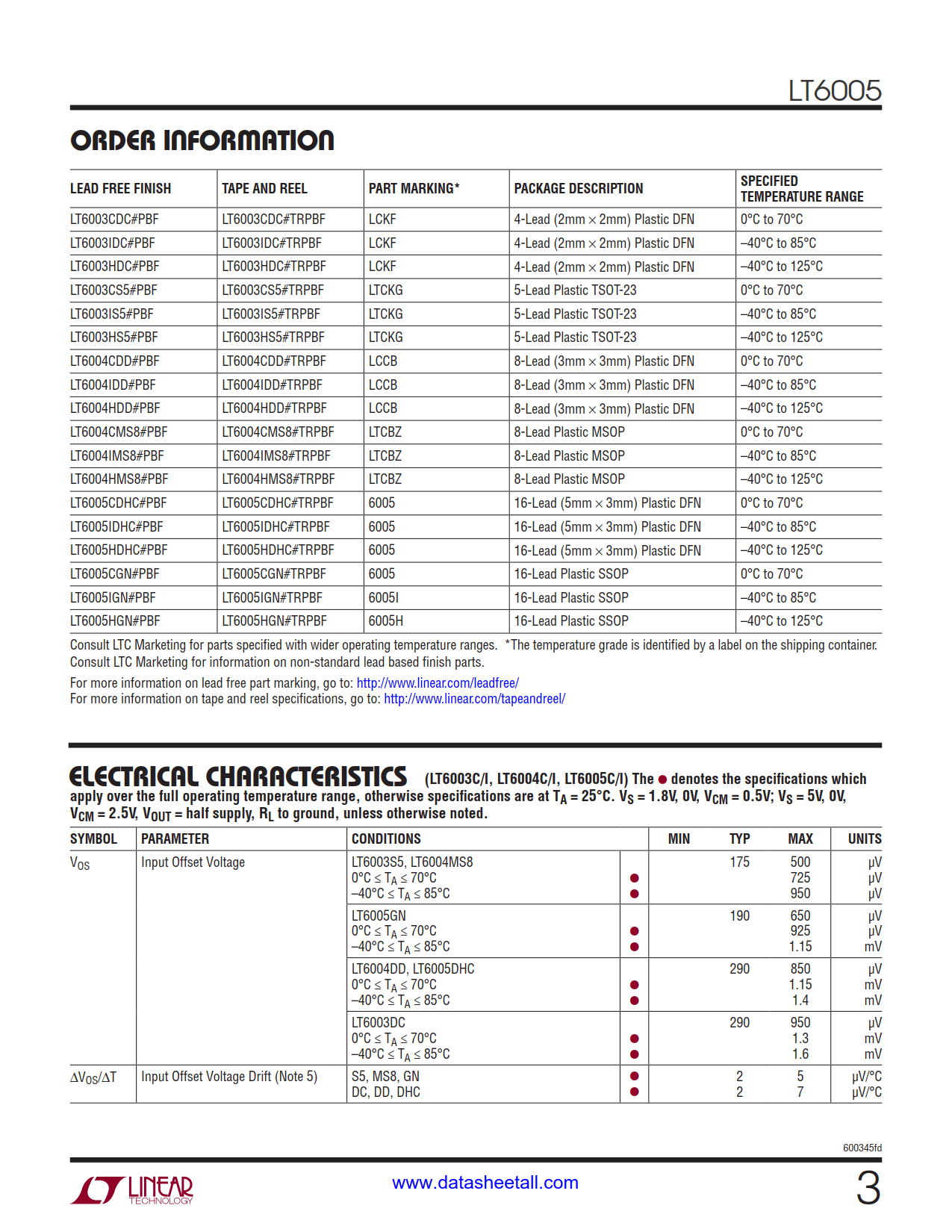

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6005CDHC#PBF | Tube | 73 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005CDHC#TRPBF | Reel | 2500 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005CDHC#TRMPBF | Reel | 500 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005IDHC#PBF | Tube | 73 | 6005 | 1 | 16 | -40°C ~ 85°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005IDHC#TRPBF | Reel | 2500 | 6005 | 1 | 16 | -40°C ~ 85°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005IDHC#TRMPBF | Reel | 500 | 6005 | 1 | 16 | -40°C ~ 85°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005HDHC#PBF | Tube | 73 | 6005 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005HDHC#TRPBF | Reel | 2500 | 6005 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005HDHC#TRMPBF | Reel | 500 | 6005 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 3mm) Plastic DFN | |
| LT6005CGN#PBF | Tube | 100 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SSOP | |
| LT6005CGN#TRPBF | Reel | 2500 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SSOP | |
| LT6005CGN#TRMPBF | Reel | 500 | 6005 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SSOP | |
| LT6005IGN#PBF | Tube | 100 | 6005I | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SSOP | |
| LT6005IGN#TRPBF | Reel | 2500 | 6005I | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SSOP | |
| LT6005IGN#TRMPBF | Reel | 500 | 6005I | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SSOP | |
| LT6005HGN#PBF | Tube | 100 | 6005H | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SSOP | |
| LT6005HGN#TRPBF | Reel | 2500 | 6005H | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SSOP | |
| LT6005HGN#TRMPBF | Reel | 500 | 6005H | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SSOP |

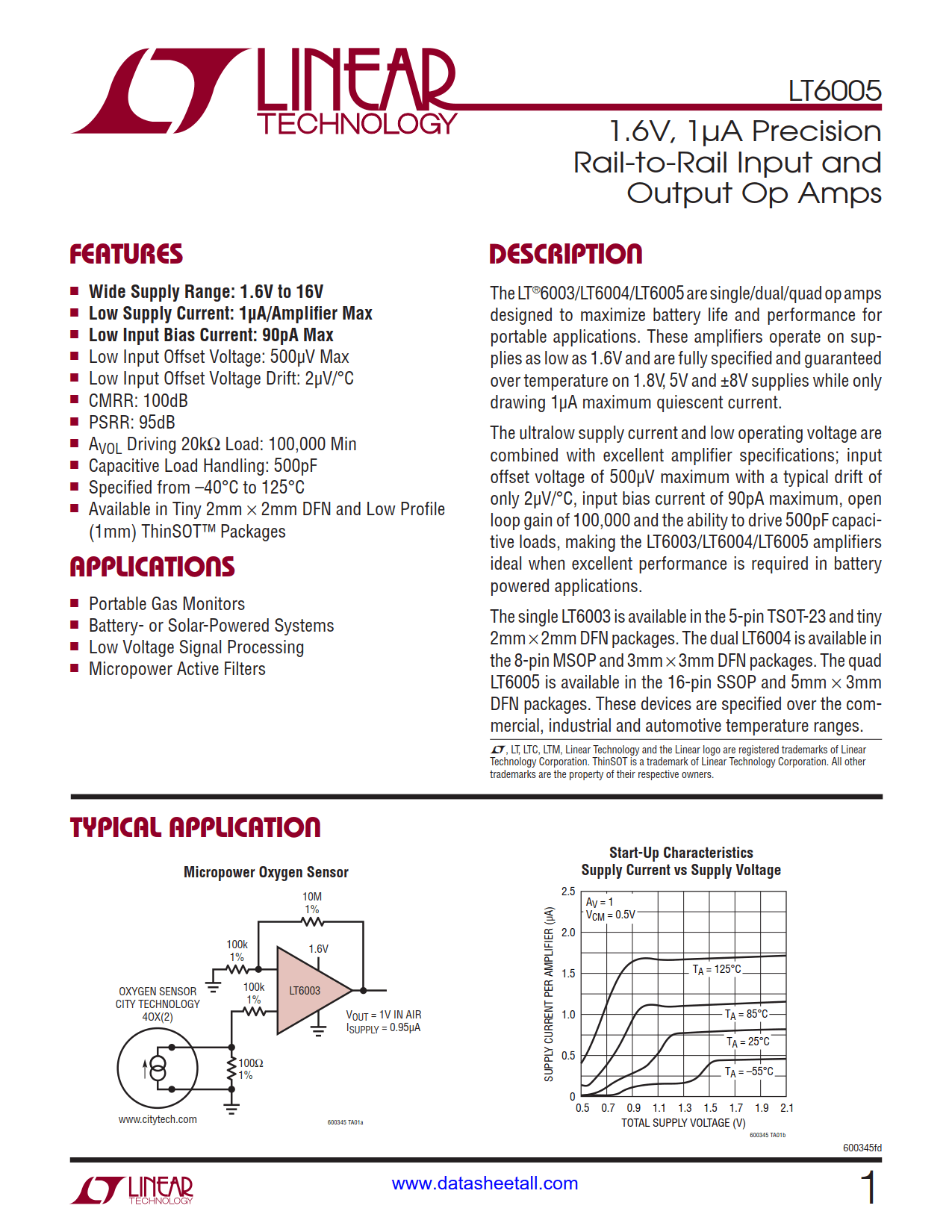

The LT6005 are quad op amps designed to maximize battery life and performance for portable applications. These amplifiers operate on supplies as low as 1.6V and are fully specified and guaranteed over temperature on 1.8V, 5V and ±8V supplies while only drawing 1µA maximum quiescent current.
The ultralow supply current and low operating voltage are combined with excellent amplifier specifications; input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capacitive loads, making the LT6005 amplifiers ideal when excellent performance is required in battery powered applications.
The quad LT6005 is available in the 16-pin TSSOP and 5mm × 3mm DFN packages. The LT6005 are specified over the commercial, industrial and automotive temperature ranges.
