Part No.: | LT6002 |
Page: | 20 Pages |
Size: | 260 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2023-11-22 14:00:15 |
DataSheet: | Download |

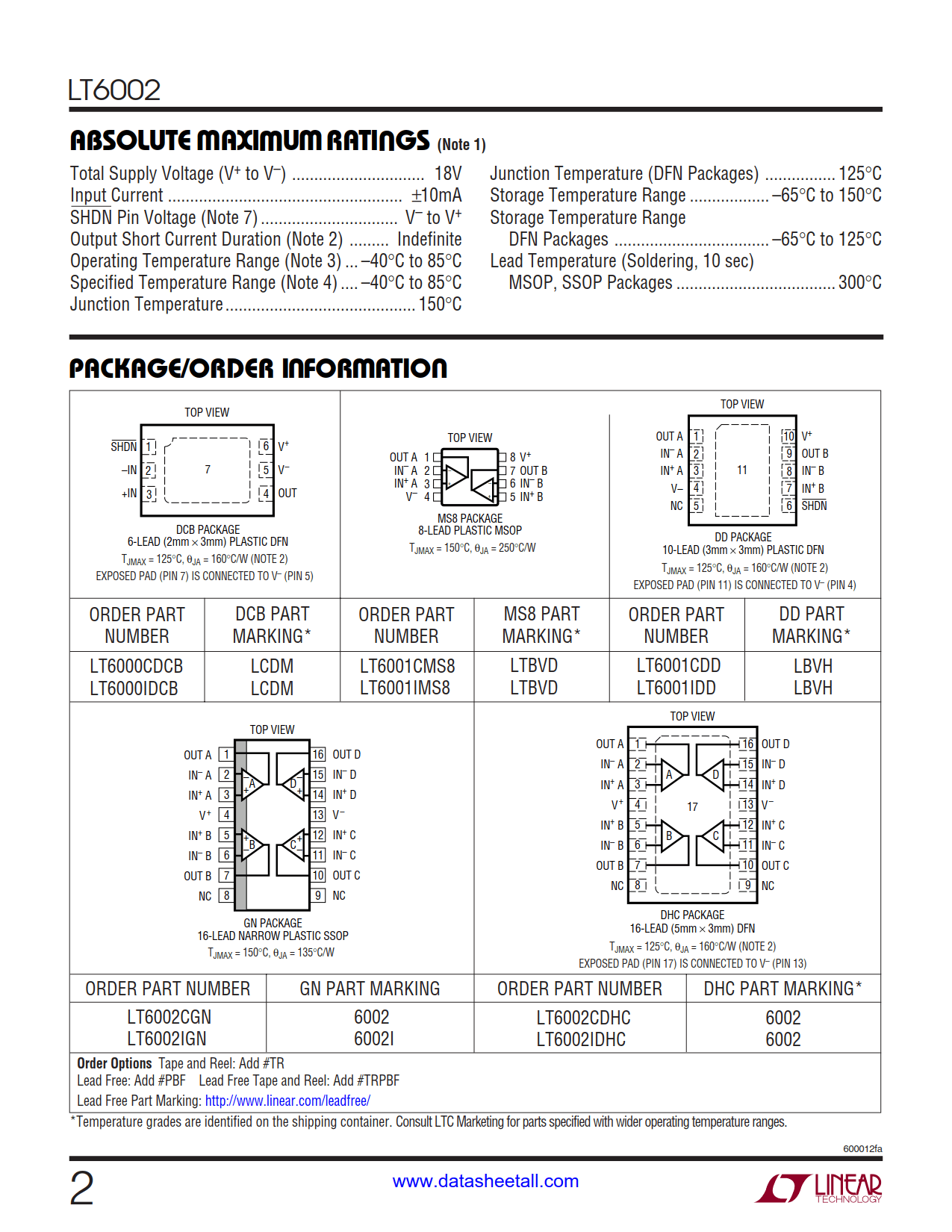

Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LT6002CGN#PBF | Tube | 100 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
LT6002CGN#TRPBF | Reel | 2500 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
LT6002CGN#TRMPBF | Reel | 500 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | |
LT6002IGN#PBF | Tube | 100 | 6002I | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP | |
LT6002IGN#TRPBF | Reel | 2500 | 6002I | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP | |
LT6002IGN#TRMPBF | Reel | 500 | 6002I | 1 | 16 | -40°C ~ 85°C | 16-Lead SSOP | |
LT6002CDHC#PBF | Tube | 73 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead DFN (5mm x 3mm) | |
LT6002CDHC#TRPBF | Reel | 2500 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead DFN (5mm x 3mm) | |
LT6002CDHC#TRMPBF | Reel | 500 | 6002 | 1 | 16 | 0°C ~ 70°C | 16-Lead DFN (5mm x 3mm) | |
LT6002IDHC#PBF | Tube | 73 | 6002 | 1 | 16 | -40°C ~ 85°C | 16-Lead DFN (5mm x 3mm) | |
LT6002IDHC#TRPBF | Reel | 2500 | 6002 | 1 | 16 | -40°C ~ 85°C | 16-Lead DFN (5mm x 3mm) | |
LT6002IDHC#TRMPBF | Reel | 500 | 6002 | 1 | 16 | -40°C ~ 85°C | 16-Lead DFN (5mm x 3mm) |

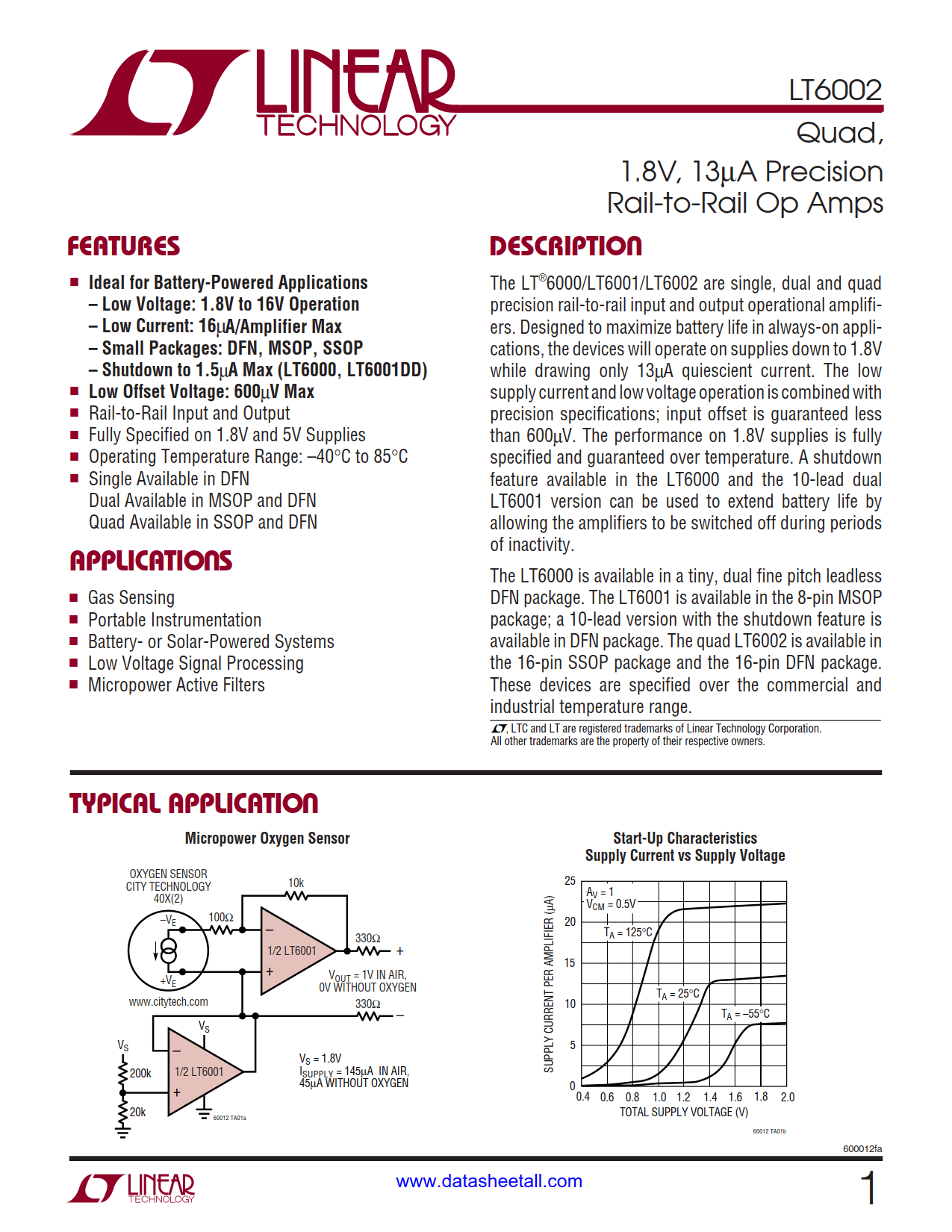

The LT6002 are quad precision rail-to-rail input and output operational amplifiers. Designed to maximize battery life in always-on applications, the devices will operate on supplies down to 1.8V while drawing only 13µA quiescient current. The low supply current and low voltage operation is combined with precision specifications; input offset is guaranteed less than 600µV. The performance on 1.8V supplies is fully specified and guaranteed over temperature.
The quad LT6002 is available in the 16-pin SSOP package and the 16-pin DFN package. The LT6002 are specified over the commercial and industrial temperature range.
