| Part No.： | LT6001 |
| Page： | 20 Pages |
| Size： | 260 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-22 12:01:26 |
| DataSheet： | Download |

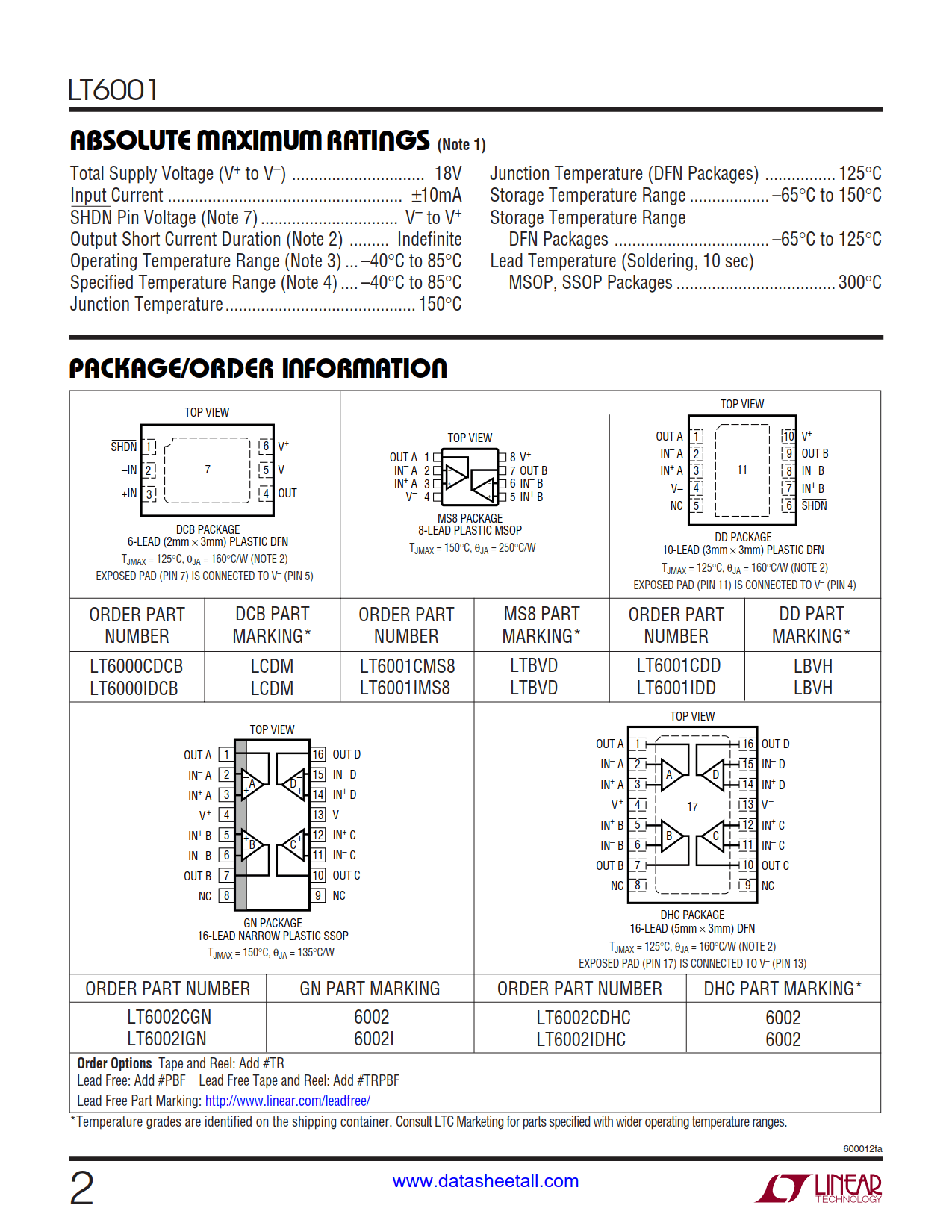

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT6001CMS#PBF | Tube | 50 | LTBVD | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LT6001CMS#TRPBF | Reel | 2500 | LTBVD | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LT6001CMS#TRMPBF | Reel | 500 | LTBVD | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LT6001IMS#PBF | Tube | 50 | LTBVD | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP | |
| LT6001IMS#TRPBF | Reel | 2500 | LTBVD | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP | |
| LT6001IMS#TRMPBF | Reel | 500 | LTBVD | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP | |
| LT6001CDD#PBF | Tube | 121 | LBVH | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN (3mm x 3mm) | |
| LT6001CDD#TRPBF | Reel | 2500 | LBVH | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN (3mm x 3mm) | |
| LT6001CDD#TRMPBF | Reel | 500 | LBVH | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN (3mm x 3mm) | |
| LT6001IDD#PBF | Tube | 121 | LBVH | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN (3mm x 3mm) | |
| LT6001IDD#TRPBF | Reel | 2500 | LBVH | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN (3mm x 3mm) | |
| LT6001IDD#TRMPBF | Reel | 500 | LBVH | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN (3mm x 3mm) |

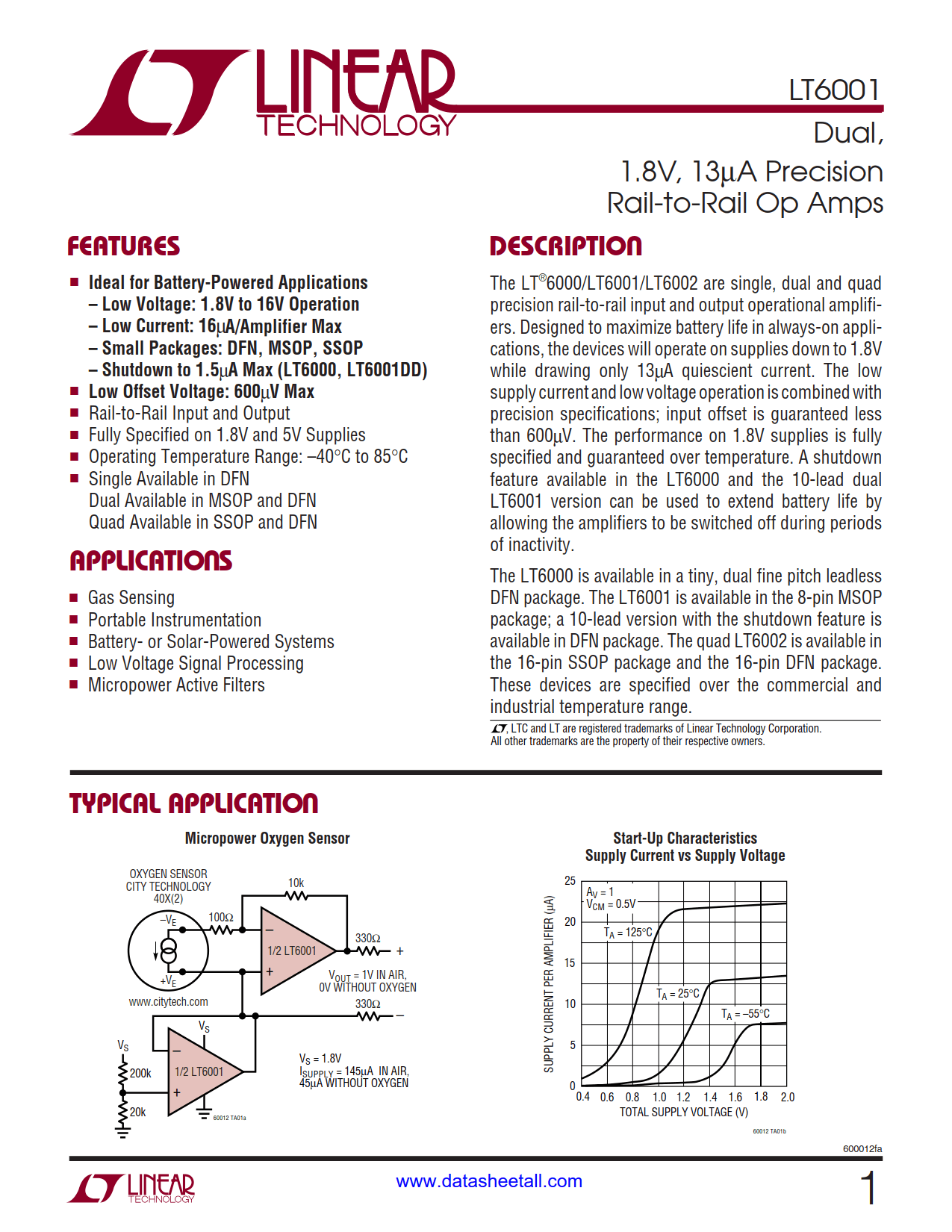

The LT6001 are dual precision rail-to-rail input and output operational amplifiers. Designed to maximize battery life in always-on applications, the devices will operate on supplies down to 1.8V while drawing only 13µA quiescient current. The low supply current and low voltage operation is combined with precision specifications; input offset is guaranteed less than 600µV. The performance on 1.8V supplies is fully specified and guaranteed over temperature. A shutdown feature available in the LT6000 and the 10-lead dual LT6001 version can be used to extend battery life by allowing the amplifiers to be switched off during periods of inactivity.
The LT6001 is available in the 8-pin MSOP package; a 10-lead version with the shutdown feature is available in DFN package. The LT6001 are specified over the commercial and industrial temperature range.
