| Part No.： | LT5511 |
| Page： | 16 Pages |
| Size： | 261 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-11-20 10:37:49 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT5511EFE#PBF | Tube | 95 | 5511EFE | 1 | 16 | -40°C ~ 85°C | 16-Lead TSSOP | |
| LT5511EFE#TRPBF | Reel | 2500 | 5511EFE | 1 | 16 | -40°C ~ 85°C | 16-Lead TSSOP | |
| LT5511EFE#TRMPBF | Reel | 500 | 5511EFE | 1 | 16 | -40°C ~ 85°C | 16-Lead TSSOP |

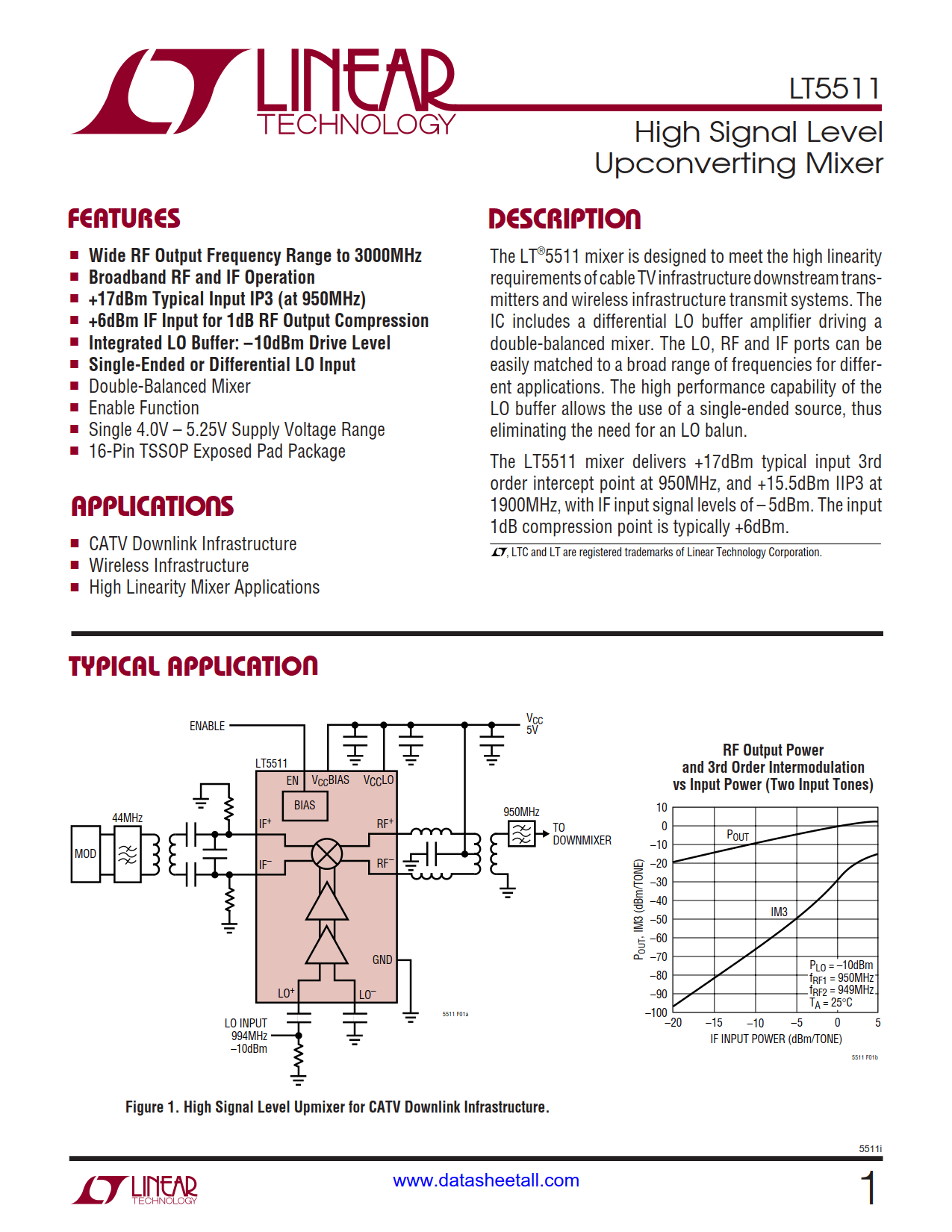

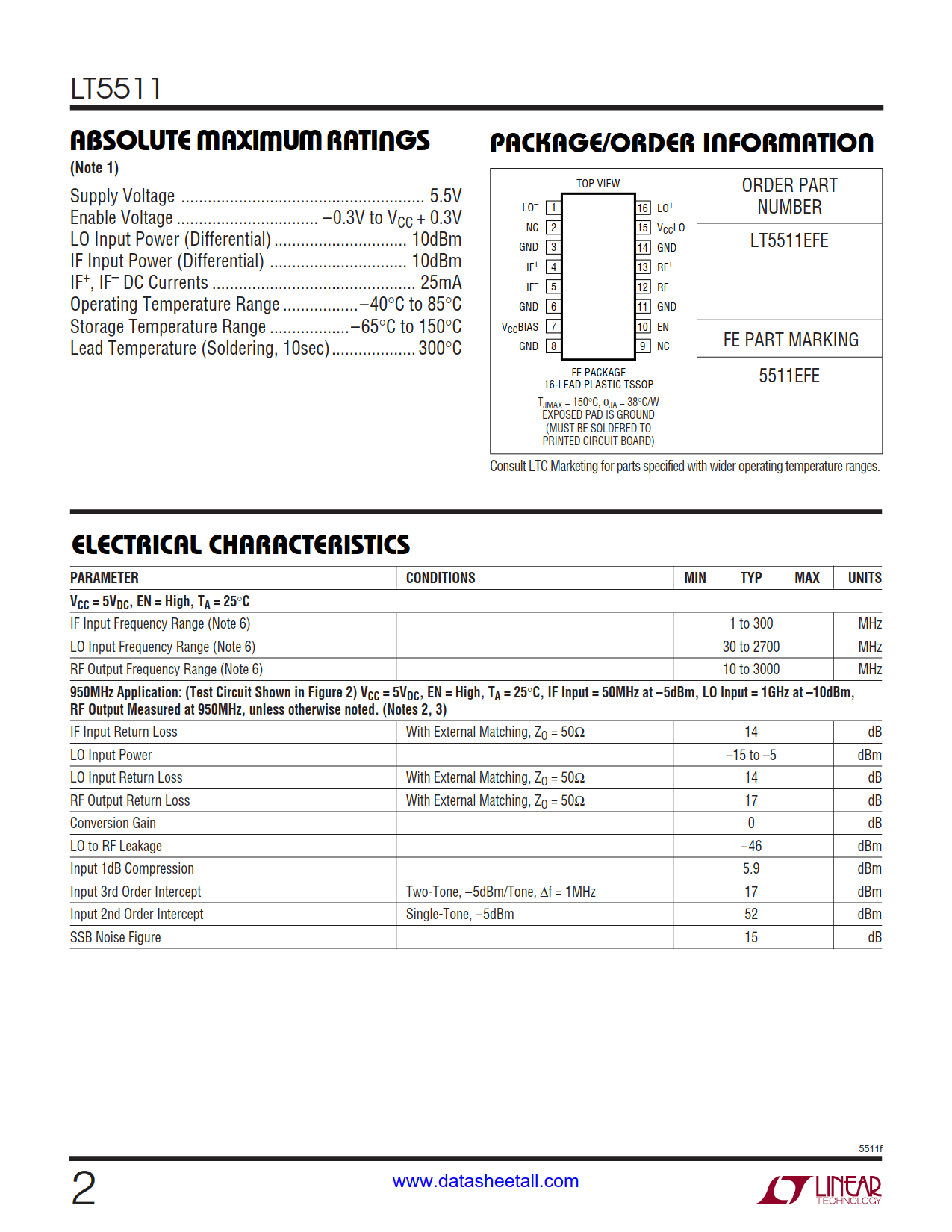

The LT5511 mixer is designed to meet the high linearity requirements of cable TV infrastructure downstream transmitters and wireless infrastructure transmit systems. The IC includes a differential LO buffer amplifier driving a double-balanced mixer. The LO, RF and IF ports can be easily matched to a broad range of frequencies for different applications. The high performance capability of the LO buffer allows the use of a single-ended source, thus eliminating the need for an LO balun.

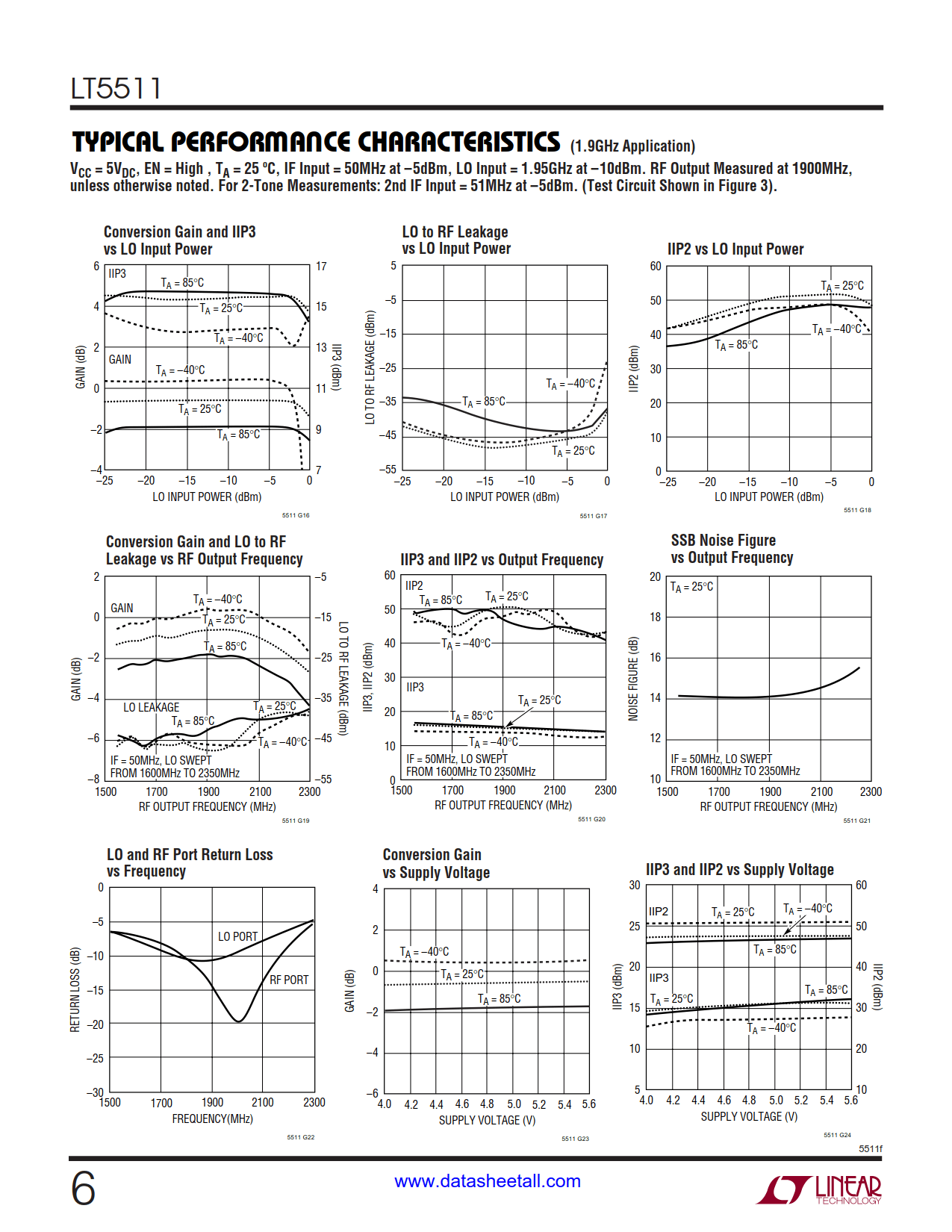

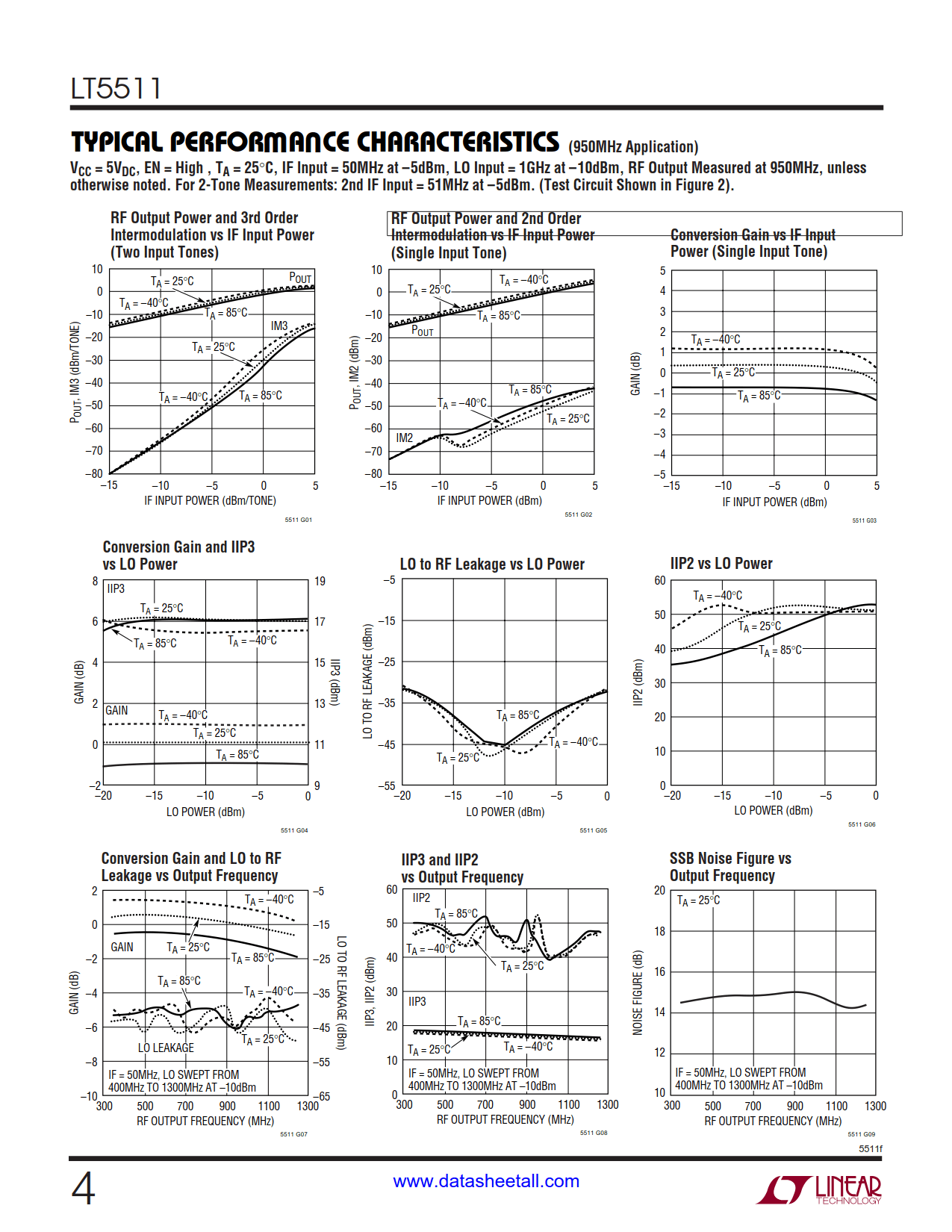

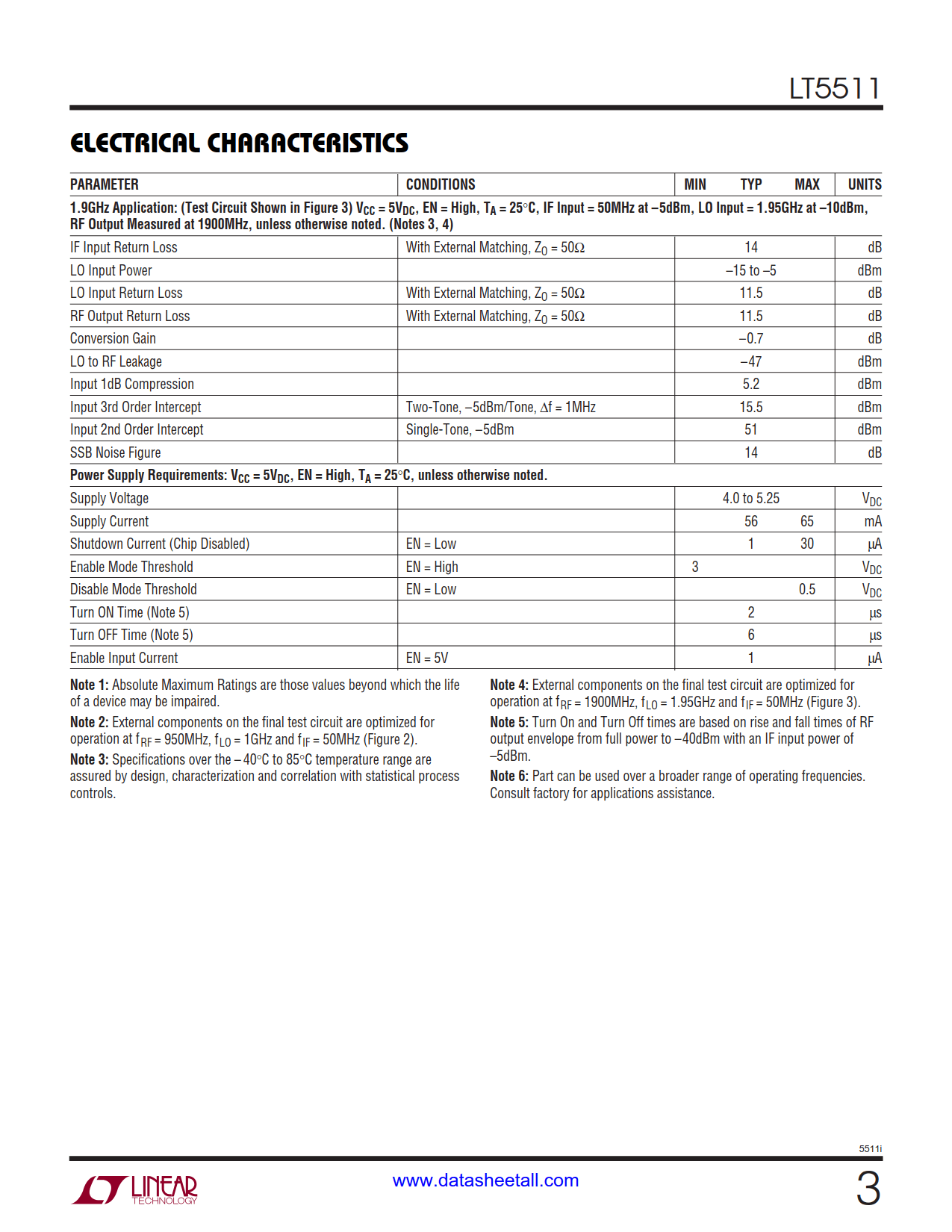

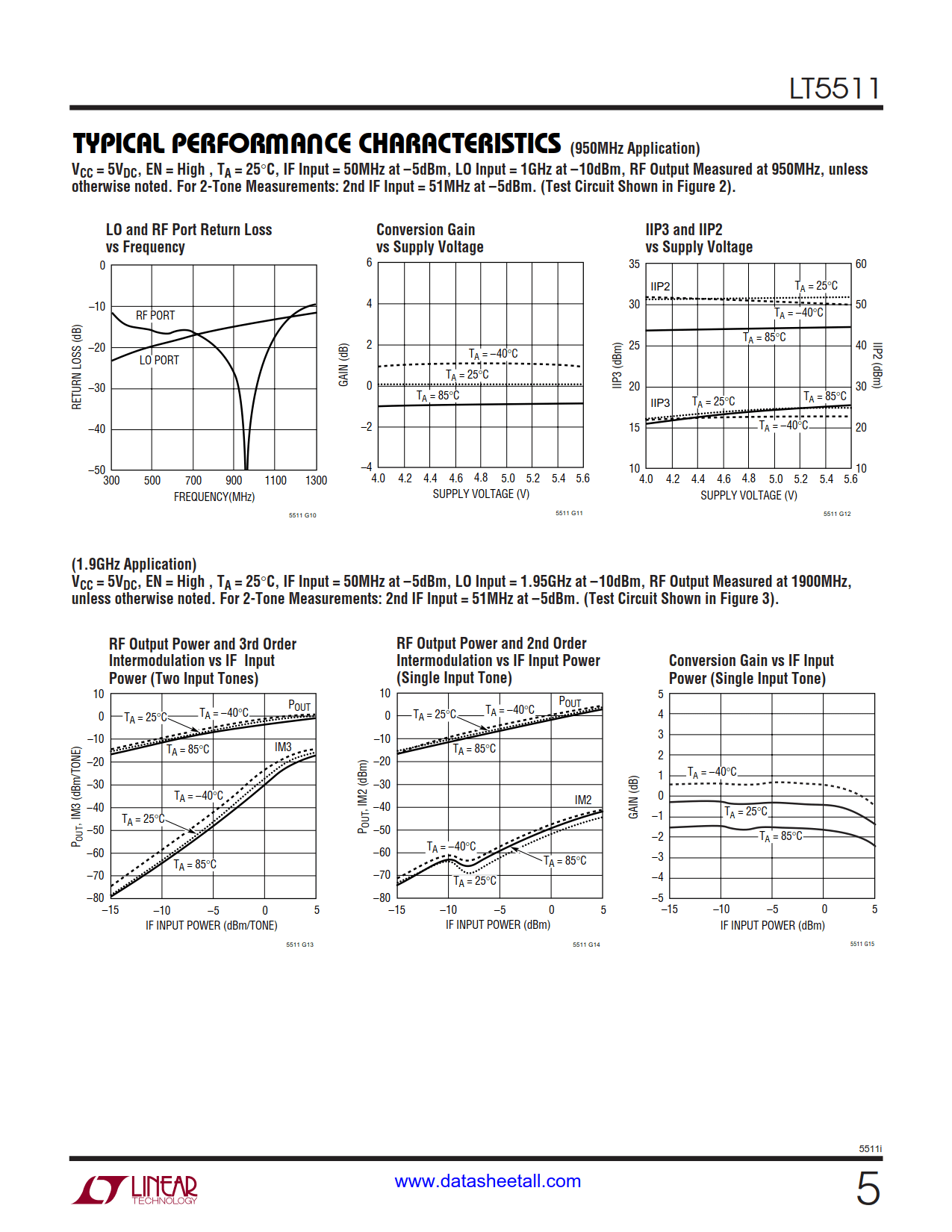

The LT5511 mixer delivers +17dBm typical input 3rd order intercept point at 950MHz, and +15.5dBm IIP3 at 1900MHz, with IF input signal levels of – 5dBm. The input 1dB compression point is typically +6dBm.
