LT4256-3 Datasheet

LT4256-3 Datasheet

Positive High Voltage Hot Swap Controller with Open-Circuit Detect
Part No.: LT4256-3
Page: 20 Pages
Size: 214 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-06 16:06:31
DataSheet: Download

LT4256-3 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT4256-3CGN#PBF Tube 100 42563 1 16 0°C ~ 70°C 16-Lead SSOP
LT4256-3CGN#TRPBF Reel 2500 42563 1 16 0°C ~ 70°C 16-Lead SSOP
LT4256-3CGN#TRMPBF Reel 500 42563 1 16 0°C ~ 70°C 16-Lead SSOP
LT4256-3IGN#PBF Tube 100 42563I 1 16 -40°C ~ 85°C 16-Lead SSOP
LT4256-3IGN#TRPBF Reel 2500 42563I 1 16 -40°C ~ 85°C 16-Lead SSOP
LT4256-3IGN#TRMPBF Reel 500 42563I 1 16 -40°C ~ 85°C 16-Lead SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT4256-3 Datasheet(PDF)

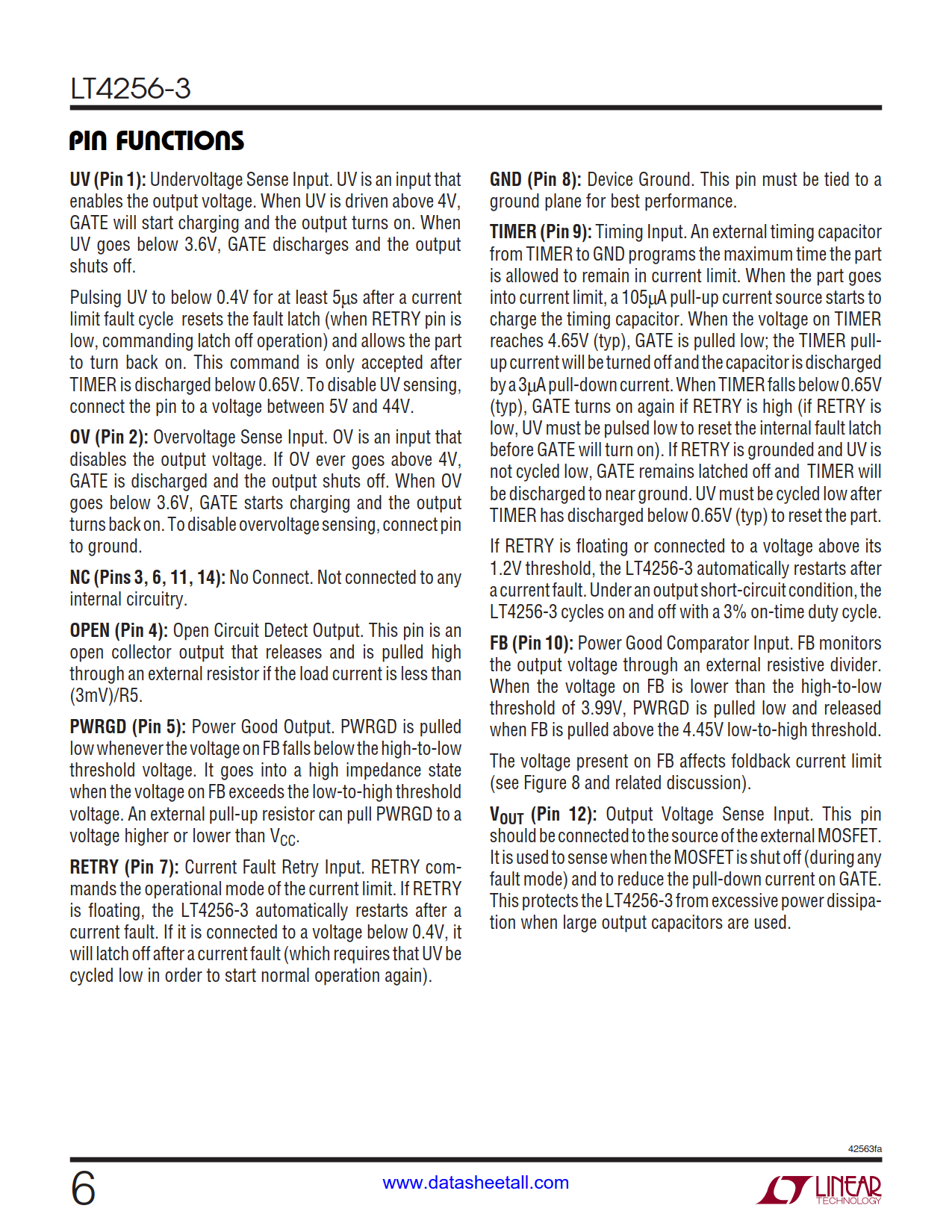

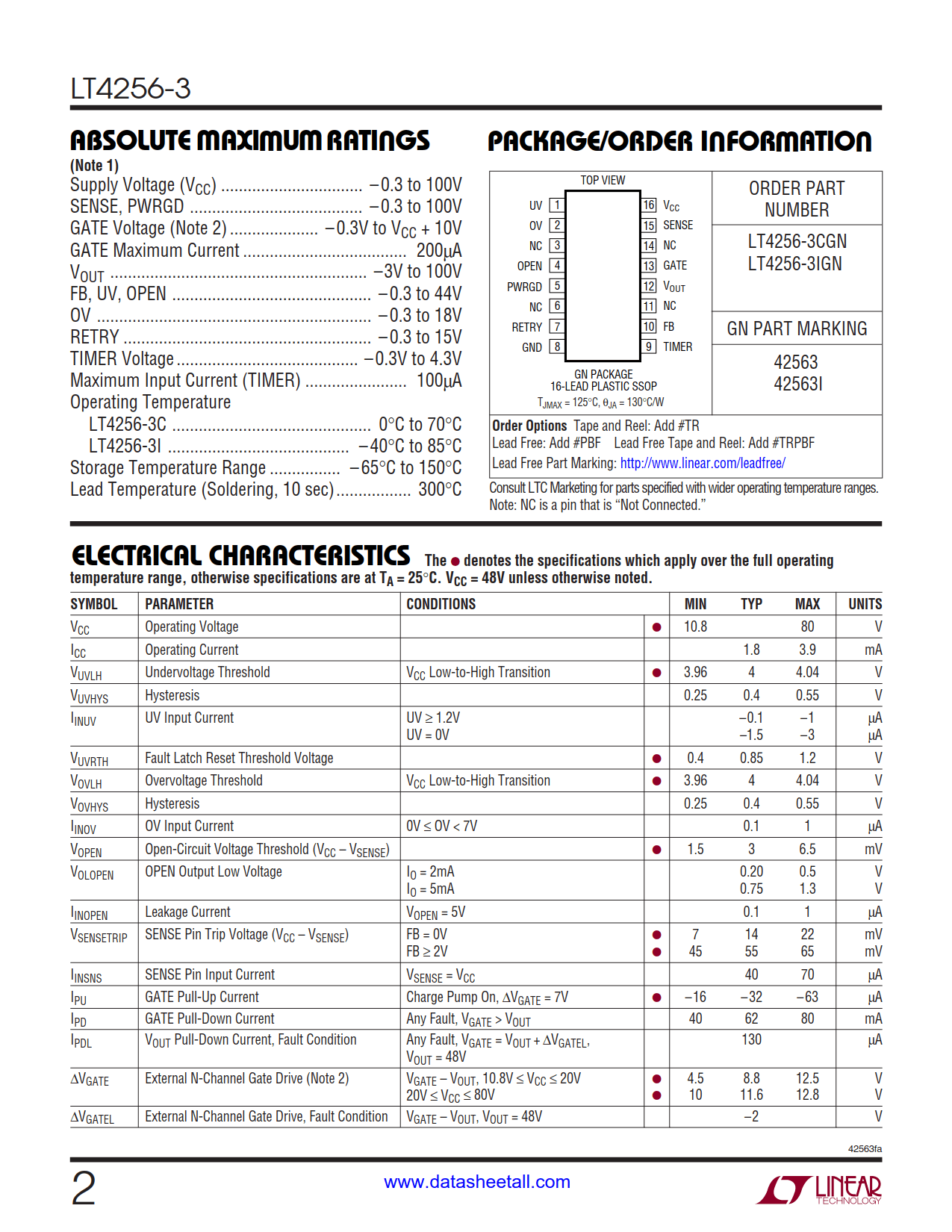

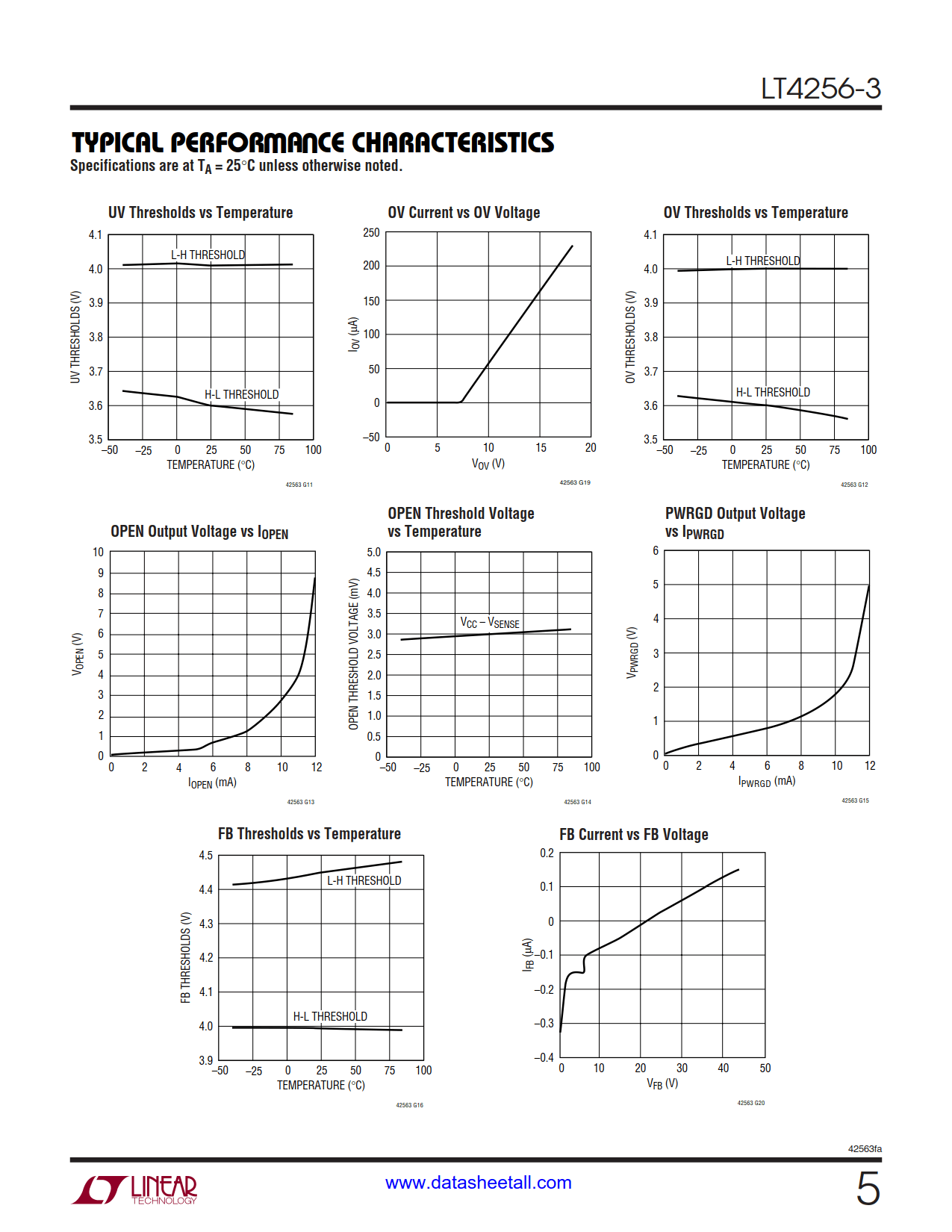

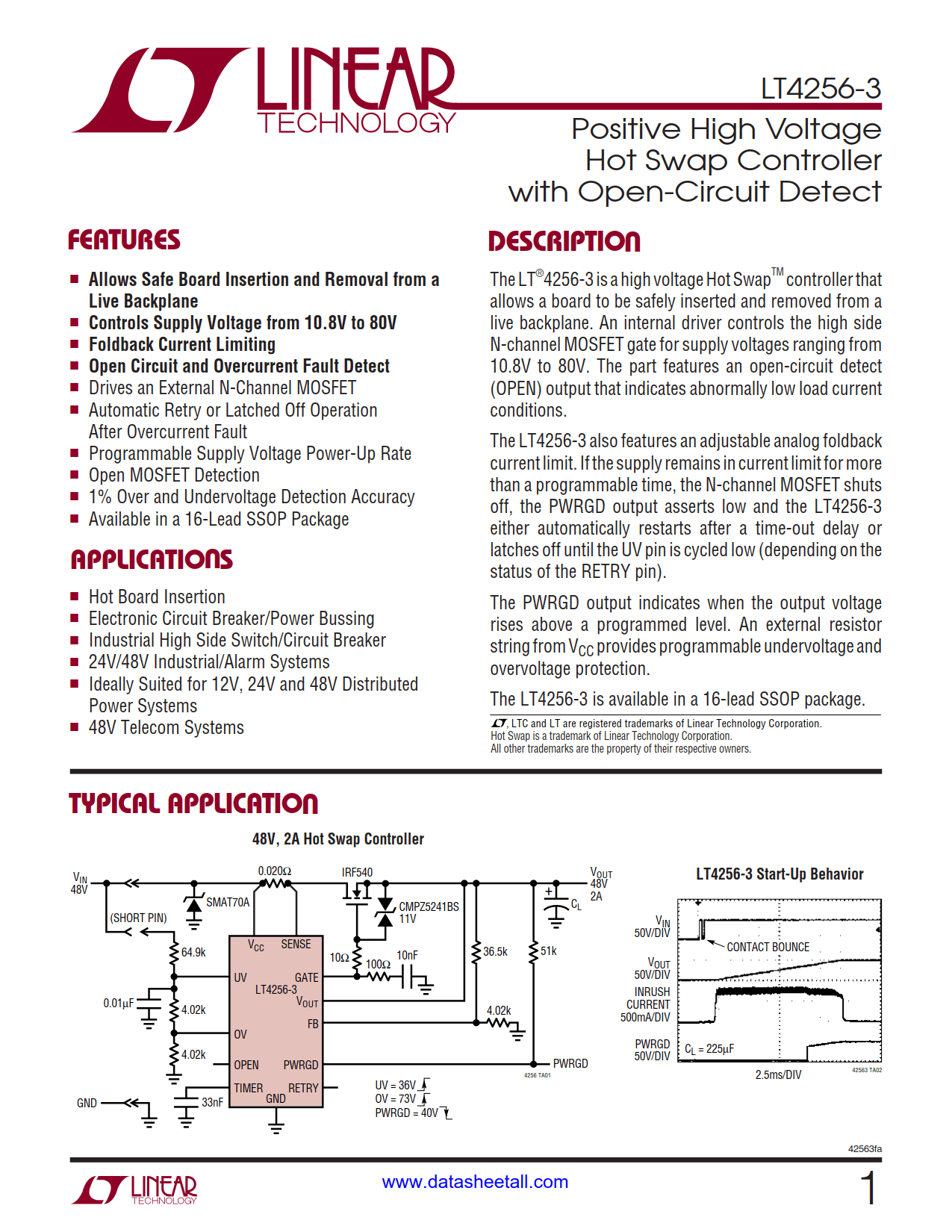

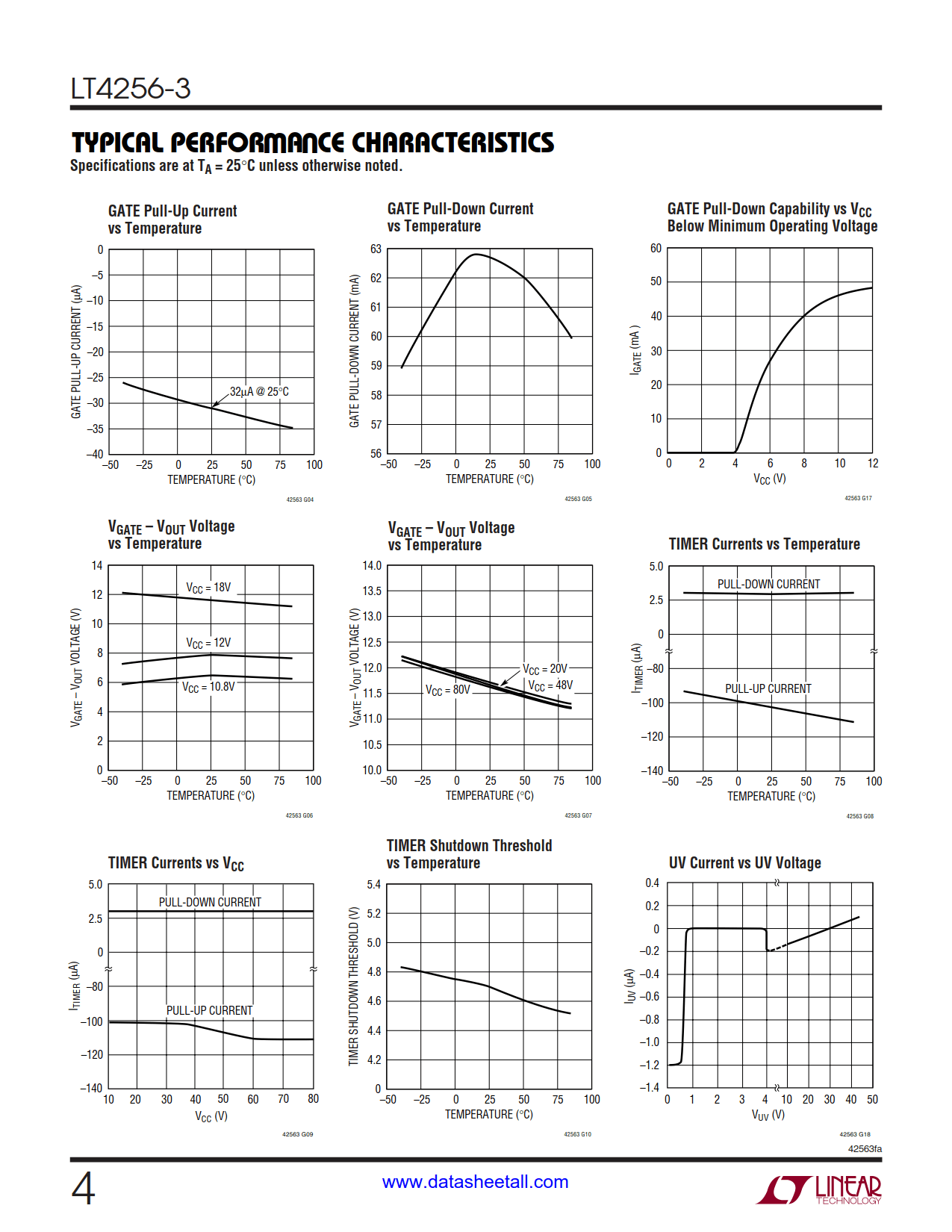

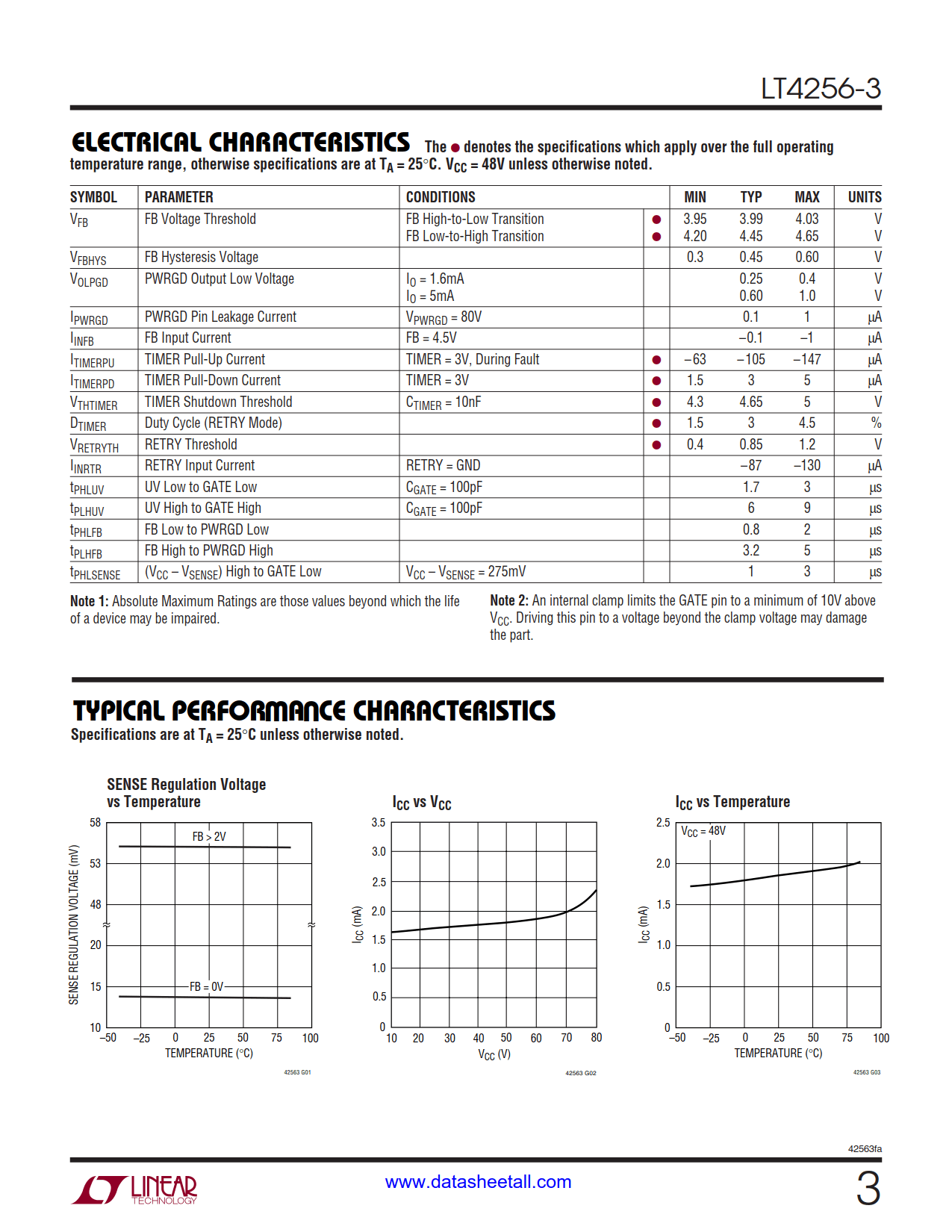

LT4256-3 Datasheet(Picture)

LT4256-3 Features

  • Allows Safe Board Insertion and Removal from a Live Backplane
  • Controls Supply Voltage from 10.8V to 80V
  • Foldback Current Limiting
  • Open Circuit and Overcurrent Fault Detect
  • Drives an External N-Channel MOSFET
  • Automatic Retry or Latched Off Operation After Overcurrent Fault
  • Programmable Supply Voltage Power-Up Rate
  • Open MOSFET Detection
  • 1% Over and Undervoltage Detection Accuracy
  • Available in a 16-Lead SSOP Package

LT4256-3 Applications

  • Hot Board Insertion
  • Electronic Circuit Breaker/Power Bussing
  • Industrial High Side Switch/Circuit Breaker
  • 24V/48V Industrial/Alarm Systems
  • Ideally Suited for 12V, 24V and 48V Distributed Power Systems
  • 48V Telecom Systems

LT4256-3 Description

The LT4256-3 is a high voltage Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. An internal driver controls the high side N-channel MOSFET gate for supply voltages ranging from 10.8V to 80V. The part features an open-circuit detect (OPEN) output that indicates abnormally low load current conditions.

The LT4256-3 also features an adjustable analog foldback current limit. If the supply remains in current limit for more than a programmable time, the N-channel MOSFET shuts off, the PWRGD output asserts low and the LT4256-3 either automatically restarts after a time-out delay or latches off until the UV pin is cycled low (depending on the status of the RETRY pin).

The PWRGD output indicates when the output voltage rises above a programmed level. An external resistor string from VCC provides programmable undervoltage and overvoltage protection.

The LT4256-3 is available in a 16-lead SSOP package.
