Part No.: | LT4256-2 |
Page: | 16 Pages |
Size: | 169 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2023-12-06 15:58:50 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |

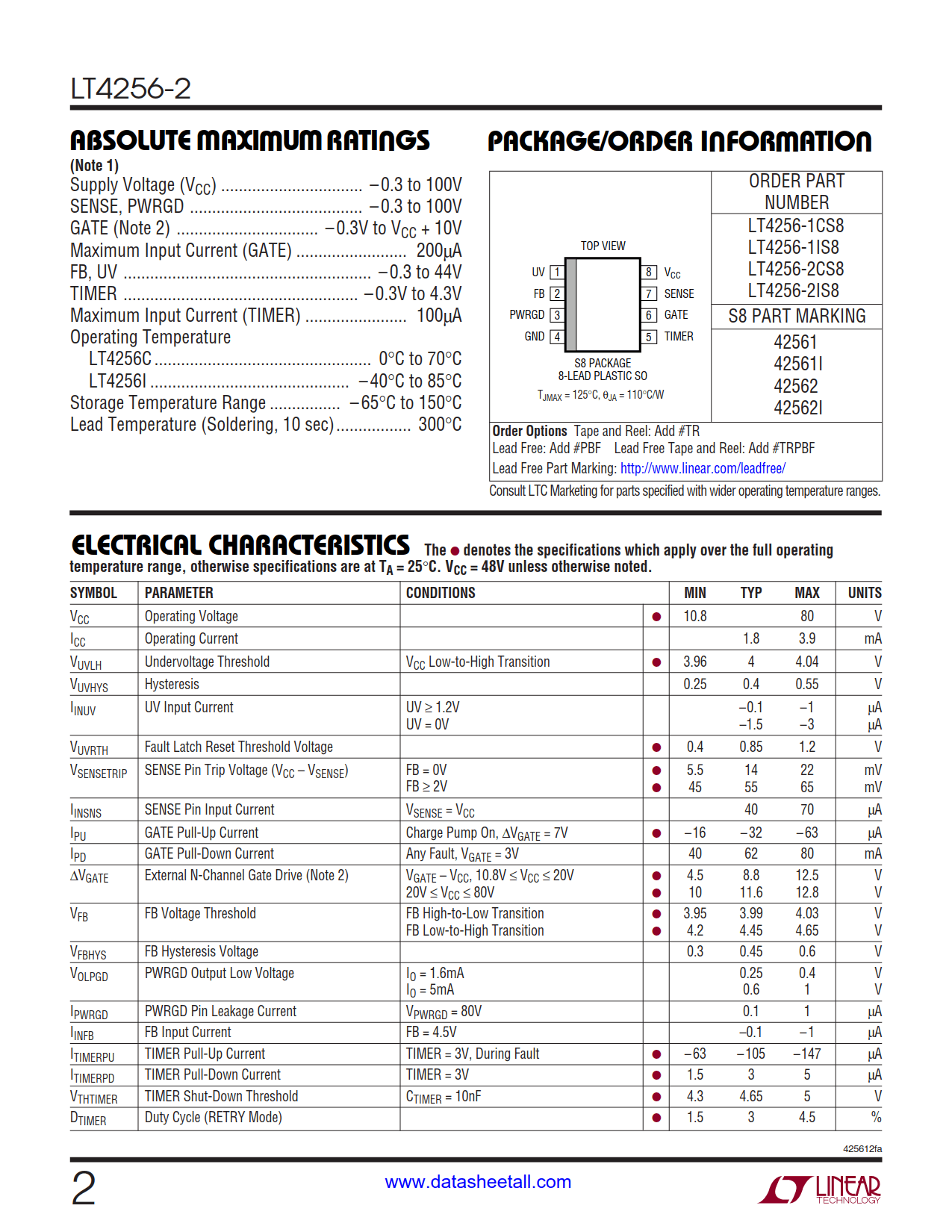

LT4256-2CS8#PBF | Tube | 100 | 42562 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT4256-2CS8#TRPBF | Reel | 2500 | 42562 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT4256-2CS8#TRMPBF | Reel | 500 | 42562 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT4256-2IS8#PBF | Tube | 100 | 42562I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
LT4256-2IS8#TRPBF | Reel | 2500 | 42562I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
LT4256-2IS8#TRMPBF | Reel | 500 | 42562I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |

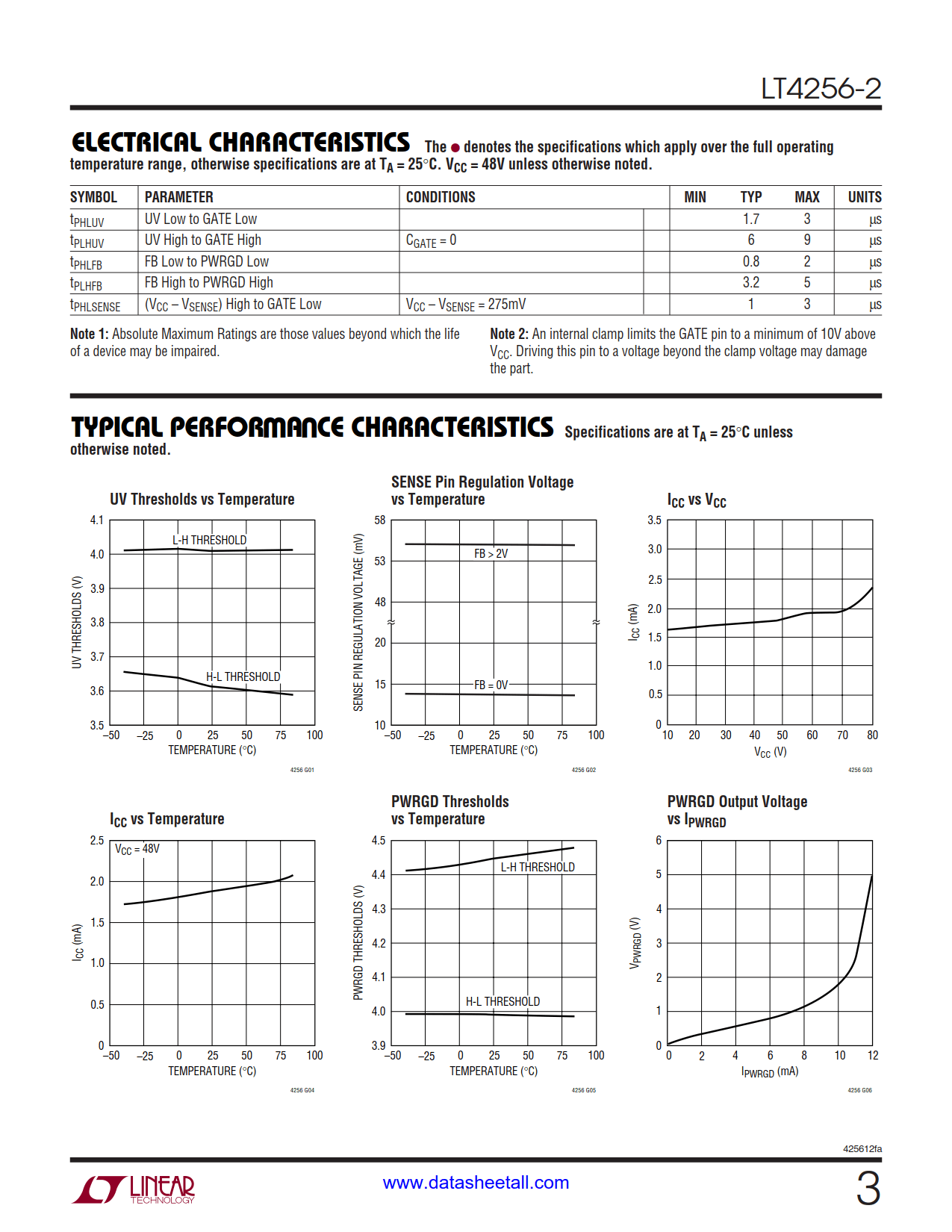

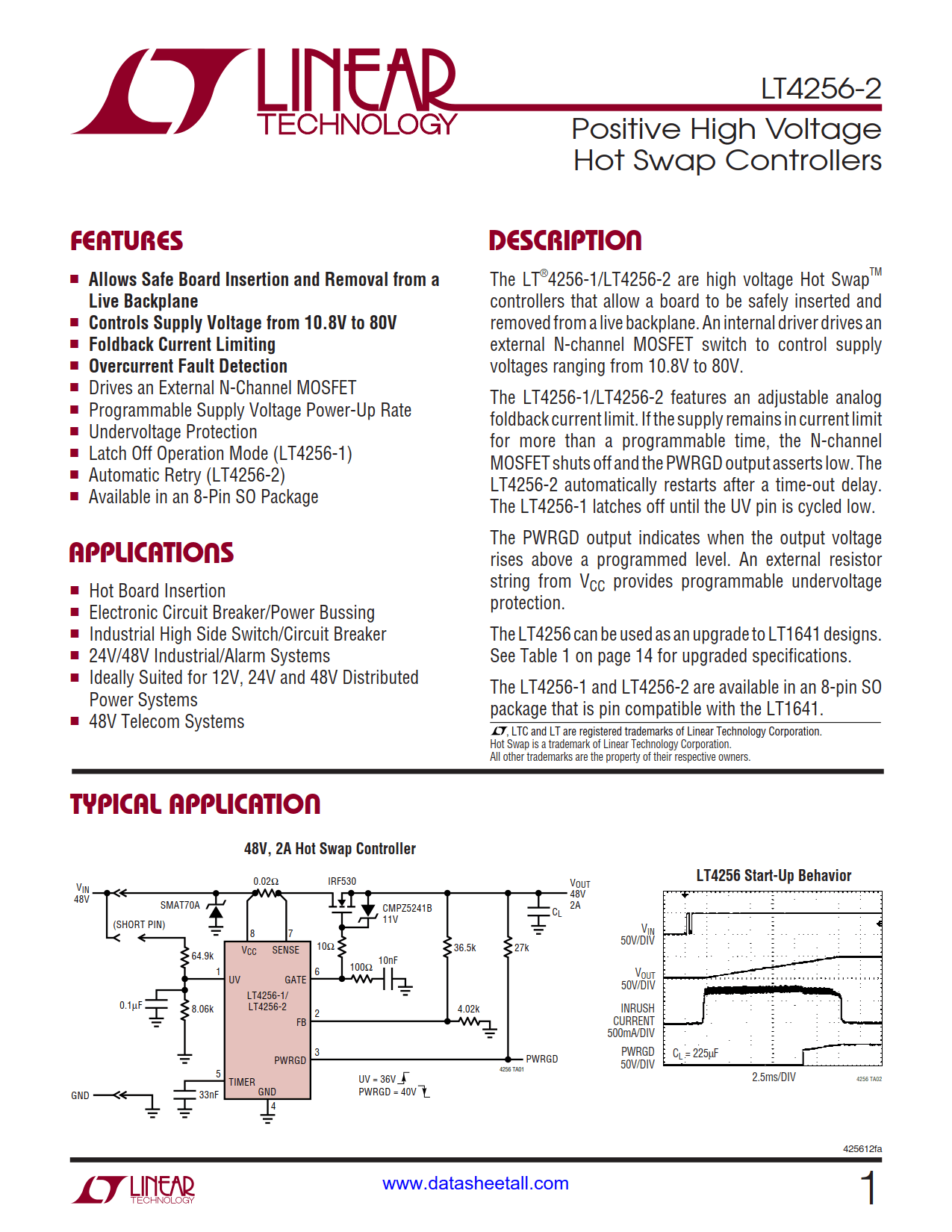

The LT4256-2 are high voltage Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. An internal driver drives an external N-channel MOSFET switch to control supply voltages ranging from 10.8V to 80V.

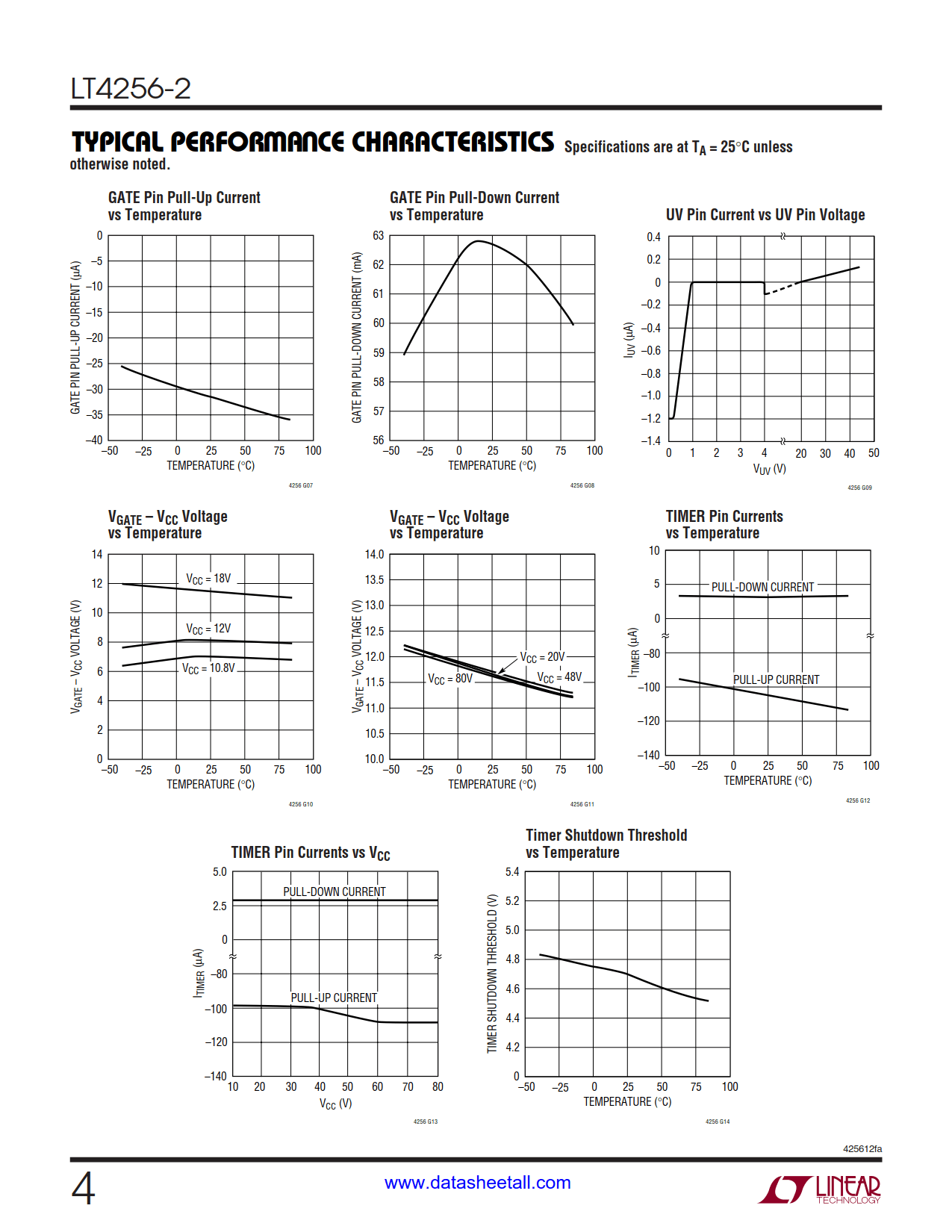

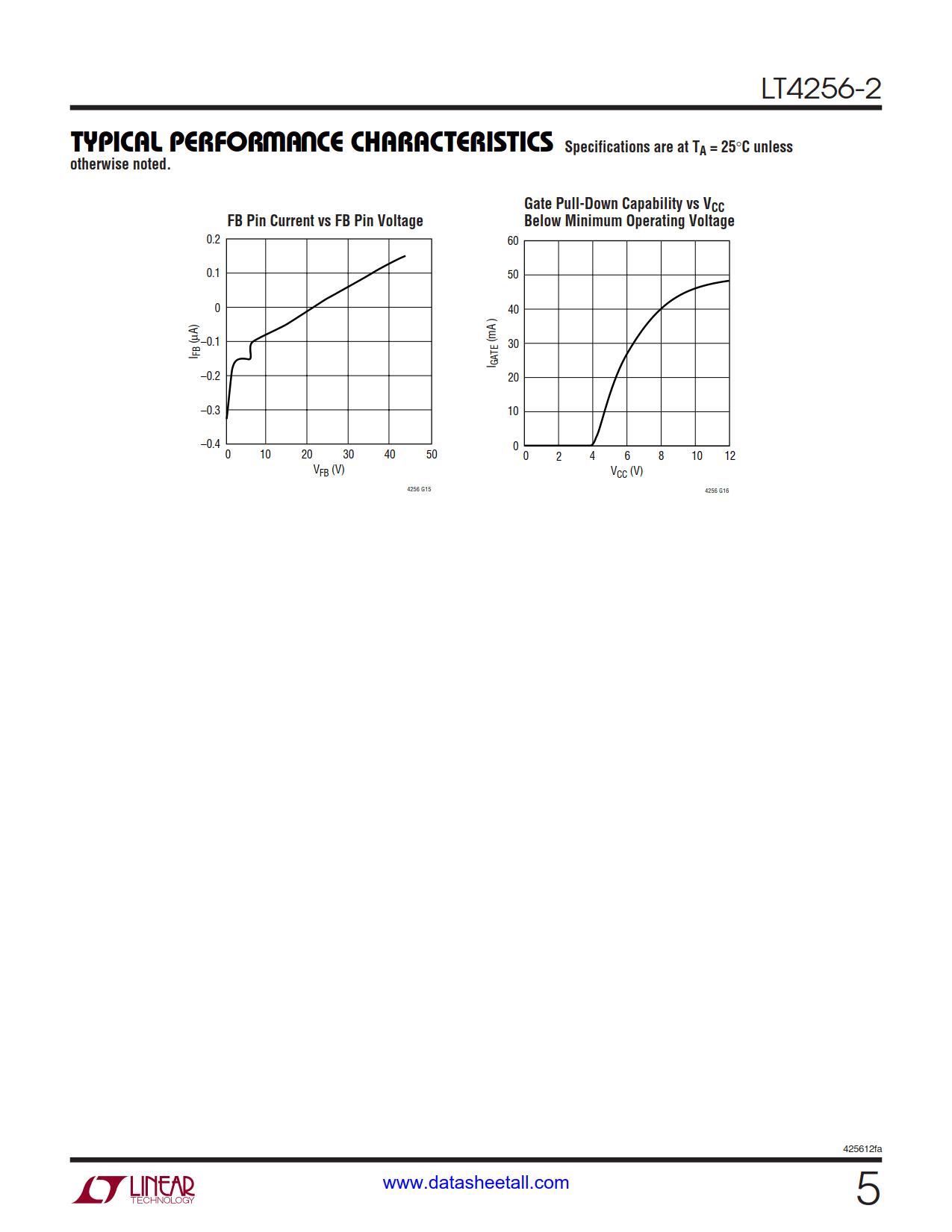

The LT4256-2 features an adjustable analog foldback current limit. If the supply remains in current limit for more than a programmable time, the N-channel MOSFET shuts off and the PWRGD output asserts low. The LT4256-2 automatically restarts after a time-out delay.

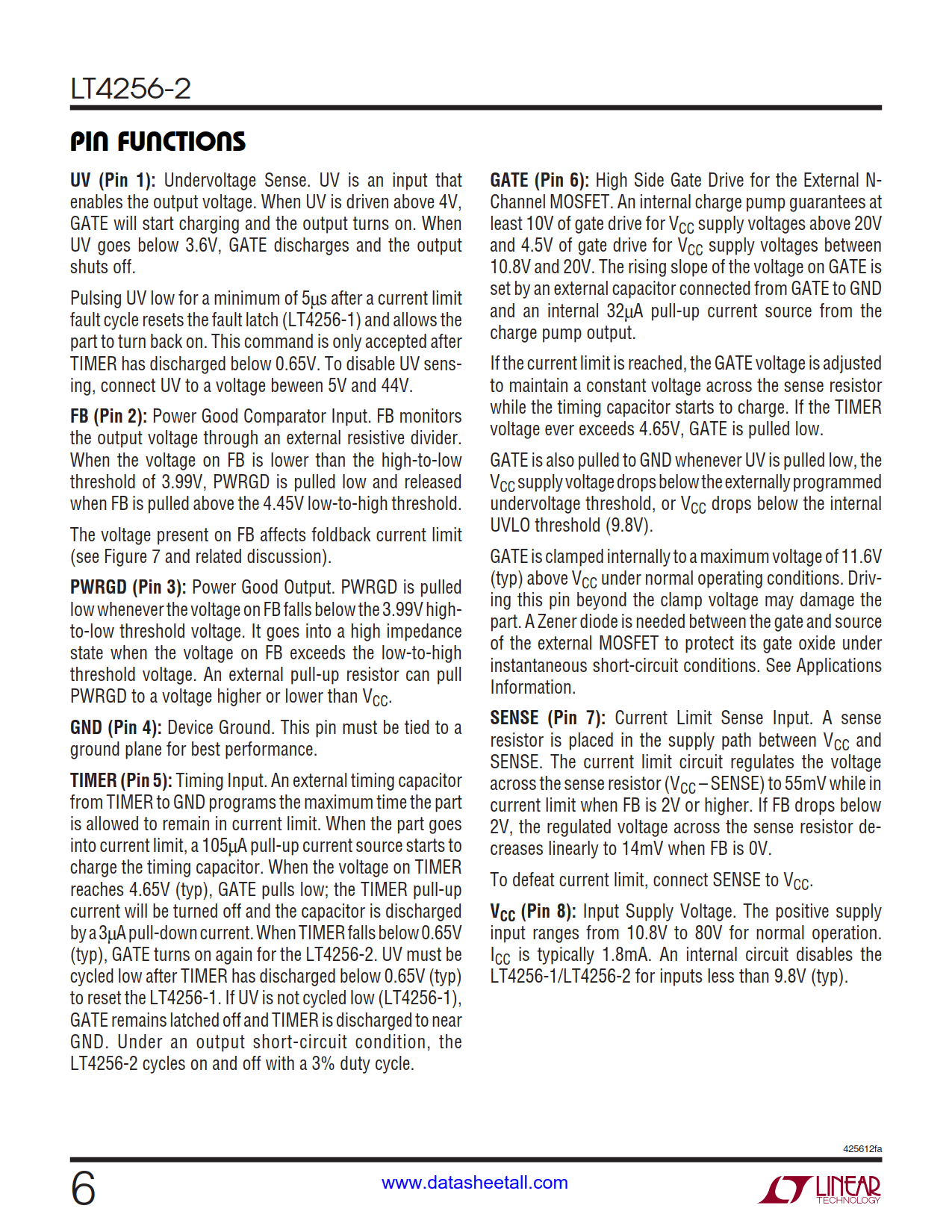

The PWRGD output indicates when the output voltage rises above a programmed level. An external resistor string from VCC provides programmable undervoltage protection.
The LT4256 can be used as an upgrade to LT1641 designs.
The LT4256-2 are available in an 8-pin SO package that is pin compatible with the LT1641.
