| Part No.： | LT4250L |
| Page： | 14 Pages |
| Size： | 224 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-11-24 15:58:24 |
| DataSheet： | Download |

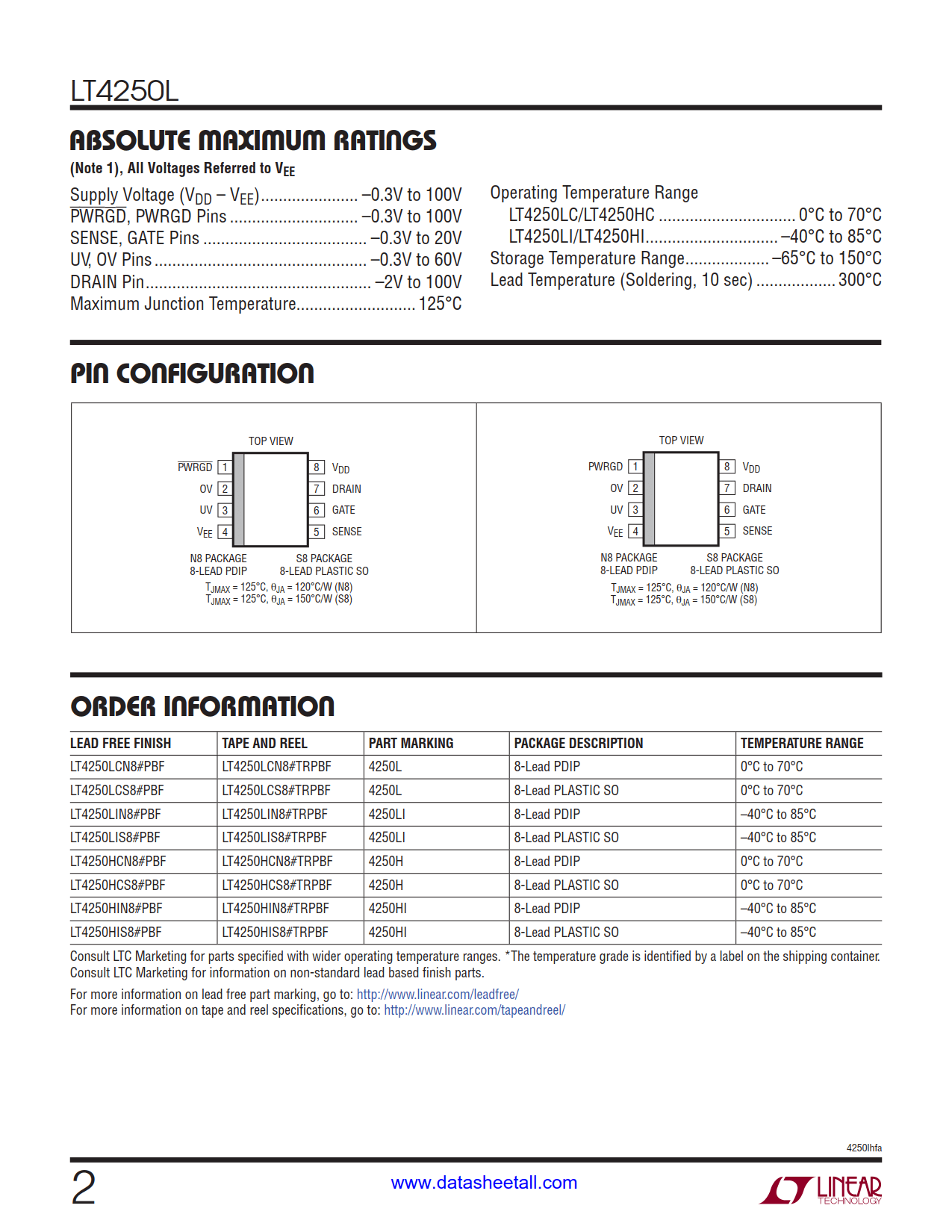

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT4250LCN8#PBF | Tube | 50 | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT4250LCN8#TRPBF | Reel | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LT4250LCN8#TRMPBF | Reel | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LT4250LCS8#PBF | Tube | 100 | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PLASTIC SO | |
| LT4250LCS8#TRPBF | Reel | 2500 | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PLASTIC SO | |
| LT4250LCS8#TRMPBF | Reel | 500 | 4250L | 1 | 8 | 0°C ~ 70°C | 8-Lead PLASTIC SO | |
| LT4250LIN8#PBF | Tube | 50 | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT4250LIN8#TRPBF | Reel | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | ||
| LT4250LIN8#TRMPBF | Reel | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | ||
| LT4250LIS8#PBF | Tube | 100 | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PLASTIC SO | |
| LT4250LIS8#TRPBF | Reel | 2500 | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PLASTIC SO | |
| LT4250LIS8#TRMPBF | Reel | 500 | 4250LI | 1 | 8 | -40°C ~ 85°C | 8-Lead PLASTIC SO |

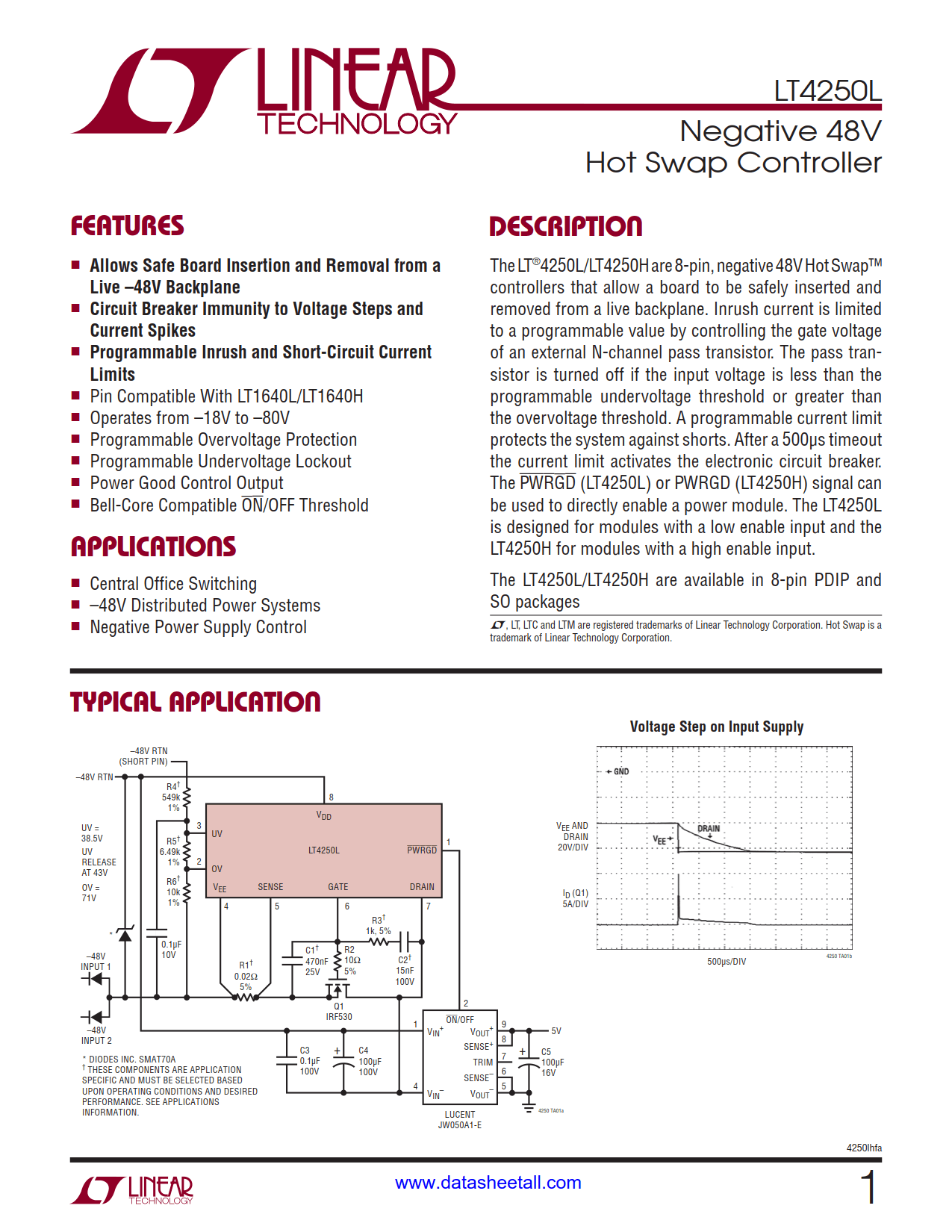

The LT4250L are 8-pin, negative 48V Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the programmable undervoltage threshold or greater than the overvoltage threshold. A programmable current limit protects the system against shorts. After a 500μs timeout the current limit activates the electronic circuit breaker. The PWRGD (LT4250L) signal can be used to directly enable a power module. The LT4250L is designed for modules with a low enable input.
The LT4250L are available in 8-pin PDIP and SO packages
