Negative 48V Hot Swap Controller
Part No.: LT4250H
Page: 14 Pages
Size: 224 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-11-24 16:10:29
DataSheet: Download

LT4250H Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT4250HCN8#PBF Tube 50 4250H 1 8 0°C ~ 70°C 8-Lead PDIP
LT4250HCN8#TRPBF Reel   4250H 1 8 0°C ~ 70°C 8-Lead PDIP
LT4250HCN8#TRMPBF Reel   4250H 1 8 0°C ~ 70°C 8-Lead PDIP
LT4250HCS8#PBF Tube 100 4250H 1 8 0°C ~ 70°C 8-Lead PLASTIC SO
LT4250HCS8#TRPBF Reel 2500 4250H 1 8 0°C ~ 70°C 8-Lead PLASTIC SO
LT4250HCS8#TRMPBF Reel 500 4250H 1 8 0°C ~ 70°C 8-Lead PLASTIC SO
LT4250HIN8#PBF Tube 50 4250HI 1 8 -40°C ~ 85°C 8-Lead PDIP
LT4250HIN8#TRPBF Reel   4250HI 1 8 -40°C ~ 85°C 8-Lead PDIP
LT4250HIN8#TRMPBF Reel   4250HI 1 8 -40°C ~ 85°C 8-Lead PDIP
LT4250HIS8#PBF Tube 100 4250HI 1 8 -40°C ~ 85°C 8-Lead PLASTIC SO
LT4250HIS8#TRPBF Reel 2500 4250HI 1 8 -40°C ~ 85°C 8-Lead PLASTIC SO
LT4250HIS8#TRMPBF Reel 500 4250HI 1 8 -40°C ~ 85°C 8-Lead PLASTIC SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT4250H Datasheet(PDF)

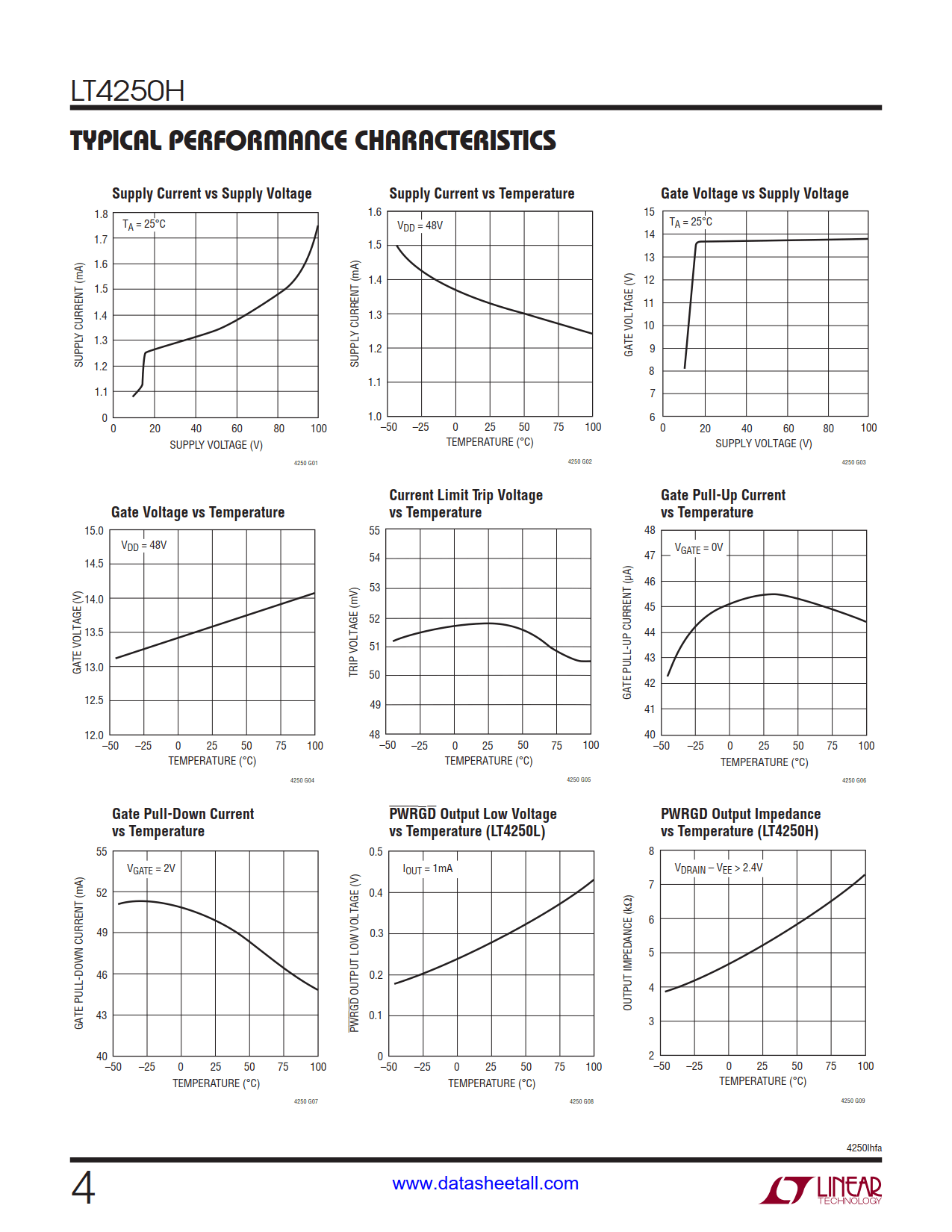

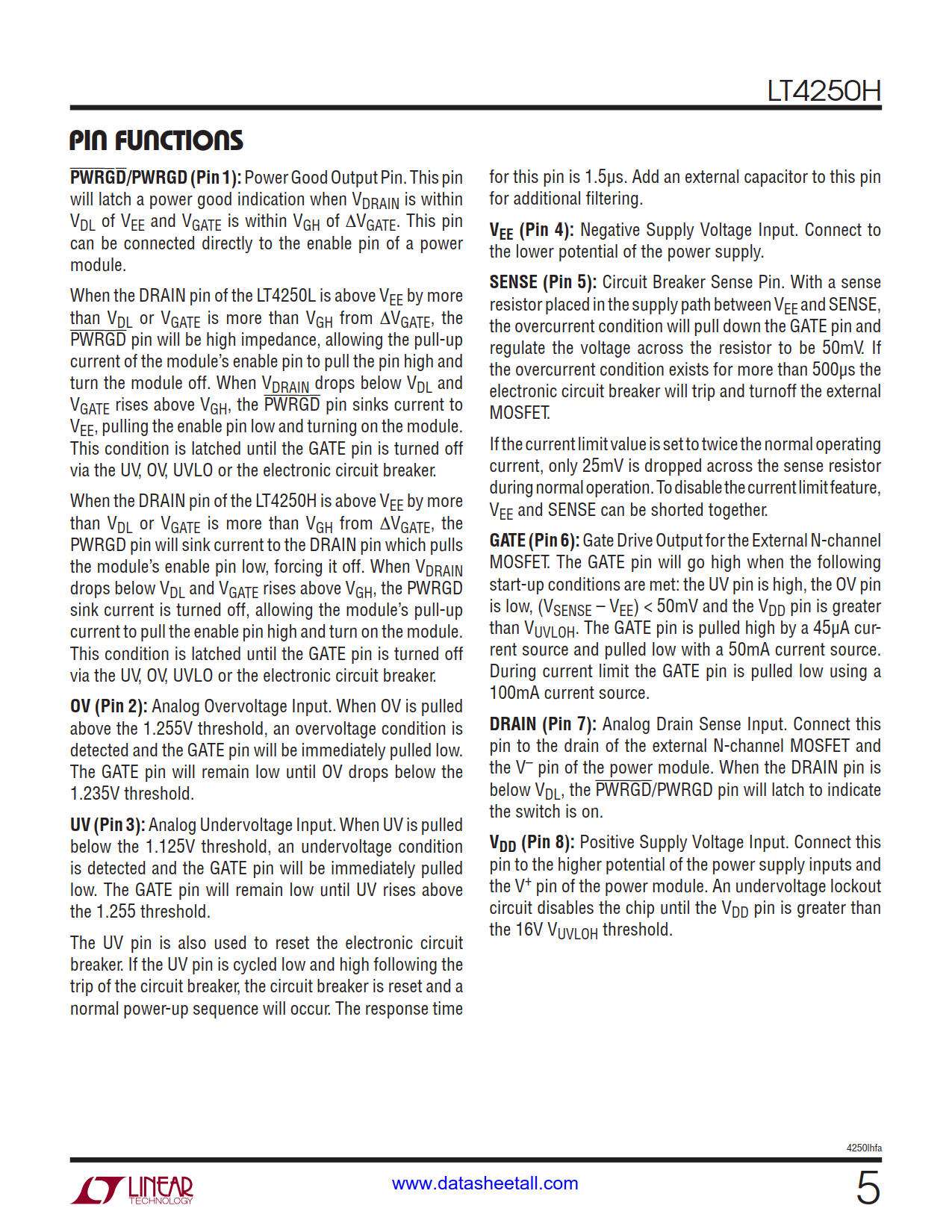

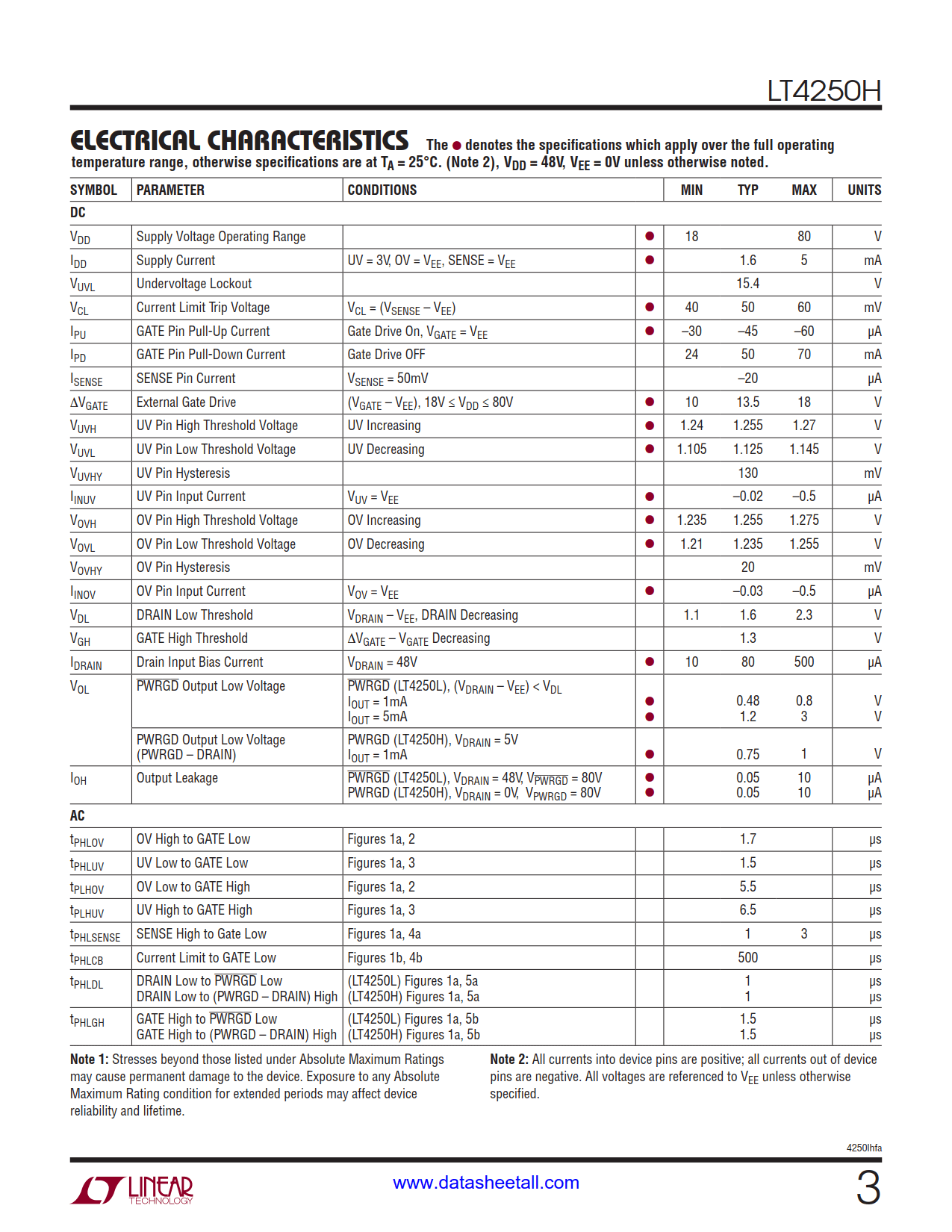

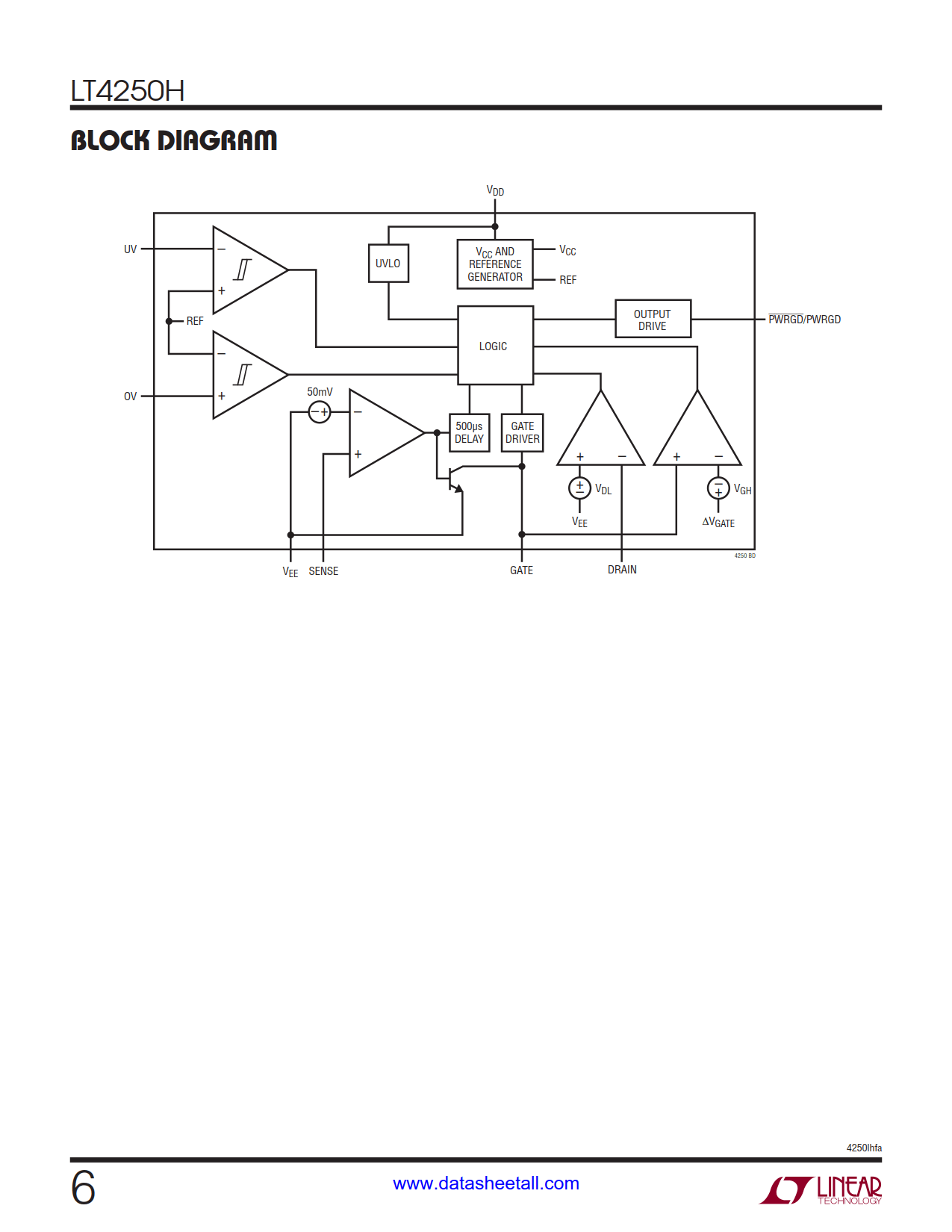

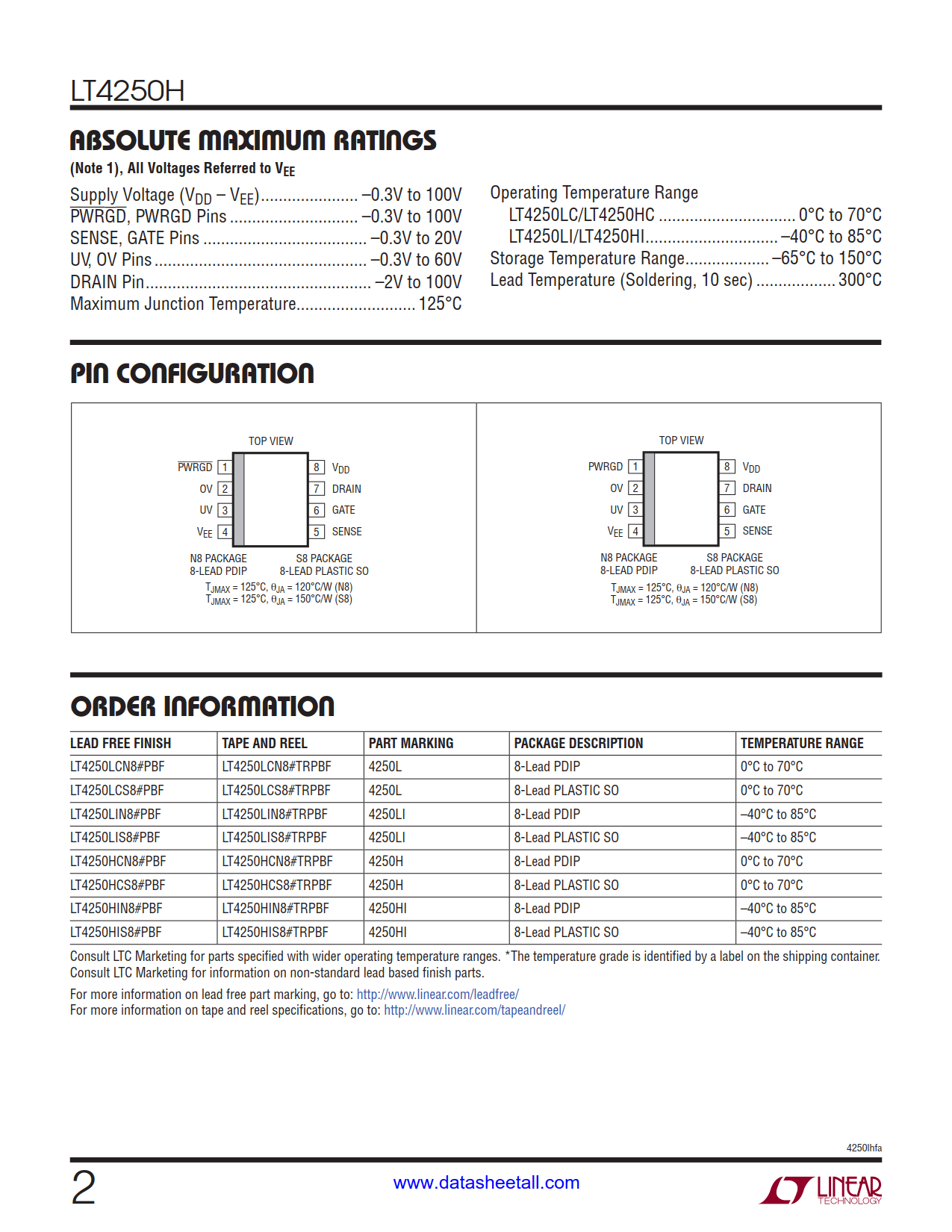

LT4250H Datasheet(Picture)

LT4250H Features

  • Allows Safe Board Insertion and Removal from a Live –48V Backplane
  • Circuit Breaker Immunity to Voltage Steps and Current Spikes
  • Programmable Inrush and Short-Circuit Current Limits
  • Pin Compatible with LT1640L/LT1640H
  • Operates from –18V to –80V
  • Programmable Overvoltage Protection
  • Programmable Undervoltage Lockout
  • Power Good Control Output
  • Bell-Core Compatible ON/OFF Threshold

LT4250H Applications

  • Central Office Switching
  • –48V Distributed Power Systems
  • Negative Power Supply Control

LT4250H Description

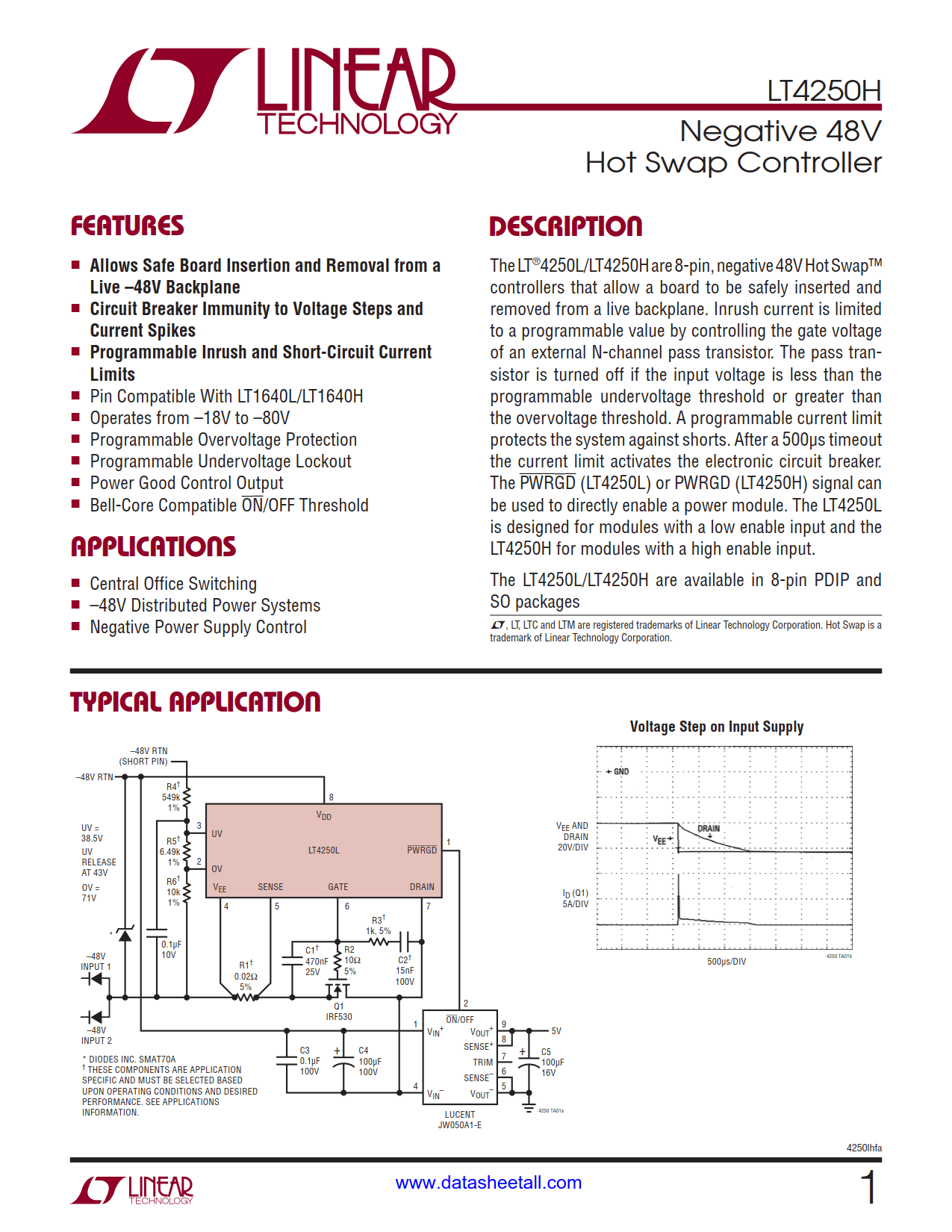

The LT4250H are 8-pin, negative 48V Hot Swap controllers that allow a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the programmable undervoltage threshold or greater than the overvoltage threshold. A programmable current limit protects the system against shorts. After a 500μs timeout the current limit activates the electronic circuit breaker. The PWRGD (LT4250H) signal can be used to directly enable a power module. The LT4250H for modules with a high enable input.

The LT4250H are available in 8-pin PDIP and SO packages
