| Part No.： | LT3845 |
| Page： | 26 Pages |
| Size： | 227 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-15 15:06:17 |
| DataSheet： | Download |

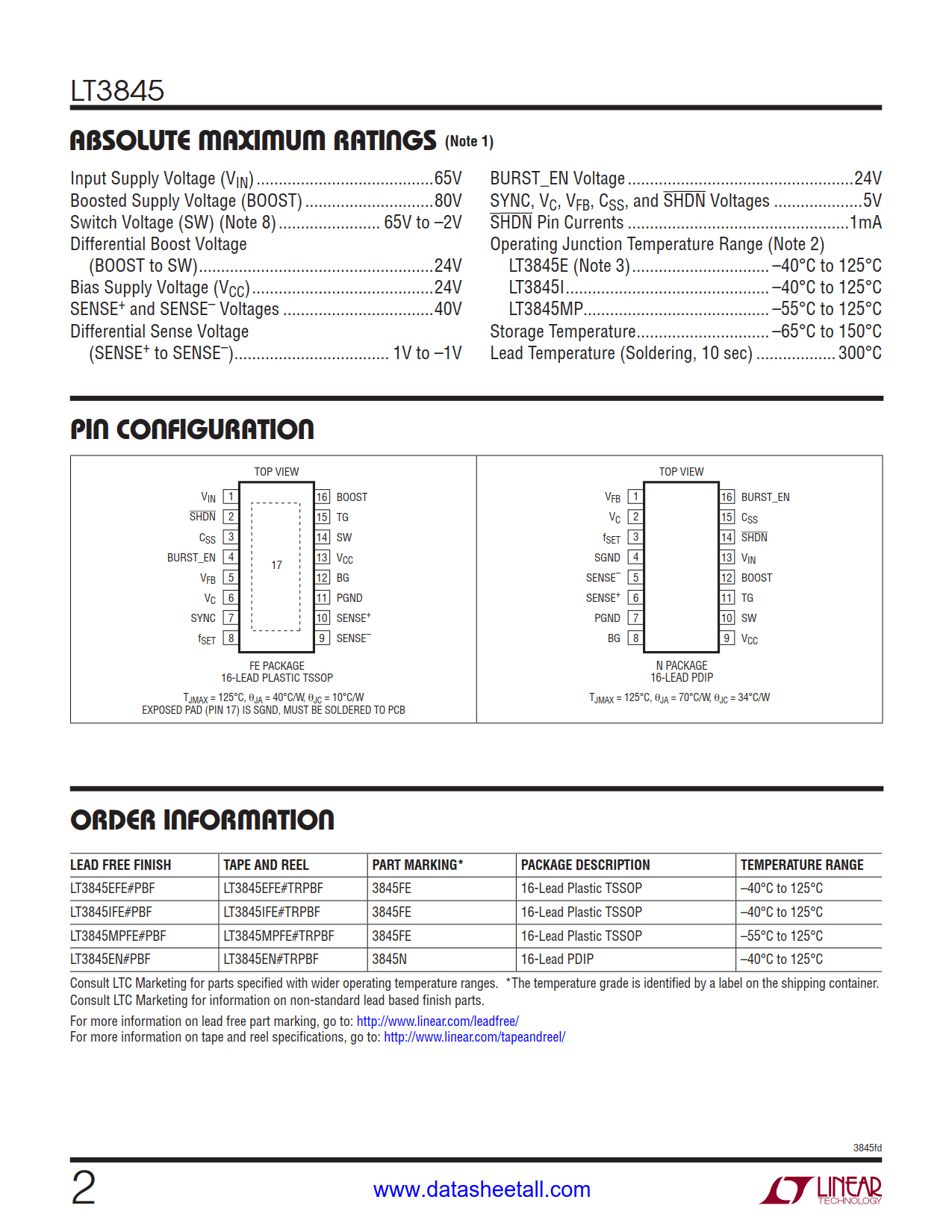

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3845EFE#PBF | Tube | 95 | 3845FE | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845EFE#TRPBF | Reel | 2500 | 3845FE | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845IFE#PBF | Tube | 95 | 3845FE | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845IFE#TRPBF | Reel | 2500 | 3845FE | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845MPFE#PBF | Tube | 95 | 3845FE | 1 | 16 | -55°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845MPFE#TRPBF | Reel | 2500 | 3845FE | 1 | 16 | -55°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3845EN#PBF | Tube | 25 | 3845N | 1 | 16 | -40°C ~ 125°C | 16-Lead PDIP | |
| LT3845MPFE | Tube | 95 | 3845FE | 1 | 16 | -55°C ~ 125°C | 16-Lead Plastic TSSOP |

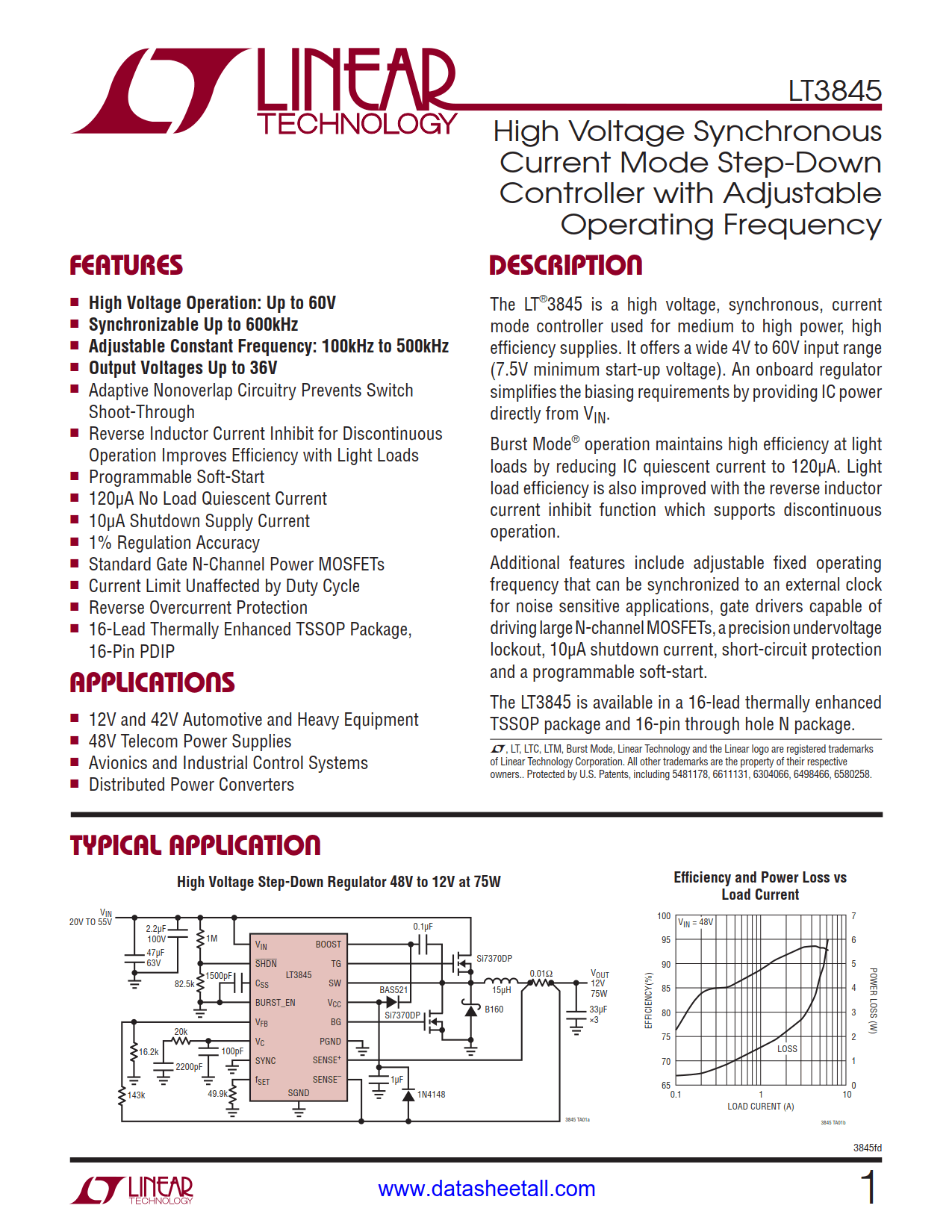

The LT3845 is a high voltage, synchronous, current mode controller used for medium to high power, high efficiency supplies. It offers a wide 4V to 60V input range (7.5V minimum start-up voltage). An on-board regulator simplifies the biasing requirements by providing IC power directly from VIN.
Burst Mode® operation maintains high efficiency at light loads by reducing IC quiescent current to 120μA. Light load efficiency is also improved with the reverse inductor current inhibit function which supports discontinuous operation.
Additional features include adjustable fixed operating frequency that can be synchronized to an external clock for noise sensitive applications, gate drivers capable of driving large N-channel MOSFETs, a precision undervoltage lockout, 10μA shutdown current, short-circuit protection and a programmable soft-start.
The LT3845 is available in a 16-lead thermally enhanced TSSOP package and 16-pin through hole N package.
