Part No.: | LT3761-1 |
Page: | 32 Pages |
Size: | 491 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 3 |
Update Time: | 2023-11-30 11:52:59 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LT3761EMSE-1#PBF | Tube | 37 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
LT3761EMSE-1#TRPBF | Reel | 2500 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
LT3761EMSE-1#TRMPBF | Reel | 500 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
LT3761IMSE-1#PBF | Tube | 37 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
LT3761IMSE-1#TRPBF | Reel | 2500 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
LT3761IMSE-1#TRMPBF | Reel | 500 | 37611 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP |

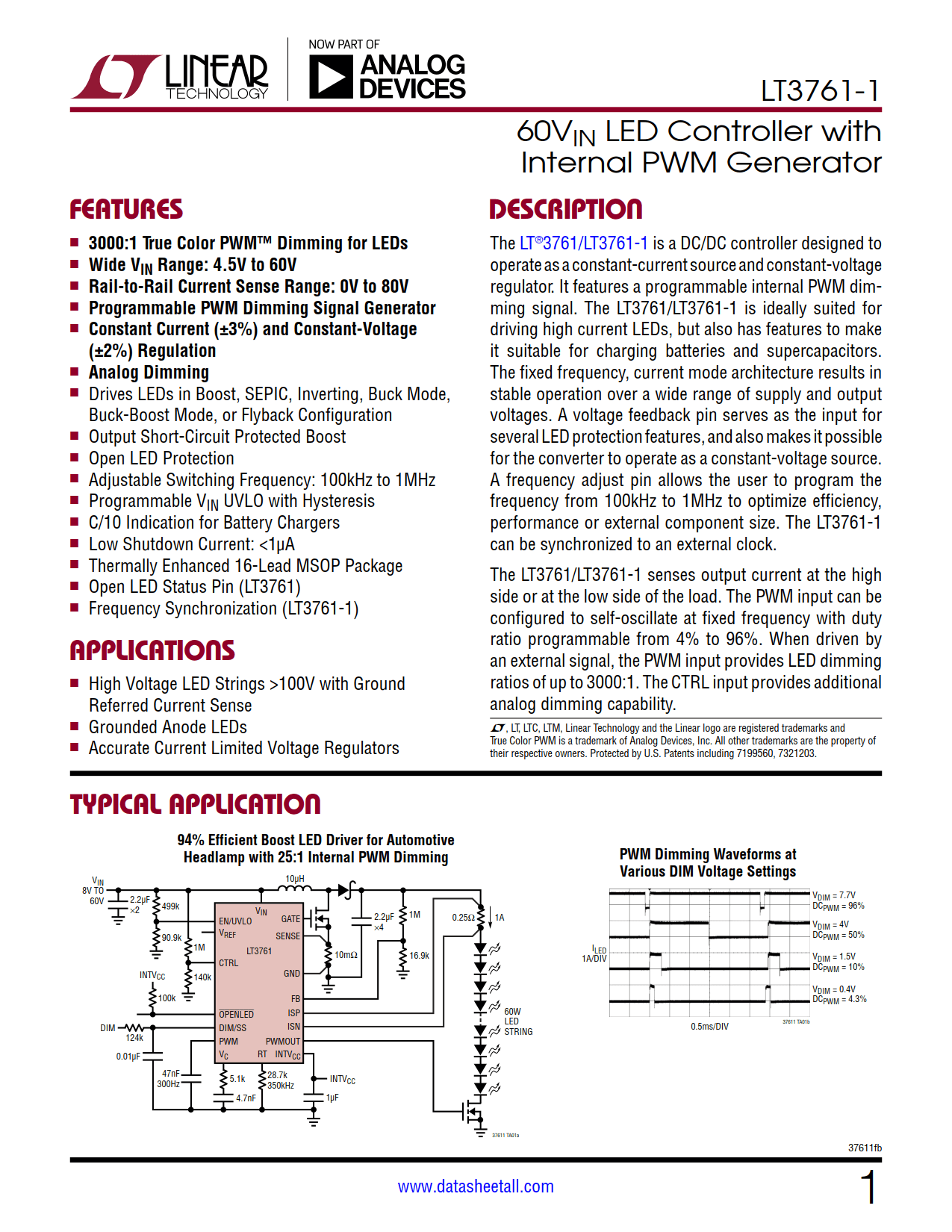

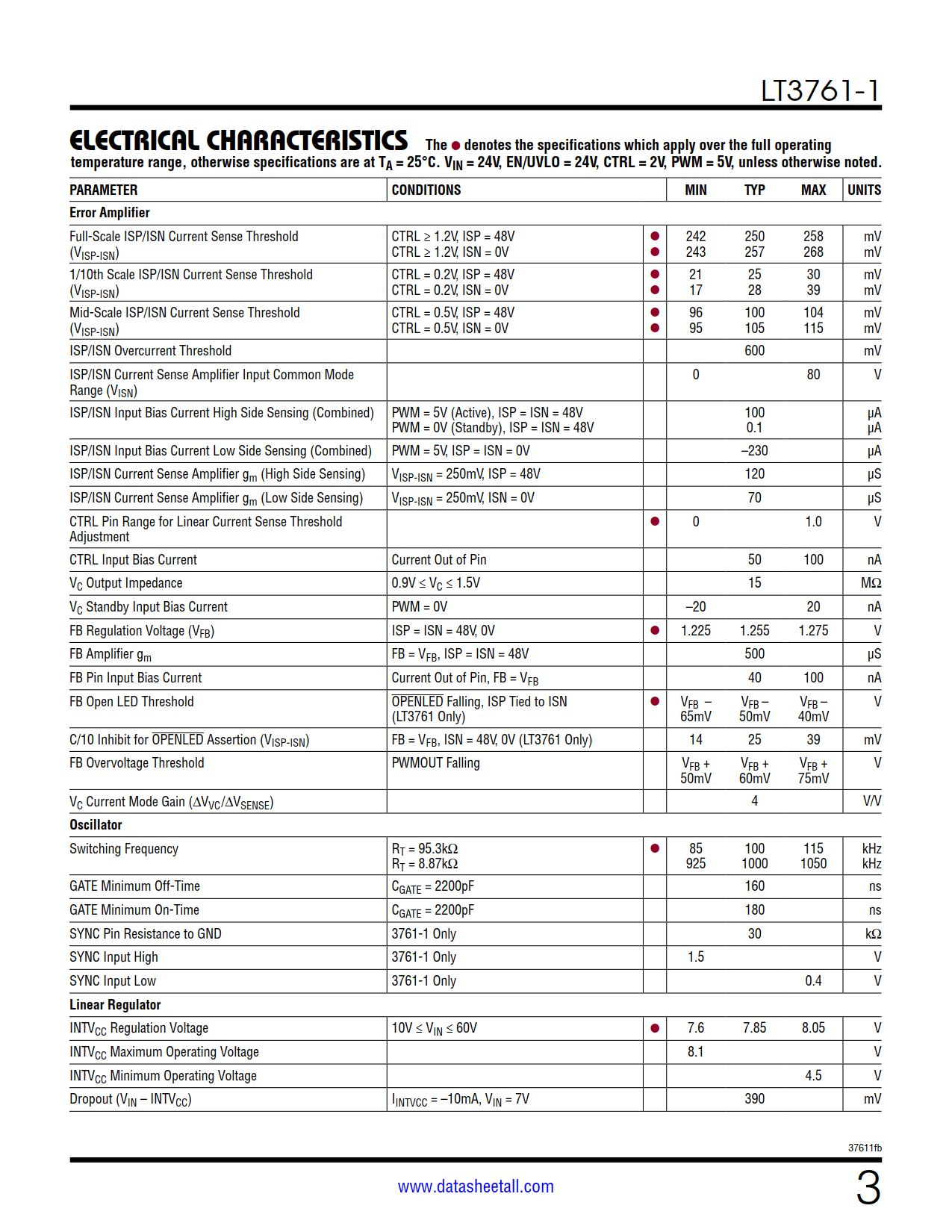

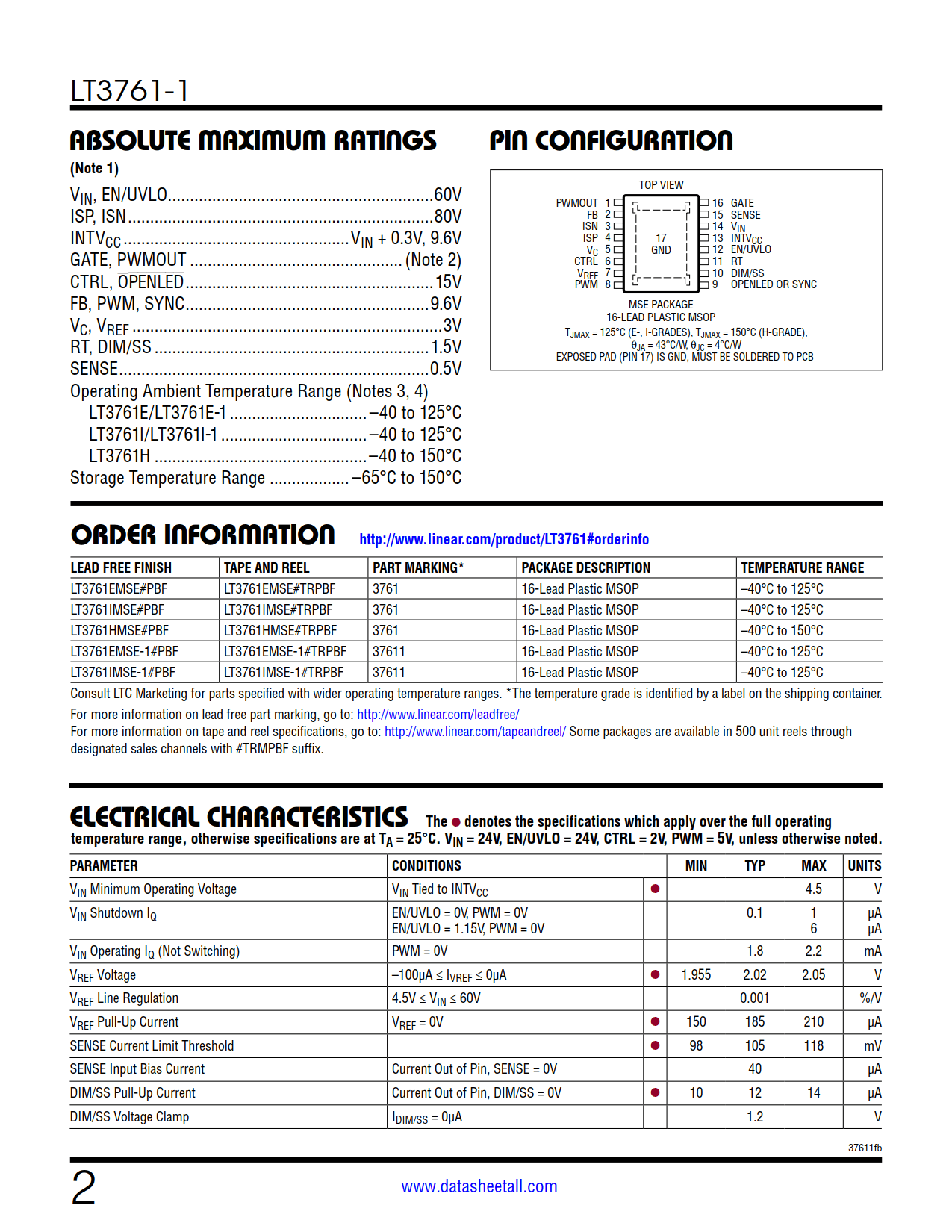

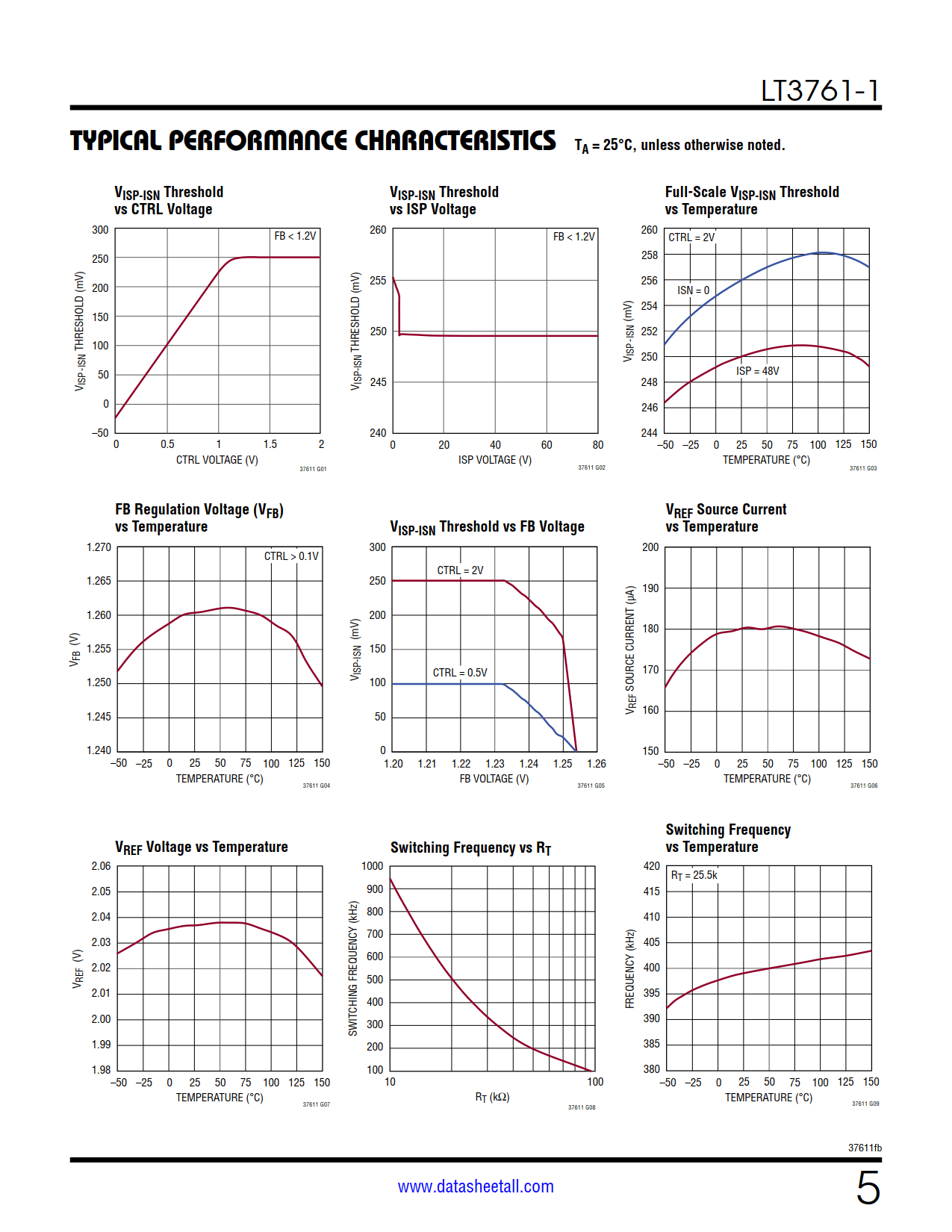

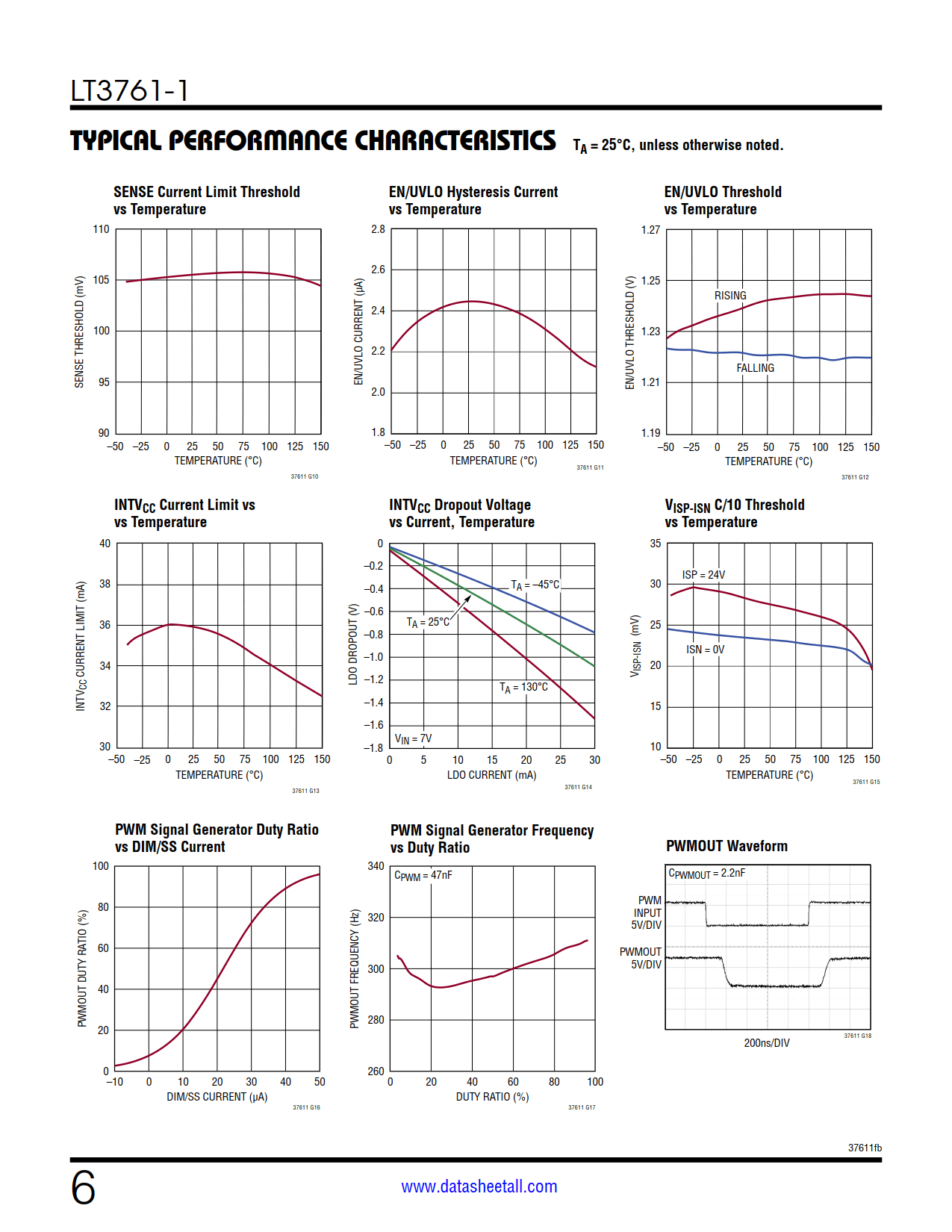

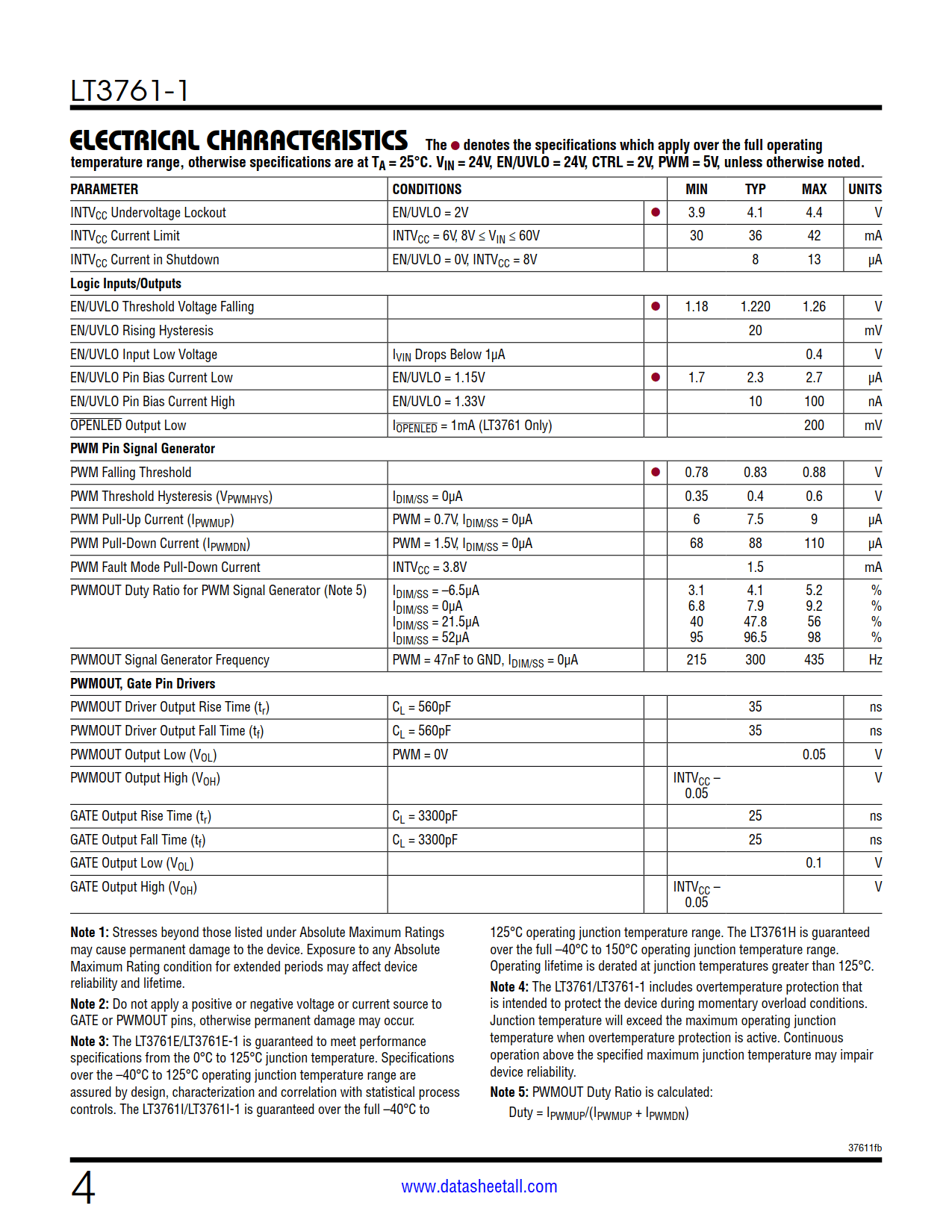

The LT3761-1 is a DC/DC controller designed to operate as a constant-current source and constant-voltage regulator. It features a programmable internal PWM dimming signal. The LT3761-1 is ideally suited for driving high current LEDs, but also has features to make it suitable for charging batteries and supercapacitors. The fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltages. A voltage feedback pin serves as the input for several LED protection features, and also makes it possible for the converter to operate as a constant-voltage source. A frequency adjust pin allows the user to program the frequency from 100kHz to 1MHz to optimize efficiency, performance or external component size. The LT3761-1 can be synchronized to an external clock. The LT3761-1 senses output current at the high side or at the low side of the load. The PWM input can be configured to self-oscillate at fixed frequency with duty ratio programmable from 4% to 96%. When driven by an external signal, the PWM input provides LED dimming ratios of up to 3000:1. The CTRL input provides additional analog dimming capability.
The LT3761-1 senses output current at the high side or at the low side of the load. The PWM input can be configured to self-oscillate at fixed frequency with duty ratio programmable from 4% to 96%. When driven by an external signal, the PWM input provides LED dimming ratios of up to 3000:1. The CTRL input provides additional analog dimming capability.
Part Number | Description |
LT3755 | High Side 40V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3755-1 | High Side 40V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3755-2 | High Side 40V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3756 | High Side 100V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3756-1 | High Side 100V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3756-2 | High Side 100V, 1MHz LED Controller with True Color 3000:1 PWM Dimming |
LT3796 | High Side 100V, 1MHz LED Controller with True Color 3000:1 PWM Dimming, PMOS Disconnect FET Driver, Input Current Limit and Input/Output Current Reporting |
LT3956 | High Side 80V, 3.5A, 1MHz LED Driver with True Color 3,000:1 PWM Dimming |
LT3754 | 60V, 1MHz Boost 16-Channel 40mA LED Driver with True Color 3000:1 PWM Dimming and 2% Current Matching |
LT3518 | 2.3A, 2.5MHz High Current LED Driver with 3000:1 Dimming with PMOS Disconnect FET Driver |
LT3478 | 4.5A, 2MHz High Current LED Driver with 3000:1 Dimming |
LT3478-1 | 4.5A, 2MHz High Current LED Driver with 3000:1 Dimming |
LT3791 | 60V, Synchronous Buck-Boost 700kHz LED Controller |
LT3791-1 | 60V, Synchronous Buck-Boost 700kHz LED Controller |
